Baumatic BHG690SS-ANZ User manual

1 el
BHG690SS-ANZ
BHG695SS-ANZ
BHG790SS-ANZ
Gas Cooktop

2
User Manual for your Baumatic
BHG690SS-ANZ / BHG695SS-ANZ
60 cm 4 Burner Gas Cooktops
BHG790SS-ANZ
70 cm 5 Burner Gas Cooktop
NOTE: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
JW 31/07/12

3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8 – 12
BHG690SS-ANZ 8
BHG695SS-ANZ 9
BHG790SS-ANZ 10
Electricaldetails 11
Gasdetails 12
Gas hob surface layout 12
Using the gas hob 13 - 14
Beforefirstuse 13
Switchingthehobon 13
Automatic ignition with flame failure device 13
Energysavingtips 14
Cleaning 15 - 16
Cleaning the hob top 15
Aftereachuse 15
Cleaning the hob burners 15
Maintaining the cast iron pan stands 16
Installation 17 - 27
Positioning 17
Unpacking the appliance 18
Installing the appliance 18 – 20
Gas connection 20
Ventilationrequirements 21
Gas Safety (Installation and Use) Regulations 22
Gas Adjustment (Conversion to LPG) 23
Minimum flow adjustment for hob gas taps 24
Gastapmaintenance 25
Safetywarnings 26
Electricalconnection 27
Replacing the mains supply cable 27-28
My appliance isn’t working correctly 29
Contactdetails 30

4

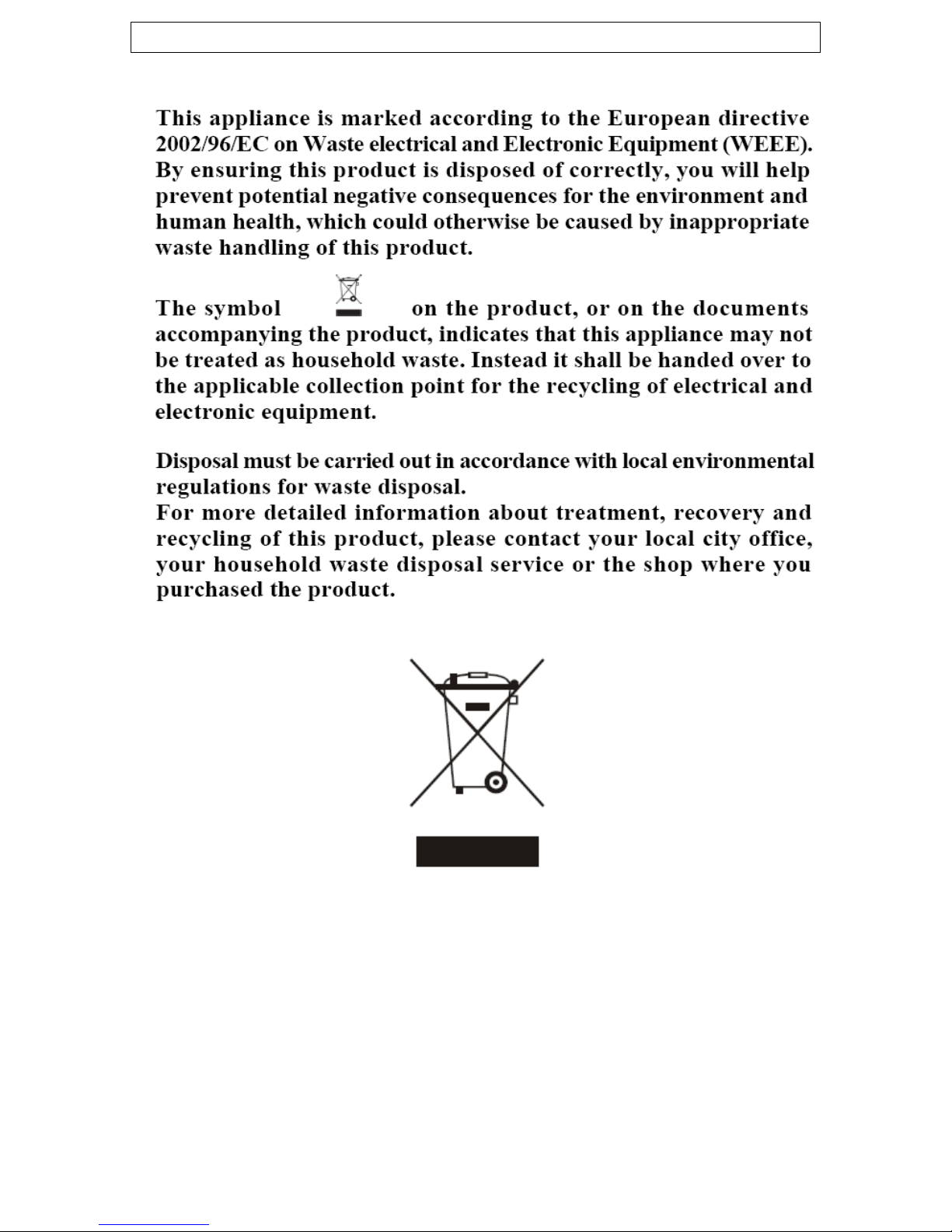

Environmental note
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.

5
Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Retailer where you
purchased your unit from.
General Information
oThis appliance is designed for domestic household use and for
the cooking and frying of domestic foodstuffs.
oIMPORTANT: The adjacent furniture and all materials used in
the installation must be able to withstand a minimum
temperature of 85°C above the ambient temperature of the
room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, will be the liability of
the owner.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in the Conditions Of Guarantee. The foregoing does not affect
your statutory rights.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYou should not use this appliance to store items on or as a work
surface.
oNo modifications to the appliance are permitted by Baumatic Ltd.
oYou should not store or place flammable or highly flammable
liquids/materials on top of or near the appliance. Items made
from aluminium, plastic or plastic film should also be kept away
from the appliance, as they may fuse to the surface.
oRepairs may only be carried out by authorised service
agents.

6
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time. During and after use, all
surfaces will be hot.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
oOlder children should only be allowed to utilise the appliance
when supervised.
General Safety
oThe appliance should only be installed and connected by a
suitably qualified person.
oCare should be taken to ensure that the units and work surfaces
that you build the appliance into, meet with the relevant
standards.
During use
oAny film or stickers that are present on the hob surface when it
is delivered should be removed before use.
oCare should be used when utilising the appliance, otherwise
there is a risk of burns being caused.
oYou should not allow the electrical connection cables to come
into contact with the hob surface when it is hot or any hot
cookware.
oIf fat and oil overheats, then it can ignite extremely quickly. For
this reason, when cooking with fat and oil the appliance should
not be left unattended.
oMake sure that all of the cooking zones are switched off after
use.

7
Cleaning
oCleaning of the hob should be carried out on a regular basis.
oIMPORTANT: Before attempting to clean the appliance, it
should be disconnected from the mains and cool.
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oYou should not use a steam jet or any other high pressure
cleaning equipment to clean the appliance.
Installation
This appliance must be correctly installed by a
suitably qualified person, strictly in accordance
with the manufacturer’s instructions. Please see
the specific section of this booklet that refers to
installation.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oBaumatic Ltd. DO NOT recommend that this appliance is
installed on any type of marine vessel.
Declaration of conformity
This appliance complies with the following European Directives:
-2006/95/CE General regulations / Low tension
-2009/142/CE Concerning gas appliances
-1935/2004/CE 90/128/EEC This appliance is suitable to come in
contact with food
-2004/108/CE Electromagnetic compatibility
-Gas products – AS4551
-Low voltage – 73/23
-Safety standards – EN 60335-1, EN30-1-1, AS/NZS 3350-1,3350-2-6
The manufacturer declares that the hob is built using certified
materials and requires the appliance to be installed in accordance with
the standards currently in force. This appliance must be used by a
trained person for domestic purposes only.

8
Specifications
BHG690SS-ANZ

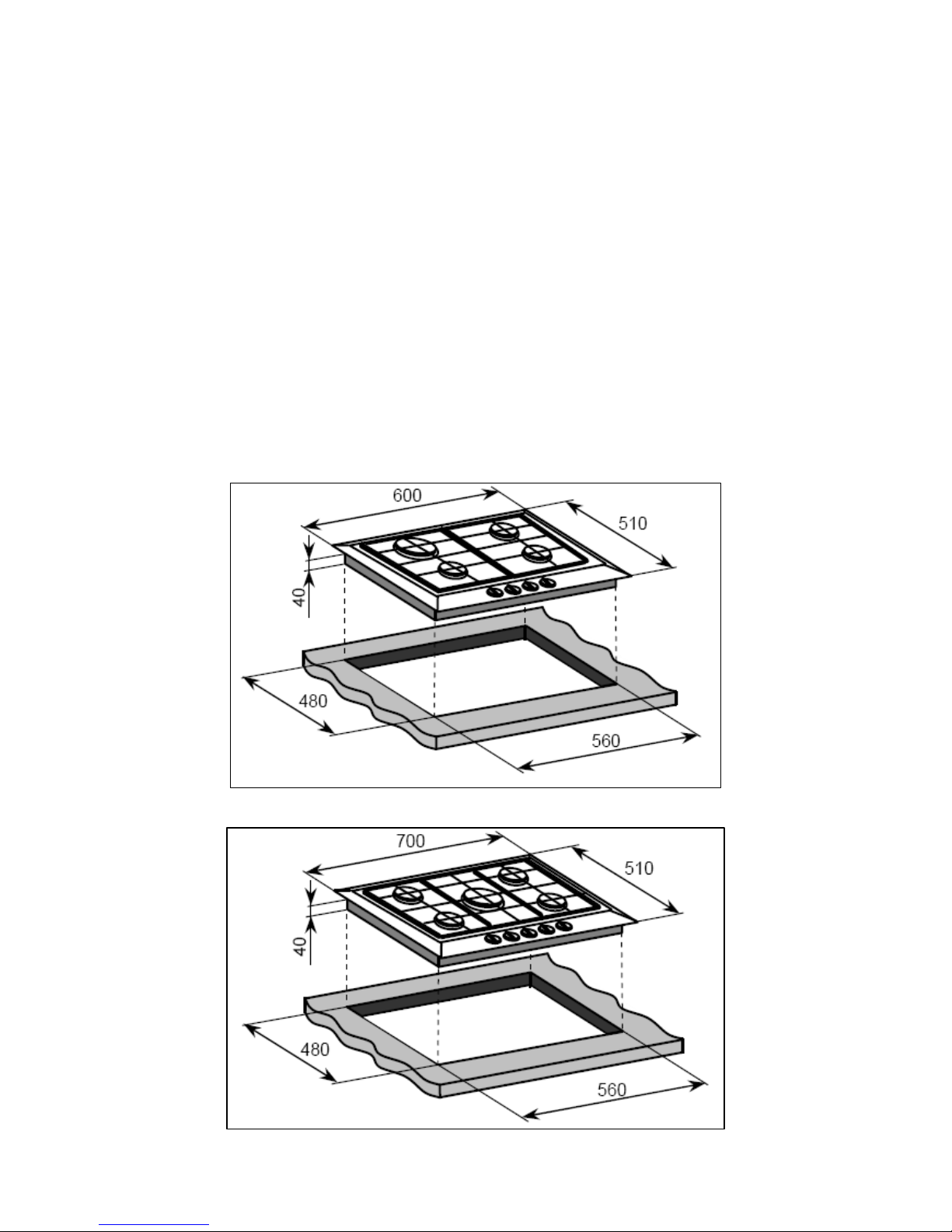

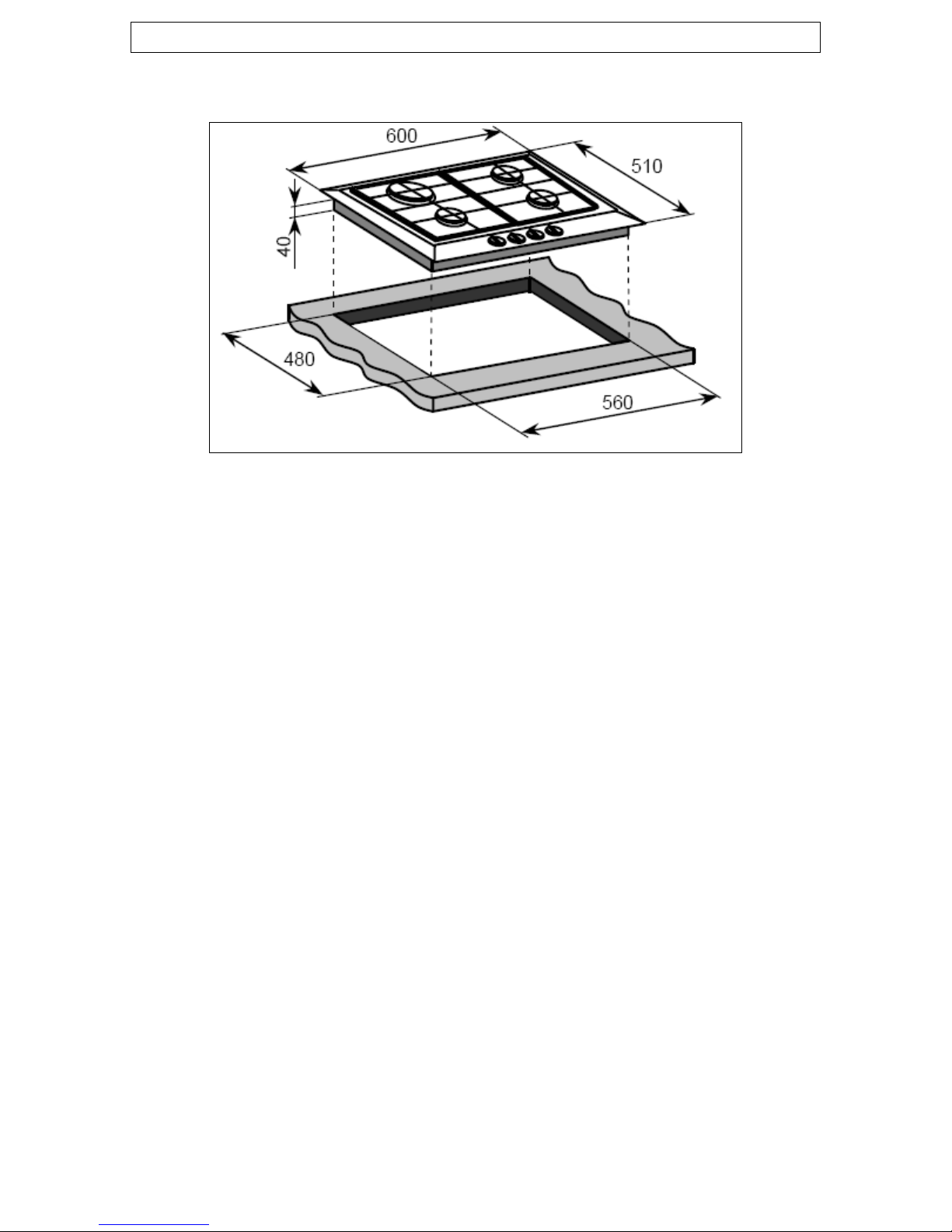

Product dimensions: Aperture dimensions:
Depth: 510 mm Depth: 480 mm
Width: 600 mm Width: 560 mm
Height: 40 mm
Product specifications:
o1 x 10.8 MJ/h rapid burner
o2 x 6.3 MJ/h semi-rapid burners
o1 x 3.6 MJ/h auxiliary burner
oFront control operation
oAutomatic ignition
oHeavy duty cast iron pan stands
oFlame failure safety device on each burner
Standard accessories:
oLPG conversion jets
oRegulator (AUS only)

9
BHG695SS-ANZ
Product dimensions: Aperture dimensions:
Depth: 510 mm Depth: 480 mm
Width: 600 mm Width: 560 mm
Height: 40 mm
Product specifications:
o1 x 12.6 MJ/h triple crown (wok) burner
o2 x 6.3 MJ/h semi-rapid burners
o1 x 3.6 MJ/h auxiliary burner
oFront control operation
oAutomatic ignition
oHeavy duty cast iron pan stands
oFlame failure safety device on each burner
Standard accessories:
oLPG conversion jets
oWok stand
oRegulator (AUS only)

10
BHG790SS-ANZ

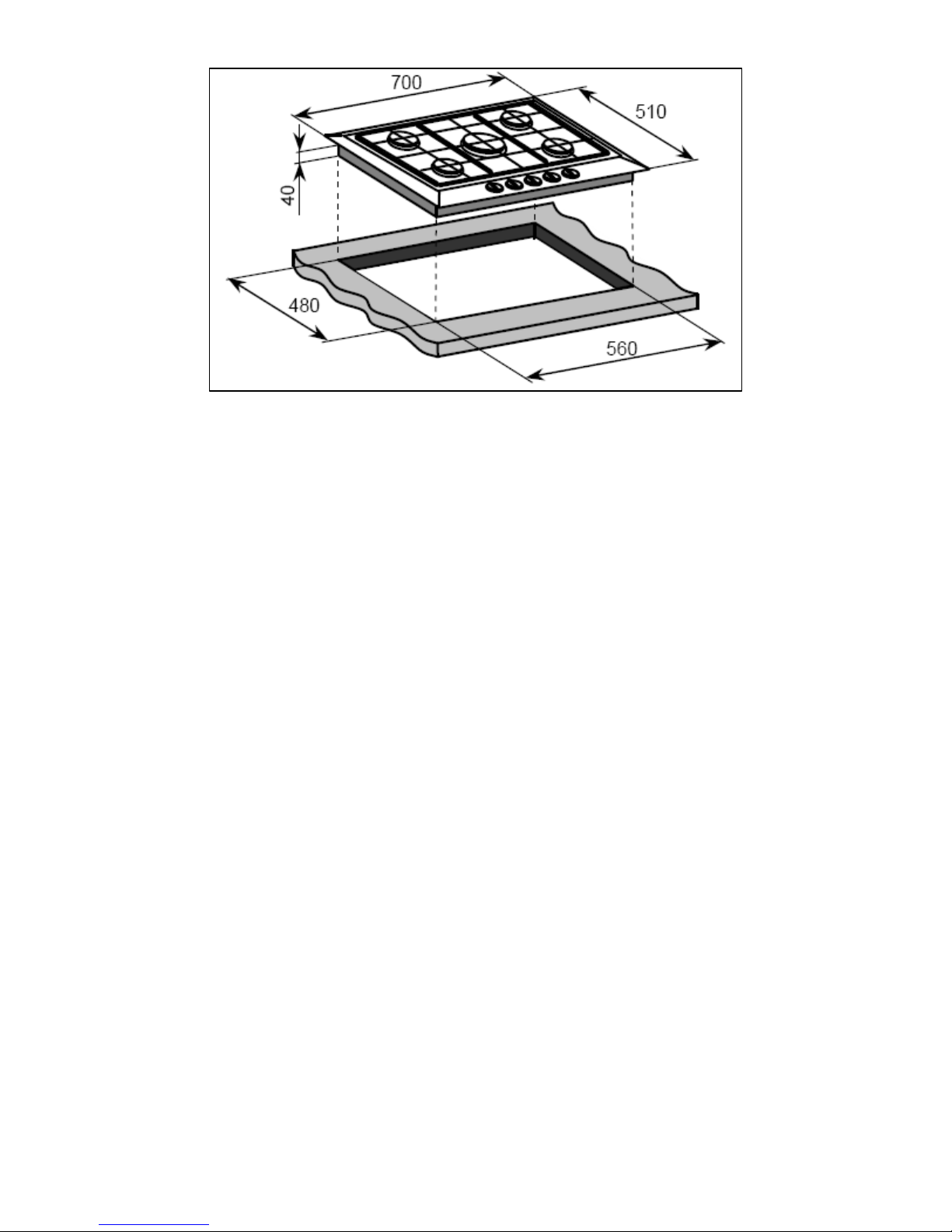

Product dimensions: Aperture dimensions:
Depth: 510 mm Depth: 480 mm
Width: 700 mm Width: 560 mm
Height: 40 mm
Product specifications:
o1 x 12.6 MJ/h triple crown (wok) burner
o1 x 10.8 MJ/h rapid burner
o2 x 6.3 MJ/h semi-rapid burners
o1 x 3.6 MJ/h auxiliary burner
oFront control operation
oAutomatic ignition
oHeavy duty cast iron pan stands
oFlame failure safety device on each burner
Standard accessories:
oLPG conversion jets
oWok stand
oRegulator (AUS only)

11
Electrical details
Rated Voltage: 220 - 240 Vac 50 / 60 Hz
Supply Connection: 3A
Max Rated Inputs: 0.0008 kW
Mains Supply Lead: 3 core x 0.75mm² (Type RR-F <HAR> marked)
Gas details
Connection: Rp ½ (ISO R7)
Type: Natural Gas (1.0 KPa)
ULPG(2.75KPa)
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your hob is located on
the underneath of the appliance. Therefore it is a good idea to record
this information before you install your appliance.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

12
Gas hob surface layout
BHG690SS-ANZ
A = 10.8 MJ/h rapid burner
B= 6.3 MJ/h semi-rapid burners
C= 3.6 MJ/h auxiliary burner
D= Control panel
BHG695SS-ANZ
A = 12.6 MJ/h wok burner
B = 6.3 MJ/h semi-rapid burners
C= 3.6 MJ/h auxiliary burner
D= Control panel
BHG790SS-ANZ
A = 12.6 MJ/h wok burner
B= 10.8 MJ/h rapid burner
C= 6.3 MJ/h semi-rapid burners
D= 3.6 MJ/h auxiliary burner
E= Control panel

13
Using the gas hob
Before first use
IMPORTANT: You should clean the hob surface (see
“Cleaning and maintenance” section).
Switching the hob on
The following symbols will appear on the control panel, next to each
control knob:
= gas off
Large flame: maximum setting
Small flame: minimum setting
oThe minimum setting is at the end of the anti-clockwise rotation of
the control knob.
oAll operation positions must be selected between the maximum and
minimum position.
oNever select a knob position between the maximum and off
position.
oThe symbol on the control panel next to the control
knob will indicate which gas burner it operates.
Automatic ignition with flame failure safety device
The appliance is fitted with a flame failure safety device on each
burner, which is designed to stop the flow of gas to the burner head in
the event of the flame going out.
To ignite a burner:
oPress in the control knob of the burner that you wish to light and
turn it anti-clockwise to the maximum position.
oIf you keep the control knob depressed, the automatic ignition
for the burner will operate.
oYou should hold down the control knob for 20 seconds after the
flame on the burner has lit.

14
oAfter this 20 second interval, turn the control knob to your
required setting between the maximum and minimum setting
symbols.
oTo switch the burner off, turn the control knob fully clockwise to
the gas off position.
oIn case of power failure, the burners can be lit by carefully using
a match.
Energy saving tips

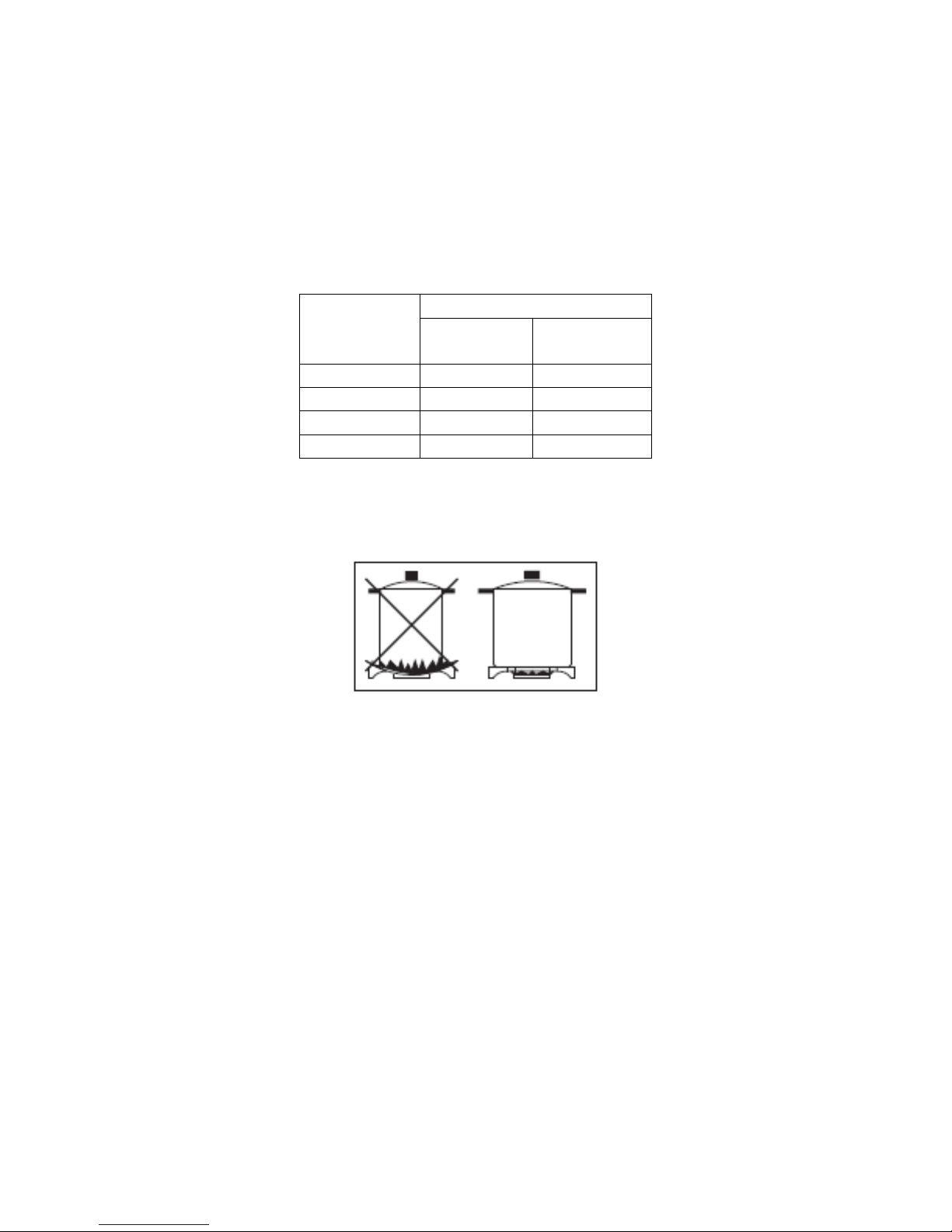

PANSBURNERS
Minimum
diametre
Maximum
diametre
Wok 220 mm 260 mm
Rapid 180 mm 220 mm
Semi-rapid 120 mm 200 mm
Auxiliary 80 mm 160 mm
oThe diametre of the bottom of the pan should correspond to that
of the burner.
oThe burner flame must never extend beyond the diametre of the
pan.
oUse flat bottomed pans only.
oWhen possible, keep a lid on the pan whilst cooking.
oCook vegetables with as little water as possible, to reduce
cooking times.
IMPORTANT: Always place pans centrally over the hob burners and
position them so that the handles cannot get accidentally caught or
knocked off. You should also make sure that the handle is not over one
of the other hob burner flames.

15
Cleaning
Cleaning operations must only be carried out when
the hob is cool.
The appliance should be disconnected from your
mains supply before commencing any cleaning
process.
Cleaning the hob top
Any residues that are left on the hob top surface from cleaning
agents will damage it. You should remove any residues with
warm soapy water.
Abrasive cleaners or sharp objects will damage the hob surface;
you should clean it using warm soapy water.
Although it is easier to clean some deposits whilst the
hob surface is still warm, make sure that the hob surface,
pan supports and hob burners have all cooled sufficiently
before you attempt to touch them.
After each use
oRemove the pan stands and wipe the appliance over with a soft,
damp cloth that has been put into warm soapy water. The cloth
should be wrung out after being taken out of the soapy water.
oDry the appliance by rubbing the surface with a soft, clean cloth.
oWe would recommend that an appropriate stainless steel cleaner
and polish is regularly used on the stainless steel surfaces of this
appliance.
Cleaning the hob burners
The hob burners should be cleaned once a week or more frequently if
they get soiled.
oIMPORTANT: Make sure that the hob surface, pan stands and
hob burners have cooled before you attempt to touch them.
oRemove the hob burners by pulling them upwards and away
from the hob top.
oSoak them for about ten minutes in hot water and a little
detergent.

16
oAfter cleaning and washing them, wipe and dry them carefully.
oBefore placing the burners back on the hob top, make sure that
the gas jet is not blocked.
oIMPORTANT: Make sure that you reassemble the burners in the
original way.
Maintaining the cast iron pan stands
oIMPORTANT: Make sure that the hob surface and pan stands
have cooled before you attempt to touch them.
oWipe the pan stands over with a soft, damp cloth that has been
put into warm soapy water. The cloth should be wrung out after
being taken out of the soapy water.
oUsing a paper towel, thoroughly dry the pan stands.
oTo maintain the appearance of the cast iron pan stands, we
would recommend that you rub a small amount of olive oil into
the pan stands, after you have finished cleaning them.
Installation
The installation must be carried out by a suitably
qualified person, in accordance with the current
version of the following.
oGas Safety and Measurement Regulations 2010
oAS/NZS 3000 Wiring Rules
oElectricity Safety Regulations 2010
oBaumatic Ltd Installation Instructions

17

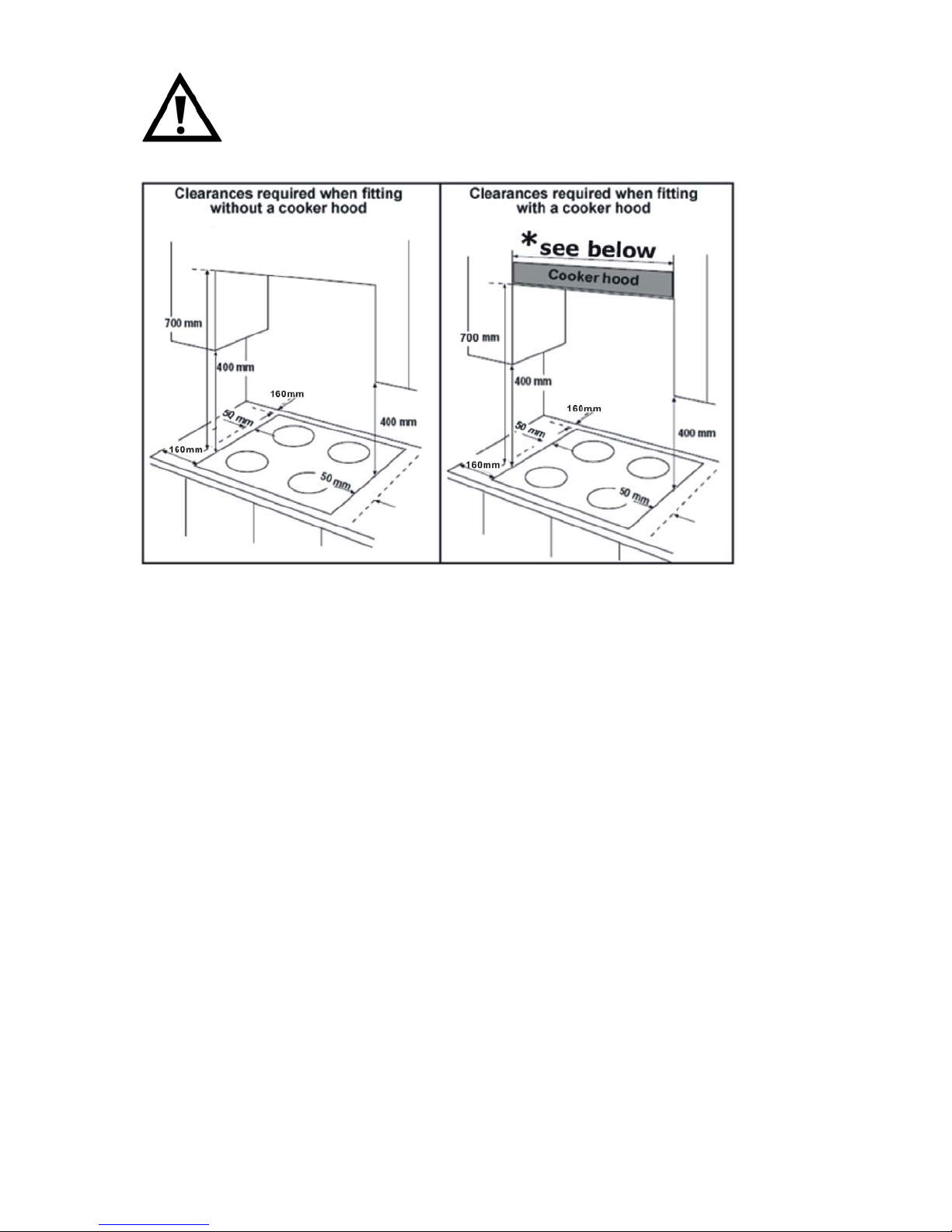

Positioning
The adjacent furniture must be able to withstand a
minimum temperature rise of 85°C above the ambient
temperature of the room it is located in, during
periods of use.
*600 mm (BHG690SS-ANZ / BHG695SS-ANZ)
* 700 mm (BHG790SS-ANZ)
oThis appliance can be located in a kitchen, a kitchen diner or a bed
sitting room. IMPORTANT: The appliance must not be installed in a
bathroom or shower room.
This appliance is classified as Class 3 and therefore is to be built into a
kitchen unit (depending on size) or 600mm worktop, providing the
following minimum distances are allowed:
oThe edges of the hob must be a minimum distance of 55 mm from
a side or rear wall.
o700 mm between the highest point of the hob surface (including the
burners) and the underside of any horizontal surface directly above
it.
o400 mm between the hob surface, providing that the underside of
the horizontal surface is in line with the outer edge of the hob. If
the underside of the horizontal surface is lower than 400 mm, then
it must be at least 50 mm away from the outer edges of the hob.
o50 mm clearance around the appliance and between the hob
surface and any combustible materials.

18
Unpacking the appliance
When unpacking the appliance please check that the following items
are contained within the packaging:
1 x Baumatic hob
Pan stands
Burner assemblies
Instruction manual
Baumatic warranty card
Fixing screws
Clamps
Sealing strip
LPG conversion jets
Self-adhesive label for amending the gas category on the appliance’s
rating plate (required if the LPG conversion jets are used).
Installing the appliance
BHG690SS-ANZ / BHG695SS-ANZ
BHG790SS-ANZ

19
oCut a hole in the worktop that corresponds with the relevant
drawing for your hob on page 18.
All models
oIMPORTANT: You must have a gap of at least 25 mm between
the underneath of the appliance and any surface that is below it.
oCarefully turn the hob upside down and place it on a cushioned
mat.

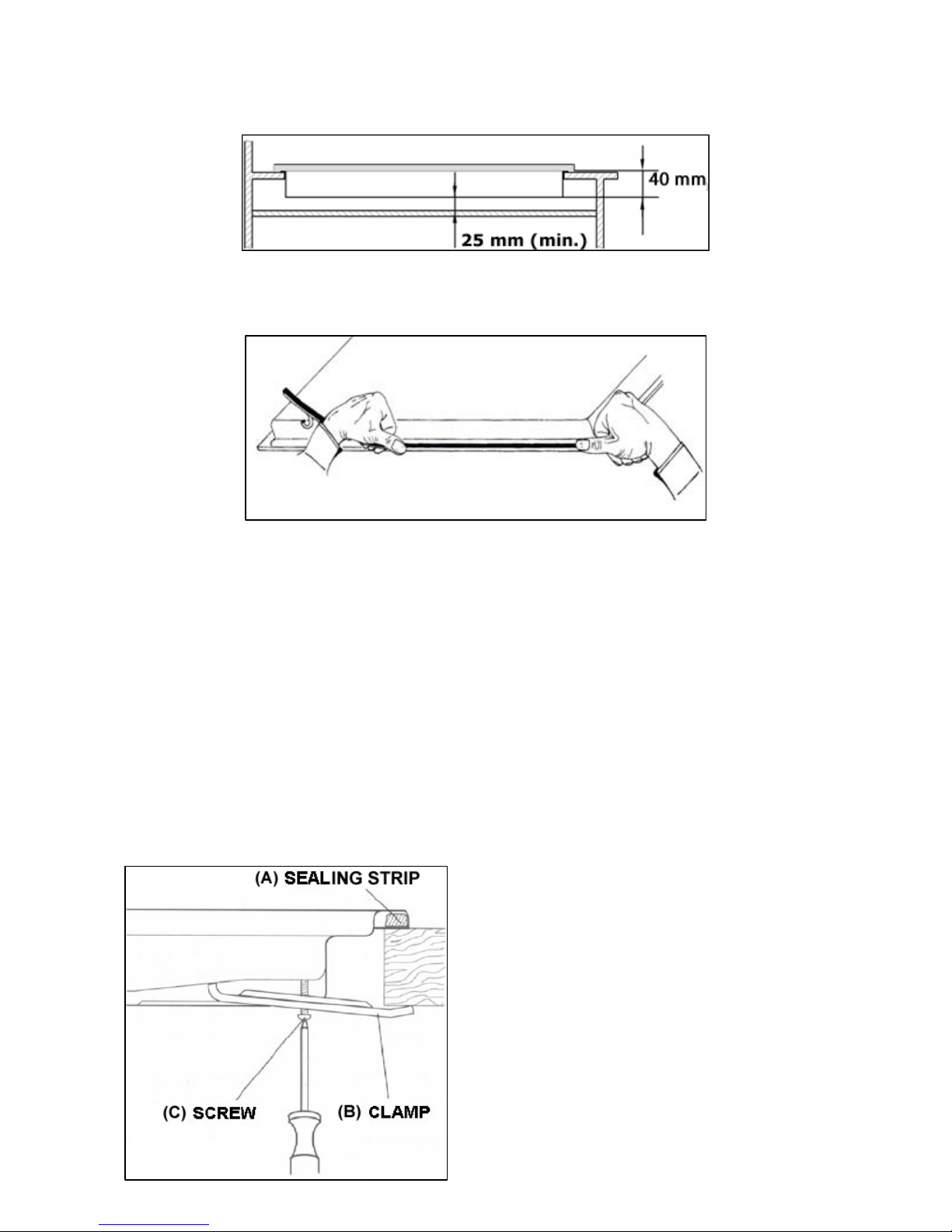

oApply the sealing strip (A) provided around the edge of the
appliance.
oThe protective covering must be removed from both sides.
oDo not leave a gap in the sealing agent or overlap the thickness.
oIMPORTANT: Do not use a silicon sealant to seal the appliance
against the aperture. This will make it difficult to remove the hob
from the aperture in future if it needs to be serviced.
(A) Sealing strip
(B) Clamp
(C) Screw

20
oPlace the clamp (B) over the holes that match the size of the
screws. There are one set of screw holes in each corner of the
hob. Slightly tighten a screw (C) through the clamp (B) so that
the clamp is attached to the hob, but so that you can still adjust
the position of it.
oCarefully turn the hob back over and then gently lower it into the
aperture hole that you have cut out.
oOn the underneath of the hob, adjust the clamps into a position
that is suitable for your worktop. Then fully tighten the screws
(C) to secure the hob into position.
Gas connection
This appliance must be installed by a competent
person in accordance with the current standards.
Important information
oThis hob is supplied to run on natural gas only and cannot be
used on any other type of gas without modification.
oA regulator is required but not supplied with the Cooktop (NZ)
oConversion for use on LPG and other gases must only be
undertaken by a qualified person. For information on the use of
other gases, please contact the Customer Care department.
oThe hob must be installed by a qualified person, in accordance
with the current edition of the Gas Safety and Measurement
Regulations 2010 and the relevant building Regulations.
oFailure to install the appliance correctly could invalidate
Baumatic’s guarantee and lead to prosecution under the
regulations quoted above.
