Baumatic BACG3034 User manual

Instruction manual

GAS COOKTOPS

CONTENTS
Welcome to Think Letter page 3
General Information page 4-5
Warning and Safety Instructions page 5-6
Instructions for Use pages 7–10
Instructions for Installation pages 11–17
Technical Data page 20-21

Dear Customer,
Congratulations on purchasing your new product from Think Appliances.
To register your parts and labour warranty (some conditions apply please refer to your
warranty card for more details) please contact out Customer Care team on:
1800 444 357
Our Customer Care centre is there to ensure you get the most out of your appliance. For
example, should you want to learn more about recommended cooking temperatures, the
various cooking functions available, how to set and program your LED clock, and importantly
taking care of your appliance when cleaning, please call us because we are here to help you.
It is important that you read through the following use and care manual thoroughly to
familiarize yourself with the installation and operation requirements of your appliance to
ensure optimum performance.
We also carry a complete range of spare parts for all Think products. For all your spare parts
enquiries please contact our team at Pronto Parts on:
1300 306 973
Again, thank you for choosing an appliance brought to you by Think Appliances and we look
forward to being of service to you.
Kind regards
Management
Think Appliances

GENERAL INFORMATION
Please read this booklet thoroughly before you use this appliance. It is
important that you understand all the control functions before commencing
to cook with your Baumatic appliance.
Please remember the advice and warnings shown on page 5, which is
headed,
‘IMPORTANT – WARNING AND SAFETY INSTRUCTIONS’.
This appliance is designed for domestic household use when built into a
kitchen worktop.
NOTE: The housing, adjacent furniture and all materials used in the
installation must be able to withstand a minimum temperature rise of 85°C
above ambient during periods of operation. This information is for guidance
only and the actual temperature will depend on the performance rating for
the surface finish of the worktop.
Certain types of surface finishes are particularly prone to heat damage or
discolouration at temperatures lower than the above guidelines.
Contravention of the installation guidance given will be at the liability of the
owner.
The use for any other purpose or in any other environment without the
express agreement of Baumatic, would invalidate any warrantee or liability
claim
Your new appliance is guaranteed against electrical or mechanical defects
subject to certain exclusions noted in Baumatic Conditions of Guarantee
The foregoing does not affect your statutory rights.
In the event that you require any After Sales Service or advice, please
contact the Baumatic Service Department on telephone number – 1800 444
357.
Ensure that any protective packaging or coatings are removed before using
this appliance. To aid the protection of the environment, please sort the
packing materials into different types and dispose of them in accordance
with the local waste disposal laws.
4

Any further information can be obtained from your local Environment
Agency office.
When first used, an odour may be emitted by any residual protective finish
or moisture, which will cease after a short period.
This appliance has been constructed and distributed in compliance with the
essential requirements of the following EEC DIRECTIVES, EUROPEAN
NORMS and AUSTRALIAN STANDARDS and SAFETY REGULATIONS:
CE Marking – 93/68,
Low Voltage – 73/23,
Gas Products – 90/396 / AS4551,
EMC – 89/336,
Materials that can touch food – 89/109.
Safety Standards – EN 60 335-1, EN 60 335 – 2 – 6, EN 30-1-1,
AS/NZS 3350-1, 3350-2-6.
As Baumatic have a policy of continued product improvement, the right is
reserved to adjust and make any modifications deemed necessary without
notification.
IMPORTANT NOTE – WARNING and SAFETY
INSTRUCTIONS
This appliance complies with all current European safety legislation, however
Baumatic do wish to emphasise that compliance does not remove the fact
that surfaces will become hot during use and retain heat after operation.
Baumatic advise that the appliance is not intended for use by young children
or infirm persons without supervision.
Young children should be supervised to ensure that they do not play with
the appliance.
If it is necessary for younger family members to be in the kitchen, that they
are kept under close supervision at all times.
We also advise that great care be taken during use and cleaning operations.
Do make sure that the panhandles are always correctly positioned to avoid
accidental contact.
5

Do not leave heated oil or fat unattended, as there is a risk of fire.
Always use pans that are flat bottomed and the correct size for the heating
area (never smaller).
Do not allow electrical fittings or cables to be in contact with hot areas of
the appliance.
Do not use the appliance for space heating or to dry clothes.
Do not install the appliance next to curtains or soft furnishings.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE
WHILE IT IS IN OPERATION
DO NOT STORE OR USE FLAMMABLE LIQUIDS OR ITEMS IN THE
VICINITY OF THIS APPLIANCE
WHERE THIS APPLIANCE IS INSTALLED IN A MARINE CRAFT OR IN
CARAVANS, IT SHALL NOT BE USED AS A SPACE HEATER
Baumatic declines any responsibility for injury or damage to
persons or property as a result of improper use or installation of
this appliance.
Heat, steam and moisture will be created during use, take care to
avoid injury and ensure that the room is adequately ventilated. If
prolonged use occurs, additional ventilation may be required …
please consult your Qualified Installer if you are in any doubt about
the amount required.
Pan supports must be cleaned and dried before first use to remove
residue of the production process.
6
This appliance is not suitable for use in marine craft, caravans or
mobile homes, unless each burner is fitted with a flame safeguard.
DO NOT MODIFY THIS APPLIANCE

INSTRUCTIONS FOR USE
A person who is perhaps unfamiliar with the appliance should retain this
user manual for future reference.
These instructions cover the following Models:
BACG3034
BACG3035
BACG6030
BACG7531
BACG7532
BACG7002
USING THE HOB
The symbols on the Control Panel fascias show which burner the Control
Knob operates.
Dependent on the model there are two methods for igniting the burners.
1. Auto Ignition
After pressing in and turning the appropriate knob anti-clockwise to the
large flame symbol, the ignition spark will operate as long as the knob is
pressed down...
When a flame has been established, the knob can be released.
2. Manual Ignition
7
BACG6004
Note: To prevent delayed ignition, the knob must be pressed down
first, then held down while rotating to the large flame symbol.
After pressing in and holding the ignition button located on the control
panel, press in and turn the appropiate knob anti-clockwise to the large
flame symbol.
BACG9033
BACG9003
BACG7502

The ignition spark will operate as long as the button is held down.
When a flame has been established, release the button.
To regulate the flame, continue turning anti-clockwise to the required
setting between the large and small flame symbols.
To turn the burner off, turn clockwise.
NOTE: When a Thermocouple Safety Device is incorporated in the
appliance, it is necessary for the knob to be continuously held down firmly
for a further period of approximately 10 seconds after the flame has been
established to enable the thermocouple to function.
The Safety Device is designed to stop the flow of gas to the burner head in
the event of a flame out situation.
Abnormal Operation
Any of the following symptoms will require servicing:
yellow tipping of the burner flame,
accumulation of soot on cooking utensils,
burners not igniting properly,
burners failing to remain alight,
burners extinguished by cupboard doors, and
difficulty turning gas valves.
In case the appliance fails to operate correctly, contact the authorised
Service Department, Think Appliances on 1800 444 357
WARNING:
Servicing should be carried out only by authorised personnel.
8
This appliance shall not be modified.
•
•
•
•
•
•

HELPFUL HINTS
Always use the correct diameter pan, one that is the same or slightly larger
than the flame ring. The flame should never exceed the diameter of the pan.
The bottom of the pan should be flat and wherever possible, keep the lid on
the pan when cooking.
For model BACG7532, please make sure you comply with maximum pan
diameters shown below:
9

Depending on the model, the following burners are provided:
•Large (Rapid or Triple Crown) – for rapid cooking or boiling large
quantities of liquid
•Wok – for rapid cooking or boiling large quantities of liquid
•Medium (Semi-rapid) – for general cooking
•Small (Auxiliary)– for slow or simmer cooking
•Fish Kettle – for specialised cooking
All burners are variable between full and low positions
WARNING
Do not use commercial simmering aids as these can create excessive heat,
which can damage the appliance.
CLEANING THE APPLIANCE
Always allow the appliance to cool down before cleaning to avoid a burn
injury.
Do not use caustic or abrasive agents, coarse wire wool or hard tools as
these can damage the surface finishes.
Normally, wiping with a soft cloth dampened with hot detergent solution is
sufficient but for stubborn marks, it is recommended:
For vitreous enamel use only a recommended cleaner
To clean burner assemblies remove them from the hob and soak for about
10 minutes in hot detergent solution. Rinse off and dry checking that the
burner holes are clear of foreign material, and then reassemble in the
correct order.
10

INSTRUCTIONS FOR INSTALLATION
This appliance shall be installed only by authorised personnel and in
accordance with the manufacturer's installation instructions, local gas fitting
regulations, municipal building codes, water supply regulations, electrical
wiring regulations, AS 5601 - Gas Installations and any other statutory
regulations.
Gas Safety Regulations (Installation & Use)
Baumatic Installation Instructions
POSITIONING THE APPLIANCE
Combustible Surfaces
Any adjoining wall surface situated within 200mm from the edge of any hob
burner must be a suitable non-combustible material for a height of 150mm
for the entire length of the hob. Any combustible construction above the
hotplate must be at least 700mm above the top surface of the bench and no
construction shall be within 450mm above the top of the burner. Allow a
10mm minimum clearance below the hotplate.
Ventilation
Ventilation must be in accordance with AS5601 - Gas Installations.
In general, the appliance should have adequate ventilation for complete
combustion of gas, and a proper flue to maintain temperature of immediate
surroundings within safe limits.
PRE-COMMISSIONING THE APPLIANCE
When unpacked, check that the following parts are included with the
appliance:
•Pan Supports
•Burner Assemblies
11

•Adhesive sealing strip and fixing clamps & screws
•½ BSP Elbow & Seal
•LPG conversion kit comprising an LPG jet for each burner and a
self-adhesive label for amending Gas Category on the appliance
Rating Label.
INSTALLATION NOTES
Cut the aperture to the dimensions shown at Figure 1 or use the template if
printed on the packaging.
Invert the Hob and apply the sealing agent provided to match the outer
perimeter edge.
If the sealing agent is a strip type, the protective covering must be removed
from both sides. Do not leave a gap in the sealing agent or overlap the
thickness.
NOTE Do not use any Silicone based sealant, as this can damage the
worktop surface if repairs are required.
Insert the appliance into the aperture and fix in position via the clamps &
screws, tightening the screws evenly (refer Figure 2).
12

HOB APERTURE DIMENSIONS
Figure 1 - Hob Aperture Dimensions
Model A D E
BACG3034 288 510 268 490 40
BACG3035 288 510 268 490 40
BACG6030 585 500 560 480 35
BACG7531 & BACG7002 685 500 560 480 35
BACG7532 740 500 700 480 62
BACG9033 & BACG9003 860 500 830 480 35
Figure 2 - Attachment Screws
13
& BACG6004
Location of
Gas Connection
44mm from RH side &
33mm from rear
43mm from LH side &
34mm from rear
43mm from LH side &
34mm from rear
242mm from LH side &
45mm from rear
70mm from LH side &
47mm from rear
CB
BACG7502 740 500 560 480 35 270mm from LH side &
50mm from rear

VENTILATION OF ROOMS
To ensure correct combustion and the removal of spent air the room in
which this appliance is installed must be well ventilated by natural or
mechanical means, or a combination of both.
The minimum quantity of air for combustion will depend on the room
volume, number of appliances and their total power rating.
The power rating of your appliance found on the Rating Plate or Label.
Note Refer to local Statutory Regulations to determine the actual ventilation
requirements.
GAS CONNECTION
Data Label - The Data Label is located on the underside of the appliance. A
duplicate label is supplied to adhere in an accessible area adjacent to the
appliance. This appliance is suitable for Natural Gas and Universal LPG; you
ensure that the available gas supply matches the Data Label.
Test Point Pressure: The appliance is factory set for Natural gas. The test
point pressure is to be adjusted to 1.00kPa with the largest burner operating
at maximum flame.
•Natural Gas – 1.00kPa
•Universal LPG – 2.75kPa
Connection:

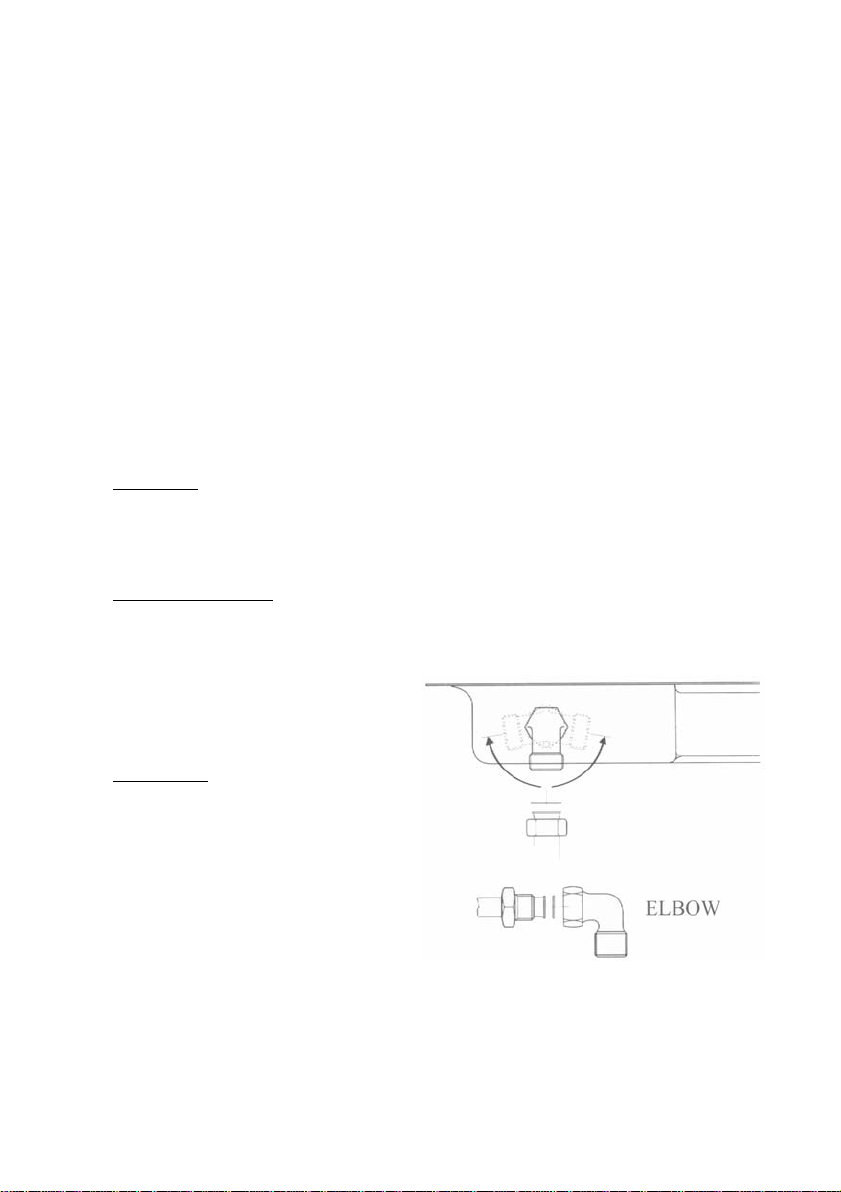

The gas supply must be connected
by use of the ½ BSP Elbow & Seal
(shown right) and an isolation tap
fitted in an easily accessible position
as specified in AS5601 table 3.1.
The gas supply to the hob may be
connected via copper pipe as
specified in AS5601 table 3.1, or via
a Flexible Hose, which complies with
14

AS/NZS 1869 (AGA Approved),
10mm ID, class B or D, no more than 1.2m long and in accordance with
AS5601. Ensure that the Hose does not come into contact with the hot
surfaces of the hotplate, oven, dishwasher or other appliance that may be
installed underneath or next to the hotplate. WARNING: Ensure that the
hose assembly is restrained from accidental contact with the flue or flue
outlet of an under bench oven. The hose should not be subjected to
abrasion, kinking or permanent deformation and should be able to be
inspected along its entire length. Unions compatible with the hose fittings
must be used and connections tested for gas leaks. The supply connection
point shall be accessible with the appliance installed.
Before Leaving - Check all connections for gas leaks with soap and water.
DO NOT use a naked flame for detecting leaks. Ignite all burners
individually and in combination, to ensure correct operation of gas valves,
burners and ignition. Turn gas taps to low flame position and observe
stability of the flame. When satisfied with the hotplate, please instruct the
user on the correct method of operation. In case the appliance fails to
operate correctly after all checks have been carried out, refer to the
authorised service provider in your area.
GAS CONVERSION
The appliance as supplied is for use with Natural Gas, if it is to be adapted
for Universal LPG proceed as follows:
• Isolate the appliance from the electricity and gas supplies.
• If the appliance was previously installed for use with Natural Gas, remove
the NG regulator and replace it with the Test Point Assembly. A gas
regulator suitable for a supply pressure of 2.75kPa should be part of the
gas tank supply.
• Remove the pan supports and burner assemblies.
• Replace the injectors with the alternative type supplied Figure 3 below.
• Use the appropriate thread sealant and check for gas soundness.
• Replace the Natural Gas label with the Universal LPG label located next to
15

the gas connection point to amend the Gas Category.
Figure 3 - Injector
GAS FLOW ADJUSTMENT
In order to adjust the minimum gas flow proceed as follows:
Ignite the burner and turn down to the minimum setting.
Remove the control knob from the gas tap.
Adjust the flow either clockwise to decrease or anti-clockwise to increase the
flame. Use a screwdriver inserted down the gas tap rod or via the screw
head adjacent to the rod for models fitted with a Flame Supervision Device.
Check that the flame is 3- 4 mm in length, bluish in colour, stable and
noiseless, and does not extinguish when changing from maximum to
minimum flow.
Replace the control knob and check that all components have been
reassembled correctly.
16

ELECTRICAL CONNECTION
Before connecting the appliance, make sure the supply voltage
marked on the rating Plate corresponds with the mains supply
voltage.
WARNING – THIS APPLIANCE MUST BE EARTHED
Ensure the appliance is plugged into a 10 amp GPO.
IMPORTANT
The wires in the main supply lead are coloured in accordance with the
following code:-
Green and Yellow – Earth
Blue – Neutral
Brown – Live
The connections must be made as follows:-
The wire coloured Green and Yellow must be connected to the terminal
marked ‘E’ or the earth symbol () or coloured green and yellow.
The wire coloured Blue must be connected to the terminal marked ‘N’ or
coloured blue or Black.
The wire coloured Brown must be connected to the terminal marked ‘L’ or
coloured brown or red.
NOTE: The terminals marked ‘SUPPLY’ are for the mains supply wires and
the terminations marked ‘LOAD’ are for the appliance wires.
The electrical outlet is to be positioned in an easily accessible position
adjacent to the appliance.
In the event that it is necessary to replace the mains supply lead, the
replacement must conform to the specification listed in the Technical Data.
Ensure that the colour code connection is correct and that all screws are
tightened correctly.
17

MAINTENANCE
No regular maintenance is required for the hotplates except cleaning.
SERVICING
WARNING: SERVICING SHOULD BE CARRIED OUT ONLY BY
AUTHORISED PERSONNEL
During the guarantee period, in case of need all service
intervention should be referred back to the Baumatic Service
Department. Please note that intervention or repair by any
unauthorised personnel will invalidate such guarantee.
Before carrying out any servicing, disconnect the appliance from
the gas and electricity supplies.
If a gas tap becomes stiff to operate, proceed as follows:
Remove the control knobs, pan supports, burners and hob fixing
screws & clamps.
Remove the Hob from the worktop and remove any underside
protective covers.
Disconnect the fixings holding the tap to the fascia panel, separate
the assembly, then clean the cone and seating with a cloth
dampened with solvent.
Lightly smear the cone with high temperature grease, reassemble
into position and rotate a few times. Remove the cone again and
remove any excess grease making sure that the gas ducts are not
obstructed with grease.
Carefully reassemble the components and check for gas soundness.
18
•
•
•
•
•
DO NOT MODIFY THIS APPLIANCE

If it becomes necessary to replace the gas tap, proceed as follows:
Disconnect the appliance as described above.
Disconnect the gas pipe from the gas tap, disassemble from the
gas rail by removing the fixing screws.
When fitting a new tap, ensure that a new gasket is used.
Re-connect the gas tap, check for gas soundness and reassemble
the hob.
19
