Baxi Duo-tec Combi GA Quick start guide

Pocket
Technical
Guide
Pocket Technical Guide
Technical Helpline: 0844 871 1525
For all enquiries, please call
0844 871 1525
Email: [email protected]
Visit: www.baxi.co.uk
Open Monday - Friday, 8am - 6pm
Saturdays & Bank Holidays, 8.30am - 2pm
We are closed on Christmas Day & New Year’s Day
Please note calls may be monitored or recorded
Contact us
Baxi, Brooks House, Coventry Road, Warwick CV34 4LL
www.baxi.co.uk
This Brochure is printed on paper sourced from well managed
forests and controlled sources. This Brochure is printed using
vegetable based inks. Please recycle this Brochure when you
have nished with it.
Baxi policy is one of continual improvement and development.
The right to change specication and appearance without prior
notice is reserved. The reproduction of colours is as accurate
as photographic and printing processes allow. The consumer’s
statutory rights are not affected. e&oe
350621/10
MX8013 - Technical pocket guide DL - COVERS only_post proof.indd 1 30/08/2012 11:32

2
Technical Helpline: 0844 8711525 For technical enquiries e-mail [email protected]
71
Welcome
Welcome to your
pocket technical guide
Our technical guide is designed to assist you with the
installation and servicing of our boilers providing you with
helpful technical information in one easy reference booklet.
We have an extensive range of courses available to you and
we would strongly encourage you to take a look at page 58
to see how we can help support you and your business.
On page 59 we give you details of our award-winning after
sales support service – heateam which is available 363 days
a year providing you with absolute peace of mind.
For more information please contact your Area Sales
Manager or alternatively, give us a call on 0844 8711525 or
email [email protected]. Our comprehensive website
www.baxi.co.uk is also a good resource for any answers to
technical queries.
We hope you nd this technical guide useful. However, should
should you have any specic questions then please do not
hesitate to get in touch.
Useful contacts
Notes
Notes
MX8013 - Technical pocket guide DL - COVERS only_post proof.indd 4 30/08/2012 11:32

3
For technical enquiries e-mail [email protected]
History of Baxi 4
Innovative THINK technology 5
Overview of the range 6-7
Efciency ratings 8
Sales order codes 9

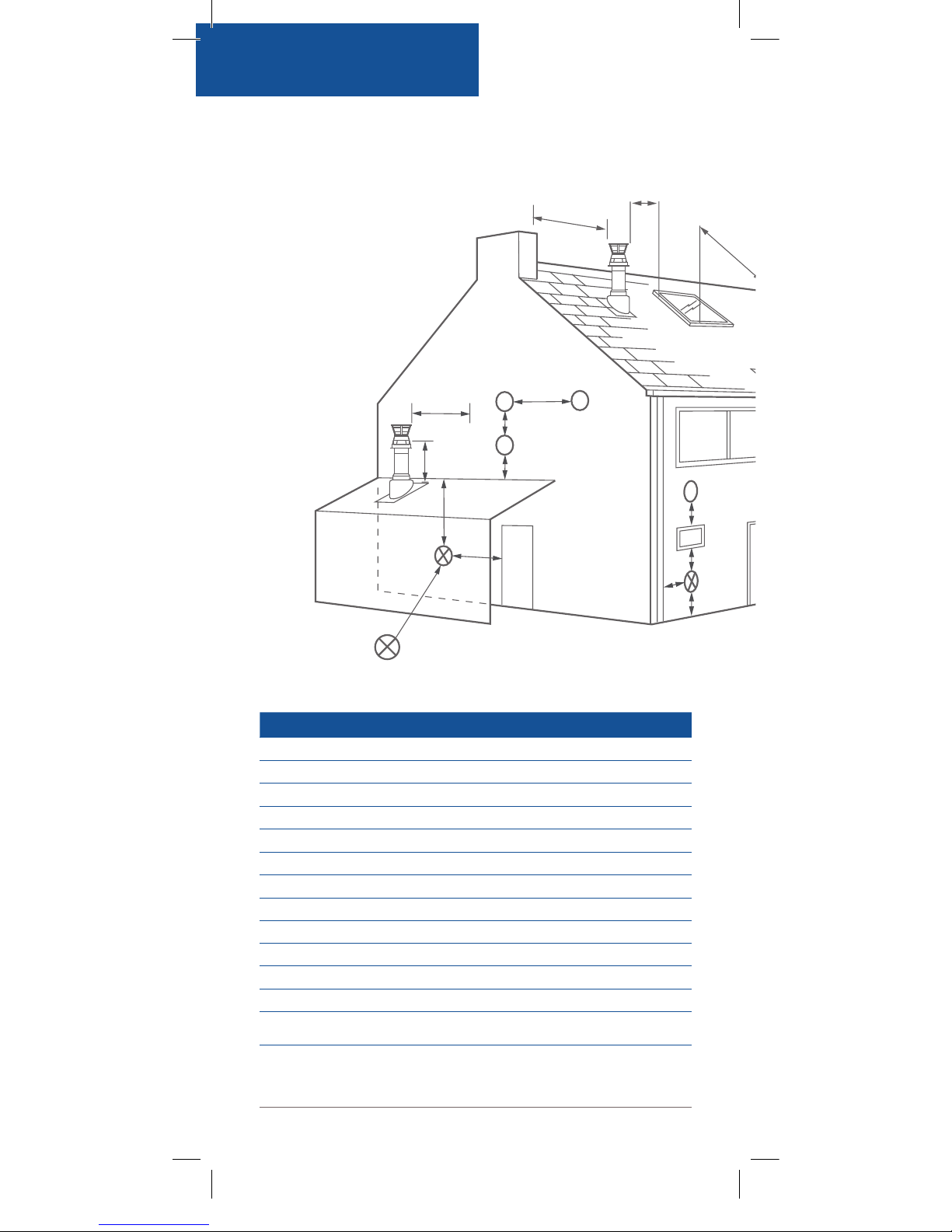

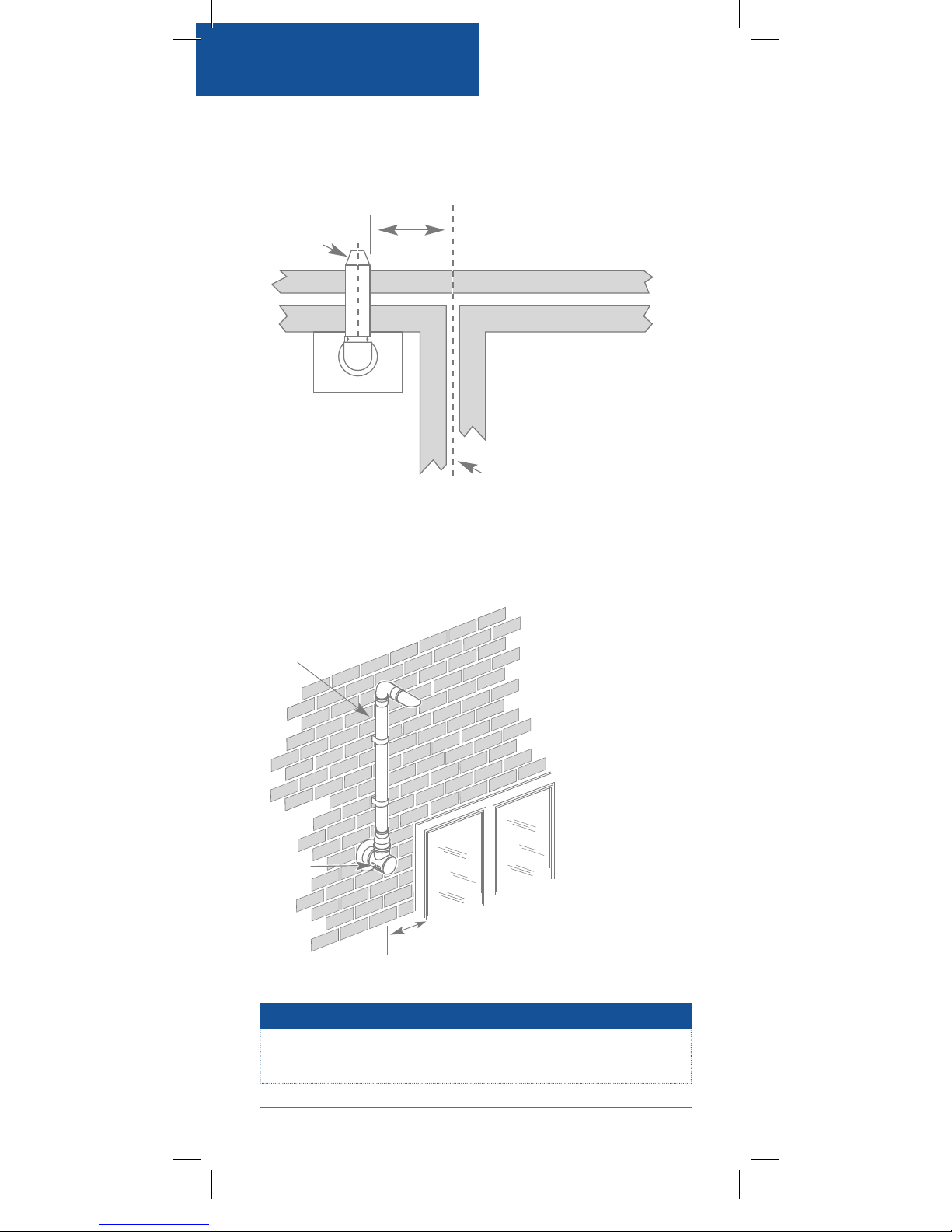

Flue terminal positioning 10-13

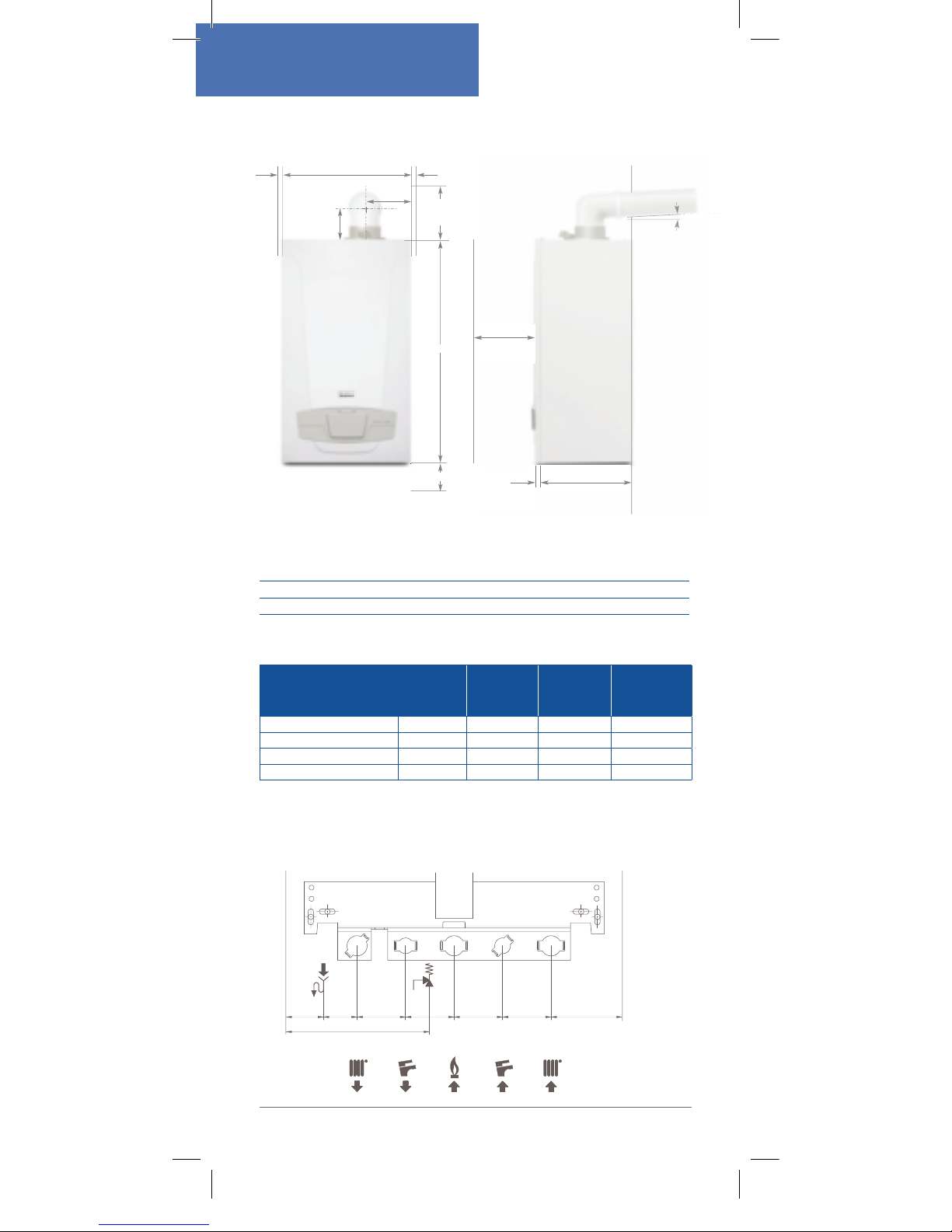

Duo-tec Combi GA 14-21

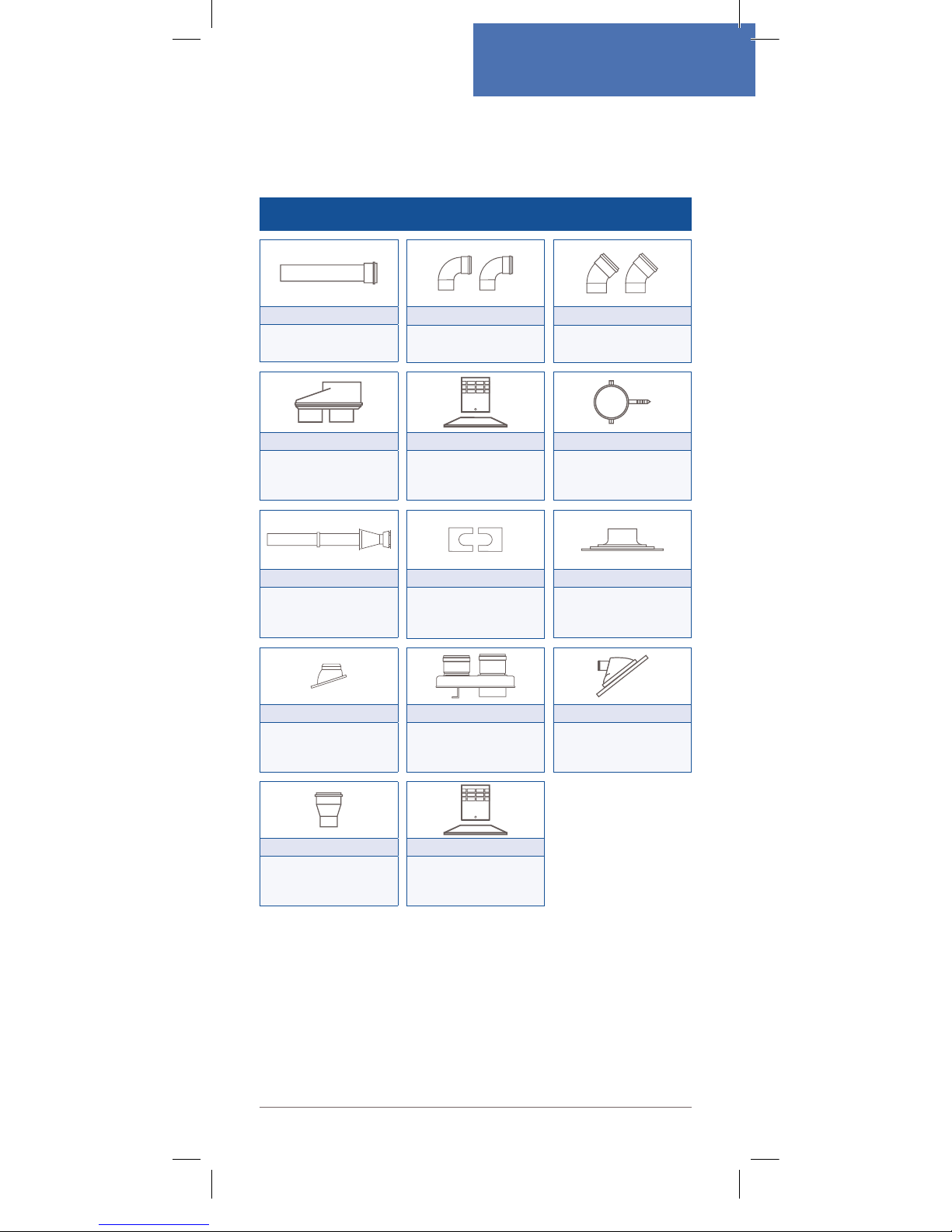

Flue groups, technical specications & control options
Neta-tec Combi GA 22-29
Flue groups, technical specications & control options
Megao System Compact GA 30-37
Flue groups, technical specications & control options
Baxi Solo HE A 38-43
Flue groups & control options
Accessories and controls 44-50
LZC overview 51
Baxi Solaro 52-57
Features and benets
Baxi training 58
heateam and aftersales support 59
works business support scheme 60
Literature 61
Conversion tables 62-63
Gas rating charts 64-66
Useful contacts 67-68
Contents
Contents
Introduction
Useful information
The Baxi range of boilers
Accessories
Low zero carbon technologies
Our support for you
Additional information
MX8013 - Technical pocket guide DL v14_post proof.indd 3 30/08/2012 14:29

4
Technical Helpline: 0844 8711525
History of BAXI
A rm favourite with homeowners and installers alike, Baxi
is one of Europe’s largest and longest-established boiler
manufacturers. We have over 150 years of engineering
experience – so we know a thing or two about how to do
it right. We’re very proud not only of our long heritage
of quality and innovation, but also that we continue to
manufacture here in the UK.
We strive for perfection and always listen to customer
feedback, resulting in boilers like the Baxi Duo-tec Combi
GA that set new standards in efciency and reliability.
As for reliability, you can take it for granted with Baxi
boilers. They’re designed to operate at maximum efciency
throughout their lifetime, and tested rigorously for your
peace of mind.
All Baxi boilers are Energy Saving Trust recommended
products to give your customer added peace of mind.
The brand that stands for quality
and innovation
Made in the UK
MX8013 - Technical pocket guide DL v14_post proof.indd 4 30/08/2012 14:29

5
For technical enquiries e-mail [email protected]
Innovative THINK technology
Innovative THINK technology –
the heart of every Baxi GA boiler
Our world-beating technical innovation is focused on
delivering years of reliable and economical service and the
maximum environmental benet.
Take our pioneering THINK technology, for example, found
at the heart of every boiler in the Baxi GA range. THINK
is designed to deliver smooth, reliable and cost effective
performance by continuously monitoring and adjusting
the boiler’s output to maximise burner efciency. Gas
consumption is lower, component wear and tear reduced
and reliability increased.
A wide modulation range means that Baxi GA boilers
maintain even temperatures without repeatedly
switching on and off. Once the home reaches the desired
temperature, the boiler simply adapts its output to
maintain that temperature more effectively. Less gas is
used to re-ignite the boiler, reducing both fuel bills and
carbon emissions. The gures speak for themselves:
† Baxi laboratory testing & analysis has shown these reductions when measured
against a standard Baxi high efciency boiler.
* Based on average fuel consumption of a UK household as calculated in the British
Gas Home Energy Report 2011, when measuring a Baxi Duo-tec 28 GA compared
to a Baxi Duo-tec 28 HE A boiler
8.7% more
Efficient†
£71 saving
per year*
9.2% less
CO2†
A Baxi GA boiler
is 8.7% more
efcient than a
standard Baxi
high efciency
boiler
An additional saving
of £71 per year*
can be achieved
by having a Baxi
GA boiler over a
standard Baxi high
efciency boiler
A boiler that
reduces CO2
by 9.2% and
delivers a SAP
benet of up
to 2.7%
MX8013 - Technical pocket guide DL v14_post proof.indd 5 30/08/2012 14:29

6
Technical Helpline: 0844 8711525
Overview
Overview
An at a glance guide to our new boilers, the key
features available with each model and their
benets to you and your customer
Features and benets
Baxi Duo-tec
Combi GA
Baxi Neta-tec
Combi GA
Baxi Megao
System Compact
GA
Baxi Solo HE A
Gas Adaptive Technology
Automatic set-up for faster and easier installation
Wide modulation range
Reduces wear and tear, and gas usage
1:7 1:5 1:7 1:3
Front component access
For quicker and easier servicing
Two years parts and labour warranty*
For peace of mind
Pre-plumbing jig
For faster and easier installation
Cupboard t
For more exible and discreet location
Low lift weight
For easier installation and transportation
Natural gas and LPG-ready
No conversion kit required
Multit GasSaver compatible
Saves up to 37% of gas used to heat hot water and cold water consumption
by up to 7%**
User-friendly controls
Easy and intuitive, for greater heating and hot water comfort
Anti-cycling function/pump overrun
Protects against overheat and prevents boiler cycling
Boiler frost protection
Enables more exibility of siting
Anti-sticking function
Extends life by preventing pump and combi 3-way valve sticking
Auto-system bypass
Protects against overheating without external bypass
Filling loop
For easier installation
*Subject to registration and annual service
**Compared with a SEDBUK (2005) >91% rated high efciency boiler
†Excluding 32kW model
MX8013 - Technical pocket guide DL v14_post proof.indd 6 30/08/2012 14:29

7
For technical enquiries e-mail [email protected]
Overview
Features and benets
Baxi Duo-tec
Combi GA
Baxi Neta-tec
Combi GA
Baxi Megao
System Compact
GA
Baxi Solo HE A
Gas Adaptive Technology
Automatic set-up for faster and easier installation
Wide modulation range
Reduces wear and tear, and gas usage
1:7 1:5 1:7 1:3
Front component access
For quicker and easier servicing
Two years parts and labour warranty*
For peace of mind
Pre-plumbing jig
For faster and easier installation
Cupboard t
For more exible and discreet location
Low lift weight
For easier installation and transportation
Natural gas and LPG-ready
No conversion kit required
Multit GasSaver compatible
Saves up to 37% of gas used to heat hot water and cold water consumption
by up to 7%**
User-friendly controls
Easy and intuitive, for greater heating and hot water comfort
Anti-cycling function/pump overrun
Protects against overheat and prevents boiler cycling
Boiler frost protection
Enables more exibility of siting
Anti-sticking function
Extends life by preventing pump and combi 3-way valve sticking
Auto-system bypass
Protects against overheating without external bypass
Filling loop
For easier installation
†
MX8013 - Technical pocket guide DL v14_post proof.indd 7 30/08/2012 14:29

8
Technical Helpline: 0844 8711525
Efciency ratings
Efciency ratings chart 2005/2009
Product SEDBUK
2005 (%)
SEDBUK
2009 (%)
Baxi Duo-tec Combi GA
Baxi Duo-tec Combi 24 GA (NG/LPG) 91.1 / 93.2 88.9 / 91.0
Baxi Duo-tec Combi 28 GA (NG/LPG) 91.1 / 93.2 88.9 / 91.0
Baxi Duo-tec Combi 33 GA (NG/LPG) 91.1 / 93.2 89.0 / 90.9
Baxi Duo-tec Combi 40 GA (NG/LPG) 91.1 / 93.2 88.9 / 90.9
Baxi Neta-tec Combi GA
Baxi Neta-tec Combi 24 GA (NG/LPG) 91.1 / 93.2 88.9 / 91.0
Baxi Neta-tec Combi 28 GA (NG/LPG) 91.1 / 93.2 88.9 / 91.0
Baxi Neta-tec Combi 33 GA (NG/LPG) 91.1 / 93.2 89.0 / 90.9
Baxi Megao System Compact GA
Baxi Megao System Compact 12 GA (NG/LPG) 91.1 / 93.2 89.1 / 91.1
Baxi Megao System Compact 15 GA (NG/LPG) 91.1 / 93.2 89.0 / 91.0
Baxi Megao System Compact 18 GA (NG/LPG) 91.1 / 93.2 89.0 / 91.0
Baxi Megao System Compact 24 GA (NG/LPG) 91.1 / 93.2 89.0 / 91.0
Baxi Megao System Compact 28 GA (NG/LPG 91.1 / 93.2 89.0 / 91.0
Baxi Megao System 32 GA (NG/LPG) 91.1 / 93.2 89.0 / 91.0
Baxi Solo HE A
Baxi Solo HE A12 90.5 88.7
Baxi Solo HE A 15 91.3 89.4
Baxi Solo HE A 18 90.4 88.7
Baxi Solo HE A24 90.9 88.8
Baxi Solo HE A 30 90.9 88.8
MX8013 - Technical pocket guide DL v14_post proof.indd 8 30/08/2012 14:29

9
For technical enquiries e-mail [email protected]
Sales order codes
Sales order codes
Product Sales Order Code
Baxi Duo-tec Combi GA
Baxi Duo-tec Combi 24 GA (NG/LPG) 720117801
Baxi Duo-tec Combi 28 GA (NG/LPG) 720118001
Baxi Duo-tec Combi 33 GA (NG/LPG) 720118201
Baxi Duo-tec Combi 40 GA (NG/LPG) 720118401
Baxi Duo-tec Combi GA Standard Flue 720598701
Baxi Neta-tec Combi GA
Baxi Neta-tec Combi 24 GA (NG/LPG) 720023001
Baxi Neta-tec Combi 28 GA (NG/LPG) 720023101
Baxi Neta-tec Combi 33 GA (NG/LPG) 720023201
Baxi Neta-tec Combi 24 GA (NG/LPG) & Std Flue 720861201
Baxi Neta-tec Combi 28 GA (NG/LPG) & Std Flue 720861301
Baxi Neta-tec Combi 33 GA (NG/LPG) & Std Flue 720861401
Baxi Neta-tec Combi GA Standard Flue 720870201
Baxi Megao System Compact GA
Baxi Megao System Compact 12 GA (NG/LPG) 720118501
Baxi Megao System Compact 15 GA (NG/LPG) 720118601
Baxi Megao System Compact 18 GA (NG/LPG) 720118701
Baxi Megao System Compact 24 GA (NG/LPG) 720118901
Baxi Megao System Compact 28 GA (NG/LPG) 720119101
Baxi Megao System 32 GA (NG/LPG) 720119201
Baxi Megao System GA Standard Flue 720598701
Baxi Solo HE A
Baxi Solo HE A12 5120295
Baxi Solo HE A 15 5117783
Baxi Solo HE A 18 5120296
Baxi Solo HE A24 5117784
Baxi Solo HE A 30 5117785
MX8013 - Technical pocket guide DL v14_post proof.indd 9 30/08/2012 14:29

10
Technical Helpline: 0844 8711525
Flue options
N
I
I
G
F
M
I
A
AF
H
J,K
D
E
H
C
R
A
I
J,K
I
L
S
B
T
U
Likely flue positions requiring
a flue terminal guard
Flue options
Terminal Position with Minimum Distance (mm)
A1Directly below an opening, air brick, opening windows, etc 300
B1Above an opening, air brick, opening window etc 300
C1Horizontally to an opening, air brick, opening window etc 300
D2Below gutters, soil pipes or drain pipes 25 (75)
E2Below eaves 25 (200)
F2Below balconies or car port roof 25 (200)
G2From a vertical drain pipe or soil pipe 25 (150)
H2From an internal or external corner 25 (300)
IAbove ground, roof or balcony level 300
JFrom a surface or boundary line facing a terminal 600
K From a terminal facing a terminal (Horizintal ue) 1200
K From a terminal facing a terminal (Vertical ue) 600
LFrom an opening in carport (e.g. door, window) into
the dwelling 1200
MX8013 - Technical pocket guide DL v14_post proof.indd 10 30/08/2012 14:29

11
For technical enquiries e-mail [email protected]
Flue options
N
I
I
G
F
M
I
A
AF
H
J,K
D
E
H
C
R
A
I
J,K
I
L
S
B
T
U
Likely flue positions requiring
a flue terminal guard
N
I
I
G
F
M
I
AAF
H
J,K
D
E
H
C
RA
I
J,K
I
L
S
B
T
U
Likely flue positions requiring
a flue terminal guard
1. In addition, the terminal should be no nearer than 150mm
to an opening in the building fabric formed for the purpose of
accommodating a built-in element such as a window frame.
2. Only ONE 25mm clearance is allowed per installation. If one of
the dimensions D, E, F, G or H is 25mm then the remainder MUST
be as shown in brackets, in accordance with B.S.5440-1.
Terminal Position with Minimum Distance (mm)
MVertically from a terminal on the same wall 1500
NHorizontally from a terminal on the same wall 300
RFrom adjacent wall to ue (vertical only) 300
S From adjacent opening window (vertical only) 100
TAdjacent to windows or openings on pitched and at roofs 600
UBelow windows or openings on pitched roofs 2000
MX8013 - Technical pocket guide DL v14_post proof.indd 11 30/08/2012 14:29

12
Technical Helpline: 0844 8711525
Flue options
Flue options
300 min
Terminal
Assembly
Top View Rear Flue
Property Boundary Line
Plume
Displacement
Kit
Air Inlet
Opening Window
or Door
150mm MIN.
IMPORTANT:
If tting a Plume Displacement Flue Kit, the air inlet must be a minimum
of 150mm from any opening windows or doors.
NOTE: The distance from a fanned draught appliance terminal installed parallel to
a boundary may not be less than 300mm, in accordance with the diagram above.
MX8013 - Technical pocket guide DL v14_post proof.indd 12 30/08/2012 14:29

13
For technical enquiries e-mail [email protected]
Flue options
Plume Displacement Kit
permissible lengths
NOTE: If using a Plume Displacement Kit please refer to the shaded areas of the
graphs below for maximum permissible PDK lengths.
60 Exhaust Ø (metres)
Concentric 60/100 Flue (metres)
16
14
12
10
8
6
4
2
12345 6 7 8
Models
Baxi Duo-tec Combi 24 GA
Baxi Neta-tec Combi 24 GA
Baxi Megao System Compact GA 12, 15, 18 & 24
60 Exhaust Ø (metres)
Concentric 60/100 Flue (metres)
16
14
12
10
8
6
4
2
12345 6 7 8
Models
Baxi Duo-tec Combi GA 28, 33 & 40
Baxi Neta-tec Combi GA 28 & 33
Baxi Megao System GA 28 & 32
70 Exhaust Ø (metres)
Concentric 70/110 Flue (metres)
Models
Baxi Solo HE A 12, 15, 18, 24 & 30
32
28
24
20
16
12
8
4
1234
12, 15, 18 & 24
30
MX8013 - Technical pocket guide DL v14_post proof.indd 13 30/08/2012 14:29

14
Technical Helpline: 0844 8711525
5mm Min
450mm Min
For servicing
purposes
In operation
At least 1.5°
345mm*
150mm Min
763mm
450mm
5mm Min
170mm
106mm
5
mm
M
i
n
17
0
0m
m
m
m Min
(
30
2
5m
m
M
in if usin
g
80
/
1
2
m)
fluein
g
syste
m
Duo-tec Combi GA
Clearances
Baxi Duo-tec Combi GA pipe connection
Above: 175mm
Left: 5mm
Right: 5mm
**This is MINIMUM recommended dimension. Greater clearance will aid installation and maintenance.
Baxi Duo-tec Combi GA
Max DHW
Output
(KW)
Flow Rate
(l/m) @
35° Max)
CH Output
(kW)
Sales Code
Duo-tec Combi 24 GA 24 9.8 3.4 to 20 720117801
Duo-tec Combi 28 GA 28 11.5 3.8 to 24 720118001
Duo-tec Combi 33 GA 33 13.5 4.7 to 28 720118201
Duo-tec Combi 40 GA 40 16.4 5.7 to 33 720118401
Below: 150mm**
Front 5mm (in operation)
450mm (for servicing)
*355mm with control panel ap
345mm*5mm Min
In operation
450mm Min
For servicing
purposes
Boiler
Side
Boile
r
Side
Heating
Flow
(22mm)
Hot Water
Outlet
(15mm)
Gas
Inlet
(22mm)
Cold Water
Inlet
(15mm)
Heating
Return
(22mm)
Pressure
Relief
Valve
(15mm)
Condensate
Drain
65 mm 65 mm 65 mm 65 mm 95 mm45 mm
192 mm
50 mm
At least
1.5°
MX8013 - Technical pocket guide DL v14_post proof.indd 14 30/08/2012 14:29

15
For technical enquiries e-mail [email protected]
5mm Min
450mm Min
For servicing
purposes
In operation
At least 1.5°
345mm*
Flue lengths
Flue Group (diameter) Horizontal or Vertical
(H/V?)
Max. Permissible
length
Flue Group A (60/100) H & V 10m
Flue Group G (80/125) H & V 20m
Flue Group N (80/80) H & V 15m
Horizontal and vertical uing options
In line bend reduction amount: 135° = 0.5m, 93° = 1.0m.
Multit Flue Group A – (60mm/100mm Concentric ue) horizontal and
vertical options
Duo-tec Combi GA
Part No. 720599401
STD Horizontal
Telescopic Flue Kit
(positive x) White
Part No. 720644201
Flue Terminal
Deector (White)
Part No. 720648801
1m Flue Extension incl
Fixing Screws
Part No. 720648401
93˚ Flue Bend incl
Fixing Screws
Part No. 720635501
Offset Adaptor Elbow
Part No. 720550801
93˚ Low Prole Boiler
Elbow
Part No. 5118576
Vertical Flue Terminal
Part No. 246144
Flat Roof Flashing
Part No. 720598701
STD Horizontal
Telescopic Flue Kit
(positive x) Black
Part No. 5111068
Flue Terminal
Deector (Black)
Part No. 720643001
0.5m Flue Extension
incl Fixing Screws
Part No. 720648501
135˚ Flue Bend incl
Fixing Screws
Part No. 720627901
Stainless Steel
Terminal Guard – Ø
60/100
Part No. 246143
Roof Cover Plate
Part No. 720642701
STD Horizontal
Telescopic Flue Kit
(positive x) Brown
Part No. 720644301
Flue Terminal
Deector (Brown)
Part No. 720643101
0.25m Flue Extension
incl Fixing Screws
Part No. 720647901
135˚ Flue Bend incl
Fixing Screws (pair)
Part No. 720647101
Vertical Ridge Flue
Terminal
Part No. 5122151
Pitched Roof Flashing
MX8013 - Technical pocket guide DL v14_post proof.indd 15 30/08/2012 14:29

16
Technical Helpline: 0844 8711525
Duo-tec Combi GA
Part Number Description
Temperature Only Control
720971601 Baxi room thermostat
Time Only Control
720971401 Baxi Electro-mechanical 24HR timer kit
720645201 Baxi plug-in digital 24H timer kit (Duo-tec)
720644901 Baxi Programmable 24HR Wireless Sensor (1 channel)
Time & Temperature Control
720030501 Baxi Wireless Programmable Room Thermostat
Additional Items
720103001 Baxi Wired Weather Sensor
Control options
Horizontal and vertical uing options
In line bend reduction amount: 135° = 0.5m, 93° = 1.0m.
Multit Flue Group G – (80mm/125mm Flue systems) horizontal and
vertical options
Part No. 5118580
Horizontal Flue Kit
685mm
Part No. 5118588
Bend 91.5˚
Part No. 5111078
Vertical Flue Terminal
80/125 (Black)
(use with 5111070)
Part No. 5118584
1m Flue Extension Kit
Part No. 5118610
Flue Support Bracket
125mmØ
Part No. 5118597
Bend (pair) 135˚
Part No. 246143
Roof Cover Plate
Part No. 5122151
Pitched Roof Flashing
Part No. 246144
Flat Roof Flashing
Part No. 5111070
Flue vertical adapter
60/100 to 80/125mm
MX8013 - Technical pocket guide DL v14_post proof.indd 16 30/08/2012 14:29

17
For technical enquiries e-mail [email protected]
Duo-tec Combi GA
Horizontal and vertical uing options
In line bend reduction amount: 135° = 0.25m, 93° = 0.5m.
Multit Flue Group N – (80mm Twin Flue systems) horizontal and
vertical options
Part No. 5111084
Twin Pipe To
Concentric Adapter
(80/80 to 80/125
Part No. 5111081
Flue Support Bracket
(pair) 80mmØ
Part No. 5120172
Twin Flue Terminal
(Horizontal
Termination)
Part No. 5111087
Flue Extension (pair,
includes 2 brackets)
Part No. 5111072
Flue Bend (pair)
90˚
Part No. 5111086
Flue Bend (pair)
135˚
Part No. 5111078
Vertical Flue Terminal
80/125 (Black)
(use with 5111070)
Part No. 246143
Roof Cover Plate
Part No. 246144
Flat Roof Flashing
Part No. 5122151
Pitched Roof Flashing
Part No. 720089801
Twin Pipe Flue
Adapter
Part No. 720576301
Pitch Roof Flue
Terminal
Part No. 5121792
Pitched Roof Terminal
Adapter Kit
Part No. 5121791
Single Flue Terminal
(only)
MX8013 - Technical pocket guide DL v14_post proof.indd 17 30/08/2012 14:29

18
Technical Helpline: 0844 8711525
Duo-tec Combi GA
Flue options
Plume Displacement Kits Ø 60/100mm - Multit Flue Group A
Part No. 720627001
Part No. 720622901
Plume Displacement
Terminal Kit inc.1m
Extension
Part No. 720643401
Part No. 720643301
Plume Displacement
Kit Extension &
Brackets
Part No. 5121370
Part No. 720648601
Plume Displacement
Kit Bend - Pair
Part No. 720644601
Stainless Steel PDK
Guard Ø 60/100 - Air
Intake
Part No. 5121369
Part No. 720648701
Plume Displacement
Kit Bend
White Black
IMPORTANT:
If tting a Plume Displacement Flue Kit, the air inlet must be a minimum
of 150mm from any opening windows or doors.
The inlet of the PDK MUST be at least 300mm above ground or
balcony level or any projection or ledge. A guard must be tted where
the inlet is below 2 metres.
500mm Min.
For Plume Displacement Kit permissible ue lengths please see page 13.
MX8013 - Technical pocket guide DL v14_post proof.indd 18 30/08/2012 14:29

19
For technical enquiries e-mail [email protected]
Duo-tec Combi GA
Notes
MX8013 - Technical pocket guide DL v14_post proof.indd 19 30/08/2012 14:29

20
Technical Helpline: 0844 8711525
Duo-tec Combi GA
Heat Input CH (Net)
Max Min
24 model kW 20 3.5
28 model kW 24 3.9
33 model kW 28 4.8
40 model kW 32 5.9
Technical data
NATURAL GAS ONLY !
Max Gas Rate (Natural Gas - G20)
(After 10 mins)
24 model m3/h 2.54
28 model m3/h 2.96
33 model m3/h 3.49
40 model m3/h 4.23
Inlet Pressure (Natural Gas - G20)
mbar 20
PROPANE ONLY !
Max Gas Rate (Propane - G31)
(After 10 mins)
24 model kg/h 1.92
28 model kg/h 2.25
33 model kg/h 2.64
33 model m3/h 3.2
Inlet Pressure (Natural Gas - G31)
mbar 37
Power Consumption
24 model W104
28 model W116
33 model W132
40 model W142
Flue Terminal
Diameter 100mm
Dimensions
Projection 125mm
Connections
copper tails
Gas Inlet 22mm
Heating Flow 22mm
Heating Return 22mm
Cold Water Inlet 15mm
Hot Water Outlet 15mm
Pressure Relief Discharge 15mm
Outercase Dimensions
Casing Height 763mm
Overall Height Inc Flue 923mm
Casing Width 450mm
Casing Depth 355mm
Appliance Type
C13, C33, C43, C53
Appliance Category
CAT I 2H 3P
Electrical Supply
230V~ 50Hz
(Appliance must be connected to an earthed
Electrical Protection
IPX5D
Internal Fuse Rating
F2L
Condensate Drain
To accept 21.5mm (3/4 in) plastic waste pipe
External Fuse Rating
3A
Heat Output CH (Condensing)
Max Min
24 model kW 21.2 3.7
28 model kW 25.3 4.1
33 model kW 29.6 5.1
40 model kW 33.8 6.2
Heat Output DHW
Max
24 model kW 24
28 model kW 28
33 model kW 33
40 model kW 40
Heat Output CH (Non-Condensing)
(Net) Max Min
24 model kW 20 3.4
28 model kW 24 3.8
33 model kW 28 4.7
40 model kW 32 5.7
Heat Input DHW (Net)
Max
24 model kW 24.7
28 model kW 28.9
33 model kW 34
40 model kW 41.2
Injector
24 model mm 4.4
28 model mm 4.6
33 model mm 4.9
33 model mm 5.8
NOTE: All data in this section are nominal values and subject to normal production tolerances.
MX8013 - Technical pocket guide DL v14_post proof.indd 20 30/08/2012 14:29
