Baxi Bermuda PW5 Deluxe Operation instructions

Please keep these Instructions safe.
Should you move house, please hand
them over to the next occupier.

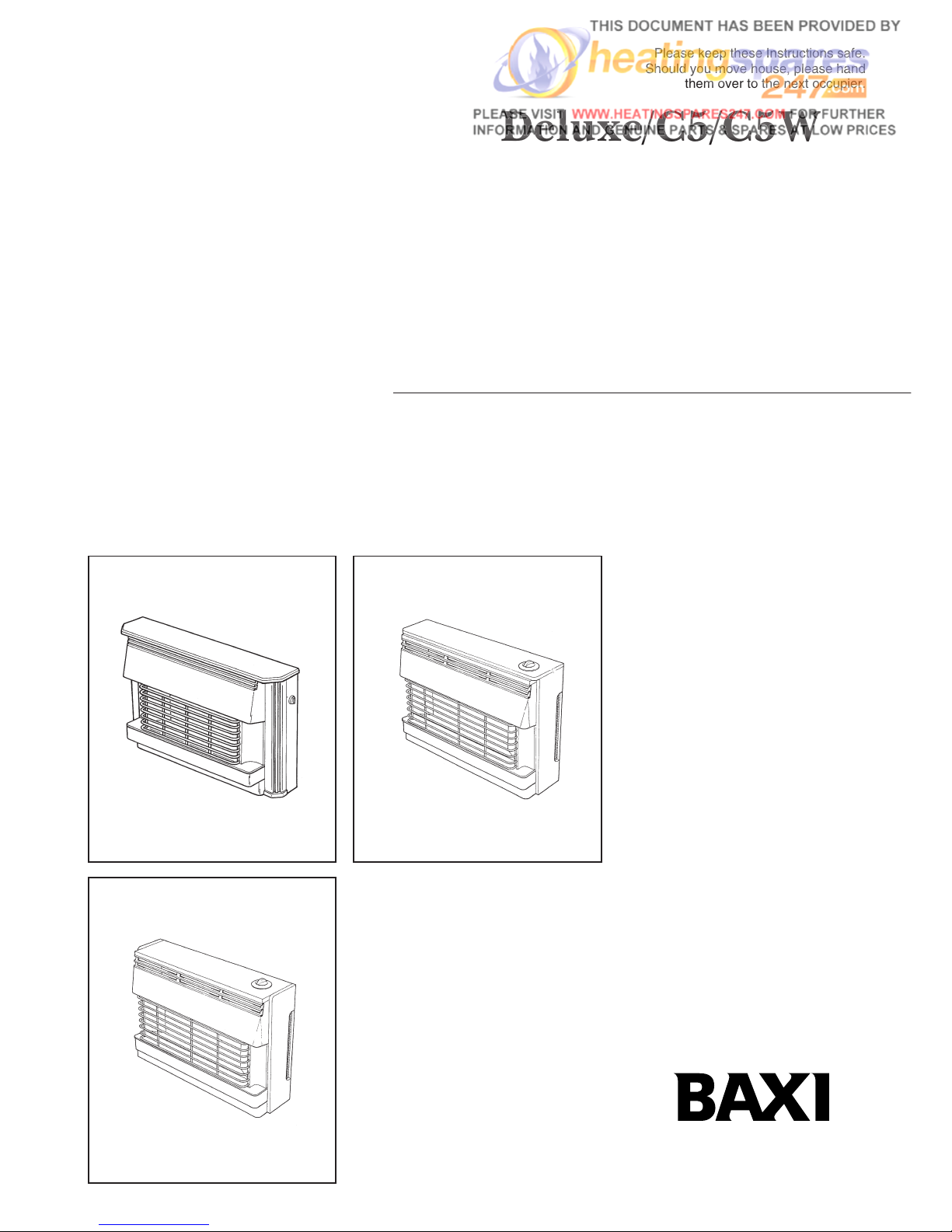

Baxi Bermuda PW5 Deluxe/C5/C5W
Fireside Gas Central Heating Unit
User’s Operating
Instructions
PW5 Deluxe C5W
C5

Baxi is one of the leading manufacturers of domestic
heating products in the UK.
Our first priority is to give a high quality service to our
customers. Quality is built into every Baxi product -
products which fulfil the demands and needs of
customers, offering choice, efficiency and reliability.
To keep ahead of changing trends, we have made a
commitment to develop new ideas using the
latest technology - with the aim of continuing to
make the products that customers want to buy.
Everyone who works at the company has a
commitment to quality because we know that
satisfied customers mean continued success.
We hope you get a satisfactory service from Baxi. If
not, please let us know.
Natural Gas
Baxi Bermuda PW5 Deluxe
G.C.No. 37 077 68
Baxi Bermuda C5
G.C.No. 37 077 65
Baxi Bermuda C5W (Oak)
G.C.No. 37 077 66
Baxi Bermuda C5W
G.C.No. 37 077 67
For use with the following boilers:
Baxi Bermuda 45/4 M
G.C.No. 44 077 71
Baxi Bermuda 45/4 E
G.C.No. 44 077 73
Baxi Bermuda 57/4 M
G.C.No. 44 077 72
Baxi Bermuda 57/4 E
G.C.No. 44 077 74
Baxi Bermuda 51/5
G.C.No. 44 075 06
Baxi is a BS-EN ISO 9001
Accredited Company
Renewal
Baxi Bermuda PW5 Deluxe Renewal
G.C.No. 37 075 10A
Baxi Bermuda C5 Renewal
G.C.No. 37 075 07A
Baxi Bermuda C5W (Oak|) Renewal
G.C.No. 37 075 08A
Baxi Bermuda C5W (Mahogany) Renewal
G.C.No. 37 075 09A
For use with the following boilers:
Baxi Bermuda 401
G.C.No. 44 077 49
Baxi Bermuda 552
G.C.No. 44 077 50
Baxi Bermuda 45/3 M
G.C.No. 44 077 61
Baxi Bermuda 45/3 E
G.C.No. 44 077 60
Baxi Bermuda 57/3 M
G.C.No. 44 077 63
Baxi Bermuda 57/3 E
G.C.No. 44 077 62
Baxi Bermuda 45/4 M
G.C.No. 44 077 71
Baxi Bermuda 45/4 E
G.C.No. 44 077 73
Baxi Bermuda 57/4 M
G.C.No. 44 077 72
Baxi Bermuda 57/4 E
G.C.No. 44 077 74
Baxi Bermuda 51/5
G.C.No. 44 075 06
Propane Gas
Baxi Bermuda C5 Propane
G.C.No. 37 077 74
Baxi Bermuda C5W (Mahogany) Propane
G.C.No. 37 075 17
For use with the following boiler:
Baxi Bermuda 553 Propane
G.C.No. 44 077 75
page 2

page 3
IMPORTANT - Installation, Commissioning,
Service & Repair
This appliance must be installed in accordance with
the manufacturer’s instructions and the regulations
in force. Read the instructions fully before installing
or using the appliance.
In GB, this must be carried out by a competent
person as stated in the Gas Safety (Installation &
Use) Regulations.
Definition of competence: A person who works for a
CORGI registered company and holding current
certificates in the relevant ACS modules, or valid
ACoP equivalents, is deemed competent.
In IE, this must be carried out by a competent
person as stated in I.S. 813 “Domestic Gas
Installations”.
Codes of Practice, most recent version
should be used
In GB the following Codes of Practice apply:
Standard Scope
BS 6891 Gas Installation.
BS 5546 Installation of hot water supplies for
domestic purposes.
BS 5871 Installation of gas fires, convectors and
fire/back boilers.
BS 5440 Part 1 Flues.
BS 5440 Part 2 Ventilation.
BS 6798 Installation of gas fired hot water boilers.
BS 5449 Part 1 Forced circulation hot water systems.
In IE the following Codes of Practice apply:
Standard Scope
I.S. 813 Domestic Gas Installations.
The following BS standards give valuable additional information;
BS 5546 Installation of hot water supplies for
domestic purposes.
BS 5449 Part 1 Forced circulation hot water systems.
IMPORTANT - The addition of anything that may
interfere with the normal operation of the
appliance without express written permission
from the manufacturer or his agent could
invalidate the appliance warranty. In GB this
could also infringe the GAS SAFETY (Installation
and Use) REGULATIONS.
Safe Installation
The appliance is suitable only for installation in
GB and IE and should be installed in
accordance with the rules in force.
In GB, the installation must be carried out by a
CORGI Registered Installer. It must be carried
out in accordance with the relevant requirements
of the:
•Gas Safety (Installation & Use) Regulations.
•The appropriate Building Regulations either
The Building Regulations, The Building
Regulations (Scotland), Building Regulations
(Northern Ireland).
•The Water Fittings Regulations or Water
Byelaws in Scotland.
•The Current I.E.E. Wiring Regulations.
Where no specific instructions are given,
reference should be made to the relevant British
Standard Code of Practice.
In IE, the installation must be carried out by a
competent Person and installed in accordance
with the current edition of I.S. 813 ‘Domestic Gas
Installations’, the current Building Regulations
and reference should be made to the current
ETCI rules for electrical installation.
Read the instructions before installing or using
this appliance.
Never hang clothes or other items over the
appliance.
In case of gas leaks
1. If a gas leak is found or suspected, turn off
the gas supply at the meter immediately and call
your gas supplier.
Servicing your boiler
1. We strongly recommend that your Bermuda is
serviced annually by a competent person for
economic and safety reasons. Your Installer will
be able to advise you.
Electricity supply
1. THIS APPLIANCE MUST BE EARTHED
A standard 230 volt ~ 50Hz supply is required.
The appliance must be protected by a 3 amp fuse.
Fault
1. If it is either known or suspected that a fault
exists on the appliance, it must not be used
until the fault has been corrected by a
competent person.
“Benchmark”Installation, Commissioning and Service Record
Log Book
Please ensure that your installer has completed the Installation and
Commissioning sections of the Log Book and hands the Log Book over.
The details of the Log Book will be required in the event of any warranty
work. Keep the Log Book in a safe place and ensure that the relevant
sections are completed at each subsequent regular service visit.
All CORGI registered installers carry a CORGI identification
card and have a registration number. Both should be recorded
in your boiler Log Book. You can check your installer is
registered by telephoning [phone] or writing to:-
1 Elmwood,
Chineham Business Park,
Crockford Lane,
Basingstoke. RG24 8WG
Warnings

OPERATING THE UNIT
Push in and turn the fire control
knob to the OFF position ( ).
Remove the controls cover panel
at the bottom of the fire by
grasping it firmly by its side edges
and pulling forwards.
Turn the boiler thermostat knob
to the OFF position ( ).
Ensure the main gas and
electricity supplies are turned on.
TO LIGHT THE BOILER PILOT:
(Manual Controls Boiler) Hold in
the grey push button on the gas
control valve. Looking through the
pilot viewing window or mirror: Press
the igniter button and release. Repeat
until the pilot lights.Continue to hold in
the grey push button for a further 15
seconds. The pilot should stay alight.
NOTE: If the pilot fails to remain alight or
is extinguished at any time, wait at least 3
minutes then repeat step 5. Once the pilot
is alight it may be left on permanently.
TO LIGHT THE BOILER:
(Manual Controls Boiler)
Ensure that all external controls, e.g.
room thermostat, timer etc., are
calling for heat. Turn the boiler
thermostat knob to the desired
position.
TO LIGHT THE BOILER:
(Electronic Controls Boiler)
Ensure that all external controls, e.g.
room thermostat, timer etc., are
calling for heat. To operate the pilot
turn the thermostat knob to the
desired position. The indicator light
on the control box will illuminate once
the pilot is lit. The burner will also
light shortly after the pilot has been
established.
To adjust the boiler temperature:
Turn the boiler thermostat knob
clockwise to the required setting. The
optimum boiler thermostat setting
depends upon type of system,
external controls and your
requirements. Your Installer will be
able to advise you on this matter.
If the boiler cannot be lit by the
above method consult your
Service Engineer.
1
2
3
4
5
Introduction
Your Baxi Bermuda PW5 Deluxe, C5
or C5W is a central heating boiler
combined with a gas fire. Normally
the fire will heat the room in which it
is situated and the boiler will provide
heating for the rest of the house and
also domestic hot water if required.
The boiler and fire are independently
controlled.
The boiler may be controlled by an
external programmer or clock control
(see separate instructions with the
clock controller used). The fire is
controlled by the knob which is
located on the right hand side of the
outer case (PW5 Deluxe model) on
top of the outer case (C5/C5W
models).
Important Notice
The Bermuda C5 Propane & C5W
(Mahogany) Propane are for use on
PROPANE GAS ONLY and cannot
be used on any other gas.
Propane appliances can be converted
to operate on Natural Gas if required
at a later date. Consult your Installer.
WARNING
Bermuda PW5 Deluxe, C5 and C5W
Renewal Firefronts MUST NEVER be
fitted as independent gas fires without
the boiler.
6
7
Manual
Controls
Boiler
Electronic
Controls
Boiler
Grey Push Button
Igniter Button
Thermostat
Knob
Service
Tap
Electronic Controls Boiler
(45/3E, 57/3E, 45/4E & 57/4E)
Pilot Indicator Light
Boiler Lockout Light
Igniter
Button Pilot Viewing
Mirror (Series 3)
Pilot Viewing Window (Series 4)
Grey Push
Button
Manual Controls Boiler
(45/3M, 57/3M, 45/4M & 57/4M)
Thermostat Knob
Service Tap
Manual Controls Boiler
(401, 552 & 553 Propane)
Service
Tap
Igniter Button
Pilot Viewing Window
(401 Boiler)
Grey Push
Button
Thermostat
Knob
Pilot Viewing Window
(552Boiler & 553
Propane)
Plug &
Socket
Pilot Viewing Window (Series 4)
page 4
1
2
3
4
Baxi Bermuda
PW5 Deluxe
4
3
2
1
B
A
X
I
B
E
R
M
U
D
A
C
5

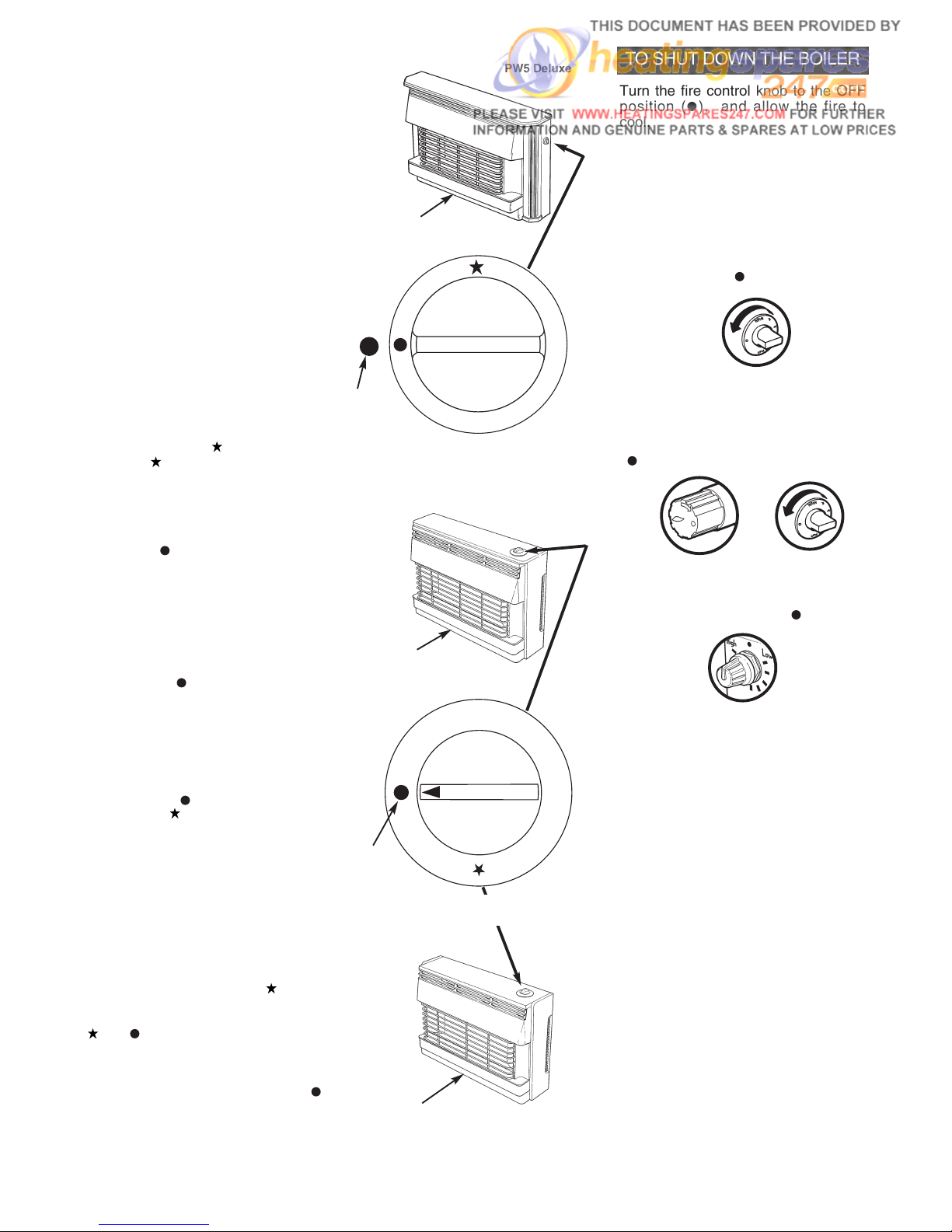

Fire Control Knob
PW5 Deluxe
C5W
C5
Fire Control Knob
(C5 shown)
Controls
Cover Panel
Controls
Cover Panel
Controls
Cover Panel
(C5 shown) Controls
Cover Panel removed Boiler Controls
Electronic Controls Boiler
(51/5)
Indicator Light Thermostat
Knob
Pilot Viewing Window
NOTE: When your Bermuda is first used
it is possible that certain smells may be
emitted. These smells will quickly clear
with use.
Most heating appliances generate warm
air convection currents and transfer heat
to any wall surface against which they
are situated. Some soft wall furnishings
(such as blown vinyl wallpapers) may not
be suitable for use where they are
subjected to temperatures above normal
room levels. The manufacturers advice
should be sought before using this type
of wall covering adjacent to any heating
appliance. The likelihood of wall staining
from convected air currents will be
increased in environments where high
levels of tobacco smoke or other
contaminants exist.

RESETTING THE BOILER:
(Electronic Controls Boiler)
(45/3E, 57/3E, 45/4E & 57/4E)
If the boiler lockout light is illuminated
it is necessary to reset the appliance.
To do this turn the boiler thermostat
control knob fully anti-clockwise to
the OFF position and wait 10
seconds. Turn the control knob to the
required setting. The boiler will
commence sparking providing the
water temperature is sufficiently cool.
(51/5)
If the indicator light is illuminated
red/or flashing red, it is necessary to
reset the appliance. To do this turn
the boiler thermostat control knob
fully anticlockwise to the OFF position
and wait until the light shows orange.
Turn the control knob clockwise to
the required setting. The boiler will
commence the ignition sequence.
TO LIGHT THE FIRE: Push in
and turn the fire control knob
slowly anti-clockwise to the positive
stop at position " 1". Just before
position " 1" is reached, a click will
be heard and the burner should light,
hold in the control knob for approx 15
seconds, release and turn to desired
position. If the burner fails to light,
turn the control knob to the OFF
position ( ) and repeat until the
burner lights. Continue to hold in the
control knob for a further 15 seconds.
Release slowly and the burner should
stay alight.
CAUTION - If the burner does not light
or stay alight, or if the flame goes out for
any reason, turn the control knob to the
OFF position ( ) and wait for 3 minutes
before attempting to light the burner.
NOTE: An electrical supply is not
needed to ignite the fire.
CONTROL KNOB POSITIONS: The
control knob has five positions giving
a choice of 4 settings, i.e.
Position - OFF
Position 1 - IGNITION/PILOT
Position 1 - LOW
Position 2 - MED
Position 3 - MED/HIGH
Position 4 - HIGH
To adjust the fire to the required
setting, push in the control knob and
turn in the appropriate direction.
There is no ‘Pilot Only’position-the
pilot and burner low rate light
simultaneously at position 1.
When the control knob is turned from
1 to the pilot is extinguished.
TO TURN THE FIRE OFF:
Push in the control knob and
turn clockwise to the OFF position( ).
8
9
TO SHUT DOWN THE BOILER
Turn the fire control knob to the OFF
position ( ), and allow the fire to
cool.
Remove the controls cover panel at
the bottom of the fire by grasping it
firmly by its side edges and pulling
forwards.
To switch the boiler off for short
periods. (Manual Controls Boiler)
Turn the boiler thermostat knob to the
OFF position ( ). The pilot will
remain alight.
To switch the boiler off for long
periods. (Manual Controls Boiler)
Turn the grey push button clockwise
and release. Turn the boiler
thermostat knob to the OFF position
( ).
To switch the boiler off. (Electronic
Controls Boiler) Turn the thermostat
knob to the OFF position ( ).
If you are shutting down both the fire
and boiler, isolate the electrical
supply that serves the system
controls i.e. Timer/Programmer.
Replace the controls cover panel.
NOTE: If the boiler is left off for long
periods during cold weather, it is
recommended that the whole system is
drained to avoid frost damage. Advice on
draining the system can be obtained from
your Service Engineer.
10
page 5
1
2
3
4
Baxi Bermuda
PW5 Deluxe
4
3
2
1
B
A
X
I
B
E
R
M
U
D
A
C
5
Fire Control Knob
Controls
Cover Panel
Controls
Cover Panel
Controls
Cover Panel
PW5 Deluxe
C5W
C5
Position
Indicator
Button
Position
Indicator
Button
Fire Control Knob
(C5 shown)

These clearances must not be
reduced or obstructed in any way.
All clearances are essential in order
to allow correct servicing of the
appliance and access to the fire
control knob.
A shelf may be fitted not less than
76mm (3 in) (100mm (4 in) for C5 &
C5W) above the fire and not more
than 229mm (9 in) in depth.
CLEARANCES AROUND
THE FIRE
The minimum clearance spaces
around the Baxi Bermuda PW5
Deluxe are:
Top: 76mm (3 in)
Side: 89mm (31/2in) at right
70mm (23/4in) at left
Clearances for C5 & C5W are:
Top: 100mm (4 in)
Sides: 70mm (23/4in)
76mm
229mm
SPARE PARTS
Any repairs to the appliance during
the guarantee period, will usually be
the responsibility of the installer after
which, spare parts may be obtained
through an approved Baxi stockists.
The spare parts available and their
relevant part numbers and G.C.
numbers can be found at the back of
the installation and servicing
instructions booklet.
The appliance name, serial number
and G.C. number, which are on the
data badge, should always be
quoted. The data badge is visible on
the left hand fire support leg when the
controls cover panel is removed.
page 6
PW5 Deluxe
C5W C5
70mm
76mm
89mm
70mm
100mm
70mm
100mm
70mm
70mm

REMOVAL OF DRESSGUARD
With the appliance cold, remove the
dressguard by disengaging the top
pin from the canopy and the bottom
pin from the reflector. Flex the
dressguard outwards to disengage
one side pin and remove. To replace
the dressguard locate one side pin in
the reflector and flex the dressguard
outwards to locate the other side pin.
Locate the bottom pin in the reflector
and the top pin on the canopy. The
guard is to prevent risk of fire or injury
from burns and should not be
permanently removed. It does not
give full protection for young children
or the infirm: in such cases we
recommend a nursery type guard
which conforms to BS 6539.
TO FIT A NEW RADIANT
PLAQUE
Remove the dressguard. Lift the
radiant up until its base is clear of the
metal lip, pull the base forward over
the lip and lower the radiant out of the
frame. Fit the new radiant by putting
the top of the radiant in position, lifting
the radiant over the metal lip and then
lowering onto its support at the back
bottom edge of the radiant. Check
that the new radiant lines up with the
existing radiants to ensure that it has
been fitted correctly. The lower front
edge should be flush against the
radiant support rail.
IMPORTANT: Radiant plaques
suitable for use with A.S.D.
equipped fires must be used.
These are Baxi Part No. 237851.
Radiant plaques for older models
of the fire (Part No. 043025) must
not be used as they prevent correct
operation of the A.S.D.
IGNITION WITH A MATCH
Ensure that the fire is cold.
Apply a lighted taper or match to
either of the centre two radiants. Push
in and turn the fire control knob anti-
clockwise to the positive stop at
position “1”and the burner and pilot
should light. Continue to hold in the
control knob for a further 15 seconds.
Release slowly and the burner and
pilot should stay alight.
CAUTION - If the burner does not light
or stay alight, or if the flame goes out for
any reason, turn the control knob to the
OFF position ( ) and wait for 3 minutes
before attempting to light the burner.
CLEANING THE FIRE
Ensure that the fire is cold. The painted
panels and metalwork should be wiped
with a damp cloth and dried thoroughly
with a lint-free cloth. The chromed
reflector should be cleaned occasionally
with a good quality metal polish. The side
panels may be cleaned occasionally with
furniture polish.
SURROUND OR WALL FINISH
The surround or wall finish must have a
flat vertical area centrally placed about
the opening.
If a surround is fitted, any gaps between it
and the wall must be sealed and it must
have a rating of 100°C or higher.
PILOT / A.S.D.
Both the boiler and firefront are fitted with
a pilot light that also acts as an
Atmospheric Sensing Device. This means
that in the event of the flow of gases out
of the flue being interrupted, the pilots will
extinguish and shut the fire and boiler
down. If this occurs persistently your
Service Engineer should be contacted
immediately.
Renewal firefronts are fitted with an
Atmospheric Sensing Device (A.S.D.).
If they are installed in conjunction with
a boiler NOT fitted with an A.S.D. (i.e.
401, 552, 45/3 & 57/3), under adverse
flue conditions the boiler WILL NOT
shut down.
It is important that the appliance is
regularly serviced to ensure correct
operation of the Atmospheric Sensing
Device.
page 7

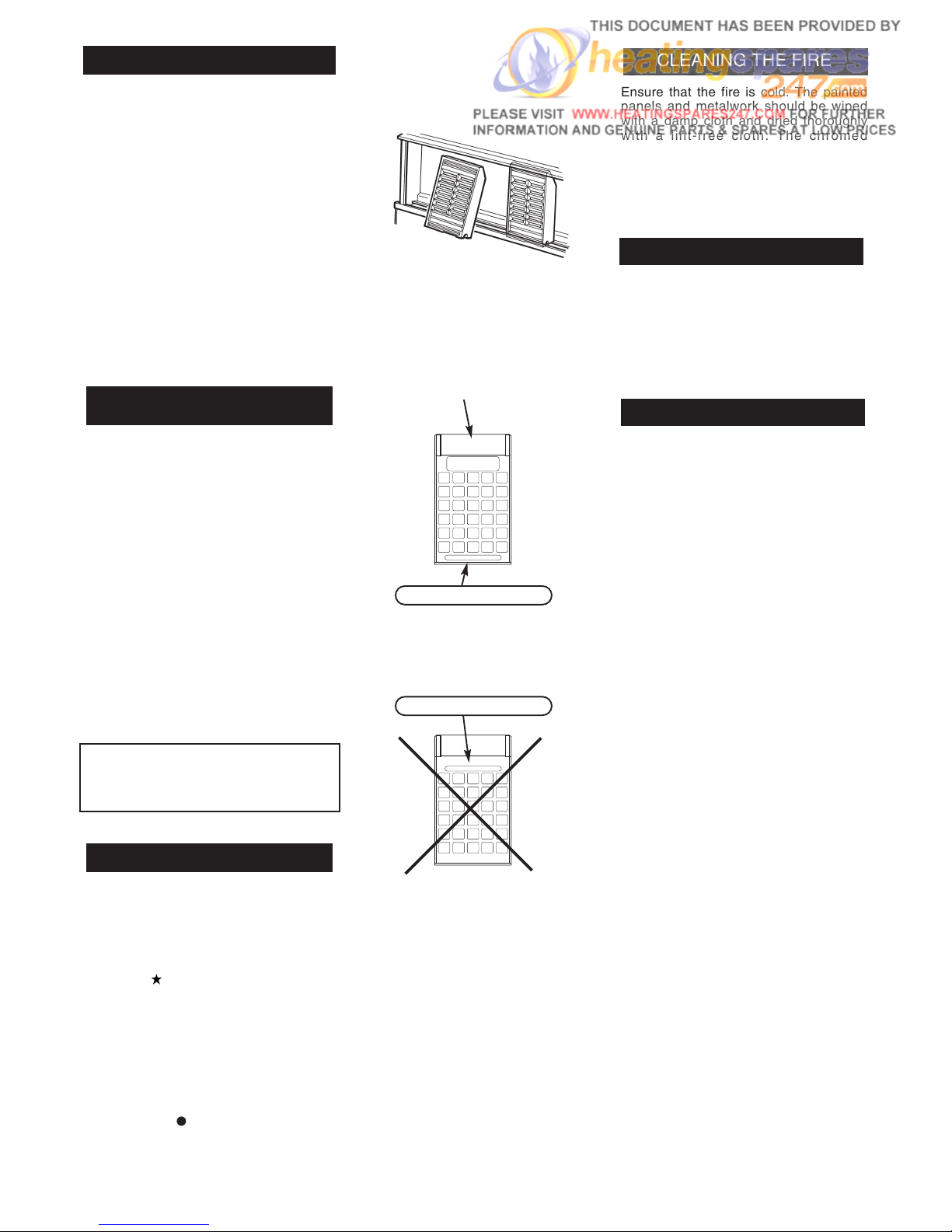

Removing a Radiant
A.S.D.
BAXI SPECIAL 237851
BAXI SPECIAL 043025
This radiant type MUST be
used on PW5 Deluxe, C5 &
C5W appliances
BAXI SPECIAL 237851
BAXI SPECIAL 043025
DO NOT fit a radiant of this
type to PW5 Deluxe, C5 &
C5W appliances
Radiant Plaque Identification
(viewed from rear of radiant)

Comp No 237651 - Iss 9 - 1/03
BAXI POTTERTON
Brownedge Road Bamber Bridge Preston Lancashire PR5 6SN
After Sales Service 08706 096 096 Technical Enquiries 08706 049 049
www.baxi.co.uk
Guarantee
1. Your Baxi Bermuda is designed and
produced to meet all the relevant Standards.
2. Baxi provide a 3 year guarantee on the
Bermuda - other parts of the system are
covered by the Installer or other
manufacturers. The guarantee operates from
the date installation is completed for the
customer who is the original user.
3. To maximise the benefit from our guarantee
we urge you to return the reply-paid guarantee
registration.
4. This does not in any way prejudice your
rights at Common Law. Such rights between
the customer and the installer or supplier from
whom the unit was purchased remain intact.
Any component or part which becomes
defective during the guarantee period as a
result of faulty workmanship or material
whilst in normal use will be repaired or
replaced free of charge.
