Baxi 750FS User manual

5112062/01
OWNER GUIDE
This guide is intended to help you care for your gas fire. Please read thoroughly before
using and keep for future reference.
This guide to be left with the owner
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20)
WHEN CONVERTED USING CONVERSION KIT NO. 0595221 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31)
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).
© Baxi Heating U.K. Ltd.
Model 750FS
Heat Engine
(GC No. 32-032-58)
INSET LIVE FUEL EFFECT GAS FIRE
INCORPORATING THE
CONTROL
For technical advice firstly contact your retailer. If further advice is required then call
0161703 8157 for The Midlands and North or
01462 813 138 for The South.

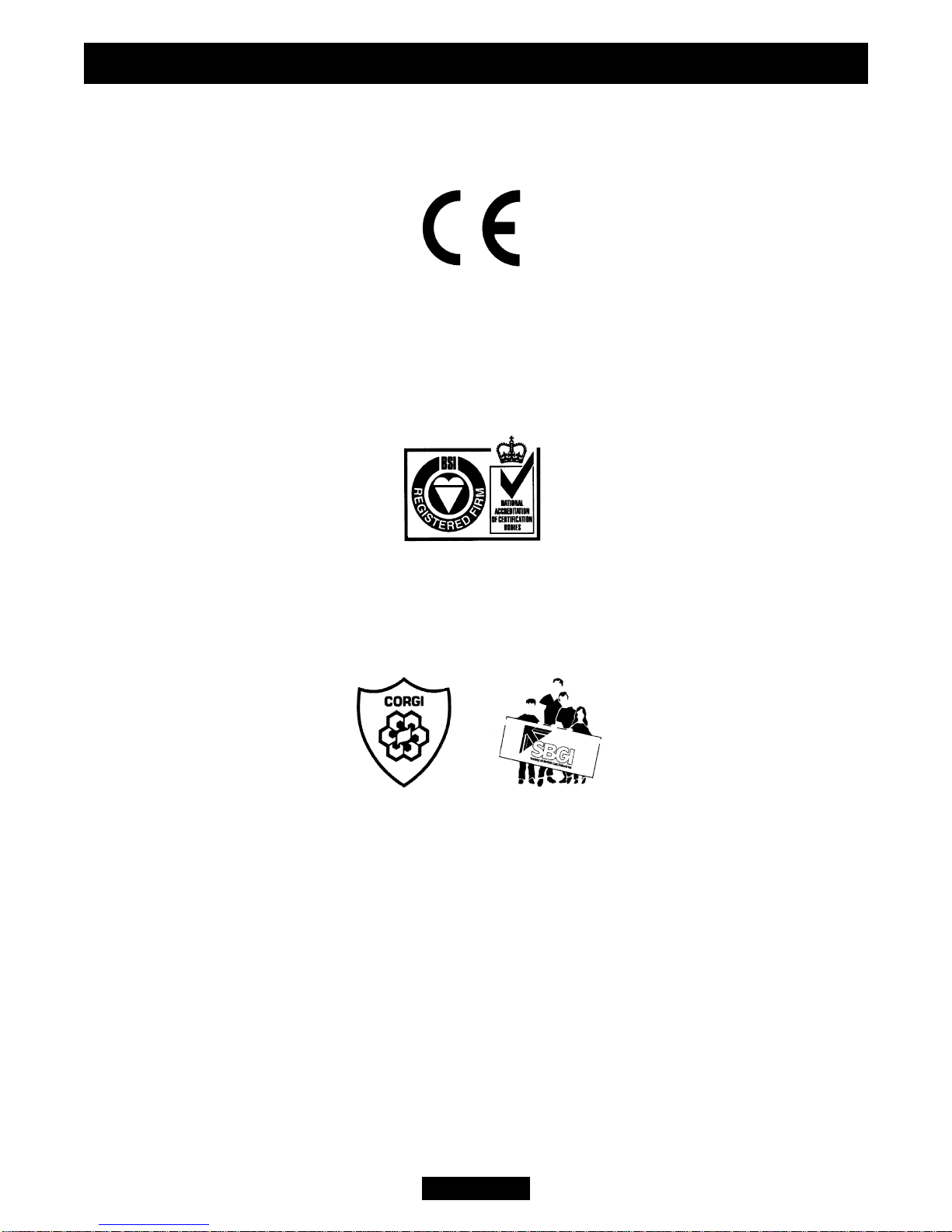

Safety First.
This gas fire is CE Approved and designed to meet the appropriate British Standards
and Safety Marks.
Quality and Excellence.
This fire has been manufactured to the highest standards of quality and excellence and
was manufactured under a BS EN ISO 9001 quality system accepted by the British
Standards Institute.
The Highest Standards
The manufacturer is a member of the Society of British Gas Industries which works to
ensure high standards of safety, quality and performance.
Careful Installation
The manufacturer is a CORGI registered company. This gas fire must be
installed by a competent CORGI Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet.
Baxi Fires Division, Erdington, Birmingham B24 9QP
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
OWNER GUIDE

LIST OF CONTENTS
Section Page
SAFETY 4
GAS CONSUMPTION 5
OPERATING YOUR FIRE 6
The Oxysafe flame sensing and flue blockage safety system. 6
Lighting the pilot. 6
Lighting with a taper. 7
CLEANING YOUR FIRE 8
Metal parts. 8
Burner. 8
Ceramic fuel effect and rear wall. 8
CERAMIC FUEL EFFECT REFITTING 9
MAINTENANCE 9
Battery replacement. 9
Regular maintenance. 9
Servicing. 10
This gas fire is designed to meet the most stringent quality, performance and safety
requirements to provide you with many years’ trouble-free service.
This guide aims to improve your understanding and appreciation of your gas fire by
providing simple and informative instructions to ensure that you benefit from the
excellent performance and features it has to offer.
Page 3
OWNER GUIDE

SAFETY
Do
have the fire installed by a competent person. In the United Kingdom, installation
must be in accordance with the latest edition of the Gas Safety (installation & use)
Regulations. In the Republic of Ireland, installation must be in accordance with all
national and local regulations in force.
Do
have the chimney swept prior to installation if it was previously used for solid fuel.
Do have the fire installed in accordance with the installation instructions.
Do
provide a minimum clearance of 750mm from the top surface of the hearth to any
shelf made of wood or other combustible material where the shelf is not more than
150mm deep. For a shelf deeper than 150mm, add 12.5mm to the clearance for every
25mm of additional shelf depth (See graph1).
Do always use a fireguard complying with BS 8423 for the protection of young
children, the elderly or infirm.
Do wait three minutes before attempting to relight if the fire is switched off or the
flames are extinguished for any reason. (Your fire is fitted with a safety device that will
automatically shut off the gas supply to the fire, if for any reason , the flame goes out)
Page 4
OWNER GUIDE
IF YOU SMELL GAS
DON’T SMOKE
EXTINGUISH ALL NAKED FLAMES
DON’T TURN ELECTRICAL SWITCHES ON OR OFF
TURN OFF THE GAS SUPPLY AT THE METER
OPEN DOORS AND WINDOWS TO GET RID OF THE GAS
IMMEDIATELY CALL THE GAS EMERGENCY SERVICE – SEE YOUR LOCAL TELEPHONE
DIRECTORY

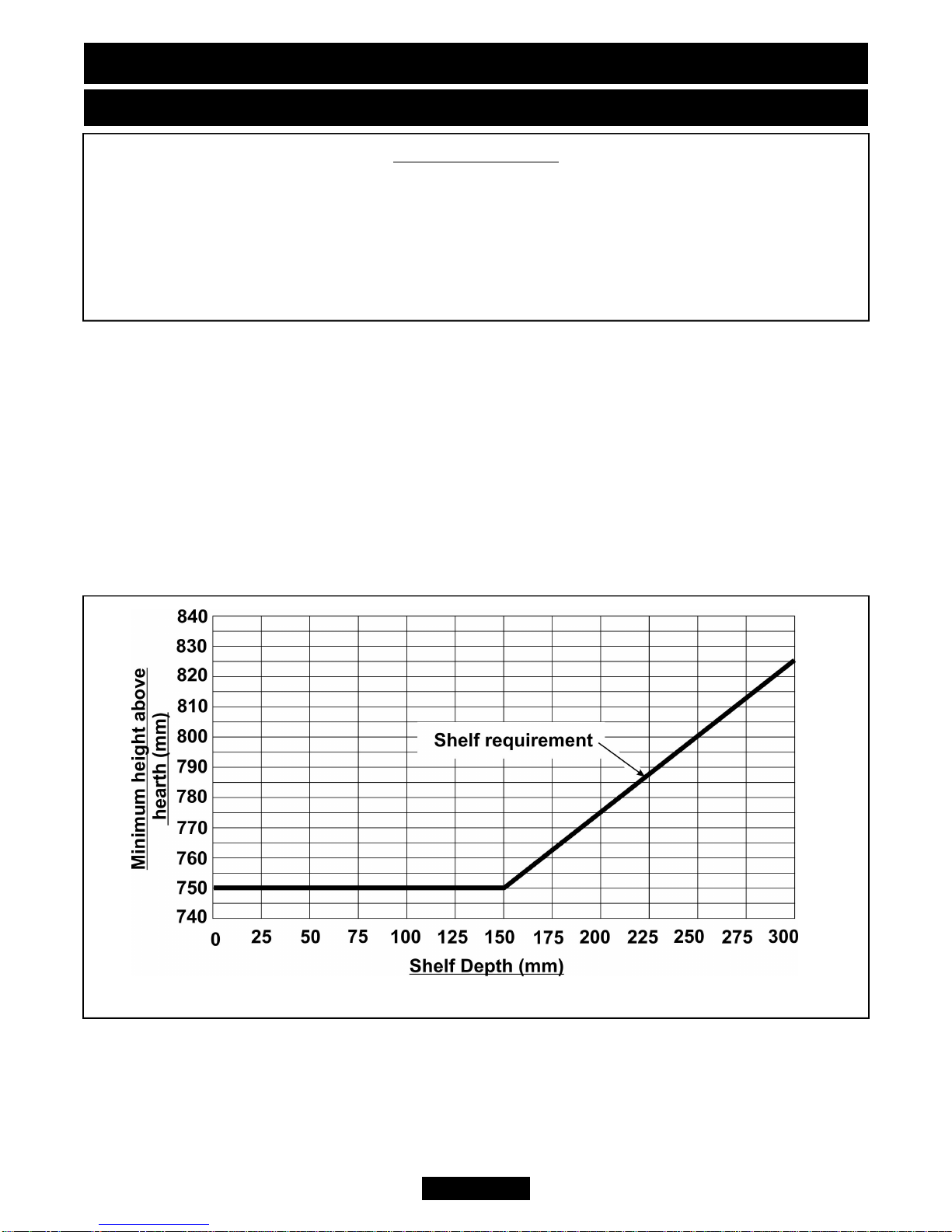

Graph 1. Combustible shelf clearances

Do get advice about the suitability of any wall covering near your fire. Soft wall
coverings (e.g. embossed vinyl, etc.) which have a raised pattern are easily affected by
heat. They may, therefore, scorch or become discoloured when close to a heating
appliance. Please bear this in mind whenever you are considering redecorating.
Do provide a minimum side clearance as detailed below:
The minimum allowable distance from the outside of the fascia to a corner wall having
combustible material or any other combustible surface which projects beyond the front
of the appliance is 100mm.
For access purposes a 10mm clearance to non-combustible surfaces is recommended on
the left side of the appliance, on the right side the recommended clearance is 50mm for
access to the slider control.
Please bear this in mind if ever you are altering the room.
Don’t hang clothing, towels or any other fabrics over the fire.
Don’t put more ceramic fuel effect pieces on the fire than the number given in this
guide or use any ceramic fuel effect pieces other than those authorised for this fire.
Incorrect combustion could result.
Don’t put paper or other materials onto your fire.
Don’t use the fire with damaged base ceramics.
Don’t place any combustible material (rugs, carpet, plastic tiles, etc.) on the hearth
Don’t
attempt to clean or service the fire until it has been switched off and allowed to
cool completely.
GAS CONSUMPTION
Model 750
Has a maximum natural gas input of 6.0kW (Gross)
Has a maximum natural gas output of 3.1kW
Has a minimum natural gas input of 2.7kW (Gross)
Has a minimum natural gas output of 1.3kW
Model 750 when converted using kit number 0595221
Has a maximum propane gas input of 6.1kW (Gross)
Has a maximum propane gas output of 3.1kW
Has a minimum propane gas input of 4.3kW (Gross)
Has a minimum propane gas output of 2.1kW
Page 5
OWNER GUIDE

OPERATING YOUR FIRE
The Oxysafe flame sensing and flue blockage safety system.
For your safety, this appliance is fitted with a flue blockage safety device which will
shut down the appliance in the event of abnormal flue conditions.
This device is NOT a
substitute for an independently mounted Carbon Monoxide detector.
The device will also automatically shut off the gas supply to the fire if the pilot flame
goes out due to lack of oxygen or for any other reason.
If this device starts to repeatedly shut off the gas, get expert advice.
This device incorporates a probe which senses that the heat from the pilot flame is
correct. If this probe is cool, the device will prevent any gas flow unless the control
knob is kept depressed at the "Pilot/Ign" position.
If, for any reason, the flames go out when the fire is hot or if the fire is turned off when
hot, always wait at least three minutes before attempting to relight.
Lighting the pilot.
The control markings are shown in figure 2.
u Slide the control button to the bottom (ignition)
position marked .
In this position, the electronic ignition system should
cause a series of sparks that should light the pilot. Within
four seconds of the pilot igniting, the main burner should
light at its minimum setting.
If no sparks are produced to light the pilot, the battery
may need replacing. Details of battery replacement are
given further on in this manual. Until you can obtain a
replacement battery the fire can be lit with a taper as described later in the instructions.
u
Keep the button at the ignition position for a further ten seconds. This will prevent
the flame sensing device from shutting off the gas while its probe warms up as
Page 6
OWNER GUIDE
PLEASE NOTE
When operating your fire for the first time, some vapours may be given off which may
cause a slight odour and could possibly set off any smoke alarms in the immediate
vicinity. These vapours are quite normal with new appliances. They are totally harmless
and will disappear after a few hours use.
Figure 2. Control markings

explained above.
u
If low heat is required, release the button. The button will automatically spring up
to the low heat position shown in figure 2 (See note i).
u
For a higher heat level slide the button upwards. The burner flames and heat output
will gradually increase until the button reaches the high heat position shown in figure 2.
When the button reaches the high heat position you will feel a check to its movement.
Do not slide the button above the high heat position unless you want to turn the fire off
(See note i).
Notes:
i.
If the flames go out while setting the control, repeat the full lighting procedure. If the
flames repeatedly go out have the fire serviced.
ii. When first turned on the flames will appear predominantly blue. The ceramic fuel
effect will take time to warm up. Although some glow will be seen after approximately
ten minutes, the full visual effect will only be apparent after a somewhat longer time.
iii.
The appliance will operate to its maximum potential if the flue is primed during the
first 20 - 30 minutes of operation. To do this, simply slide the control to its highest
setting. This will also burn off any carbon deposits that may have formed during
previous operations.
iv.
If operating the appliance for long periods it is beneficial to change between settings.
This will also help to remove any carbon deposits that may form during operation.
Lighting with a taper.
(See figure 3).
In the unlikely event of failure of the ignition
spark, the pilot can be lit by a taper or long spill.
Insert the taper or spill through the lower left
hand opening in the front of the fuel effect bed.
! Follow the section ‘ Lighting the pilot’ as
described previously.
Page 7
OWNER GUIDE
Figure 3. Lighting with a taper

CLEANING YOUR FIRE
To maintain the high performance and quality finish of your appliance, please follow
these guidelines:
!
Before attempting to clean the fire, please remember to turn off the fire and wait for
the appliance to cool completely. The fire will retain heat for some time before cleaning
can begin.
!
If any pieces of debris are found in the firebox, have the chimney inspected before
further use.
Metal parts.
!
Clean the metal parts with a slightly damp, lint free non-abrasive cloth and then dry.
! Do not use abrasive cleaners, as these will scratch the fire surface.
Ceramic fuel effect and rear wall.
! This product uses fuel effect pieces and burner compartment rear wall
containing Refractory Ceramic Fibres (RCF), which are man-made vitreous
silicate fibres. Excessive exposure to this material may cause irritation to eyes, skin
and respiratory tract. Consequently, it is important to take care when handling
these articles to ensure that the release of dust is kept to a minimum.
!
Light coatings of soot will usually be burnt off during the normal operation of the
fire.
! Should any soot accumulation become excessive, the fuel effect pieces and walls
should be removed from the fire for cleaning.
!
Cleaning should be carried out in a well ventilated area or in the open air by gently
brushing with the pieces held away from your face so that you avoid inhaling the
dust.
! We suggest that you remove the ceramic fuel effect in the reverse order to that
shown in the ceramic fuel effect installer and owner guide. This should have been left
inside or attached to this guide by the installer.
Burner.
! The burner surface can be carefully cleaned to remove any loose particles after
taking off the ceramic fuel effect. Make sure that no particles are pushed into the burner
holes.
Page 8
OWNER GUIDE

CERAMIC FUEL EFFECT REFITTING
The installer and owner guide for the ceramic fuel effect is separate from this guide. The
installer may have attached it to this guide or placed it inside. It is important that the
installer and owner guide for the ceramic fuel effect is followed correctly. If replacing
the ceramic fuel effect, where a new guide is supplied, follow the installer and owner
guide supplied with the replacement fuel effect.
Keep the replacement installer and owner guide with this owner guide for future
reference.
MAINTENANCE
Battery replacement.

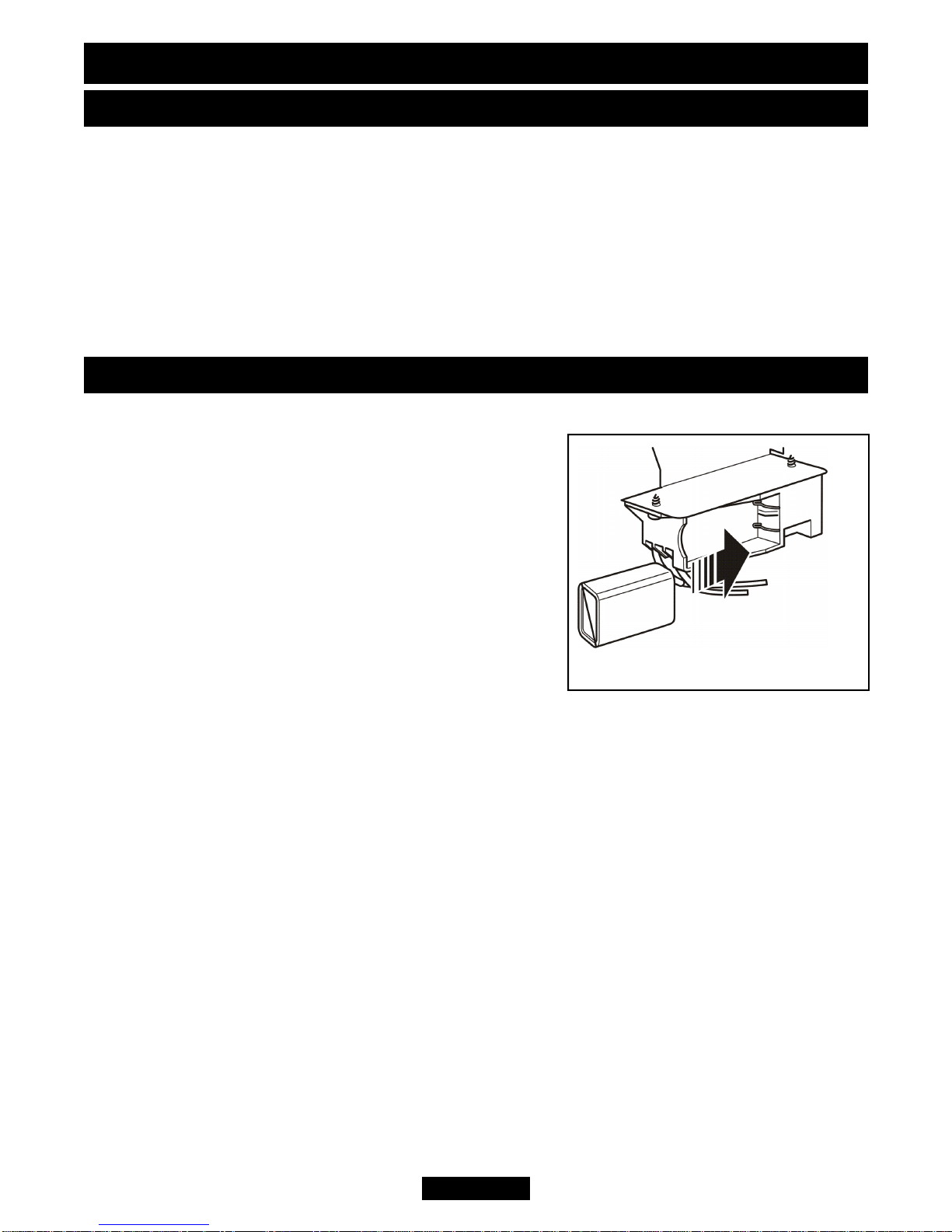

The igniter unit uses a 9V PP3 battery. To replace the
battery remove the firefront casting / front cover
casting.
1. Remove and discard the battery from the ignition
block located below the burner tray at the left side.
2. Fit the replacement battery to the ignition block.
(See figure 4). The positive terminal (+) is to the top
as you insert.
3. Replace the firefront casting / front cover casting.
Regular maintenance.
In order to achieve and maintain high levels of personal safety and performance
efficiency, it is essential that the opening at the back of the fire and the flue are kept
clear of any form of obstruction. It is possible that deposits of mortar or soot could fall
and accumulate causing the flue to be blocked or restricted and so preventing proper
clearance of dangerous exhaust fumes.
In the United Kingdom it is the law that a landlord must have any gas appliance, flue
and pipework which is situated in a tenant’s premises checked for safety at least every
twelve months by a competent person (In the U.K, a CORGI registered installer).
We recommend that all gas appliances and their flues, wherever situated, are checked
annually.
Page 9
OWNER GUIDE
Figure 4. Fitting the battery

Servicing.
IMPORTANT
To help us quickly help you, please try to have the following information available
before you contact us:
Type of fire.
Model/Name.
Serial Number.
You will also be asked for the fault, problem or request plus your Post Code.
! If you wish to replace any of the ceramic fuel effect pieces, spare parts
are available nationwide via the ‘interpart stockist network’. For your local
stockist consult Yellow pages under Central Heating.
! When fitting replacement parts it is important that only approved parts are
used for maximum safety.
Page 10
OWNER GUIDE
