Baxi 946 User manual

5115503/01
OWNER GUIDE
This guide is intended to help you care for your Baxi Fires Division gas fire. Please read
thoroughly before using and keep for future reference.
This guide to be left with the owner
© Baxi Heating U.K. Ltd.
We trust that these instructions give sufficient details to enable this appliance to be
operated and maintained satisfactorily. However, if further information is required, our
Baxi Fires Division Technical Helpline will be pleased to help.
Telephone [phone]
(National call rates apply in the United Kingdom). In the
Republic of Ireland telephone [phone].
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).
WHEN CONVERTED USING CONVERSION KIT NO. 0595231 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31).
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).
Model 946
fitted with
Anthem,
Aura 2, Blenheim, Camden, Coast,
Debut, Fusion,
Homeflame Traditional, Minima,
Sonnet
or
Quantum fascia.
INSET LIVE FUEL EFFECT GAS FIRE
(GC No. 32-032-63)

Safety First.
Baxi Fires Division fires are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
At the heart of every Baxi Fires Division fire.
All Baxi Fires Division fires are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted by
the British Standards Institute.
The Highest Standards
Baxi Fires Division is a member of the Society of British Gas Industries which works to
ensure high standards of safety, quality and performance.
Careful Installation
Baxi Fires Division is a CORGI registered company. All our gas fires must be
installed by a competent CORGI Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet or floor of combustible material.
Baxi Fires Division, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
OWNER GUIDE

LIST OF CONTENTS
Section Page
SAFETY 4
GAS CONSUMPTION 5
APPLIANCE DIMENSIONS AND CLEARANCES 6
OPERATING YOUR FIRE 8
Lighting the pilot. 8
Lighting the burner. 9
Selecting the heat setting. 9
Turning the fire back to pilot setting. 9
Turning the appliance off. 9
Lighting with a taper. 9
CLEANING YOUR FIRE 10
Metal parts. 10
Ceramic fuel effect and rear wall. 10
Burner. 10
MAINTENANCE 11
Regular maintenance. 11
Servicing. 11
USEFUL TELEPHONE NUMBERS 12
This gas fire is designed to meet the most stringent quality, performance and safety
requirements to provide you with many years’ trouble-free service.
This guide aims to improve your understanding and appreciation of your gas fire by
providing simple and informative instructions to ensure that you benefit from the
excellent performance and features it has to offer.
Page 3
OWNER GUIDE

SAFETY
Do
have the fire installed by a competent person. In the United Kingdom, installation
must be in accordance with the latest edition of the Gas Safety (installation & use)
Regulations. In the Republic of Ireland, installation must be in accordance with all
national and local regulations in force.
Do
have the chimney swept prior to installation if it was previously used for solid fuel.
Do have the fire installed in accordance with the installation instructions.
Do
provide a minimum clearance of 750mm from the base of the fireplace opening to
any shelf made of wood or other combustible material where the shelf is not more than
150mm deep. For a shelf deeper than 150mm, add 12.5mm to the clearance for every
25mm of additional shelf depth (See graph1).
Do always use a fireguard complying with BS 8423 for the protection of young
children, the elderly or infirm.
Do wait three minutes before attempting to relight if the fire is switched off or the
Page 4
OWNER GUIDE
IF YOU SMELL GAS
DON’T SMOKE
EXTINGUISH ALL NAKED FLAMES
DON’T TURN ELECTRICAL SWITCHES ON OR OFF
TURN OFF THE GAS SUPPLY AT THE METER
OPEN DOORS AND WINDOWS TO GET RID OF THE GAS
IMMEDIATELY CALL THE GAS EMERGENCY SERVICE – SEE YOUR LOCAL TELEPHONE
DIRECTORY

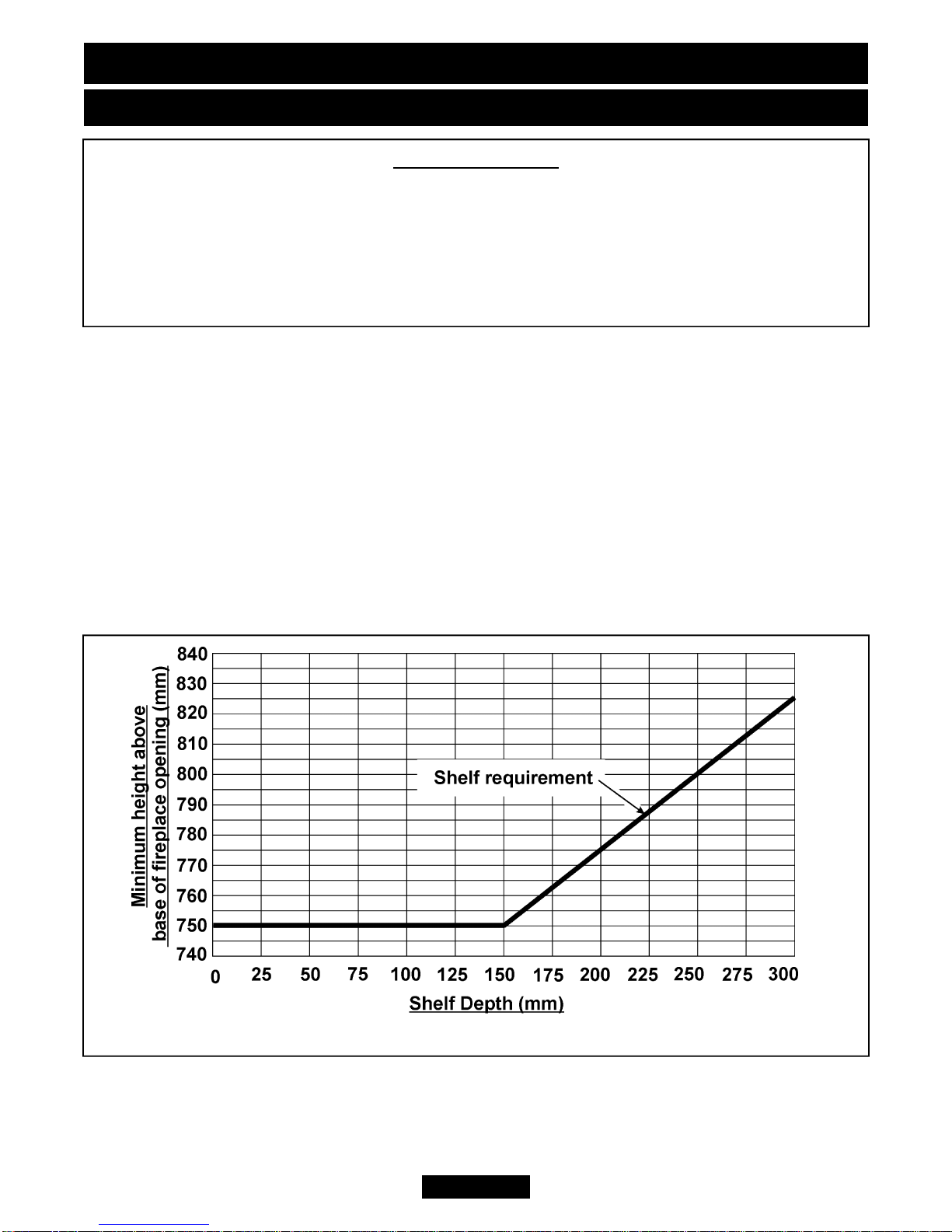

Graph 1. Combustible shelf clearances

flames are extinguished for any reason.(Your fire is fitted with a safety device that will
automatically shut off the gas supply to the fire, if for any reason , the flame goes out).
Do get advice about the suitability of any wall covering near your fire. Soft wall
coverings (e.g. embossed vinyl, etc.) which have a raised pattern are easily affected by
heat. They may, therefore, scorch or become discoloured when close to a heating
appliance. Please bear this in mind whenever you are considering redecorating.
Do
provide a minimum side clearance as detailed in figure 1. Please bear this in mind if
ever you are altering the room.
Don’t hang clothing, towels or any other fabrics over the fire.
Don’t
put more loose ceramic fuel effect pieces on the fire than the number given in the
installer guide or use any ceramic fuel effect pieces other than those authorised for this
fire. Incorrect combustion and health hazard could result.
Don’t put paper or other materials onto your fire.
Don’t use the fire with damaged base ceramics.
Don’t place any combustible material (rugs, carpet, plastic tiles, etc.) on the hearth
Don’t
attempt to clean or service the fire until it has been switched off and allowed to
cool completely.
GAS CONSUMPTION
Natural gas.
Has a maximum natural gas input of 6.0kW (Gross)
Has a maximum natural gas output of 3.0kW
Has a minimum natural gas input of 2.3kW (Gross)
Has a minimum natural gas output of 1.15kW
LPG (Converted using kit number 0595231)
Has a maximum propane gas input of 6.1kW (Gross)
Has a maximum propane gas output of 3.2kW
Has a minimum propane gas input of 3.8kW (Gross)
Has a minimum propane gas output of 2.0kW
Page 5
OWNER GUIDE

APPLIANCE DIMENSIONS AND CLEARANCES
Page 6
OWNER GUIDE

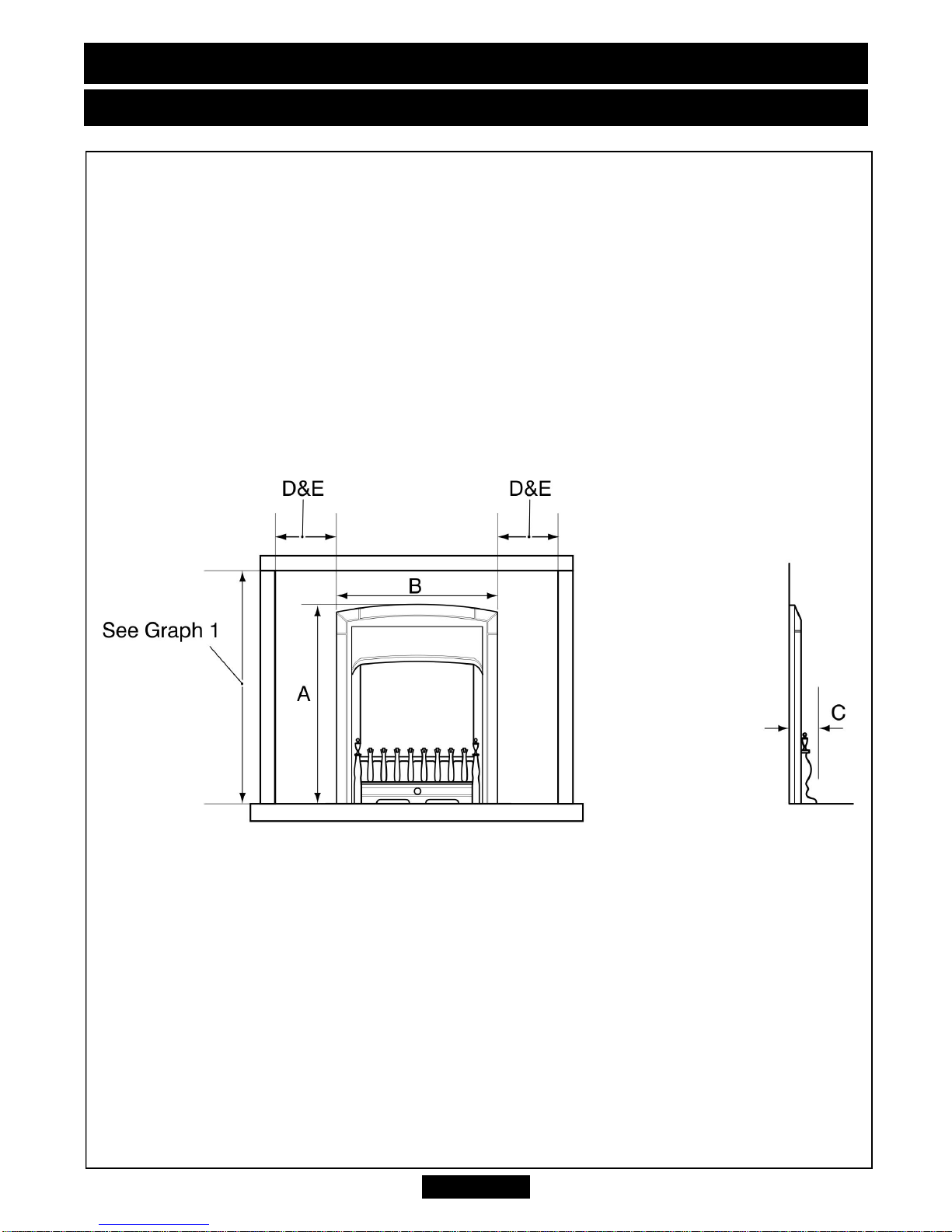

Figure 1. Appliance dimensions and clearances (Fascia may differ from that shown)
(The appliance dimensions ‘A’, ‘B’ & ‘C’ shown in the table are subject to
manufacturing tolerance)

Page 7
OWNER GUIDE
Key Description
Model
Blenheim,
Sonnet,
Homeflame
Traditional, Camden Coast Anthem Quantum Minima Debut Aura 2 Fusion
AAppliance height
(mm) 587.5 587.5 587.5 585 600 585 585 587.5 592
BAppliance width (mm) 450 450 450 450 500 (including
plinth) 450 450 450 450
CAppliance depth into
room (mm) 85 63 55 68 80 75 76 63 67
D
Minimum mandatory
clearance to
combustible surfaces
projecting beyond the
front of appliance
(mm).
100 100 100 100 100 100 100 100 100
E
Recommended
clearance to non-
combustible surfaces
for access purposes
(mm).
10 10 10 10 50 (From fascia
sides, not
plinth) 10 10 10 10

OPERATING YOUR FIRE
The Oxysafe flame sensing and flue blockage safety system.
For your safety, this appliance is fitted with a flue blockage safety device which will
shut down the appliance in the event of abnormal flue conditions.
This device is NOT a
substitute for an independently mounted Carbon Monoxide detector.
The device will also automatically shut off the gas supply to the fire if the pilot flame
goes out due to lack of oxygen or for any other reason.
If this device starts to repeatedly shut off the gas, get expert advice.
This device incorporates a probe which senses that the heat from the pilot flame is
correct. If this probe is cool, the device will prevent any gas flow unless the control
knob is kept depressed at the “Pilot/Ign” position.
If, for any reason, the flames go out when the fire is hot or if the fire is turned off when
hot, always wait at least three minutes before attempting to relight.
Lighting the pilot.
This fire is controlled by a 4-position gas tap mounted
on the front leg of the appliance. In addition to the
“OFF” position there is a pilot light and 2 heat control
settings (See figure 2).
! Depress the control knob and turn anticlockwise
towards the “Pilot/Ign” position. A spark should be
generated at the pilot while turning. The spark should
ignite the pilot. The pilot flame can be seen through the
lower left hand opening in the front of the fuel effect
bed.
! Keep the button depressed at the “Pilot/Ign” position
for a further ten seconds. This will prevent the flame-
sensing device from shutting off the gas while its probe
warms up.
! If the pilot does not ignite instantly, repeat procedure. If after 10 seconds pilot
ignition has not occurred, turn the control knob back to the “Off” position, wait
for 3 minutes and then repeat the ignition procedure.
Page 8
OWNER GUIDE
PLEASE NOTE
When operating your fire for the first time, some vapours may be given off which may
cause a slight odour and could possibly set off any smoke alarms in the immediate
vicinity. These vapours are quite normal with new appliances. They are totally harmless
and will disappear after a few hours use.
Figure 2.

Lighting the burner.
! Once the pilot light is established, the main burner can be lit by depressing and
turning the control knob anticlockwise to the “High” position.
Selecting the heat setting.
!
In order to change from one setting to another depress the control knob slightly and
turn the knob to the required position. Any setting from “Low” to “High” may be
selected.
Note: The appliance will operate to its maximum potential if the flue is primed during
the first 20-30 minutes of operation. To do this, simply operate the appliance at its
“High” setting. This will also burn off any carbon deposits that may have formed
during previous operations. If operating the appliance for long periods it is beneficial to
change between settings. This will help to remove any carbon deposits that may form
during operation.
Turning the fire back to pilot setting.
! Depress the control knob and turn clockwise until the pilot setting is reached.
Turning the appliance off.
! Make sure that the control knob is in the pilot position. Depress the control knob
and turn clockwise to the “Off” position.
! Wait at least three minutes before relighting.
Lighting with a taper.
(See figure 3).
In the unlikely event of failure of the ignition spark,
the pilot can be lit by a taper or long spill. Insert the
taper or spill through the lower left hand opening in
the front of the fuel effect bed.
! Follow the section ‘ Lighting the pilot’ as
described previously.
Page 9
OWNER GUIDE

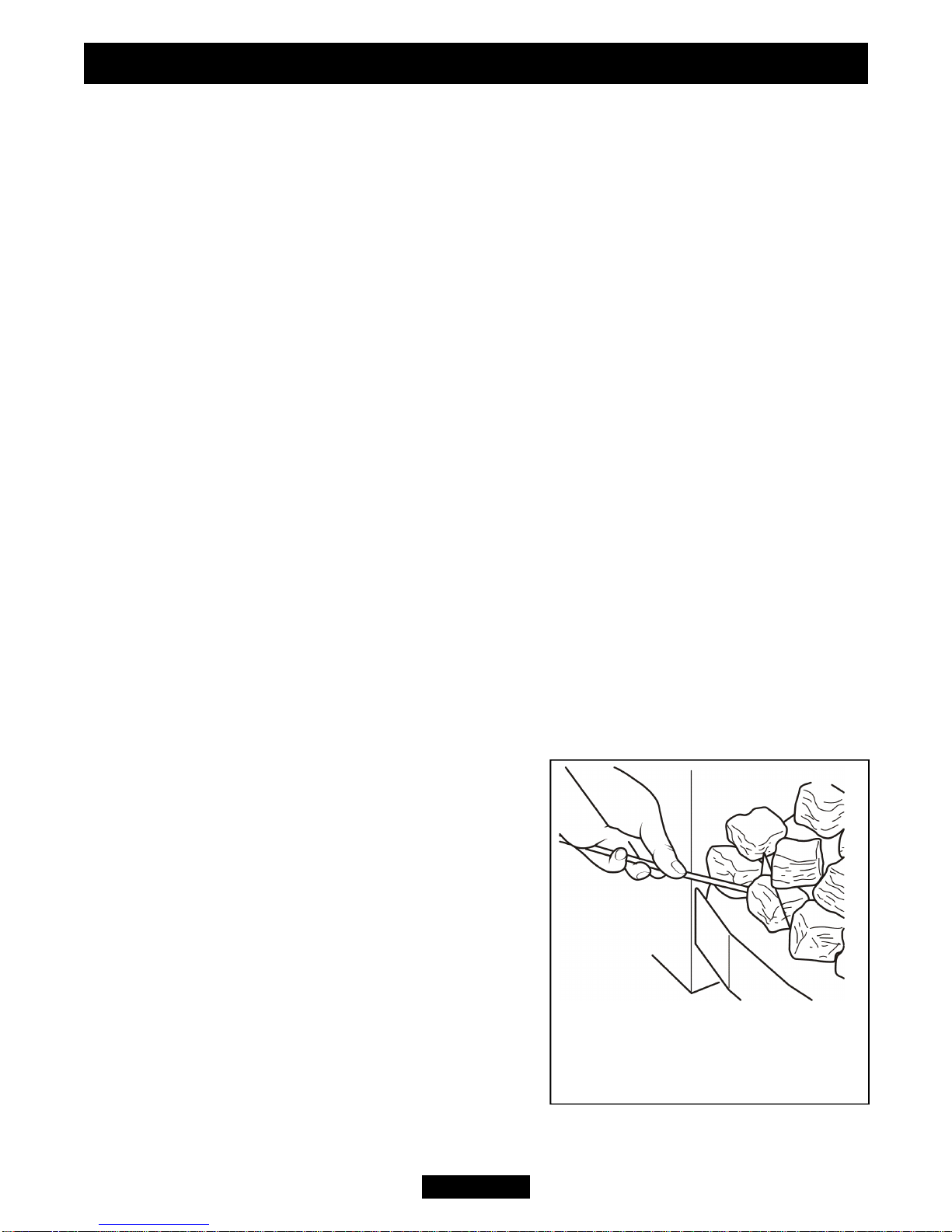

Figure 3. Lighting with a taper
(The fuel effect may differ from
that shown)

CLEANING YOUR FIRE
To maintain the high performance and quality finish of your Baxi Fires Division
appliance, please follow these guidelines:
!
Before attempting to clean the fire, please remember to turn off the fire and wait for
the appliance to cool completely. The fire will retain heat for some time before cleaning
can begin.
!
If any pieces of debris are found in the firebox, have the chimney inspected before
further use.
Metal parts.
! Clean the metal parts with a slightly damp cloth and then dry.
! Do not use abrasive cleaners as these will scratch the fire surface.
! Fascia and firefront - Clean the metal parts with a slightly damp cloth and then
dry. On the Camden, Minima and Debut the above may not work on fingerprints etc. In
this case apply a very small amount of ‘baby oil’ to a lint free, non-abrasive cloth and
wipe over the surface. Use a clean cloth to wipe off the oil.
Ceramic fuel effect and rear wall.
! This product uses fuel effect pieces and burner compartment rear wall
containing Refractory Ceramic Fibres (RCF), which are man-made vitreous
silicate fibres. Excessive exposure to this material may cause irritation to eyes, skin
and respiratory tract. Consequently, it is important to take care when handling
these articles to ensure that the release of dust is kept to a minimum.
!
Light coatings of soot will usually be burnt off during the normal operation of the
fire.
! Should any soot accumulation become excessive, the fuel effect pieces and walls
should be removed from the fire for cleaning.
!
Cleaning should be carried out in a well ventilated area or in the open air by gently
brushing with the pieces held away from your face so that you avoid inhaling the
dust.
! We suggest that you remove the ceramic fuel effect pieces in the reverse order to
that shown in section 11 of the installer
guide. Please note that there are two coal fuel
effects and two pebble fuel effects shown in section 11. The model names are stated for
clarity.
! After cleaning replace the ceramic fuel effect as shown in the relevant part of
section 11.
Burner.
! The burner surface can be carefully cleaned to remove any loose particles after
taking off the ceramic fuel effect pieces . Make sure that no particles are pushed into the
burner holes.
Page 10
OWNER GUIDE

MAINTENANCE
Regular maintenance.
In order to achieve and maintain high levels of personal safety and performance
efficiency, it is essential that the opening at the back of the fire and the flue are kept
clear of any form of obstruction. It is possible that deposits of mortar or soot could fall
and accumulate causing the flue to be blocked or restricted and so preventing proper
clearance of dangerous exhaust fumes.
In the United Kingdom it is the law that a landlord must have any gas appliance, flue
and pipework which is situated in a tenant’s premises checked for safety at least every
twelve months by a competent person (In the U.K, a CORGI registered installer).
We recommend that all gas appliances and their flues, wherever situated, are checked
annually.
Servicing.
!
In the United Kingdom servicing can be carried out either by a Baxi Fires Division
service engineer or a CORGI registered installer.
! If you require your fire to be serviced, please contact
Baxi Fires Division Service
on 08706 090 081.
IMPORTANT
To help us quickly help you, please try to have the following information available
before you contact us:
Type of fire.
Model/Name.
Serial Number
(To be found on the plate, underneith the burner and close to the
control knob).
You will also be asked for the fault, problem or request plus your Post Code.
! Spare parts are available nationwide via the ‘interpart stockist network
’. For your
local stockist consult Yellow Pages under ‘central heating’.
! When fitting replacement parts, follow the instructions contained in this
guide. It is important that only Baxi Fires Division approved parts are used for
maximum safety.
Page 11
OWNER GUIDE

USEFUL TELEPHONE NUMBERS
General advice about gas and your gas fire:
BAXI FIRES DIVISION TECHNICAL HELPLINE 08706 061 065.
To report faults or arrange for your fire to be serviced:
BAXI FIRES DIVISION SERVICE 08706 090 081.
For sales or product information:
BAXI FIRES DIVISION SALES 08706 061 067.
To order spares
Spare parts are available nationwide via the ‘interpart stockist network’. For your
local stockist consult Yellow Pages under ‘central heating’.
CALLERS IN THE REPUBLIC OF IRELAND
Call 0044 8706 061 064
Page 12
OWNER GUIDE
