Baxi Wentworth Deluxe User guide

Baxi Wentworth Deluxe
Baxi Kingston 2 Deluxe
Please leave these instructions with
the user
Live Fuel Effect Inset Gas Fires
Comp No244621 - Iss 5 – 6/00
Installation and
Servicing Instructions

2
Page 2
Natural Gas
Baxi Wentworth Deluxe
G.C. No32 075 15A
Baxi Kingston 2 Deluxe
G.C. No32 075 20A
Baxi Limited is one of the leading
manufacturers of domestic heating products in
the UK.
Our first priority is to give a high quality service
to our customers. Quality is built into every
Baxi product -products which fulfil the
demands and needs of customers, offering
choice, efficiency and reliability.
To keep ahead of changing trends, we have
made a commitment to develop new ideas
using the latest technology - with the aim of
continuing to make the products that
customers want to buy.
Baxi is also the largest manufacturing
partnership in the country. Everyone who
works at the company has a commitment to
quality because, as shareholders, we know
that satisfied customers mean continued
success.
We hope you get a satisfactory service from
Baxi. If not, please let us know. For use in GB / IE only.
Baxi is a BS-EN ISO 9001
Accredited Company

3
Contents - Page 3
Section
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
Introduction
Technical Data
Site Requirements
Electrical
Installation
Commissioning the Fire
Arranging the Coals
Checking for Spillage
Fitting the Trim & Fender
Annual Servicing
Changing Components
Short Parts List
Page
4
6
7
11
12
14
15
18
19
20
24
29

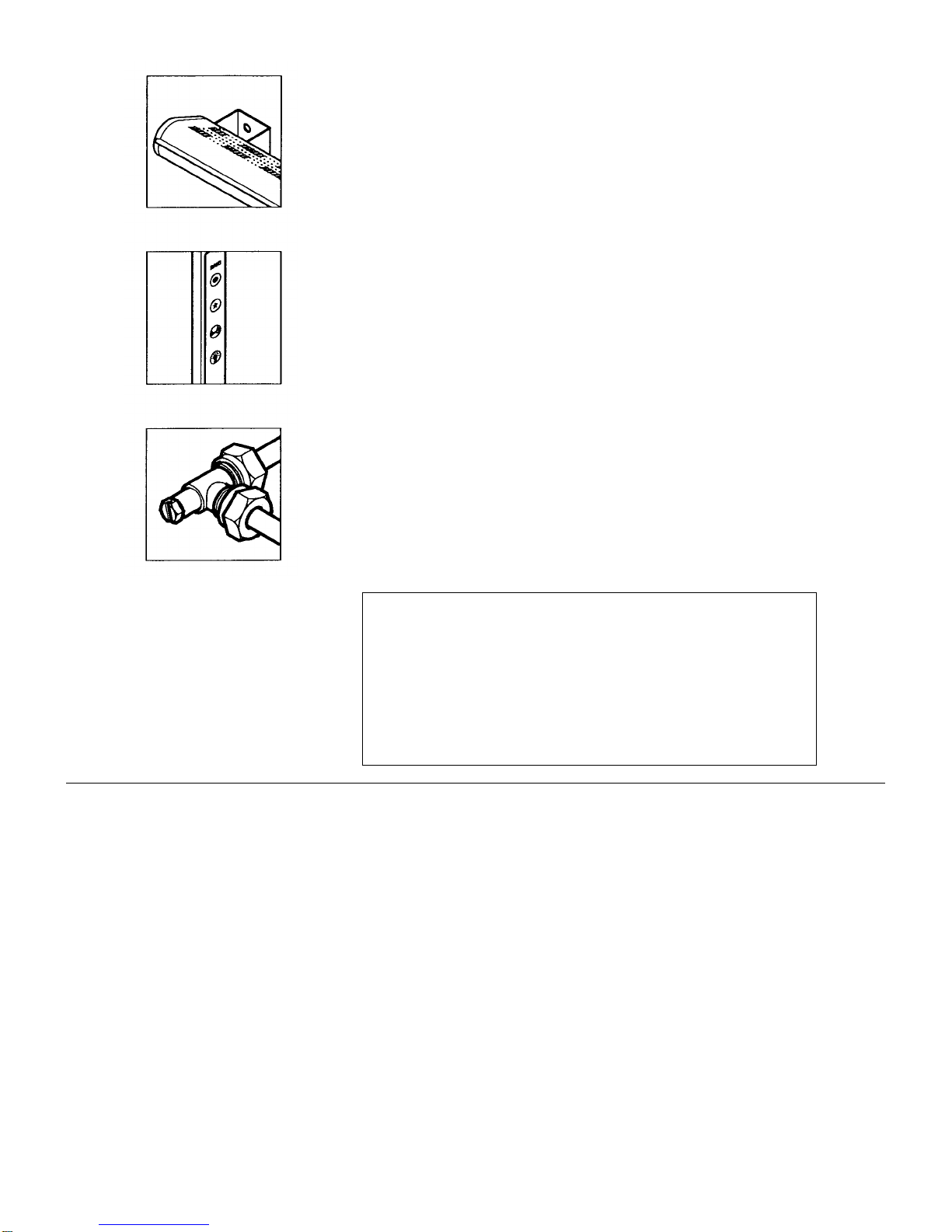

Fire Box Contents
Literature Pack
Fire Assembly
Coalbed Pack
Fret
Trim
Installation Kit
Transformer Pack
(Boxed)
(Boxed)
(Boxed)
(Foam Tape, Screws, Cable Ties)

4
1.0 Introduction – Page 4
1.1 Description
1. The Baxi Wentworth Deluxe and Kingston 2 Deluxe
are live fuel effect inset gas fires designed to be used on
Natural Gas only at a setting pressure of 20 mbar.
2. The appliances are designed to give a maximum heat
output of 4.0 kW (13,650 Btu/h).
3. The fire is controlled automatically by means of the
switch located at the top right hand side of the appliance.
It also incorporates an illumination effect (Fig. 1). The
controls have four positions:
Position OFF
Position Ignition
Position High/Low Output
Position Illumination Output
4. Additionally the symbol ( ) controls the illumination.
The illumination can only be operated when the fire is in:
Position OFF
Position Low Output
5. A switch located behind the controls access door can
be used to switch off the flicker motor to achieve a static
light effect (Fig. 1a).
6. A special feature of the Baxi Wentworth and Kingston
2 is the direct acting oxygen depletion system. This
system will shut down the appliance if there is inadequate
ventilation and the chimney is not clearing the products of
combustion. Under no circumstances shall this device
be adjusted, bypassed or put out of action. The device
must be regularly serviced and strictly in accordance with
these instructions.
1.2 Important Information
This product contains Refractory Ceramic Fibres (R.C.F.)
which are man-made vitreous silicate fibres. Excessive
exposure to these materials may cause temporary
irritation to eyes, skin and respiratory tract. Care must be
taken when handling these articles to ensure the release
of dust or fibres is kept to a minimum. To ensure that the
release of fibres from these articles is kept to a minimum,
during installation and servicing it is recommended that a
H.E.P.A. filtered vacuum is used to remove any dust, soot
or other debris accumulated in and around the appliance.
This should be performed before and after working on the
installation, It is recommended that any replaced item(s)
are not broken up but sealed within heavy duty polythene
bags and clearly labelled “R.C.F. waste”. This is not
classified as “hazardous waste” and may be disposed of
a tipping site licensed for the disposal of industrial waste.
Protective clothing is not required when handling these
articles but it is recommended that gloves are worn and
the normal hygiene rules of not smoking, eating or
drinking in the work area are followed and always wash
hands before eating or drinking.

5
1.0 Introduction – Page 5
1.3 Installation
1. The appliance is suitable for installation only in G.B.
and I.E. and should be installed in accordance with the
rules in force. For Ireland install in accordance with
I.S.813 “Installation of Gas Appliances”. The installation
must be carried out by a Corgi Registered Installer or
other competent person and be in accordance with the
relevant requirements of Gas Safety (Installation and
Use) Regulations 1998 (as amended), the Building
Regulations issued by the Department of the
Environment, Building Standards (Scotland)
(Consolidation) Regulations issued by the Scottish
Development Department and the Local Building
Regulations. Where no specific instructions are given,
reference should be made to the relevant BRITISH
STANDARD CODES OF PRACTICE and Installation
Specifications.
2. This appliance must be installed in accordance with
the manufacturers instructions and the rules in force and
only used in a suitably ventilated location.
Notice
Discolouration of wall surfaces
Most heating appliances generate warm air convection
currents and transfer heat to any wall surface against
which they are situated.
Some soft furnishings (such as blown vinyl wallpapers)
may not be suitable for use where they are subject to
temperatures above normal room levels and the
manufacturer’s advice should be sought before using this
type of wall covering adjacent to any heating appliance.
The likelihood of wall staining from convected air currents
will be increased in environments where high levels of
tobacco smoke or other contaminants exist.
3. Read the instructions before installing or using this
appliance.
4. The chimney should be swept before the appliance is
installed and checked annually to ensure continued
clearance of combustion products and that there is no
excessive build up of soot.
5. Soot and debris from the chimney or other sources
should periodically require removal by a competent
person.
6. Any purpose provided ventilation should be checked
periodically to ensure that it is free from obstruction.
7. Ensure that all protective plastic coating is removed
from trim and fender parts.
IMPORTANT: Do not push excess electrical cable
into void behind the fender.
1.4 B.S. Codes of Practice
STANDARD
B S 6891 SCOPE Gas Installation
B S. 5440: Pt 1 Flues
B S. 5440: Pt 2 Air Supply.
B S. 5871: Pt 2 Installation of inset live fuel effect
fires
B S. 715 Specification for metal flue pipes,
fittings etc.
B S. 1251 Open fireplace components
B S. 6461:Pts 1 &2 Masonry chimneys.

6
2.0 Technical Data – Page 6
Kingston 2 Deluxe Wentworth Deluxe
Category of Appliance 2H Category of Appliance 2H
The fire is set for Gas Type G20 at 20mbar. The fire is set for Gas Type G20 at 20mbar.
Heat Input (net)
KW
Btu/h
High
6.16
21,018
Min
3.0
10,236
Heat Input (net)
KW
Btu/h
High
6.16
21,018
Min
3.0
10,236
Heat Output
KW
Btu/h
High
4.0
13,650
Heat Output
KW
Btu/h
High
4.0
13,650
Inlet Setting Pressure
mbar
in wg
Cold
20 ± 1.0
8 ± 0.4
Inlet Setting Pressure
mbar
in wg
Cold
20 ± 1.0
8 ± 0.4
Gas Connection 8mm OD tube, rigid or semi rigid
and 8mm compression fitting at
appliance inlet
Gas Connection 8mm OD tube, rigid or semi
rigid and 8mm compression
fitting at appliance inlet
Controls &Safety
system Fully automatic gas valve with direct burner ignition, flame
failure device and direct acting
oxygen depletion system.
Controls &Safety
system Fully automatic gas valve with direct burner ignition,
flame failure device and
direct acting oxygen
depletion system.
Gas Rate
(after 10 mins) 0.65 m3/h (23.0 ft3/h) Gas Rate (after 10 mins) 0.65 m3/h (23.0 ft3/h)
Lifting Weight 34.3 kg (75.5 Ibs) Lifting Weight 21.7 kg (47.74 Ibs)
Injector Cat 127/440 Injector Cat 127/440
Trim Height 655mm Trim Height 601mm
Dimensions Width 560mm Dimensions Width 512mm
Depth 110mm Depth 110mm
(from the wall) (from the wall)
Electricity Supply 230V transformer supplying fire
with 24V/12V supply. Electricity Supply 230V transformer supplying fire with 24V/12V supply.

7
3.0 Site Requirements – Page 7
I3.1 Site Requirements
1. The Baxi Wentworth Deluxe and Kingston 2 Deluxe
gas fires can be fitted to an installation with the following
flue systems:
•Fabricated steel
•Conventional brick or stone
3.2 Ventilation
1. No purpose provided ventilation is normally required
for the appliance, normal adventitious room ventilation
being sufficient. Reference should be made to BS 5871
Part 2. For Ireland refer to IS 813 Section 10 of the Irish
Ventilation Requirements.
3.3 Masonry Flues
1. Any chairbrick must be removed if necessary to
achieve the minimum depth. The fireplace opening must

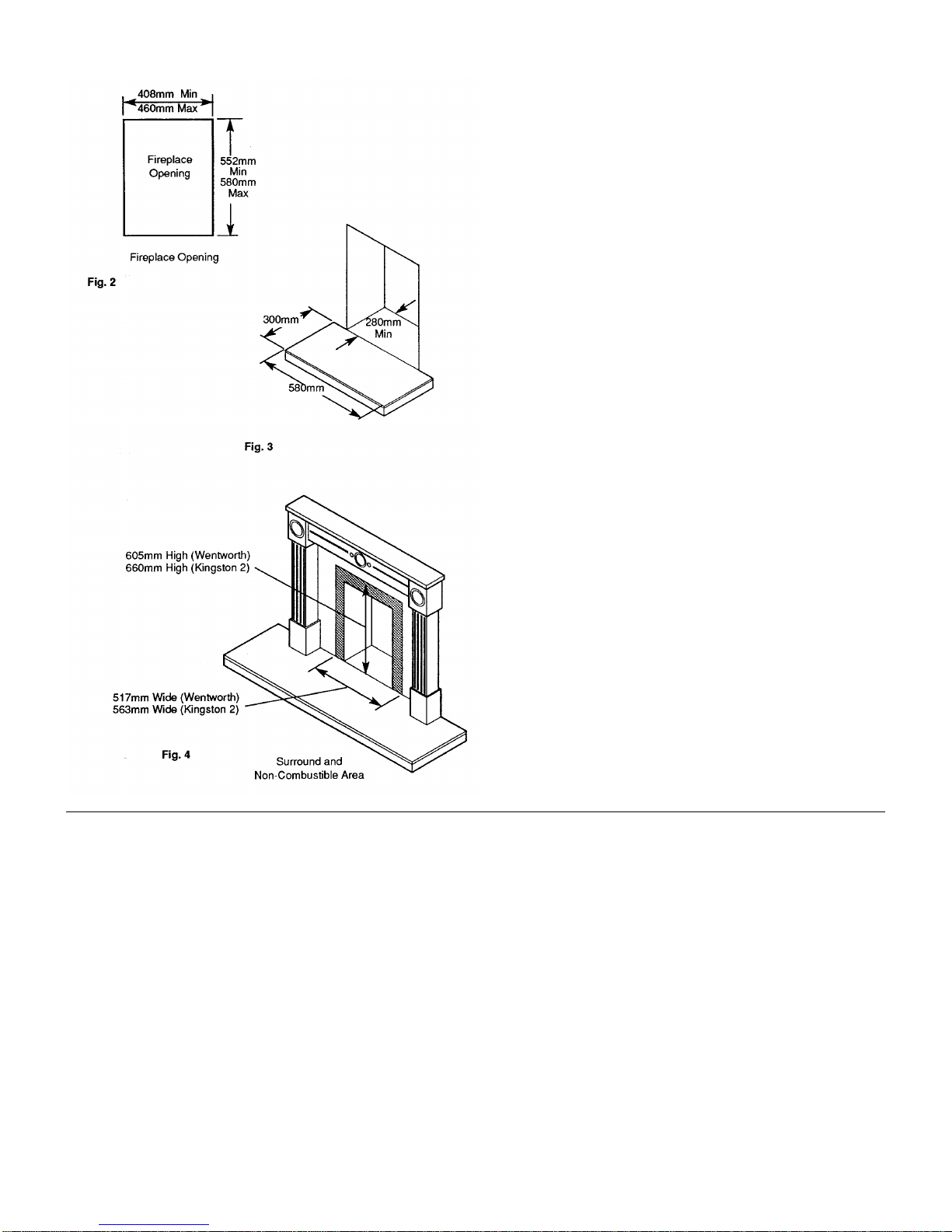

be a minimum of 408mm (16 1/16 in) wide (Fig. 2).
2. A conventional brick or stone chimney must have
minimum effective cross-sectional dimension of 225mm x
225mm (9 in x 9 in) or be a lined flue of minimum
diameter 125mm (5 in). The liner should be terminated at
the top of the builders opening and sealed from the
chimney. The minimum depth is shown in Fig. 3. If
necessary remove either the knee or the whole chairbrick.
3. The fireplace must have a flat vertical surface
measuring 605mm (2313/16 in) high by 517mm (201/8 in)
wide (Wentworth) or 660mm (26 in) high by 563mm
(225/32 in) wide (Kingston 2), centrally placed about the
opening. This allows an effective seal to be made
between the wall and fire. Also this area must be of
non-combustible material, If a fire surround is to be
fitted its rear section must meet the same requirements.
Any gaps between the wall and surround must be sealed
(Fig. 4).

8
3.0 Site Requirements – Page 8
3.4 Twin Walled Metal Flue Boxes
1. A double walled metal flue system conforming to the
constructional requirements of BS 715 with a minimum
internal flue diameter of 125mm (5in) should be used.
The flue box should be of the Selkirk LFE 125 type or
similar.
2. Remove the restrictor plate from the fire before
fitting to this type of flue (see Fig. 12).
3. The metal flue box must stand on a non-combustible
base of a minimum thickness of 50mm (2 in) and a
separate non-combustible hearth should be supplied with
minimum dimensions as under Hearth Mounting.
4. The metal flue box must be located so that the sides,
top and back surfaces have a minimum air gap clearance
of 50mm from any combustible material.
5. A fitting kit (Baxi Part No240125) is required to
complete the installation. Further instructions are supplied
with kit.
3.5 Hearth Mounting
1. The fire is intended to be hearth mounted only. The
hearth must be of a non-combustible material at least
13mm ( ½ in) thick and measuring at least 300mm (11
13/16 in) deep by 580mm (22 27/32 in) wide. It must be fitted
central to the fireplace opening. The top surface of the
hearth should be a minimum of 50mm (2 in) above floor
level (Fig. 6).
2. On no account should the fire unit be fitted directly
onto a combustible floor or carpet.
3. Alternatively, a fender rail or upstanding edge of
50mm (2in) height can be fitted to the periphery of the
13mm ( ½ in) non-combustible hearth (Fig. 7).
3.6 Purpose Built Hearths & Surrounds
1 Purpose built superimposed fire resistant hearths and
back panels specified as suitable by the manufacturer
may be used, or a suitable propriety fire surround with
150º C rating.

9
3.0 Site Requirements – Page 9

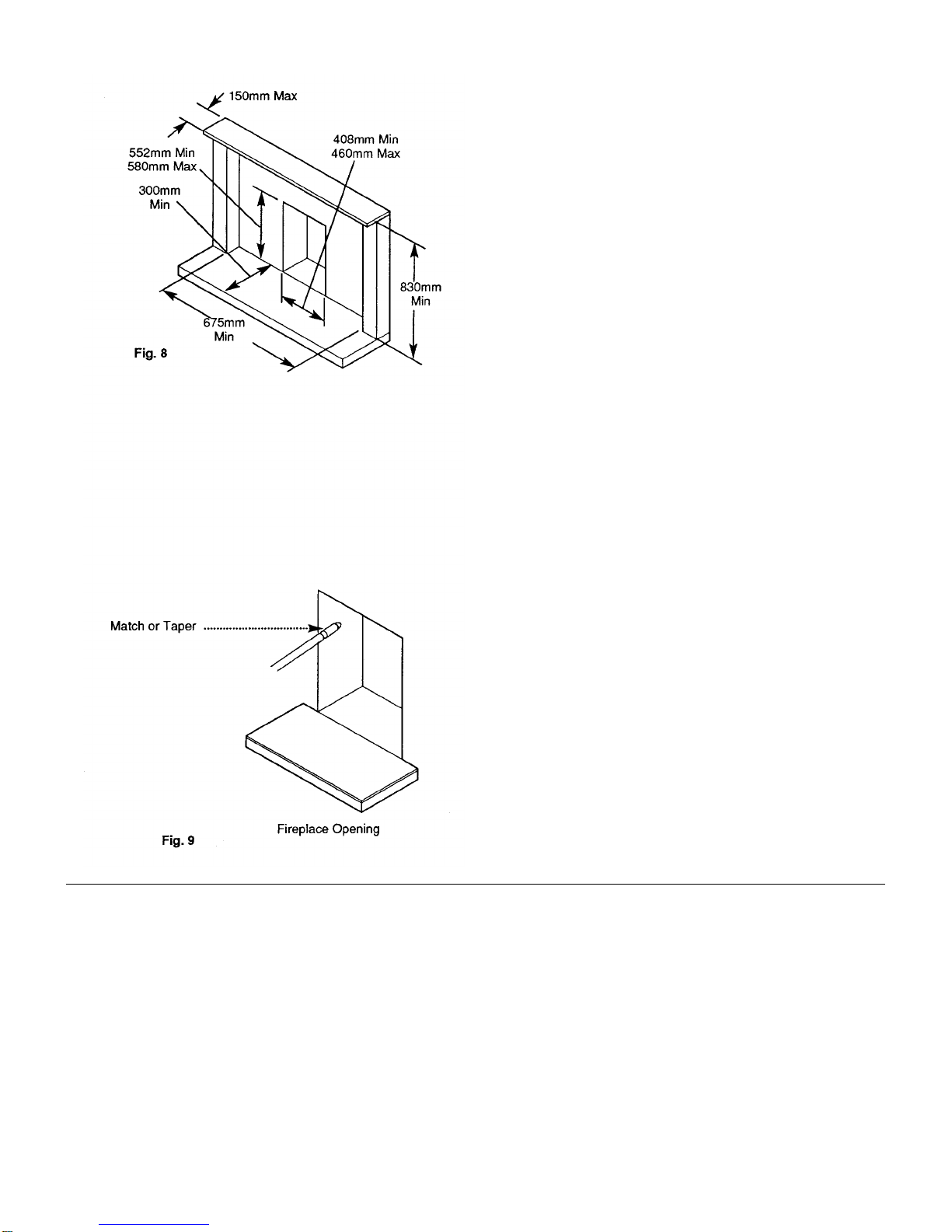

3.7 Clearances (Fig. 8)
1. Shelf Clearance - minimum clearance from the hearth
to the underside of a combustible shelf should be 830mm
(3221/32 in) provided the shelf depth is 150mm (529/32 in) or
less. When the shelf depth is increased by increments of
12.5mm (15/32 in) greater than 150mm (529/32 in), add
25mm (1 in) to the 830mm (3221/32 in).
2. Side of Fire - minimum width between the vertical
sides of combustible surround should not be less than
675mm (265/16 in) provided the fire is central to the
surround and the sides do not project more than 150mm
(529/32 in). When the vertical side forward projection is
increased by 12.5mm (15/32 in) add 50mm (2 in) to the
inside width of the surround. NOTE: When the fire is fitted
this gives a minimum side clearance of 150mm (529/32 in).
3.8 Existing Chimneys & All Flue Systems
1. A chimney which has previously been used to burn
solid fuel MUST be swept before beginning the installation.
Any restrictions such as dampers or register plates must
be removed or disabled. Minimum equivalent height of 3
metres.
2. It must serve one appliance only and not have
branches or traps which could impede natural draught.
3. It essential that a positive flue pull up the chimney is
present.
4. If a terminal is fitted it must be suitable for the purpose.
5. If there is no positive airflow up the chimney DO NOT
FIT THE FIRE. Seek expert advice before continuing with
the installation. A positive flue pull can be detected by
holding a lighted match or taper near to the fireplace
opening (Fig. 9).
6. The fireplace recess must be of non-combustible
material. Any existing under-floor air supply must be
sealed completely.

10
3.0 Site Requirements – Page 10
3.9 Gas Supply & Connection
1 The gas supply is to be connected to the appliance via a
concealed fitting from the rear.
Turn off any appliances that are fed by the meter and
isolate the gas supply by turning off at the meter.
2. When running the gas supply from the rear it is
necessary to remove the grommet from the large hole in
the fire back panel, left hand side. The grommet must be
cut in order to accommodate the gas pipe and replaced
back in position (Fig. 10).
4. A suitable isolating cock should always be fitted in the
supply feed to the fire to facilitate servicing.

11

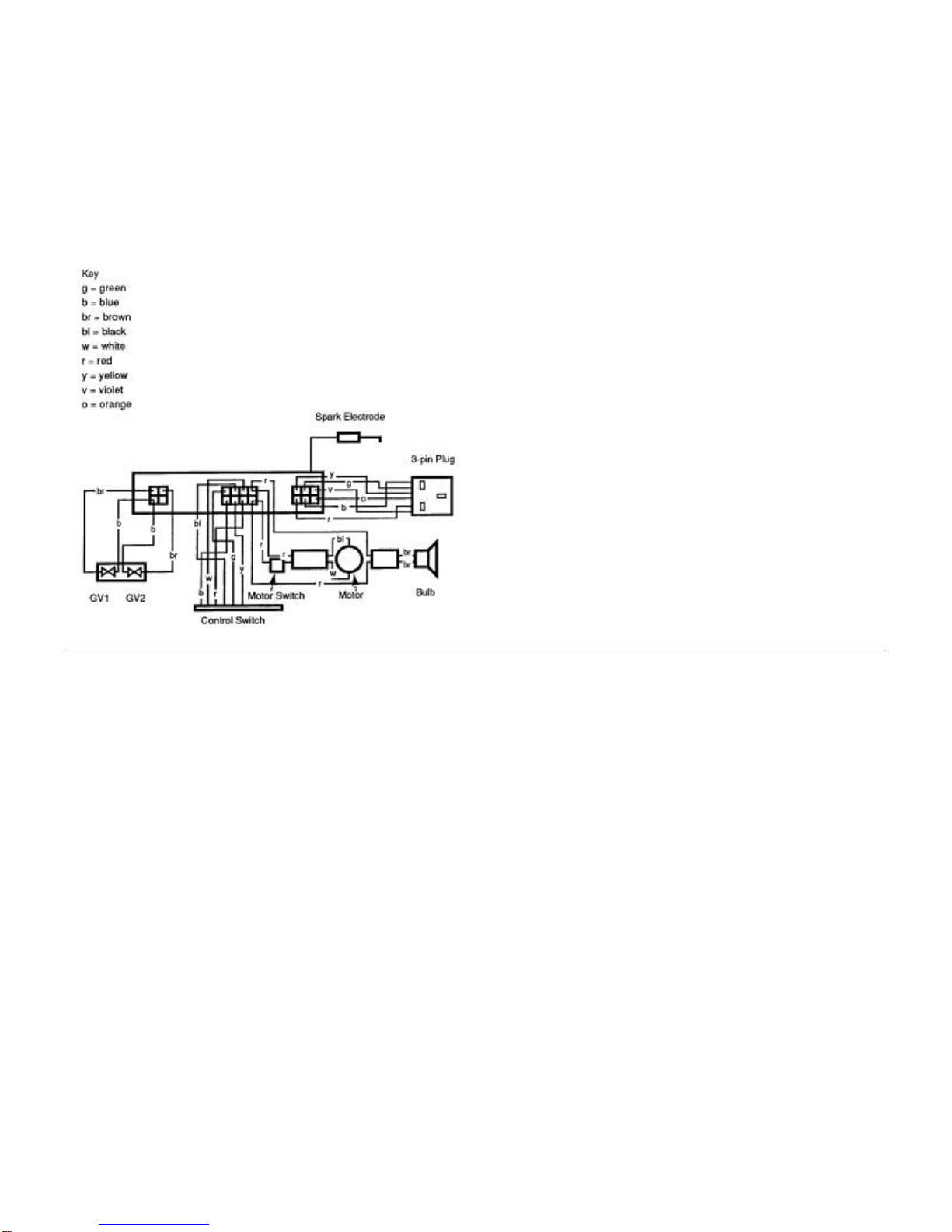

4.0 Electrical – Page 11
4.1 Electrical Supply & Connection
1. All the fire controls are operated from the control panel
on the upper right hand side of the fire trim.
2. This appliance is supplied with a transformer and
connecting lead which provides the appliance with both
24V and 1 2V electrical power for the controls and
illumination.
3. The transformer plugs directly into a standard 13 amp
supply socket.
4. A cable extension kit is available (Part No245553)
should a longer length be required between the
transformer and the fire. The extended lead is 4m long
and should be installed in the same manner as the
standard length lead.
5. The electrical supply cable can be routed through the
fireplace opening and via the fire back panel. Where the
cable passes through brickwork or similar it should be
suitably protected and sealed. The grommet should be
removed from the fire rear panel and cut in order to
accommodate the cable and replaced.
6. Ensure the transformer is easily accessible to the user
after installation.
7. Ensure the cable is not pulled tight along its entire route
and that it is possible to remove the plug on the fire to
service the fire. The cable should be run in the fire combox
at low level where the ambient temperature is low.

12
5.0 Installation – Page 12
5.1 Initial Preparation
1. Unpack the appliance from the carton and check all
items are present. The ceramic coal bed items should be
left in their box until required.
2. Some sheet metal parts may be fitted with protective
plastic coating which must be removed prior to installation.
5.2 Fitting the Fire
1. If the fire is to be fitted in a flue box or in a 5 inch
lined flue, remove the restrictor plate from the rear of
the appliance (Fig. 12).
2. The fire may be secured to the fireplace using one of
two options:
a) With the fire pushed onto the fireplace opening in the
correct level position, mark the four holes in the wall
through the fixing holes in the fire front. Remove the fire,
drill and plug the wall (Fig. 13).
b) Use the cable tensioning kit to secure the fire, proceed
as follows:
3. Mark the rear face of the fireplace opening as shown.
Drill and plug the holes (Fig. 14).
4. The gas supply is to be routed from the rear, mark as
shown (Fig. 14) and install the pipework after considering
section 3.9 “Gas Supply & Connections”.
5. Take the foam seal from the kit and remove it’s backing
strip. Fit it to the rear of the fire frame ensuring the seal is
applied in the correct position as to allow no spillage of
products through the screw securing holes (Fig. 13).
6. Screw the four eyebolts into the wall plugs ensuring that
the holes in the end of the eyebolts are in the horizontal
plane (Fig. 15).
7. Undo the three screws retaining the burner chassis to
the combustion box sides and base. Carefully withdraw the
burner chassis from the fire, taking care not to catch the
motor drive cable in the fire and place to one side (Fig. 13).
It will also be necessary to unplug the switch from the top
right hand side of the fire and remove the cable from the
clips.
8. The gas and electrical supplies are being routed
through the fire rear panel, remove and cut the appropriate
grommet(s).

13
5.0 Installation – Page 13
5.2 Fitting the Fire (cont)

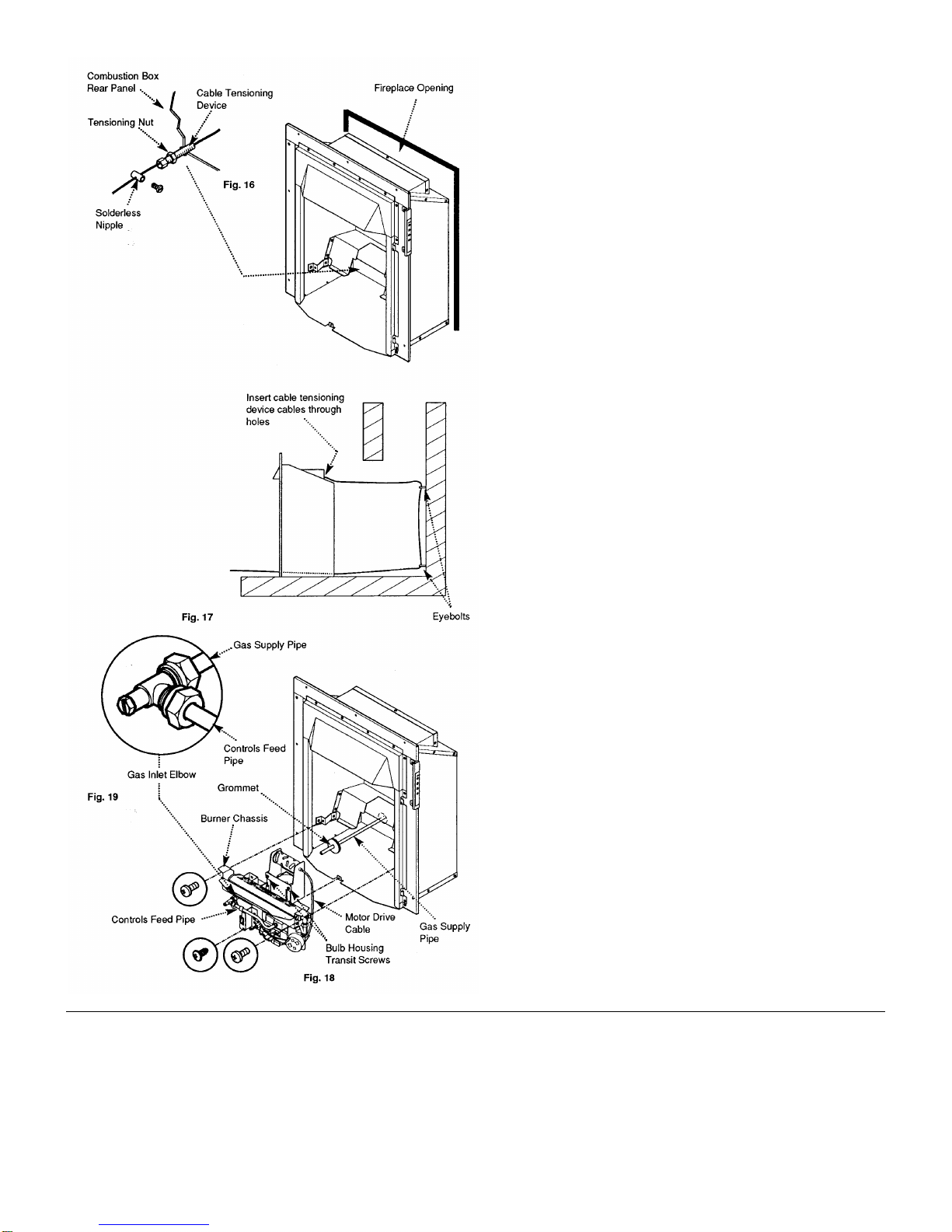

8. Engage the tensioning nuts on the threaded shanks of
the tensioning devices. Run the nuts down to the
hexagonal heads of the tensioning devices (Fig. 16).
9. From the front insert the cable tensioning devices
through the combustion box rear panel. The hexagonal
heads must be to the inside of the box (Fig. 16).
10. Position the appliance in front of the fireplace opening
and insert the cables in the holes in the combustion box
rear flange (Fig.17). Pass the cables through the eyebolts
in the builders opening rear face and insert them in the
tensioning devices (Fig. 16 & 17). Where the electrical
supply is being routed through the rear panel, pass the
cable through the hole at the right hand side. Do not draw
any more cable into the fire than is necessary. Manoeuvre
the appliance backwards into the opening, drawing any
slack length of cable through the tensioners.
11. Push the appliance as far back in the opening as
possible and pull the cables through the tensioners as tight
as possible.
12. Run the solderless nipples down the cables to the
tensioners and tighten their securing screws (Fig. 16). As
required, take the relevant grommet(s) and slide over the
gas and/or electrical supplies. Run the grommet(s) down
the pipe and/or cable and insert in the hole in the rear
panel.
13. Using a suitable spanner tighten the tensioning nuts
clockwise so that the fire frame surround is pulled up
against the wall or surround and the seal is compressed.
DO NOT CUT OFF THE EXCESS CABLE - coil neatly and
secure with tape.
14. Fit the inlet elbow supplied in the kit to the controls
feed pipe. Refit the burner chassis, taking care not to catch
the motor drive cable in the fire and connect the gas
supply to the inlet elbow (Fig. 18 & 19). The screws which
secure the bulb housing are transit screws only, these
should be removed (Fig. 18).
15. The side and rear brick effect insulation panels can be
reversed to offer a plain effect for the customer. To reverse
this brick effect remove the black sheet metal retaining
panels left and right hand side. Carefully remove the three
insulation panels and reassemble with the plain effect on
display. Refit the retaining panels taking care not to
damage the paint and insulation panels.

14
6.0 Commissioning the Fire – Page 14
6.1 Checking Gas Soundness
1. Turn on the gas supply and check for gas soundness
with leak detection fluid (to BS 6891).
6.2 Checking Operation of the Fire
1. Remove the screw from the pressure test point on the
gas inlet elbow and connect a suitable pressure gauge
(Fig. 20).
2. Turn on the power supply to the appliance.
2. Check that the electrode is sparking to the burner (Fig.
21) when the ignition ( ) button is depressed for 2
seconds on the switch at the top right of the appliance.
3. Re-set the appliance to the OFF position ( ) and turn
on the gas to the appliance.
6.3 Lighting the Fire
NOTE: The ON button has a safety feature built in. It
should be pushed for 2 seconds before operation.
1. To purge the air from the appliance, press the ignition
button ( ) on the switch panel at the top right hand side of
the fire (Fig. 22).
2. The ignition sequence will start and the burner should
light, after which, if a flame has been recognised the
burner will proceed to its high setting if selected or stay on
the low setting if selected. If a flame has not been
recognised the control will shut off. If this occurs reset the
control by pressing the OFF button ( )‘ wait 30 seconds
and repeat the operation.
3. With the burner alight and operating at high setting
check the gas inlet pressure is 20 mbar ± 1 .0mbar.
4. Press the OFF button ( ) to extinguish the burner.
Disconnect the pressure gauge and refit the screw to the
pressure test point ensuring a gas tight seal.

15
7.0 Arranging the Coals – Page 15
7.1 Identification
It is important that all the fire-bed components are
used and arranged as shown in order to achieve the
desired flame picture. Ensure all fire-bed components
are present and identified prior to installation.

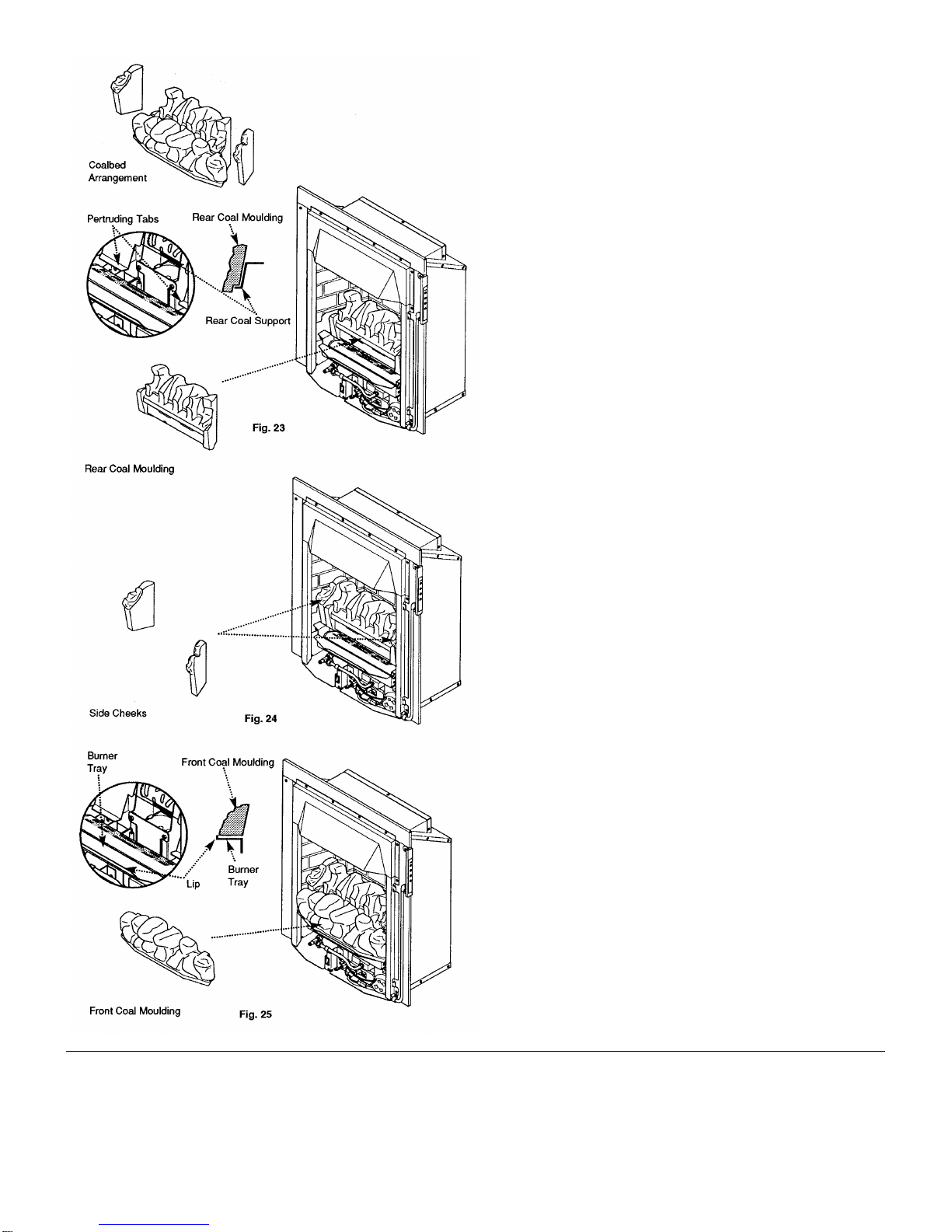

1. Remove the coals, side cheeks, front and rear coal
mouldings from their protective packaging and place them
on a newspaper or similar to prevent soiling furnishings.
CAUTION: The coals are extremely fragile and must be
handled accordingly. To avoid soiling ones hands,
gloves should be worn and any inhalation of the dust
should be avoided. Keep the coals away from children
at all times. Never use coals other than those supplied
or Genuine Baxi Spare Parts. Never put additional
coals on the fire. Please read
Section 1.2 Important Information
2. The side and rear brick effect insulation panels can be
reversed to offer a plain effect for the customer. To reverse
this brick effect remove the black sheet metal retaining
panels left and right hand side. Carefully remove the three
insulation panels and reassemble with the plain effect on
display. Refit the retaining panels taking care not to
damage the paint and insulation panels.

16
7.0 Arranging the Coals – Page 16
7.2 Arranging the Coalbed
NOTE: It is important for the safe operation of the
appliance that the front and rear coal mouldings are
correctly located and in accordance with these
instructions.
1. Carefully position the rear coal moulding into the rear of
the fire. The undercut in the base of the moulding should
rest on the pertruding tabs of the rear coal support. The
back face of the moulding should come to rest on the front
face of the rear coal support and shall be centrally
positioned (Fig. 23). Care should be taken that the rear
coal moulding does not fall forward at this stage.
2. Identify the left and right pieces marked L and R.
Position the side cheeks either side of the rear coal
moulding with the coal shaped moulding towards the front.
The rear face of the cheeks should rest on the rear coal
support with the bottom face resting on the pertruding tabs
of the rear coal support and the fixing brackets used to
hold the burner tray to the sides of the combustion box
(Fig. 24).
3. Carefully position the front coal moulding on the front
part of the burner tray with the front edge of the moulding
behind the lip. The rear edge of the moulding should then
rest on the front of the burner. The front and rear coal
mouldings should be touching each other at both sides of
the firebed (Fig. 25).

17
7.0 Arranging the Coals – Page 17
7.3 Arranging the Loose Coals
NOTE: Due care and attention to these instructions
should be taken when positioning the loose coals. Do
not allow the coals to drop in the gap between the
front and rear coal mouldings.

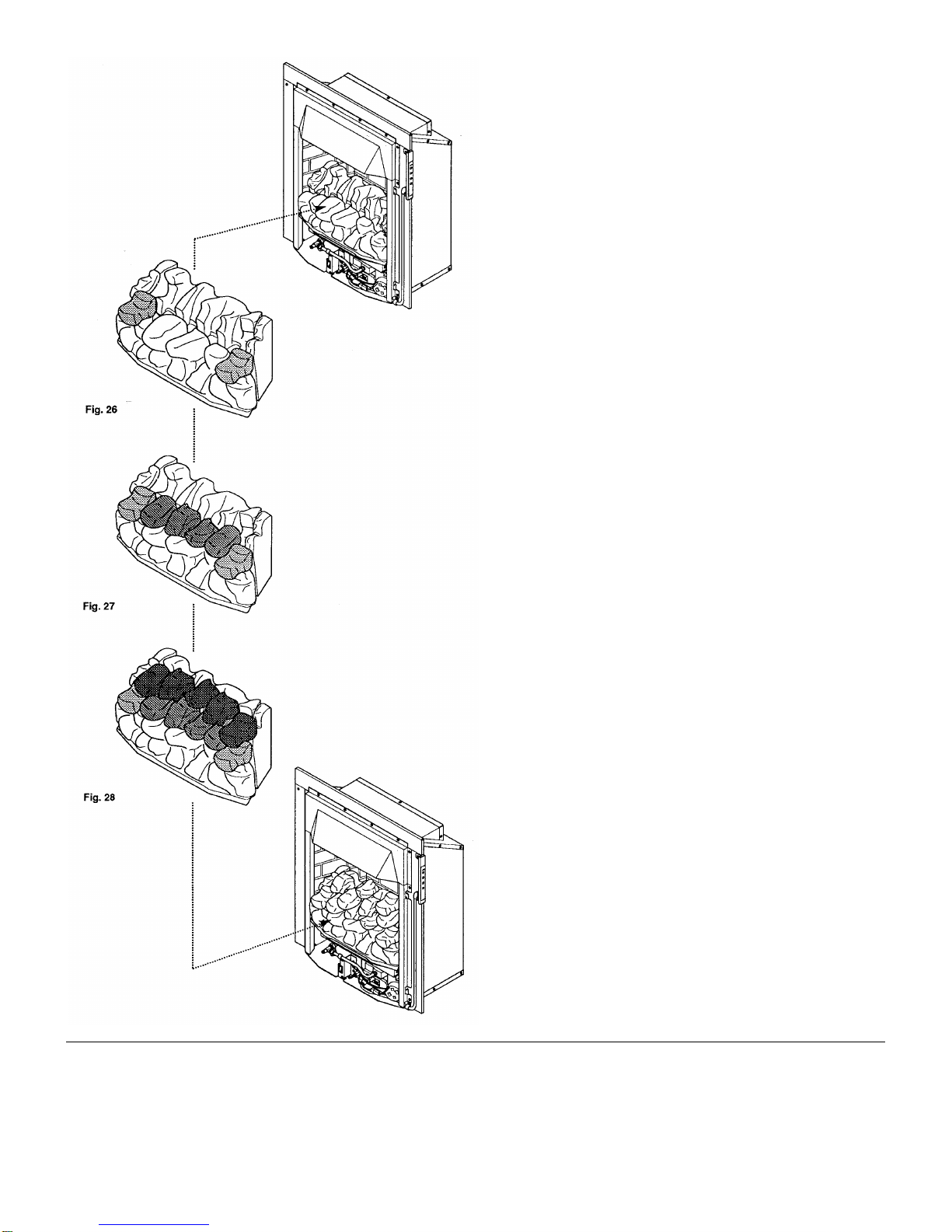

1. Take 2 coals and place on the outer edges of the front
coal moulding (Fig. 26).
2. Take 4 coals and place as shown in Fig. 27 bridging the
front coal moulding and the rear coal moulding, ensure and
flat faces on these coals face downward. Care should be
taken as not to allow any coals to drop down between the
front and rear coal mouldings (Fig. 27).
3. Take the 5 remaining coals and place as shown in Fig.
28 positioned in the gaps created by the front, rear coal
mouldings and loose coals
NOTE: Ensure no coals fall down the back of the fire,
this could damage or interfere with the illumination
effect.

18
8.0 Checking for Spillage – Page 18
8.1 Checking for Spillage
CAUTION - Whilst checking for spillage care must be
taken to avoid touching hot panels.
1. Before starting test close all doors and windows.
2. Operate the fire from cold at maximum input.
3. After approximately five minutes check for spillage.
4. Fit a smoke match into a holder, and position with the
holder held 20mm below the lip of the lower canopy and
approximately 100mm from one side of the opening in the
horizontal plane (Fig. 29 & 30).
5. If spillage is evident leave the fire operating for a further
ten minutes and repeat test.
6. If spillage continues to occur and the flue restrictor is
still fitted, remove restrictor (Fig. 29a).
7. If test is successful repeat with any extractor fan
operating and connecting doors open to create the worst
likely operating conditions.
8. If spillage still occurs and the problem cannot be
rectified the fire must be isolated until the problem is
resolved.
8.2 Possible Causes of Spillage
1. The smoke match may have been positioned
incorrectly, resulting in the smoke being picked up by hot
convected air currents.
2. The builders opening or flue installation may be
unsound.
3. Down draughts may be present.
4. Flue blockages.
5. Fire not sealed against fireplace or surround.
6. Surround not sealed to wall correctly.

19
9.0 Fitting the Trim & Fender – Page 19
9.1 Fitting the Trim and Fender
1. Carefully remove the trim and fender from their
packaging. Place trim on its back to prevent falling over.
9.2 Wentworth Models (Fig. 31)
1. Align the trim with the fire outer frame. The trim has four
keyholes type cutouts on the inside edge which locate on
the keyways of the black side trims.
2. Place the fender assembly centrally between the legs of
the trim and carefully push it back as far as possible.
3. In a similar manner place the controls access door
centrally in the fender opening and push back as far as
possible.
9.3 Kingston 2 Models (Fig. 32)
1. Take the outercase location bracket from the kit and
fasten it using the existing 2 screws to the canopy (Fig.
32). This will now mate with the bracket on the back of the
trim.
2. Align the brackets on the rear of the trim assembly with
those on the fire outer frame, and lower the trim into
position.
3. Place the fender assembly centrally between the legs of
the trim and push it back as far as possible.
4. Place the controls access door centrally in the fender
opening and push back as far as possible.
9.4 Informing the User
1. These instructions and the users instructions should be
handed to the customer. At the same time the customer
should be shown how to operate the fire safely and
efficiently.
2. The need for annual servicing should be emphasised
and the returning of the guarantee card advised.

20
10.0 Annual Servicing – Page 20
10.1 Maintenance
IMPORTANT: It is possible that some soot may be
deposited on the coals after use. This is acceptable
providing it is not allowed to accumulate.
CAUTION: The coals are extremely fragile and must
be handled accordingly. To avoid soiling ones hands,
gloves should be worn and any inhalation of the dust
should be avoided. Keep the coals away from children
at all times. Never use coals other than those supplied
or Genuine Baxi Spare Parts. Never put additional
coals on the fire. Please read
Section 1.2 Important Information
1. Servicing should be carried out regularly by a
competent person in accordance with the relevant
regulations, to ensure the safe and correct operation of the
appliance.
2. Before commencing any service or replacement of
parts, turn off the gas supply to the fire and ensure that the
fire is cold, and isolate the electrical supply.
3. After servicing, check for gas soundness.
4. When ordering spare parts please quote appliance
name and serial number. These can be found on the data
badge which is located by removing the controls access
door, the badge is on the base plate of the appliance.
5. At least once a year check for debris in the catchment
area behind the fire and in the flueway.
6. If excessive soot has accumulated check to establish
the cause. Rectify and clean flue or chimney accordingly.
7. The loose coals may be removed for cleaning. The
coals are delicate and should be handled carefully. Gently
brush with a soft brush to remove dust or deposits.
8. Examine the coals for signs of cracking and replace if
necessary.
IMPORTANT: See coal layout procedure
(Section 7.0 Arranging the Coals) before attempting to
replace coals which should only be replaced as a
complete set with no extra coals added.
