OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
INSTALLER: Please leave this guide with the
owner
Model 347
RADIANT / CONVECTOR GAS FIRE
Fitted with one of the following fascia.
Brava 4 Oxysafe
Charm 4 Oxysafe or
Esquire 4 Oxysafe
(GC No. 32-032-62)
We trust that this guide gives
sufficient details to enable this
appliance to be operated and
maintained satisfactorily. However, if
further information is required, our
Baxi Fires Division Technical
Helpline will be pleased to help.
Telephone [phone] (National
call rates apply in the United
Kingdom)
In the Republic of Ireland
Telephone [phone].
This guide is intended to help you care
for your Baxi Fires Division gas fire.
Please read thoroughly before using
and keep for future reference.

© Baxi Heating U.K. Limited 2006.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following address:
The Company Secretary, Baxi Heating UK Limited, Pentagon House, Sir Frank Whittle
Road, Derby, DE21 4XA.
Warning: Any person who does any unauthorised act in relation to a copyright work may
be liable to criminal prosecution and civil claims for damages.
Baxi Fires Division, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary
slightly from those given in this publication
Page 2
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE) ONLY.

Safety First.
Baxi Fires Division fires are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
All Baxi Fires Division fires are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted by
the British Standards Institute.
The Highest Standards
Baxi Fires Division is a member of the Society of British Gas Industries which works to
ensure high standards of safety, quality and performance.
Careful Installation
Baxi Fires Division is a CORGI registered company. All our gas fires must be
installed by a competent CORGI Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet or floor of combustible material.
Page 3
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

LIST OF CONTENTS
Section
Page
SAFETY 4
APPLIANCE DIMENSIONS 6
OPERATING YOUR FIRE 7
GAS CONSUMPTION 7
The Oxysafe flame sensing and flue blockage safety system. 7
To light the fire (Manual ignition). 7
To light the fire (Electronic ignition). 8
CLEANING YOUR FIRE 9
REPLACING THE RADIANTS 10
MAINTENANCE 10
Battery replacement (Electronic ignition). 10
Regular maintenance. 11
Servicing. 11
USEFUL TELEPHONE NUMBERS 12
This gas fire is designed to meet the most stringent quality, performance and safety
requirements to provide you with many years’ trouble-free service.
This guide aims to improve your understanding and appreciation of your gas fire by
providing simple and informative instructions to ensure that you benefit from the
excellent performance and features it has to offer.
SAFETY
Page 4
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
IF YOU SMELL GAS
! DON’T SMOKE.
! EXTINGUISH ALL NAKED FLAMES.
! DON’T TURN ELECTRICAL SWITCHES ON OR OFF.
! TURN OFF THE GAS SUPPLY AT THE METER.
! OPEN DOORS AND WINDOWS TO GET RID OF THE GAS.
! IMMEDIATELY CALL THE GAS EMERGENCY SERVICE FROM A
NEIGHBOURS PHONE - SEE YOUR LOCAL TELEPHONE DIRECTORY.

Do have the fire installed by a competent person. In the United Kingdom, installation
must be in accordance with the latest edition of the Gas Safety (installation & use)
Regulations. In the Republic of Ireland, installation must be in accordance with all
national and local regulations in force.
Do
have the chimney swept prior to installation if it was previously used for solid fuel.
Do have the fire installed in accordance with the installation guide.
Do allow a minimum clearance of 90mm from the top of the appliance fascia to the
underside of any shelf whether it is made from combustible or non-combustible
materials. This clearance is necessary to allow the fascia to be lifted off for servicing
and also allows sufficient access to operate the control knob. For a shelf made from
wood or other combustible materials deeper than 150mm add 12.5mm to the clearance
for every 25mm of additional shelf depth (See graph 1). Please bear this in mind if ever
you add a shelf.
Do provide a suitable guard that complies with BS 8423 for the protection of young
children, the elderly and the infirm. Such a guard is also recommended for the protectio
n
of pet animals. (
Although this fire conforms to all the applicable standards, it is a heating
appliance and certain parts of its surface will become hot).
Note: The guard supplied with the fire acts as a fireguard conforming to BS1945:1971
and satisfies the Heating Appliance (Fireguard) (Safety) Regulations 1991.
Do wait three minutes before attempting to relight if the fire is switched off or the
flames are extinguished for any reason. (Your fire is fitted with a safety device that will
automatically shut off the gas supply to the fire if, for any reason, the flames go out.)
Do get advice about the suitability of any wall covering near your fire. Soft wall
coverings (e.g. embossed vinyl, etc.) which have a raised pattern are easily affected by
Page 5
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.

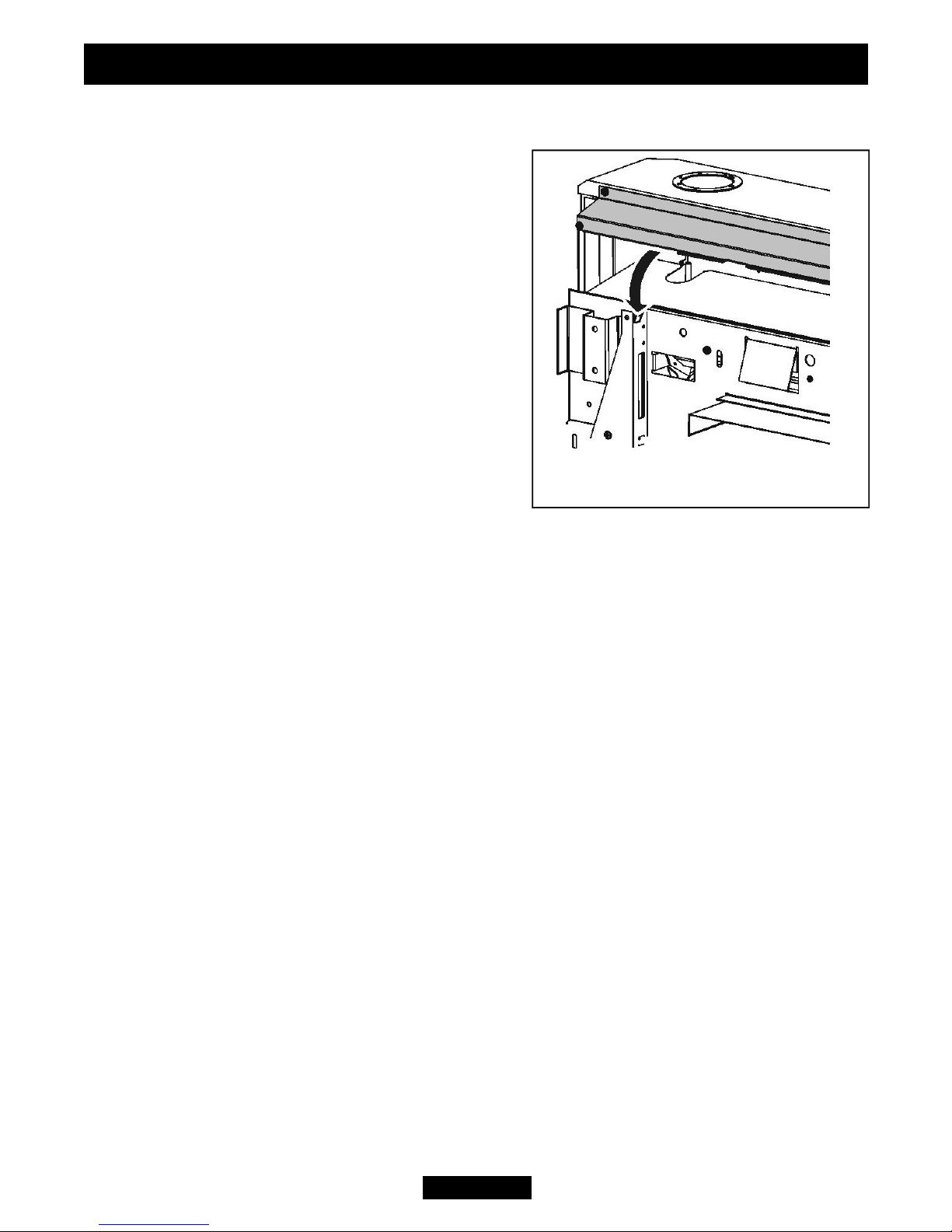

Graph 1 Shelf clearances

heat. They may, therefore, scorch or become discoloured when close to a heating
appliance. Please bear this in mind whenever you are considering redecorating.
Do
provide a minimum clearance of 50mm between the fascia sides and any corner wall
having combustible material or other combustible surface which projects beyond the
front of the fire (See figure 1). Please bear this in mind if ever you are considering
altering the room.
Don’t hang clothing, towels or any other fabrics over the fire.
Don’t fill in the space behind the fascia.
Don’t use the fire without the dress guard being in position.
Don’t
attempt to clean or service the fire until it has been switched off and allowed to
completely.
Don’t use the fire with damaged radiants.
APPLIANCE DIMENSIONS
Page 6
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
Figure 1. Dimensions and clearances
Model Dimension ‘A’ (mm) Dimension ‘B’ (mm) Dimension ‘C’ (mm)
Brava 609 713 177
Charm 609 713 177
Esquire 609 708 177

GAS CONSUMPTION
Has a maximum natural gas input of 5.6kW (Gross)
Has a maximum natural gas output of 4.0kW
Has a minimum natural gas input of 1.57kW (Gross)
Has a minimum natural gas output of 1.0kW
OPERATING YOUR FIRE
The Oxysafe flame sensing and flue blockage safety system.
For your safety, this appliance is fitted with a flue blockage safety device that will shut
down the appliance in the event of abnormal flue conditions. This device is NOT a
substitute for an independently mounted Carbon Monoxide detector.
The device will also automatically shut off the gas supply to the fire if the pilot flame
goes out due to lack of oxygen or for any other reason.
If this device starts to repeatedly shut off the gas, get expert advice.
This device incorporates a probe that senses that the heat from the pilot flame is correct.
If this probe is cool, the device will prevent any gas flow unless the control knob is held
down at the ignition position.
If, for any reason, the flames go out when the fire is hot or if the fire is turned off when
hot, always wait at least three minutes before attempting to relight.
To light the fire (Manual ignition).
The control is shown in Figure 2.
!Depress the control knob and turn anticlockwise
towards the 1/IGN position. A spark should be
generated at the pilot while turning. The spark should
ignite the pilot. If it does not, keeping the knob
depressed, continue to turn the knob anticlockwise. A
second spark should ignite the pilot. The pilot flame
can be seen through the opening immediately below
the right hand centre radiant (See figure 3).
Page 7
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
PLEASE NOTE
When operating your fire for the first time, some vapours may be given off which may
cause a slight odour and could possibly set off any smoke alarms in the immediate
vicinity. These vapours are quite normal with new appliances. They are totally harmless
and will disappear after a few hours use.

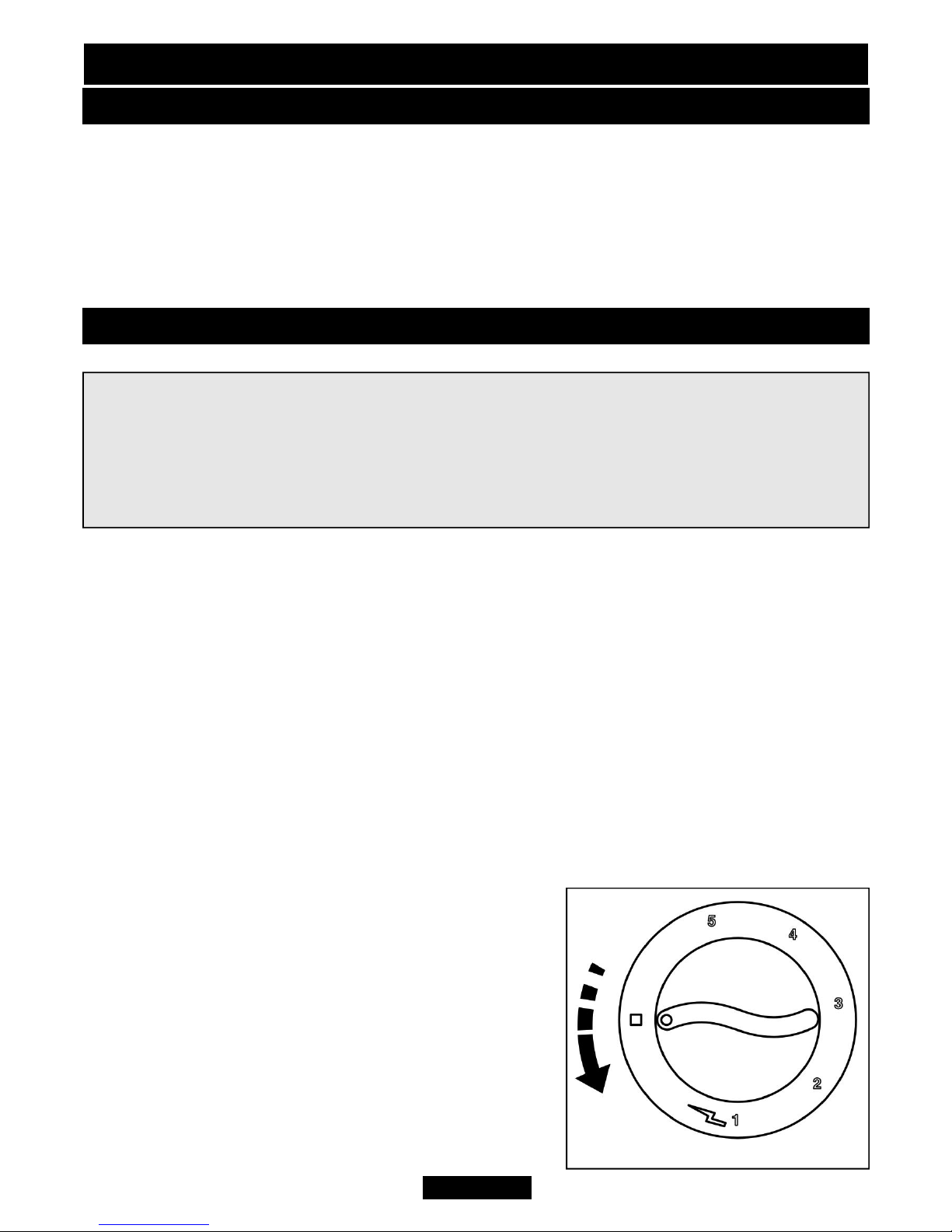

Figure 2.

If the pilot does not light, turn the knob back
to OFF and try again.
In the unlikely event of failure of the ignition
mechanism the pilot can be lit with a long
match or taper – See the next page.
!When the pilot has lit keep the knob
depressed for about ten seconds to allow the
flame sensing probe to warm up.
The control knob can then be set to your
preferred heat level. The settings are shown on
the table opposite.
To light the fire (Electronic ignition).
The control is shown in figure 2.
!Depress the control knob slightly and turn
anticlockwise towards the 1/IGN position. Do not
apply too much pressure as this will cause
resistance to be felt. Depress the control knob.
Sparks should be generated at the pilot. The
sparks should ignite the pilot. If the pilot does
not light, turn the control knob back to the‘OFF’
position and try again. The pilot flame can be
seen through the opening immediately below the right hand centre radiant (See figure 3).
If no sparks are generated at the pilot the battery may have no power. The battery can
be replaced as shown later in this guide.
In the unlikely event of failure of the ignition mechanism or where a replacement
battery is not available the pilot can be lit with a long match or taper – See next page.
!
When the pilot has lit keep the control knob depressed for about ten seconds to
allow the flame sensing probe to warm up.
Page 8
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
Figure 3.

!
The control control knob can then be set to your preferred heat level. The settings
are: -
To turn off partially depress the knob and turn clockwise to off. Wait at least three
minutes before attempting to relight.
Lighting with a match or taper.
Manual ignition: Depress the control knob and turn anticlockwise towards the 1/IGN
position.
Electronic ignition: Depress the control knob slightly and turn anticlockwise towards
the 1/IGN position.
While keeping the knob depressed, light the pilot by inserting a long match or taper into
the opening shown in figure 3 (Second opening from the right).
When the pilot is alight, keep the knob depressed for about ten seconds to allow the
flame sensing probe to warm up before setting to your preferred heat level.
For your own convenience, have the heater serviced as soon as possible.
CLEANING YOUR FIRE
Turn the fire off and allow it to cool before attempting any cleaning.
Normally the fire will only need dusting. The bright metal trims may be cleaned with a
damp cloth and dried with a soft duster. Obstinate marks can be removed from the guard
and trims using soapy water. Never use abrasive cleaners.

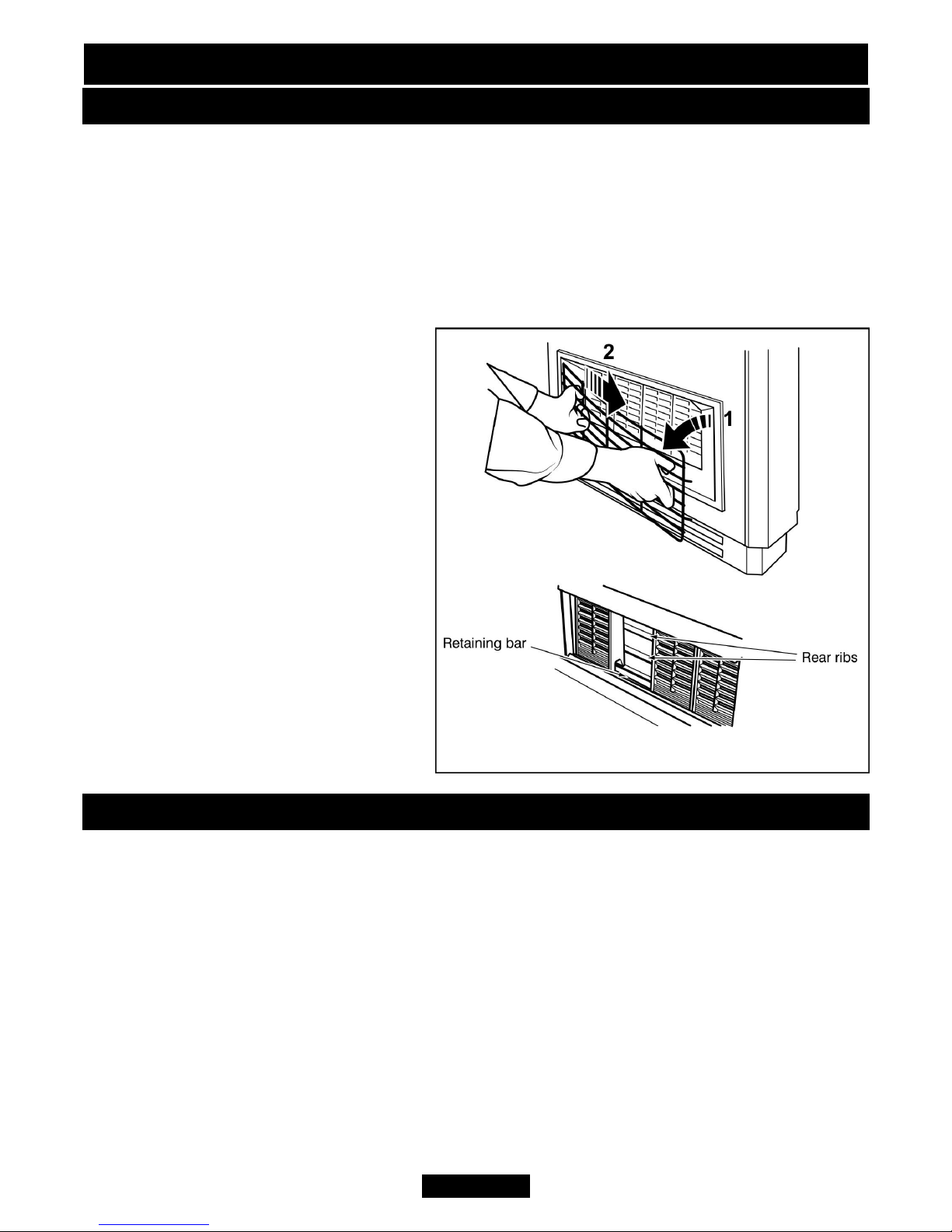

The radiants can be cleaned with a soft brush - see below for how to remove the
radiants.
Page 9
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
Control Knob
Position Radiants Condition
2
Centre radiants on low. Outer radiants off.
(The right hand centre radiant will glow slightly
more than than the left hand centre radiant due
to the pilot flame)
3Centre radiants fully on. Outer radiants off.
4Centre radiants fully on. Outer radiants on low.
5 All radiants fully on.

REPLACING THE RADIANTS
(See figure 4).
Always use the correct type of replacement radiant. Ask for Baxi Fires Division
part number 5110472. Turn the fire off and allow it to cool before attempting to
remove the radiants.
To remove the dress guard, gently pull the centre of the dress guard with one hand and
carefully spring out one end of the dress guard with the other. Slide the other side of the
dress guard clear of the fixing holes. Take care not to scratch the trim.
Lift the radiant upward to clear the
metal retaining bar then pull out
bottom first.
Fit the new radiant by inserting its top
under the top lip of the radiant box
then swing the bottom of the radiant
over and behind the retaining bar. It is
important that the front face of the
radiant should rest against the front
of the retaining channel. Replace the
dress guard. To do this locate one side
of the dress guard into the two side
fixing holes. Spring the dress guard
slightly and locate into the opposite
fixing holes. Take care not to scratch
the trim.
MAINTENANCE
Battery replacement (Electronic ignition).
1. The battery cover is located at the base of the fire on the right hand side.
2. To access the battery cover the fascia will have to be removed. The fascia securing
screws are located at the bottom rear of the fascia. Remove the securing screws from
both sides of the fascia.
3.
Remove the control knob. To do this firmly hold the control knob and lift clear of the
fascia.
4.
The fascia can now be removed. To do this firmly hold the fascia sides, gently pull
the bottom of the fascia forward whilst lifting the fascia upward and forward. Place the
fascia in a safe place.
5. Unscrew the battery cover in an anticlockwise direction.
6. Remove the battery and discard.
Page 10
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
Figure 4.

8.
Remove any protective film from the replacement battery and place into the generator.
The negative ( - ) terminal should go in first. The cap of the generator is marked with
( + ).
9. Refit the battery cover.
10. Place the fascia over the engine. Make sure
that the top rear of the fascia locates fully into the
‘U’ shaped notch of the engine back panel (See
figure 5).
11. Fit the control knob firmly on to the control
spindle.
12. Secure the fascia using the two screws
previously removed. There are two holes in the
fascia. Use the bottom hole.
Regular maintenance.
In order to achieve and maintain high levels of
personal safety and performance efficiency, it is
essential that the opening at the back of the fire and the flue are kept clear of any form
of obstruction. It is possible that deposits of mortar or soot could fall and accumulate
causing the flue to be blocked or restricted and so preventing proper clearance of
dangerous exhaust fumes.
In the United Kingdom it is the law that a landlord must have any gas appliance, flue
and pipework which is situated in a tenant’s premises checked for safety at least every
twelve months by a competent person (In the U.K., a CORGI registered installer).
We recommend that all gas appliances and their flues, wherever situated, are checked
annually.
Servicing.
!
Servicing can be carried out either by a Baxi Fires Division Service engineer or a
CORGI registered installer.
! If you require your fire to be serviced, please contact
Baxi Fires Division Service
on 08706 090 081
IMPORTANT
To help us quickly help you, please try to have the following information available
before you contact us:
! Type of fire.
! Model/Name.
! Serial Number.
You will also be asked for the fault, problem or request plus your Post Code.
Page 11
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
Figure 5. Fascia top location

! If you wish to replace the radiants, spare parts are available nationwide via the
‘interpart
stockist network’. For your local stockist consult Yellow pages under Central
Heating.
! When fitting replacement parts it is important that only Baxi Fires Division
approved parts are used for maximum safety.
USEFUL TELEPHONE NUMBERS
General advice about gas and your gas fire:
BAXI FIRES DIVISION TECHNICAL HELPLINE 08706 061 065.
To report faults or arrange for your fire to be serviced:
BAXI FIRES DIVISION SERVICE 08706 090 081.
For sales or product information:
BAXI FIRES DIVISION SALES 08706 061 067.
For spares inquiries
Spare parts are available nationwide via the ‘interpart stockist network’. For your
local stockist consult Yellow pages under ‘Central Heating’.
CALLERS IN THE REPUBLIC OF IRELAND
Call 0044 8706 061 065
Page 12
OWNER GUIDE
© Baxi Heating U.K. Limited 2006.
