OWNER GUIDE
This guide is intended to help you care for your gas fire. Please read thoroughly before
using and keep for future reference.
This guide to be left with the owner
THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).
WHEN CONVERTED USING CONVERSION KIT NO. 0595221 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31).
THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).
© Baxi Heating U.K. Ltd.
Model 750M
Heat Engine
(GC No. 32-032-58)
INSET LIVE FUEL EFFECT GAS FIRE
For technical advice firstly contact your retailer. If further advice is required then call
0161703 8157 for The Midlands and North or
01462 813 138 for The South.

Safety First.
This gas fire is CE Approved and designed to meet the appropriate British Standards
and Safety Marks.
Quality and Excellence.
This fire has been manufactured to the highest standards of quality and excellence and
was manufactured under a BS EN ISO 9001 quality system accepted by the British
Standards Institute.
The Highest Standards
The manufacturer is a member of the Society of British Gas Industries which works to
ensure high standards of safety, quality and performance.
Careful Installation
The manufacturer is a CORGI registered company. This gas fire must be
installed by a competent CORGI Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet.
Baxi Fires Division, Erdington, Birmingham B24 9QP
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
OWNER GUIDE

LIST OF CONTENTS
Section Page
SAFETY 4
GAS CONSUMPTION 5
OPERATING YOUR FIRE 6
The Oxysafe flame sensing and flue blockage safety system. 6
Lighting the pilot. 6
Lighting the main burner. 7
Selecting the heat setting. 7
Turning the appliance off. 7
Turning the fire back to pilot setting. 7
Lighting with a taper. 7
CLEANING YOUR FIRE 8
Metal parts. 8
Ceramic fuel effect and rear wall. 8
Burner 8
MAINTENANCE 9
Regular maintenance. 9
Servicing. 9
This gas fire is designed to meet the most stringent quality, performance and safety
requirements to provide you with many years’ trouble-free service.
This guide aims to improve your understanding and appreciation of your gas fire by
providing simple and informative instructions to ensure that you benefit from the
excellent performance and features it has to offer.
-
Page 3
OWNER GUIDE

SAFETY
Do
have the fire installed by a competent person. In the United Kingdom, installation
must be in accordance with the latest edition of the Gas Safety (installation & use)
Regulations. In the Republic of Ireland, installation must be in accordance with all
national and local regulations in force.
Do
have the chimney swept prior to installation if it was previously used for solid fuel.
Do have the fire installed in accordance with the installer guide.
Do provide a minimum clearance of 750mm
from the top surface of the hearth to any
shelf made of wood or other combustible material where the shelf is not more than
150mm deep. For a shelf deeper than 150mm, add 12.5mm to the clearance for every
25mm of additional shelf depth (See graph1).
Do always use a fire guard complying with BS 8423 for the protection of young
children, the elderly or infirm.
Do wait three minutes before attempting to relight if the fire is switched off or the
Page 4
OWNER GUIDE
IF YOU SMELL GAS
DON’T SMOKE
EXTINGUISH ALL NAKED FLAMES
DON’T TURN ELECTRICAL SWITCHES ON OR OFF
TURN OFF THE GAS SUPPLY AT THE METER
OPEN DOORS AND WINDOWS TO GET RID OF THE GAS
IMMEDIATELY CALL THE GAS EMERGENCY SERVICE – SEE YOUR LOCAL TELEPHONE
DIRECTORY

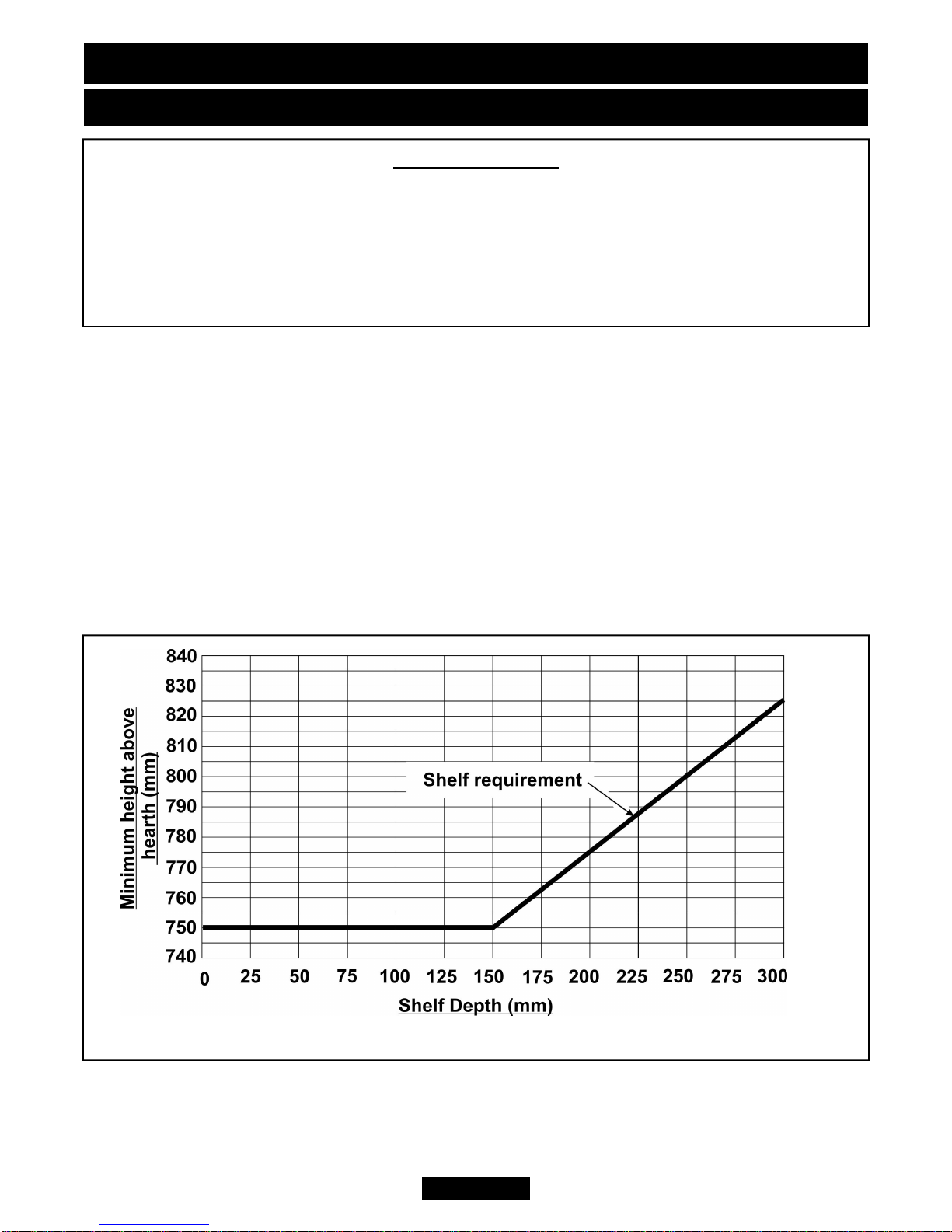

Graph 1. Combustible shelf clearances

flames are extinguished for any reason.(Your fire is fitted with a safety device that will
automatically shut off the gas supply to the fire, if for any reason , the flame goes out)
Do get advice about the suitability of any wall covering near your fire. Soft wall
coverings (e.g. embossed vinyl, etc.) which have a raised pattern are easily affected by
heat. They may, therefore, scorch or become discoloured when close to a heating
appliance. Please bear this in mind whenever you are considering redecorating.
Do provide a minimum side clearance as detailed below.
The minimum allowable distance from the outside of the fascia to a corner wall having
combustible material or any other combustible surface which projects beyond the front
of the appliance is 100mm.
A 10mm access clearance from a non-combustible surface is necessary at both sides.
Please bear this in mind if ever you are altering the room.
Don’t hang clothing, towels or any other fabrics over the fire.
Don’t put more loose ceramic fuel effect pieces on the fire than the number given in
this guide or use any ceramic fuel effect pieces other than those authorised for this fire.
Incorrect combustion and subsequent safety hazard could result.
Don’t put paper or other materials onto your fire.
Don’t use the fire with damaged base ceramics.
Don’t place any combustible material (rugs, carpet, plastic tiles, etc.) on the hearth
Don’t
attempt to clean or service the fire until it has been switched off and allowed to
cool completely.
GAS CONSUMPTION
Model 750
Has a maximum natural gas input of 6.0kW (Gross)
Has a maximum natural gas output of 3.4kW
Has a minimum natural gas input of 2.3kW (Gross)
Has a minimum natural gas output of 1.2kW
Model 750 when converted using kit number 0595221
Has a maximum propane gas input of 6.1kW (Gross)
Has a maximum propane gas output of 3.5kW
Has a minimum propane gas input of 3.8kW (Gross)
Has a minimum propane gas output of 1.9kW
Page 5
OWNER GUIDE

OPERATING YOUR FIRE
The Oxysafe flame sensing and flue blockage safety system.
For your safety, this appliance is fitted with a flue blockage safety device which will
shut down the appliance in the event of abnormal flue conditions.
This device is NOT a
substitute for an independently mounted Carbon Monoxide detector.
The device will also automatically shut off the gas supply to the fire if the pilot flame
goes out due to lack of oxygen or for any other reason.
If this device starts to repeatedly shut off the gas, get expert advice.
This device incorporates a probe which senses that the heat from the pilot flame is
correct. If this probe is cool, the device will prevent any gas flow unless the control
knob is kept depressed at the “Pilot/Ign” position.
If, for any reason, the flames go out when the fire is hot or if the fire is turned off when
hot, always wait at least three minutes before attempting to relight.
Lighting the pilot.

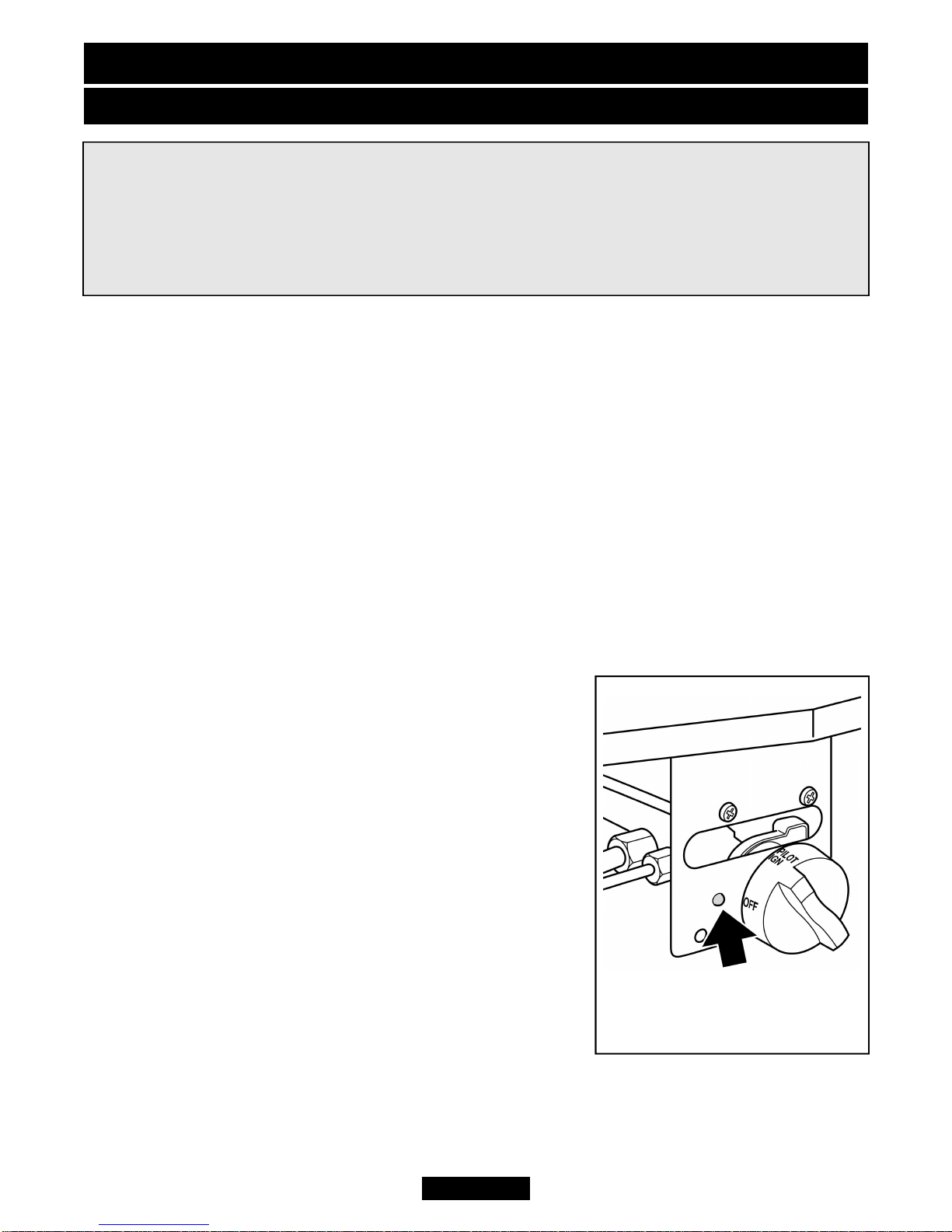

This fire is controlled by a 4-position gas tap mounted
on the front leg of the appliance. In addition to the
“Off” position there is a pilot light and 2 heat control
settings (See figure 2).
! Depress the control knob and turn anticlockwise
towards the “Pilot/Ign” position. A spark should be
generated at the pilot while turning. The spark should
ignite the pilot. The pilot flame can be seen through the
lower left hand opening in the front of the ceramic fuel
effect.
! Keep the button depressed at the “Pilot/Ign” position
for a further ten seconds. This will prevent the flame-
sensing device from shutting off the gas while its probe
warms up.
! If the pilot does not ignite instantly, repeat procedure.
If after 10 seconds pilot ignition has not occurred, turn the control knob back to
the “Off” position, wait for 3 minutes and then repeat the ignition procedure.
Page 6
OWNER GUIDE
PLEASE NOTE
When operating your fire for the first time, some vapours may be given off which may
cause a slight odour and could possibly set off any smoke alarms in the immediate
vicinity. These vapours are quite normal with new appliances. They are totally harmless
and will disappear after a few hours use.
Figure 2.

Lighting the main burner.
! Once the pilot light is established, the main burner can be lit by depressing and
turning the control knob anticlockwise to the “High” position.
Selecting the heat setting.
!
In order to change from one setting to another depress the control knob slightly and
turn the knob to the required position. Any setting from “Low” to “High” may be
selected.
Note: The appliance will operate to its maximum potential if the flue is primed during
the first 20-30 minutes of operation. To do this, simply operate the appliance at its
“High” setting. This will also burn off any carbon deposits that may have formed
during previous operations. If operating the appliance for long periods it is beneficial to
change between settings. This will help to remove any carbon deposits that may form
during operation.
Turning the fire back to pilot setting.
! Depress the control knob and turn clockwise until the pilot setting is reached.
Turning the appliance off.
! Make sure that the control knob is in the pilot position. Depress the control knob
and turn clockwise to the “Off” position.
! Wait at least three minutes before relighting.
Lighting with a taper.
(See figure 3).
In the unlikely event of failure of the ignition spark,
the pilot can be lit by a taper or long spill. Insert the
taper or spill through the lower left hand opening in
the front of the ceramic fuel effect.
! Follow the section ‘ Lighting the pilot’ as
described previously.
Page 7
OWNER GUIDE
Figure 3. Lighting with a taper
(The fuel effect may differ
from that shown)

CLEANING YOUR FIRE
To maintain the high performance and quality finish of your appliance, please follow
these guidelines:
!
Before attempting to clean the fire, please remember to turn off the fire and wait for
the appliance to cool completely. The fire will retain heat for some time before cleaning
can begin.
!
If any pieces of debris are found in the firebox, have the chimney inspected before
further use.
Metal parts.
!
Clean the metal parts with a slightly damp, lint free non-abrasive cloth and then dry.
! Do not use abrasive cleaners, as these will scratch the fire surface.
Ceramic fuel effect and rear wall.
! This product uses fuel effect pieces and burner compartment rear wall
containing Refractory Ceramic Fibres (RCF), which are man-made vitreous
silicate fibres. Excessive exposure to this material may cause irritation to eyes, skin
and respiratory tract. Consequently, it is important to take care when handling
these articles to ensure that the release of dust is kept to a minimum.
!
Light coatings of soot will usually be burnt off during the normal operation of the
fire.
! Should any soot accumulation become excessive, the fuel effect pieces and walls
should be removed from the fire for cleaning.
!
Cleaning should be carried out in a well ventilated area or in the open air by gently
brushing with the pieces held away from your face so that you avoid inhaling the
dust.
! We suggest that you remove the ceramic fuel effect in the reverse order to that
shown in the ceramic fuel effect installer and owner guide. This should have been left
inside or attached to this guide by the installer.
Burner
! The burner surface can be carefully cleaned to remove any loose particles after
taking off the ceramic fuel effect. Make sure that no particles are pushed into the burner
holes.
Page 8
OWNER GUIDE

CERAMIC FUEL BED REFITTING
The installer and owner guide for the ceramic fuel effect is separate from this guide. The
installer may have attached it to this guide or placed it inside. It is important that the
installer and owner guide for the ceramic fuel effect is followed correctly. If replacing
the ceramic fuel effect, where a new guide is supplied, follow the installer and owner
guide supplied with the replacement fuel effect.
Keep the replacement installer and owner guide with this owner guide for future
reference.
MAINTENANCE
Regular maintenance.
In order to achieve and maintain high levels of personal safety and performance
efficiency, it is essential that the opening at the back of the fire and the flue are kept
clear of any form of obstruction. It is possible that deposits of mortar or soot could fall
and accumulate causing the flue to be blocked or restricted and so preventing proper
clearance of dangerous exhaust fumes.
In the United Kingdom it is the law that a landlord must have any gas appliance, flue
and pipework which is situated in a tenant’s premises checked for safety at least every
twelve months by a competent person (In the U.K, a CORGI registered installer).
We recommend that all gas appliances and their flues, wherever situated, are checked
annually.
Servicing.
IMPORTANT
To help us quickly help you, please try to have the following information available
before you contact us:
Type of fire.
Model/Name.
Serial Number.
You will also be asked for the fault, problem or request plus your Post Code.
! If you wish to replace any of the ceramic fuel effect pieces, spare parts
are available nationwide via the ‘interpart stockist network’. For your local
stockist consult Yellow pages under Central Heating.
! When fitting replacement parts it is important that only approved parts are
used for maximum safety.
Page 9
OWNER GUIDE
