Baxi 754 Assembly instructions

5116154/03
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.
Model 754
INSET LIVE FUEL EFFECT GAS FIRE

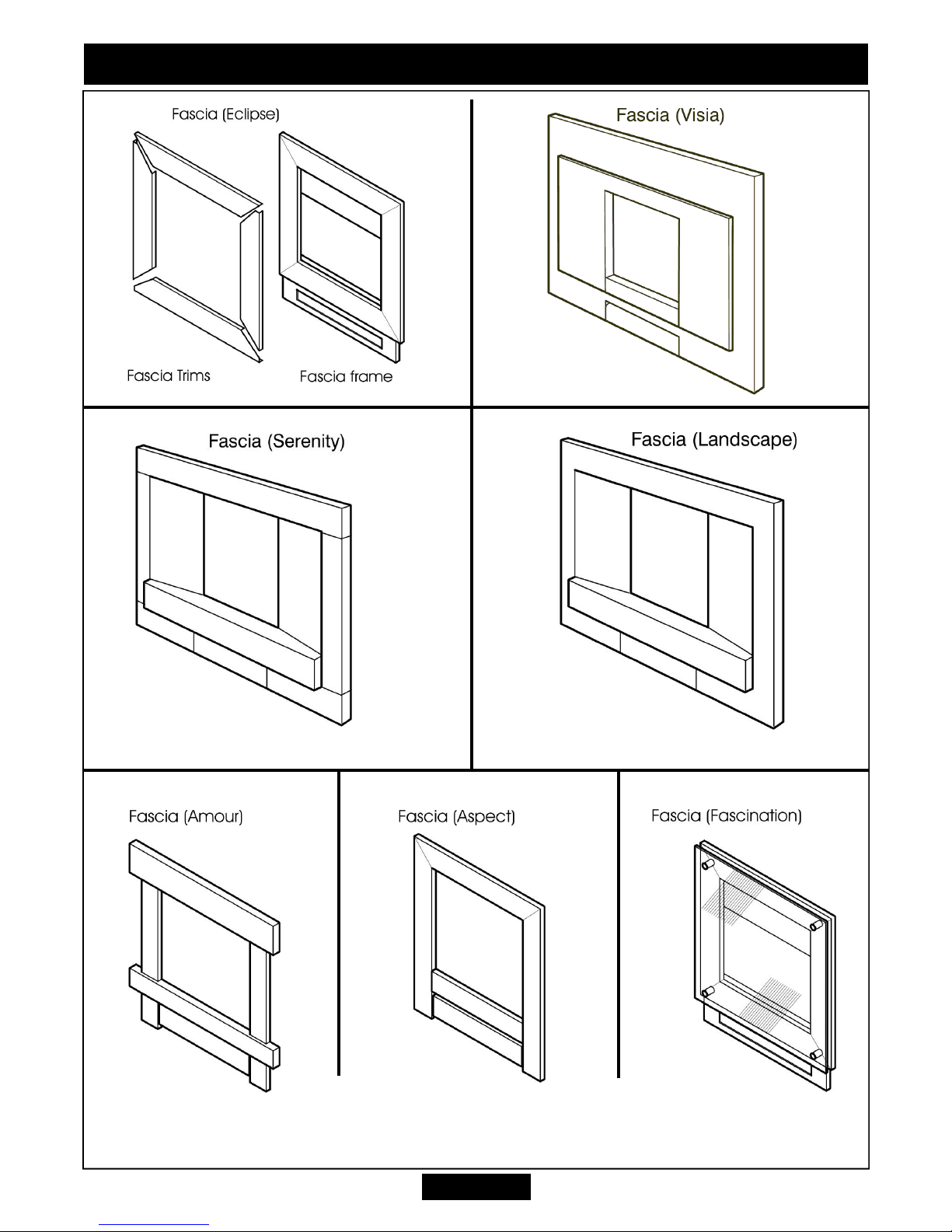

Fitted with one of the following fascia.
Amour, Aspect, Aspect Glass,
Eclipse, Fascination, Landscape,
Serenity, Tranquilityor
Visia
(GC No. 32-032-59)
We trust that this guide gives
sufficient details to enable this
appliance to be installed and
maintained satisfactorily. However, if
further information is required, our
Baxi Fires Division Technical
Helpline will be pleased to help.
Telephone [phone] (National
call rates apply in the United
Kingdom).
In the Republic of Ireland
Telephone [phone].
THIS APPLIANCE IS FOR USE WITH
NATURAL GAS (G20).
WHEN CONVERTED USING
CONVERSION KIT NO. 05754M1 THE
‘FASCINATION’ MODEL IS FOR USE
WITH PROPANE GAS (G31).
THIS APPLIANCE IS SUITABLE ONLY
FOR INSTALLATION IN THE UNITED
KINGDOM (GB) AND THE REPUBLIC
OF IRELAND (IE).
INSTALLER: Please leave this guide with the
owner

© Baxi Heating U.K. Limited 2007.
All rights reserved. No part of this publication may be reproduced in any material form
(including photocopying), stored in any medium by electronic means (including in any
retrieval system or database) or transmitted, in any form or by any means, whether
electronic, mechanical, recording or otherwise, without the prior written permission of
the copyright owner.
Applications for the copyright owner's permission to reproduce any part of this
publication should be made, giving details of the proposed use, to the following address:
The Company Secretary, Baxi Heating UK Limited,
The Wyvern Business Park, Stanier
Way, Derby, DE21 6BF.
Warning: Any person who does any unauthorised act in relation to a copyright work
may be liable to criminal prosecution and civil claims for damages.
Baxi Fires Division, Erdington, Birmingham B24 9QP
www.firesandstoves.co.uk
Because our policy is one of constant development and improvement, details may vary slightly from those
given in this publication
Page 2
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.

Safety First.
Baxi Fires Division fires are CE Approved and designed to meet the appropriate British
Standards and Safety Marks.
Quality and Excellence.
All Baxi Fires Division fires are manufactured to the highest standards of quality and
excellence and are manufactured under a BS EN ISO 9001 quality system accepted by
the British Standards Institute.
The Highest Standards
Baxi Fires Division is a member of the Society of British Gas Industries which works to
ensure high standards of safety, quality and performance.
Careful Installation
Baxi Fires Division is a CORGI registered company. All our gas fires must be
installed by a competent CORGI Registered Installer in accordance
with our Installer Guide and should not be fitted directly on to a
carpet or floor of combustible material.
Page 3
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.

CONTENTS
Section Heading Page
1. SAFETY 5
2. ACCESSORY LIST 5
3. APPLIANCE DATA 6
4. GENERAL INSTALLATION REQUIREMENTS 8
5. PACK CONTENTS 16
6. FIREPLACE CHECK 18
7. IGNITION CHECK 20
8. GAS SUPPLY CONNECTION 20
9. PREPARING APPLIANCE FOR INSTALLATION 21
10. HOTBOX INSTALLATION 23
10.1 Method 1 - Front fixing to fireplace surround. 23
10.2 Method 2 - Cable retention and floor fixing. 24
10.3 Sealing floor front - all installations. 26
11. BURNER & SUPPLY PIPE INSTALLATION 26
12. FITTING THE CERAMIC FUEL EFFECT 28
13. FULL OPERATING CHECKS 28
13.1 Check the control settings. 28
13.2 Check for spillage. 29
13.3 Flame supervision and spillage monitoring system. 30
14. FASCIA INSTALLATION 30
15. FINAL REVIEW 36
16. SERVICING & PARTS REPLACEMENT 37
16.1 To remove the fascia. 38
16.2 To remove the burner unit. 39
16.3 To remove the pilot unit. 40
16.4 To remove the gas valve. 40
16.5 To remove the piezo generator. 41
16.6 To grease the control tap. 41
16.7 To replace the burner. 41
16.8 To remove the main burner injector. 42
16.9 To remove the appliance from the fireplace. 42
Page 4
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.

1. SAFETY
Installer
Before continuing any further with the installation of this appliance please read the
following guide to manual handling:
! The approximate lifting weight of this appliance is as below:
Model Heat Engine(kg) Fascia (kg) Total (kg)
Amour 7.21 3.79 11.0
Aspect 7.21 3.79 11.0
Aspect Glass 7.21 5.75 12.96
Eclipse 7.21 3.79 11.0
Fascination 7.21 8.79 16.0
Landscape 7.21 6.89 14.1
Serenity 7.21 7.76 14.97
Tranquility 7.21 3.79 11.0
Visia 7.21 6.11 13.32
! One person should be sufficient to lift the fire. If for any reason this weight is
considered too heavy then obtain assistance.
!
When lifting always keep your back straight. Bend your legs and not your back.
! Avoid twisting at the waist. It is better to reposition your feet.
! Avoid upper body/top heavy bending. Do not lean forward or sideways whilst
handling the fire.
!
Always grip with the palm of the hand. Do not use the tips of fingers for support.
! Always keep the fire as close to the body as possible. This will minimise the
cantilever action.
! Use gloves to provide additional grip.
! Always use assistance if required.
2. ACCESSORY LIST
The following accessories are available: -
Description Part Number
Pre cast and clay flue block spacer kit 05654K1
LPG conversion kit for ‘Fascination’ model only 05754M1
Page 5
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.

3. APPLIANCE DATA
* When converted using conversion kit number 05754M1.
The appliance data label is located on a plate at the base of the fire. This can be seen by
lowering the bottom front cover of the fascia.
Page 6
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.
Gas Natural (G20) Propane (G31)*
Inlet Pressure 20mbar 37mbar
Aspect, Amour, Eclipse,
Landscape, Serenity and
Visia - Input Max. (Gross) 5.1kW (17,400 Btu/h) Not available
Aspect, Amour, Eclipse,
Landscape, Serenity and
Visia - Input Min. (Gross) 3.0kW (10,236 Btu/h) Not available
Aspect Glass and Tranquility
Input Max. (Gross) 5.2kW (17,400 Btu/h) Not available
Aspect Glass and Tranquility
Input Min.(Gross) 3.1kW (10,236 Btu/h) Not available
Fascination - Input Max.
(Gross) 5.5kW (18,766 Btu/h) 5.0kW (17,060 Btu/h)
Fascination - Input - Min.
(Gross) 3.1kW (10,577 Btu/h) 4.6kW (15,695 Btu/h)
Inlet Test Pressure (Cold) 20.0 ± 1.0mbar (8.0 ± 0.4in
w.g.)
37.0 ± 1.0mbar (14.85 ±
0.4in w.g.)
Gas Connection 8mm pipe 8mm pipe
Burner Injector Stereomatic Cat. 82 Size 065 StereomaticSize 110
Pilot & Atmosphere Sensing
Device Copreci Ref. O.D.S 21500/166
Copreci Ref. O.D.S
21500/166 Fitted with RBM
180 - 02 injector
Ignition Integral piezo (Mounted on
gas valve)
Integral piezo (Mounted on
gas valve)
Aeration Non-adjustable Non-adjustable

The efficiency of this appliance has been measured as specified in BS 7977 - 1 and the
result is as below :
Model
Efficiency % (Gross)
Amour, Aspect, Eclipse, Landscape, Serenity and Visia. 51
Aspect Glass, Tranquility and Fascination. 45
Fascination when converted to LPG. 46
The gross calorific value of the fuel has been used for this efficiency calculation. The
test data from which it has been calculated has been certified by Advantica Certification
services (0087). The efficiency value may be used in the UK Government's Standard
Assessment Procedure (SAP) for energy rating of dwellings.
The convertion of net efficiency to gross was achieved by
multiplying the net efficiency
by the following conversion factor from Table E3 of SAP 2005, rounding down to the
nearest whole number.
This product uses fuel effect pieces containing Refractory Ceramic Fibres (RCF),
which are man-made vitreous silicate fibres. Excessive exposure to these materials
may cause irritation to eyes, skin and respiratory tract. Consequently, it is
important to take care when handling these articles to ensure that the release of
dust is kept to a minimum. To ensure that the release of fibres from these RCF
articles is kept to a minimum, during installation and servicing we recommend that
you use a HEPA filtered vacuum to remove any dust and soot accumulated in and
around the fire before and after working on the fire. When replacing these articles
we recommend that the replaced items are not broken up, but are sealed within a
heavy duty polythene bag, clearly labelled as RCF waste. RCF waste is classed as a
stable, non-reactive hazardous waste and may be disposed at a landfill licensed to
accept such waste. Protective clothing is not required when handling these articles,
but we recommend you follow the normal hygiene rules of not smoking, eating or
drinking in the work area and always wash your hands before eating or drinking.
This appliance does not contain any component manufactured from asbestos or
asbestos related products.
Page 7
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.
Gas Conversion factor from net to gross efficiency
Natural Gas 0.901
LPG 0.921

4. GENERAL INSTALLATION REQUIREMENTS
4.1 The installation must be in accordance with these instructions.
For the user’s protection, in the United Kingdom it is the law that all gas appliances are
installed by competent persons in accordance with the current edition of the Gas Safety
(Installation and Use) Regulations. Failure to install the appliance correctly could lead
to prosecution. The Council for the Registration of Gas Installers (CORGI) requires its
members to work to recognised standards.
In the United Kingdom the installation must also be in accordance with:
All the relevant parts of local regulations.
All relevant codes of practice.
The relevant parts of the current editions of the following British Standards:-
BS EN 1856 Part 1 which replaces BS 715
BS EN 1858 which replaces BS 1289 Part 1
BS EN 1806 which replaces BS 1289 Part 2
BS EN 1856 Part 1 which replaces BS 4543 Part 2
BS 5440 Part 1
BS 5440 Part 2
BS 6461 Part 1
BS 1251
BS EN 1806
BS 5871 Part 2
BS 6891
BS 8303
In England and Wales, the current edition of the Building Regulations issued by the
Department of the Environment and the Welsh Office.
In Scotland, the current edition of the Building Standards (Scotland) Regulations issued
by the Scottish Executive.
In Northern Ireland, the current edition of the Building regulations (Northern Ireland)
issued by the Department of the Environment for Northern Ireland.
In the republic of Ireland the installation must also conform to the relevant parts of:
a) The current edition of IS 813 “Domestic gas installations”
b) All relevant national and local rules in force.
Where no specific instructions are given, reference should be made to the relevant
British Standard Code of Practice.
4.2
In the United Kingdom, as supplied, the appliance can be installed in the following
situations:

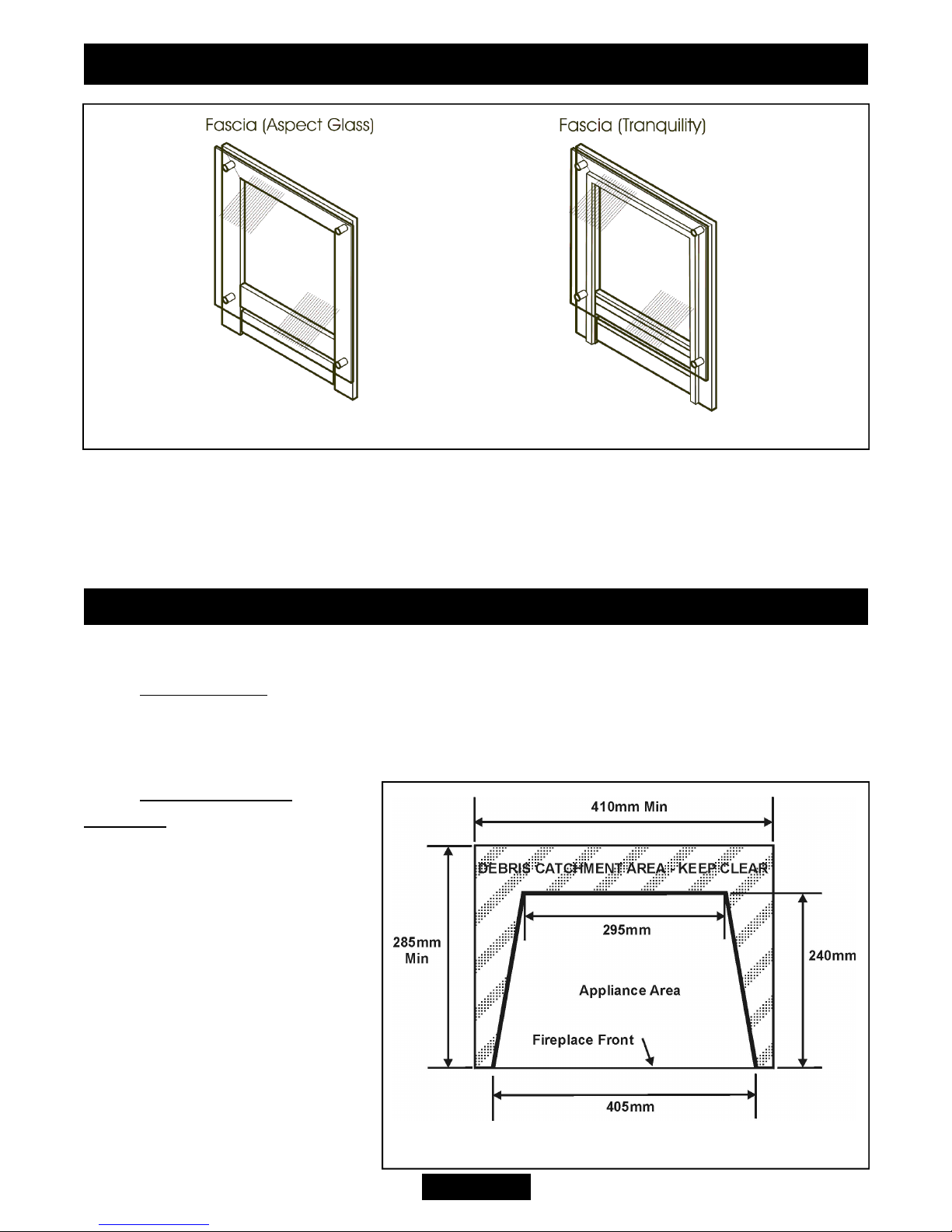

4.2.1 To a fireplace complete with surround and hearth as shown in figure 1 and
complying with BS1251 after removal of the fireback and sufficient material behind the
fireback for a debris catchment space. The required fireplace, hearth, debris catchment
Page 8
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.

area and clearance
dimensions are shown in
figure 1.
4.2.1.1 ‘Hole-in-the-wall’
installations.
!It is recommended that a
hearth should be
installed as in figure 1.
If a hearth is not fitted,
the fire must be installed
so that the distance from
the base of the fireplace
opening in the wall to
the finished floor level
is at least 85mm. Where
there is no floor
covering or carpet and
the floor is of a type that
is likely to be covered in
such a way in the future then the
distance from the base of the
fireplace opening in the wall to
the floor level should be
increased to at least 160mm.

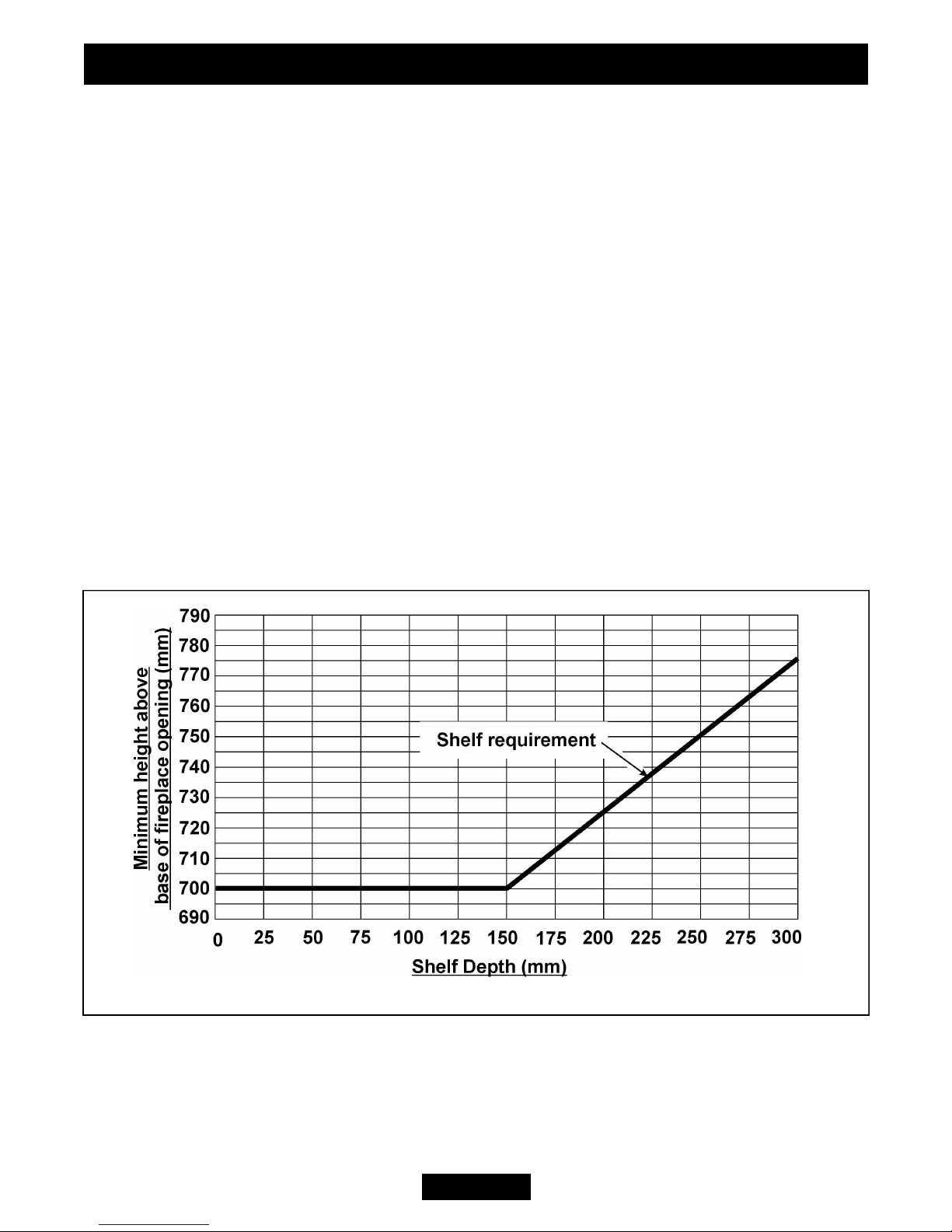

The minimum shelf height will
have to be taken from the base
of the fireplace opening.
!(All models except Fascination,
Tranquility and Aspect Glass
that are glass fronted
appliances) To protect from the
risk of burns and ignition of
clothing a tactile separator shall
be used. The hearth detailed in
section 4.9 meets the
requirements for a tactile
separator. If this is not used then
a 672mm long fender, kerb, horizontal bar, or other barrier, being fixed not less than
50mm above floor level and positioned 300mm in front of the fixing plane of the fire
will meet the requirement.
4.2.2
To a fireplace incorporating a metal flue box complying with the constructional
Page 9
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 2. Metal flue box
Figure 1. Hearth and fireplace opening dimensions

requirements of the current edition of
BS EN 1856 Part 1 or BS715. The
dimensions of the flue box must
conform to those shown in figure 2.
4.2.3 A precast concrete or clay flue
block system conforming to BS1289
or BS EN 1806 with dimensions as in
figure 3 or using a 05654K1 spacer
kit. (Installation Instructions part
number 3003095). BS EN 1806 and
BS1289 recommend that there should
be an air space or insulation between
the flue blocks and the plaster because
heat transfer may cause cracking on
directly plastered flues. However,
generally this appliance is suitable for
installations under all circumstances
unless there is a history of cracking
problems.
Remember that faults such as
cracking may be caused by poorly
built and restrictive flues, e.g. mortar
extrusions, too many bends, flue
heights below three metres, restrictive
terminations etc (See figure3).
4.2.4 If the fireplace opening is
greater than the acceptable
dimensions given in this guide, do not
use the back of a fire surround or
marble to reduce the opening. This may cause cracking of the surround back or marble.
4.3 Suitable flues and minimum flue sizes are as follows: -
It should be noted that, as with many appliances, sharp bends or horizontal runs in
metal flues at the top of the system can be a cause of problems in these types of
installation.
!225mm x 225mm conventional brick flue.
!175mm diameter lined brick or stone flue.
!
200mm diameter factory made insulated flue manufactured to BS EN 1856 Part 1 or
BS4543.
!175mm diameter flue pipe. See BS6461 Part 1 for suitable materials.
!
Single wall, twin wall or flexible flue liner with a minimum diameter of 125mm. The
Page 10
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 3. Precast or clay flue block system
dimensions

materials to be used are stainless steel or aluminium as specified in BS EN 1856 Part
1 or BS715. The liner must be sealed to the surrounding area above the fireplace
opening and to the top of the chimney. An approved terminal must be fitted.
!
A properly constructed precast concrete or clay flue system conforming to BS1289 or
BS EN 1806. This system is only suitable if the conditions stated in section 4.2.3 are
met.
4.4 The flue must conform to BS 5440: Part 1 in design and installation.
The flue, measured from the bottom of the fireplace opening to the bottom of the
terminal, shall be not less than 3m in actual vertical height. When calculated in
accordance with BS 5440: Part 1 Annex A, the minimum equivalent
height of the flue
shall be 2.0m of 125mm-dia. flue pipe.
4.5 The flue must not be used for any other appliance or application.
4.6
Any chimney damper or restrictor should be removed. If removal is not possible,
they must be secured in the open position.
4.7
If the appliance is intended to be installed to a chimney that was previously used
for solid fuel, the flue must be swept clean prior to installation. All flues should be
inspected for soundness and freedom from blockages.
4.8 If the fireplace opening is an underfloor draught type, it must be sealed to stop
any draughts.
4.9 The appliance must be mounted behind a non-combustible hearth unless the
conditions of section 4.2.1.1 are met (N.B. conglomerate marble hearths are considered
as non-combustible). The appliance can be fitted to a purpose made proprietary class
“O”-150°C surround. The hearth material must be at least 12mm thick. The periphery of
the hearth (or fender) should be at least 50mm above floor level to discourage the
placing of carpets or rugs over it.
The surface of the hearth must be sufficiently flat to enable the bottom of the fascia and
the bottom front cover to be aligned horizontally. Any excessive unevenness (uneven
tiles, Cotswold stone, etc.) should be rectified.
The appliance must not stand on combustible materials or carpets.
4.10
The front face of the fireplace should be reasonably flat over the area covered by
the hotbox top and side flange seals to ensure good sealing. These faces should be made
good if necessary.
The fireplace floor should be reasonably flat to ensure that a good seal with the hotbox
can be made.
Page 11
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.

4.11 Note that soft wall coverings (e.g. embossed vinyl, etc.) are easily affected by
heat. They may scorch or become discoloured when close to a heating appliance. Please
bear this in mind when installing.
4.12
This appliance must not be installed in any room that contains a bath or shower or
where steam is regularly present.
4.13
An extractor fan may only be used in the same room as this appliance, or in any
area from which ventilation for the appliance is taken, if it does not affect the safe
performance of the appliance. Note the spillage test requirements detailed further on in
this manual. If the fan is likely to affect the appliance, the appliance must not be
installed unless the fan is permanently disconnected.
4.14 The minimum height from the base of the fireplace opening to the underside of
any shelf made from wood or other combustible materials is shown below: -
•For a shelf up to 150mm deep
Minimum height = 700mm.
•For a shelf deeper than 150mm
Minimum height = 700mm + 12.5mm for every 25mm depth over 150mm.
(See graph 1).
4.15 Normal adventitious ventilation is usually sufficient to satisfy the ventilation
requirements of this appliance. In GB reference should be made to BS 5871 Part 2 and
in IE reference should be made to the current edition of IS 813 “Domestic Gas
Installations” which makes clear the conditions that must be met to demonstrate that
sufficient ventilation is available.
Page 12
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.
Graph 1. Combustible shelf clearances

4.16 If the appliance is to be fitted
against a wall with combustible
cladding, the cladding must be
removed from the area covered by
the fascia. The cladding must also
not touch the fascia (See figure 4).
We suggest that the actual fascia is
used as a template to mark the area
for combustible cladding removal
and that this area is increased by at
least 2mm all round. If the cladding
projects forward from the fixing
plane of the fire the clearance at the
top of the appliance must be
increased to a minimum 15mm.This
will allow for fascia removal.
4.17 Proprietary terminals must comply with BS EN 1856 Part 1 / BS 715 or BS EN
1858 / BS 1289. Any terminal or termination must be positioned in accordance with BS
5440 Part 1 to ensure that the products of combustion can be safely dispersed into the
outside atmosphere. Where the appliance is connected to an unlined brick chimney it is
generally unnecessary for the chimney pot to be replaced or for a terminal to be fitted
unless the flue has a diameter smaller than 170mm.
4.18 The appliance is fitted with an A.S.D (Atmosphere sensing device). If the
appliance closes down after a period of operation for no apparent reason, the consumer
should be informed to stop using the appliance until the installation and appliance have
been thoroughly checked. The A.S.D will shut the appliance down if an unacceptable
amount of harmful products of combustion accumulate. Under no circumstances should
the A.S.D be altered or bypassed in any way. Only a genuine manufacturers replacement
part should be fitted. The individual A.S.D components are not replaceable.
4.19
A fireguard complying with BS 8423 should be fitted for the protection of young
children, the elderly, or the infirm.
‘Fascination’, ‘Tranquility’ and ‘Aspect Glass’ fascia:
The glass panel is a working
surface and is hot during normal operation of the fire and whilst cooling. A fireguard
complying with BS 8423 should be fitted for the protection of young children, the
elderly, or the infirm.
Page 13
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.

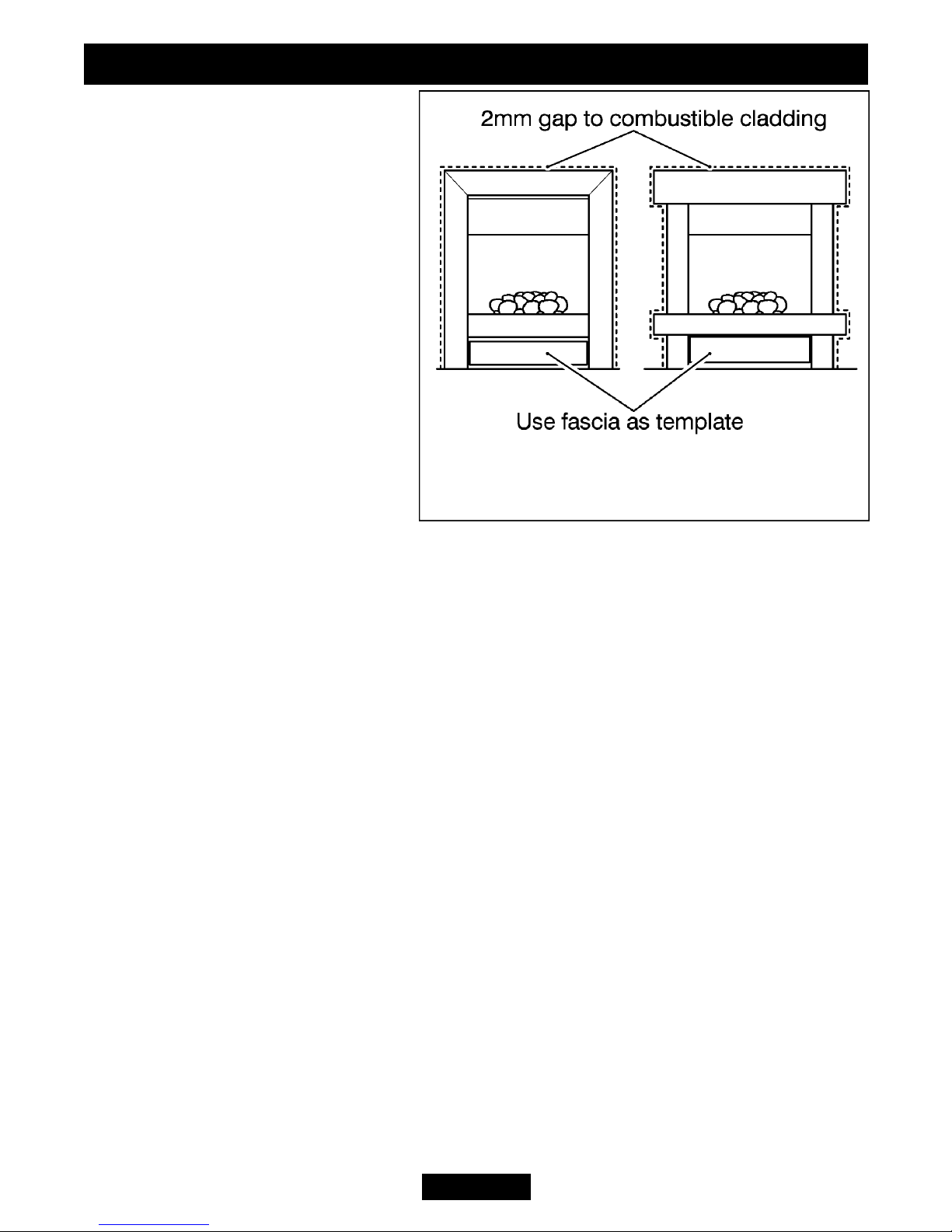

Figure 4. Removal of combustible
cladding (Fascia may differ from that shown)

4.20 The minimum allowable distance from the outside of the appliance fascia to a
corner wall having combustible material or any other combustible surface which
projects beyond the front of the appliance is shown in figure 5.
Page 14
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 5. Appliance dimensions and clearances (Fascia may differ from that shown)

Page 15
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.
Key Description
Model
Amour Aspect Eclipse Fascination Landscape
& Serenity Visia Tranquility &
Aspect Glass
AAppliance height (mm) 610 612 599 599 607 640 612
BAppliance width (mm) 560 505 520 520 976 930 505
CAppliance depth into room
(mm) 30 13 25 61 72 40 50
D
Minimum mandatory clearance
to combustible surfaces
projecting beyond the front of
appliance (mm).
10 10 10 10 10 10 10
ERecommended clearance to
non-combustible surfaces for
access purposes (mm). 10 10 10 10 10 10 10
Figure 5 continued. Appliance dimensions and clearances

5. PACK CONTENTS
1Burner & Hotbox Unit
1Nut & olive for 8mm inlet pipe
1Inlet ‘T’ Connector
1Flue restrictor plate
2Screws (For flue restrictor)
2Fireback spacing brackets
2Screws (For Fireback spacing brackets)
1Ceramic fuel effect pack (Not shown)
2Small “U” seals for hotbox side flanges
1Strip of floor sealing tape
2Black self tapping screws (For securing
top of ‘Landscape’ and ‘Serenity’ fascia.
2Self tapping screws (For securing the
sides of ‘Landscape’ ,‘Serenity’and ‘Visia’
fascia.
6Fibre plugs
Page 16
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 6. Pack contents
4Woodscrews
2Fascia securing brackets and
screws (For the‘Landscape’,
‘Serenity’ and ‘Visia’models).
2Fire retaining cables
2Cable clamps
4Eyebolts
1Rubber grommet
1Smoke match tube
1Length of self adhesive foam
seal
1Literature pack
1Fascia
1
Lower hotbox baffle for Fascination.
4Self tapping screws (For securing
the heat baffle on ‘Landscape’,
‘Serenity’and ‘Visia’ fascia.

Page 17
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 6. Pack contents continued

Carefully remove all the contents. Take special care in handling the ceramic fuel effects.
Check that all the listed parts are present and in good condition. The pack may contain
additional components to that stated above. These can be discarded.
6. FIREPLACE CHECK
6.1 Fireplace check.
6.1.1 Fireplace size
The fireplace must comply with the requirements described in section 4.2. This will
probably entail removing the fireback and infill material behind the fireback. The debris
catchment area shown in figure 7 must be kept clear of obstructions.
6.1.2 Fireplace general
condition
The fireplace floor should be
reasonably flat to ensure that the
hotbox can be installed without it
rocking and so that a good seal
can be made at the bottom front
of the box. The front face of the
fireplace should be reasonably
flat over the area covered by the
hotbox top and side flange seals
to ensure good sealing. These
faces should be made good if
necessary. If the appliance is to
Page 18
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 6. Pack contents continued
Figure 7. Fireplace area

be fitted against a wall with combustible cladding, the cladding must be removed from
the area covered by the fascia. The cladding must also not touch the fascia (See figure
4). We suggest that the actual fascia is used as a template to mark the area for
combustible cladding removal and that this area is increased by at least 2mm all round.
6.1.3 Soundness for appliance attachment
Two primary methods of retaining the appliance are provided: -
1) By fixing to the fireplace front surround.
2)
Using concealed tension cables fixed to the rear of the fireplace opening together
with secondary fixing to the fireplace floor.
The methods are detailed in section 10 of this manual. Before selecting the retention
method, consult with the customer. Method 2 is provided for instances where drilling
holes in the front surface of the fireplace surround is unacceptable to the customer or
otherwise impractical. N.B. It is unwise to attempt to drill into marble without the
proper tools and equipment.
If method 1 is chosen, make sure that the front surround area is sound enough to take
the fibre plugs and woodscrews. If necessary, make sound with a suitable cement.
If method 2 is chosen, make sure that the areas at the back and towards the centre of the
fireplace floor are sound enough to take the eyebolts and screws. If these areas have
deteriorated due to prolonged use, they should be made sound with a suitable cement.
6.1.4 Installations using a metal flue box
The whole of the top surface of the metal flue box must be covered with a 100mm layer
of mineral wool or equivalent insulation (See figure 2).
6.2 Fireplace flue pull.
Close all doors and windows in the room in which the appliance is to be installed. After
confirming with a match that smoke is drawn into the flue, light a 13 gram smoke pellet
and check that there is a definite flow through the flue. Verify outside that the smoke
exits from one terminal only and that the termination is suitable. Observe where
possible, upstairs rooms and loft spaces for signs of escaping smoke indicating a
defective flue. If there is not a definite flow warm the flue for a few minutes and repeat
the smoke pellet test. If there is still no definite flow the flue may need remedial work –
Do not fit the appliance until there is a definite flow through the flue.
Page 19
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.

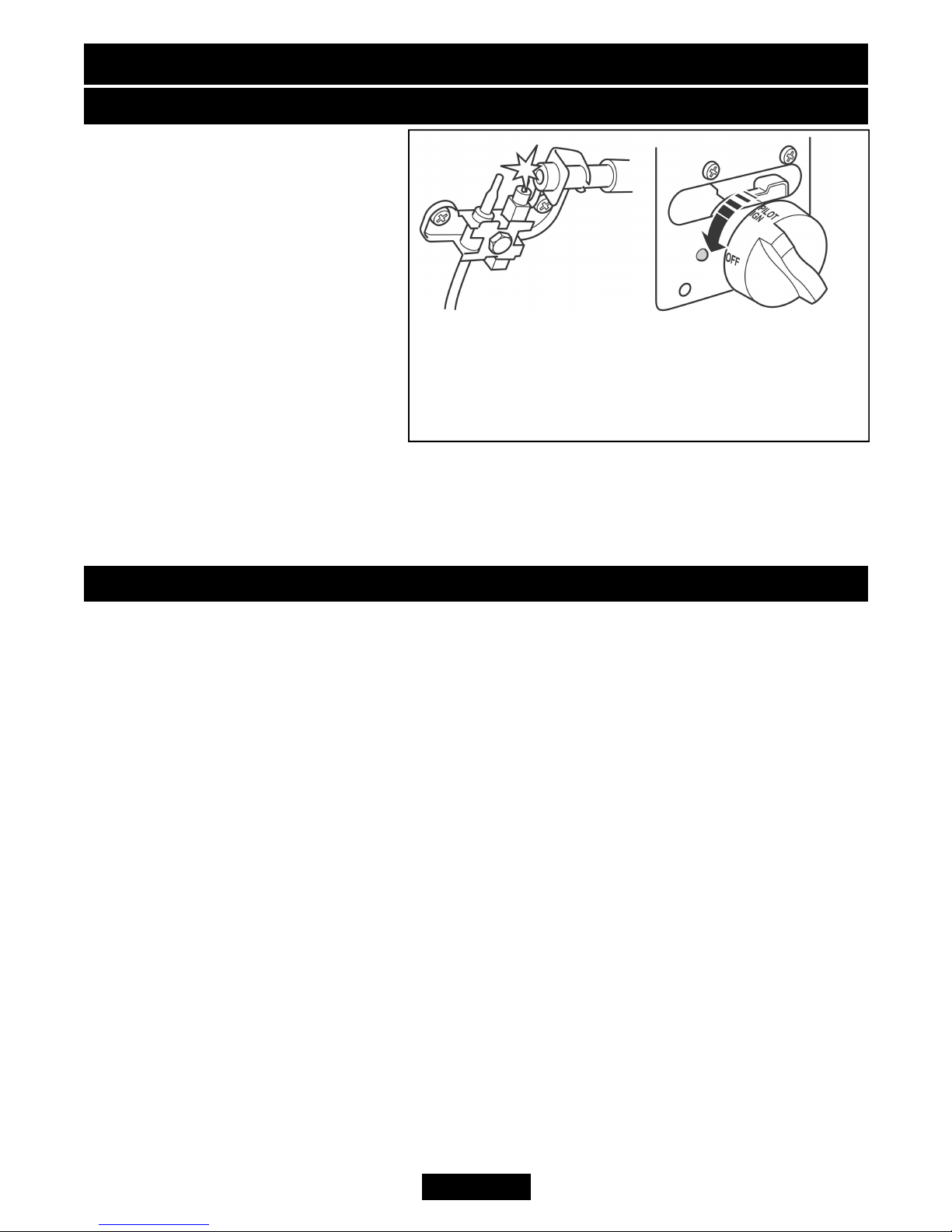

7. IGNITION CHECK
Before attempting to install, it is
worth checking that the ignition
system performs satisfactorily.
Set the control knob to the off
position. Depress the control knob
and rotate it anticlockwise to the
pilot ignition position. A 'click' will
be heard as the integral piezo
operates. A spark should be seen
between the electrode and pilot tip.
If there is no spark check the
following: -
! Ensure that the electrode lead is connected to the terminal at the base of the
electrode.
! If the above is correct, check for damage to the electrode lead.
8. GAS SUPPLY CONNECTION
A nut and olive are provided for an 8mm pipe inlet connection to the ‘T’ connector at
the bottom front of the appliance. The ‘T’ connector can be rotated to allow a
connection from any rear-concealed connection. The ‘T’ connector includes a valve for
isolating the gas supply and a pressure test point.
The supply pipe must be rigid material. Flexible pipe must not be used.
Concealed supply pipe connection.
If a concealed connection from inside the fireplace is required then, before the
appliance is fitted into the fireplace
it will be necessary to extend the supply line so
that it will project through the hole in the back of the hotbox and run to the ‘T’
connector at the front. The pipe run from the supply line up to the rear opening in the
hotbox must be kept away from the area which will be taken by the hotbox when it is
installed. Note that the centre of the appliance inlet ‘T’ connector is 25mm above the
fireplace floor. The inlet ‘T’ connector should be fitted to the supply pipe at this stage.
Page 20
INSTALLER GUIDE
© Baxi Heating U.K. Limited 2007.
Figure 8. Ignition operation
(On ‘Landscape’ , ‘Visia’ and ‘Serenity’ models
the control knob and indicator button will be
spaced away from the support leg)
