Bayliner 275 User manual

Engine Serial Number: _____________________________________________
Hull Identification Number:__________________________________________
Hull Identification Number
•The Hull Identification Number (HIN) is
located on the starboard side of the transom.
•Record the HIN (and the engine serial
numbers) in the space provided above.
•Include the HIN with any correspondence
or orders.
© 2004 Bayliner Technical Publications. All rights reserved.
No part of this publication may be reproduced, stored in any retrieval system, or transmitted in any form by any means, electronic, mechanical, photocopying,
recording or otherwise, without prior written permission of Bayliner.
Printed in the United States of America.
General Notes
The material in this document is for information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this
document to assure its accuracy, Bayliner assumes no liability resulting from errors or omissions in this document, or from the use of information contained herein.
Due to our commitment to product improvement, Bayliner reserves the right to make changes in the product design, specifications, and equipment at any time
without notice or obligation. Illustrations and/or photos may show optional equipment.
AllBaylinerproductsmeetor exceed USCG (United StatesCoastGuard) and/or NMMA (NationalMarine Manufacturer’sAssociation) construction standards.
Manufactured with 1,1,1 Trichloroethane, a substance which harms public health and environment during the manufacturing process by destroying ozone in the
upper atmosphere.
Proprietary Rights
This document discloses subject matter in which Bayliner has proprietary rights. The information and design disclosed herein were originated by and are the prop-
ertyof Bayliner.Neitherreceipt nor possession thereof confers or transfersany right to reproduce, copy,alteror disclosethedocument or any part thereof, any
information contained therein, or to construct boats or any item from it, except by written permission from or written agreement with Bayliner. This document is to
be returned upon request to Bayliner.

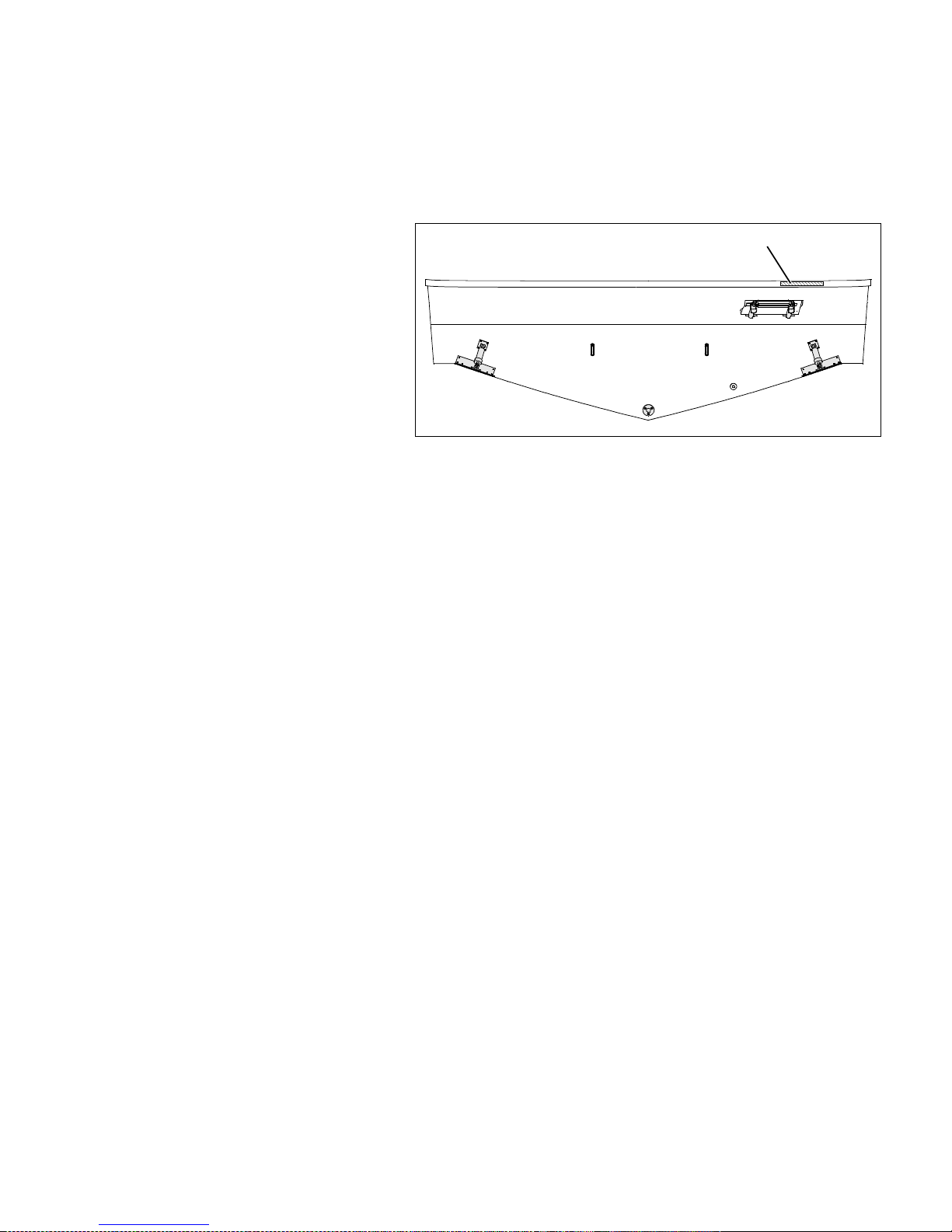

HIN LOCATION
TRANSOM

CONTENTS
1 Chapter 1: Welcome Aboard!
1 Dimensions and Tank Capacities
1 Layout View
1 Dealer Service
2 Warranty Information
2 Boating Experience
2 Engine & Accessories Guidelines
3Propeller
3 Engine & Accessories Literature
3 Qualified Maintenance
4 Safety Standards
5 Special Care For Moored Boats
5 Sacrificial Anodes (Zincs)
6 Boat Lifting
7 Carbon Monoxide (CO)
7 Facts about CO
8 Where and How CO Can Accumulate
8 How to Protect Yourself and Others From CO
9 Trip Checklist
9 Monthly Checklist
9 Annual Checklist
9 Carbon Monoxide Alarm System
10 More Information
11 Chapter 2: Locations
11 Exterior Views
11 Hull Views
12 Deck Views
13 Helm
14 Component Locations
24 Chapter 3: Propulsion &
Related Systems
24 Engine
24 Bilge Blower System
25 Fuel System
26 Fuel Fill & Vent
26 Gas Engine Fuel Filters
27 Fuel/Water Separator Filter
(Diesel Engine Only)
27 Anti-siphon Valve (Gas Engine Only)
28 Fire Suppression System (If Equipped)
29 Chapter 4: Controls & Gauges
29 Steering
29 Shift/Throttle Control
29 Power Trim and Tilt
30 Trim Tabs
31 Gauges
31 Cleaning Gauges
31 Gauge Fogging
31 Radio Transmission Interference
31 Fuel Gauge
32 Chapter 5: Navigation &
Communication Equipment
32 Compass
32 Depth Finder
32 VHF Radio (If Equipped)

33 Chapter 6: Plumbing
33 Bilge Pumps
34 Bilge Pump Testing
35 Autofloat Switches
36 Seawater Systems
36 Seacocks
36 Seawater Strainers
37 Freshwater System
38 Freshwater System Winterization
39 Water Heating System (If Equipped)
39 Winterizing the Water Heater
40 Transom Shower (If Equipped)
40 Drain Systems
40 Deck Drains
40 Gray Water Drains
40 Shower Drain System
41 Marine Head with Holding Tank (If Equipped)
41 Using The Marine Head
41 Winterizing The Marine Head
41 Macerator (If Equipped)
42 Chapter 7: Deck Equipment
42 Cleats and Tow Eyes
42 Windlass (If Equipped)
43 Canvas
44 Canvas Care
45 Clear Vinyl Care
46 Chapter 8: Appliances &
Entertainment Systems
46 Alcohol/Electric Stove
47 Refrigerator
47 Audio Equipment
48 Chapter 9: Convertible Seats,
Beds, & Tables
48 Dinette
49 Chapter 10: Lights
49 Care and Maintenance
49 Interior & Exterior Lights
49 Navigation Lights
49 Spotlight (If Equipped)
50 Chapter 11: Heating & Air Conditioning
50 Air Conditioning System (If Equipped)
51 Chapter 12: Electrical System
52 12-Volt DC System
52 Batteries
52 Battery Switch
52 Fuses and Circuit Breakers
52 12-Volt Accessory Outlets
53 Alternator
53 Battery Charger
54 120-Volt AC System
55 Shore Power
56 Connecting To Shore Power
57 Electrical Routings
57 12-Volt Direct Current Electrical Harness
58 120-Volt Alternating Current
Electrical Harness
59 Battery Cable Routings
60 Bonding Harness
61 Deck Harness Routing System
62 Wiring Diagrams
62 Direct Current Electrical System
63 Single Shore Power (If Equipped)
64 Dual Shore Power (If Equipped)
65 Important Records
66 Float Plan

Hazard Boxes & Symbols
The hazard boxes and symbols shown below are used throughout this Supplement to call attention to potentially
dangerous situations which could lead to either personal injury or product damage. Read ALL warnings carefully
and follow all safety instructions.
DANGER!
!
This box alerts you to immediate hazards which WILL cause severe personal injury or death if
the warning is ignored.
This box alerts you to hazards or unsafe practices which COULD result in severe personal
injury or death if the warning is ignored.
WARNING!
!
This box alerts you to hazards or unsafe practices which COULD result in minor personal
injury or cause product or property damage if the warning is ignored.
CAUTION!
!
NOTICE
This box calls attention to installation, operation or maintenance information, which is
important to proper operation but is not hazard related.
EXPLOSION
HAZARD! NO OPEN FLAME! HOT HAZARD!
ROTATING
PROPELLER HAZARD!
FALLING
HAZARD!
ELECTRICAL
HAZARD!
CO POISONING
HAZARD!
FIRE
HAZARD!
RUN BILGE BLOWERS
FOR 4 MINUTES!

1
275 •Owner’s Manual Supplement
Chapter 1: Welcome Aboard!
•This Owner’s Manual Supplement provides information about your boat that is not covered in the Cruiser & Yacht
Owner’s Manual.
•Before using your boat, study this Owner’s Manual Supplement, the Cruiser & Yacht Owner’s Manual, and all
engine and accessory literature carefully.
•Keep this Owner’s Manual Supplement and the Cruiser & Yacht Owner’s Manual on your boat in a secure, yet
readily available place.
Dimensions and Tank Capacities
Layout View
Dealer Service
•Your dealer is your key to service.
•Ask your dealer to explain all systems before taking delivery of your boat.
•Contact your dealer if you have any problems with your new boat.
•If your dealer cannot help, call our customer service hotline: [phone] or send us a FAX: [phone].
•Buy replacement parts from any authorized Bayliner dealer.
Overall
Length Bridge Clearance Beam Draft (Hull) Draft (Maximum) FuelCapacity (gal.) Freshwater Capacity (gal.) Waste Holding Tank Capacity (gal.)
26' 7" 7' 3" 9' 5" 1' 9" 3' 2" 84 31 20
stove
stove

Chapter 1: Welcome Aboard! 275 •Owner’s Manual Supplement
2
Warranty Information
•Bayliner offers a Limited Warranty on each new Bayliner purchased through an authorized Bayliner dealer.
•A copy of the Limited Warranty was included in your owner’s packet.
•If you did not receive a copy of the Limited Warranty, please contact your Bayliner dealer or call 360-435-8957
for a copy.
Boating Experience
If this is your first boat or if you are changing to a type of boat you are not familiar with, for your own comfort and
safety, obtain handling and operating experience before assuming command of this boat.
Take one of the boating safety classes offered by the U.S. Power Squadrons or the U.S. Coast Guard Auxiliary.
For more course information, including dates and locations of upcoming classes, contact the organizations directly:
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
•In Canada, for the CPS courses call 1-888-CPS-BOAT.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
Outside the United States, your selling dealer, national sailing federation or local boat club can advise you of local
sea schools or competent instructors.
Engine & Accessories Guidelines
•Your boat’s engine and accessories were selected to provide optimum performance and service.
•Installing a different engine or other accessories may cause unwanted handling characteristics.
•Should you choose to install a different engine or to add accessories that will affect the boat’s running trim, have
an experienced marine technician perform a safety inspection and handling test before operating your boat again.
Certain modifications to your boat will result in cancellation of your warranty protection.
•Always check with your dealer before making any modifications to your boat.
CONTROL HAZARD!
A qualified operator must be in control of the boat at all times. DO NOT operate your boat
while under the influence of alcohol or drugs.
WARNING!
!
When storing your boat please refer to your engine’s operation and maintenance manuals.
NOTICE

275 •Owner’s Manual Supplement Chapter 1: Welcome Aboard!
3
Propeller
•Keep the propeller in good repair and at the correct pitch for your particular situation.
•A slightly bent or nicked propeller will adversely affect the performance of your boat.
Engine & Accessories Literature
•The engine and accessories installed on your boat come with their own operation and maintenance manuals.
•Read these manuals before using the engine and accessories.
•Unless noted otherwise, all engine and accessory literature referred to in this Supplement is included in your
owner’s packet.
Qualified Maintenance
•Failure to maintain your boat’s systems (listed in the warning above) as designed could violate the laws in your
jurisdiction and could expose you and other people to the danger of bodily injury or accidental death.
•Follow the instructions provided in the Cruiser & Yacht Owner’s Manual, this Supplement, the engine owner’s
manual and all accessory literature.
ENGINE DAMAGE HAZARD!
The factory standard propeller may not be the best for your particular boat and load
conditions. Refer to the engine manual for engine RPM ratings. The engine should reach,
but not exceed its full rated RPM when full-throttle is applied.
Immediately contact your local Bayliner dealer if:
•The engine cannot reach its full rated RPM when full-throttle is applied, or;
•The engine exceeds its full rated RPM when full-throttle is applied.
CAUTION
!
To maintain the integrity and safety of your boat, allow only qualified personnel to perform
maintenance on, or in any way modify the:
•Steering System
•Propulsion System
•Engine Control System
•Fuel System
•Environmental Control System
•Electrical System
•Navigational System.
WARNING!
!

Chapter 1: Welcome Aboard! 275 •Owner’s Manual Supplement
4
Safety Standards
•Your boat’s mechanical and electrical systems were designed to meet safety standards in effect at the time it
was built.
•Some of these standards were mandated by law, all of them were designed to insure your safety, and the safety of
other people, vessels and property.
In addition to this Supplement, please read the Cruiser & Yacht Owner’s Manual and all accessory instructions for
important safety standards and hazard information.
FALLING and ROTATING PROPELLER HAZARD!
•NEVER allow anyone to ride on parts of the boat not designed for
such use.
•Sitting on seat backs, lounging on the forward deck, bow riding,
gunwale riding or occupying the transom platform while underway is especially hazardous
and will cause personal injury or death.
DANGER!
!
ROTATING PROPELLER and CARBON MONOXIDE
POISONING HAZARD!
•NEVER allow anyone to occupy, or hang from, the
back deck or swim platform while the engine(s)
are running.
•Teak surfing, dragging, or water skiing within 20 feet
of a moving watercraft can be fatal.
DANGER!
!
DANGER
PERSONAL SAFETY HAZARD!
ALWAYS secure the anchor and other loose objects before getting underway. The anchor and
other items that are not properly secured can come loose when the boat is moving and cause
personal injury or death.
DANGER!
!

275 •Owner’s Manual Supplement Chapter 1: Welcome Aboard!
5
Special Care For Moored Boats
•Whether moored in saltwater or freshwater, your boat will collect marine growth on its hull bottom.
•This will detract from the boat’s beauty, greatly affect its performance and may damage the gelcoat.
•Periodically haul the boat out of the water and scrub the hull bottom with a bristle brush and a solution of soap
and water.
Sacrificial Anodes (Zincs)
Your boat is equipped with sacrificial anodes (zincs) to protect underwater metal parts from excessive deterioration.
Check the zincs regularly and replace them if they have deteriorated more than 70%.
There are many factors that affect the rate at which the zincs deteriorate, including:
•Water temperature.
•Salinity.
•Water pollution.
•Stray electrical current from the boat or dock may cause complete deterioration in just a few weeks.
•If there is rapid zinc deterioration, measure the electrolytic corrosion around your boat with a Corrosion
Test Meter.
•To help seal thehull bottom and reduce the possibility of gelcoat blistering on moored boats,
apply an epoxy barrier coating.
•The barrier coating should be covered with several coats of anti-fouling paint.
•Many states regulate the chemical content of bottom paints in order to meet environmental
standards. Check with your local dealer about recommended bottom paints, and about the
laws in effect in your area.
NOTICE
•Do not paint between the zinc and the metal surface it contacts and do not paint over
the zincs.
•If the zincs are not bonded correctly, they will not provide protection.
NOTICE

Chapter 1: Welcome Aboard! 275 •Owner’s Manual Supplement
6
Boat Lifting
•Always follow the lift equipment’s instructions and requirements.
•Water in the bilge can shift and change the balance of the load.
•If water is present in the bilge, pump or drain the water out of the bilge areas before lifting your boat.
•When lifting your boat, always position the lifting slings at the port and starboard lifting sling label positions as
shown in the illustration.
PERSONAL INJURY and /or PRODUCT OR PROPERTY DAMAGE HAZARD!
•Lifting slings may slip on the hull.
•Avoid serious injury or death by securing the lifting slings together before lifting.
WARNING!
!
PERSONAL INJURY and /or PRODUCT OR PROPERTY DAMAGE HAZARD!
•NEVER lift any boat using the cleats, or the bow and stern eyes.
WARNING!
!
PERSONAL INJURY and /or PRODUCT OR PROPERTY DAMAGE HAZARD!
•Water in the bilge can shift and change the balance of the load.
•If water is present in the bilge, pump or drain the water out of the bilge areas before lifting
your boat.
WARNING!
!
PRODUCT or PROPERTY DAMAGE HAZARD!
•When lifting any boat, always use a spreader bar. The spreader bar must be equal to the
width of the boat at each lifting point.
CAUTION
!
LIFTING SLING LABELS
(TYPICAL PORT & STARBOARD)
42.5"3.5"

275 •Owner’s Manual Supplement Chapter 1: Welcome Aboard!
7
Carbon Monoxide (CO)
Facts about CO
•CO poisoning causes a significant number of boating deaths each year.
•Called the 'silent killer', CO is an extremely toxic, colorless, odorless and tasteless gas.
•CO can harm or even kill you inside or outside your boat.
•CO can affect you whether you’re underway, moored, or anchored.
•CO symptoms are similar to seasickness or alcohol intoxication.
•CO can make you sick in seconds. In high enough concentrations, even a few breaths can be fatal.
•Breathing CO blocks the ability of your blood to carry oxygen.
•The effects are cumulative, even low levels of exposure can result in injury or death.
Factors That Increase the Effects of CO Poisoning
•Age
•Smokers or people exposed to high concentrations of cigarette smoke
•Consumption of alcohol
•Lung disorders
•Heart problems
•Pregnancy
•Carbon monoxide gas (CO) is colorless, odorless, tasteless, and
extremely dangerous.
•All engines, generators, and fuel burning appliances produce CO
as exhaust.
•Prolonged exposure to low concentrations or very quick exposure to high
concentrations will cause BRAIN DAMAGE or DEATH.
•Teak surfing, dragging, or water skiing within 20 feet of a moving
watercraft can be fatal.
DANGER!
!

Chapter 1: Welcome Aboard! 275 •Owner’s Manual Supplement
8
Where and How CO Can Accumulate
Stationary Conditions That Increase CO Accumulations Include:
To correct stationary situations A and/or B:
•Close all windows, portlights and hatches.
•If possible, move your boat away from source of CO.
Running Conditions That Increase CO Accumulations Include:
To correct running situations C and/or D:
•Trim bow down.
•Open windows and canvas.
•When possible, run boat so that prevailing winds help dissipate exhaust.
How to Protect Yourself and Others From CO
•Know where and how CO may accumulate in and around your boat (see above).
•Maintain fresh air circulation throughout the boat at all times.
•Know where your engine and generator exhaust outlets are located and keep everyone away from these areas.
•Never sit on, or hang onto, the back deck or swim platform while the engine(s) are running.
•Never enter the areas under swim platforms where exhaust outlets are located.
•Although CO can be present without the smell of exhaust fumes, if exhaust fumes are detected on the boat, take
immediate action to dissipate these fumes.
•Treat symptoms of seasickness as possible CO poisoning. Get the person into fresh air immediately. Seek medical
attention—unless you’re sure it’s not CO.
•Install and maintain CO alarms inside your boat. Do not ignore any alarm. Replace alarms as recommended by the
alarm manufacturer.
•Follow the checklists provided on the next page.
•Get a Vessel Safety Check.
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
•U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
A. Using engine, generator, or other fuel burn-
ing device when boat is moored in a con-
fined space.
B. Mooring too close to another boat that is
using its engine, generator, or other fuel
burning device.
C. Running boat with trim angle of bow too high. D. Running boat without through ventilation
(station wagon effect).

275 •Owner’s Manual Supplement Chapter 1: Welcome Aboard!
9
Trip Checklist
❏Make sure you know where the exhaust outlets are located on your boat.
❏Educate all passengers about the symptoms of CO poisoning and where CO may accumulate.
❏When docked, or rafted with another boat, be aware of exhaust emissions from the other boat.
❏Listen for any change in exhaust sound, which could indicate an exhaust component failure.
❏Test the operation of each CO alarm by pressing the test button.
Monthly Checklist
❏Make sure all exhaust clamps are in place and secure.
❏Look for exhaust leaking from exhaust system components. Signs include rust and/or black streaking, water
leaks, or corroded or cracked fittings.
❏Inspect rubber exhaust hoses for burned, cracked, or deteriorated sections. All rubber hoses should be pliable and
free of kinks.
Annual Checklist
Have a Qualified Marine Technician:
❏Replace exhaust hoses if cracking, charring, or deterioration is found.
❏Ensure that your engines and generators are properly tuned, and well maintained.
❏Inspect each water pump impeller and the water pump housing. Replace if worn. Make sure cooling systems are
in working condition.
❏Inspect all metallic exhaust components for cracking, rusting, leaking, or loosening. Make sure they check the
cylinder head gasket, exhaust manifold, water injection elbow, and the threaded adapter nipple between the
manifold and the elbow.
❏Clean, inspect, and confirm proper operation of the generator cooling water anti-siphon valve (if equipped).
Carbon Monoxide Alarm System
•Do not disconnect the alarm system.
•Read the manufacturer’s instructions for your CO alarm system. If you did not receive an instruction manual, call
[phone] and one will be mailed to you.
If your boat is not equipped with a carbon monoxide alarm, consider purchasing one from your dealer or marine
supply store.
•The stereo memory and CO monitor(s) place a small, but constant drain on the battery.
•If your boat will be unattended for an extended amount of time, plug into shore power with
the battery charger turned On.
NOTICE

Chapter 1: Welcome Aboard! 275 •Owner’s Manual Supplement
10
More Information
For more information about how you can prevent carbon monoxide poisoning on recreational boats and other ways to
boat more safely, contact:
For information on how to get a free VESSEL SAFETY CHECK, visit www.vesselsafetycheck.org or contact your
local U.S. Coast Guard Auxiliary or United States Power Squadrons®.
•U.S. Coast Guard Auxiliary: 1-800-368-5647 or on the Internet at: http://www.cgaux.org
U.S. Power Squadrons: 1-888-FOR-USPS (1-888-367-8777) or on the Internet at: http://www.usps.org
United States Coast Guard
Office of Boating Safety (G-OPB-3)
2100 Second Street SW
Washington, DC 20593
www.uscgboating.org
1-800-368-5647
National Marine Manufacturers
Association (NMMA)
200 East Randolph Drive
Suite 5100
Chicago, IL 60601-9301
www.nmma.org
312-946-6200
American Boat & Yacht Council, Inc.
(ABYC)
3069 Solomon’s Island Road
Edgewater, MD 21037-1416
www.abycinc.org
410-956-1050

11
275 •Owner’s Manual Supplement
Chapter 2: Locations

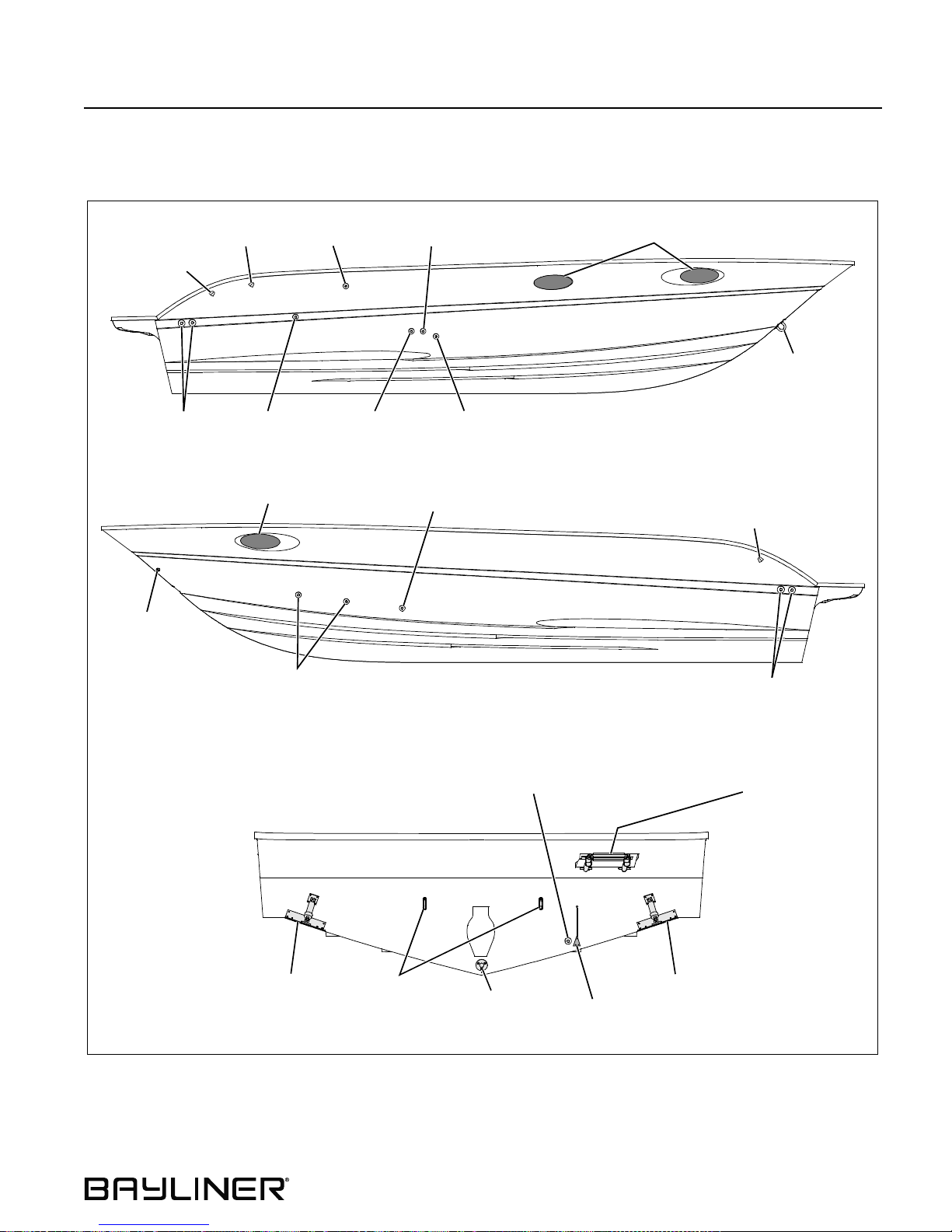

Exterior Views
Hull Views
STARBOARD HULLSIDE
PORT HULLSIDE
TRIM TAB
TRIM TAB
TRANSOM
STERN
EYES GARBOARD
DRAIN
BOARDING
LADDER
MACERATOR
DISCHARGE
(IF EQUIPPED)
SPEEDOMETER PICKUP
(IF EQUIPPED)
BOW EYE
PORTLIGHTS
HEAD SINK
DRAIN
SHOWER
PUMP DRAIN
FORWARD BILGE
PUMP DRAIN
AFT BILGE
PUMP DRAIN
COCKPIT
DRAINS
FUEL TANK VENT
HOLDING TANK
VENT STORAGE DRAIN
ANCHOR LOCKER
DRAIN
PORTLIGHT
AIR CONDITIONER
DRAINS
(IF EQUIPPED)
GALLEY SINK
DRAIN WATER TANK
VENT
COCKPIT DRAINS

Chapter 2: Locations 275 •Owner’s Manual Supplement
12

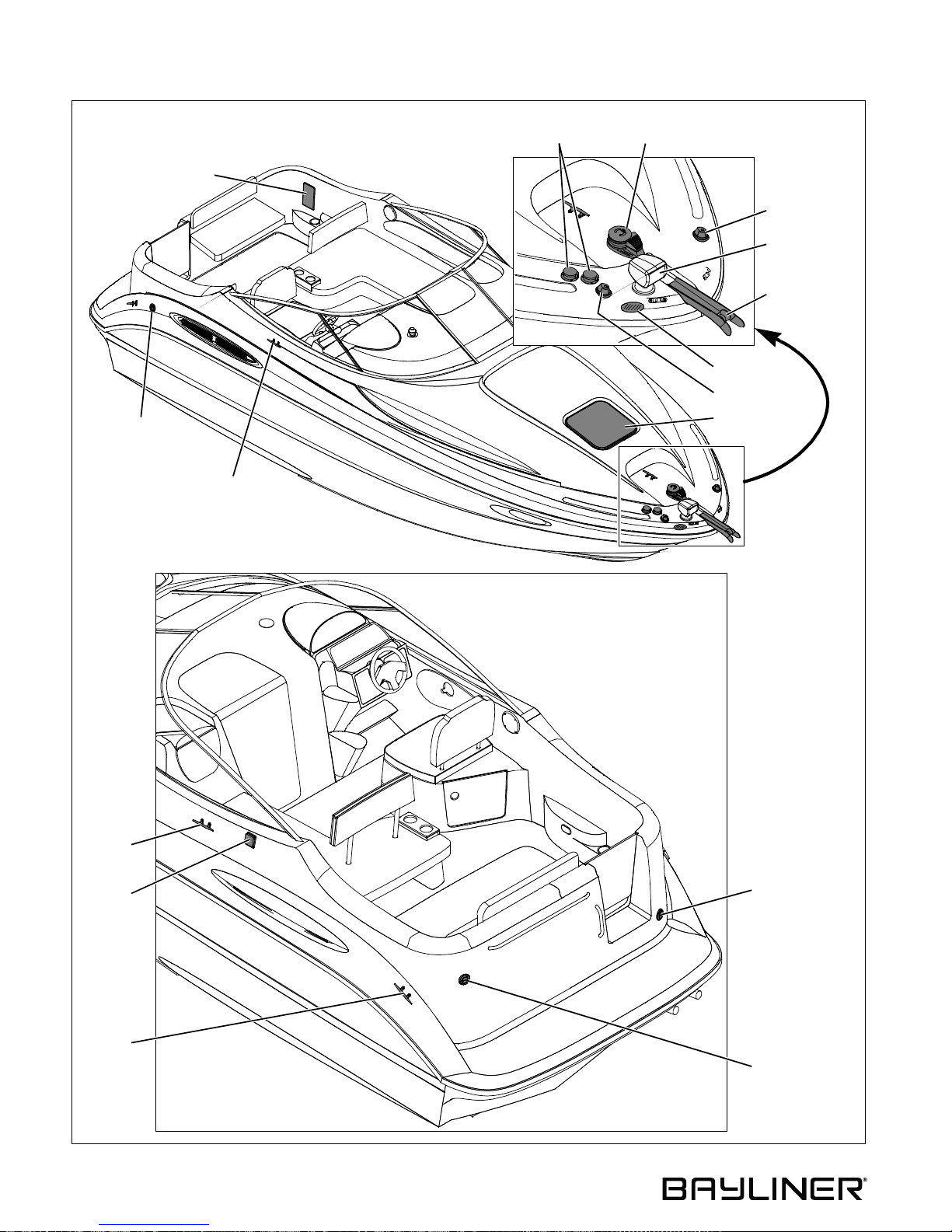

Deck Views
BOW HATCH
NAVIGATION
LIGHT
FUEL FILL
DECK FITTING
ANCHOR
WINDLASS
CLEAT
WINDLASS
CONTROLS
(IF EQUIPPED)
SPOTLIGHT
(IF EQUIPPED)
TRANSOM SHOWER
(IF EQUIPPED)
WATER FILL
DECK FITTING
CLEAT
SHORE
CLEAT
POWER
(TYPICAL)
NAVIGATION
LIGHT
HORN
ANCHOR
ROLLER
FORWARD & STARBOARD SIDE
AFT & PORT SIDE
WASTE PUMP-OUT
DECK FITTING
INLET

275 •Owner’s Manual Supplement Chapter 2: Locations
13

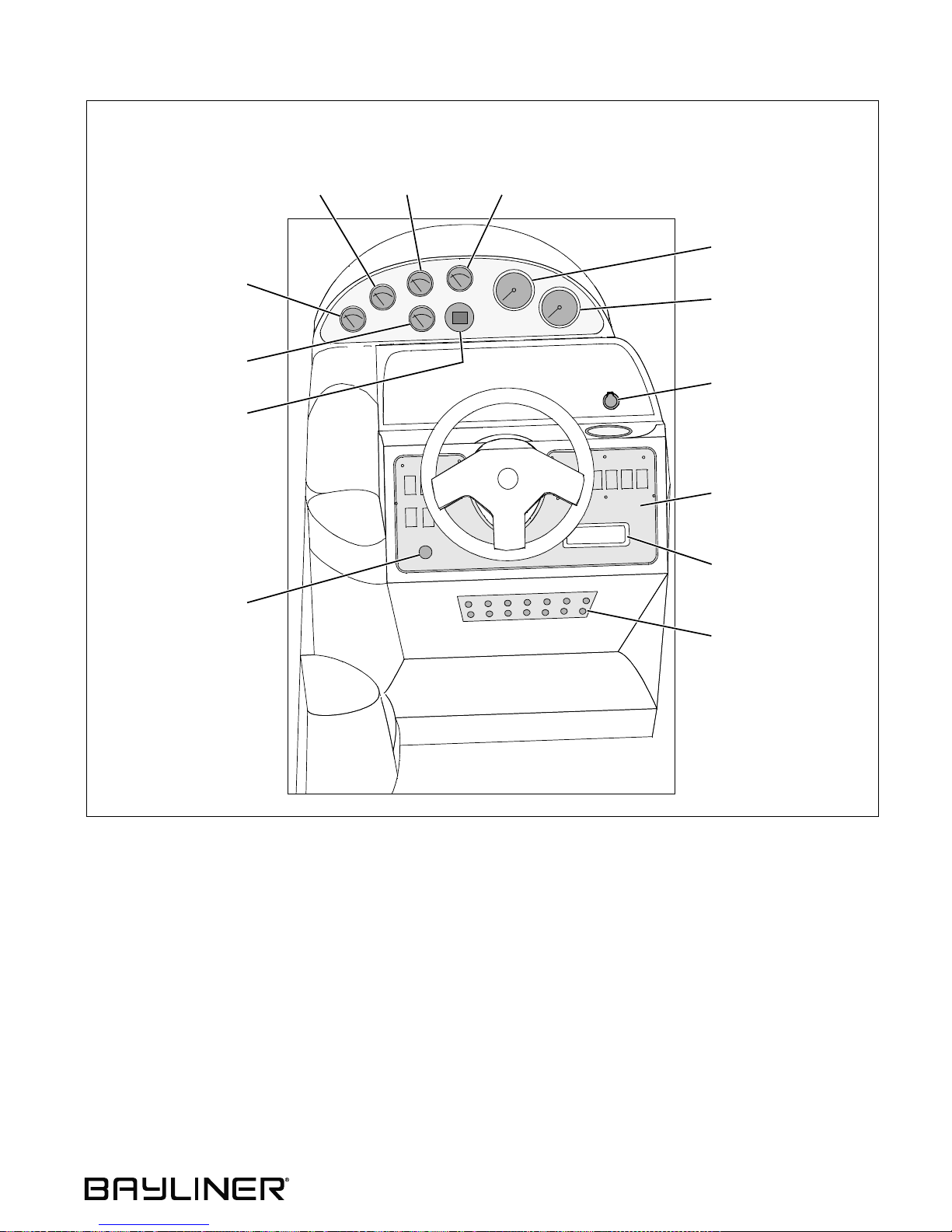

Helm
ACTUAL LAYOUT MAY VARY DEPENDING
ON ENGINE AND ACCESSORY OPTIONS
NOTE: TYPICAL HELM LAYOUT SHOWN
12-VOLT
RECEPTACLE
VHF RADIO
(IF EQUIPPED)
DC CIRCUIT
BREAKER PANEL
SPEEDOMETER
TACHOMETER
OIL PRESSURE
GAUGE
TEMPERATURE
GAUGE
VOLTMETER
FUEL GAUGE
TRIM & TILT GAUGE
DEPTH FINDER
IGNITION SWITCH
SWITCH PANEL

Chapter 2: Locations 275 •Owner’s Manual Supplement
14
Component Locations
12-Volt Accessory Outlets (2):
•One is located at the helm on the dash.
•The other is located forward of the AC panel in
the galley.
Air Conditioner Seawater Intake Seacock
(If Equipped):
•Located on the starboard side of the engine room.
12-VOLT
RECEPTACLE
12-VOLT RECEPTACLEAC PANEL
AIR CONDITIONER
SEAWATER INTAKE
SEACOCK
(IF EQUIPPED)
