SERVICE MANUAL
DL373D

CONTENTS
1. SAFETY PRECAUTIONS 1
2. PREVENTION OF ELECTRO STATIC DISCHARGE(ESD)TO ELECTROSTATICALLY
SENSITIVE(ES)DEVICES 1
4. PREVERTION OF STATIC ELECTRICITY DISCHARGE 4
5.ELECTRICALCONFIRMATION5
5.1VIDEOOUTPUT(LUMINANCESIGNAL)CONFIRMATION5
5.2VIDEOOUTPUT(CHROMINANCESIGNAL)CONFIRMATION6
6.MPEGBOARDCHECKWAVEFORM7
8.SCHEMATIC&PCBWIRINGDIAGRAM
17
9.SPAREPARTSLIST33
7.2MT13898
7.3U214HY29F80011
7.4HY57V641620HG
14
3. CONTROL BUTTON LOCATIONS AND EXPLANATIONS 2

1.1 GENERAL GUIDELINES
1. When servicing, observe the original lead dress. if a short circuit is found, replace all parts which have
been overheated or damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barrier, insulation papers
shields are properly installed.
3. After servicing, make the following leakage current checks to prevent the customer from being exposed
to shock hazards.
Some semiconductor(solid state)devices can be damaged easily by static electricity. Such components
commonly are called Electrostatically Sensitive(ES)Devices. Examples of typical ES devices are integrated
circuits and some field-effect transistors and semiconductor chip components. The following techniques
should be used to help reduce the incidence of component damage caused by electro static discharge(ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain
off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially
availabel discharging ESD wrist strap, which should be removed for potential shock reasons prior to
applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices,place the assembly on a conductive
surface such as alminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as anti-static
(ESD protected)can generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES
devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are
ready to install it.(Most replacement ES devices are packaged with leads electrically shorted together by
conductive foam, alminum foil or comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch
the protective material to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion
such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can
generate static electricity(ESD).
notice (1885x323x2 tiff)

3.Control Button Locations and Explanations
1
Color TFT LCD
2
Speakers
3
4
PREV button / LEFT direction arrow
5
OPEN/CLOSE button
6
SET button
9
IR sensor
7
Power indicator
8
10
MENU button
11
PAUSE button / DOWN
direction arrow
12
PLAY button / SELECT
button
13
NEXT button / RIGHT
direction arrow
14
STOP button / UP direction
arrow
17
15
Panel/Switch Button
16
Browser Button
Press once to switch to Direction
Buttons function
Press twice to switch to Virtual
Keyboard function
11
14
2
1
17
16
15
13
3
5
7
9
6
8
10
4
12
18
19
18
19
Vol-
Adjust the volume of headphone an
d speaker.
Vol+
Adjust the volume of headphone
and speaker.
PICTURE button
DVD/AUXIN button
POWER button

Control Button Locations and Explanations(Continued)

The laser diode in the traverse unit (optical pickup)may brake down due to static electricity of clothes or human
body.Use due caution to electrostatic breakdown when servicing and handling the laser diode.
4.1.Grounding for electrostatic breakdown prevention
Some devices such as the DVD player use the optical pickup(laser diode)and the optical pickup will be damaged
by static electricity in the working environment.Proceed servicing works under the working environment where
grounding works is completed.
4.1.1. Worktable grounding
1. Put a conductive material(sheet)or iron sheet on the area where the optical pickup is placed,and ground the
4.1.2.Human body grounding
1 Use the anti-static wrist strap to discharge the static electricity from your body.
4.1.3.Handling of optical pickup
1. To keep the good quality of the optical pickup maintenance parts during transportation and before
installation, the both ends of the laser diode are short-circuited.After replacing the parts with new ones,
remove the short circuit according to the correct procedure. (See this Technical Guide).
2. Do not use a tester to check the laser diode for the optical pickup .Failure to do so willdamage the laser
diode due to the power supply in the tester.
4.2. Handling precautions for Traverse Unit (Optical Pickup)
1. Do not give a considerable shock to the traverse unit(optical pickup)as it has an extremely high-precise
structure.
2. When replacing the optical pickup, install the flexible cable and cut is short land with a nipper. See the
optical pickup replacement procedure in this Technical Guide. Before replacing the traverse unit, remove
the short pin for preventingstatic electricity and install a new unit.Connect the connector as short times as
possible.
3. The flexible cable may be cut off if an excessive force is applied to it.Use caution when handling the cable.
4. The half-fixed resistor for laser power adjustment cannot be adjusted. Do not turn the resistor.
safety_3 (1577x409x2 tiff)
sheet.

5.1. Video Output (Luminance Signal) Confirmation
DO this confirmation after replacing a P.C.B.
Purpose:To maintain video signal output compatibility.
1.Connect the oscilloscope to the video output terminal and terminate at 75 ohms.
2.Confirm that luminance signal(Y+S)level is 1000mVp-p±30mV
Measurement point
Video output terminal
Color bar 75%
PLAY(Title 46):DVDT-S15
PLAY(Title 12):DVDT-S01
DVDT-S15
or
DVDT-S01
Mode Disc
Measuring equipment,tools
200mV/dir,10 sec/dir 1000mVp-p±30mV
Confirmation value

Do the confirmation after replacing P.C.B.
Purpose:To maintain video signal output compatibility.
1.Connect the oscilloscope to the video output terminal and terminate at 75 ohme.
2.Confirm that the chrominance signal(C)level is 621 mVp-p±30mV
Measurement point
Video output terminal
Color bar 75%
PLAY(Title 46):DVDT-S15
PLAY(Title 12):DVDT-S01
DVDT-S15
or
DVDT-S01
Mode Disc
Measuring equipment,tools Confirmation value
Screwdriver,Oscilloscope
200mV/dir,10 sec/dir 621mVp-p±30mV

MT1389
Progressive-Scan DVD Player SOC
Specifications are subject to change without notice
MediaTek MT1389 is a DVD player system-on-chip (SOC) which incorporates advanced features like high
quality TV encoder and state-of-art de-interlace processing. The MT1389 enables consumer electronics
manufacturers to build high quality, cost-effective DVD players, portable DVD players or any other home
entertainment audio/video devices.
Based on MediaTek’s world-leading DVD player SOC architecture, the MT1389 is the 3rd generation of the DVD
player SOC. It integrates the MediaTek 2nd generation front-end analog RF amplifier and the Servo/MPEG AV
decoder.
The progressive scan of the MT1389 utilized a proprietary advanced motion-adaptive de-interlace algorithm to
achieve the best movie/video playback. It can easily detect 3:2/2:2 pull down source and restore the correct
original pictures. It also supports a patent-pending edge-preserving algorithm to remove the saw-tooth effect.
MT1389L
DVD
PUH
Module
FLASH
DRAM
CVBS, Y/C,
Component
SDPIF
Front-panel
Remote
Audio DAC

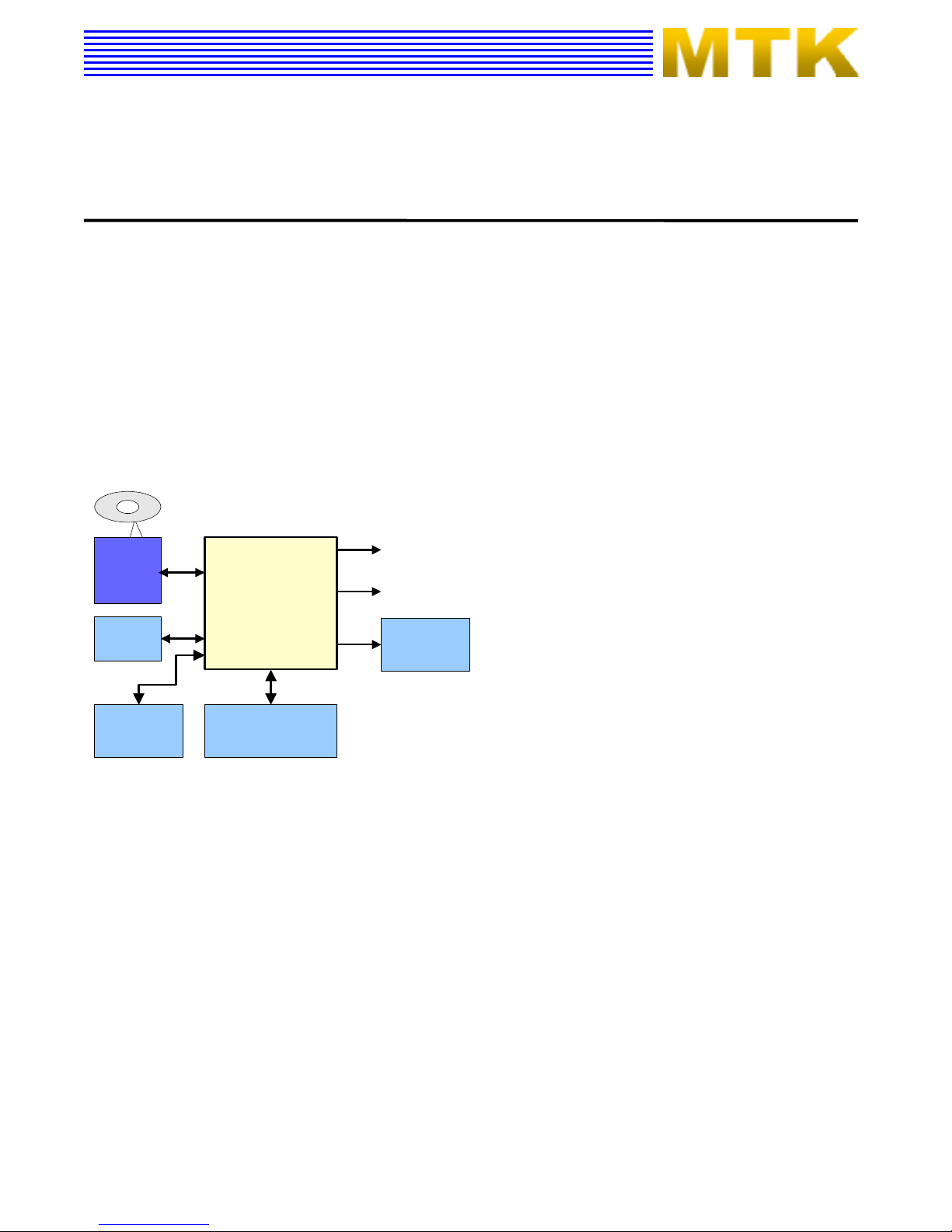

DVD Player System Diagram Using MT1389
Key Features
 RF/Servo/MPEG Integration
 High Performance Audio Processor
 Motion-Adaptive, Edge-Preserving De-interlace
 108MHz/12-bit, 6 CH TV Encoder
Applications
 Standard DVD Players
 Portable DVD Players

MT1389
PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE
General Feature List

Super Integration DVD player single chip
 High performance analog RF amplifier
 Servo controller and data channel processing
 MPEG-1/MPEG-2/JPEG video
 Dolby AC-3/DTS/DVD-Audio
 Unified memory architecture
 Versatile video scaling & quality
enhancement
 OSD & Sub-picture
 2-D graphic engine
 Built-in clock generator
 Built-in high quality TV encoder
 Built-in progressive video processor
 Audio effect post-processor
 Audio input port

High Performance Analog RF Amplifier
 Programmable fc
 Dual automatic laser power control
 Defect and blank detection
 RF level signal generator

Speed Performance on Servo/Channel Decoding
 DVD-ROM up to 4XS
 CD-ROM up to 24XS

Channel Data Processor
 Digital data slicer for small jitter capability
 Built-in high performance data PLL for
channel data demodulation
 EFM/EFM+ data demodulation
 Enhanced channel data frame sync protection
& DVD-ROM sector sync protection

Servo Control and Spindle Motor Control
 Programmable frequency error gain and
phase error gain of spindle PLL to control
spindle motor on CLV and CAV mode
 Built-in ADCs and DACs for digital servo
control
 Provide 2 general PWM
 Tray control can be PWM output or digital
output

Embedded Micro controller
 Built-in 8032 micro controller
 Built-in internal 373 and 8-bit programmable
lower address port
 1024-bytes on-chip RAM
 Up to 4M bytes FLASH-programming
interface
 Supports 5/3.3-Volt. FLASH interface
 Supports power-down mode
 Supports additional serial port

DVD-ROM/CD-ROM Decoding Logic
 High-speed ECC logic capable of correcting
one error per each P-codeword or
Q-codeword
 Automatic sector Mode and Form detection
 Automatic sector Header verification
 Decoder Error Notification Interrupt that
signals various decoder errors
 Provide error correction acceleration

Buffer Memory Controller
 Supports 16Mb/32Mb/64Mb/128Mb SDRAM
 Supports 16-bit SDRAM data bus
 Provide the self-refresh mode SDRAM
 Block-based sector addressing
 Support 3.3 Volt. DRAM Interface

Video Decode
 Decodes MPEG1 video and MPEG2 main level,
main profile video (720/480 and 720x576)
 Smooth digest view function with I, P and B
picture decoding
 Baseline, extended-sequential and
progressive JPEG image decoding
 Support CD-G titles

Video/OSD/SPU/HLI Processor
 Arbitrary ratio vertical/horizontal scaling of
video, from 0.25X to 256X
 65535/256/16/4/2-color bitmap format OSD,
 256/16 color RLC format OSD
 Automatic scrolling of OSD image
 Slide show transition as DVD-Audio
Specification

2-D Graphic Engine
 Support decode Text and Bitmap
 Support line, rectangle and gradient fill
 Support bitblt
 Chroma key copy operation
 Clip mask

MT1389
PRELIMINARY, SUBJECT TO CHANGE WITHOUT NOTICE MTK CONFIDENTIAL, NO DISCLOSURE

Audio Effect Processing
 Dolby Digital (AC-3)/EX decoding
 DTS/DTS-ES decoding
 MLP decoding for DVD-Audio
 MPEG-1 layer 1/layer 2 audio decoding
 MPEG-2 layer1/layer2 2-channel audio
 High Definition Compatible Digital (HDCD)
 Windows Media Audio (WMA)
 Advanced Audio Coding (AAC)
 Dolby ProLogic II
 Concurrent multi-channel and downmix out
 IEC 60958/61937 output
- PCM / bit stream / mute mode
- Custom IEC latency up to 2 frames
 Pink noise and white noise generator
 Karaoke functions
- Microphone echo
- Microphone tone control
- Vocal mute/vocal assistant
- Key shift up to +/- 8 keys
- Chorus/Flanger/Harmony/Reverb
 Channel equalizer
 3D surround processing include virtual
surround and speaker separation

TV Encoder
 Six 108MHz/12bit DACs
 Support NTSC, PAL-BDGHINM, PAL-60
 Support 525p, 625p progressive TV format
 Automatically turn off unconnected channels
 Support PC monitor (VGA)
 Support Macrovision 7.1 L1, Macrovision
525P and 625P
 CGMS-A/WSS
 Closed Caption

Progressive Output
 Automatic detect film or video source
 3:2 pull down source detection
 Advanced Motion adaptive de-interlace
 Edge Preserving
 Minimum external memory requirement

Audio Input
 Line-in/SPDIF-in for versatile audio
processing

Outline
 256-pin LQFP package
 3.3/1.8-Volt. Dual operating voltages

KEY FEATURES
n5 Volt Read, Program, and Erase
– Minimizes system-level power requirements
nHigh Performance
– Access times as fast as 55 ns
nLow Power Consumption
– 20 mA typical active read current in byte
mode, 28 mA typical in word mode
– 35 mA typical program/erase current
– 5 µA maximum CMOS standby current
nCompatible with JEDEC Standards
– Package, pinout and command-set
compatible with the single-supply Flash
device standard
– Provides superior inadvertent write
protection
nSector Erase Architecture
– Boot sector architecture with top and
bottom boot block options available
– One 16 Kbyte, two 8 Kbyte, one 32 Kbyte
and fifteen 64 Kbyte sectors in byte mode
– One 8 Kword, two 4 Kword, one 16 Kword
and fifteen 32 Kword sectors in word mode
– A command can erase any combination of
sectors
– Supports full chip erase
nErase Suspend/Resume
– Temporarily suspends a sector erase
operation to allow data to be read from, or
programmed into, any sector not being
erased
nSector Protection
– Any combination of sectors may be
locked to prevent program or erase
operations within those sectors
nTemporary Sector Unprotect
– Allows changes in locked sectors
(requires high voltage on RESET# pin)
nInternal Erase Algorithm
– Automatically erases a sector, any
combination of sectors, or the entire chip
nInternal Programming Algorithm
– Automatically programs and verifies data
at a specified address
nFast Program and Erase Times
– Byte programming time: 7 µs typical
– Sector erase time: 1.0 sec typical
– Chip erase time: 19 sec typical
nData# Polling and Toggle Status Bits
– Provide software confirmation of
completion of program or erase
operations
nReady/Busy# Output (RY/BY#)
– Provides hardware confirmation of
completion of program and erase
operations
nMinimum 100,000 Program/Erase Cycles
nSpace Efficient Packaging
– Available in industry-standard 44-pin
PSOP and 48-pin TSOP and reverse
TSOP packages
A[18:0]
19
CE#
OE#
RESET#
BYTE#
WE#
8
7
DQ[7:0]
DQ[14:8]
DQ[15]/A-1
RY/BY#

BLOCK DIAGRAM
STATE
CONTROL
WE#
CE#
OE#
BYTE#
COMMAND
REGISTER
DQ[15:0]
A[18:0], A-1
V
CC
DETECTOR TIMER
ERASE VOLTAGE
GENERATOR AND
SECTOR SWITCHES
PROGRAM
VOLTAGE
GENERATOR
ADDRESS LATCH
X-DECODER
Y-DECODER
8 Mb FLASH
MEMORY
ARRAY
Y-GATING
DATA LATCH
I/O BUFFERS
I/O CONTROL
RESET#
DQ[15:0]
A[18:0], A-1
RY/BY#

PIN CONFIGURATIONS
Standard
TSOP48
DQ7
DQ14
44
43 DQ6
DQ13
42
41 DQ5
DQ12
40
39 DQ4
V
CC
38
37 DQ11
DQ3
36
35 DQ10
DQ2
34
33 DQ9
DQ1
32
31 DQ8
DQ0
30
29
A16
BYTE#
48
47 V
SS
DQ15/A-1
46
45
OE#
V
SS
28
27 CE#
A0
26
25
A11
A10 5 6
A9
A8 7 8
NC
NC 9 10
WE#
RESET# 11 12
NC
NC 13 14
RY/BY#
A18 15 16
A17
A7 17 18
A6
A5 19 20
A15
A14 1 2
A13
A12 3 4
A4
A3 21 22
A2
A1 23 24
Reverse
TSOP48
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
48
47
46
45
28
27
26
25
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
21
22
23
24
A11
A10
A9
A8
NC
NC
WE#
RESET#
NC
NC
RY/BY#
A18
A17
A7
A6
A5
A15
A14
A13
A12
A4
A3
A2
A1
DQ7
DQ14
DQ6
DQ13
DQ5
DQ12
DQ4
V
CC
DQ11
DQ3
DQ10
DQ2
DQ9
DQ1
DQ8
DQ0
A16
BYTE#
V
SS
DQ15/A-1
OE#
V
SS
CE#
A0
A6
A5 5 6
A4
A3 7 8
A2
A1 9 10
A0
CE# 11 12
V
SS
OE# 13 14
DQ0
DQ8 15 16
DQ1
DQ9 17 18
DQ2
DQ10 19 20
DQ3
DQ11 21 22
RY/BY#
A18 1 2
A17
A7 3 4A10
A11
40
39 A12
A13
38
37 A14
A15
36
35 A16
BYTE#
34
33 V
SS
DQ15/A-1
32
31 DQ7
DQ14
30
29 DQ6
DQ13
28
27 DQ5
DQ12
26
25 DQ4
V
CC
24
23
RESET#
WE#
44
43 A8
A9
42
41
PSOP44

HY57V641620HG
4 Banks x 1M x 16Bit Synchronous DRAM
.
DESCRIPTION
The Hyundai HY57V641620HG is a 67,108,864-bit CMOS Synchronous DRAM, ideally suited for the main memory applications which
require large memory density and high bandwidth. HY57V641620HG is organized as 4banks of 1,048,576x16.
HY57V641620HG is offering fully synchronous operation referenced to a positive edge of the clock. All inputs and outputs are synchro-
nized with the rising edge of the clock input. The data paths are internally pipelined to achieve very high bandwidth. All input and output
voltage levels are compatible with LVTTL.
Programmable options include the length of pipeline (Read latency of 2 or 3), the number of consecutive read or write cycles initiated
by a single control command (Burst length of 1,2,4,8 or Full page), and the burst count sequence(sequential or interleave). A burst of
read or write cycles in progress can be terminated by a burst terminate command or can be interrupted and replaced by a new burst
read or write command on any cycle. (This pipelined design is not restricted by a `2N` rule.)
FEATURES
•Single 3.3±0.3V power supply Note)
•All device pins are compatible with LVTTL interface
•JEDEC standard 400mil 54pin TSOP-II with 0.8mm
of pin pitch
•All inputs and outputs referenced to positive edge of
system clock
•Data mask function by UDQM or LDQM
•Internal four banks operation
•Auto refresh and self refresh
•4096 refresh cycles / 64ms
•Programmable Burst Length and Burst Type
- 1, 2, 4, 8 or Full page for Sequential Burst
- 1, 2, 4 or 8 for Interleave Burst
•Programmable CAS Latency ; 2, 3 Clocks

HY57V641620HG
PIN CONFIGURATION
PIN DESCRIPTION
PIN PIN NAME DESCRIPTION
CLK Clock The system clock input. All other inputs are registered to the SDRAM on the
rising edge of CLK
CKE Clock Enable Controls internal clock signal and when deactivated, the SDRAM will be one
of the states among power down, suspend or self refresh
CS Chip Select Enables or disables all inputs except CLK, CKE and DQM
BA0,BA1 Bank Address
Selects bank to be activated during RAS activity
Selects bank to be read/written during CAS activity
A0 ~ A11 Address Row Address : RA0 ~ RA11, Column Address : CA0 ~ CA7
Auto-precharge flag : A10
RAS, CAS, WE Row Address Strobe, Column Address Strobe,
Write Enable
RAS, CAS and WE define the operation
Refer function truth table for details
LDQM, UDQM Data Input/Output Mask Controls output buffers in read mode and masks input data in write mode
DQ0 ~ DQ15 Data Input/Output Multiplexed data input / output pin
VDD/VSS Power Supply/Ground Power supply for internal circuits and input buffers
VDDQ/VSSQ Data Output Power/Ground Power supply for output buffers
NC No Connection No connection
VSS
DQ15
VSSQ
DQ14
DQ13
VDDQ
DQ12
DQ11
VSSQ
DQ10
DQ9
VDDQ
DQ8
VSS
NC
UDQM
CLK
CKE
NC
A11
A9
A8
A7
A6
A5
A4
VSS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
VDD
DQ0
VDDQ
DQ1
DQ2
VSSQ
DQ3
DQ4
VDDQ
DQ5
DQ6
VSSQ
DQ7
VDD
LDQM
/WE
/CAS
/RAS
/CS
BA0
BA1
A10/AP
A0
A1
A2
A3
VDD
54pin TSOP II
400mil x 875mil
0.8mm pin pitch

HY57V641620HG

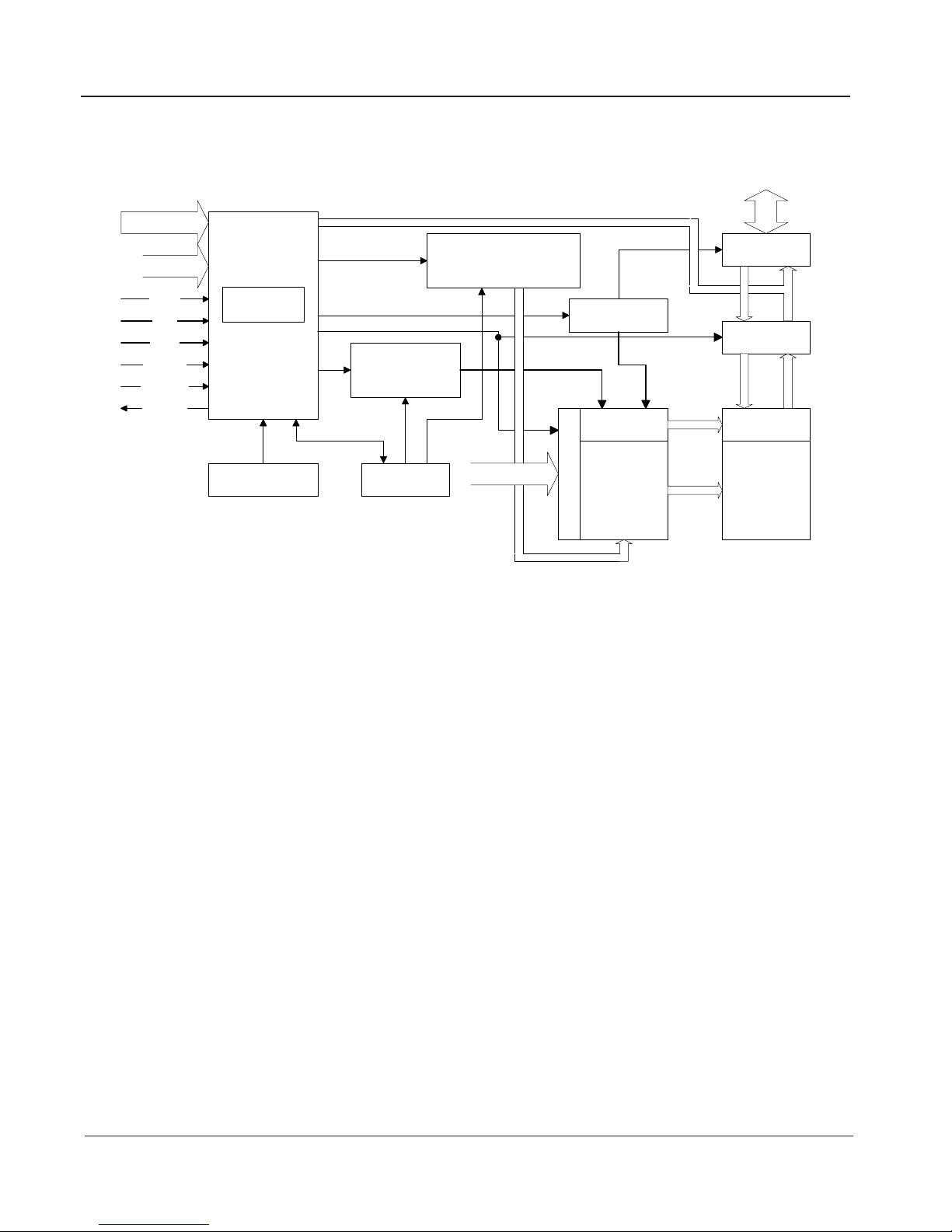

FUNCTIONAL BLOCK DIAGRAM
1Mbit x 4banks x 16 I/O Synchronous DRAM
X decoders
State Machine
A0
A1
A11
BA0
BA1
Address buffers
Address
Registers
Mode Registers
Row
Pre
Decoders
Column
Pre
Decoders
Column Add
Counter
Row active
Column
Active
Burst
Counter
Data Out Control
CAS Latency
Internal Row
counter
DQ0
DQ1
DQ14
DQ15
refresh
Self refresh logic
& timer
Pipe Line Control
I/O Buffer & Logic
Bank Select
Sense AMP & I/O Gate
CLK
CKE
CS
RAS
CAS
WE
UDQM
LDQM
1Mx16 Bank 3
X decoders
X decoders
Memory
Cell
Array
Y decoders
X decoders
1Mx16 Bank 0
1Mx16 Bank 1
1Mx16 Bank 2

123
123 456
A B C D
A B C D E
F
C104 104
L104 FBSMT L102 FBSMT L105 FBSMT L106 FBSMT
C105
104 TC102
100uF/16V
AVCC
V104 2SB1132-S V105 2SB1132-S
R111 4.7R R112 4.7R
TC103 47uF/16V
TC104
47uF/16V
LDO-AV33
LDO-AV33
LDO2
LDO1
D
L103 FBSMT
R103 10K
R101 100K R104
10K R102 100K
V102
2SK3018-S
B
C E
V103
2SK3018-S
B
CE
V101 3904-S
IOA
AVCC
AV33
L119
FBSMT
R107 10K
R124 20K C124
151
C112 104
C110
104 C111
104
TC105 47uF/16V
R118 1R R119
1R
R123 20K
R117 1R
R116 1R
C123 151
VINFC 1
CF1 2 CF2 3
VINSL+ 4
VINSL- 5
VOSL 6
VINFFC 7
GND 30
VCC 8
PVCC1 9
PGND 10
VOSL- 11
VO2+ 12
VOFC- 13
VOFC+ 14
VOTK+
15
VOTK-
16
VOLD+
17
VOLD-
18
PGND
19
VNFTK
20
PVCC2
21
GND 29
PREGND
22
VINLD
23
CTK2
24
CTK1
25
VINTK
26
BIAS
27
STBY
28
U104 BA5954
TRSO V1P4 STBY
SL+ SL- FMSO
MO_VCC
MO_VCC
SP- SP+
V1P4 FOSO
L120 10uH 2012
VCC
R106 10K
T-
T-
T+
T+ F+
F+ F-
F-
L101FCM2012-120T2A
L110 FBSMT L108 FBSMT L109 10uH 2012
POWER VSDA
C120 47pF
2 3 4 1
XS102 XS04
R113 10R
C121 47pF(DNS)
R115 4.7K(DNS)
GND
2
VCC
3
OUT
1
U102 HS0038B
C122 103
R114 100R
IR
TC106 47uF/10V
CPU5V
TC107 100uF/16V VD101 1N4148
R144 10K
URST#
DV33
IR遥控 输入电路
DC/NC
1
RST_/NC
2
WP/RST_
3
VSS
4
VCC 8
RST/WP 7
SCL 6
SDA 5
U101
AT24C16X4050
SDA SCL
C103 104
DV33
R109 680R R110
680R
C118
102(DNS) C119
102(DNS)
EEPROM
CPU5V
C107
104 C108
104
L107
10uH 2012
AVCC VCC
C106 104
DV33
R105 10K
DV33
翻盖检测关闭开关
TRIN
2 3 4 1 5 6 8 9 10 7 11 12 14 15 16 13 17 18 20 21 22 19 23 24 26 27 28 25 29 30
XS101 XS30
AVCC SUBD SUBA A IOA
DVDRFIP SPLRCK CCC
B SUBB SUBC
L116 FBSMT L113 FBSMT L112 FBSMT L111 FBSMT
VR-CD VR-DVD MDI1 LD-CD LD-DVD AVCC
L114 FBSMT L115 FBSMT
L117 10uH 2012
L118 10uH 2012
HSOP28/SMD
A3
2
A2
4
A1
7
RNF
28
H1+
9
H1-
10
H2+
11
H2-
12
H3+
13
H3-
14
VH
15
FG 24
PS 23
EC 22
ECR 21
GND 8
CNF 17
VCC 25 VM1 27
FR 20 SB 18
BR 16
VM2 26
G1 29
G2
30
U103
BA6849/6869
2 3 4 1 5 6 8 9 10 7 11 12 14 15 13
XS104 XS15
LIMIT H- HW- HW+ HV- HV+ HU- HU+ H+ U V W SL- SL+
R129 0R R128 0R R130 0R
R121 1R
R120 1R R122
1R
C114
104
C113
104
C115
104
W V UHU+
HU- HV+ HV- HW+ HW-
H-
R126 47R
MO_VCC
C116
104
C117
104
R131 R
TC109
47uF/16V
MO_VCC
TC108 47uF/16V
C109
104
FG STBY V1P4 DMSO
R127 47R
R132 150R
+9V DV33
POWEROFF_DET
电池电压检测电路
VCC
3
RST
2
GND
1
U106 IMP8009(DNS)
C125 104(DNS)
R141 100K(DNS)
R145 33R
R135 20K R136 470R R137 15K
R138 47K R139 47K
R133 4.7K
R134 4.7K
3 21
4 8
U105A
LM393
5 67
4 8
U105B
LM393
A5V
LOWBAT_DET
DET 6.0V AND LOWBAT WARNING
DET 5.7V AND SYSTEM OFF
R140 0R
DQS0
TC101
22uF/16V
C126 104
V1P4
R142 33R R143 33R
2 1
XS103 XS02
V20
1 2
C101 27pF
C102 104

123
123 456
A B C D
E
F
A B C D E
F
DVDA
2
CEQP 250
DVDB
3
DVDC
4
DVDD
5
AGND
1
OSP 252
OSN 253
DVDRFIP
6
DVDRFIN
7
MA
8
MB
9
MC
10
MD
11
SA
12
SB
13
SC
14
SD
15
CDFON
16
CDFOP
17
TNI
18
TPI
19
MDI1
20
MDI2
21
LDO2
22
LDO1
23
AVDD3 256
V2REFO
28 SGND 27
VREFO
30 V20 29
TEO
32 FEO 31
USB_VSS
43
RFLVL/RFON
26 CSO/RFOP 25
TEZISLV
33
OP_OUT
34
OP_INN
35
OP_INP
36
FOO
42 TRO 41
USBM
45
TROPENPWM
39
PWMOUT1/V_ADIN9
40
USB_VDD3
46
FMO
38 DMO 37
HIGHA0
59
HIGHA1
75 HIGHA2
74
HIGHA3
72 HIGHA4
71 HIGHA5
70 HIGHA6
69 HIGHA7
68
DVDD18
52
AD7
91
DVSS
62
APLLCAP
63
AD5
87 AD4
86
APLLVSS
64
APLLVDD3
65
AD3
84 AD2
83 AD1
82 AD0
81
DVDD3
73
IOA0
93
IOA2
53
IOA3
54
IOA4
55
IOA5
56
DVDD3
80
IOA6
57
IOA7
58
A16
67
A17
92
DVSS
85
IOA18
60
IOA19
61
IOA20
76
IOA1
78
ALE
90
IOOE
79
IOWR
66
IOCS
77
DVSS
94
UWR
95
URD
96
DVDD18
97
UP1_2
98
UP1_3
99
UP1_4
100
UP1_5
101
UP1_6
102
UP1_7
103
UP3_0
104
UP3_1
105
DVSS
116
UP3_4
106
UP3_5
107
RFVDD3 244
RFRPDC 245
DVDD3
108
ICE
109
PRST
110
IR
111
INT0
112
DVDD18
122
DQM0
113
DQS0
114
RD7
115
RD6
117
RD5
118
RD4
120 DVSS
119
RD3
121
RD2
123
RD1
124
RD0
125
RD15
126
RD14
128 DVDD3
127
RD13 129
YUV0/CIN 192
FS 191
VREF 190
DACVDDC 189
RD16 188 RD17 187 RD18 186 RD19 185 RD20 184 RD21 183
DVDD3 182
RD22 181 RD23 180
DQM2 179 DQM3 178
RD24 177 RD25 176
DVSS 175
RD26 174
DVDD18 173
RD27 172 RD28 171 RD29 170 RD30 169
DVDD3 167
RD31/ASDATA5 168
RA4 166 RA5 165 RA6 164
DVSS 163
RA7 162
DVSS 161
RA8 160 RA9 159
RA11 158
RCLK 156
CKE 157
DVDD3 155 RCLKB 154
RVREF/V_ADIN3 153
DVDD18 152
RA3 151 RA2 150
DVSS 148
RA1 149 RA0 147
RA10 146
BA1 145
DVSS 144
BA0 143
DVDD3 141
RCS 142 RAS 140 CAS 139
RWE 138
DQM1 137
DQS1 136 DVSS 134
RD8 135 RD9 133
RD10 132 RD11 131 DR12 130
RFGND 249
IREF 255
SVDD3
24
RFGC 254
JITFN 231
JITFO 230
LPFOP 238
LPFIN 237
CRTPLP 248
HRFZC 247
LPFIP 236
CEQN 251
RFRPAC 246
S_VREFN 243
ADCVSS 241
S_VREFP 242
S_VCM 240
ADCVDD3 239
PLLVDD3 234
LPFON 235
PLLVSS 232
MC_DATA 224
SPDIF 225
ASDATA4 222
DVDD18 221
ASDATA3 220
ASDATA2 219
RFGND18 226
ASDATA1 218
ASDATA0 217
ACLK 215
ALRCK 213
ABCK 214
DVDD3 204
SPBCK/ASDATA5 211
SPLRCK 210
SPDATA 209
SPMCLK 208
DVDD3 212
HSYNC/V_ADIN2 207
YUV7/ASDATA5 206
VSYNC/V_ADIN1 205
YUV6/R 203
YUV5/B 202
DACVSSA 201
YUV4/G 200
DACVDDA 199
YUV3/CVBS 198
DACVSSB 197
YUV2/C 196
DACVDDB 195
YUV1/Y 194
DACVSSC 193
IDACEXLP 233
USBP
44
FG/V_ADIN8
47
TDI/V_ADIN4
48
TMS/V_ADIN5
49
TCK/V_ADIN6
50
TDO/V_ADIN7
51
AD6
88
IOA21/V_ADIN0
89
DVSS 216
DVSS 223
XTALO 228
XTALI 229
RFVDD18 227
U201
MT1389
C249 1uF C252 1uF C253 1uF C254 1uF C255 1uF
B A D CCC
D A BCCC SUBA
SUBB SUBC SUBD TN1 TP1
MDI1 MDI2
LDO2 LDO1
RFOP RFON
V2P8 V20 V1P4 FEO
TEO TEZISLV OPO OP- OP+DMO
FMO TROPEN
C217 104
TRO FOO
L211 FBSMT
89V33
USBVDD FG TROUT
TRIN
STBY
TRCLOSE A2 A3 A4 A5 A6 A7 A8 A18 A19
C227
104
C276 1500pF
R231 0R
R243 18K R244 20K
C275 330pF
C274 330pF
C273 103
C272
153pF
R202 15K R240 10K
DMSO FMSO
TRSO FOSO V1P4
L205 33R
89V33
PWR#
A16
A15
A14
A13
A12
A9
A20
PCE#
A1
PRD#
AD0
AD1
AD2
AD3
AD4
AD5
AD6
A21
AD7
A17
A0
VSDA
SCL
SDA
RXD
TXD
URST#
IR
DQM0
DQS0
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0
DQ15
DQ14
R215
1K(DNS)
DQ9 DQ10 DQ11 DQ12 DQ13 DQ8 RAS# CAS# WE# DQM1 LIMIT CS# BA0 BA1
DMA10
DMA0 DMA1 DMA2 DMA3
DCLKB
DMA9 DMA11 DCKE DCLK DMA8 DMA7 DMA6 DMA5 DMA4
STROBE#
R236 560R
C269 104
Y0
FS
89V33 V18
L202 FBSMT
DACVDD3 DV33
C212
104 TC205
10uF/16V
Y1
DV33A
Y2
Y3
Y4
Y5
Y6
R214 1K
ALRCK
ABCK
ACLK
R209 (DNS) R208 (DNS) R207 (DNS)
R206 (DNS)
ASDAT0
MUTE_DAC
R205 (DNS)
RST#
ASPDIF
XI
XO
JITFO
JITFNC261 0.47uF
TC204 10uF/16V
PLLVDD3
C260
0.047uF
C259
0.047uF
C251 1uF
ADCVDD3
VREFN
VREFP
C258
20pF
C257 1000pF
R203
100K
C211
104
C256
0.033uF
C210
104
C209
104
C208
104
R201 15K
C206 104
V1P4
AVDD3 C262 1000pF
R216 750K
JITFNJITFO
L201 FBSMT
L206 4.7R L207 FBSMT L208 FBSMT L209 FBSMT
C201 104 C202 104 C203 104 C204 104
RFV33 ADCVDD3
C205 104 C207
104
C250 1uF
VREFN VREFP
C236 104
C240 104 C242
104
C229 104 C231
104 C232
104 C233
104 C235
104
C234 104
C244 104
C238 104 C241
104 C243
104 C245
104
V18
L213 FBSMT
L212 FBSMT AVDD3
DV33
L210
FBSMT
C215
104
V18 RFV18
R2300R
R242 10K
DV33
C216
104
TC206
220uF/16V
L203 FBSMT
DV33
PWR# PCE# PRD#
DWR# DCE# DRD#
AMDAT
R229 0R(DNS)
R228 0R(DNS)
C237 104 C239
104
TC210
22uF/16V
C246 104
TC201 47uF/16V
RFV33
C213
104
C214
104
2 3 4 1
XS201 XS04(DNS)
RXD TXD GND
C247 104
DV33
A6
19
A17
17
RY/BY
15
A18
16
NC
14
A12
4
NC
10
NC
13
A9
7
A15
1
A14
2
A13
3
A11
5
A10
6
A8
8
A19
9
WE
11
RESET
12
A5
20
A4
21
A3
22
A7
18
DQ8 30 DQ9 32
DQ10 34
DQ2 33 DQ3 35
DQ15/A-1 45
DQ12 39 DQ11 36
DQ6 42
A16 48
BYTE 47
Vss 46
DQ7 44
DQ14 43 DQ13 41
DQ5 40 DQ4 38
Vcc 37
DQ0 29
OE 28
Vss 27
DQ1 31
A2
23
A1
24 CE 26
A0 25
U203 8/16/32M_FLASH(TSOP)
A15 A14 A13 A12 A11 A10 A9 A18 A7 A6 A5 A4 A3 A2 A16
GND A0 AD7 AD14 AD6 AD13 AD5 AD12 AD4 VD AD11 AD3 AD10 AD2 AD9 AD1 AD8 AD0 DRD# GND DCE# A1
A8
UPA[20..0]
UPD[15..0]
R250 4.7K(DNS)
R247 4.7K
R246 4.7K
R245 4.7K
VD A17
A19
AA20
AA21
R241 10K
R249 0R(DNS)
R248 0R(DNS) A21
A20
DWR#
TC202
47uF/16V
C222 104
C223
104
SD33
L204 FBSMT
DV33
A0
23
A1
24
A2
25
A3
26
A4
29
A5
30
A6
31
A7
32
A8
33
A9
34
A10/AP
22
A11
35
BA0/A13
20
BA1/A12
21
CLK
38
CKE
37
/CS
19
/RAS
18
/CAS
17
/WE
16
DQML
15
DQMH
39
NC
36
NC
40
VSS
54
VSS
41
VSS
28
DQ0 2 DQ1 4 DQ2 5 DQ3 7 DQ4 8 DQ5 10 DQ6 11 DQ7 13 DQ8 42 DQ9 44
DQ10 45 DQ11 47 DQ12 48 DQ13 50 DQ14 51 DQ15 53
VCC 1 VCC 14 VCC 27
VCCQ 3 VCCQ 9 VCCQ 43 VCCQ 49
VSSQ 6 VSSQ 12 VSSQ 46 VSSQ 52
U202 SDRAM 64M
DMA0# DMA1# DMA2# DMA3# DMA4# DMA5# DMA6# DMA7# DMA8# DMA9# DMA10# MA11 #BA0 #BA1
SDCLK SDCKE
DCS# DRAS#
DCAS# DWE#
DQM1
DQ0 DQ1 DQ2 DQ4 DQ5 DQ6 DQ7 DQ8 DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ3
SD33 SD33
R223 33R R224
33R
DMA11
BA1
C224 104
R219 33R R218 33RDCLK
DCKE
C225
104
C221
104
C220
104
C219
104
C248 104 TC203
47uF/16V
L214 FBSMT
VD DV33
L215 FBSMT(DNS)
VCC
X201 27MHz
R204 100K
C263
33pF C264
33pF
XI
R226 0R
XO
R227 0R
CLOCK#
R210 (DNS) R211 (DNS) R212 (DNS)
89V33
V18
V18
V18
RFV18
RFSVDD3
RFVDD3
PLLVDD3
DV33
DVDRFIP
C268 15P
C267 15P
C266
15P
C265
15P
C218
104
USBP USBM
R251 4.7K
DATA#
CS## AIN-DET
SD_CLK SD_CMD SD_D0
MS_BS
MS_SDIO
MS_CLK VOL-DATA
C226 104 TC207
T47uF/16V
C228 104 TC208
T47uF/16V C230
104 TC209
T47uF/16V
2
1
3
VD201
MMBD4148CA
SD_CDN SD_WP
NFC
R252 0R ASTB
1 2 3 4
8 7 6 5
RN201
33R
1 2 3 4
8 7 6 5
RN202 0R
POWEROFF_DET LOWBAT_DET
SPLRCK
C277
104
R253 4.7K
1 2 3 4
8 7 6 5
RN203
33R(DNS)
CLOCKCLOCK#
CS## CS DATA# DATA STROBE# STROBE
RFSVDD3
V2P8
V1P4 V20
RFVDD3
1 2
R254
33R
L216 FBSMT
DV33A
A11
A10
1 2 3 4
8 7 6 5
RN204 33R
1 2 3 4
8 7 6 5
RN205 33R
DMA0 DMA1 DMA2 DMA3
DMA0# DMA1# DMA2# DMA3#
DMA6 DMA7 DMA8 DMA9
DMA6# DMA7# DMA8# DMA9#
R255 0R(DNS) R256 0R(DNS)
DMA5# DMA4#
DMA5 DMA4
R257 0R(DNS)
DMA10# DMA10
DQM0
BA0
R258 0R(DNS) R261 0R
R262 0R
ASTB#
MS_INS R259
0R
R260 0R
NFC# ASTB#
VOL-CLOCK
NFC#
CS# RAS# CAS# WE#
R213 0R(DNS)
