Beale Street Audio IWLCR4 Series User manual

Beale Street Audio
IWLCR4-MB, IWLCR4-BB
Dual 4” LCR 2-Way In-Wall Speakers
Installation Guide

2
Introduction
Congratulations and thank you for purchasing Beale Street In-Wall LCR
speakers with Sonic Vortex®.
IWLCR4 Series speakers fit between the studs of a standard stud bay in
either a horizontal or vertical orientation. This allows installing the IWLCR4s
in all three front channel positions without having to cut studs or box
framing. This allows a tight fit around flat panel TVs for great audio imaging
that complements todays Ultra High Definition video displays.
While IWLCR4s can also be used for surround and back channels, don’t
forget Beale Street Audio also manufactures a complete line of in-ceiling
speakers that will complement the IWCR4s with Sonic Vortex at all speaker
positions if prefered for placement of surround channels.
Sonic Vortex incorporates a compact Integrated Transmission Line Ported
Enclosure. Most in-wall speakers do not utilize a back box, even fewer
have an enclosure, and only a Sonic Vortex speaker has an Integrated
Transmission Line Ported Enclosure. Without something behind the speaker
driver the music not only plays into the room, but also bleeds into adjoining
rooms such as the attic or an occupied room. The bleed negatively affects
performance, and sound consistency.
Sonic Vortex changes all that with its Transmission Line Ported Enclosure
that directs all of the sound from the speaker driver into the room it is
intend to be in, so you get to enjoy your speakers without disturbing the
rest of the house. Great bass response, stereo image, and big sound that
you can’t get with any other in-ceiling speaker.
Beale Street Audio IWLCR4 speakers install with ease using the ‘dog’
mounting system and magnetic bezelless grilles for fast, clean installations.
Please follow the instructions in this manual to assure proper installation
and to achieve the full performance and satisfaction you would expect from
Beale Street Audio.

3
Speaker Placement
Even though the Beale Street Audio IWLCR4s have a shallow mounting
depth of less than 4” when installing in wall/in ceiling speakers, (or in
wall/in ceiling anything for that matter) it is always a good idea to find out
what is in the wall/ceiling before cutting holes. Be aware of the location
of plumbing, electrical and structural elements that may affect speaker
placement.
Stereo
It is also a good idea to locate stereo speakers so they are centered to
the main listening position in which the user/s will normally be located.
Whenever possible, try to position the left and right speakers at the same
distance from each other as they are from the main listening position.
Subwoofer
Subwoofers are omni-directional so placement of in wall/in ceiling subs is
somewhat less critical, but placement can be affected (good and bad) by
corners and walls, so try to find a location that will be somewhat unaffected
by placement.
Front
Left
Front
Right
Video Display
Beale In-Ceiling
or LCR
Beale
In-Ceiling Sub
Surround
Left
Surround
Right
Main
Listening
Position
Optional
Surround
Right
Optional
Surround
Left
30° 30°
30° 30°
20° 20°
A
B C
A=B=C
Beale In-Ceiling
or LCR
Beale In-Ceiling
or LCR
Beale In-Ceiling
or LCR
Beale In-Ceiling
or LCR
Beale In-Ceiling
or LCR
Beale In-Ceiling
or LCR

4
Angled
If using the ‘Angled In’ speakers, be sure to position them so the speakers
are facing into the room and directed toward the main listening position.
Surround
Locate surround speakers according to the recommendations in the
surround processor’s owner’s manual.
LCR
LCR speakers can be used in any position of a stereo or surround system
other than subwoofer. They are ideal for front center channel and are also
a great choice for front and rear left/right channels. Using the same LCR
in all positions of a surround system can also improve the user experience
by providing seamless performance from channel to channel by using the
same model in all positions.
When using LCRs, position the video display so the center of the display is
approximately eye level from a typical seated viewing position. Locate the
LCRs as shown in the image below, centered to the horizontal and vertical
axes (left/right and up/down alignment not horror movie weapons). Locate
the center channel as close to the bottom or top of the video display as
possible, to give dialogue and other ‘focused audio content’ that plays
through center channel speaker the impression of emanating directly from
the center of the video display.
Speaker Placement

5
Installation
SPEAKER WIRE
Pull one run of 16AWG stranded speaker wire from the amplifier location
to each speaker location. If in pre-wire, while the walls are open and it’s
easy, pull extra wire to any location that may be desirable to add speakers
at a later date. Leave extra length of wire on each end to allow making
connections and installing/removing speakers.
Use the chart below to determine the proper gauge of wire, based upon
wire length from the amp to the speakers. If using volume controls, include
the total length from the amp to the volume control and then to the
speakers.
SPEAKER WIRE GAUGE TABLE
SPEAKER WIRE LENGTH SPEAKER WIRE GAUGE
150’ (46m) 16AWG
400’ (122m) 14AWG

6
Installation
EXISTING CONSTRUCTION
Speaker wire must be run from the equipment or volume control location to
each potential speaker location.
• Choose a location for each speaker that is free of obstructions created
by joists, HVAC duct-work, electrical wire runs, plumbing or anything
else that might not allow for the depth of the speaker or create
interference or noise.
• Once you have determined your locations, use a pencil to mark the hole
to cut out for the speaker using the supplied template. Don’t forget to
allow for the size of the speaker bezel if you are installing the speaker
near a sidewall or other item that could become an obstacle.
• If you are unsure of potential obstacles, carefully cut your holes using an
angle to the inside of the cutout area. This will allow you to “plug” the
hole easily if needed. If the area is clear and is a good location for the
speaker, go ahead and cut the edges of the opening at 90 degrees to
accommodate the speaker diameter.
Cut hole at an angle in case patching is necessary
Save cutout for patching if necessary
Cut edge at 90°if area is clear of obstructions
IWLCR4 Cutout Template

7
Installation
DO NOT CONNECT AMPLIFIER
DIRECTLY TO SPEAKER!
CONNECT AMPLIFIER
TO - IN +
Connections
• Strip the insulation on each conductor approximately 1/2” (12.7mm) and
insert to the speaker terminals. Ensure that there are no stray strands
of wire protruding from the connectors that can cause shorts. Observe
proper polarity (+ to + and – to – for each speaker and at the amplifier)
and that surround channels are properly positioned and connected, if
used.
• WHEN CONNECTING AN AMPLIFIER TO AN IWLCR4, CONNECT THE
AMP TO THE APPROPRIATE IN -/+ TERMINALS AS SHOWN. DO NOT
CONNECT THE AMP DIRECTLY TO THE DRIVERS.

8
Installation

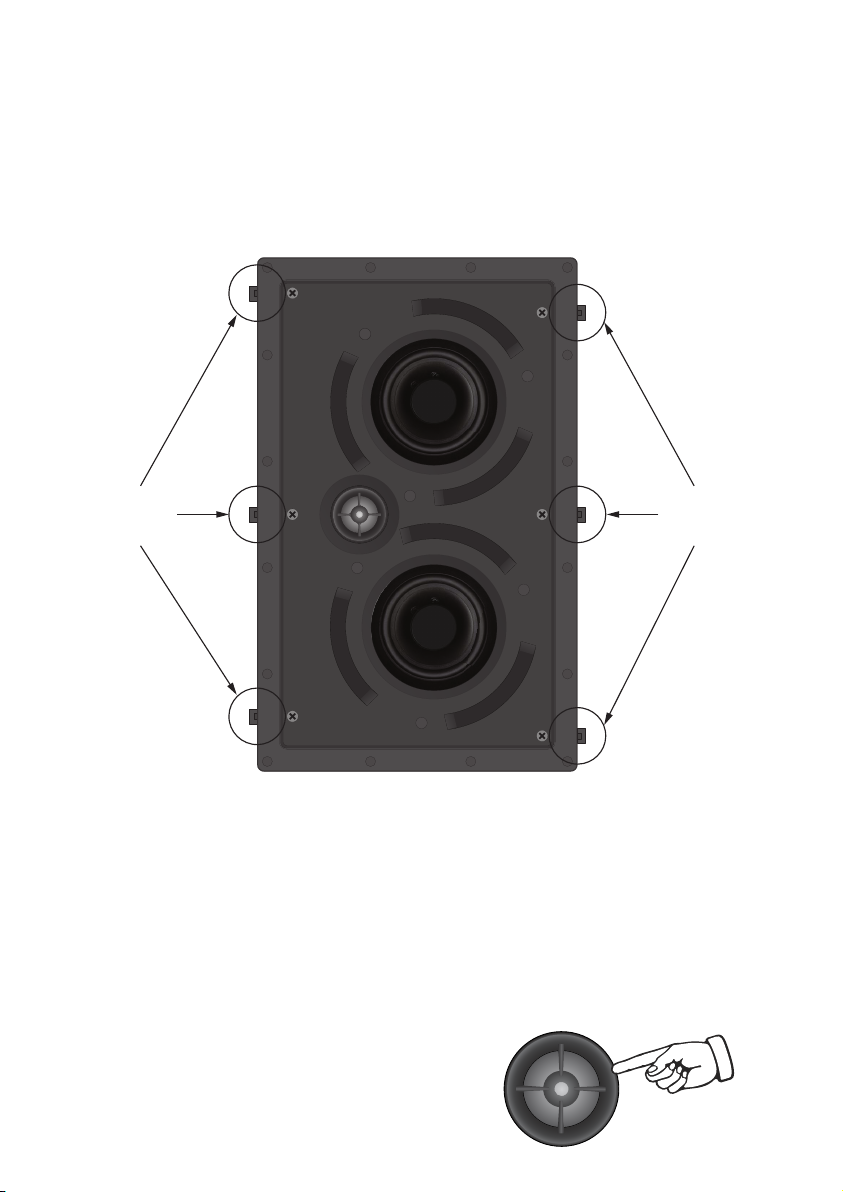

• With the ‘dogs’ flush to the side of the speaker, insert the speaker into
the cutout and tighten each of the six screws to swing the dogs out, and
clamp the speaker to the drywall. Do not overtighten.
Turn screws
to extend dogs
as shown
Turn screws
to extend dogs
as shown
Attach Grille
• Attach the grille to the speaker. The grille attaches with magnets so it
will just snap into place.
Installation
Pivoting Tweeter
• With the speaker installed, the tweeter can be pivoted to point directly
into the main listening area for tighter imaging of high frequency
content. Pointing the tweeter away from the main listening area will
create a more ambient sound.
Carefully press the edge of the
tweeter as shown to pivot the
tweeter to the desired position.

9
Installation
TROUBLESHOOTING
Beale Street Audio speakers are designed to function trouble-free. Most
problems that occur are due to simple issues. If you have trouble, please
check the list of simple fixes below.
SPEAKER TROUBLESHOOTING
PROBLEM SOLUTION
NO SOUND Verify that there is audio from the
source selected. Select another
source if necessary.
Ensure that the amplifier is turned
on and connected properly.
Check any connections at other
devices, such as a volume control.
Temporarily bypass the control if
needed.
Check wire connections at each
speaker not producing sound for
good contact to bare wire, not wire
insulation.
Painting
The grille may be painted, but go as light as possible to not to clog the fine
holes with paint. Only paint grilles when they have been removed from
the speakers and be sure to remove the cloth on the backside of the grille
before painting. If the cloth is not removed for painting, it will absorb the
paint and clog the grille, significantly affecting the sound...and not in a good
way. (We have taken great effort to eliminate any ‘color’ from the sound of
our speakers, so let’s try to keep it that way...OK?)

10
Specifications
4” IN WALL LCR
IWLCR4-BB” In Wall 4” LCR
• In Wall 2 Way
• Woofer: 4” Carbon Fiber
• 1” Titanium Tweeter
• Butyl Rubber Surround
• Sonic Vortex® Ported Transmission Line
• Magnetic Bezelless Grille; White - Paintable
• Nominal Impedance: 6Ω
• Installed Frequency Response: 86Hz to 25KHz
• Sensitivity: 92db
• Gold Spring Push Terminal Connector
• Depth: 3.9” 100mm
• Speaker Weight: 8.55lbs (3.87kg)
• Dimensions: 15.03” x 9.37” x 3.8” 382 x 238 x 97 mm
• Cutout: 13.98” x 8.33” 355 x 211.5mm
• Grille Size: 9.35” x 15.02” 237.5 x 381.5mm
• Frequency/Crossover Setting: Full range only
• Power Handling: 5-120W
IWLCR4-MB” In Wall 4” LCR
• In Wall 2 Way
• Woofer: 4” Green Ribbed Injected Polypropylene
• 1” Aluminum Dome Tweeter
• Butyl Rubber Surround
• Sonic Vortex® Ported Transmission Line
• Magnetic Bezelless Grille; White - Paintable
• Nominal Impedance: 6Ω
• Installed Frequency Response: 89Hz to 24KHz
• Sensitivity: 92db
• Gold Spring Push Terminal Connector
• Depth: 3.9” 100mm
• Speaker Weight: 8.55lbs (3.87kg)
• Dimensions: 15.03” x 9.37” x 3.8” 382 x 238 x 97 mm
• Cutout: 13.98” x 8.33” 355 x 211.5mm
• Grille Size: 9.35” x 15.02” 237.5 x 381.5mm
• Frequency/Crossover Setting: Full range only
• Power Handling: 5-120W

11
Limited Lifetime Warranty
For Beale Street Audio Branded In-Wall and In-Ceiling Speakers and
Subwoofers Purchased after May 1, 2017
Limited Warranty
Vanco warrants to you, the original consumer purchaser of speakers, that under proper
use and conditions, and subject to the other conditions provided below, your speakers
will be free from defective materials and workmanship for the life of the speakers. This
warranty only applies to passive speakers. Active products, such as amplifiers, electronics,
and powered subwoofers are not covered under the Lifetime Warranty. Please review the
individual manual provided with each specific product for the warranty information.
What Vanco Will Do
If a speaker proves defective in either material or workmanship, Vanco, at its option,
will either (a) repair and return it to you, or (b) replace and ship you a new speaker of the
same model, unless your model is no longer available, in which case Vanco may replace
your speaker with a current model of comparable value. In either case, Vanco will pay the
shipping charge of sending you (US only) a replacement speaker or your repaired speaker.
If a current model is substituted for your speaker, a modification to the mounting surface
may be required. Vanco is not responsible or liable to make, account for or pay the cost of
any such modification.
How To Make A Warranty Claim
The first step in making a claim under this limited warranty is to contact the Vanco
authorized distributor/dealer where you purchased the speaker, or if you are unable to
contact the distributor/dealer, you can contact Vanco directly, for instructions on what
action to take. If it is necessary to return the speaker, it must be shipped in appropriate
packaging to the destination given to you, prepaid with signature required for delivery,
and be accompanied by (1) a document providing your name, address, phone number and
email address, and a statement of why you believe the speaker is defective, and (2) a copy
of your original receipt or bill of sale that identifies you as the original purchaser of the
speaker and the authorized distributor/dealer you purchased it from (“Proof of Purchase”).
You have the risk of loss or damage in transit to the destination, and therefore you are
responsible for insuring the shipment for the full value of the speaker. Freight collect
shipments will be refused. If Vanco determines this limited warranty does not cover your
claim, your speaker will be returned to you freight collect.
Exclusions and Limitations
This limited warranty does not cover:
> Speaker failure caused by anything other than a defect in material and workmanship.
> Consequential damage to other components, equipment or premises regardless of the
reason.
> The cost of removing and reinstalling your speaker.
> The cost of returning your speaker to Vanco.
> Any claims if you are unable to provide Proof of Purchase from a Vanco authorized
distributor/dealer.
Warranty continued next page

BSALCR4IG100719 Rev 1
A NEW BRAND FROM
Vanco International, LLC
506 Kingsland Drive
Batavia, IL 60510
Phone: 800.626.6445 Fax: 630.879.9189
www.getbeale.com
©2019
The Vanco logo, Sonic Vortex logo, and Beale Street Audio Inc. logo are registered trademarks of
Vanco International, LLC.
Vanco, Sonic Vortex, Beale Street Audio, Get Reale. Get Beale., the Vortex logo, and the Beale Street
Audio logo are trademarks of Vanco International, LLC.
Limited Lifetime Warranty (cont)
For Beale Street Audio Branded In-Wall and In-Ceiling Speakers and
Subwoofers Purchased after May 1, 2017
This Limited Warranty Is Null And Void If Your Speaker:
> Was used in an application or environment other than that for which it was intended
> Misused, abused, improperly installed or removed
> Damaged by any accident, disaster or other cause not related to defects in materials
and workmanship.
> You sell or otherwise transfer your speaker to any other person.
> Was modified or repaired by anyone other than Vanco, or its serial number is altered,
defaced or removed.
REPAIR OR REPLACEMENT OF YOUR SPEAKER UNDER THIS WARRANTY IS YOUR
EXCLUSIVE REMEDY. IN NO EVENT WILL VANCO BE LIABLE FOR ANY AMOUNT GREATER
THAN THE ACTUAL PURCHASE PRICE PAID BY YOU FOR THE SPEAKER. VANCO SHALL
NOT BE LIABLE FOR ANY FOR SPECIAL, INCIDENTAL, CONSEQUENTIAL, OR INDIRECT
DAMAGES HOWSOEVER CAUSED. THIS LIMITED WARRANTY REPRESENTS THE ENTIRE
WARRANTY AGREEMENT BETWEEN YOU AND VANCO REGARDING YOUR SPEAKERS
AND IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU
MAY ALSO HAVE OTHER RIGHTS THAT VARY, FROM STATE TO STATE. SOME STATES LIMIT
WHAT WARRANTIES MAY BE EXCLUDED AS WELL AS HOW LONG AN IMPLIED WARRANTY
LASTS, SO THESE LIMITATIONS MAY NOT APPLY TO YOU.
This manual suits for next models
2
Table of contents
Other Beale Street Audio Speakers manuals

Beale Street Audio
Beale Street Audio Xpress BXCW401 User manual

Beale Street Audio
Beale Street Audio IC6-B User manual

Beale Street Audio
Beale Street Audio IC6-B User manual

Beale Street Audio
Beale Street Audio IC6-BSC User manual

Beale Street Audio
Beale Street Audio ICW4-MB User manual

Beale Street Audio
Beale Street Audio IW5-BSC User manual

Beale Street Audio
Beale Street Audio P4-MB User manual

Beale Street Audio
Beale Street Audio WP6V-BSC User manual

Beale Street Audio
Beale Street Audio TIC651 User manual
