BEC 9900VA User manual

April 2020
Version release: v1.2
User Manual
BEC 9900VA
Active Ethernet Fiber
802.11ac Gateway with VoIP
802.11ac Gateway with VoIP

Copyright Notice
Copyright@ 2020 BEC Technologies Inc. All rights reserved.
BEC Technologies reserves the right to change and make improvement to this manual at any time
without prior notice.
No part of this document may be reproduced, copied, transmitted in any form or by any means without
prior written permission from BEC Technologies, Inc.
Support Contact Information
Contact Support: http://bectechnologies.net/support/.
Telephone: [phone]

TABLE OF CONTENTS
COPYRIGHT NOTICE ....................................... 1
SUPPORT CONTACT INFORMATION ............. 1
CHAPTER 1: INTRODUCTION ......................... 1
INTRODUCTION TO YOUR BEC DEVICE.........................................................1
FEATURES &SPECIFICATIONS ....................................................................3
HARDWARE SPECIFICATIONS.....................................................................6
CHAPTER 2: PRODUCT OVERVIEW ............... 7
IMPORTANT NOTE FOR USING THIS DEVICE..................................................7
PACKAGE CONTENTS...............................................................................7
DEVICE DESCRIPTION ..............................................................................8

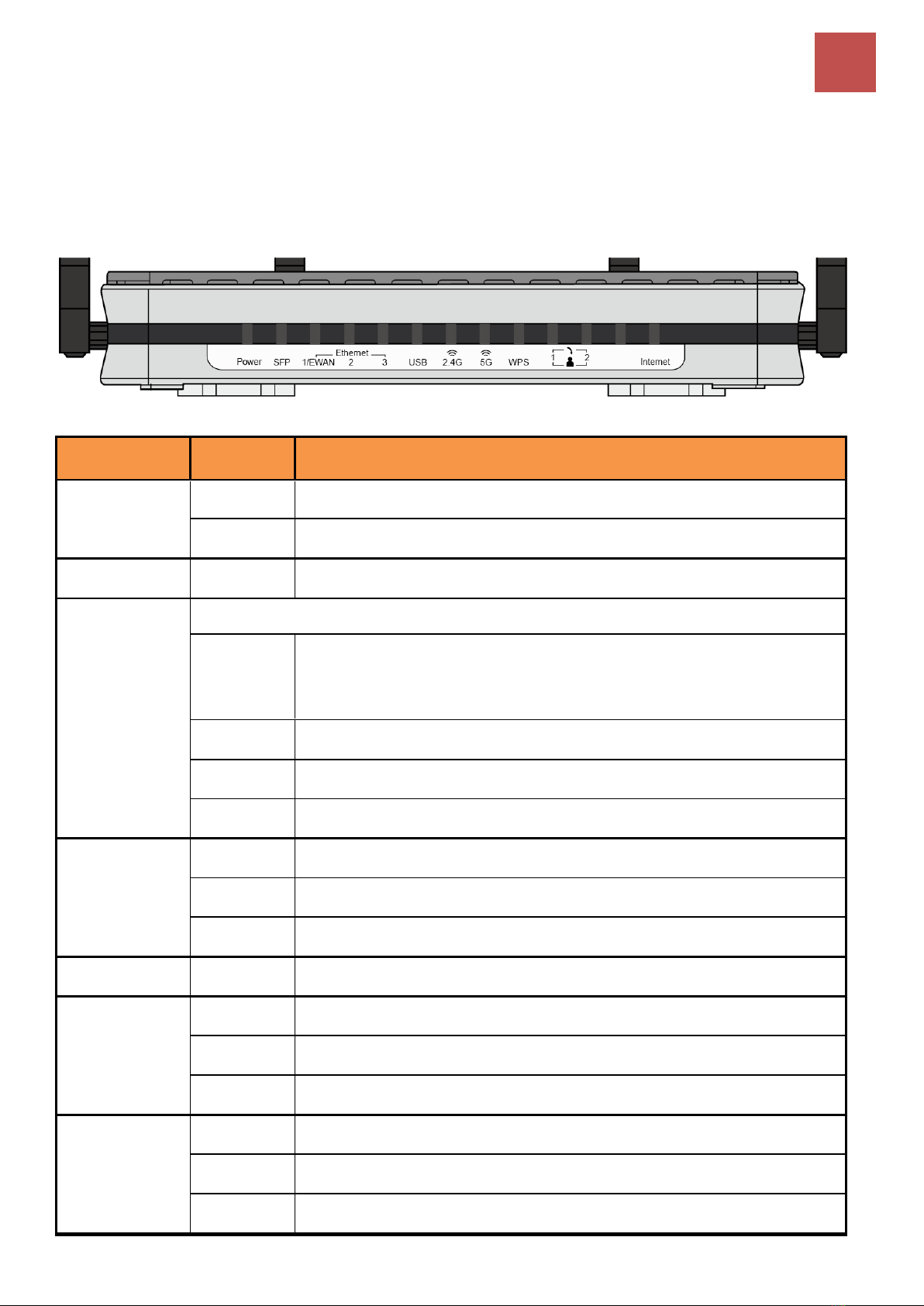

Front Panel LEDs................................................................................................8
Rear Panel Connectors ....................................................................................10
SYSTEM RECOVERY PROCEDURES............................................................. 11
CABLING ............................................................................................ 11
CHAPTER 3: BASIC INSTALLATION ............ 12
NETWORK CONFIGURATION –IPV4.......................................................... 13
Configuring PC in Windows 10 (IPv4) ..............................................................13

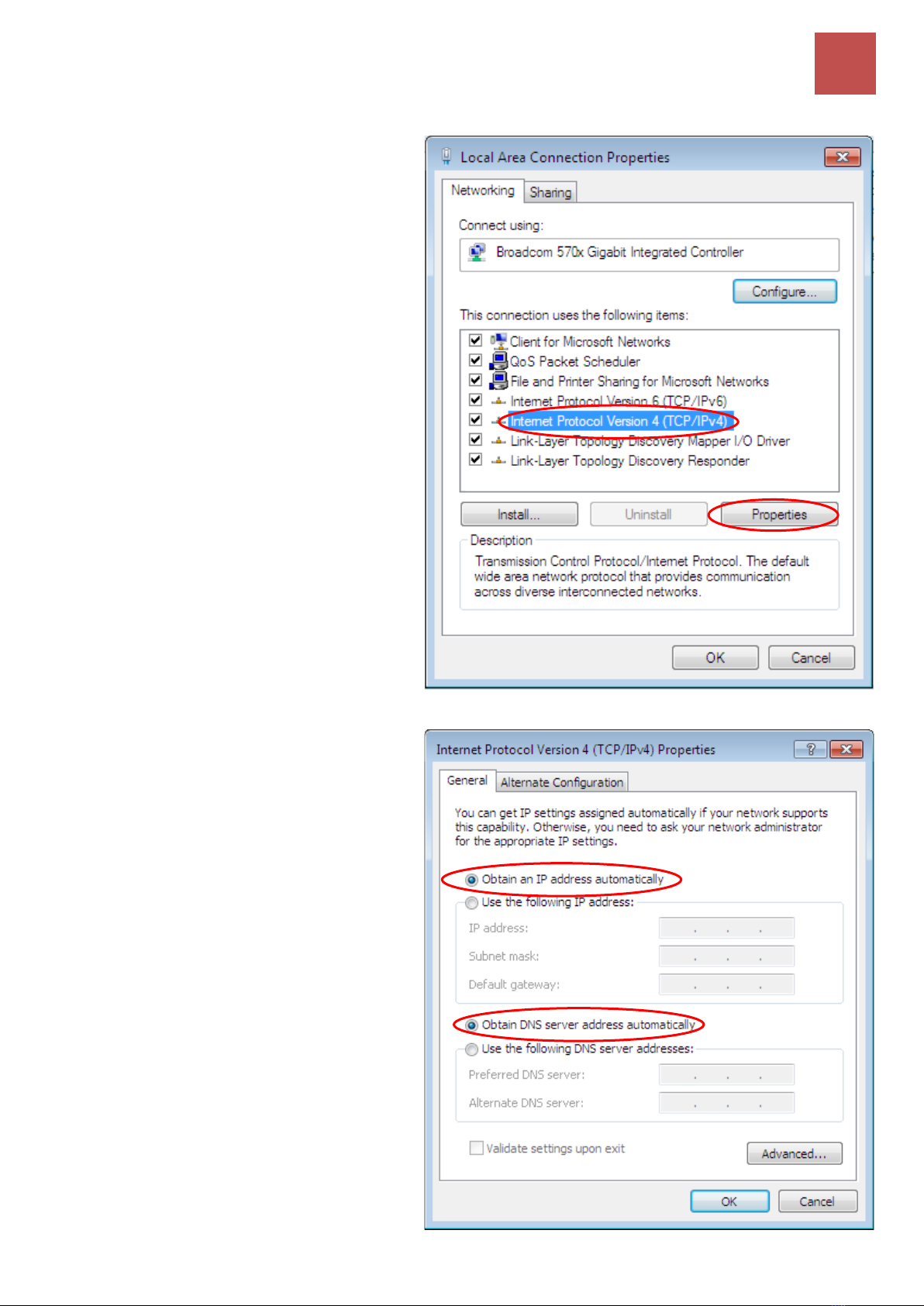

Configuring PC in Windows 7/8 (IPv4).............................................................15
Configuring PC in Windows Vista (IPv4)...........................................................17
NETWORK CONFIGURATION –IPV6.......................................................... 19
Configuring PC in Windows 10 (IPv6) ..............................................................19
Configuring PC in Windows 7/8 (IPv6).............................................................21
Configuring PC in Windows Vista (IPv6)...........................................................23
DEFAULT SETTINGS............................................................................... 25
INFORMATION FROM YOUR ISP............................................................... 26

CHAPTER 4: DEVICE CONFIGURATION ...... 27
LOGIN TO YOUR DEVICE ......................................................................... 27
STATUS.............................................................................................. 30
Device Info ......................................................................................................30
System Status ..................................................................................................32
System Log ......................................................................................................32
Wireless Status................................................................................................33
Hotspot Status.................................................................................................33
Statistics ..........................................................................................................35
DHCP Table......................................................................................................39
IPSec Status.....................................................................................................39
PPTP Status......................................................................................................40
L2TP Status......................................................................................................41
GRE Status.......................................................................................................41
OpenVPN Status ..............................................................................................42
Disk Status.......................................................................................................43
VoIP Status ......................................................................................................43
ARP Table ........................................................................................................45
VRRP Status.....................................................................................................45
QUICK START ...................................................................................... 46
DEVICE CONFIGURATION........................................................................ 49
Interface Setup................................................................................................49
Internet......................................................................................................................... 49
LAN............................................................................................................................... 54
Wireless (2.4GHz & 5GHz) ............................................................................................ 57
Wireless MAC Filter (2.4GHz & 5GHz) ........................................................................... 68
Wireless 5G Repeater ................................................................................................... 69
Loopback ...................................................................................................................... 70
Dual WAN........................................................................................................71
General Setting............................................................................................................. 71
Outbound Load Balance ............................................................................................... 75
Protocol Binding ........................................................................................................... 76
Hotspot ...........................................................................................................78
General Setting............................................................................................................. 78
Built-in User Account .................................................................................................... 81
Authorized of Client...................................................................................................... 82
Walled Garden.............................................................................................................. 83

Advertisement .............................................................................................................. 84
Hotspot Status Log ....................................................................................................... 85
Customization............................................................................................................... 86
Advanced Setup ..............................................................................................88
Firewall......................................................................................................................... 88
Routing......................................................................................................................... 89
Dynamic Routing .......................................................................................................... 90
NAT............................................................................................................................... 92
VRRP............................................................................................................................. 97
Static DNS..................................................................................................................... 98
QoS............................................................................................................................... 99
Interface Grouping...................................................................................................... 103
Port Isolation .............................................................................................................. 106
Time Schedule............................................................................................................. 107
Mail Alert ................................................................................................................... 108
VPN ...............................................................................................................109
IPSec........................................................................................................................... 109
PPTP Server ................................................................................................................ 119
PPTP Client ................................................................................................................. 121
L2TP............................................................................................................................ 128
GRE Tunnel ................................................................................................................. 136
OpenVPN.................................................................................................................... 144
OpenVPN Server ......................................................................................................... 144
OpenVPN Client .......................................................................................................... 146
VoIP...............................................................................................................154
Basic........................................................................................................................... 154
Media......................................................................................................................... 156
Advanced.................................................................................................................... 157
Speed Dial................................................................................................................... 158
Dial Plan ..................................................................................................................... 160
Call Features............................................................................................................... 164
NAT Traversal for VoIP ................................................................................................ 167
Access Management .....................................................................................169
Device Management................................................................................................... 169
SNMP.......................................................................................................................... 170
Syslog ......................................................................................................................... 172
Universal Plug & Play.................................................................................................. 173
Dynamic DNS (DDNS).................................................................................................. 174
Access Control ............................................................................................................ 176
Packet Filter................................................................................................................ 179
CWMP (TR-069).......................................................................................................... 184
Parental Control ......................................................................................................... 186

SAMBA & FTP Server................................................................................................... 187
BECentral Management.............................................................................................. 190
Maintenance .................................................................................................191
User Management...................................................................................................... 191
Certificate Management............................................................................................. 193
Time Zone................................................................................................................... 195
Firmware & Configuration .......................................................................................... 196
System Restart............................................................................................................ 197
Auto Reboot................................................................................................................ 198
Diagnostics Tool.......................................................................................................... 199
CHAPTER 5: TROUBLESHOOTING ............ 202
Problems with the Router .............................................................................202
Problem with LAN Interface ..........................................................................202
Recovery Procedures.....................................................................................203
APPENDIX: PRODUCT SUPPORT & CONTACT
....................................................................... 204
FCC STATEMENT................................................................................ 205

Introduction
1
BEC 9900VA User Manual
CHAPTER 1: INTRODUCTION
Introduction to your BEC Device
The BEC 9900VA is a point-to-point (P2P) Active Ethernet Fiber Gateway – featuring a combo WAN,
3-port Gigabit Ethernet Switch, VoIP, Firewall and Wi-Fi 802.11ac access point.
The Combo WAN interface of the BEC 9900VA supports FTTH deployment over fiber optical or
copper cables. Operators can use either the optical Small Form Factor Pluggable (SFP) with
100Base and 1000Base auto-sensing functionality or the traditional RJ-45 Gigabit interface for
broadband connectivity. Furthermore, the BEC 9900VA integrates a high-power 4×4 MU-MIMO
802.11ac Wireless Access Point delivering wireless speeds up to 2Gbps and two FXS interfaces for
VoIP and advanced telephony functionality.
Deliver Uninterrupted Internet Service
The 9900VA is a classic broadband bonding gateway with dual WAN interfaces for redundancy or
seamless failover between fiber network via SFP and the wireline, an interchangeable Gigabit
Ethernet LAN/WAN, to ensure continuous Internet connectivity. The load balancing and traffic
prioritization mechanisms can be enabled to enhance failover performance and maximize bandwidth
utilization for critical applications delivery. In the event of a connectivity failure of the primary WAN
interface, traffic will automatically redirect to the secondary WAN interface and seamless fallback
when the primary interface connection is restored.
New Experience with Wi-Fi Speed and Coverage
With the next wireless generation, 802.11ac, integrated in the BEC 9900VA, the router delivers fast
Wi-Fi speeds of up to 2Gbps. The 9900VA supports a link rate up to 300Mbps in 2.4GHz frequency
range & 1700Mbps in 5GHz range and is also backward compatible with existing 802.11 a / b / g / n
wireless equipment in the network. The Wireless Protected Access (WPA-PSK/WPA2-PSK) and
Wireless Encryption Protocol (WEP) features enhance the level of transmission security and access
control over Wireless LAN. BEC 9900VA also supports the Wi-Fi Protected Setup (WPS) standard for
easy and secure establishment of a wireless home network. If the user’s network requires wider
coverage, the built-in Wireless Distribution System (WDS) repeater function expands the wireless
network without needing any external wires or cables.
Integrated SIP VoIP and Advanced Telephony Features
BEC 9900VA is compliant with SIP standard (RFC3261) and supports SIP registrar. This device
integrates with two FXS ports by connecting with two standard analog telephones to receive or place
calls over VoIP accounts. The router offers much more great features, Call Waiting, Conference Call,
Return Call, etc. The unique Speed Dial Plan provides custom hotkeys of frequently used phone
numbers. This state-of-the-art feature is ideal for users who do not need a landline service, delivering
high quality, free communication between offices and customers. Making online call is just as easy as
dialing an extension number.

Introduction
2
BEC 9900VA User Manual
Wi-Fi Hotspot with Captive Portal
BEC 9900VA offer Wi-Fi hotspot to share the Internet connection via the active WAN interface with
any wireless-enabled devices which is completed separate from the private Wi-Fi network. The captive
portal enables highly secure connectivity with multiple authentication options and extensive controls
for access and bandwidth management. Customization options allow for operator logos, branding or
advertisement placement.
Quick Start Wizard
Support a WEB GUI page to install this device quickly. With this wizard, simple steps will get you
connected to the Internet immediately.
Firmware Upgradeable
Device can be upgraded to the latest firmware through the WEB based GUI.

Introduction
Features & Specifications
3
BEC 9900VA User Manual
Features & Specifications
• Optical Small Form Factor Pluggable (SFP) and Ethernet IP broadband connectivity
• Versatile Gigabit LAN & Ethernet WAN (GbE WAN) for Cable/Fiber/xDSL high WAN throughput
• Gigabit Ethernet LAN
• IPv6 ready (IPv4/IPv6 dual stack)
• Multiple wireless SSIDs with wireless guest access and client isolation
• IEEE 802.11 a/ac/b/g/n compliant Wireless Access Point with Wi-Fi Protected Setup (WPS)
• Wi-Fi Protected Access (WPA-PSK/ WPA2-PSK) and Wired Equivalent Privacy (WEP)
• SOHO Firewall Security with DoS Preventing and Packet Filtering
• Quality of Service Control for traffic prioritization management
• Universal Plug and Play (UPnP) Compliance
• Voice over IP compliant with SIP standard
• Two FXS ports for connecting to regular analog telephones
• Call Waiting, Conference Call
• Speed Dial, Return Call, Redial
• Don’t Disturb
• Ease of Use with Quick Installation Wizard
• One USB port for NAS (FTP/ SAMBA server)
• Ideal for SOHO, office, and home users
Availability and Resilience
• Dual-WAN Interfaces
• Auto failover and failback
• High performance external dual-band Wi-Fi antennas
Network Protocols and Features
• IPv4, IPv6, IPv4 / IPv6 dual stack
• IP Tunnel IPv6 in IPv4 (6RD)
• IP Tunnel IPv4 in IPv6 (DS-Lite)
• NAT, static routing and RIP-1/2
• Universal Plug and Play (UPnP) compliant
• Dynamic Domain Name System (DDNS)
• Virtual server and DMZ

Introduction
Features & Specifications
4
BEC 9900VA User Manual
• SNTP, DNS relay
• IGMP proxy and IGMP snooping
• MLD proxy and MLD snooping
• Supports port-based Virtual LAN (VLAN)
Firewall
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• DoS attack prevention including Land Attack, Ping of Death, etc.
• Access control
• IP&MAC filter, URL Content Filter
• Password protection for system management
• VPN pass-through
Secured Wi-Fi Access Point
• Compliant with IEEE 802.11 a/b/g/n/ac standards
• 2.4GHz & 5GHz frequency range
• 20/40-MHz channel bandwidth
• Up to 300Mbps (2.4GHz) & 866Mbps (5GHz) wireless data phy rate
• 64/128 bits WEP supported for encryption
• Wireless security with WPA-PSK, WPA2-PSK, Mixed WPA/WAP2-PSK, (TKIP/AES),
802.1x/Radius
• AP, Client Bridge and WDS Operational Modes
• Multiple SSID (4 SSIDs), BSSID
• Wireless MAC filtering
• Wireless Client Isolation
• Wi-Fi Hotspot with Captive Portal
• Dynamic, Wi-Fi client rate-limiting
Quality of Service Control
• Traffic prioritization management based-on Protocol, Port Number and IP Address (IPv4/ IPv6)
USB Application Server
• Storage/NAS: SAMBA Server, FTP Server
