BEC 8920AC User manual

Last revised: January, 2016
BEC 8920AC
Ultimum®
The Ultimate Residential Gateway with
802.11ac
VDSL2/ADSL2+/Bonded/FTTH
User Manual
Version release: v2.4

TABLE OF CONTENTS
CHAPTER 1: INTRODUCTION ................................... 1
INTRODUCTION TO YOUR ROUTER.............................................................. 1
FEATURES &SPECIFICATIONS .................................................................... 1
HARDWARE SPECIFICATIONS..................................................................... 1
NETWORK APPLICATION DIAGRAMS........................................................... 1
CHAPTER 2: PRODUCT OVERVIEW .......................... 4
IMPORTANT NOTE FOR USING THIS ROUTER ................................................ 4
PACKAGE CONTENTS............................................................................... 4
DEVICE DESCRIPTION .............................................................................. 5
Front Panel LEDs................................................................................................5
Rear Panel Connectors ......................................................................................7
HARDWARE INSTALLATION ....................................................................... 8

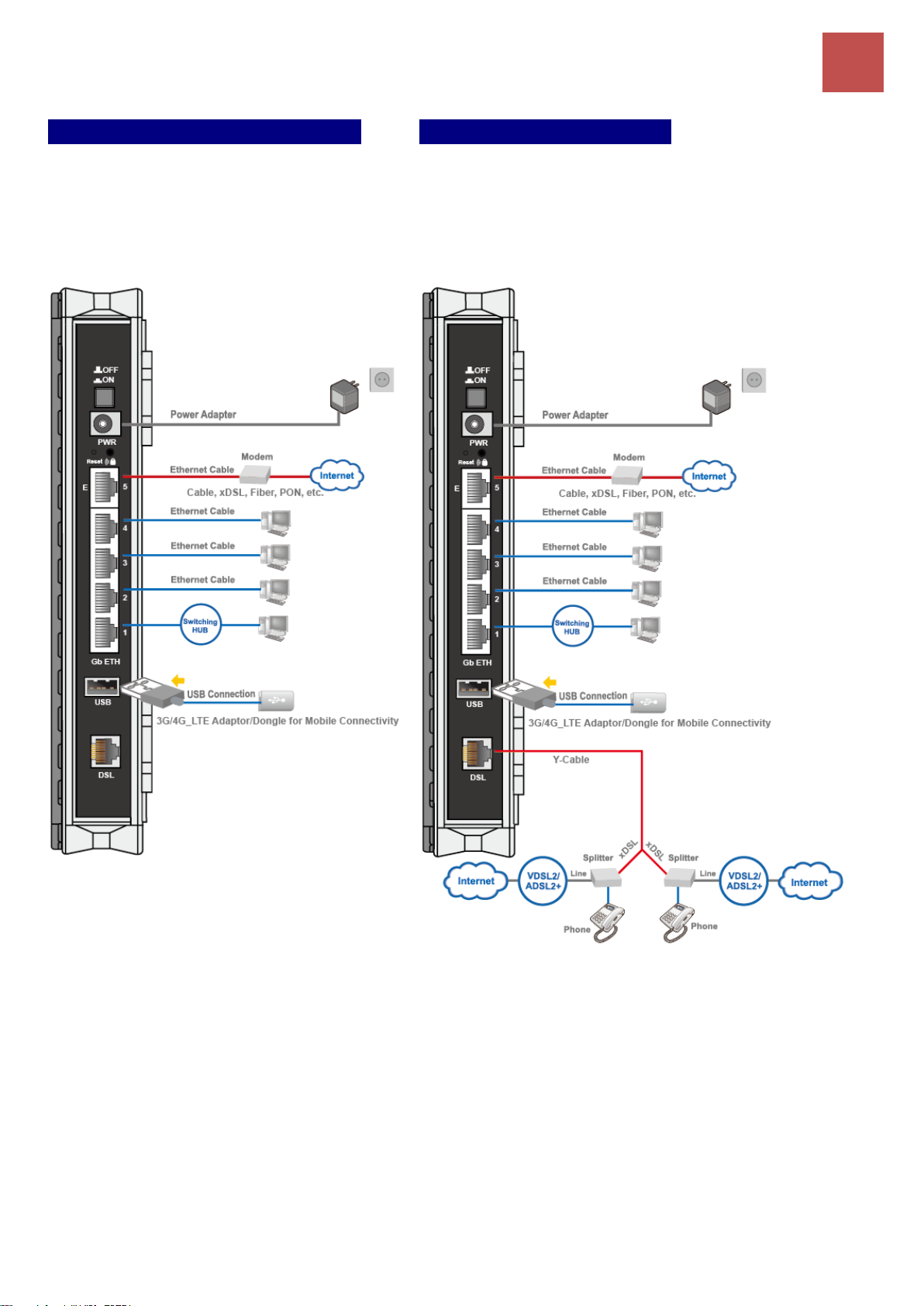

CABLING ............................................................................................ 11
CHAPTER 3: BASIC INSTALLATION ..........................12
NETWORK CONFIGURATION –IPV4 ......................................................... 13
Configuring PC in Windows 10 (IPv4) ..............................................................13
Configuring PC in Windows 7/8 (IPv4).............................................................15
Configuring PC in Windows Vista (IPv4) ..........................................................17
Configuring PC in Windows XP (IPv4) ..............................................................19
NETWORK CONFIGURATION –IPV6 ......................................................... 21
Configuring PC in Windows 10 (IPv6) ..............................................................21
Configuring PC in Windows 7/8 (IPv6).............................................................23
Configuring PC in Windows Vista (IPv6) ..........................................................25
Configuring PC in Windows XP (IPv6) ..............................................................27
DEFAULT SETTINGS............................................................................... 28

INFORMATION FROM YOUR ISP .............................................................. 29
CHAPTER 4: CONFIGURING YOUR ROUTER ............30
LOGIN TO YOUR DEVICE ........................................................................ 30
STATUS.............................................................................................. 32
Summary.........................................................................................................32
WAN ................................................................................................................34
Statistics ..........................................................................................................35
LAN............................................................................................................................... 35
WAN............................................................................................................................. 35
xTM .............................................................................................................................. 36
xDSL ............................................................................................................................. 37
Bandwidth Usage ............................................................................................40
LAN and WAN Bandwith Usage .................................................................................... 40
3G/4G LTE Status.............................................................................................42
Route Table .....................................................................................................43
ARP Table ........................................................................................................44
DHCP Table......................................................................................................45
Log ..................................................................................................................46
System Log ................................................................................................................... 46
Security Log.................................................................................................................. 46
QUICK START ...................................................................................... 47
CONFIGURATION.................................................................................. 51
LAN - Local Area Network................................................................................51
Ethernet ....................................................................................................................... 51
IPv6 Autoconfig ............................................................................................................ 54
Interface Grouping ....................................................................................................... 57
Wireless 5G (wl0) & 2.4G (wl1) .......................................................................60
Basic............................................................................................................................. 60
Security ........................................................................................................................ 62
MAC Filter..................................................................................................................... 72

Wireless Bridge............................................................................................................. 73
Advanced –5GHz Wireless ........................................................................................... 74
Advanced –2.4GHz Wireless ........................................................................................ 77
Station Info................................................................................................................... 80
Schedule Control........................................................................................................... 81
WAN - Wide Area Network..............................................................................82
WAN Service................................................................................................................. 82
Failover....................................................................................................................... 114
DSL ............................................................................................................................. 115
DSL Bonding ............................................................................................................... 116
SNR............................................................................................................................. 116
System...........................................................................................................117
Internet Time.............................................................................................................. 117
Firmware Upgrade ..................................................................................................... 118
Backup / Update......................................................................................................... 119
Access Control ............................................................................................................ 120
Mail Alert ................................................................................................................... 121
SMS Alert.................................................................................................................... 122
Configure Log ............................................................................................................. 123
IP Tunnel .......................................................................................................124
IPv6-in-IPv4 (6RD)....................................................................................................... 124
IPv4-in-IPv6 (DS-Lite) .................................................................................................. 126
Security .........................................................................................................127
IP Filtering Outgoing................................................................................................... 127
IP Filtering Incoming................................................................................................... 130
MAC Filtering.............................................................................................................. 132
Blocking WAN PING.................................................................................................... 133
Time Restriction.......................................................................................................... 134
URL Filtering............................................................................................................... 136
Parental Control Provider ........................................................................................... 139
QoS - Quality of Service.................................................................................140
Quality of Service........................................................................................................ 140

QoS Port Shaping........................................................................................................ 145
NAT................................................................................................................146
Exceptional Rule Group............................................................................................... 146
Virtual Servers ............................................................................................................ 148
DMZ Host ................................................................................................................... 152
One-to-One NAT ......................................................................................................... 153
Port Triggering ........................................................................................................... 154
ALG............................................................................................................................. 157
Wake on LAN.................................................................................................158
ADVANCED SETUP .............................................................................. 160
Routing..........................................................................................................160
Default Gateway ........................................................................................................ 160
Static Route ................................................................................................................ 161
Policy Routing............................................................................................................. 162
RIP.............................................................................................................................. 163
DNS ...............................................................................................................164
DNS ............................................................................................................................ 164
Dynamic DNS.............................................................................................................. 166
DNS Proxy................................................................................................................... 169
Static DNS................................................................................................................... 170
Static ARP ......................................................................................................171
UPnP .............................................................................................................171
Certificate......................................................................................................178
Trusted CA .................................................................................................................. 178
Multicast .......................................................................................................180
Management.................................................................................................182
SNMP Agent ............................................................................................................... 182
TR- 069 Client ............................................................................................................. 183
HTTP Port ................................................................................................................... 184
Remote Access............................................................................................................ 185
Mobile Network.......................................................................................................... 186
3G/4G LTE Usage Allowance....................................................................................... 187

Power Management................................................................................................... 188
Time Schedule ............................................................................................................ 189
Auto Reboot ............................................................................................................... 190
Diagnostics ....................................................................................................191
Diagnostic Tools.......................................................................................................... 191
Push Service ............................................................................................................... 193
Diagnostics................................................................................................................. 193
Fault Management..................................................................................................... 194
RESTART .......................................................................................... 195
CHAPTER 6: TROUBLESHOOTING .........................196
Problems with the Router .............................................................................196
Problem with LAN Interface ..........................................................................196
Problem with WAN Interface.........................................................................197
APPENDIX: PRODUCT SUPPORT & CONTACT........198
FCC STATEMENT................................................................................ 199

Introduction
1
BEC 8920AC User Manual
CHAPTER 1: INTRODUCTION
Introduction to Your Router
Thank you for purchasing BEC 8920AC_The Ultimate Residential Gateway with 802.11ac. This
unit is an all-in-one Universal Bonded Gateway supporting ultra-broadband triple-play services via
multiple WAN connection options. Service providers can utilize one gateway for all major broadband
technologies such ADSL2+, VDSL2, xDSL bonding and FTTH. In addition to offering the multiple
WAN connection options, the 8920AC integrates multiport Ethernet switching and routing,
802.11a/b/g/n/ac Wireless networking, advanced firewall security including stateful packet inspection,
Quality of Service (QoS) and remote management. Users can easily enjoy high bandwidth services
such as High Definition IPTV, streaming video, interactive gaming, over-the-top (OTT) applications to
multiple devices throughout the home.
Flexible Deployment Options
The BEC 8920AC provides service operators with flexible, scalable deployment options optimized to
both reduce costs and provide the longest possible lifespan for the investment. The BEC 8920AC
integrates dual WAN options; a VDSL2/ADSL2+ interface and a second 10/100/1000 Ethernet WAN
interface which can be used for broadband connectivity to any other Ethernet broadband device.
Operators can now deploy one device to support current and future network migration.
Quality of Service
Quality of Service (QoS) gives users’ full control over outgoing data traffic. Priority can be assigned by
the router to ensure that important transmissions like gaming packets, VoIP calls or IPTV/streaming
content passes through the router at lightning speed, even when there is heavy Internet traffic. The
speed of different types of outgoing data passing through the gateway is also controlled to ensure that
users do not saturate bandwidth with their browsing activities.
Robust Firewall Security
The NAT default firewall has advanced anti-hacker pattern-filtering protection features that
automatically detect and block Denial of Service (DoS) attacks. In addition, Packet Filtering provides
high-level security for access control. Built with Stateful Packet Inspection (SPI), the router enables
users to determine whether or not a data packet is allowed to pass through the firewall to the private
LAN.
Dual Concurrent Wireless with Superior 802.11ac Speed & Ultimate Coverage
With the next wireless generation, 802.11ac, integrated in the 8920AC, the router delivers speed as
fast 1.3 gigabit per second. Wireless AC provides high-throughput wireless speed by taking the
advantage of frequency on the 5GHz band with less interference and using the beamforming
technology to enable a direct signal focus on the Access Point and a wireless client to extend wireless
coverage area. The 8920AC supports a link rate up to 300Mbps in 2.4GHz frequency range &
1300Mbps in 5GHz range and is also backward compatible with exiting 802.11 a / b / g / n equipment
in the network. The Wireless Protected Access (WPA-PSK/WPA2-PSK) and Wireless Encryption
Protocol (WEP) features enhance the level of transmission security and access control over Wireless

Introduction
2
BEC 8920AC User Manual
LAN. The router also supports the Wi-Fi Protected Setup (WPS) standard for easy and secure
establishment of a wireless home network. If the user’s network requires wider coverage, the built-in
Wireless Distribution System (WDS) repeater function expands the wireless network without needing
any external wires or cables.
Pathway to the Future
The BEC 8920AC fully supports IPv6 (Internet Protocol Version 6), implementation of IPv6 is growing
significantly and multiple transition methods are required to support the coexistence and migration
from IPv4. With BEC IPv6 enabled devices, service providers easily adapt IPv6 to their network as we
support major transition mechanisms such as Dual-Stack, Dual-Stack Lite, and 6RD.

Introduction
Features & Specifications
1
BEC 8920AC User Manual
Features & Specifications
VDSL Compliance
• Compliant with ITU-T G.993.2, G.994.1 and G.997.1 VDSL2 Standard
• VDSL2 Profiles (Single): 8a, 8b, 8c.8d, 12a, 12b, 17a, 30a
• VDSL2 Profiles (Bonded): 8a, 8b, 8c.8d, 12a, 12b, 17a
• ADSL/2/2+ fallback modes
• Comply G.993.5, G.998.2 and G.998.4
ADSL Compliance
• Compliant with ADSL Standards
- Full-rate ANSI T1.413 Issue 2
- G.dmt (ITU G.992.1)
- G.lite (ITU G.992.2)
- G.hs (ITU G.994.1)
- G.dmt.bis (ITU G.992.3) Compliant with ADSL2 Standards
- ADSL2 Annex M (ITU G.992.3 Annex M)
• Compliant with ADSL2+ Standards
- G.dmt.bis plus (ITU G.992.5)
• Comply ITU T G.998.1 and G.998.2
Network Protocols and Features
• NAT, static routing and RIP-1/2
• Universal Plug and Play (UPnP) Compliant
• Transparent Bridging
• Dynamic Domain Name System (DDNS)
• Virtual Server and DMZ
• SNTP, DNS relay and IGMP proxy
• VLAN_MUX and IGMP snooping for video service
• Management based-on IP protocol, port number and address
• SMTP Client
Quality of Service Control
• Supports the DiffServ approach
• Traffic prioritization and bandwidth management based-on IP protocol, port number and address

Introduction
Features & Specifications
2
BEC 8920AC User Manual
Firewall & Virtual Private Network (VPN)
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack and Ping of Death, etc.
• Remote access control for web base access
• Anti probe function
• Packet filtering, MAC filtering, URL content filtering
• Password protection for system management
• VPN pass-through
Wireless LAN
• Compliant with IEEE 802.11a/b/g/n/ac standards
• 2.4 GHz & 5GHz frequency range
• Up to 300/1300Mbps wireless operation rate
• WPS (Wi-Fi Protected Setup) supported
• 64/128 bits WEP supported for encryption
• Wireless Security with WPA-PSK/ WPA2-PSK support
• WDS repeater function support
Management
• Quick Installation Wizard
• Web-based GUI for remote and local management
• Firmware upgrades and configuration data transfer via web-based interface
• Embedded Telnet server for remote and local management
• Available Syslog
• Supports DHCP server/client/relay
• SNMP v1/v2, MIB supported

Introduction
Hardware Specifications
1
BEC 8920AC User Manual
Hardware Specifications
Physical interface
• DSL: Single xDSL RJ-11 Interface
• USB 2.0 for 3G/4G LTE backup
• Ethernet MDI/MDIX Switch: 5-port Gigabit 10/100/1000Mbps
• EWAN: RJ-45 Gigabit Ethernet Wan (on Ethernet 5)
• Wireless On/Off button
• WPS push button
• Reset Button
• Power jack
• Power switch
• WLAN: 3 external antennas
Physical Specifications
• Dimensions (W*H*D): 9.04" x 6.10" x 1.69" (229.5mm x 155mm x 43mm)

Introduction
Network Application Diagrams
1
BEC 8920AC User Manual
Network Application Diagrams

Introduction
Network Application Diagrams
2
BEC 8920AC User Manual
BEC 8920AC is an all-in-one gateway router supporting multiple WAN connection options (ADSL2+
single/bonding, VDSL2 single/bonding, Ethernet WAN and Auto WAN Failover) to connect to the
Internet.
xDSL Connection –Single Pair
xDSL Connection –Bonding

Introduction
Network Application Diagrams
3
BEC 8920AC User Manual
FTTH / Broadband Connection
The Ethernet 5 is an interchangeable
LAN/WAN port. Refer to the User Manual to
change this port to EWAN interface to
connect with your Fiber, Cable, or xDSL
modem.
Automatic WAN Failover
The automatic failover ensures uninterrupted
operation and 24/7 Internet availability. When
Primary WAN connection fails, the Secondary
connection will back up the Internet connection
seamlessly.

Product Overview
4
BEC 8920AC User Manual
CHAPTER 2: PRODUCT OVERVIEW
Important Note for Using This Router
Package Contents
BEC 8920AC The Residential Gateway with 802.11ac * 1
This Quick Installation Guide * 1
CD containing User Manual * 1
Vertical Stand * 1
RJ-45 Ethernet Cable * 1
Y-Cable for xDSL bonded operation * 1
Detachable Antenna * 1
Power adapter * 1
Place the router on a stable surface.
Only use the power adapter that comes with the package. Using a
different voltage rating power adapter may damage the router.
Attention
Do not use the router in high humidity or high temperature.
Do not place the router next to high-temperature appliance, e.g. a heater
or stove, or cover it up with tablecloths, curtain, etc.
Do not use same power source for the BEC 8920AC on other equipment.
Do not open or repair the case yourself. If the device becomes too hot,
turn off the power immediately and have it repaired at a qualified service
center.
Avoid using this product and all accessories outdoors.
Warning

Product Overview
Front Panel LEDs
5
BEC 8920AC User Manual
Device Description
Front Panel LEDs
LED
STATUS
DESCRIPTION
PWR
(Power)
Red
System failure or in emergency mode
Green
System is up and ready
Off
Device has no power.
Gigabit
EWAN /
ETH 5
(Ethernet)
Can be configured to be WAN port for broadband connectivity
Green
Ethernet LAN : Connected to an Gigabit (1000Mbps) Ethernet
device
Ethernet WAN: Successfully connected with a broadband
connection device
Orange
LAN port is connected to an 10/100Mbps Ethernet device
Blinking
Data being transmitted/received
Off
No device is connected to the Ethernet port
Gigabit
ETH 1~4
(Ethernet)
Green
LAN port is connected to an 1000Mbps Ethernet device
Orange
LAN port is connected to an 10/100Mbps Ethernet device
Blinking
Data being transmitted/received
Off
No device is connected to the Ethernet port
Wireless
2.4GHz /
5GHz
Green
Wireless connection established
Blinking
Data being transmitted / received
Off
Wireless being turned off
WPS
Green
Wireless device(s) being connected successfully via WPS mode
Blinking
WPS is enabled and trying to establish a WPS connection.
Off
WPS being turned off
DSL1 /
DSL2
Green
Successfully connected to an ADSL DSLAM (Line Synced).
Off
DSL cable is unplugged
INET
Green
IP received and traffic is passing thru the device.

Product Overview
Front Panel LEDs
6
BEC 8920AC User Manual
(Internet)
Blinking
Data being transmitted / received
Red
BEC 8920AC is unable to get a public (WAN) IP address
Off
BEC 8920AC is either in bridged mode orWAN (DSL) connection
is not ready

Product Overview
Rear Panel Connectors
7
BEC 8920AC User Manual
Rear Panel Connectors
PORT
MEANING
1. Power ON/OFF
Power ON/OFF switch
2. PWR (Power)
Connect the supplied PowerAdapter to this port.
3. WPS /
Wi-Fi On/Off
By controlling the pressing time, users can achieve two different
effects:
(1) WPS*: Press &hold the button for less than 6 seconds to trigger
WPS function.
(2) Wireless ON/OFF button: Press & hold the button for more
than 6 seconds to On/Off the wireless.
* For detailed WPS configuration, please refer to the WPS section in
this User Manual.
4. Reset
Push and hold the reset button for five (5) seconds to restore to its
factory default settings (this is used when you cannot login to the
router, e.g. forgot your password)
5. E (Gb EWAN)
Connect to Fiber/ Cable/ xDSL Modem with a RJ-45 cable, for
broadband connectivity.
Note: LAN 5 automatically becomes an EWAN port when EWAN
internet interface is being selected in the GUI
6. Gb LAN
Ethernet (1~5)
Connect PCs, Laptops or any other office/home LAN devices with
the supplied RJ-45 Ethernet cable (Cat-5 or Cat-5e) to any of the five
LAN ports.
Note: Port 5 is a LAN / WAN Configurable Port.
7. USB
Connect with a 3G or 4G/LTE USB adapter/dongle for mobile
connectivity.
8. DSL
Connect the device to an ADSL/VDSL telephone jack or splitter
using a RJ-11 telephone cable / Y-Cable for xDSL bonded
1
2
3
4
5
6
7
8
0

Product Overview
Hardware Installation
8
BEC 8920AC User Manual
Hardware Installation
1. Attach the Vertical Stand to the 8920AC
Setup your 8920AC in a vertical position using the stand provided in the package and place it on
a stable surface for proper operation.
To correctly insert the vertical stand to the 8920AC, left up the router with PWR (Power LED)
facing upward then slide it into the stand by attaching the wider side of the vertical stand to the
top casing (BEC Logo) and shorter side on the back of the 8920AC
.
2. Power Connection
Plug in the supplied power adapter to the wall jack, the other side to the 8920AC then power ON
the 8920AC by pressing the Power On/Off button.

Product Overview
Hardware Installation
9
BEC 8920AC User Manual
3. LAN Connection
Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports, and the other side to the
PC’s Ethernet interface.
4. WAN Connection
4.1 xDSL Interface
For single line xDSL, please connect the supplied Y-Cable or a regular RJ-11 phone cable to the
DSL port and the other side to the phone jack on the wall.
