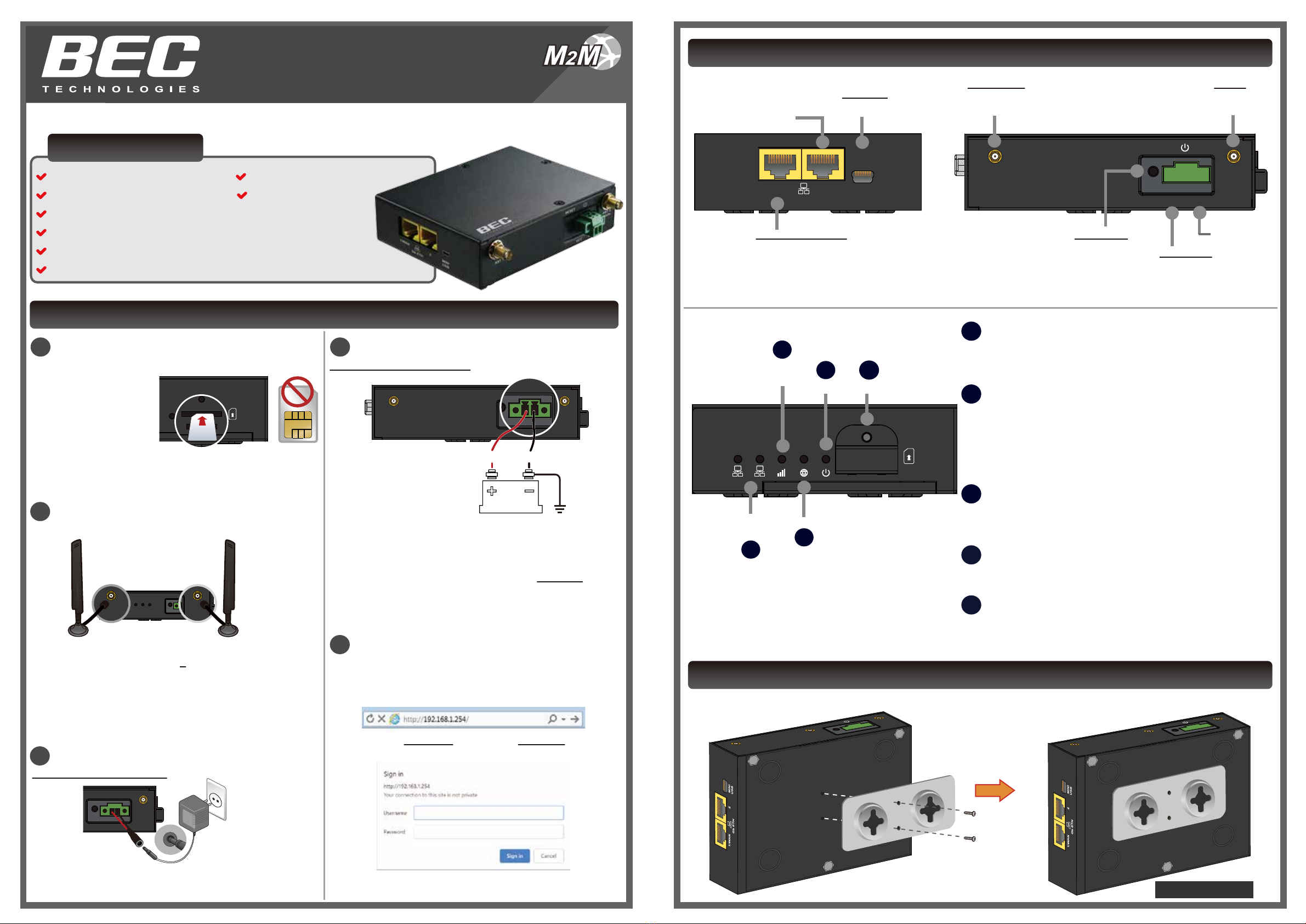

BEC MX-240 User manual

SETTING UP THE ROUTER
Quick Install Guide
WHAT’S IN THE BOX
4 x SX-CBRS Antennas
(Sold Separately)
1 x BEC MX-240
1 x This Quick Install Guide
1 x Ethernet (RJ-45) Cable
1 x DC Power Adapter, 12V 1.2A
1 x Power Terminal Block 2-Pin 3.5mm
1 x Power Converter with 2-Pin Terminal Block
Model: MX-240
DEVICE OVERVIEW & LEDS
M2M
2Attach the SX-CBRS Antennas
3Connect to Power Source (Cont.)
1Insert the SIM Card
POWER
INTERNETWAN
Gb ETH
12
SIM
SIM
POWERINTERNETWAN
Gb ETH
12 SIM
SIM
3Connect to Power Source
4Access to the MX-240
Connect the supplied Ethernet cable to your notebook or PC.
Acecess to the MX-240 Web interface by entering
http://192.168.1.254 in the address bar of the web browser.
Default Login: Username (admin) and Password (admin or
a unique12-digit password can be found on the device label).
The Quick Start Wizard provides key steps to connect the
MX-240 to the Internet.
SIM
2 1
2
Ethernet
LAN
13
4
LTE Signal
Strength
Internet
Power SIM Slot
INTERNET
Green: IP traffic via WAN
Red: WAN IP request failed
Off: No WAN Connection or in Bridge Mode
3
2WAN (Cellular Signal Strength Indicator)
Green: RSSI > -69 dBm. Excellent signal
Green / Fast Flashing: -69 > RSSI > -81dBm. Good signal
Red / Fast Flashing: -81 > RSSI > -99dBm. Fair signal
Red / Slow Flashing: -99dBm > RSSI. Poor signal
Red: No signal and the 4G LTE module is in service
Off: No LTE module or LTE failure
1GIGABIT ETHERNET (Gb ETH) (LAN #1 & #2)
Green: Transmission speed is at Gigabit speed (1000Mbps)
Orange: Transmission speed is at 10/100Mbps
Blinking: Data being transmitted/received
POWER
4
Green: System ready
Red: Boot failure
5
SIM Card Slot
5
Insert mini SIM card (2FF) with the gold contact facing down.
Push mini SIM card (2FF) inwards to eject it
* Power off the MXConnect router before inserting or removing the SIM card
Note: Power o the MX-240 before inserting or removing the SIM
Remove the SIM cover
then insert the SIM card
(2FF) with the mental
contacts (gold plate)
facing down to the SIM
slot then push it all the
way in until you hear the clicking sound.
Replace the metal SIM cover after inserting the SIM. VCC(on the left) - Red Wire
GND(on the right) - Black Wire
POWERRESET
ANT 1 ANT 0
(MAIN)
POWERRESET
GNDVCC
Use External Power Supply
Attach the power terminal block (TB) to the MX-240 and
connect wire leads from a power supply to the terminal block
(TB) plug.
RED Wire (Left Connector): VCC/V+. Connect to the positive
supply voltage. Input voltage range is from 9V to 56V.
BLACK Wire (Right Connector): Ground (GND) / V-. Connect
to the negative supply voltage.
WALL MOUNT KIT INSTALLATION
Attach and fasten the wall bracket to the back of the MX-240 using two (2) clip mounting screws included in the mounting
kit.
Screw the male SMA SX-CBRS antennas tight to the female
connectors. You can use up to 4 antennas with the MX-240.
Connect to the ANT1(MAIN) port, the primary antenna port to
transmit and receive cellular signal, if decide to use a single
antenna.
Do not over-torque the antenna on the connector.
POWERRESET
WAN
AUX
WAN
MAIN
POWERRESET
ANT 1 WAN
MAIN
POWERRESET
WAN
AUX
ANT 0
(MAIN)
GPS
Note: Antenna images shown are for illustration purpose only.
Power
POWERRESET
WAN
AUX
ANT 0
(MAIN)
GPS
Use the DC Power Adapter
Attach the power converter with 2-pin terminal block to the
MX-240 and plug in the supplied power adapter, 12VDC
1.2A.
ANT 1 ANT 0
(MAIN)
RESET
VCC GND
MINI
USB
1/WAN 2
Gb ETH
Hard Reset
Hold for 6 seconds to
restore its factory settings Power (V+)
1. Use an external power supply
Input power 9-56V DC range.
2. Use supplied Power adapter
Gigabit LAN
Gigabit LAN / WAN
MINI USB
Connect to the Module
ANT 1 / 2 / 3
(Auxiliary Antenna)
SMA Female Connector
ANT 0
(Main Antenna)
SMA Female Connector
Ground (V-)
Ethernet LAN: Connect to an Ethernet device.
Ethernet WAN: Software configurable in the GUI.
Connect to a broadband connection device such as
ADSL / VDSL / Cable / FTTH modem.
1 x DIN Rail Mounting Kit
1 x Wall Mounting Kit
ANT 1 ANT 0
(MAIN)
GPS
RESET
VCC GND
ANT 1 ANT 0
(MAIN)
GPS
RESET
VCC GND
Assembled

MX-240
Quick Install Guide
www.bectechnologies.net
www.bectechnologies.net
M2M
KIT CONTAINS: DIN Rail Clip and Six (6) Clip Mounting Screws
The DIN Rail mounting kit is designed to securely attach and clip the MX-240 onto a TS35 or standard 35mm top hat
(EN 500022/BS 5584) DIN rail in the horizontal position.
Two (2) mounting locations to mount the DIN rail clip on the surface of MX-240, back or rear side.
Please follow the steps to complete DIN rail mounting installation.
3301 Matrix Drive Ste 200
Richardson, TX 75082 USA
TEL : [phone]
FAX : [phone]
E-mail : [email protected]
FCC Caution:
This device complies with Part 15 of the FCC
Rules.
Operation is subject to the following two
conditions:
(1) this devise may not cause harmful interfer-
ence, and
(2) this device must accept any interference
DIN RAIL MOUNTING KIT INSTALLATION
ATTACHING TO A DIN RAIL REMOVING FROM A DIN RAIL
1. MX-240
2. Mounting Bracket 3. Mounting Screws
I
Gb ETH
2SERIAL
I
1
Bottom
2
Top
3
4
III
Clip and secure the MX-240 onto a DIN rail.
1. Hook the top of the clip onto the top edge of the DIN
rail. Make sure the clip is firmly against the rail.
2. Push down the bottom of the MX-240 to snap it onto
the lower edge of the DIN rail.
3. The MX-240 is now mounted on the DIN rail.
v1.0
Attach and fasten the DIN rail clip (known as clip) to the
back or rear side of the MX-240 using two (2) clip
mounting screws included in this mounting kit.
Remove MX-240 from a DIN rail.
1-2. Push down the MX-240 to free the bottom of the
clip from the DIN rail.
3-4. Unhook the top of the clip and pull the MX-240
away from the DIN rail.
II Install clip in either vertical or horizontal position.
ANT 1 ANT 0
(MAIN)
RESET
VCC GND
ANT 3ANT 2
MINI
USB
1/WAN 2
Gb ETH
DIN Rail
1
Top
Bottom
2
MINI
USB
1/WAN 2
Gb ETH
3
MINI USB
1/WAN 2
Gb ETH
MINI USB
1/WAN 2
Gb ETH
3
MINI USB
1/WAN 2
Gb ETH
MINI USB
1/WAN 2
Gb ETH
MINI
USB
1/WAN 2
Gb ETH
MINI
USB
1/WAN 2
Gb ETH
MINI
USB
1/WAN 2
Gb ETH
MINI
USB
1/WAN 2
Gb ETH
3
123
ANT 3ANT 2
ANT 1 ANT 0
(MAIN)
RESET
VCC GND
MX-240 INSTALLED WITH A DIN RAIL
