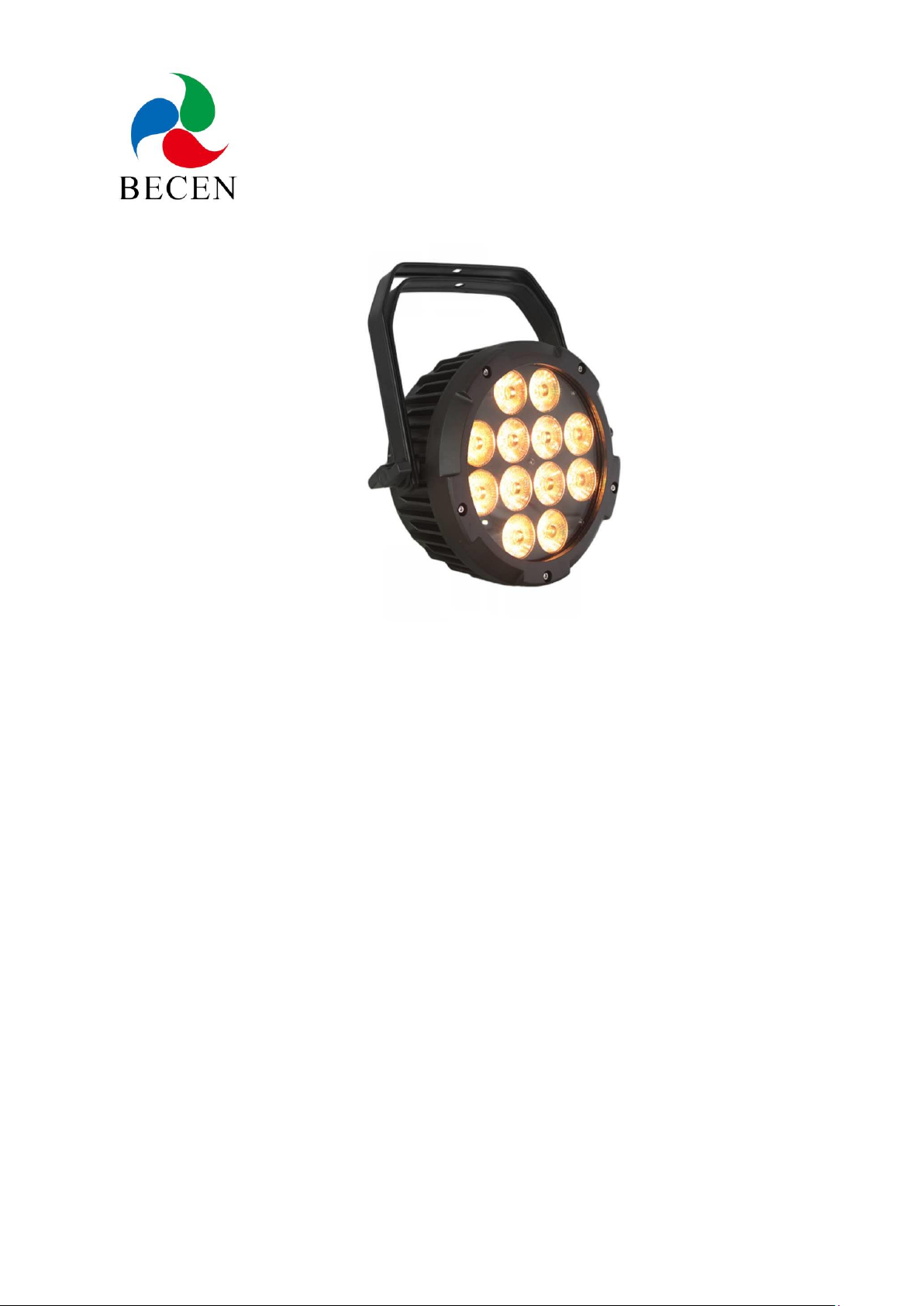

Becen BC-WR912 User manual

USER’S MANUAL
Model: BC-WR912
18x6in1 Led Waterproof Battery Par Light
Package Includes:
1 x led waterproof battery par light
1 x handle
1 x knot
1 x power cable
1x DMX cable
Please read this manual before use

1
www.szbecen.com
Caution
Do not attempt any repairs yourself. Doing so will void your manufactures
warranty. In the unlike event your unit may require service please contact us
Warning
To prevent or reduce the risk of the electrical shock or fire, do not expose this
unit to any moisture. Please read this manual carefully to familiarize yourself
with basic operations of this unit
Safety Precautions
1. Do not expose this unit to , wet moisture, explosive
2. Before plugging the power be sure local power outlets matches with the
required voltage of the unit
3. Do not remove the cover under the circumstance in case you are not
qualified to do so
4. Never connect the power when cover is removed
5. Never use this unit if it becomes damage
6. Never connect this unit to any if dimmer and / or power pack
7. If the unit will not be used for the long time , disconnect it from the power
supply
8. Always mount this unit safe and stable and make sure the area will have
proper ventilation. Take care this unit will not mounted in are close to heat
sources such as lighting fixtures, amplifiers heat registers, stoves and
radiators
9. Always contact us in case you have any doubts

2
www.szbecen.com
Product Decription
1. Power supply: AC110V-250V
2. Frequency: 50-60Hz
3. Light source: 12pcs 18W high brightness 6 in 1 leds
4. Lamp life: 6-10 ten thousand hrs
5. LED angle: 15/25/40 degree
6. Color: 16.7 million kinds of color change
7. Control channels: 6/10 CH
8. Waterproof: IP65
9. Control mode: DMX512, master/slave, auto, sound active, infrared control,
phone App.
10.Automatic model (by function button) : color change, color strobe, color
dimmer, color gradual change/color jump change
11.Operation menu: 4 digit digital LED display
12.size: 270*270*330mm
13.N.W: 5.5kg
General Instruction
Crux is a battery powered and wireless Dmx intelligent RGBAW UV color
light. User can control the light by using wireless Dmx transmitter or run at
master and salve mode. Fixture it has 12 static color, user can set lights at
static color mode without using the Dmx controller.

3
www.szbecen.com
Set Up
Crux in had used switching voltage power supply, User can use directly plug
in any voltage from 90V-240V when charging or operating at charging mode.
Battery it can be fully charged after 3-4 hours of charging, user can also
operate the light while charging the battery. When User ready to operate the
light or use in event or any places first user need to turn on the power switch.
After on the Power switch user can start to set up light at wireless Dmx
mode, wire Dmx mode, master and salve. Sound active mode, static color
mode, auto mode, strobe, fade or test mode. There is 2 thing must be
remember by user
1. Operate light at Dmx Mode
Always set the fixture from menu at “Sl1 or Sl2” mode, process; Press menu
then press up/down key until appear “Slnd” press enter at “Slnd” choose Sl1
or Sl2 and press Enter, after some second light will be stay at “stby” means
at standby mode to catch dmx signal, no matter its cable or wireless Dmx.
Note: when operate light at wireless Mode, make sure that signal switch is
on, fixture its not too far from the wireless DMX
Transmitter, after on the signal switch wireless indicator bulb should show
red color, once fixture start to receive the signal this indicator bulb it will
show blipping green color led, some time if wireless signal indicator bulb
show other color then continually press black button below the led indicator
bulb until it shows red color. Some manufactures wireless transmitter it has
different led bulb color signal, make sure with supplier which is color

4
www.szbecen.com
indicate the transmitting signal and set same color at fixture’s wireless signal
indictor by pressing the black button(id code selector) of fixture, once both
color are same wireless signal led it will start to blip green color, remember
green color means its receiving signal from master unit or dmx controller.
2. Operate light without using Dmx controller or built in color or
effects or strobe or fade or static color, sound active or master and
slave
Always set the fixture from Menu at “Nast” mode, then user can go inside
the “Shnd” and choose any built in effects such as sound active, static color,
strobe, fade, Process;
Press menu then press up/down key until appear “Slnd” press enter at “Slnd”
choose “nast” and press Enter then Press Up button choose “Shnd” then
press enter, now user can choose any type of effect mode, soun for sound
active mode, colo for static color mode, StCo for strobe and Fade for built in
effect types.
Examples:
1. Set light at sound active and stay at sound active mode
Press Menu then press up/down button until appear slnd, press enter at slnd,
find nast by pressing up/down button then press enter, Press up button Shnd
will appear at display then press enter now you can see soun at display then
press enter, after some second of pressing enter light it will start to work at
sound active mode.

5
www.szbecen.com
If you wish connect other light also at same mode without setting or salve
mode, then Press Menu, find slnd and press enter then choose sl1 or sl2 then
press enter. Follow same process at all light you want to work at same mode,
after some seconds light it will start to work same function as first light
You can connect the lights by Dmx cable or also can connect wirelessly.
When connect wireless make sure signal switch it’s on. This is function of
master and salve .(App #. 1)
2. Set and stay at static color: Press Menu- Up/down button Slnd-enter- press
up button- Shnd- Press enter- up button- colo- press enter- choose any color
number from 1-12 and press enter after some seconds your choose color it
will start. For link fixtures follow App #. 1.
3. Make own custom color and display: Press menu, slnd- Press enter
choose Nast- enter, press up button, find nanu put the value 1-255 on
RGBAW each color and press up/down button find- shnd press enter- choose
colo press enter and choose Co11 and press enter, after some second light it
will start to project custom made color as per value of color you put.
APP Guideline

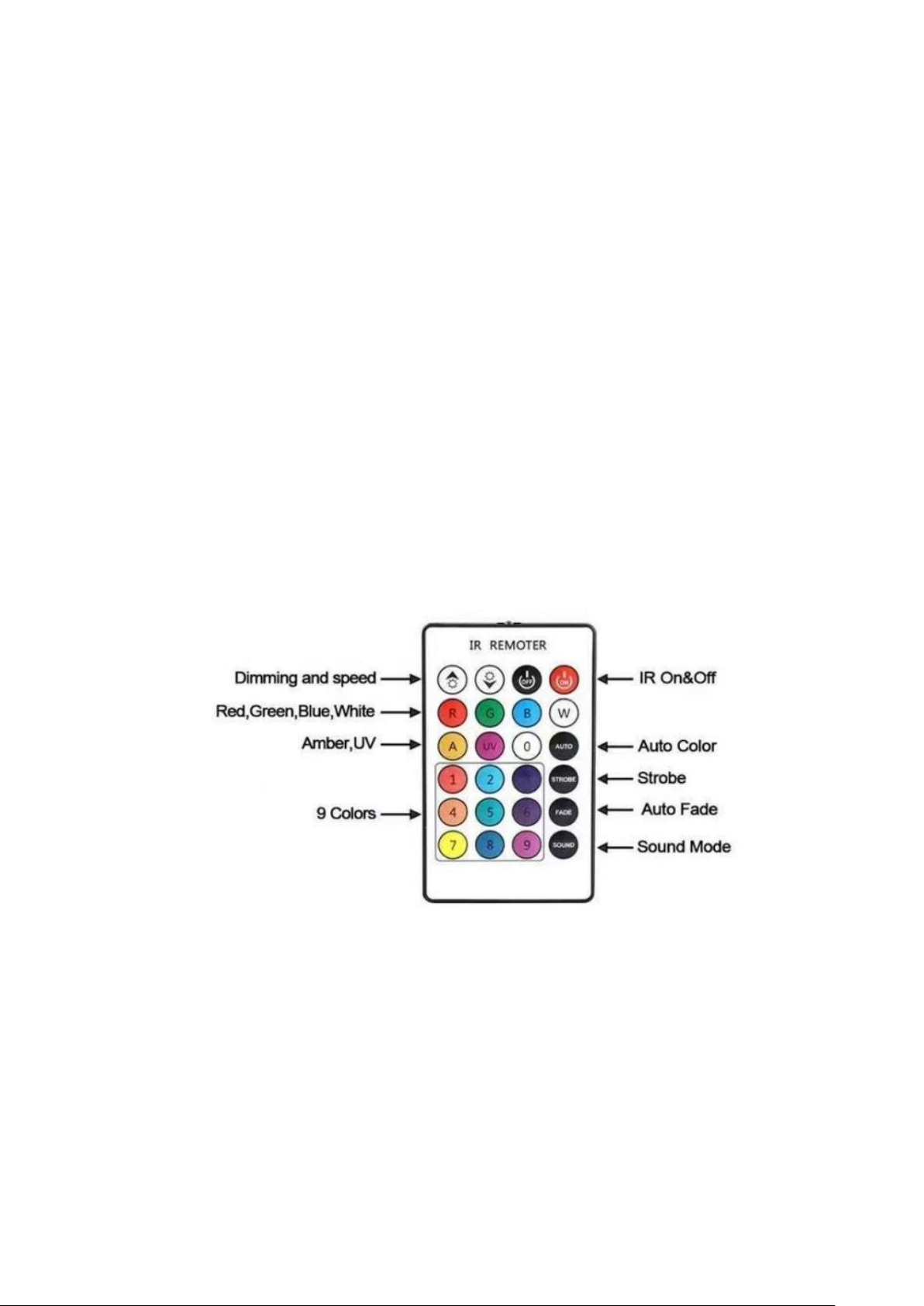

6
www.szbecen.com
DMX CHANNEL
THIS APP Batery has 6,8, 10 DMX channel mode.
User can choose mode by menu, chnd and choose 6/8/10 DMX channel mode
channel
6ch
8CH
10CH
CH1
0-255 RED
DIMMER
0-255 GENERAL
DIMMER
0-255 GENERAL
DIMMER
CH2
0-255GREEN
DIMMER
0-9 close ，
10-255strobe（slow
to fast）
0-255 RED DIMMER
CH3
0-255Blue
dimmer
0-255 RED
DIMMER
0-255GREEN
DIMMER
CH4
0-255White
dimmer
0-255GREEN
DIMMER
0-255Blue dimmer
CH5
0-255Amber
dimmer
0-255Blue dimmer
0-255White dimmer
CH6
0-255UV
dimmer
0-255White
dimmer
0-255Amber dimmer
CH7
0-255Amber
dimmer
0-255UV dimmer
CH8
0-255UV dimmer
0-9 close，10-255strobe
（slow to fast）
CH9
0-9close
10-50select color，10CH
select 32kinds static
color
51-100colro change ，
10CHadjust speed
101-150color fade ，
10CHadjust speed
151-200color jump ，
10CHadjust speed
201-220color change
sound control
221-240jump change
sound
241-255strobe sound
control
CH10
0-255 speed

7
www.szbecen.com
MENU MAP
Display mode
Function declaration
A001
A001—A512）
address code
Chnd
6CH
6 channel pattern
8CH
8 channel pattern
10CH
10 channel pattern
FAIL
BLND
Data not maintained (Black field)
HOLD
data-hold
CL01
CL01—CL32
32 Species Static color mixed mode, upper and
lower key color selection Verify the rear-strobe
mode St00-St16，Up and down key adjustment
AUT0
AUT0
All effect patterns，After the confirmation, the
speed mode SP01-SP16，Up and down key
adjustment
AUT1
Color changing self-walking mode，After the
confirmation, the speed mode SP01-SP16，Up
and down key adjustment
AUT2
Gradually change the self-walking mode，After
the confirmation, the speed mode SP01-SP16，
Up and down key adjustment
AUT3
Suddenly change the self-walk mode，After the
confirmation, the speed mode SP01-SP16，Up
and down key adjustment
AUT4
Color-changing strobe spontaneous travel mode，
After the confirmation, the speed mode
SP01-SP16，Up and down key adjustment
SOU0
SOU0
All voice control modes
SOU1
Color changing voice control mode
SOU2
Mutant sound control mode
SOU3
Color-changing strobe sound control mode
WIFI
LED-XXX
WIFI address
NANU
R000-255
Red manual adjustment
G000-255
Green manual adjustment
B000-255
Blue manual adjustment
U000-255
White manual adjustment

8
www.szbecen.com
Y000-255
Yellow/Amber manual adjustment
P000-255
Purple manual adjustment
S000-255
Flash manual adjustment
d000-255
Luminance manual adjustment
TEST
Color self-inspection
LED
ON
Turn on the display
OFF
Turn off the display
IRCL
ON
Turn on the infrared remote control
OFF
Turn off the infrared remote control
2.4G
ON
Turn on wireless 2.4G (often press the
confirmation key for 3 seconds to enter FM: 1-7)
OFF
Turn off Wireless 2.4G
POUR
ON
One-key switch machine, turn on
The menu
button often
presses for 3
seconds to
power on or
off
OFF
One-key switch machine, turn off
VER
V1.0
Software version number
Remarks:
A. One-button power on / off function. After selecting the display function
to "POWR" for confirmation, select the upper and lower keys to the "ON"
state. Press the menu button to turn on the device and press the menu button
to turn off the device.
B. Hide the current regulation. In the A001 menu mode, press and hold the
OK key for 5 seconds to automatically enter the current regulation function.
Use the up and down keys to change the value. Press the OK key once to
change the adjustment color (save the machine). Press the OK key frequently
to change the on-line adjustment current (save the machine). The host will
blink once when the host is saving. Just go back.

9
www.szbecen.com
C. When using mobile APP control software;
Step 1: Scan the QR code to download and install the software.
Step 2: Adjust the display function of the lamp to WIFI mode, press the
button and wait, the display on the display will show “LXXX”.
Step 3: Open the main interface of the mobile phone, find the "Settings" icon
and enter. Open the mobile WIFI and click to search for the WIFI name.
After the search, find the relevant "LXXX" and connect.
Step 4: Find the control APP software on the main interface of the mobile
phone again and open the connection successfully.
This version supports two communication protocols, DMX512 and RDM
(remote address code can be set)
Maintenance
1. Please keep the light in dryness and avoiding use in wet place.
2. Using intermittenlly can be extended the life.
3. Please do not wipe the crust using organic menstruum avoiding to damage
the product.

10
www.szbecen.com
Statement
The product has well capability and intact packing when leave factory. All of
the user should comply with above warning item and manual,any misuse
cause of the damages are not included in our guarantee,and also can’t be
responsible for any malfunction & problem owing to ignore the manual.
Please forgive that we will not be notice for technical change.
ShenZhen BECEN Stage Equipment Co., Ltd
Add: Room 501,5th floor,Yishenrong industrial park,Xihuan road,
ShaJing,BaoAn,Shenzhen,GuangDong,China
Website: www.szbecen.com
www.becenstage.com
Tel: [phone]
Email: [e-mail]
[e-mail]
