Becker DTM High Speed 7910 User manual

79
Contents
Contents
Contents 79
GSafety Instructions 81
GInformation regarding general road safety 82
Arrangement of Controls 83
Anti-theft Device 84
Entering the Code Number 84
General Operating Instructions 85
Switching On/ Off 85
Adjusting Volume 85
Activate Tone Adjustment Menu 85
Adjusting the Bass 85
Adjusting the Treble 85
Adjusting the Fader 86
Adjusting the Balance 86
Linear Setting 86
Loudness On/ Off 86
Adjusting the Volume of the Subwoofer or
Centre Speaker 87
Navigation Operation 88
What is Navigation? 88
Safety Instructions 88

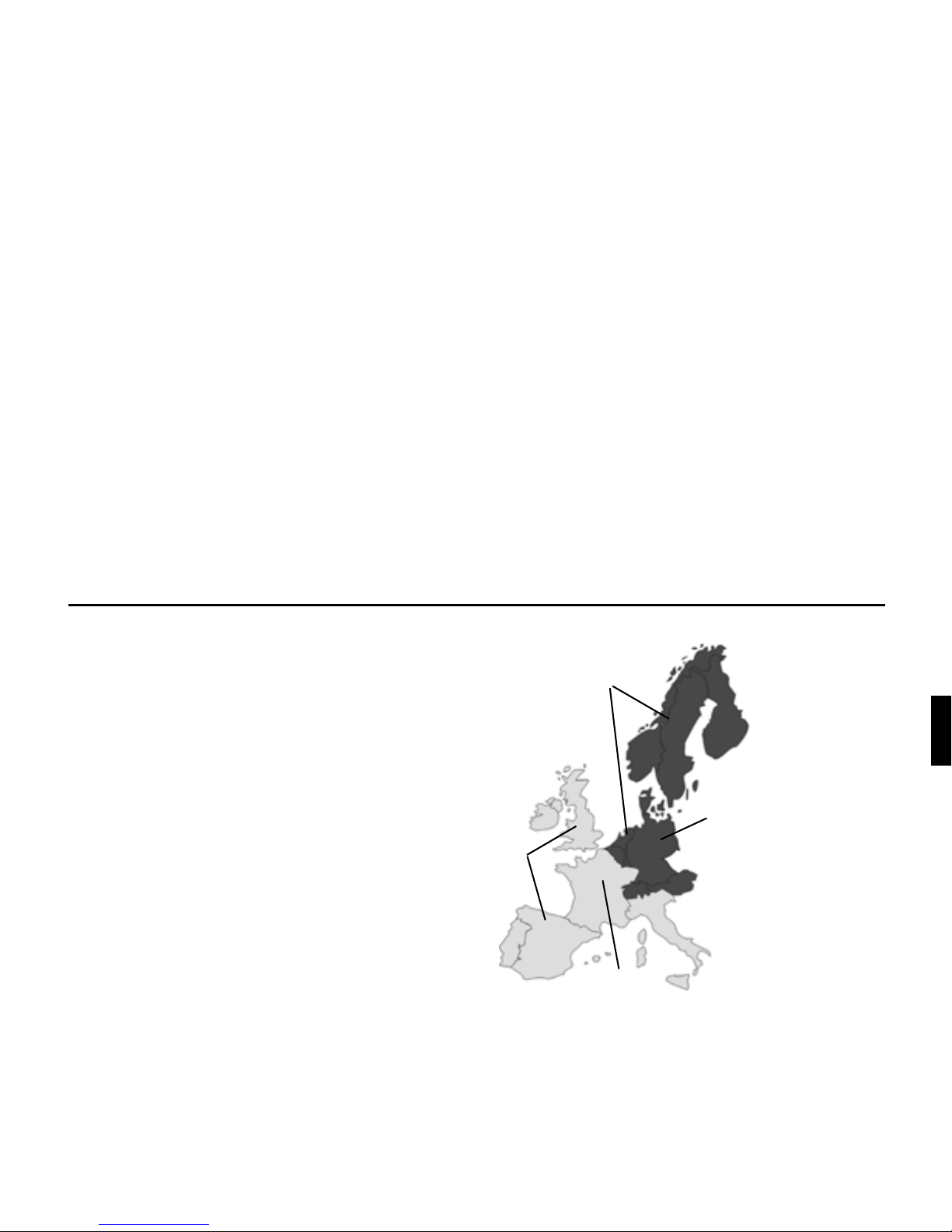

Navigation CDs 89
General Instructions 90
Selecting Navigation 91
Main Navigation Menu 92
Entering Destination 93
Route Menu 99
Entering a Destination in the Destination Memory 102
Route Guidance Calculation 103
Stopover 103
Traffic Jam (Block) Function 105
Cancelling Route Guidance 105
Notes on Route Guidance 106
Information during Route Guidance 108
Destination Memory 111
P.O.I. (Points of Interest) 111
Points of interest (P.O.I.) CD 114
System Settings 116
DTM-Dynamic Traffic Management 123
DTM Functions 123
Dynamic Route Guidance 124
Radio Mode 127
Switching on Radio Mode 127
Switching on Radio Menu Mode 127
Selecting FM Waveband 127
Selecting AM Waveband 127
Settings for Station Selection 127
Dynamic Autostore (FM-DAS) 128
Station Search FM - DAS 128
Station Search MW, LW, SW 128
Scan Search 129
Programme Filtering for FM DAS 129
Programme Type Selection (PTY) 129
Swirching PTY Display On/ Off 130
Calling up/ Storing FM Stations 130
Calling up/ Storing MW, LW, SW Stations 130
Autostore MW, LW 131
Manual Tuning FM 131
Manual Tuning MW, LW, KW 131
Regionalisation 132
Switching Regionalisation On/ Off 132
Switching Frequency Display On/ Off 132
Switching Radio Text On/ Off 133

80
Contents
Traffic Programme (TP) 133
TP - Activating/ Exiting the TP Menu 134
Switching TP On/ Off 134
Selecting Automatic Tracking 134
Selecting / Deleting Direct Programming 135
Switching Mute Function On / Off 135
Interrupting TP Announcements 135
TP Announcement Volume 136
Switching TMC On/ Off 136
Display for receivable TMC stations 137
Telephone Mute Function 137
CD Operation 138
Instructions for Compact Discs (CD) 138
Inserting/ Ejecting CDs 138
Track Skip - Forwards/ Backwards 139
Scan Search 139
Fast Forward/ Rewind 139
Random Play 139
Title Repeat 140
Number of Titles and Total Playing Time 140
Temperature Protection Circuit 140
CD Changer Operation 141
Operational Readiness of CD Changer 141
Loading / Ejecting the CD Magazine 141
Playing CDs 141
Naming a CD 142
CD Filter Function 143
User Menu 144
Call Up / Exit User Settings Menu 144
Setting the GAL (Gal) 144
Telephone Mute Function (Tel) 145
Adjusting Reception Optimisation (M/S) 145
Adjusting the Led 146
Setting Navigation Announcements (Nav) 146
AUX Input (Aux) 146
Display Compass 147
Signal Tone Volume 147
Service Menu 148
Call Up / Exit Service Menu 148
Triggering Reset 148
Connection Instructions 149
Installation and Removal Instructions 150
General Instructions 152
RDS SYSTEM 152
DAS Seek Qual. Level 152
DAS Seek Name Level 152
RDS Stations Level 152
Stations Fix Level 152
PTY (Program Type) 153
Technical Data 154
NOTICE 155

81
Safety Instructions
Operation of the unit is permitted only if the traffic conditions are suitable and you are absolutely sure that you,
your passengers or other motorists are not endangered, obstructed or inconvenienced.
In all cases, valid road traffic regulations apply. The destination must only be entered when the vehicle is stationary.
The navigation system is only an aid. Errors may occur in individual data items/entries. At all times, the driver must
decide whether or not to heed the information provided. We do not accept liability for erroneous data provided by
the navigation system.
Due to continual changes in traffic routing or deviations in the data, it may occur that imprecise or erroneous in-
formation is given. The actual road signs and traffic regulations must therefore always be observed. Above all, the
navigation system is not to be used as an aid to orientation when visibility is poor.
The unit may only be used for its intended purpose. The volume of the radio, navigation system and telephone
should be adjusted so that external noise is still audible.
In the case of a malfunction (i.e. smoke or other noticeable odours) the unit is to be turned off immediately.
For safety reasons, the unit is to be opened only by a trained technician. Please refer to your dealer if repairs are
necessary.
G

82
Information regarding general road safety
This car radio device is intended and approved for installation and operation in passenger cars, commercial vehicles
and buses (vehicle classes M, N and O) whose electric system has a rated voltage of 12V.
Installation and maintenance should only be carried out by specialists. Faulty installation or maintenance can result
in the malfunctioning of the motor vehicle’s electronic systems. The vehicle manufacturer’s safety instructions must
be observed.
The vehicle’s electronics (e.g. speedometer signal) must only be worked on by an authorised service garage. We
assume no liability for any impairment of the vehicle’s electronics.
This device is only intended for installation in the area provided for this purpose by the vehicle manufacturer.
The method of attachment used must ensure that the device will remain properly attached, should the vehicle be
involved in a crash.
The power supply must be properly fused.
Using mobile phones without an external antenna in the proximity of the radio unit may cause interference.
Familiarise yourself with the device and how it works before embarking on your journey. Whilst on the move, only
operate the device in appropriate traffic conditions. The volume of the device should be set at a level that enables
external noises (e.g. police sirens) to be easily heard.

83
Arrangement of Controls

  





Arrangement of Controls
1 Left rotary control (INFO)
2 On / off switch ( )
3 DTM button ( )
4 Tone button
5 Traffic programme button ( )
6 CD selection button ( )
7 Radio selection button ( )
8 Navigation selection button ( )
9 Eject button for CD ( )
10 Right Rotary Control (OK)
11 Multifunction buttons
12 Display
21
'70
6281'
73
&'
5$'
1$9

84
Anti-theft Device
Anti-theft Device
Entering the Code Number
If the auto radio is disconnected from the electrical supply
source, the anti-theft device prevents it from being reconnect-
ed. After turning on the unit via the button, the prompt
5;,96+,<4),9 is displayed.
Using the multifunction buttons “- ”, the five-digit code
number must be entered.
Exampel: Code number 15372 (the code number can be
found on the enclosed CODE CARD).
Enter code number using the multifunction buttons.
Once the fifth digit has been entered and all other digits have
been entered correctly, the unit switches on automatically.
Note: It is important to store the CODE CARD in a safe
place outside of the vehicle. Thus, illegal use is not
possible. The sticker provided should be attached to
the inside of the vehicle windscreen/ window.
If an incorrect code number is entered, the prompt  will
be displayed once again. If an incorrect code number is en-
tered three times in a row, the unit will display $!, and the
unit will be blocked for approximately 60 minutes.
Three further incorrect entries will block the unit for another
60 minutes.
Attention: The waiting time will elapse only when the unit
is switched on.
21
+1"/,!"2*"/

&1


85
General Operation
General Operating Instructions
Switching On/ Off
Press the button.
Alternatively, switch on/ off: via the vehicle ignition. To
switch the unit on via the ignition, the unit must have previ-
ously been turned off via the ignition. After turning off the ve-
hicle ignition, the unit can be kept on by pressing the
button within 3 seconds
Note: The unit can also be turned on without the vehicle ig-
nition by pressing the button, however will shut
off automatically after one hour.
Adjusting Volume
Turn left rotary control . The volume is increased or de-
creased.

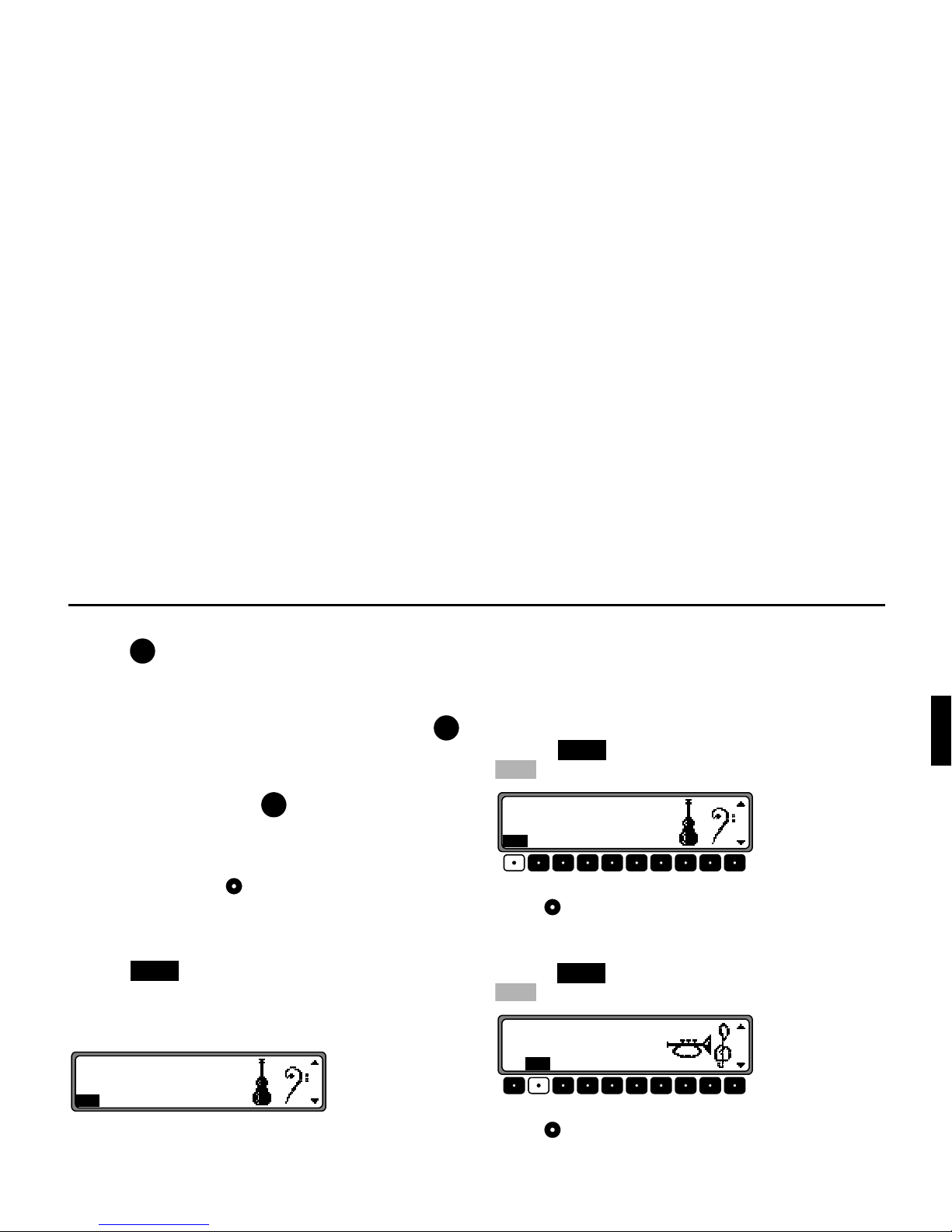

Activate Tone Adjustment Menu
Press the button. The Tone Adjustment menu is acti-
vated. The following functions can be called up: (: (Bass),
!9) (Treble), (+ (Fader), (3 (Balance), 3; (Linear Set-
ting), <) (Subwoofer) and +5 (Loudness).
Settings for bass, treble, fader, balance, and loudness for the
FM, AM (MW, LW, SW) wavebands, road traffic announce-
ments, navigation announcements, telephone operation, CD,
MP3 and CDC/AUX operation are stored separately.
Adjusting the Bass
Press the button.Then press the multifunction button
.
Adjust the bass to the desired level using the right rotary
control .
Adjusting the Treble
Press the button. Then press the multifunction button
.
Adjust the treble to the desired level using the right rotary
control .
21
21
21
6281'
00V
(:!9) (+ (3 3; <) +5
6281'
(:
00V
(:!9) (+ (3 3; <) +5
6281'
!9)
/")"V
(:!9) (+ (3 3; <) +5

86
General Operation

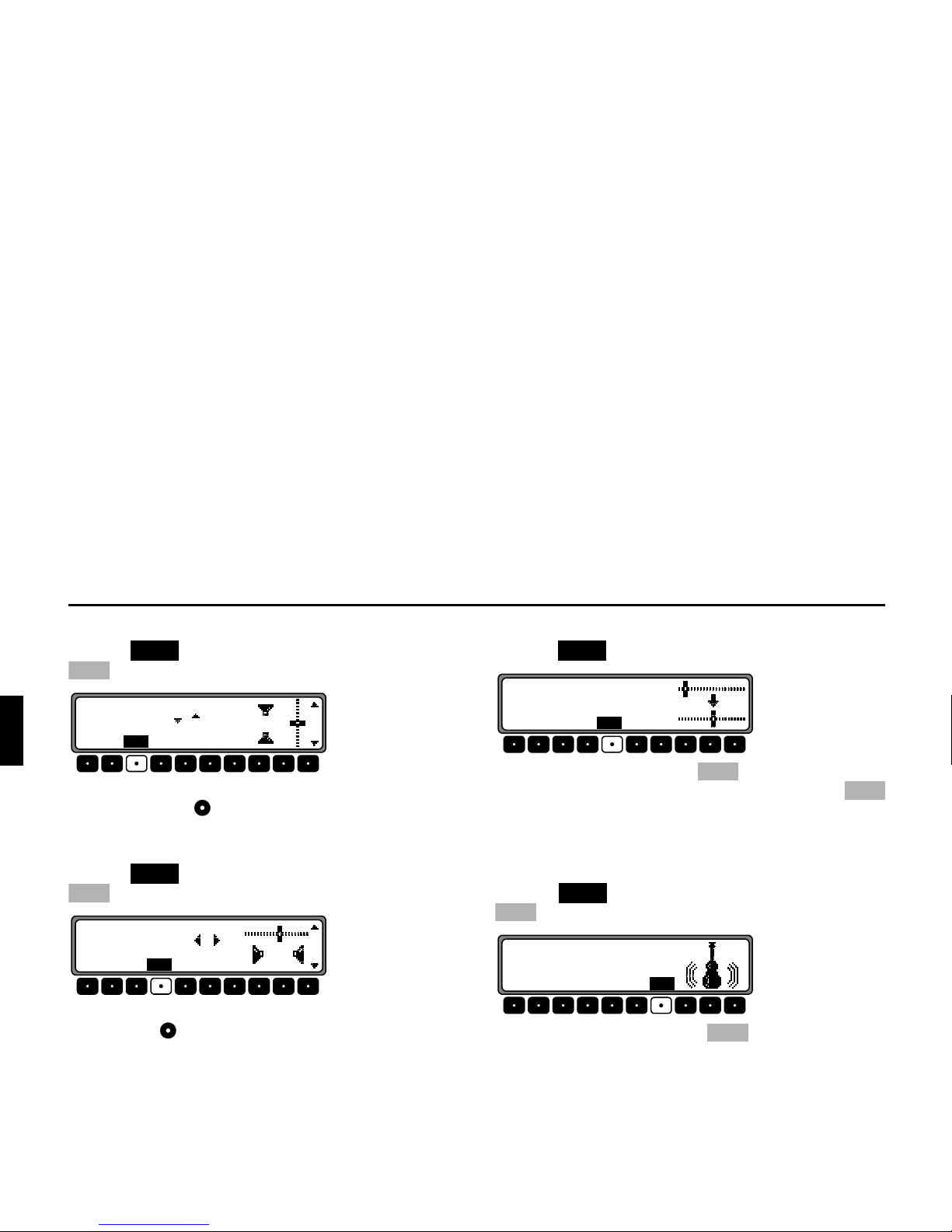

Adjusting the Fader
Press the button. Then press the multifunction button
.
Adjust the fader setting to the desired level by pressing the
right rotary control .
Adjusting the Balance
Press the button. Then press the multifunction button
.
Adjust the balance to the desired level by pressing the right
rotary control .
Linear Setting
Press the button briefly.
Press the multifunction button briefly - !65, -3(;
will be displayed. By pressing the multifunction button
again, the tone adjustments for the current signal source (i.e.
FM) will be reset to mid-level.
Loudness On/ Off
Press the button then press the multifunction button
.
Using the multifunction button either Loudness On
() or Loudness Off () can be selected.
In the MW, LW and SW wavebands, Loudness is switched
off.
6281'
(+
!"/ V
(:!9) (+ (3 3; <) +5
6281'
(3
)+ " V
(:!9) (+ (3 3; <) +5
6281'
,+"#)1?
(:!9) (+ (3 3; <) +5
3;
3;
6281'
+5
,2!+"00
(:!9) (+ (3 3; <) +5
+5

87
General Operation

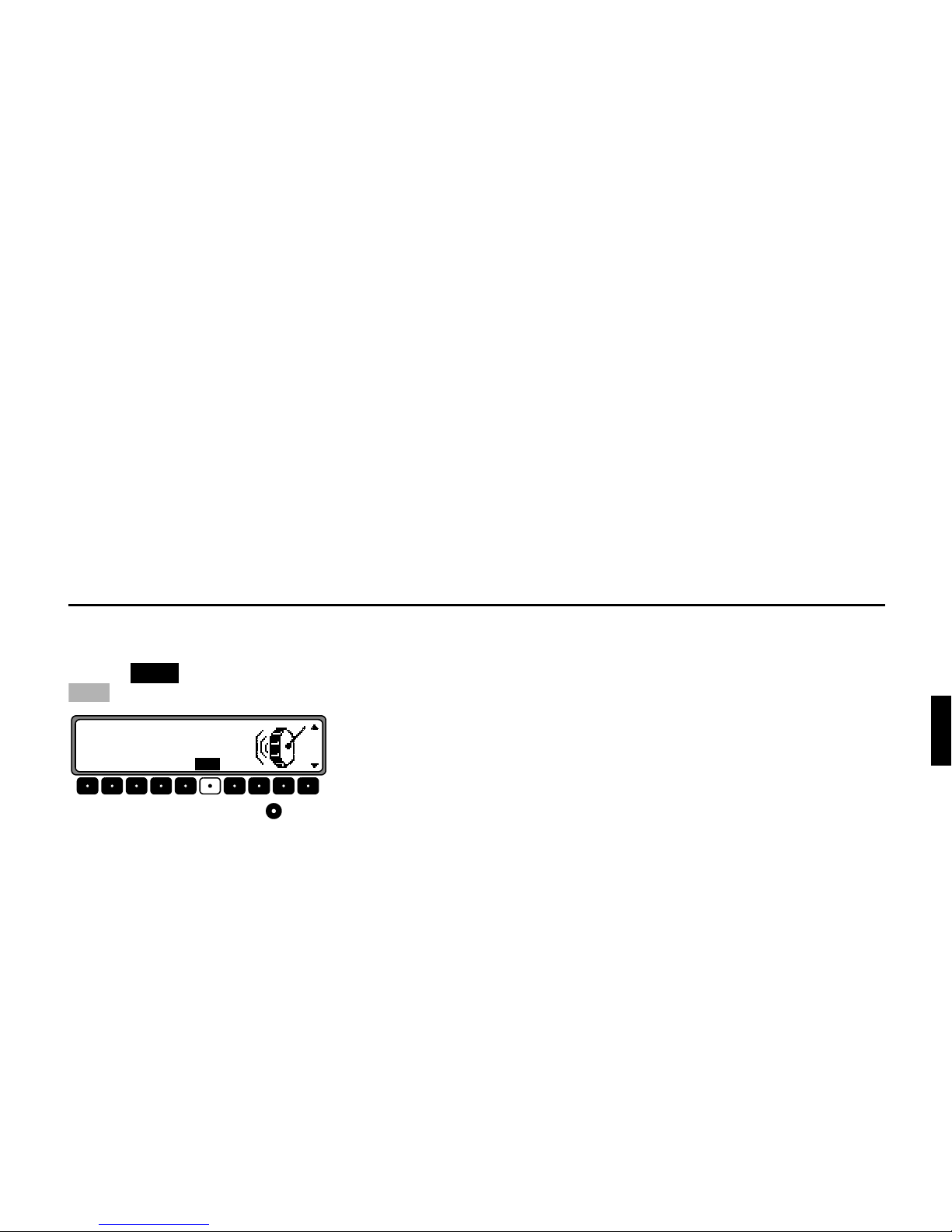

Adjusting the Volume of the Subwoofer or Cen-
tre Speaker
Press the button. Then press the multifunction button
.
Using the right rotary control , adjust the subwoofer vol-
ume setting to the desired level.
6281'
<)
24,,#"/V
(:!9) (+ (3 3; <) +5

88
Navigation Operation
Navigation Operation
What is Navigation?
The term "navigation" (lat. navigare = to travel by sea) is gen-
erally understood to mean the location of a vehicle, the deter-
mination of the direction and distance from the desired
destination and the required route. As navigation aids, stars,
prominent landmarks, compass and satellites are used.
With OnlinePro, location is determined by the GPS receiver
(GPS = Global Positioning System). The direction and dis-
tance from the destination is determined using a digital street
map, a navigation computer and sensors. A speedometer and
reverse signal are additionally used to calculate the route.
For safety reasons, route guidance follows predominantly in
spoken form supported by a direction indicator on the display.
Safety Instructions
- Road traffic regulations always take priority. The naviga-
tion system is only an aid. Errors may occur in individual
data items/entries. At all times, the driver must decide
whether or not to heed the information provided.
We do not accept liability for erroneous data provided by
the navigation system.
- Observation of traffic signs and local traffic regulations
always takes priority
- Traffic guidance is restricted to passenger vehicles. Spe-
cial driving recommendations and regulations for other
vehicles (e.g. commercial vehicles) are not taken into ac-
count.
- The destination must only be entered when the vehicle is
stationary.
G

89
Navigation Operation
Navigation CDs
Two navigation CDs are supplied with the navigation unit.
These CDs contain a digitised street map. One CD for North-
ern Europe (CD no. 1) and one CD for Southern Europe (CD
no. 2) are supplied.
The complete trunk road network and all destination centres
in the digitised area of Northern and Southern Europe are
available on the CDs.
All digitised roads of the northern countries are also included
on the Northern Europe CD. All digitised roads of the south-
ern countries are also included on the Southern Europe CD.
In these detailed areas of the Northern or Southern Europe CD
road map, motorways, regional roads and unclassified roads
as well as country roads are stored. Larger cities and commu-
nities are comprehensively covered. For smaller towns and
communities, the regional and unclassified roads or access
roads and the town centres are included.
One-way streets, pedestrian zones, turning bans and other
traffic regulations are taken into account as far as possible.
There may be discrepancies between the data on the naviga-
tion CD and the actual local situation, due to permanent
changes to road systems and their traffic regulations.
Navigation with two European CDs
A
B
C
D
AArea of Northern Europe CD with all digitised roads.
BFor example, a town or an address in
Germany (on the
Northern Europe CD).
CArea of Southern Europe CD with all digitised roads.
DFor example, a town or an address in France (on the
Southern Europe CD).

90
Navigation Operation
For example, if you wish to navigate from a town on the
Southern Europe CD (D) to a town on the Northern Europe
CD (B), enter your destination address as usual. After enter-
ing the town, you will be prompted to insert navigation CD
No. 1 by the display   !#!D.
After inserting the relevant CD, enter the road and, if re-
quired, the house number or the town centre.
The required map data is loaded and stored internally after
route calculation has started.
Note: For Norway, Sweden, Finland and Denmark, non-ver-
ified data has been used to achieve a high depth of dig-
itisation; i.e. with this data, the navigation system
cannot refer to information such as motorway, trunk
road, 30 zone, one-way street or other traffic regula-
tions, as this is not recorded.
All roads can be used, but optimum route guidance
cannot be guaranteed.
General Instructions
• During route navigation, radio, CD or MP3 will still be
heard.
Distance to the next message and expected time of arrival
are shown on the right side of the display.
• The unit can be switched to radio mode when route guid-
ance is in operation by pressing the button. The
unit is switched to CD mode by pressing the but-
ton.
The Navigation menu is automatically displayed when
navigation announcements are given.
• When entering the address, only those letters, digits and
symbols which are relevant for the address are displayed.
The entries are automatically completed.
An empty space (i.e. in Bad Abbach) must be entered with
an underscore.
Letters, numbers and symbols can be selected using the
multifunction buttons to . The individual
symbols can be selected by pressing the relevant multi-
function buttons repeatedly.
Selection can also be made using the right rotary
control , as described later in this guide.
• exits the current menu and switches to the previ-
ous menu.
5$'
&'
 
1$9

91
Navigation Operation
• The route is recalculated by the system if a deviation is
made from the route.
• Briefly press the left rotary control to hear the current
navigation message.
• During a navigation message, the volume can be adjusted
by pressing the left rotary control , and the tone by
pushing the button for more than 2 seconds (see
page 85).
• By briefly pressing the left rotary control , additional
information can be requested during route guidance or the
current position can be requested when route guidance is
not active. See ”Information during Route Guidance” on
page 108.
• The current navigation announcement is interrupted by
pressing the left rotary control .
• If the left rotary control is held for more than 2 seconds
during a navigation message, the navigation messages are
turned off and route guidance takes place by way of the
display only.
Quickly pressing the left rotary control turns the navi-
gation messages back on.
• The scroll marks and indicate a selection list which
can be scrolled through using the right rotary control .
Each entry in the list shown in capital letters can be select-
ed by pressing the right rotary control .
Selecting Navigation
Press the button.
The main navigation menu appears after this display.
Note: The navigation CD must be loaded when starting nav-
igation mode for the first time. If calibration of the
navigation system has not yet been completed, the
system will prompt you to take a drive for calibration
(see Installation Guide).
A navigation CD containing the data for the target
country is required for navigation operations.
The navigation CD must be inserted to start calcula-
tion of a route. During calculation, the prompt  will
blink in the display. Once calculation is completed,
the prompt  will disappear, the navigation CD can
be removed and an audio CD can be inserted.
When entering destinations, driving off should be de-
layed until the prompt  disappears.
6281'
1$9
#! !#!B
  #!

92
Navigation Operation
Main Navigation Menu
Selection can be made from
 !!,
 !Y&,
YYY,
 ! !! ,
by turning, and pressing the right rotary control .
• !!
Accesses the entry menu for the destination.
See ”Entering Destination” on page 93.
• !!&
Contains destinations that were previously stored.
See ”Destination Memory” on page 111.
•YYY
Menu for selecting regional and interregional destinations
of special interest and local points of interest. POIs are for
example petrol stations, airports or hospitals. See ”P.O.I.
(Points of Interest)” on page 111.
• ! !!
A list of the last 50 destinations driven to is displayed.
With the right rotary control , the desired destination
can be selected. By pressing the left rotary control , in-
formation on the destination can be called up before con-
firming by pressing the right rotary control . Stopovers
are not stored as last destinations.
 !Y&

YYY

93
Navigation Operation
Entering Destination
In the Main Navigation menu, select  !! with the
right rotary control and press to confirm.
Selecting Country
If your destination is in a country other than the one currently
shown, select "!& with the right rotary control and
press to confirm.
Select the desired country with the right rotary control and
press to confirm.
Note: When selecting a distant destination, we recommend
selecting a stopover (page 103) halfway.
Entering Destination
The last location entered is displayed.
If you wish to select a destination within the area shown, you
can immediately select  or !.
If your destination lies in another area, select location with the
right rotary control and press to confirm.
Select the letters one after the other by turning the right rotary
control and press to confirm. The enlarged selected letter
appears at the right of the display.
With the multifunction button , the last letter confirmed
is deleted.
The complete entry can be deleted by pressing the multifunc-
tion button for more than 2 seconds.
&



 
!!
!!


!$P
 !"#$Y&'
YYYYYYYYYYYYYYYYYYYYYYY

94
Navigation Operation

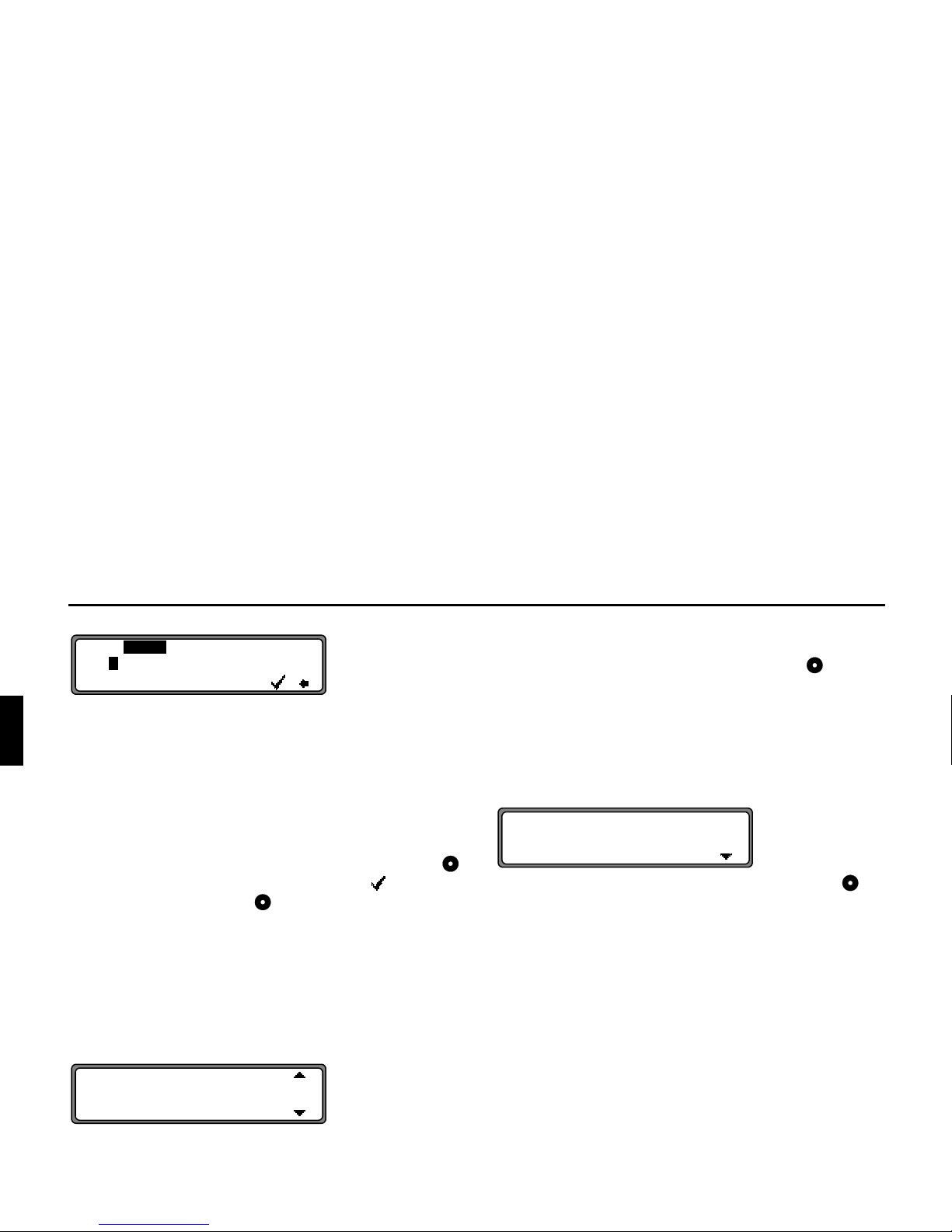

Letters that have already been entered are displayed inverse-
ly. For the purpose of support, the name of the location closest
to the previous entry is displayed. The unit offers only the
possible remaining letters for selection. If no other entries are
available, the unit completes the place-name automatically.
To accept the entry, press and hold the right rotary control
for more than 2 seconds or select the small tick and briefly
press the right rotary control .
If the complete location name has been entered or completed
automatically; i.e. the location entered exists only once in the
country of destination, the unit will switch automatically to
either the place selection list or the Road/ Centre entry.
If there are no streets or only the centre is available for a par-
ticular town, the unit will switch directly to the Route menu.
If an incomplete location entry was confirmed, the place se-
lection list is displayed.
The name closest to the entry appears in capital letters in the
place-distinguishing list.
The scroll marks indicate that other locations in alphabetical
order can be selected.
A selection can be made by turning the right rotary control
and pressing to confirm. (See ”General Instructions” on
page 90.)
If a definite entry is given, the switches to the Road/ Centre
Entry. If there are no streets or only the centre is available for
a particular town, the unit will switch directly to the Route
menu.
If the selection is unclear or ambiguous, the place-distin-
guishing list is shown.
Select the desired destination using the right rotary control
and press to confirm.
The program returns to the Road or Centre Entry.
If there are no streets or only the centre is available for a par-
ticular town, the unit will switch directly to the Route menu.
!$P
YYYYYYYYYYYYYYYYYYYYYYY
YYYYYYYYYYYYYYYYYYYYYYYY
 "

!
 "

!

95
Navigation Operation
Selecting destination via post code
The destination can also be selected via the town’s post code.
Select the destination’s  ! by turning the right ro-
tary control and press to confirm the selection.
Using the right rotary control , enter the post code for the
destination and press for more than 2 seconds to confirm the
entry. To confirm, the small tick can also be selected and
the right rotary control briefly pressed.
The display then shows either the destination corresponding
to the post code or, if the post code is shared among several
towns, a list containing these towns.
Select the required location using the right rotary control
and press to confirm.
If more than 20 locations share the same post code, the dis-
play will show the location input menu instead of the above-
mentioned list. In that case, the location name is to be entered
as described in ”Entering Destination” on page 93.
The program returns to road or centre entry. If there are no
streets in the selected town or only the centre can be selected,
the unit will switch directly to the route menu.
Entering Destination Road
Select with the right rotary control and press to con-
firm.
Select the letters one after the other by turning the right rotary
control and press to confirm. The selected letter appears
enlarged at the right of the display.
With the multifunction button , the last letter confirmed
is deleted.
The complete entry can be deleted by pressing the multifunc-
tion button for more than 2 seconds.
!

!
 !P
YY !"Y$Y&'
YYYYYYYYYYYYYYYYYYYYY

 "


!
P
 !"#$Y&'
YYYYYYYYYYYYYYYYYYYYY

96
Navigation Operation
Letters that have already been entered are displayed inverse-
ly. For the purpose of support, the existing entry is displayed
at the next road to be reached. The unit offers only the possi-
ble remaining letters for selection.
If no other entries are available, the unit completes the road-
name.
To accept the entry, press and hold the right rotary control
for more than 2 seconds or select the small tick and briefly
press the right rotary control .
If the street name was entered completely or automatically
completed, the program switches to either road-distinguish-
ing list (same street name exists more than once in the loca-
tion selected) or returns to the Route menu.
If an incomplete location entry was confirmed, the road selec-
tion list is displayed.
The road nearest to the entry appears in capital letters in the
road selection list.
The scroll marks indicate that other streets in alphabetical or-
der can be selected.
Select the road by turning the right rotary control and press
to confirm.
If a definite entry is given, the program returns to the Route
menu.
If entry is unclear (same street exists more than once in the
same location), the street distinguishing list is shown.
Select the required place using the right rotary control and
press to confirm.
Program switches to the Route menu.
P
YYYYYYYYYYYYYYYYYYYYYY
YYYYYYYYYYYYYYYYYYYYY


!
MV


97
Navigation Operation
Entering the Destination Centre
With the right rotary control , select! and press to
confirm.
If the previously selected location has only one centre, the
program immediately switches to the Route menu.
If the number of centres is less than 10, the centre list is dis-
played.
Select the centre by turning the right rotary control and
press to confirm.
If the number of centres is greater than 9, the program switch-
es to centre entry.
Select the letters one after the other by turning the right rotary
control and press to confirm. The selected letter appears
enlarged at the right of the display.
With the multifunction button , the last letter confirmed
is deleted.
The complete entry can be deleted by pressing the multifunc-
tion button for more than 2 seconds.
Letters that have already been entered are displayed inverse-
ly. For the purpose of support, the existing entry is displayed
at the next centre to be reached. The unit offers only the pos-
sible remaining letters for selection. If no other entries are
available, the unit completes the centre-name.
To accept the entry, press and hold the right rotary control
for more than 2 seconds or select the small tick and briefly
press the right rotary control .
Once the complete centre name is entered or automatically
completed, the program switches to the Route menu.
If the selection is not clear, the program switches to the Centre
list.


 !

!
!P
YY !"#$YYY
YYYYYYYYYYYYYYYYYYYYY
!P
YYYYYYYYYYYYYYYYYYYYYYY
YYYYYYYYYYYYYYYYYYYYY

"

98
Navigation Operation
The centre nearest to the entry appears in capital letters in the
centre list.
The scroll marks indicate that other centres in alphabetical or-
der can be selected.
Select the centre by turning the right rotary control and
press to confirm.
Program switches to the Route menu.
Note: By pressing the right rotary control for more than
2 seconds without previously entering a letter, a list of
the possible location centres will immediately appear.
Destination input via coordinates
If the geographical coordinates (latitude and longitude) of a
destination are known, these can be entered and route
guidance to the destination started.
To enter the coordinates of the destination, select
! by turning the right-hand rotary control .
Press to confirm the selection.
Enter the latitude of the destination using the right-hand
rotary control . Entries must be made in degrees, minutes,
seconds and a direction as the crow flies, e.g. 11°38’34[[ N.
To confirm the entry, press and hold the right-hand rotary
control for more than 2 seconds. To confirm, the small
tick can also be selected and the right-hand rotary
control pressed briefly.
Enter the longitude of the destination using the right-hand
rotary control as described above.
 !

&
!!"P
YYYYYYYYYYYYYYYYYYYYYYYYYYY
YYYYYYYYY
LONGITUDEP
YYYYYYYYYYYYYYYYYYYYYYYYYYY
YYYYYYYYY
