The CX20x0 device series is a modular control system designed for DIN rail installation. The system is
scalable, so that the required modules can be assembled and installed in the control cabinet or terminal box
as required.
Only switch the PC off after closing the software
Before the Embedded PC is switched off, the software currently running on it should be stopped properly in
order to avoid data loss on the hard disk. Please read the section on “Switching off”.
Switch off all system components and uncouple the Industrial PC from the system if the PC is not used for
control purposes, e.g. during a function test. To disconnect first pull the first terminal behind the power
supply unit (optional), then pull the connectors of the fieldbus connections.
System components that have been switched off must be secured against being switched on again.
The Embedded PC’s power supply unit must be supplied with 24VDC.
NOTE
Damage to the environment or devices
Do not exchange any parts when under power! The exchange of controller parts when live can lead to
short-circuits or overvoltages. These can damage the controller itself and connected peripherals (terminals,
monitors, input devices, etc.).
When components are being fitted or removed, the supply voltage must be switched off.
Software knowledge
NOTE
System malfunctions
Mandatory software knowledge! Every user must be familiar with any of the functions of the software in-
stalled on the PC that he can reach.

Product overview
CX2500-0070 9Version: 1.1
2.2 System overview
CX2500-00xx System modules
The system modules for the CX2000 family are connected to the CPU on the left-hand side via a multi-pin
connector. Internally they are connected via PCI Express. Up to four modules can be connected in any
order. The CX2500-0020 audio module has jack plug (5 x 3.5 mm) and cinch plug for digital signals (SPDIF).
Up to 7.1 multi-channel audio can be used. Serial interfaces can be added with the modules CX2500-0030
(RS232) and CX2500-0031 (RS422/RS485). The CX2500-0060 module provides two further independent
Gbit Ethernet interfaces. The CX2500-0070 module can be used to add up to four further USB 3.0 interfaces.
The expansion modules for the CX2000 family are connected to the CPU on the right-hand side via a multi-
pin connector. Up to two CX2550-0010 CFast modules can be connected, so that a total of up to three CFast
slots are available.
2.3 CX2500-0070 - Technical data
The system interface CX2500-0070 expands a CX20x0 by four further USB interfaces.
Technical data CX2500-0070
Interfaces 4 x USB 3.0, Type A
Power supply via system bus (via power supply module
CX2100-0xxx)
Current supply max. 900 mA each Port max. 2000 mA total current
max. Power loss 2.4 W
Dielectric strength 500 V (supply / internal electronics)
Dimensions (W x H x D) 24 mm x 99 mm x 54,5 mm
Weight approx. 195 g
Operating/storage temperature -25° C ... +60° C / -40° C ... +85° C
Relative humidity 95% no condensation
Vibration/shock resistant conforms to EN 60068-2-6 / EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protection class IP 20
Further Information: www.beckhoff.de/CX2000

Mounting and wiring
CX2500-007010 Version: 1.1
3 Mounting and wiring
3.1 Unpacking, installation and transport
The specified storage conditions must be adhered to (see "Technical data").
Dimensions and weight of the individual modules
Dimensions (W x H x D): 24 mm x 100 mm x 55 mm
Weight: approx. 195 g (system interface)
Unpacking
Proceed as follows to unpack the unit:
1. Remove packaging.
2. Do not discard the original packaging. Keep it for transporting the device in the future.
3. Check the delivery for completeness by comparing it with your order.
4. Please keep the associated paperwork. It contains important information for handling the unit.
5. Check the contents for visible shipping damage.
6. If you notice any shipping damage or inconsistencies between the contents and your order, you
should notify Beckhoff Service.
NOTE
Danger of damage to the device!
During transport in cold conditions, or if the device is subjected to extreme temperature differences, con-
densation on and inside the device must be avoided. Prior to operation, the device must be allowed to
slowly adjust to room temperature. Should condensation occur, a delay time of approximately 12 hours
must be allowed before the unit is switched on.
Installation
The devices are designed for installation in control cabinets.
Shipping and relocation
Despite the robust design of the unit, the components are sensitive to strong vibrations and impacts. During
transport, your computer should therefore be protected from excessive mechanical stress. Therefore, please
use the original packaging.

Mounting and wiring
CX2500-0070 11Version: 1.1
3.2 Dimensions
The following drawings show the dimensions of the CX2500-0070 interface.
Dimensions

Mounting and wiring
CX2500-007012 Version: 1.1
3.3 Attaching the system interface to the CX20x0 system

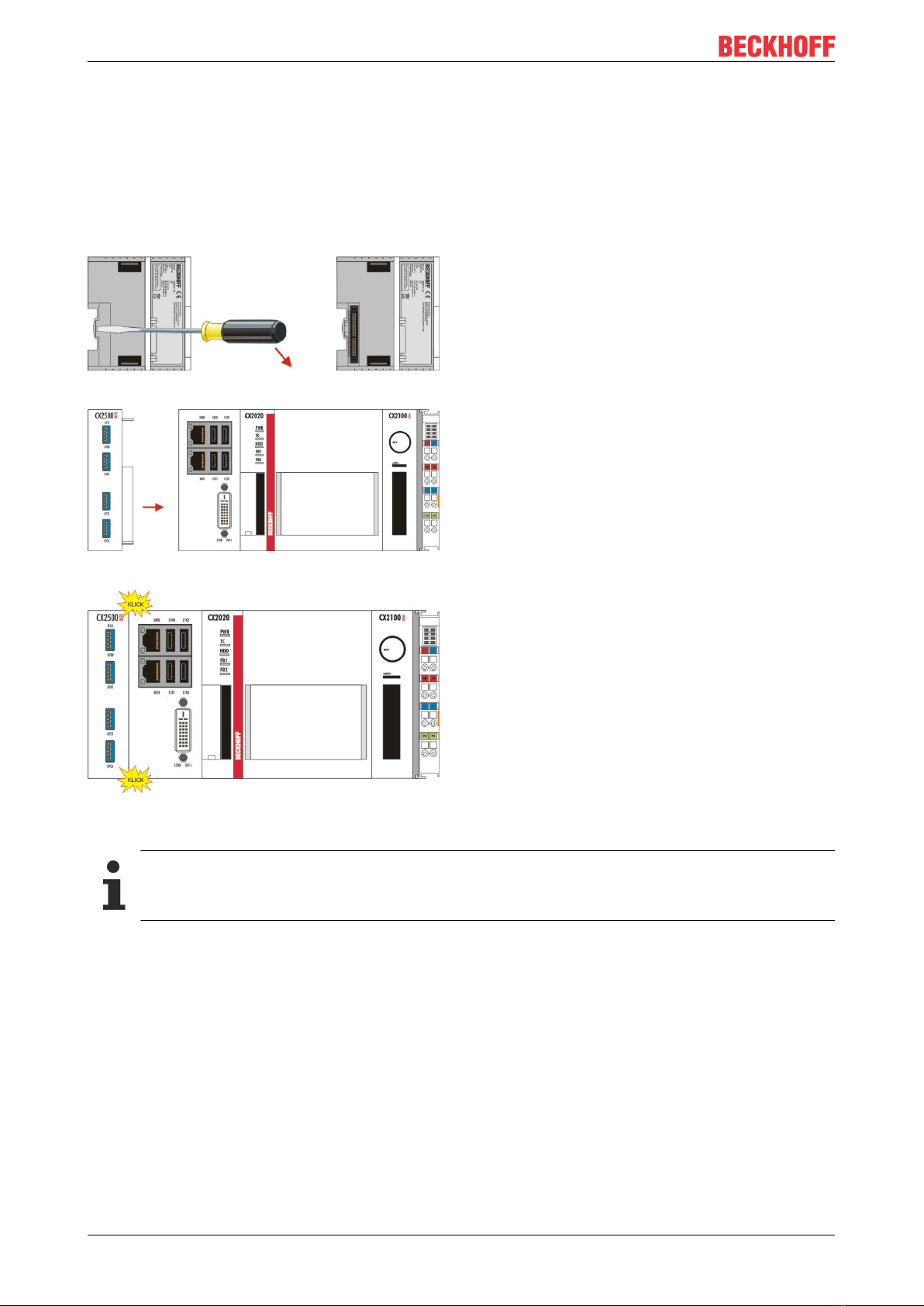

Opening the PCI Express bus cover
The system interfaces for the CX20x0 system are connected via the internal PCI Express bus, which has a
protective cap. The cap can be removed with a screwdriver. To this end insert the screwdriver into the recess
in the short side (see diagram) and lever off the cap. The bus connector is then accessible, as shown in the
diagram.
Once the bus connector is accessible, the module can be attached on the left-hand side.
The module audibly locks into place.
Further modules can be connected to the system in the same way. Once all modules are connected, the
system is placed on the DIN rail as a block. For details please refer to the section on DIN rail mounting.
Maximum number of system interfaces
Up to four system interfaces can be attached on the left-hand side of the system.
3.4 Installation on the mounting rail
Snapping onto the mounting rail
The CX20x0 can simply be snapped onto the mounting rail. The bar clips are inserted on the top side and
underside Then simply position the block on the mounting rail and push it slightly until it engages on the
right-hand side. This is indicated by a distinct click. The bars are then engaged again. The engagement of
the individual bars is indicated by a distinct click.

Mounting and wiring
CX2500-0070 13Version: 1.1
NOTE
Avoid damage!
Do not force the module or apply excessive pressure!
Installation position
NOTE
Comply with the permitted installation position and minimum distances!
The maximum ambient temperature for CPU modules mounted on a DIN rail is 60°C. The orientation in
which the device is fitted must be selected in such a way that cooling air can flow vertically through the ven-
tilation holes. The images below show the permitted and two incorrect installation positions. Mounting must
provide a clearance of 30 mm both above and below a CX20x0 device combination to ensure adequate
ventilation of the base CPU module and the power supply unit.

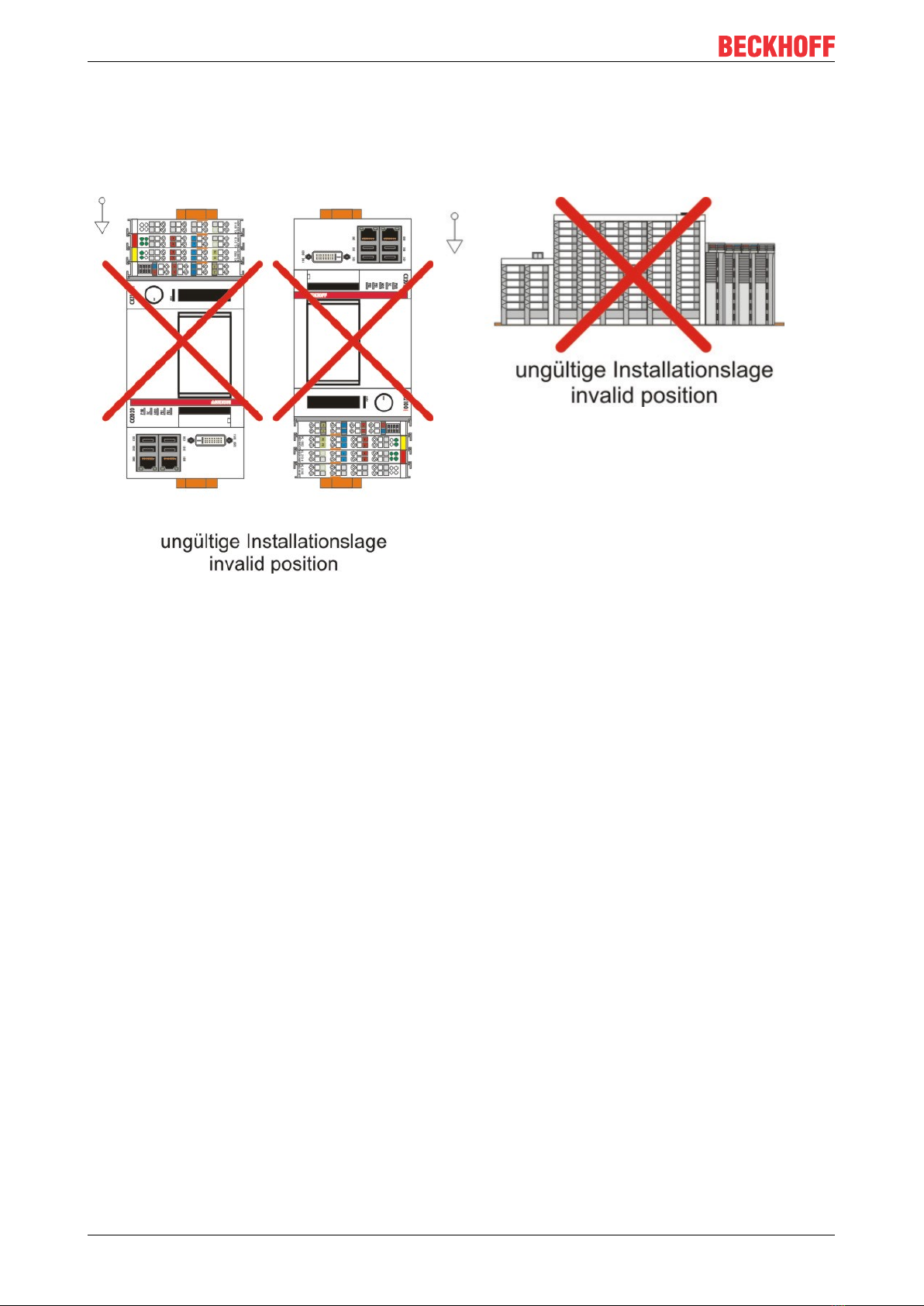

Correct installation position
The high performance and the compact design of the CX20x0 systems may result in increased heat
generation. The heat is dissipated via a passive ventilation system. This system requires the unit to be
mounted correctly. Ventilation openings are located at the top and bottom of the housing. The system
therefore has to be installed horizontally. This ensures optimum air flow.

Mounting and wiring
CX2500-007014 Version: 1.1
Incorrect installation positions
The CX20x0 system must not be operated vertically on the DIN rail. A vertical position would lead to
insufficient CPU ventilation, since the ventilation openings are located on the top and bottom of the housing.
Installation of the system on its side would also lead to inadequate ventilation.

Mounting and wiring
CX2500-0070 15Version: 1.1
3.5 Mounting the module lock
Mounting the lock
The CX20x0 controller system is fully modular, i.e. all system interfaces of the system are field-configurable.
As a rule the latching of the modules to each other is sufficiently strong. However, it is possible for the
controller and its modules to be exposed to vibrations, shocks or impacts. The modules can be securely
connected to one another with the aid of bar clips.
The bar clips are inserted on the top side and underside.
If all system interfaces are locked, then the entire assembly can be snapped onto the support rail.

Mounting and wiring
CX2500-007016 Version: 1.1
Dismounting the lock
In order to dismantle the assembly it must first be removed from the support rail. Afterwards the bar clips can
be removed with the aid of a screwdriver:
Once the bar clips have been raised they can be pulled out. Subsequently, the system interfaces can be
separated again.

Mounting and wiring
CX2500-0070 17Version: 1.1
3.6 USB connections
USB 3.0 interface (X700 / X701 / X702 / X703):
The CX2500-0070 devices extend the CX20x0 system with four further USB 3.0 interfaces. Each interface
has a maximum power output of 900 mA. The maximum total power output is 2000 mA. The interfaces are
backward compatible with the USB 2.0 and USB 1.1 standards.
The USB socket is a type A socket. The USB interface complies with the USB 3.0 specification.
Pin Assignment Description
1 VBus +5V Power
2 USB D- USB 2.0 data
3 USB D+
4 GND Ground
5 StdA_SSRX- SuperSpeed receiver
6 StdA_SSRX+ SuperSpeed receiver
7 GND_DRAIN Signal ground
8 StdA_SSTX- SuperSpeed transmitter
9 StdA_SSTX+ SuperSpeed transmitter
Maximum current output
The maximum total current over all four USB interfaces is 2000 mA. If this value is exceeded, the
whole module (i.e. all interfaces) is switched off. Once the overload situation is resolved (i.e. once
the consumer that caused the overload has been removed), the module restarts, and the other de-
vices are once again available.

Mounting and wiring
CX2500-007018 Version: 1.1
Notes regarding the cables used
In order to ensure trouble-free operation, only cables that comply with the USB 3.0 specification
should be used. If the interface is operated in compatibility mode for USB 2.0 / 1.1, the cables must
comply with this standard.

Commissioning / Configuration
CX2500-0070 19Version: 1.1
4 Commissioning / Configuration
4.1 Switching on and off
Switching on
The power supply for the basic CPU module comes from the power supply unit. The basic CPU module
starts automatically when the power supply unit is connected to the mains.
Switching on for the first time
When you switch on the PC for the first time, the pre-installed operating system (optional) will be started.
Switching off
The Embedded PC switches off when the power supply unit is switched off. The control software typically
running on Embedded PCs should be shut down or stopped correctly. A user who may not close software
may also not switch the Embedded PC off, since data can be lost from the hard disk by switching off while
software is running.
Once the software has been stopped, the operating system can be shut down. Only then should the power
supply be interrupted.

Error handling and diagnostics
CX2500-007020 Version: 1.1
5 Error handling and diagnostics
5.1 Faults
Please also refer to the Safety instructions section.
Possible faults and their correction
Fault Cause Measures
no function after the Embedded PC
has been switched on
no power supply for the Embedded
PC
other causes
1.Check the fuse
2. Measure voltage at connection,
check plug wiring, call Beckhoff
support
Embedded PC does not boot fully Hard disk damaged (e.g. due to
switching off while software is
running), incorrect setup, other
causes
Check setup Call Beckhoff Support
Computer boots, software starts,
but control does not operate
correctly
Cause of the fault is either in the
software or in parts of the plant
outside the Embedded PC
Call the manufacturer of the
machine or the software.
CF card access error Faulty CFast card, faulty CFast slot Use a different CFast card to check
the CFast slot Call Beckhoff
Support
Embedded PC only works partially
or temporarily
Defective components in the
Embedded PC
Call Beckhoff support
Please make a note of the following information before contacting Beckhoff service or support:
1. Precise device ID: CXxxxx-xxxx
2. Serial number
3. Hardware version
4. Any interfaces (N030, N031, B110, ...)
5. TwinCAT version used
6. Any components / software used
The quickest response will come from support / service in your country. Therefore please contact your
regional contact. For details please refer to our website at www.beckhoff.de or ask your distribution partner.
