Beckhoff CB2050 User manual

Beckhoff Automation GmbH phone: [phone]
Eiserstr. 5 fax: [phone]
33415 Verl email: [email protected]
Germany web: www.beckhoff.de
CB2050
Manual
rev 1.2

Contents
Beckhoff New Automation Technology CB2050 page 3
Contents
0Document History................................................................................................................................. 6
1Introduction .......................................................................................................................................... 7
1.1 Notes on the Documentation........................................................................................................ 7
1.1.1 Liability Conditions................................................................................................................ 7
1.1.2 Copyright............................................................................................................................... 7
1.2 Safety Instructions ........................................................................................................................ 8
1.2.1 Disclaimer............................................................................................................................. 8
1.2.2 Description of Safety Symbols.............................................................................................. 9
1.3 Essential Safety Measures ......................................................................................................... 10
1.3.1 Operator's Obligation to Exercise Diligence ....................................................................... 10
1.3.2 National Regulations Depending on the Machine Type ..................................................... 10
1.3.3 Operator Requirements...................................................................................................... 10
1.4 Functional Range........................................................................................................................ 11
2Overview............................................................................................................................................ 12
2.1 Features...................................................................................................................................... 12
2.2 Specifications and Documents ................................................................................................... 14
3Connectors......................................................................................................................................... 15
3.1 Power Supply.............................................................................................................................. 16
3.2 CMOS Battery............................................................................................................................. 17
3.3 System........................................................................................................................................ 18
3.4 PISA Slot..................................................................................................................................... 19
3.5 Mini-PCI...................................................................................................................................... 22
3.6 Memory....................................................................................................................................... 24
3.7 IDE interface............................................................................................................................... 27
3.8 Floppy interface .......................................................................................................................... 28
3.9 USB, Keyboard/Mouse............................................................................................................... 29
3.10 Serial Interfaces COM1 & COM2 ............................................................................................... 31
3.11 VGA/DVI ..................................................................................................................................... 32
3.12 LVDS........................................................................................................................................... 33
3.13 LAN1........................................................................................................................................... 35
3.14 LAN2........................................................................................................................................... 36
3.15 Touch Screen ............................................................................................................................. 37
3.16 Audio........................................................................................................................................... 38
3.17 GPIO........................................................................................................................................... 39
3.18 SMB/I2C...................................................................................................................................... 40
3.19 Fan Connectors .......................................................................................................................... 41
4BIOS Settings..................................................................................................................................... 42
4.1 Remarks for Setup Use .............................................................................................................. 42
4.2 Top Level Menu.......................................................................................................................... 42
4.3 Standard CMOS Features .......................................................................................................... 43
4.3.1 IDE Primary Master/Slave .................................................................................................. 45
4.4 Advanced BIOS Features........................................................................................................... 46
4.4.1 CPU Feature....................................................................................................................... 48
4.5 Advanced Chipset Features ....................................................................................................... 49
4.6 Integrated Peripherals ................................................................................................................ 51
4.6.1 OnChip IDE Devices........................................................................................................... 52

Contents
page 4 Beckhoff New Automation Technology CB2050
4.6.2 Onboard Devices................................................................................................................ 53
4.6.3 SuperIO Devices................................................................................................................. 54
4.7 Power Management Setup......................................................................................................... 55
4.8 PnP/PCI Configuration................................................................................................................ 57
4.8.1 IRQ Resources ................................................................................................................... 58
4.8.2 Memory Resources............................................................................................................. 59
4.9 PC Health Status ........................................................................................................................ 60
4.10 Frequency/Voltage Control......................................................................................................... 62
4.11 Load Fail-Safe Defaults.............................................................................................................. 63
4.12 Load Optimized Defaults ............................................................................................................ 63
4.13 Set Password.............................................................................................................................. 63
4.14 Save & Exit Setup....................................................................................................................... 63
4.15 Exit Without Saving..................................................................................................................... 63
5BIOS update....................................................................................................................................... 64
6Mechanical Drawings....................................................................Fehler! Textmarke nicht definiert.
7Technical Data................................................................................................................................... 65
7.1 Electrical Data............................................................................................................................. 65
7.2 Environmental Conditions........................................................................................................... 65
7.3 Thermal Specifications ............................................................................................................... 66
8Support and Service .......................................................................................................................... 67
8.1 Beckhoff's Branch Offices and Representatives ........................................................................ 67
8.2 Beckhoff Headquarters............................................................................................................... 67
8.2.1 Beckhoff Support ................................................................................................................ 67
8.2.2 Beckhoff Service................................................................................................................. 67
IAnnex: Post-Codes............................................................................................................................ 69
II Annex: Resources.............................................................................................................................. 72
IO Range................................................................................................................................................ 72
Memory Range....................................................................................................................................... 72
Interrupt.................................................................................................................................................. 72
PCI Devices............................................................................................................................................ 73
SMB Devices.......................................................................................................................................... 73

Notes on the Documentation Chapter: Document History
Beckhoff New Automation Technology CB2050 page 5

Chapter: Document History Notes on the Documentation
page 6 Beckhoff New Automation Technology CB2050
0 Document History
Version
Changes
0.1
first pre-release
1.0
updated contact details, minor changes
1.1
minor changes
1.2
updated LAN pinout in chapter 3.14
NOTE
All company names, brand names, and product names referred to in this manual are registered or
unregistered trademarks of their respective holders and are, as such, protected by national and
international law.

Notes on the Documentation Chapter: Introduction
Beckhoff New Automation Technology CB2050 page 7
1 Introduction
1.1 Notes on the Documentation
This description is only intended for the use of trained specialists in control and automation engineering
who are familiar with the applicable national standards. It is essential that the following notes and
explanations are followed when installing and commissioning these components.
1.1.1 Liability Conditions
The responsible staff must ensure that the application or use of the products described satisfy all the
requirements for safety, including all the relevant laws, regulations, guidelines and standards.
The documentation has been prepared with care. The products described are, however, constantly under
development. For that reason the documentation is not in every case checked for consistency with
performance data, standards or other characteristics. None of the statements of this manual represents a
guarantee (Garantie) in the meaning of § 443 BGB of the German Civil Code or a statement about the
contractually expected fitness for a particular purpose in the meaning of § 434 par. 1 sentence 1 BGB. In
the event that it contains technical or editorial errors, we retain the right to make alterations at any time and
without warning. No claims for the modification of products that have already been supplied may be made
on the basis of the data, diagrams and descriptions in this documentation.
1.1.2 Copyright
© This documentation is copyrighted. Any reproduction or third party use of this publication, whether in
whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden.

Chapter: Introduction Safety Instructions
page 8 Beckhoff New Automation Technology CB2050
1.2 Safety Instructions
Please consider the following safety instructions and descriptions. Product specific safety instructions are
to be found on the following pages or in the areas mounting, wiring, commissioning etc.
1.2.1 Disclaimer
All the components are supplied in particular hardware and software configurations appropriate for the
application. Modifications to hardware or software configurations other than those described in the
documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH.

Safety Instructions Chapter: Introduction
Beckhoff New Automation Technology CB2050 page 9
1.2.2 Description of Safety Symbols
The following safety symbols are used in this documentation. They are intended to alert the reader to the
associated safety instructions.
ACUTE RISK OF INJURY!
If you do not adhere to the safety advise next to this symbol, there is immediate danger to life and health of
individuals!
RISK OF INJURY!
If you do not adhere to the safety advise next to this symbol, there is danger to life and health of individuals!
HAZARD TO INDIVIDUALS,ENVIRONMENT,DEVICES,OR DATA!
If you do not adhere to the safety advise next to this symbol, there is obvious hazard to individuals, to
environment, to materials, or to data.
NOTE OR POINTER
This symbol indicates information that contributes to better understanding.

Chapter: Introduction Essential Safety Measures
page 10 Beckhoff New Automation Technology CB2050
1.3 Essential Safety Measures
1.3.1 Operator's Obligation to Exercise Diligence
The operator must ensure that
othe product is only used for its intended purpose
othe product is only operated in sound condition and in working order
othe instruction manual is in good condition and complete, and always available for reference at the
location where the products are used
othe product is only used by suitably qualified and authorised personnel
othe personnel is instructed regularly about relevant occupational safety and environmental protection
aspects
othe operating personnel is familiar with the operating manual and in particular the safety notes
contained herein
1.3.2 National Regulations Depending on the Machine Type
Depending on the type of machine and plant in which the product is used, national regulations governing
the controllers of such machines will apply, and must be observed by the operator. These regulations cover,
amongst other things, the intervals between inspections of the controller. The operator must initiate such
inspections in good time.
1.3.3 Operator Requirements
oRead the operating instructions
All users of the product must have read the operating instructions for the system they work with.
oSystem know-how
All users must be familiar with all accessible functions of the product.

Functional Range Chapter: Introduction
Beckhoff New Automation Technology CB2050 page 11
1.4 Functional Range
NOTE
The descriptions contained in the present documentation represent a detailed and extensive product
description. As far as the described motherboard was acquired as an integral component of an Industrial
PC from Beckhoff Automation GmbH, this product description shall be applied only in limited scope. Only
the contractually agreed specifications of the corresponding Industrial PC from Beckhoff Automation GmbH
shall be relevant. Due to several models of Industrial PCs, variations in the component placement of the
motherboards are possible. Support and service benefits for the built-in motherboard will be rendered by
Beckhoff Automation GmbH exclusively as specified in the product description (inclusive operation system)
of the particular Industrial PC.

Chapter: Overview Features
page 12 Beckhoff New Automation Technology CB2050
2 Overview
2.1 Features
The CB2050 is a computer motherboard for industrial applications. It complies with the PISA-Slot form
factor and ships with either Intel® Celeron® M or Intel® Pentium® M CPUs. Two SO-DIMM200 slots allow
a maximum of 2 GByte DDR-333 RAM. The CB2050 offers a high degree of flexibility in terms of
connecting external devices to the board. In addition to the PCI bus being available through the PISA
connector there is also a MiniPCI connector. Furthermore we have two IDE channels, four serial ports, two
LAN connectors, several analog and digital sound in- and outputs, six USB ports, CRT and LCD
connectors.
oProcessor Intel® Celeron® M or Intel® Pentium® M
oChipset Intel® 855GME and Intel® ICH4
oTwo SO-DIMM200 slots for up to 2 GByte DDR-333
oFour serial ports COM1 to COM4
oLAN Ethernet 10/100 (Base-T)
oLAN Ethernet 10/100/1000 (Base-T)
oTwo IDE interfaces
oPS2 keyboard/mouse interface
oLPT interface
oSix USB 2.0 interfaces
oAWARD BIOS 6.10
oCRT interface
oTFT interface via LVDS 18/24 Bit (single and dual pixel displays)
oAC97 compatible sound including SPDIF in and output
ICH4
Intel® 82801DB
Winbond®
W83627HF
LPC PCI
Intel®
82541ER
2x
SoDIMM200
DDR-333
MEMORY
Power
VCCCore; VTT; DDRVTT
1,5V; 1,8V; 2,5V; 3,3V
Clock
ICS950813
BIOSMS
IDE1
RealTek®
ALC655 MIC
LINE IN
LINE OUT
ACLink
KB
USB6
USB1
USB2
PCI (mPCI)
LAN1
USB3
COM1 COM2
LPT/FDC
Watchdog
Intel® Celeron® M,
Pentium® M
HOST
CRT
LCD LVDS 18/24 GMCH
Intel® 855GME
Hub Int
SPDIF i
SPDIF o
PCI (PISA)
USB4
USB5
Intel®
82562GZ
LAN2
SMBus
Winbond®
W83627HF
COM3 COM4
FAN 1 FAN 2
USB 2.0
16x GPIO
I2C
AUX
CD IN
IDE2

Features Chapter: Overview
Beckhoff New Automation Technology CB2050 page 13
oRTC with external CMOS battery
oMiniPCI slot
oPCI bus via PISA slot connector
o16x GPIO
oFormat: mm x mm

Chapter: Overview Specifications and Documents
page 14 Beckhoff New Automation Technology CB2050
2.2 Specifications and Documents
In making this manual and for further reading of technical documentation, the following documents,
specifications and web-pages were used and are recommended.
PISA Specification
Version 1.8
us.kontron.com
PCI Specification
Version 2.3 resp. 3.0
www.pcisig.com
Mini-PCI Specification
Version 1.0
www.pcisig.com
ACPI Specification
Version 3.0
www.acpi.info
ATA/ATAPI Specification
Version 7 Rev. 1
www.t13.org
USB Specifications
www.usb.org
SM-Bus Specification
Version 2.0
www.smbus.org
Intel Chipset Description
Intel 855GM/855GME Chipset Graphics and Memory Controller Hub
www.intel.com
Intel Chip Description
ICH4 Datasheet
www.intel.com
Intel Chip Descriptions
Celeron M, Pentium M
www.intel.com
Winbond Chip Description
W83627HF Datasheet
www.winbond-usa.com oder www.winbond.com.tw
Intel Chip Description
82562EZ/GZ Datasheet
www.intel.com
Intel Chip Description
82541ER Datasheet
www.intel.com
ICS Chip Description
ICS950813 Datasheet
www.idt.com

Specifications and Documents Chapter: Connectors
Beckhoff New Automation Technology CB2050 page 15
3 Connectors
This section describes all the connectors found on the CB2050.
CAUTION
For most interfaces, the cables must meet certain requirements. For instance, USB 2.0 requires twisted and
shielded cables to reliably maintain full speed data rates. Restrictions on maximum cable length are also in
place for many high speed interfaces and for power supply. Please refer to the respective specifications and
use suitable cables at all times.

Chapter: Connectors Power Supply
page 16 Beckhoff New Automation Technology CB2050
3.1 Power Supply
The power supply of the hardware module is realized via a 2x8-pin connector (Molex PS 43045-16xx,
mating connector: Molex PS 43025-16xx). The pins for 12 volt have the sole purpose of supplying one or
both fans with the necessary current. Thus, when no fan is installed, these pins have no function. COM3
RXD and TXD can also be used for connecting a second power supply unit, e. g. for UPS. As an ordering
option SMBus signals SCL/SDA can be provided (replacing COM3 TXD/RXD).
Description
Name
Pin
Name
Description
COM3 transmit data
TXD
1
9
RXD
COM3 receive data
PSU on
PS-ON
2
10
PWRGD
Powergood
powerbutton PSU
PWRBTN#
3
11
SVCC
standby-supply 5V
12 volt supply
12V
4
12
12V
12 volt supply
ground
GND
5
13
GND
ground
ground
GND
6
14
GND
ground
5 volt supply
VCC
7
15
VCC
5 volt supply
5 volt supply
VCC
8
16
VCC
5 volt supply

CMOS Battery Chapter: Connectors
Beckhoff New Automation Technology CB2050 page 17
3.2 CMOS Battery
The board ships with a CR2032 battery holder (Renata VBH2032-1) and 3V battery. Alternatively, an
external battery can be connected via a 2pin connector (JST B2B-EH-A, mating connector: EHR-2).
Pin
Name
Description
1
BATT
battery 3.3 volt
2
GND
ground

Chapter: Connectors System
page 18 Beckhoff New Automation Technology CB2050

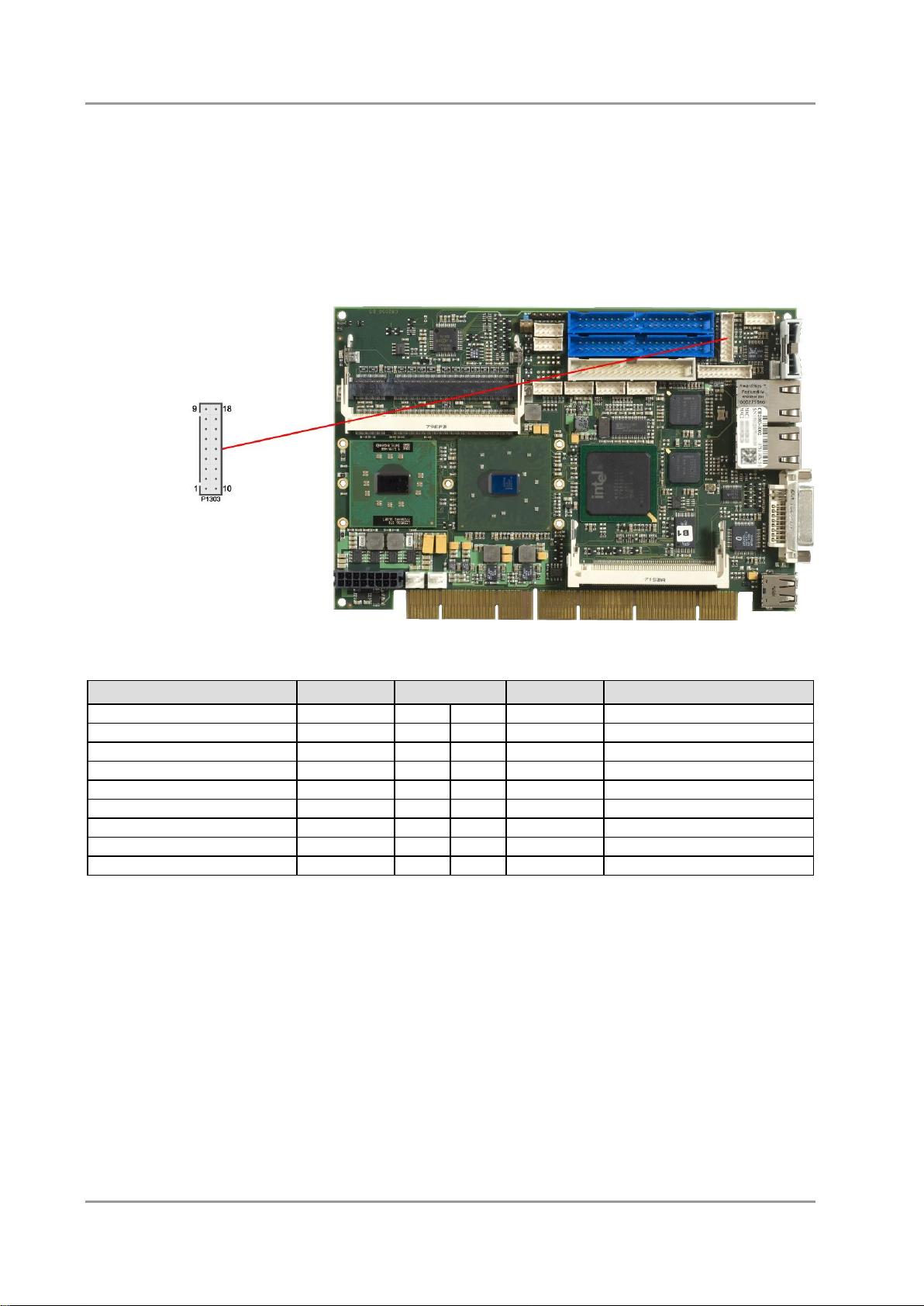

3.3 System
Some typical signals for system control are provided through a 2x9 pin connector (JST B18B-PHDSS,
mating connector: PHDR-18VS). This connector combines signals for power button, reset, keyboard,
speaker, and several LEDs such as harddisk LED, touch screen LED, suspend LED, and three additional
LEDs which are driven by GPIOs. Of these three GPIO-LEDs, LED1 and LED2 are already provided with a
series resistor. As can be seen from the pinout table below, corresponding signals are often placed vis-à-vis
or at least near to each other.
Description
Name
Pin
Name
Description
ground
GND
1
10
PWRBTN#
on/suspend button
ground
GND
2
11
RESET#
reset to ground
LED touch screen
TOUCHLED
3
12
3.3V
3.3 volt supply
LED suspend / ACPI
S-LED
4
13
S3.3V
standby supply 3.3 volt
LED harddisk
HDLED
5
14
3.3V
3.3 volt supply
LED GPIO device
LED1
6
15
3.3V
3.3 volt supply
LED GPIO device
LED2
7
16
LED3
LED GPIO device
speaker to 5 volt
SPEAKER
8
17
KDAT
keyboard data
standby supply 5 volt
(S)VCC
9
18
KCLK
keyboard clock

PISA Slot Chapter: Connectors
Beckhoff New Automation Technology CB2050 page 19
3.4 PISA Slot
The CB2050 module requires a backplane board in which it is inserted using the PISA slot. This slot
combines PCI and ISA signals in one single connector which is useful in situations where limited space is
an issue. The CB2050 currently supports only PCI.
NOTE
Please note the unusual pin numbering scheme of the PISA slot. There is an "up row" (for ISA signals) and
a "low row" (for PCI signals). The former is divided into segments A through D while the latter is divided into
segments E through H (cf. the illustration above).
Pinout "up row":
Description
Name
Pin
Name
Description
reserved
N/C
A1
B1
GND
ground
reserved
N/C
A2
B2
N/C
reserved
reserved
N/C
A3
B3
VCC
5 volt supply
reserved
N/C
A4
B4
N/C
reserved
reserved
N/C
A5
B5
-5V
-5 volt supply
reserved
N/C
A6
B6
N/C
reserved
reserved
N/C
A7
B7
-12V
-12 volt supply
reserved
N/C
A8
B8
N/C
reserved
reserved
N/C
A9
B9
12V
12 volt supply
reserved
N/C
A10
B10
GND
ground
reserved
N/C
A11
B11
N/C
reserved
reserved
N/C
A12
B12
N/C
reserved
reserved
N/C
A13
B13
N/C
reserved
reserved
N/C
A14
B14
N/C
reserved
reserved
N/C
A15
B15
N/C
reserved
reserved
N/C
A16
B16
N/C
reserved
reserved
N/C
A17
B17
N/C
reserved

Chapter: Connectors PISA Slot
page 20 Beckhoff New Automation Technology CB2050
Description
Name
Pin
Name
Description
reserved
N/C
A18
B18
N/C
reserved
reserved
N/C
A19
B19
N/C
reserved
reserved
N/C
A20
B20
N/C
reserved
reserved
N/C
A21
B21
N/C
reserved
reserved
N/C
A22
B22
N/C
reserved
reserved
N/C
A23
B23
N/C
reserved
reserved
N/C
A24
B24
N/C
reserved
reserved
N/C
A25
B25
N/C
reserved
reserved
N/C
A26
B26
N/C
reserved
reserved
N/C
A27
B27
N/C
reserved
reserved
N/C
A28
B28
N/C
reserved
reserved
N/C
A29
B29
VCC
5 volt supply
reserved
N/C
A30
B30
N/C
reserved
reserved
N/C
A31
B31
GND
ground
reserved
N/C
C1
D1
N/C
reserved
reserved
N/C
C2
D2
N/C
reserved
reserved
N/C
C3
D3
N/C
reserved
reserved
N/C
C4
D4
N/C
reserved
reserved
N/C
C5
D5
N/C
reserved
reserved
N/C
C6
D6
N/C
reserved
reserved
N/C
C7
D7
N/C
reserved
reserved
N/C
C8
D8
N/C
reserved
reserved
N/C
C9
D9
N/C
reserved
reserved
N/C
C10
D10
N/C
reserved
reserved
N/C
C11
D11
N/C
reserved
reserved
N/C
C12
D12
N/C
reserved
reserved
N/C
C13
D13
N/C
reserved
reserved
N/C
C14
D14
N/C
reserved
reserved
N/C
C15
D15
N/C
reserved
reserved
N/C
C16
D16
VCC
5 volt supply
reserved
N/C
C17
D17
N/C
reserved
reserved
N/C
C18
D18
GND
ground
Pinout "low row":
Description
Name
Pin
Name
Description
I2C clock
I2CLK
E1
F1
I2DAT
I2C data
ground
GND
E2
F2
GND
ground
interrupt B
INTB#
E3
F3
INTA#
interrupt A
interrupt D
INTD#
E4
F4
INTC#
interrupt C
5 volt supply
VCC
E5
F5
VCC
5 volt supply
coded
N/C
E6
F6
N/C
coded
5 volt supply
VCC
E7
F7
VIO
IO supply
PCI reset 2
PRST2#
E8
F8
PCLK2
PCI clock
grant 0
GNT0#
E9
F9
GND
ground
request 0
REQ0#
E10
F10
GNT1#
grant 1
ground
GND
E11
F11
GND
ground
PCI clock 1
PCLK1
E12
F12
REQ1#
request 1
ground
GND
E13
F13
AD31
address/data 31
address/data 30
AD30
E14
F14
AD29
address/data 29
request 2
REQ2#
E15
F15
PCLK3
PCI clock 3
coded
N/C
E16
F16
N/C
coded
grant 2
GNT2#
E17
F17
PCLK4
PCI clock 4
address/data 28
AD28
E18
F18
AD27
address/data 27
address/data 26
AD26
E19
F19
AD25
address/data 25
