Beechcfaft Bonanza D35 1994 Technical specifications

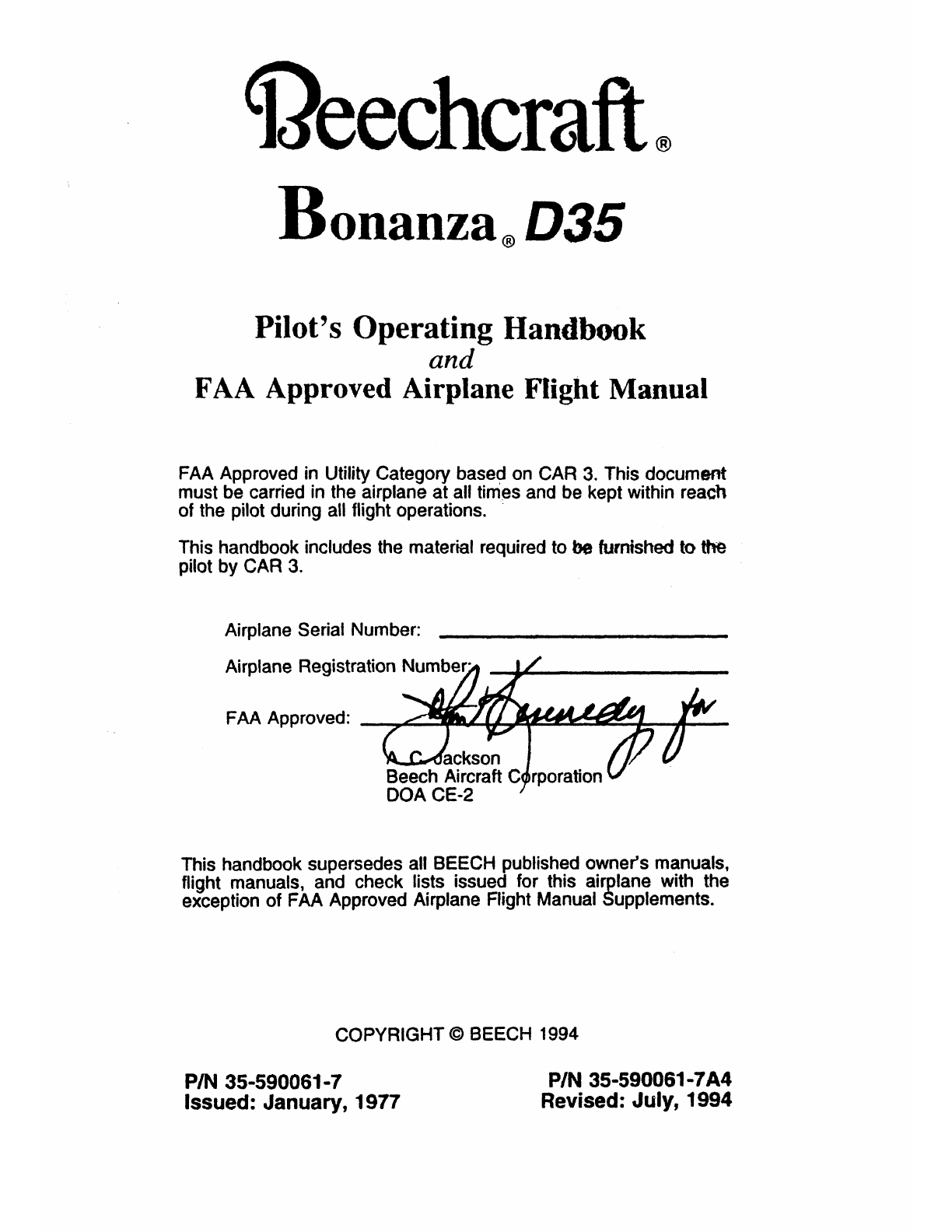

<i?eechcraft®
Bonanza® D35
Pilot's Operating Handbook
and
FAA Approved Airplane Flight Manual
FAA Approved in Utility Category based on CAR 3. This document
must be carried in the airplane at all times and be kept within reach
of the pilot during all flight operations.
This handbook includes the material required to be furnished to the
pilot by CAR 3.
Airplane Serial Number:
This handbook supersedes all BEECH published owner's manuals,
flight manuals, and check lists issued for this airplane with the
exception of FAA Approved Airplane Flight Manual Supplements.
COPYRIGHT© BEECH 1994
PIN 35-590061-7
Issued: January, 1977
P/N 35-590061-7A4
Revised: July, 1994

PUBLISHED BY
COMMERCIAL PUBLICATIONS
BEECH AIRCRAFT CORPORATION
WICHITA, KANSAS 67201
U.S.A.
'i?eechcraft
AllaylheGnCompany
Memberof GAMA
GeoeralAvla-
Manufaelurers-

aaythean Aircraft
Bonanza D35
Log of Temporary Changes
to the
Pilot"s Operating Handbook
and
FAA Approved Airplane Flight Manual
P/N 35-590061-7
Changes to this Pilot's Operating Handbook and FAA Approved
Airplane Flight Manual must be in the airplane for all ffight
operations.
Part Number Subject Date
35-590061-7TC1 Fuel Selector Placard 8/26/97
Installation
Note: This page should be filed in the front of the Pilot's Operating
Handbook and FAA Approved Airplane Flight Manual immediately fol·
lowing the Title page. This page replaces any Log of Temporary
Changes page dated prior to the date in the lower right corner of this
page.
1 of 1 August 26, 1997

BONANZA035
PILOT'SOPERATINGHANDBOOK
AND
FAA APPROVEDAIRPLANEFLIGHTMANUAL

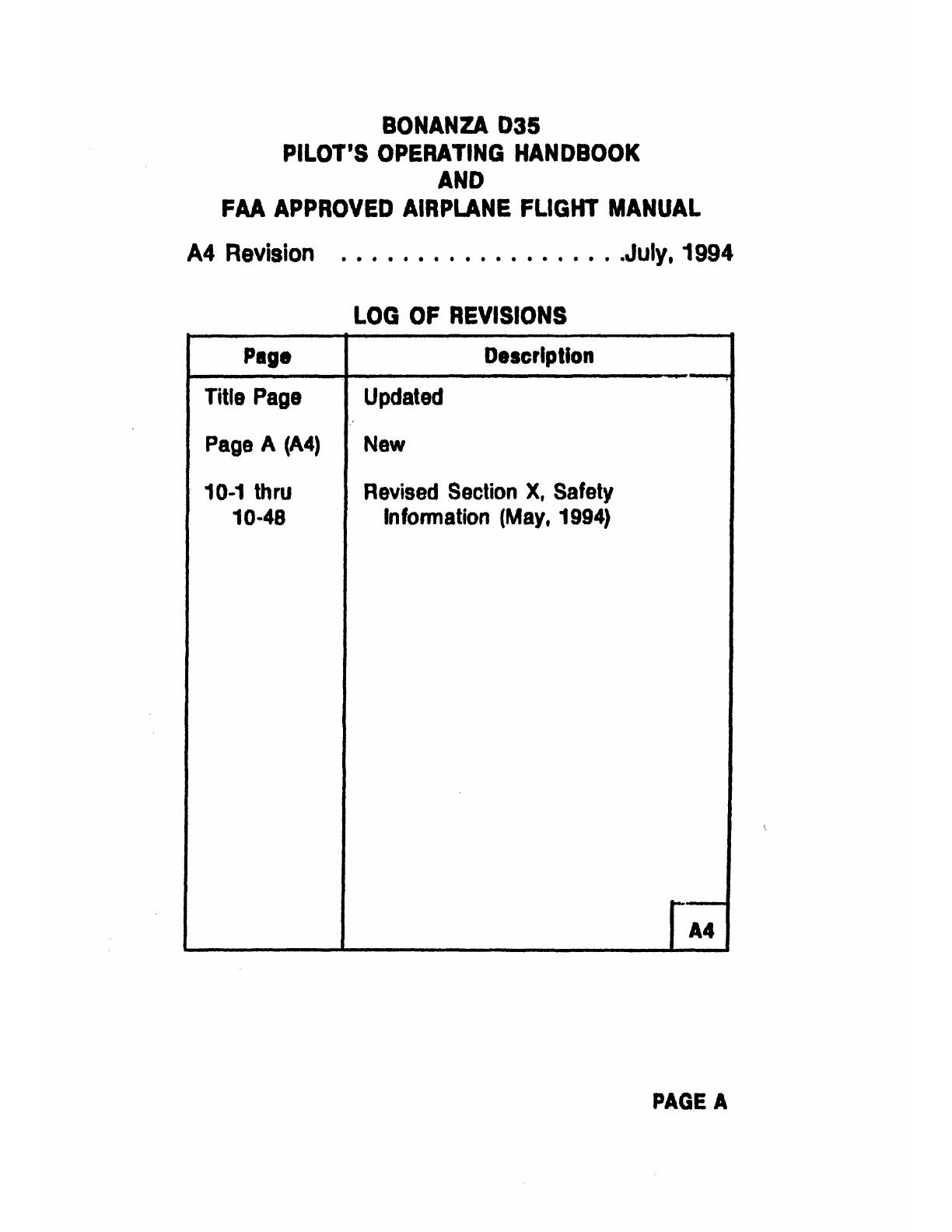

A4 Revision .•................. July, 1994
LOG OF REVISIONS
Page Description
Title Page Updated
Page A (A4) New
10-1 thru Revised Section X, Safety
10-48 lnfonnation (May, 1994)
r~
PAGEA

BONANZA 035
PILOT'S OPERATING HANDBOOK
AND
FAA APPROVED AIRPLANE FLIGHT MANUAL

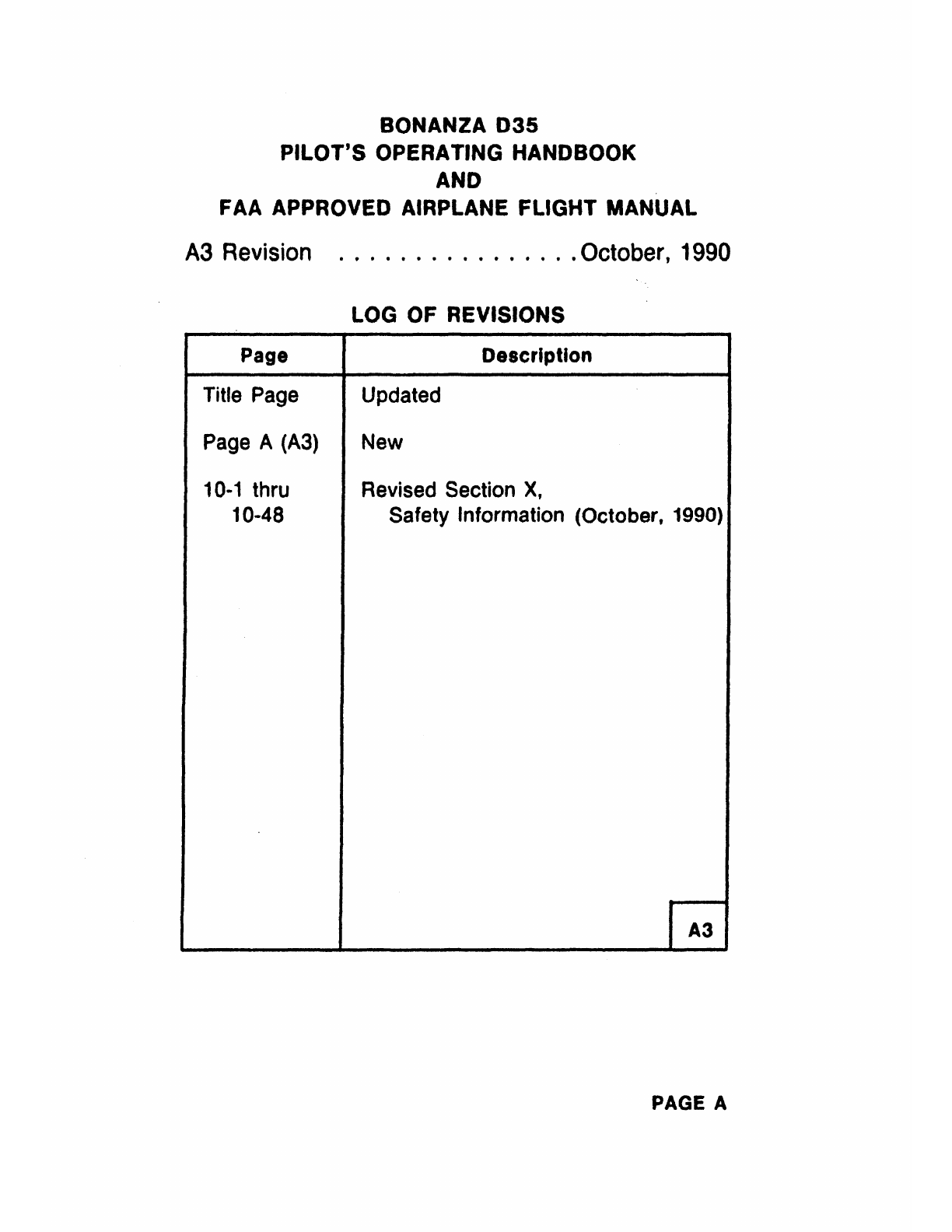

A3 Revision ................ October, 1990
LOG OF REVISIONS
Page Description
Title Page Updated
Page A (A3) New
10-1 thru Revised Section X,
10-48 Safety Information (October, 1990)
PAGE A

Bonanza D35
Pilot's Operating Handbook
and
FAA Approved Airplane Flight Manual

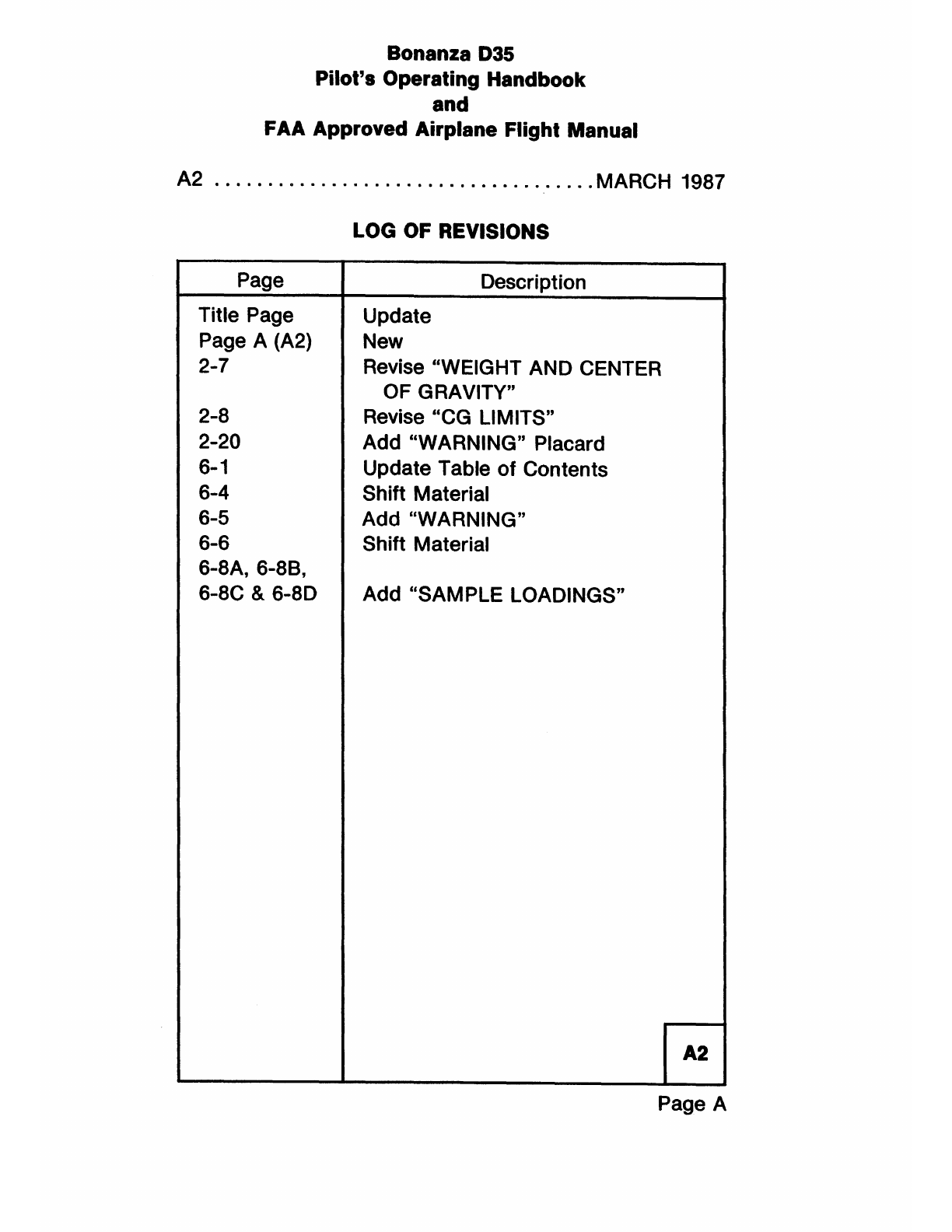

A2 .................................... MARCH 1987
LOG OF REVISIONS
Page Description
Title Page Update
Page A (A2) New
2-7 Revise "WEIGHT AND CENTER
OF GRAVITY"
2-8 Revise "CG LIMITS"
2-20 Add "WARNING" Placard
6-1 Update Table of Contents
6-4 Shift Material
6-5 Add "WARNING"
6-6 Shift Material
6-8A, 6-88,
6-8C & 6-8D Add "SAMPLE LOADINGS"
Page A

Bonanza D35
Pilot's Operating Handbook
and
FAA Approved Airplane Flight Manual

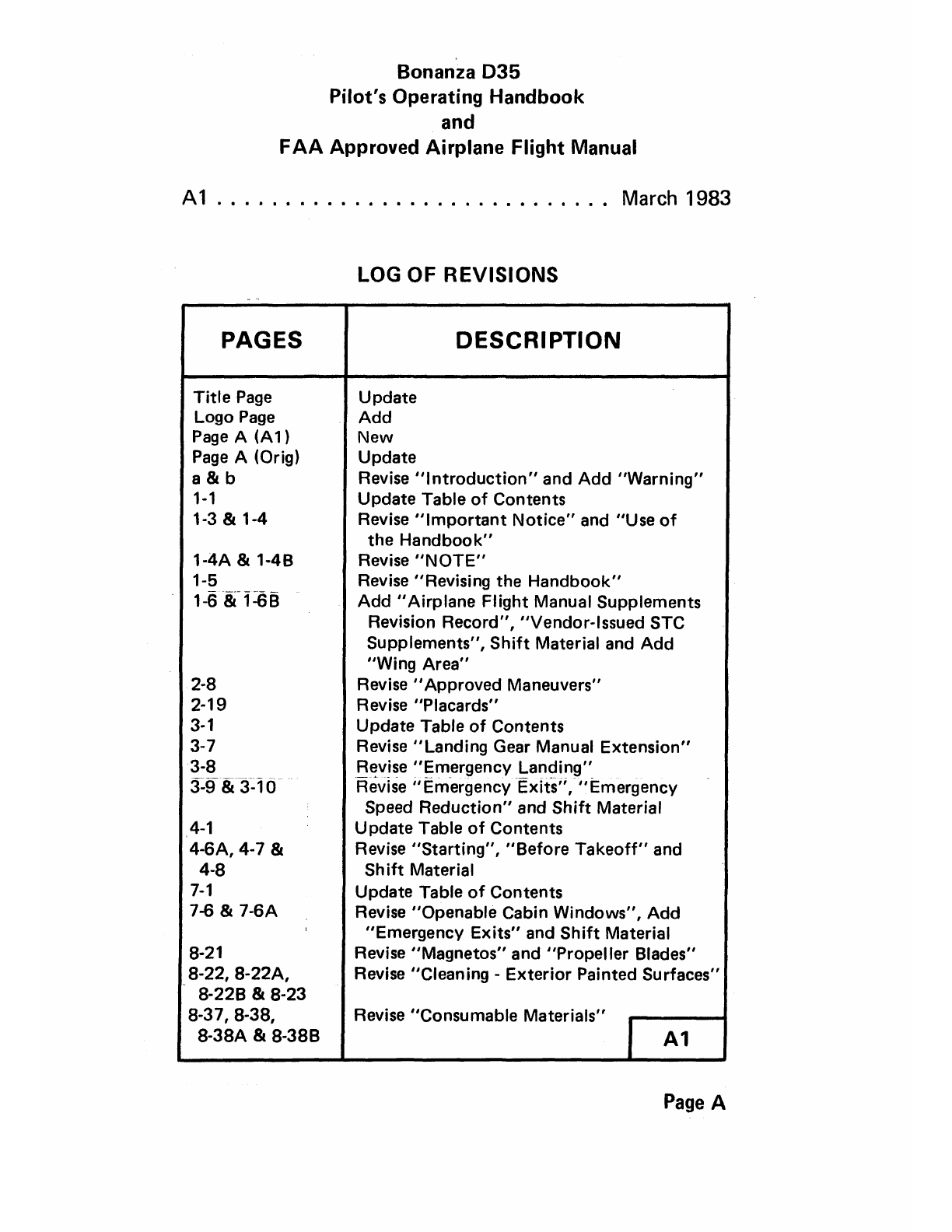

A1 ............................. March 1983
PAGES
Title Page
Logo Page
Page A (A1)
Page A (Orig)
a&b
1-1
1-3 & 1-4
1-4A & 1-4B
1-5
1-6 & 1-6B
2-8
2-19
3-1
3-7
3-8
3:9 & 3:10
4-1
4-6A, 4-7 &
4-8
7-1
7-6 & 7-6A
8-21
8-22, 8-22A,
8-22B & 8-23
8-37, 8-38,
8-38A & 8-38B
LOG OF REVISIONS
Update
Add
New
Update
DESCRIPTION
Revise "Introduction" and Add "Warning"
Update Table of Contents
Revise "Important Notice" and "Use of
the Handbook"
Revise "NOTE"
Revise "Revising the Handbook"
Add "Airplane Flight Manual Supplements
Revision Record", "Vendor-Issued STC
Supplements", Shift Material and Add
"Wing Area"
Revise "Approved Maneuvers"
Revise "Placards"
Update Table of Contents
Revise "Landing Gear Manual Extension"
Revise "Emergency Landing"
Revise ''Emergency i:xifs","Emergency
Speed Reduction" and Shift Material
Update Table of Contents
Revise "Starting", "Before Takeoff" and
Shift Material
Update Table of Contents
Revise "Openable Cabin Windows", Add
"Emergency Exits" and Shift Material
Revise "Magnetos" and "Propeller Blades"
Revise "Cleaning - Exterior Painted Surfaces"
Revise "Consumable Materials" 1 A1
Page A

BONANZA D35
PILOT'S OPERATING HANDBOOK
and
FAA APPROVED AIRPLANE FLIGHT MANUAL
LOG OF REVISIONS EFFECTIVE PAGE
ORIGINAL ...................... JANUARY 1977
ISSUE PAGE DESCRIPTION
OR REV OF REVISION
Original Title Page
Original "A" Page
Original a and b
Original 1-1 thru 1-16
Original 2-1 th ru 2-20
Original 3-1 th ru 3-1b
Original 4-1 thru 4-12
Original 5-1 th ru 5-30
Original 6-1 thru 6-18
Original 7-1 thru 7-34
Original 8-1 th ru 8-46
Original Section IX See Log of
Supplements
Revision 10-1 thru 10-67 March 1981
IA
Page A

D35 Bonanza
INTRODUCTION
This Pilot's Operating Handbook and FAA Approved Air-
plane Flight Manual is in the format and contains data
recommended in the GAMA (General Aviation Manu-
facturers Association) Handbook Specification Number 1.
Use of this specification by all manufacturers will provide
the pilot the same type data in the same place in all of the
handbooks.
In recent years, BEECHCRAFT handbooks contained most
of the data now provided, however, the new handbooks
contain more detailed data and some entirely new data.
For example, attention is called to Section X SAFETY INFOR-
MATION. BEECHCRAFT feels it is highly important to have
SAFETY INFORMATION in a condensed form in the hands
of the pilots. The SAFETY INFORMATION should be read
and studied. Periodic review will serve as a reminder of
good piloting techniques.
WARNING
Use only genuine BEECHCRAFT or BEECHCRAFT approved
parts obtained from BEECHCRAFT approved sources, in
connection with the maintenance and repair of Beech
airplanes.
Genuine BEECHCRAFT parts are produced and inspected
under rigorous procedures to ensure airworthiness and
suitability for use in Beech airplane applications. Parts
purchased from sources other than BEECHCRAFT, even
though outwardly identical in appearance, may not have
had the required tests and inspections performed, may be
different in fabrication techniques and materials, and may
be dangerous when installed in an airplane.
Revised: March 1983 a

D35 Bonanza
Salvaged airplane parts, reworked parts obtained from non-
BEECHCRAFT approved sources, or parts, components, or
structural assemblies, the service history of which is
unknown or cannot be authenticated, may have been
subjected to unacceptable stresses or temperatures or have
other hidden damage, not discernible through routine
visual or usual nondestructive testing techniques. This may
render the part, component or structural assembly, even
though originally manufactured by BEECHCRAFT, unsuit-
able and unsafe for airplane use.
BEECHCRAFT expressly disclaims any responsibility for
malfunctions, failures, damage or injury caused by use of
non-BEECHCRAFT approved parts.

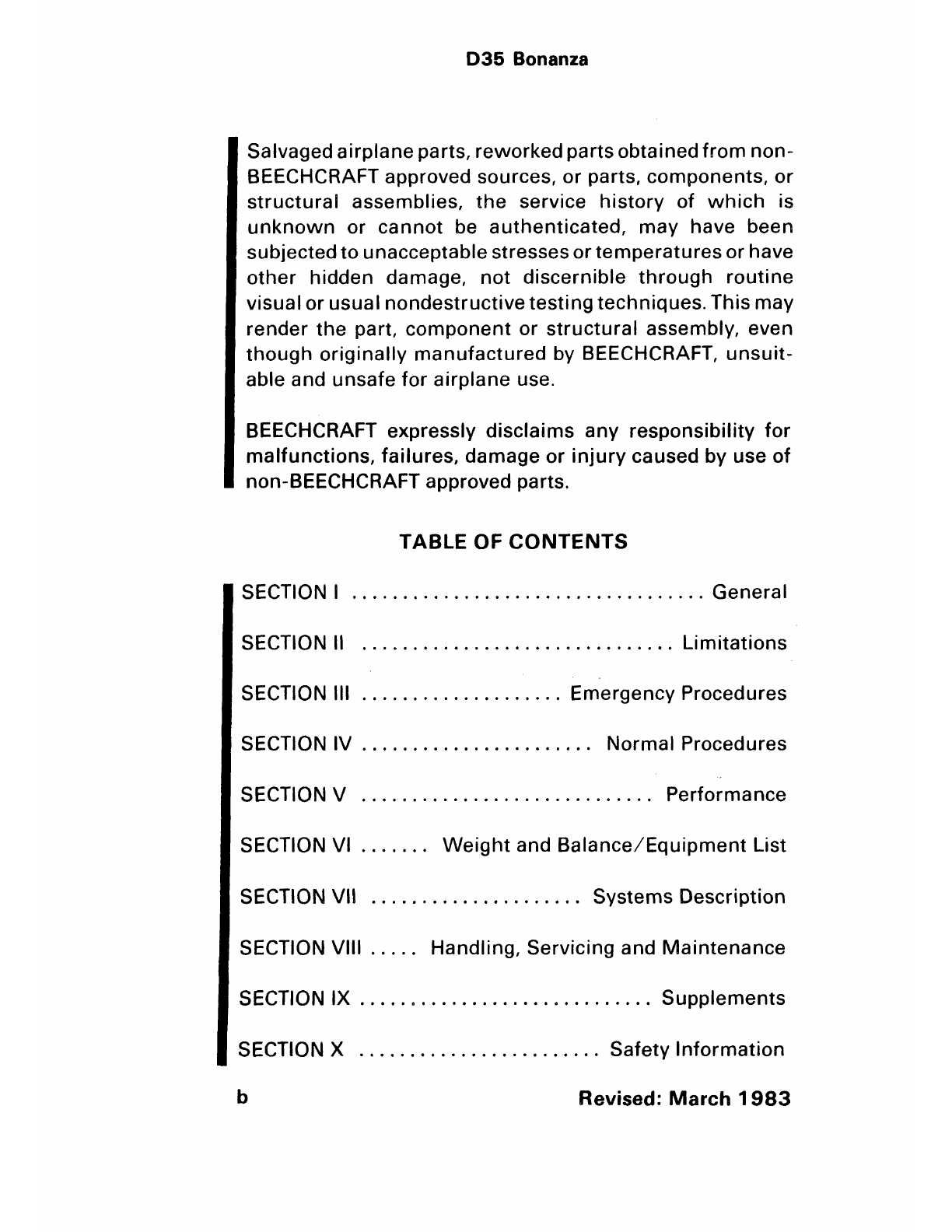

TABLE OF CONTENTS
SECTION I ................................... General
SECTION II ............................... Limitations
SECTION Ill .................... Emergency Procedures
SECTION IV . . . . . . . . . . . . . . . . . . . . . . . Normal Procedures
SECTION V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Performance
SECTION VI ....... Weight and Balance/Equipment List
SECTION VII . . . . . . . . . . . . . . . . . . . . . Systems Description
SECTION VIII . . . . . Handling, Servicing and Maintenance
SECTION IX ............................. Supplements
SECTION X ........................ Safety Information
b Revised: March 1983

BEECHCRAFT
BonanzaD35
SUBJECT
SECTION I
GENERAL
TABLE OF CONTENTS
PAGE
Important Notice ................................. 1-3
Use of the Handbook ............................. 1-4
Revising the Handbook ........................... 1-5

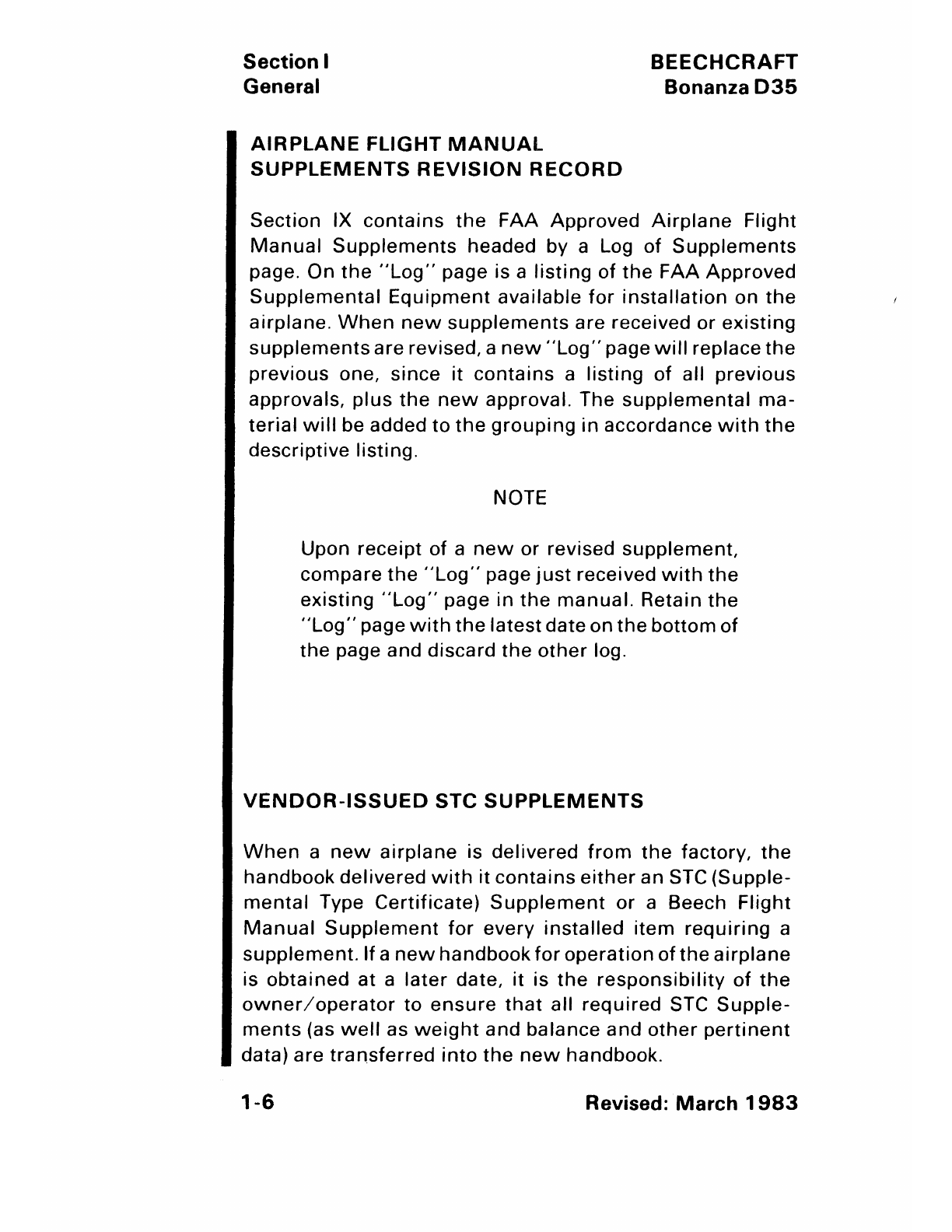

Airplane Flight Manual
Supplements Revision Record ................... 1-6
Vendor-Issued STC Supplements .................. 1-6
Airplane Three View . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6B
Descriptive Data ................................. 1-7
Engine ....................................... 1-7
Propeller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Fuel ......................................... 1-8
Oil Capacity .................................. 1-8
Weights ..................................... 1-8
Cabin Dimensions ............................ 1-8
Baggage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Specific Loadings ............................. 1-9
General Airspeed Terminology and Symbols ........ 1-9
Meteorological Terminology ...................... 1-11
Power Terminology .............................. 1-12
Engine Controls and Instruments ................. 1-12
Airplane Performance and Flight
Planning Terminology ......................... 1-13
Weight and Balance Terminology ................. 1-14
Revised: March 1983 1-1

Section I
General
1-2
BEECHCRAFT
Bonanza D35

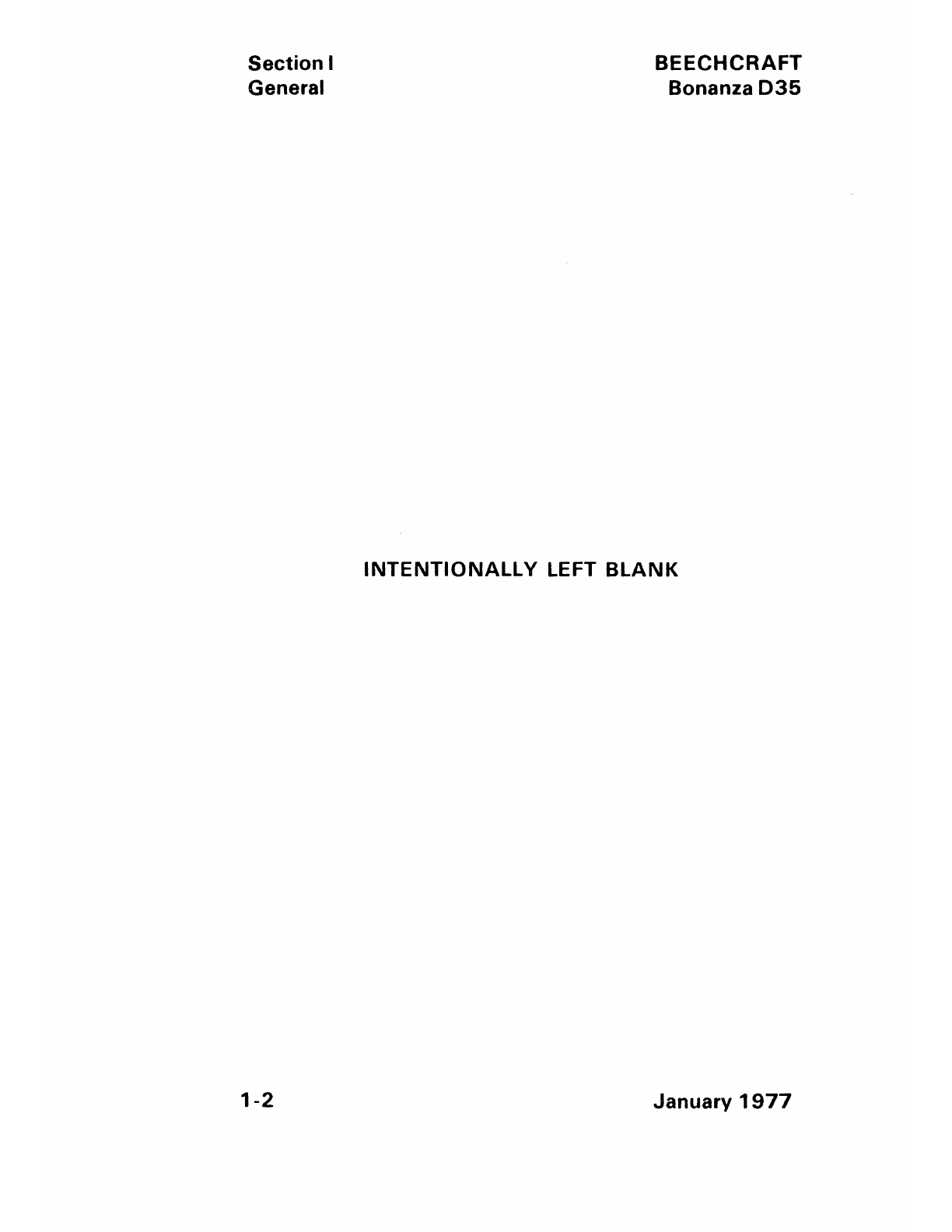

INTENTIONALLY LEFT BLANK
January 1977

BEECHCRAFT
BonanzaD35
Section I
General

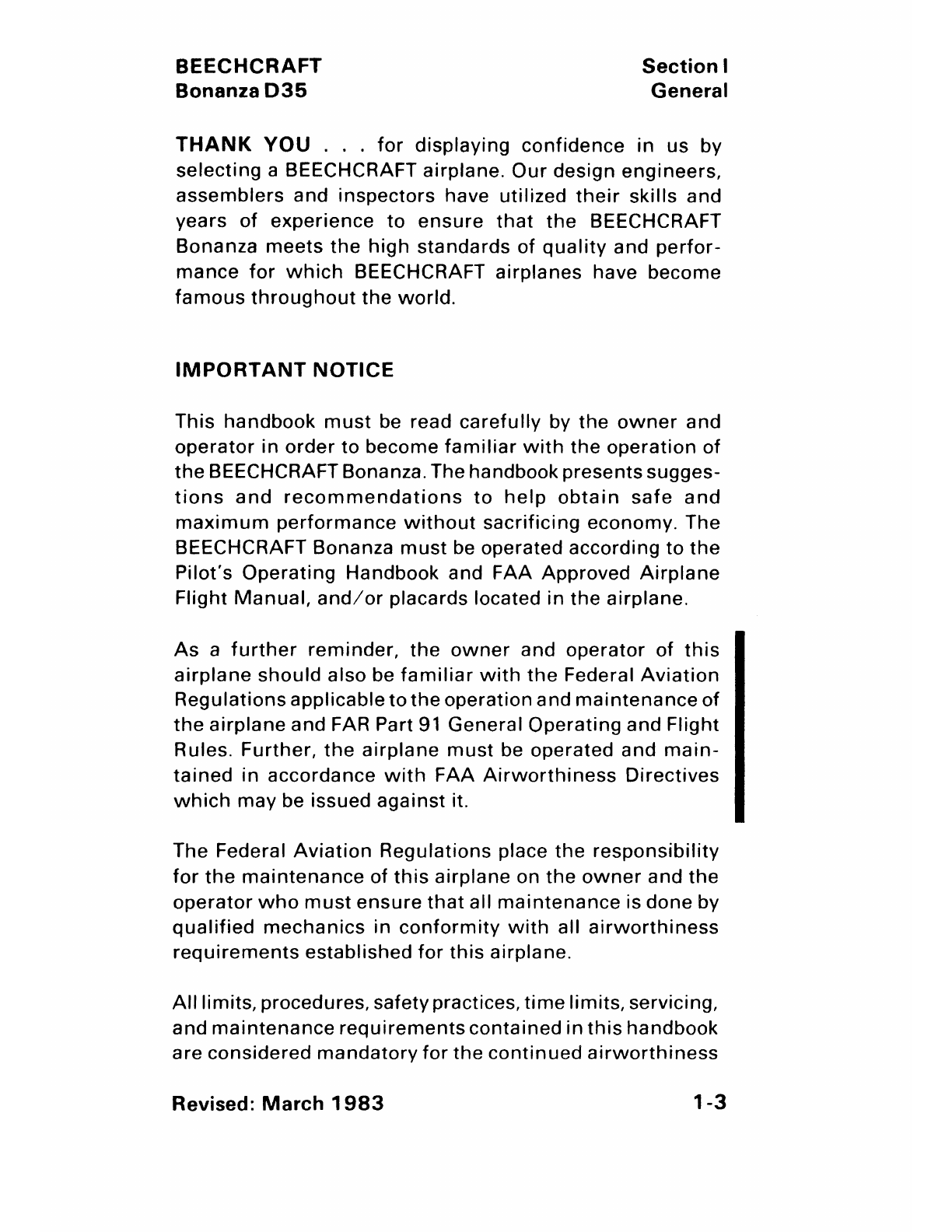

THANK YOU for displaying confidence in us by
selecting a BEECHCRAFT airplane. Our design engineers,
assemblers and inspectors have utilized their skills and
years of experience to ensure that the BEECHCRAFT
Bonanza meets the high standards of quality and perfor-
mance for which BEECHCRAFT airplanes have become
famous throughout the world.
IMPORTANT NOTICE
This handbook must be read carefully by the owner and
operator in order to become familiar with the operation of
the BEECHCRAFT Bonanza. The handbook presents sugges-
tions and recommendations to help obtain safe and
maximum performance without sacrificing economy. The
BEECHCRAFT Bonanza must be operated according to the
Pilot's Operating Handbook and FAA Approved Airplane
Flight Manual, and/or placards located in the airplane.
As a further reminder, the owner and operator of this
airplane should also be familiar with the Federal Aviation
Regulations applicable to the operation and maintenance of
the airplane and FAR Part 91 General Operating and Flight
Rules. Further, the airplane must be operated and main-
tained in accordance with FAA Airworthiness Directives
which may be issued against it.
The Federal Aviation Regulations place the responsibility
for the maintenance of this airplane on the owner and the
operator who must ensure that all maintenance is done by
qualified mechanics in conformity with all airworthiness
requirements established for this airplane.
All limits, procedures, safety practices, time limits, servicing,
and maintenance requirements contained in this handbook
are considered mandatory for the continued airworthiness
Revised: March 1983 1-3

Section I
General
BEECH CRAFT
Bonanza D35
of this airplane, in a condition equal to that of its original
manufacture.
I
Authorized BEECHCRAFT Aero or Aviation Centers or Inter-
national Distributors or Dealers can provide recommended
modification, service, and operating procedures issued by
both FAA and Beech Aircraft Corporation, which are
designed to get maximum utility and safety from this
airplane.
USE OF THE HANDBOOK
I
The Pilot's Operating Handbook is designed so that nec-
essary documents may be maintained for the safe and
efficient operation of the BEECHCRAFT Bonanza. The
handbook has been prepared in loose leaf form for ease in
maintenance and in a convenient size for storage. The
handbook has been arranged with quick reference tabs
imprinted with the title of each section and contains ten
basic divisions:
Section I
Section II
Section Ill
Section IV
Section V
Section VI
Section VII
Section VIII
Section IX
Section X
1-4
General
Limitations
Emergency Procedures
Normal Procedures
Performance
Weight and Balance/Equipment List
Systems Description
Handling, Servicing and Maintenance
Supplements
Safety Information
Revised: March 1983

BEECHCRAFT
Bonanza035
Section I
General
NOTE
Except as noted, all airspeeds quoted in this
handbook are Indicated Airspeeds (IAS) and as-
sume zero instrument error.
In an effort to provide as complete coverage as
possible, applicable to any configuration of the
airplane, some optional equipment has been
included in the scope of the handbook. How-
ever, due to the variety of airplane appoint-
ments and arrangements available, optional
equipment described and depicted herein may
not be designated as such in every case.
The following information may be provided to
the holder of this manual automatically:
1. Original issues and revisions of Class I and
Class II Service Instructions
2. Original issues and revisions of FAA Ap-
proved Airplane Flight Manual Supplements
3. Reissues and revisions of FAA Approved
Airplane Flight Manuals, Flight Handbooks,
Owner's Manuals, Pilot's Operating Man-
uals, and Pilot's Operating Handbooks
This service is free and will be provided only to
holders of this handbook who are listed on the
FAA Aircraft Registration Branch List or the
BEECHCRAFT International Owners Notifica-
tion Service List, and then only if listed by air-
plane serial number for the model for which
this handbook is applicable. For detailed in-
formation on how to obtain "Revision Service"
Revised: March 1983 1-4A

Section I
General
BEECHCRAFT
Bonanza D35
1-4B
applicable to this handbook or other BEECH-
CRAFT Service Publications, consult a BEECH-
CRAFT Aero or Aviation Center, International
Distributor or Dealer, or refer to the latest
revision of BEECHCRAFT Service Instructions
No. 0250-010.
BEECH AIRCRAFT CORPORATION EX-
PRESSLY RESERVES THE RIGHT TO SUPER-
S EDE, CANCEL, AND/OR DECLARE OB-
SOLETE, WITHOUT PRIOR NOTICE, ANY PART,
PART NUMBER, KIT OR PUBLICATION REF-
ERENCED IN THIS HANDBOOK.
The owner/ operator should always refer to all
supplements, whether STC Supplements or
Beech Supplements, for possible placards, limi-
tations, normal, emergency and other opera-
tional procedures for proper operation of the
airplane with optional equipment installed.
Revised: March 1983

BEECHCRAFT
BonanzaD35
Section I
General.
REVISING THE HANDBOOK
Immediately following the title page is the "Log of
Revisions" page(s). The Log of Revisions pages are used for
maintaining a listing of all effective pages in the handbook
(except the SUPPLEMENTS section), and as a record of
revisions to these pages. In the lower right corner of the
outlined portion of the Log of Revisions is a box containing a
capital letter which denotes the issue or reissue of the
handbook. This letter may be suffixed by a number which
indicates the numerical revision. When a revision to any
information in the handbook is made, a new Log of Re-
visions will be issued. All Logs of Revisions must be re-
tained in the handbook to provide a current record of ma-
terial status until a reissue is made.
WARNING
When this handbook is used for airplane opera-
tional purposes, it is the pilot's responsibility to
maintain it in current status.
Revised: March 1983 1-5

Section I
General
BEECH CRAFT
Bonanza D35
AIRPLANE FLIGHT MANUAL
SUPPLEMENTS REVISION RECORD
Section IX contains the FAA Approved Airplane Flight
Manual Supplements headed by a Log of Supplements
page. On the "Log" page is a listing of the FAA Approved
Supplemental Equipment available for installation on the
airplane. When new supplements are received or existing
supplements are revised, a new "Log" page will replace the
previous one, since it contains a listing of all previous
approvals, plus the new approval. The supplemental ma-
terial will be added to the grouping in accordance with the
descriptive listing.
NOTE
Upon receipt of a new or revised supplement,
compare the "Log" page just received with the
existing "Log" page in the manual. Retain the
"Log" page with the latest date on the bottom of
the page and discard the other log.
VENDOR-ISSUED STC SUPPLEMENTS
When a new airplane is delivered from the factory, the
handbook delivered with it contains either an STC (Supple-
mental Type Certificate) Supplement or a Beech Flight
Manual Supplement for every installed item requiring a
supplement. If a new handbook for operation of the airplane
is obtained at a later date, it is the responsibility of the
owner/operator to ensure that all required STC Supple-
ments (as well as weight and balance and other pertinent
data) are transferred into the new handbook.
1-6 Revised: March 1983

BEECHCRAFT
Bonanza D35
INTENTIONALLY LEFT BLANK
Revised: March 1983
Section I
General
1-6A

I
Section I
General
WING AREA
177.6 sq. ft.
BEECH CRAFT
BonanzaD35
,---------32' 9-7;8"-------,
t
9-1/2"
==r;~F
0 \ / 0
'','' -~. -. -·. ., ,'
I-- 9' 7-1;8"
1-6B Revised: March 1983
