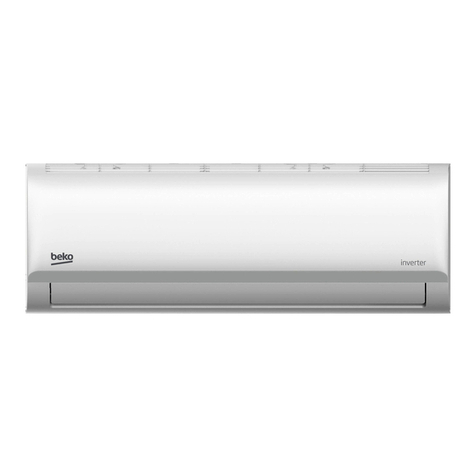

Beko BGMPI 090 User manual

User Manual
10M-8501803200-4621-01
BGMPI 090
BGMPI 120
BGMPO 181
BGMPO 211
BGMPO 271
EN-IT
Multi Split Type Air Conditioner

V2111002
Free match
ENGLISH 3-59
ITALIANO 60-124
CONTENTS

Please read this user manual first!
Dear Customer,
Thank you for preferring a Beko product. We hope that you get the best results from your product which
has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire
user manual and all other accompanying documents carefully before using the product and keep it as a
reference for future use. If you handover the product to someone else, give the user manual as well. Follow
all warnings and information in the user manual.
Meanings of the symbols
Following symbols are used in the various section of this manual:
Ths product has been manufactured at modern facltes respectful to the envronment wthout harmng nature.
Comples wth the WEEE Regulaton. Does not contan PCB.
C
Important information or useful hints
about usage.
A
Warning for hazardous situations
with regard to life and property.
Warning to actions that must never
perform.
B
Warning for electric shock.
This symbol shows that information
is available such as the operating
manual or installation manual.
Do not cover it.
This symbol shows that the operati-
on manual should be read carefully.
This symbol shows that a service
personnel should be handling this
equipment with reference to the
installation manual.
(For R32/R290 gas type)
This symbol shows
that this appliance
used a flammable
refrigerant If the
refrigerant is leaked
and exposed to at
external ignition
source, there is a
risk of fire.

4 / 124 EN Multi Split Type Air Conditioner / User Manual
CONTENTS
1 Safety Precautions ���������������������������������������������������� 5
2 Overview������������������������������������������������������������������� 13
2.1 Accessories............................................................13
2.2 Controls and parts...................................................14
2.3 Optional accessories ...............................................16
3 Unit specifications and features ����������������������������� 17
3.1 Operating temperature ............................................17
3.2 Features.................................................................18
3.3 Energy saving tips...................................................19
4 Manual operations and maintenance ��������������������� 21
4.1 Operation mode selection ........................................21
4.2 Maintenance...........................................................21
4.3 Optimal operation....................................................21
4.4 When the air conditioner is to be used again:............22
5 Installation ��������������������������������������������������������������� 23
5.1 Installation summary ...............................................23
5.2 Installation Diagram.................................................24
5.3 Specifications .........................................................25
5.4 Outdoor unit installation...........................................26
5.4.1 Installation Instructions – Outdoor unit...................27
5.5 Refrigerant piping connection...................................30
5.6 Connection Instructions – Refrigerant Piping.............31
5.7 Wiring ....................................................................34
5.7.1 Before performing any electrical work, read these
regulations..........................................................34
5.7.2 Outdoor unit wiring...............................................35
5.8 Harmonic declaration ..............................................36
5.9 Wiring Figure..........................................................36
6 Air evacuation ���������������������������������������������������������� 45
6.1 Preparations and precautions...................................45
6.1.1 Before performing evacuation ...............................45
6.1.2 Evacuation instructions.........................................45
6�2 Safety and leakage check �����������������������������������48
6.2.1 Electrical safety check..........................................48
6.2.2 Gas leak checks...................................................48
7 Test run��������������������������������������������������������������������� 49
7.1 Before test run........................................................49
7.2 Test run instructions................................................49
8 Function of automatic wiring/piping correction����� 50
8.1 Automatic wiring/piping correction function ..............50
8.2 How to activate this function ....................................51
9 Troubleshooting ������������������������������������������������������� 52
9.1 Common issues ......................................................52
9.2 Troubleshooting tips ................................................54
10European disposal guideline ����������������������������������� 56
11Installation instructions������������������������������������������� 57
11.1 F-Gas instruction.....................................................57
12Specifications ���������������������������������������������������������� 58

5 / 124 EN
Multi Split Type Air Conditioner / User Manual
Warning
This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved. Children shall not
play with the appliance. Cleaning
and user maintenance shall not
be made by children without
supervision (European Union
countries).
This appliance is not intended for
use by persons (including children)
with reduced physical, sensory
or mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of the
appliance by a person responsible
for their safety. Children should be
supervised to ensure that they do
not play with the appliance.
Warnings for product use
•If an abnormal situation
arises (like a burning smell),
immediately turn off the unit
and disconnect the power. Call
your dealer for instructions to
avoid electric shock, fire or
injury.
•Do not insert fingers, rods or
other objects into the air inlet
or outlet. This may cause injury,
since the fan may be rotating
at high speeds.
•Do not use flammable sprays
such as hair spray, lacquer or
paint near the unit. This may
cause fire or combustion.
•Do not operate the air
conditioner in places near or
around combustible gases.
Emitted gas may collect around
the unit and cause explosion.
•Do not operate your air
conditioner in a wet room
such as a bathroom or laundry
room. Too much exposure to
water can cause electrical
components to short circuit.
•Do not expose your body
directly to cool air for a
prolonged period of time.
•Do not allow children to
play with the air conditioner.
Children must be supervised
1Safety Precautions

6 / 124 EN Multi Split Type Air Conditioner / User Manual
around the unit at all times.
•If the air conditioner is used
together with burners or other
heating devices, thoroughly
ventilate the room to avoid
oxygen deficiency.
•In certain functional
environments, such as
kitchens, server rooms, etc.,
the use of specially designed
air-conditioning units is highly
recommended.
Cleaning and maintenance
warnings
•Turn off the device and
disconnect the power before
cleaning. Failure to do so can
cause electrical shock.
•Do not clean the air
conditioner with excessive
amounts of water.
•Do not clean the air
conditioner with combustible
cleaning agents. Combustible
cleaning agents can cause fire
or deformation.
Caution
•Turn off the air conditioner and
disconnect the power if you are
not going to use it for a long
time.
•Turn off and unplug the unit
during storms.
•Make sure that water
condensation can drain
unhindered from the unit.
•Do not operate the air
conditioner with wet hands.
This may cause electric shock.
•Do not use device for any
other purpose than its intended
use.
•Do not climb onto or place
objects on top of the outdoor
unit.
•Do not allow the air conditioner
to operate for long periods of
time with doors or windows
open, or if the humidity is very
high.
Electrical warnings
•Only use the specified power
cord. If the power cord is
damaged, it must be replaced
by the manufacturer, its service
agent or similarly qualified
1 Important safety and environmental instructions

7 / 124 EN
Multi Split Type Air Conditioner / User Manual
persons in order to avoid a
hazard.
•Keep power plug clean.
Remove any dust or grime that
accumulates on or around the
plug. Dirty plugs can cause fire
or electric shock.
•Do not pull power cord to
unplug unit. Hold the plug
firmly and pull it from the
outlet. Pulling directly on the
cord can damage it, which can
lead to fire or electric shock.
•Do not modify the length of
the power supply cord or use
an extension cord to power the
unit.
•Do not share the electrical
outlet with other appliances.
Improper or insufficient power
supply can cause fire or
electrical shock.
•The product must be properly
grounded at the time of
installation, or electrical shock
may occur.
•For all electrical work, follow
all local and national wiring
standards, regulations, and the
Installation Manual. Connect
cables tightly, and clamp them
securely to prevent external
forces from damaging the
terminal. Improper electrical
connections can overheat and
cause fire, and may also cause
shock. All electrical connections
must be made according to the
Electrical connection diagram
located on the panels of the
indoor and outdoor units.
•All wiring must be properly
arranged to ensure that the
control board cover can close
properly. If the control board
cover is not closed properly,
it can lead to corrosion and
cause the connection points on
the terminal to heat up, catch
fire, or cause electrical shock.
•If connecting power to
fixed wiring, an all-pole
disconnection device which
has at least 3mm clearances
in all poles, and have a leakage
current that may exceed 10mA,
the residual current device
(RCD) having a rated residual
operating current not exceeding
1 Important safety and environmental instructions

8 / 124 EN Multi Split Type Air Conditioner / User Manual
30mA, and disconnection must
be incorporated in the fixed
wiring in accordance with the
wiring rules.
Take note of fuse
specifications
The air conditioner’s circuit board
(PCB) is designed with a fuse to
provide overcurrent protection. The
specifications of the fuse are printed
on the circuit board, such as:
T20A/250VAC (for <24000Btu/h
unit), T30A/250VAC (for
>24000Btu/h unit)
C
Note: For the units using R32
or R290 refrigerant, only the
blast-proof ceramic fuse can
be used.
Warnings for product
installation
1. Installation must be performed
by an authorized dealer or
specialist. Defective installation
can cause water leakage,
electrical shock, or fire.
2. Installation must be performed
according to the installation
instructions. Improper
installation can cause water
leakage, electrical shock, or
fire.
3. Contact an authorized service
technician for repair or
maintenance of this unit. This
appliance shall be installed
in accordance with national
wiring regulations.
4. Only use the included
accessories, parts, and
specified parts for installation.
Using non-standard parts can
cause water leakage, electrical
shock, fire, and can cause the
unit to fail.
5. Install the unit in a firm location
that can support the unit’s
weight. If the chosen location
cannot support the unit’s
weight, or the installation is
not done properly, the unit may
drop and cause serious injury
and damage.
6. Install drainage piping
according to the instructions in
this manual. Improper drainage
may cause water damage to
your home and property.
7. For units that have an auxiliary
1 Important safety and environmental instructions

9 / 124 EN
Multi Split Type Air Conditioner / User Manual
electric heater, do not install
the unit within 1 meter (3 feet)
of any combustible materials.
8� Do not install the unit in a
location that may be exposed
to combustible gas leaks. If
combustible gas accumulates
around the unit, it may cause
fire.
9. Do not turn on the power until
all work has been completed.
10. When moving or relocating
the air conditioner, consult
experienced service
technicians for disconnection
and reinstallation of the unit.
11. How to install the appliance
to its support, please read
the information for details in
“indoor unit installation” and
“outdoor unit installation”
sections.
Note about fluorinated
gasses (Not applicable to the
unit using R290 Refrigerant)
1. This air-conditioning
unit contains fluorinated
greenhouse gasses. For
specific information on the
type of gas and the amount,
please refer to the relevant
label on the unit itself or the
“User Manual - Product Fiche“
in the packaging of the outdoor
unit. (European Union products
only).
2. Installation, service,
maintenance and repair of this
unit must be performed by a
certified technician.
3. Product uninstallation and
recycling must be performed
by a certified technician.
4. For equipment that contains
fluorinated greenhouse gases
in quantities of 5 tonnes of
CO2 equivalent or more, but
of less than 50 tonnes of
CO2 equivalent, If the system
has a leak-detection system
installed, it must be checked
for leaks at least every
24 months.
5. When the unit is checked for
leaks, proper record-keeping
of all checks is strongly
recommended.
1 Important safety and environmental instructions

10 / 124 EN Multi Split Type Air Conditioner / User Manual
1 Important safety and environmental instructions
Warning for Using R32/R290
Refrigerant
•When flammable refrigerant
are employed, appliance shall
be stored in a well -ventilated
area where the room size
corresponds to the room area
as specifiec for operation. For
R32 frigerant models:Appliance
shall be installed, operated
and stored in a room with a
floor area larger than X m2.
Appliance shall not be installed
in an unvertilated space, if that
space is smaller than X m2.
(Please see the following form).
Amount of
refrigerant to
be charged (kg)
Installation
height (m)
Minimum room
area (m²)
Amount of
refrigerant to be
charged (kg)
Installation
height (m)
Minimum
room area
(m²)
1.0 0.6 /1.8 /2.2 9 /1 /1 1.95 0.6 /1.8 /2.2 33 /4 /2.5
1.05 0.6 /1.8 /2.2 9.5 /1.5 /1 2.0 0.6 /1.8 /2.2 34.5 /4 /3
1.1 0.6 /1.8 /2.2 10.5 /1.5 /1 2.05 0.6 /1.8 /2.2 36 /4 /3
1.15 0.6 /1.8 /2.2 11.5 /1.5 /1 2.1 0.6 /1.8 /2.2 38 /4.5 /3
1.2 0.6 /1.8 /2.2 12.5 /1.5 /1 2.15 0.6 /1.8 /2.2 40 /4.5 /3
1.25 0.6 /1.8 /2.2 13.5 /1.5 /1 2.2 0.6 /1.8 /2.2 41.5 /5 /3.5
1.3 0.6 /1.8 /2.2 14.5 /2 /1.5 2.25 0.6 /1.8 /2.2 43.5 /5 /3.5
1.35 0.6 /1.8 /2.2 16 /2 /1.5 2.3 0.6 /1.8 /2.2 45.5/5 /3.5
1.4 0.6 /1.8 /2.2 17/2 /1.5 2.35 0.6 /1.8 /2.2 47.5/5.5 /4
1.45 0.6 /1.8 /2.2 18 /2 /1.5 2.4 0.6 /1.8 /2.2 49.5 /5.5 /4
1.5 0.6 /1.8 /2.2 19.5 /2.5 /1.5 2.45 0.6 /1.8 /2.2 51.5 /6 /4
1.55 0.6 /1.8 /2.2 21 /2.5 /2 2.5 0.6 /1.8 /2.2 54 /6 /4
1.6 0.6 /1.8 /2.2 22 /2.5 /2 2.55 0.6 /1.8 /2.2 56 /6.5 /4.5

11 / 124 EN
Multi Split Type Air Conditioner / User Manual
1 Important safety and environmental instructions
Amount of
refrigerant to
be charged (kg)
Installation
height (m)
Minimum room
area (m²)
Amount of
refrigerant to be
charged (kg)
Installation
height (m)
Minimum
room area
(m²)
1.65 0.6 /1.8 /2.2 23.5 /3 /2 2.6 0.6 /1.8 /2.2 58 /6.5 /4.5
1.7 0.6 /1.8 /2.2 25 /3 /2 2.65 0.6 /1.8 /2.2 60.5/7 /4.5
1.75 0.6 /1.8 /2.2 26.5 /3 /2 2.7 0.6 /1.8 /2.2 63 /7 /5
1.8 0.6 /1.8 /2.2 28 /3.5 /2.5 2.75 0.6 /1.8 /2.2 65 /7.5 /5
1.85 0.6 /1.8 /2.2 29.5 /3.5 /2.5 2.8 0.6 /1.8 /2.2 67.5 /7.5 /5
1.9 0.6 /1.8 /2.2 31/3.5 /2.5 2.85 0.6 /1.8 /2.2 70 /8 /5.5
•Reusable mechanical
connectors and flared joints
are not allowed indoors. (EN
Standard Requirements).
•Mechanical connectors used
indoors shall have a rate of
not more than 3g/year at 25%
of the maximum allowable
pressure. When mechanical
connectors are reused indoors,
sealing parts shall be renewed.
When flared joints are reused
indoors, the flare part shall be
re-fabricated. (UL Standard
Requirements)
•When mechanical connectors
are reused indoors, sealing parts
shall be renewed. When flared
joints are reused indoors, the
flare part shall be re-fabricated.
(IEC Standard Requirements)
•Mechanical connectors used
indoors shall comply with
ISO 14903.
European disposal guidelines
This marking shown on the product
or its literature, indicates that waste
electrical and eletrical equipment
should not be mixed with general
household waste.
Correct disposal of
this product (Waste
electrical & Electronic
equipment)
This appliance contains
refrigerant and other
potentially hazardous
materials. When disposing of this
appliance, the law requires special
collection and treatment. Do not
dispose of this product as household
waste or unsorted municipal waste.
When disposing of this appliance,
you have the following options:

12 / 124 EN Multi Split Type Air Conditioner / User Manual
•Dispose of the appliance at
designated municipal electronic
waste collection facility.
•When buying a new appliance,
the retailer will take back the
old appliance free of charge.
•The manufacturer will take back
the old appliance free of charge.
(for some countries)
•Sell the appliance to certified
scrap metal dealers. (for some
countries)
C
Special notice: Disposing of
this appliance in the forest
or other natural surroundings
endangers your health and
is bad for the environment.
Hazardous substances may
leak into the ground water
and enter the food chain.
1 Important safety and environmental instructions

13 / 124 EN
Multi Split Type Air Conditioner / User Manual
2 Overview

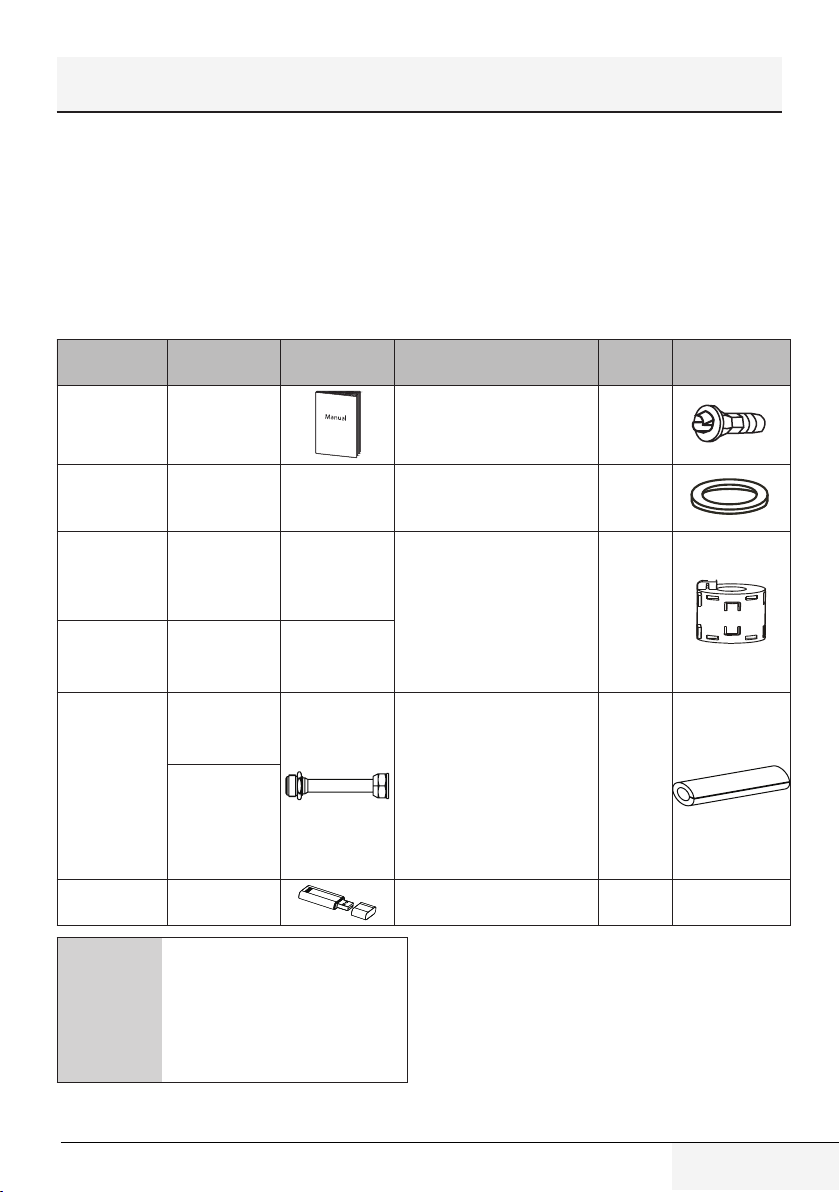

2�1 Accessories
The air conditioning system comes with the
following accessories. Use all of the installation
parts and accessories to install the air conditioner.
Improper installation may result in water leakage,
electrical shock and fire, or cause the equipment
to fail. The items are not included with the air
conditioner must be purchased separately.
Name of
Accessories Q’ty(pc) Shape Name of Accessories Q’ty(pc) Shape
Manual 2-4 Drain joint (some models) 1
Installation
plate (some
models)
1 Seal ring (some models) 1
Plastic
expansion
sheath (some
models)
5-8 (depending
on models) Magnetic ring (Hitch it on the
connective cable between
indoor unit and outdoor unit
after installation.) (some
models)
Varies by
model
Self-Tapping
Screw A (some
models)
5-8 (depending
on models)
Transfer
connector
(packed with
the indoor or
outdoor unit,
depending on
models)
Optional part
(one piece/ one
indoor unit)
Cord protection rubber ring(If
the cord clamp cannot fasten
on a small cord, use the
cord protection rubber ring
[supplied with accessories] to
wrap around the cord. Then
fix it in place with the cord
clamp.) (some models)
1
Optional part
(1-5 pieces for
outdoor unit,
depending on
models)
Wireless USB
kit
1 (For Wifi
models only)
C
Pipe size may differ from
appliance to appliance. To meet
different pipe size requirements,
sometimes the pipe connections
need a transfer connector
installed on the outdoor unit.

14 / 124 EN Multi Split Type Air Conditioner / User Manual
2 Overview
Wall-mounted type Duct / Ceiling type
(A) (B)
4
(A) Wall-mounted type (B) Duct/ Ceiling type
One-five
One-five
One-four
One-four
One-three
One-three
One-two
One-two
Air outlet
Air outlet
Air inlet
2�2 Controls and parts
Indoor unit
1. Panel frame
2. Rear air intake grille
3. Front panel
4. Air purifying filter & Air filter (behind)
5. Horizontal louver
6. LCD display window
7. Vertical louver
8. Manual control button (behind)
9. Remote controller holder
Outdoor unit
10. Drain hose, refrigerant connecting pipe
11. Connective cable
12. Stop valve
13. Fan hood
Indoor unit
1. Air outlet
2. Air inlet
3. Air filter
4. Electric control cabinet
5. Wire controller
Outdoor unit
6. Drain hose, refrigerant connecting pipe
7. Connective cable
8. Stop valve
9. Fan hood

15 / 124 EN
Multi Split Type Air Conditioner / User Manual
2 Overview

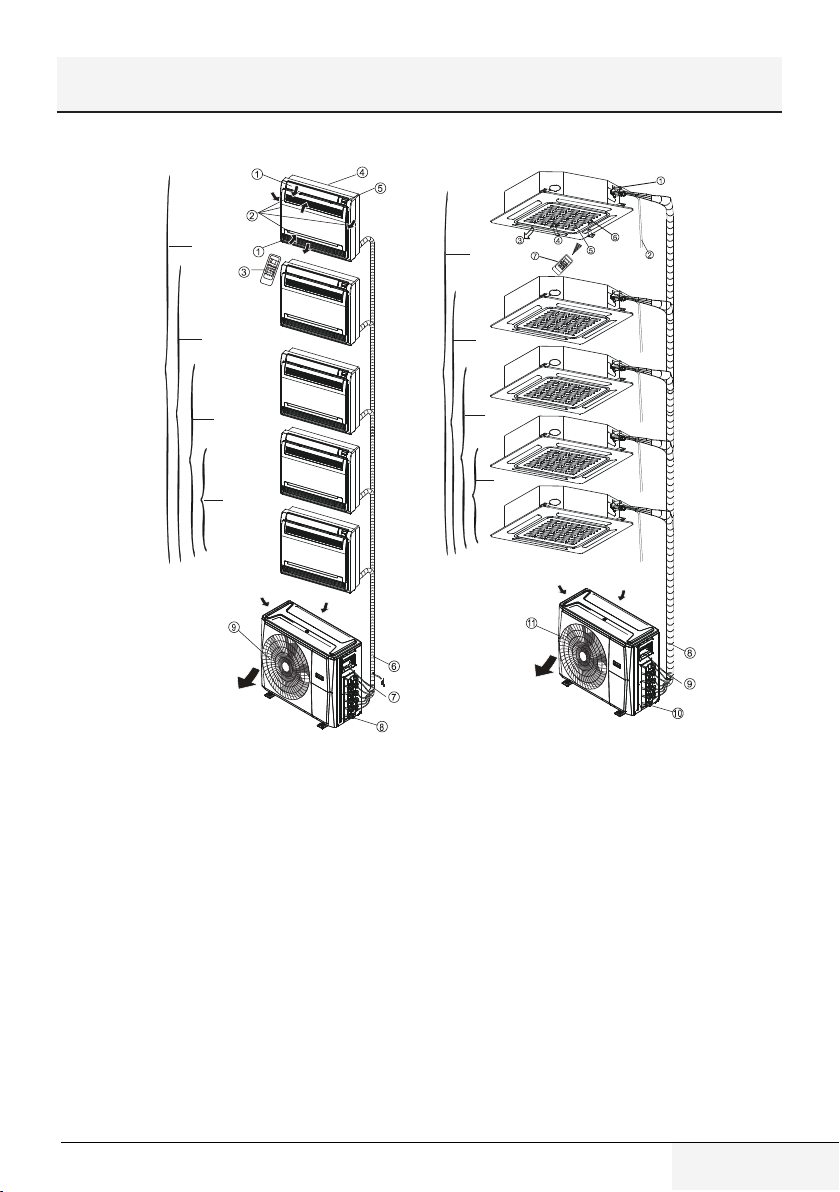

Floor and standing type(console) Compact four-way cassette type
(C) (D)
(C) Floor and standing type(console) (D) Compact four-way cassette type
One-five
One-five
One-four One-four
One-three One-three
One-twin
One-twin
Indoor unit
1. Air flow louver (at air outlet)
2. Air inlet (containing air filter)
3. Remote controller
4. Installation part
5. Display panel
Outdoor unit
6. Drain hose, refrigerant connecting pipe
7. Connective cable
8. Stop valve
9. Fan hood
Indoor unit
1. Drain pump (drain water from indoor unit)
2. Drain hose
3. Air outlet
4. Air inlet
5. Air-in grill
6. Display panel
7. Remote controller
Outdoor unit
8. Refrigerant connecting pipe
9. Connective cable
10. Stop valve
11. Fan hood

16 / 124 EN Multi Split Type Air Conditioner / User Manual
2 Overview
C
For multi-split type air
conditioners, one outdoor unit
can be matched to different
types of indoor units. All of the
pictures in this manual are for
demonstration purposes only.
Your air conditioner may be
slightly different, if similar in
shape. The following pages
introduce several kinds of indoor
units that can be matched with
the outdoor units.
2�3 Optional accessories
There are two types of remote controls: wired
and wireless. Select a remote controller based
on customer preferences and requirements and
install in an appropriate place. Refer to catalogues
and technical literature for guidance on selecting
a suitable remote controller.
Name Shape Quantity(PC)
Connecting
pipe assembly
Liquid
side
Ø 6.35 (1/4 in) Parts you must purchase
separately. Consult the
dealer about the proper
pipe size of the unit you
purchased.
Ø 9.52 (3/8in)
Gas side
Ø 9.52 (3/8in)
Ø 12.7 (1/2in)
Ø 16 (5/8in)

17 / 124 EN
Multi Split Type Air Conditioner / User Manual
3�1 Operating temperature
When your air conditioner is used outside of
the following temperature ranges, certain safety
protection features may activate and cause the
unit to disable.
COOL mode HEAT mode DRY mode
Room Temperature 17°C - 32°C (62°F - 90°F) 0°C - 30°C
(32°F - 86°F)
10°C - 32°C
(50°F - 90°F)
Outdoor
Temperature
0°C - 50°C (32°F - 122°F)
-15°C - 24°C
(5°F - 75°F)
0°C - 50°C
(32°F - 122°F)
-15°C - 50°C (5°F - 122°F)
(For models with low temp. cooling
systems.)
0°C - 52°C (32°F - 126°F)
(For special tropical models)
0°C - 52°C
(32°F - 126°F)
(For special tropical
models)
C
For outdoor units with auxiliary
electric heater. When outside
temperature is below 0°C
(32°F), we strongly recommend
keeping the unit plugged in at all
time to ensure smooth ongoing
performance.
C
Room relative humidity less
than 80%. If the air conditioner
operates in excess of this figure,
the surface of the air conditioner
may attract condensation.
Please sets the vertical air flow
louver to its maximum angle
(vertically to the floor), and set
HIGH fan mode.
3 Unit specifications and features

18 / 124 EN Multi Split Type Air Conditioner / User Manual
3 Unit specifications and features
To further optimize the performance of your
unit, do the following
•Keep doors and windows closed.
•Limit energy usage by using TIMER ON and
TIMER OFF functions.
•Do not block air inlets or outlets.
•Regularly inspect and clean air filters.
3�2 Features
Install the HomeWhiz kit (wireless
module)

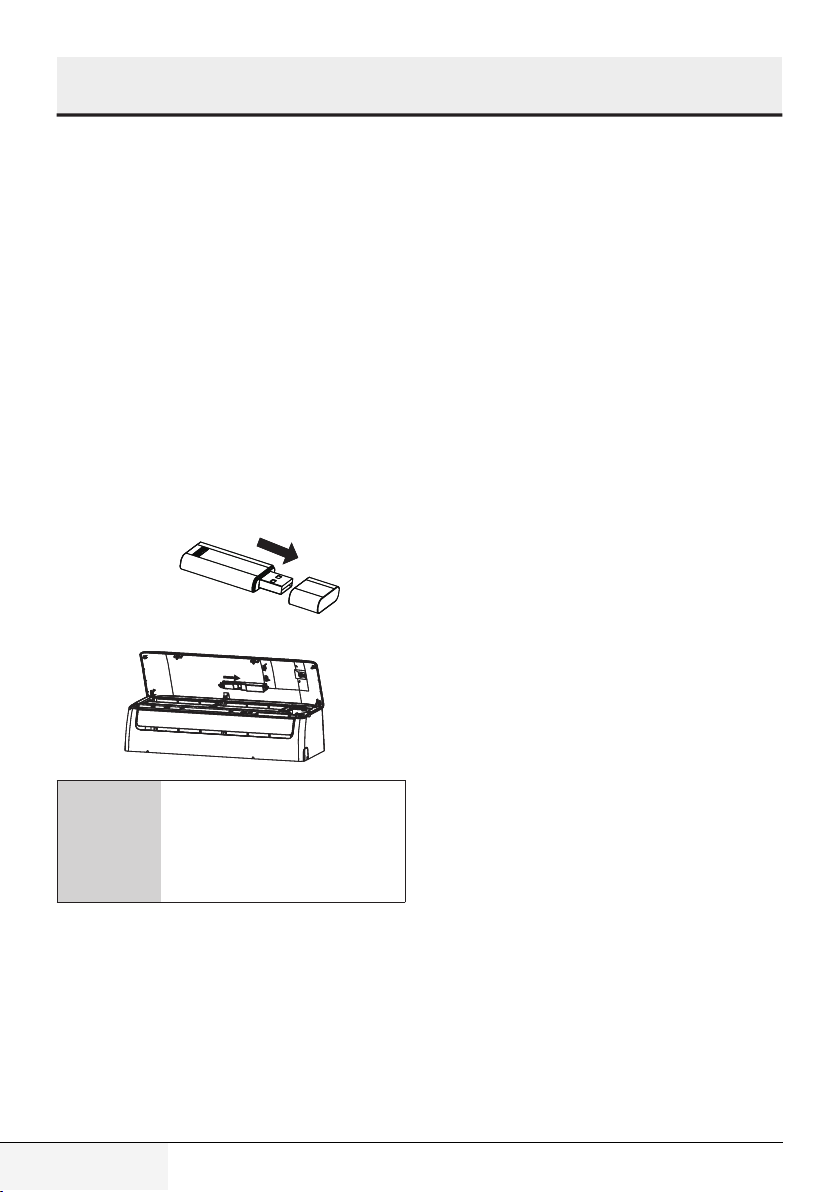

1. Remove the protective cap of the HomeWhiz kit
(wireless module)
2. Open the front panel and insert the HomeWhiz
kit (wireless module) into the reserved interface.
Insert
A
Warning:
This interface is only compatible
with HomeWhiz kit (wireless
module) provided by the
manufacturer.
Protection of the air conditioner
Compressor protection
The compressor cannot restart for 3 minutes after
it stops.
Anti-cold air (Cooling and heating
models only)
The unit is designed not to blow cold air on HEAT
mode, when the indoor heat exchanger is in
one of the following three situations and the set
temperature has not been reached.
•When heating has just started.
•During defrosting.
•Low temperature heating.
The indoor or outdoor fan stop running when
defrosting (Cooling and heating models only).
Defrosting (Cooling and heating models
only)
•Frost may be generated on the outdoor unit
during a heat cycle when outdoor temperature
is low and humidity is high resulting in lower
heating effciency in the air conditioner.
•Under these conditions, the air conditioner will
stop heating operations and start defrosting
automatically.
•The time to defrost may vary from 4 to 10
minutes, depending the outdoor temperature
and the amount of frost buildup on the outdoor
unit.
Auto-Restart (some models)
Incase ofpower failure,the systemwillimmediately
stop. When power returns, the Operation light on
the indoor unit will flash. To restart the unit, press
the ON/OFF button on the remote control. If the
system has an auto restart function, the unit will
restart using the same settings.
White mist emerging from the indoor
unit
•A white mist may be generated due to a large
temperature difference between air inlet and
air outlet on COOL mode in places with high
relative humidity.

19 / 124 EN
Multi Split Type Air Conditioner / User Manual
•A white mist may be generated due to moisture
created in the defrosting process when the air
conditioner restarts in HEAT mode operation
after defrosting.
Noise coming from the air conditioner
•You may hear a low hissing sound when the
compressor is running or has just stopped
running. This sound is the sound of the
refrigerant flowing or coming to a stop.
•You may also hear a low “squeaking” sound
when the compressor is running or has just
stopped running. This is caused by tempera
heat expansion and cold contraction of the
plastic parts in the unit when the temperature
is changing.
•A noise may be heard due to the louver restoring
itself to its original position when power is first
turned on.
Dust blowing out from the indoor unit
This is happens when the air conditioner has not
been used for a long time or during its first use.
Smell emitting from the indoor unit�
This is caused by the indoor unit giving off smells
permeated from building materials, furniture, or
smoke.
The air conditioner turns to FAN ONLY
mode from COOL or HEAT (for cooling
and heating models only) mode�
When the indoor temperature reaches the set
temperature setting, the compressor will stop
automatically, and the air conditioner turns to FAN
only mode. The compressor will start again when
the indoor temperature rises on COOL mode or
falls on HEAT mode to the set point.
Droplets of water may form on the surface of the
indoor unit when cooling occurs in relatively high
humidity (defined as higher than 80%). Adjust
the horizontal louver to the maximum air outlet
position and select HIGH fan speed.
Heating mode (For cooling and heating
models only)
The air conditioner draws in heat from the outdoor
unit and releases it via the indoor unit during
heating. When the outdoor temperature falls,
heat drawn in by the air conditioner decreases
accordingly. At the same time, heat loading of the
air conditioner increases due to larger difference
between indoor and outdoor temperature. If a
comfortable temperature cannot be achieved with
the air conditioner alone, it is recommended that
you use a supplementary heating device. Lightning
or a car wireless telephone operating nearby may
cause the unit to malfunction. Disconnect the
unit from its power source and then re-connect
the unit with the power source again. Push the
ON/OFF button on the remote controller to restart
operations.
3�3 Energy saving tips
•DO NOT set the unit to excessive temperature
levels.
•While cooling, close the curtains to avoid direct
sunlight.
•Doors and windows should be kept closed to
keep cool or warm air in the room.
•DO NOT place objects near the air inlet and
outlet of the unit. This will reduce the efficiency
of the unit.
•Set a timer and use the built-in SLEEP/
ECONOMY mode if applicable.
•If you don’t plan to use the unit for a long time,
remove the batteries from the remote control.
•Clean the air filter every two weeks. A dirty filter
can reduce cooling or heating efficiency.
•Adjust louvers properly and avoid direct airflow.
3 Unit specifications and features

20 / 124 EN Multi Split Type Air Conditioner / User Manual
3 Unit specifications and features
Closing curtains during heating also helps keep
the heat in.
Doors and windows should be kept closed.
