Beko BEPB 09C User manual

Mobile room air
conditioner
User Manual
BEPB 09C BEPB 09H BEPB 12C BEPB 12H
EN FR RO NL

Please read this user manual rst!
Dear Customer,
Thank you for preferring a Beko product. We hope that you get the best results
from your product which has been manufactured with high quality and state-of-
the-art technology. Therefore, please read this entire user manual and all other
accompanying documents carefully before using the product and keep it as a
reference for future use. If you handover the product to someone else, give the user
manual as well. Follow all warnings and information in the user manual.
Meanings of the symbols
Following symbols are used in the various section of this manual:
This product has been produced in environmentally friendly, modern facilities
Complies with the WEEE Regulation. Does not contain PCB.
C
Important information or
useful hints about usage.
A
Warning for hazardous
situations with regard to
life and property.
Warning to actions that
must never perform.
B
Warning for electric shock.
Warning for danger of fire.
Warning for hot surfaces.
Do not cover it.

Mobile room air conditioner / User Manual 3 / 116 EN
CONTENTS
1 Safety nstructons 4
2 Parts descrpton 9
2.1 Front view. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.2 Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Control panel 11
3.1 Temp. indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.2 Function buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Operaton 13
5 Accessores 14
6 Installaton 15
6.1 Guide of customer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.2 Select a best location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.3 Duct mount instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.4 Install the exhaust duct into the window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.5 Install the exhaust duct into the wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.6 Water drainage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7 Mantenance 20
7.1 Clean the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
7.2 Clean the air lter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8 Troubleshootng 22
9 Specfcatons 24
10Installaton nstructons 25
10.1 F-Gas instruction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
11 Buttons descrpton 26
12 Usage 28
12.1 Fix batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
12.2 Attention. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4 / 116 EN Mobile room air conditioner / User Manual
Incorrect installation or operation by not following these
instructions may cause harm or damage to people, properties, etc.
Warning
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play
with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
(Only for the AC with CE-Marking)
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with
the appliance.
(Except for the AC with CE-Marking)
• The air conditioner must be grounded. Incomplete grounding may
result in electric shocks.
Do not connect the earth wire to the gas pipeline, water pipeline,
lightning rod, or telephone earth wire.
1 Safety nstructons

Mobile room air conditioner / User Manual 5 / 116 EN
1 Safety nstructons
• After installment, earth leakage examination must be carried on
through electrifying.
• Don’t move the unit, unless the power has been cut off and the
power cord is tied to the bending and winding column.
• An earth leakage breaker with rated capacity must be installed to
avoid possible electric shocks.
• Don’ t install air conditioner in a place where there is flammable gas
or liquid. It may cause fire.
• If the power supply cord is damaged, it must be replaced by the
manufacture or its service agent or a similar qualified person.
• The specification of fuse is AC250V T3.15AL.
• Don’t put hands or any objects into the air inlets or outlets.
This may cause personal injury or damage to the unit.
• Don’ t touch the swinging wind vanes.
It may clamp your finger and damage the driving parts of the wind
vanes.
• Don’t attempt to repair the air conditioner by yourself.
You may be hurt or cause further malfunctions.
• In lighting storm weather, please cut off the primary power supply
switch in order to prevent the machine from damage.
• Don’ t use liquid or corrosive detergent to clean the appliance and
don’ t splash water or other liquid onto it, otherwise, it may damage
the plastic components, even cause electric shock.
• Don’t operate the unit in a wet room such as the bath room or
laundry rooms.

6 / 116 EN Mobile room air conditioner / User Manual
1 Safety nstructons
• Don’t touch the unit with wet or damp hands or when barefoot.
• If your air conditioner is not fitted with a supply cord and a plug, an
all-pole switch must be installed in the fixed wiring and the distance
between contacts should be no less than 3.0 mm.
A
Warning
• Don’t apply the cold air to the body for a long time. It will
deteriorate your physical conditions and cause health
problems.
• Don’t block air inlet or air outlet, otherwise, the cooling
capacity will be weakened, even cause system stop
operating.
• Close the windows and doors, otherwise, the cooling
capacity will be weakened.
• If the air filter is very dirty, the cooling capacity will be
weakened. Please clean the air filter regularly.

Mobile room air conditioner / User Manual 7 / 116 EN
1 Safety nstructons
C
Notices for R410A models
Refrigerant leakage contributes to climate change.
Refrigerant with lower global warming potential
(GWP) would contribute less to global warming than a
refrigerant with higher GWP, if leaked to the atmosphere.
This appliance contains a refrigerant fluid with a GWP
equal to [2088]. This means that if 1 kg of this refrigerant
fluid would be leaked to the atmosphere, the impact on
global warming would be [2088] times higher than 1 kg of
CO2, over a period of 10 years. Never try to interfere with
the refrigerant circuit yourself or disassemble the product
yourself and always ask a professiona.

8 / 116 EN Mobile room air conditioner / User Manual
1 Safety nstructons
A
WEEE Warning
Meaning of crossed out wheeled dustbin:
Do not dispose of electrical appliances as unsorted
municipal waste, use separate collection facilities.
Contact you local government for information regarding
the collection systems available.
If electrical appliances are disposed of in landfills
or dumps, hazardous substances can leak into the
groundwater and get into the food chain, damaging your
health and well-being.
When replacing old appliances with new ones, the retailer
is legally obligated to take back your old appliance for
disposals at least free of charge.
The oil of compressor used as below table:
Compressor manufacturer or
trade mark Refrigerant The name of oil
Highly R410A α68HES-H or equivalent
R22 DIAMOND MS-56 or NM56EP or equivalent
Meizhi R410A ESTER OIL Vg68
R22 SUNISO 4GSD or NM56EP or equivalent
Rechi R410A NMOC Ze-Gles RB68EP or equivalent

Mobile room air conditioner / User Manual 9 / 116 EN

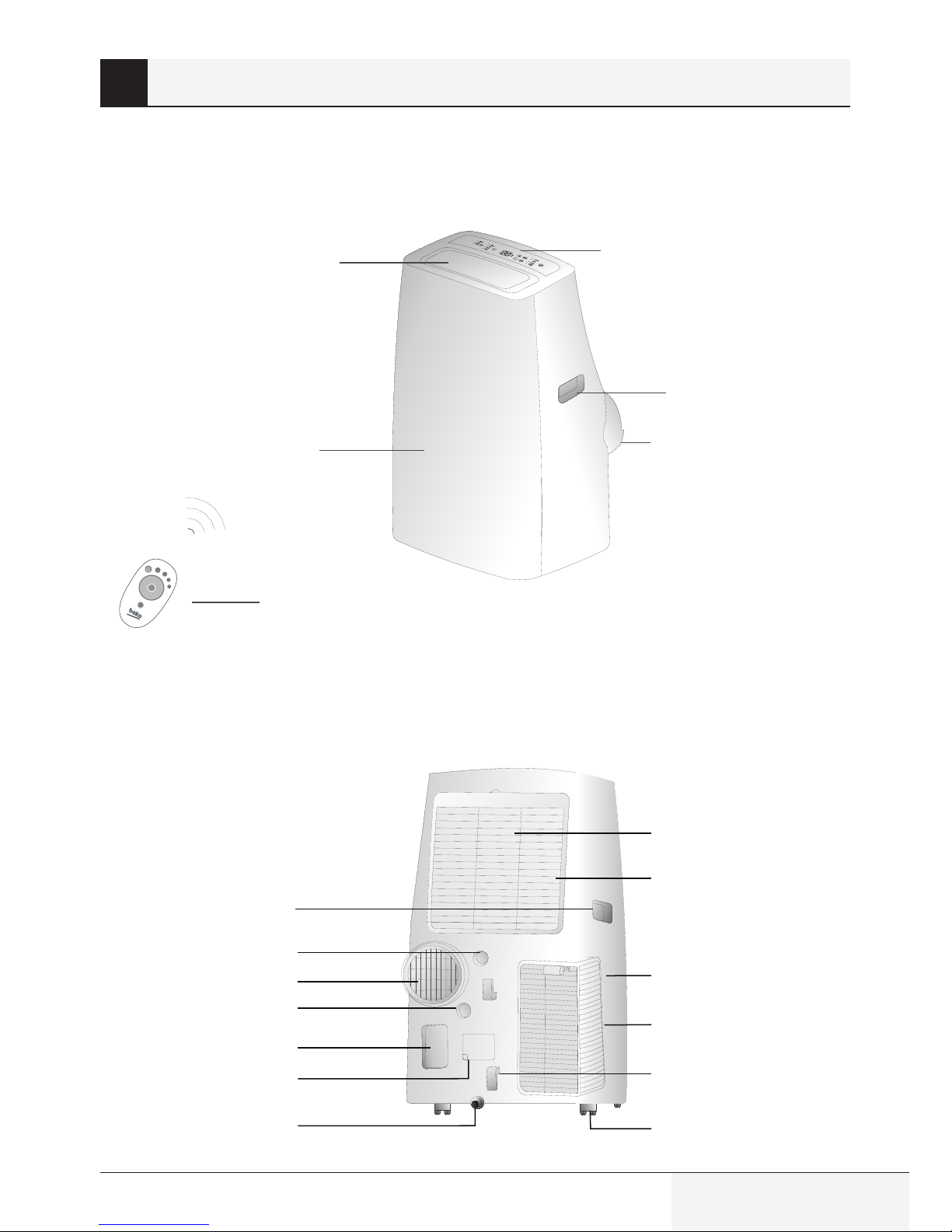

2.1 Front vew
ON/OFF
SPEED
SWING
TIMER
SLEEP
HEAT
DRY FAN
COOL
+
-
Air outlet
Front panel
Remote
controller
Control panel
Carrying handle
(both sides)
Air outlet
2.2 Rear vew
1
2
4
3
5
67
8
9
10
11
12
13
2 Parts descrpton

10 / 116 EN Mobile room air conditioner / User Manual
1. Upper air filter (behind the grille)
2. Upper air intake
3. Lower air filter (behind the grille)
4. Lower air intake
5. Power cord buckle
6. Caster
7. Bottom tray drain outlet
8. Power cord outlet
9. Power plug socket
10. Pump drain outlet
11. Air outlet
12. Drain outlet
13. Carrying handle (both sides)
C
Note:
• The descriptions in this user manual are text and figures may have slightly
difference to the promotion information and actual appliance. Please refer to the
real appliance purchased, Thank you.
• The woking temperature range of the air conditioner is 16~35°C (60~95°F) under
cooling mode; 5~27°C (41~80°F) under heating mode.
2 Parts descrpton

Mobile room air conditioner / User Manual 11 / 116 EN
There are two kinds about control panel, Fig A and Fig B, the actual shape shall prevail.
F
C
High
Low
Mid
Cool
Dry
Fan
Heat
Timer
Sleep
Water
full
Timer
Sleep
Power
1
23456
F
C
1
23456
!
Fig A
Fig B Temp. indicator
Temp. indicator
3.1 Temp. ndcator
• In cooling or heating mode, when + or - button is pressed, the setting temperature is displayed and
be adjusted.
• There are two kind of types about Temp. indicator default display, the actual shape shall prevail.
1.The default display is setting temperature.
2. The default display is room temperature. After flashing 5 seconds when adjust setting
temperature, the display will revert back to room temperature.
3.2 Functon buttons
1. button  Press this button to make the unit run or stop.
2.
TIM E R
/ button  Press this button, the Timer/ indicator light will illuminate, then press the + or -
button to set the desired time.
C
Note:
With the unit on, press this button to set off timer.
With the unit off, press this button to set on timer.
3.
S LE E P
/ button  Press this button to enter Sleep mode, which the unit will exit after 10 hours of
continuous operation and restore to the previous status.
C
Note:
The Sleep function can not be activated in Fan mode.
3 Control panel

12 / 116 EN Mobile room air conditioner / User Manual
4. or button
a. Each time the + or - button is pressed, the setting temperature will increase or decrease by
1°C (1°F). The setting temperature ranges from 16°C (60°F) ~ 32°C (90°F).
b. By pressing both the + and - button at the same time, the display will toggle between Celsius and
Fahrenheit.
5. button  Press this button, you can select the running mode as follows:
Cool Dry Fan Heat
or
The mode indicator light illuminates under the different mode.
C
Note:
Heat mode is not available for cool only units.
6. / button  Press this button, you can select the fan speed as follows:
Low Mid High
or
The fan speed indicator light illuminates under the different fan speed.
C
Note:
1. Swing function can be selected by remote controller not by control panel.
2. Other functions on control panel are as remote controller’s.
3 Control panel

Mobile room air conditioner / User Manual 13 / 116 EN
A
Warnng:
Failure to follow the below precaution could result in electrical shock, fire or personal
injury.
1. The plug must be plugged into an outlet that is properly installed and grounded.
2. Do not use an extension cord or plug adaptor with this unit.
Before startng the unt
1. Select a suitable location, make sure the unit is near to an electrical outlet.
2. Install the flexible exhaust hose and the adjustable window slider kit.
3. Plug the unit into a right outlet.
Heatng operaton mode (Cold wnd type has no heatng functon)
1. Press the Mode button in a sequence until the heat indicator is lighted.
2. Press the “+”and “-” button to setting your desired setting temperature.
3. Press Fan button to select the fan speed.
Coolng operaton mode
1. Press the Mode button in a sequence until the cool indicator is lighted.
2. Press the “+” and “-” button to set your desired setting temperature.
3. Press Fan button to select the fan speed.
Dryng operaton mode
1. Press the Mode button in a sequence until the dry indicator is lighted.
2. The fan will run at a fixed speed at this operation mode.
3. Close windows and doors for the best dehumidifying effect.
C
Note: The setting temperature and fan speed can not be adjusted. The setting
temperature is 25°C (77°F) and the fan speed is low.
Fan operaton mode
1. Press Mode button in a sequence until the fan indicator is lighted.
2. Press the Fan button to select the fan speed.
C
Note: The setting temperature can not be adjusted.
4 Operaton

14 / 116 EN Mobile room air conditioner / User Manual

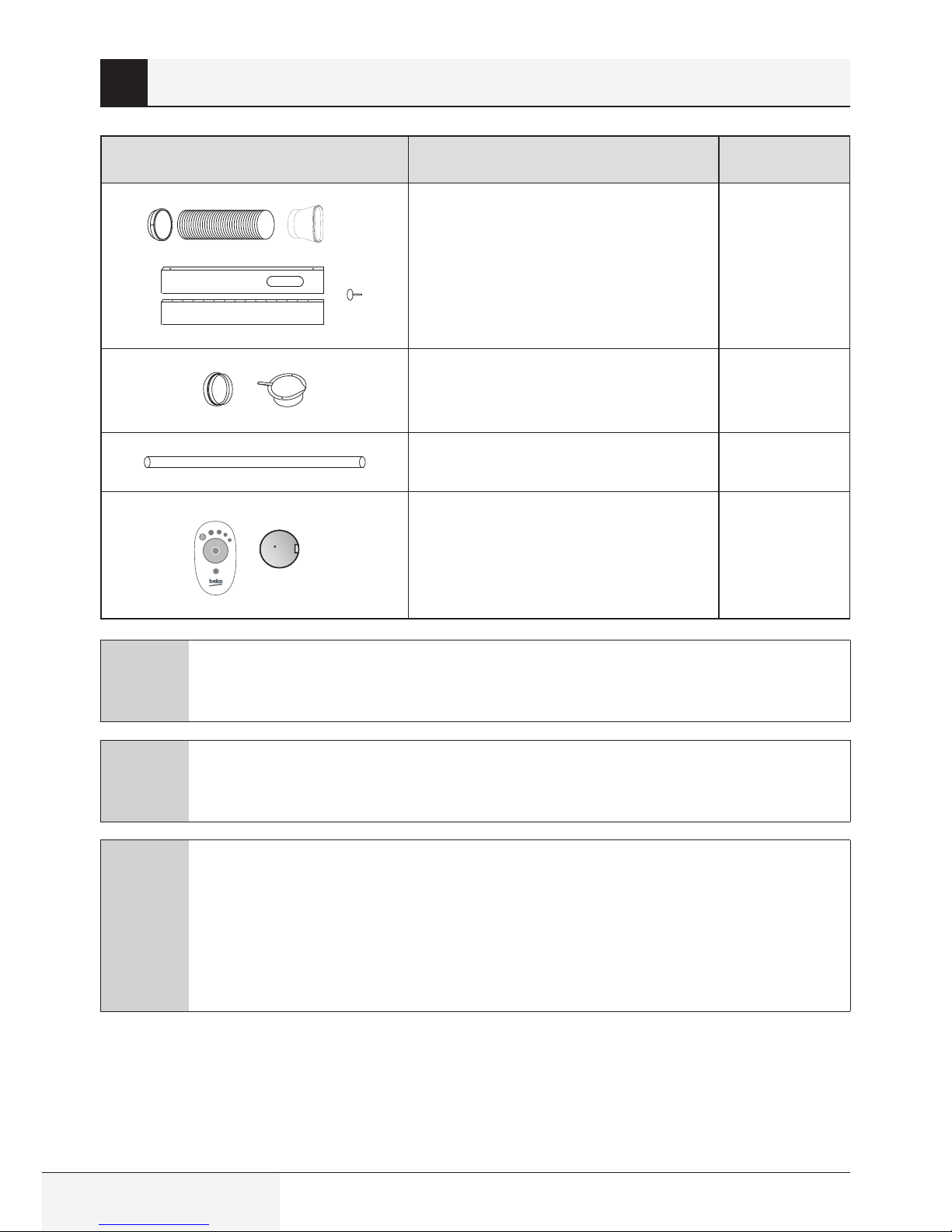

Parts Parts name Quantty
Adaptor A, Exhaust duct,
Adaptor B (flat mouth), Window
slider kit and Plastic Pin
1 set
Adaptor B (round mouth) (#),
Wall exhaust Adaptor (#) 1 set
Drain hose 1 pc
2
0
3
R
2
C
ON/OFF
SPEED
SWING
TIMER
SLEEP
HEAT
DRY FAN
COOL
+
-
Remote controller and Battery 1 pc
C
Note: Optional parts (#), some models without.
C
Note: All the illustrations in this manual are for explanation purpose only. Your air
conditioner may be slightly different. the actual shape shall prevail.
C
Q models moble ar-condtoner ar louver notes:
1. With automatic wind sweep function models, the air louver can not be less than
automatically wind smallest outlet angle when use it.
2. No automatic sweep function models, air louver minimum opening angle: from air
louver closed state breaking up 5 grid. air louver can not be less than the minimum
open angle when use it.
5 Accessores

Mobile room air conditioner / User Manual 15 / 116 EN
6.1 Gude of customer
• The customer should have a qualified power supply coincident with that printed on the tag of the air
conditioner.
• Must use special circuit and efficient grounding outlet matching with the plug of the air conditioner.
• The appliance should be installed in accordance with national wiring regulation.
• The plug should be easily accessible after installation.

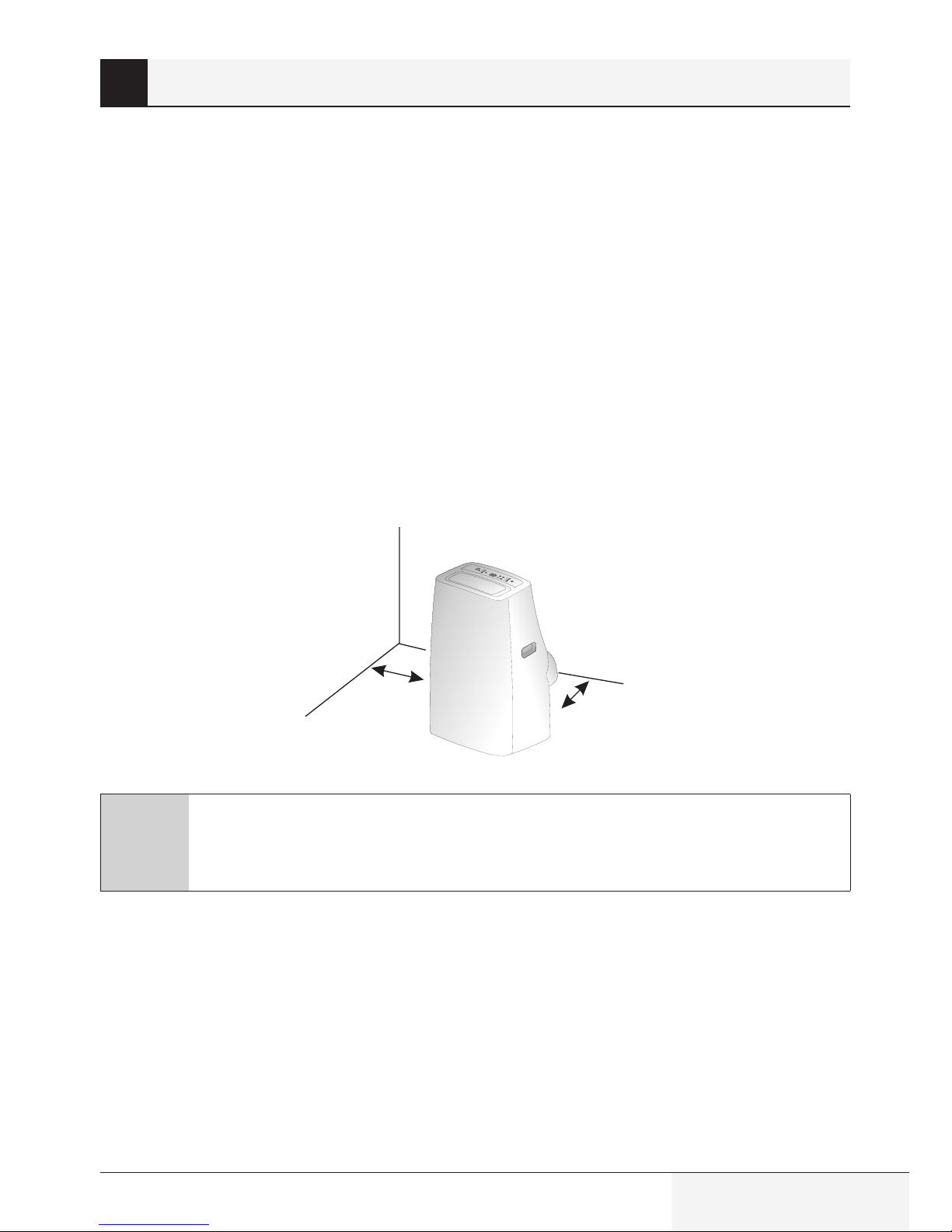

6.2 Select a best locaton
1. Install the mobile air conditioner in a flat and spacious location where the air outlets will not be
obstructed.
2. A minimum clearance of 50cm from walls or other obstacles should be kept.
3. The gradient can’t be more than 10 degrees with the horizontal plane, while putting and using the
utensil.
More than 50cm
More than 50cm
C
Note:
1. The air conditioner shall not be used in the laundry.
2. The plug shall be accessible after the unit is positioned.
6.3 Duct mount nstructon
• In cooling, heating and drying mode, the exhaust duct needs to be installed while in fan mode, the
exhaust duct is not needed.
• According to the actual needs, the exhaust duct can be moderately compressed and tensed, but
cannot be arbitrarily stretched and bent.
• The exhaust duct can be connected with Windows or installed into the wall.
Based on accessories of the unit you buy and the actual needs, you can make the installation.
6 Installaton

16 / 116 EN Mobile room air conditioner / User Manual
1. Install the adaptor A and adaptor B (flat mouth or round mouth) onto the exhaust duct as shown in
Fig. A or Fig.B.
(round mouth)
=
=
or
Fig. A
(flat mouth)
(Be used to install to the wall (only for some units))(Be used to install to the window)
Fig. B
2. Connect the exhaust duct to the Air outlet connector on back of the unit. Slide-in the adaptor A
downwards until it is locked in place. (Fig.C)
or
Fig. C
Air outlet connector
Adaptor A

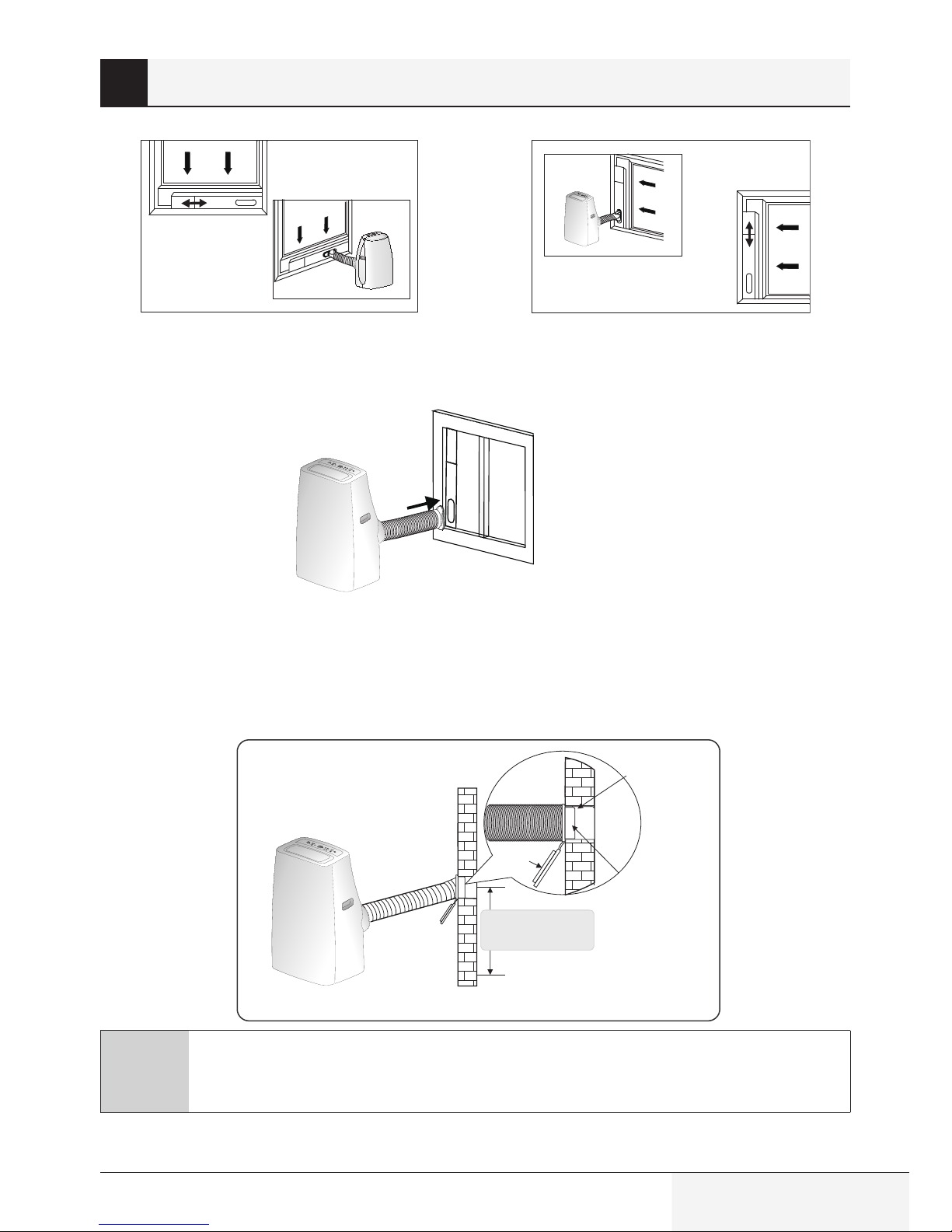

6.4 Install the exhaust duct nto the wndow
1. Adjust the window bracket as per width or height of your window and insert the plastic pin to fix at
the desired position.
Plastic Pin
Window slider kit
2. Install the Window slider kit into the window.
Your window kit has been designed to fit most standard vertical and horizontal window
applications. However, it may be necessary for you to improve or modify some aspects of the
installation procedure for certain types of window. Please refer to Fig. D & Fig. E for minimum and
maximum window openings.
6 Installaton

Mobile room air conditioner / User Manual 17 / 116 EN
F
C
HIGH
LOW
MID
COO
L
DRY
FAN
HEAT
TIM
ER
SLEEP
W
A
T
E
R
FU
LL
TIM
ER
S
LE
EP
PO
W
ER
Horizontal window
Vertical
window
Window slide kit
minimum: 67.5cm
maximum: 125cm Window slide kit
minimum: 67.5cm
maximum: 125cm
Fig. D Fig. E
3. Remove the unit with the packed exhaust duct next to the window, and then connect the adaptor B
(flat mouth) of the exhaust duct with the window. (Fig. F)
Fig. F
6.5 Install the exhaust duct nto the wall
1. Prepare a hole in the wall. Install the wall exhaust adaptor onto the wall, be sure to fix thoroughly.
2. Attach the exhaust duct to wall exhaust adaptor. (Fig. G)
Wall exhaust
adaptor
Adaptor B
(round mouth)
Adaptor
cap
maximum: 120cm
minimum: 30cm
Fig. G
C
Note: Cover the hole using the adaptor cap when not in use.
6 Installaton

18 / 116 EN Mobile room air conditioner / User Manual
C
Note:
1. The duct can be compressed to 270mm minimum and extended to
1500mm maximum. It is better to keep the duct length to a minimum.
2. Stretching or bending the duct excessively will affect the cooling efficiency. (As the
following fig. Shows)
Do not! Yes!

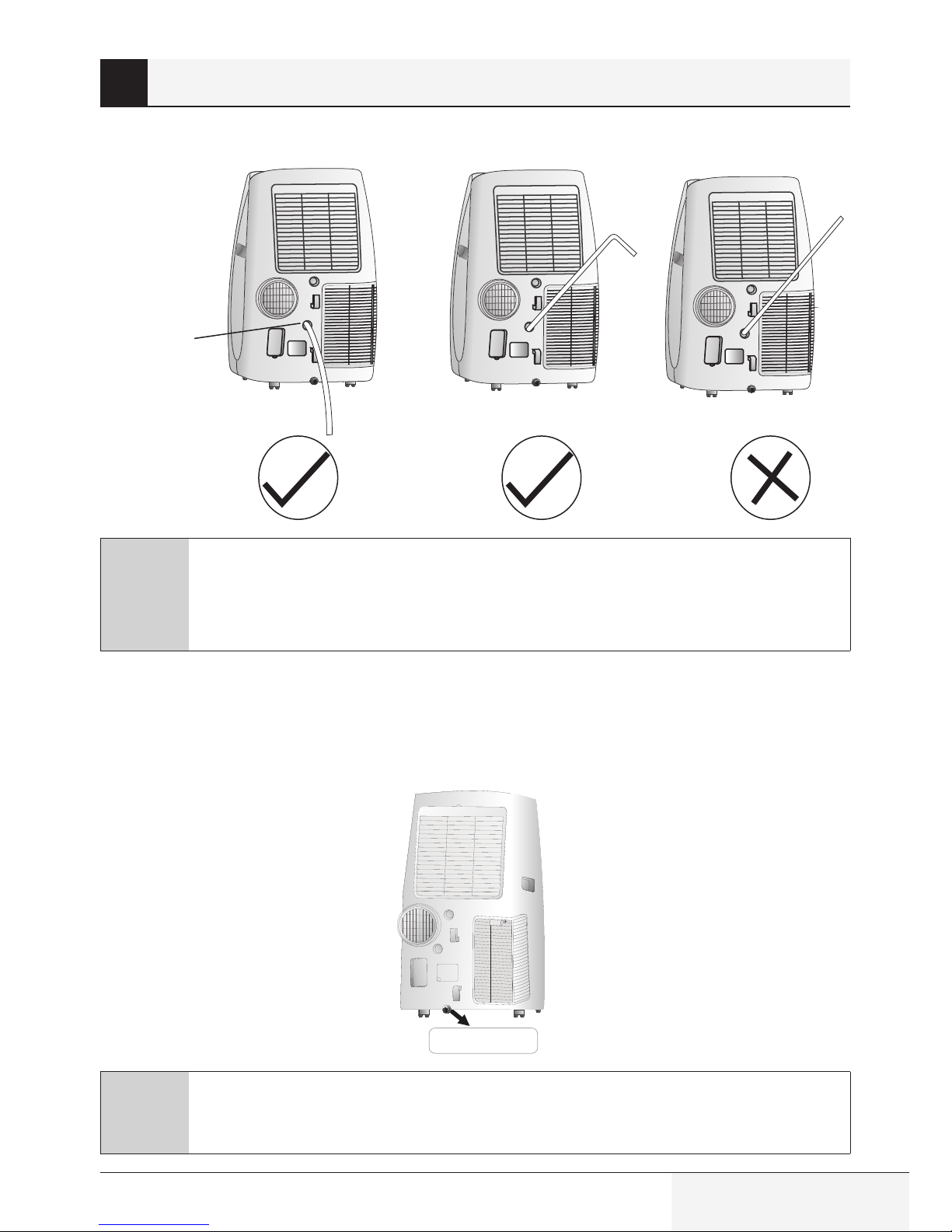

6.6 Water dranage
• During dehumidifying mode, remove the upper drain plug from the back of the unit. Attach the drain
hose to the hole. Place the other end of the hose in the drainage way or other drain areas.
Drain outlet
• If the unit you bought has the pump drain outlet, as shown below, please drain in this way :
Remove the pump drain plug from the back of the unit, attach the drain hose to the hole. Place the
other end of the hose in the drainage way or other drain areas.
6 Installaton

Mobile room air conditioner / User Manual 19 / 116 EN
Pump drain
outlet
C
Note: Make sure the hose is secure and there are no leaks. Direct the hose toward the
drain, making sure that there are no kinks that will stop the water flowing. Place the
end of the hose into the drain and make sure the end of the hose is down to let the
water flow smoothly. Do never let it up.
• When the water level of the bottom tray reaches predetermined level, the digital display area shows
“P1” and the Water full indicator light illuminates. Carefully move the unit to a drain location, remove
the bottom drain plug and let the water drain away. Reinstall the bottom drain plug and restart the
machine until the P1 symbol disappears. If the error repeats, call for service.
Drain outlet
C
Note: Be sure to reinstall the bottom drain plug before using the unit.
6 Installaton

20 / 116 EN Mobile room air conditioner / User Manual
7 Mantenance
A
Warnng:
• Before the cleaning of the air conditioner, it must be shut down and the electricity
must be cut off for more than 5 minutes, otherwise there might be the risk of electric
shocks.
• Do not use gasoline, benzene, thinner or any other chemicals, or any liquid insecticide
on the air conditioner, as these substances may cause flaking off of the paint,
cracking or deformation of plastic parts.
• Never attempt to clean the unit by pouring water directly over any of the surface
areas, as this will cause deterioration of electrical components and wiring insulation.
7.1 Clean the unt
When the unit is contaminated, clean it gently
with a wrung towel using tepid water below 40°C (104°F).
7.2 Clean the ar flter
1. Remove the air filter
Respectively draw back the upper air intake grille and the lower air intake grille, take out the upper
air filter
1
and the lower air filter
2
.
1
2
1
2
Fig. 1 Fig. 2
C
Note: There are two types about the low air intake grille,please refer to Fig. 1 or Fig. 2.
If the low air intake with a srew, please remove the srew at first.
