Beko BEHPGH 090 User manual

10M-8504153200-4822-01
Split type air conditioner
User Manual
EN - PL
BEHPGH 090/BEHPGH 091
BEHPGH 120/BEHPGH 121
BEHPGH 180/BEHPGH 181
BEHPGH 240/BEHPGH 241
BEEPGH 090/BEEPGH 091
BEEPGH 120/BEEPGH 121
BEHPG 090/BEHPG 091
BEHPG 120/BEHPG 121
BEHPG 180/BEHPG 181
BEHPG 240/BEHPG 241

CONTENTS
ENGLISH 3-62
POLSKI 63-128
V2211006
AG UM

Please read this user manual rst!
Dear Customer,
Thank you for preferring a Beko product. We hope that you get the best results from
your product which has been manufactured with high quality and state-of-the-art
technology. Therefore, please read this entire user manual and all other accompanying
documents carefully before using the product and keep it as a reference for future use.
If you handover the product to someone else, give the user manual as well. Follow all
warnings and information in the user manual.
Meanings of the symbols
Following symbols are used in the various section of this manual:
C
Important information or
useful hints about usage.
A
Warning for hazardous
situations with regard to life
and property.
Warning to actions that
must never perform.
B
Warning for electric shock.
This symbol shows that
information is available such
as the operating manual or
installation manual.
Do not cover it.
This symbol shows that the
operation manual should be
read carefully.
This symbol shows that a
service personnel should be
handling this equipment with
reference to the installation
manual.
(For R32/R290 gas type)
This symbol
shows that this
appliance used
a flammable
refrigerant. If
the refrigerant
is leaked and
exposed to an
external ignition
source, there is a
risk of fire.
RECYCLED &
RECYCLABLE
PAPER

CONTENTS
1 Safety precautions 6
2 Unit specifications and features 15
2.1 Indoor unit display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.2 Operating temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.3 Inverter split type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.4 Fixed-speed type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.5 Other features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.6 Manual operation (without remote) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

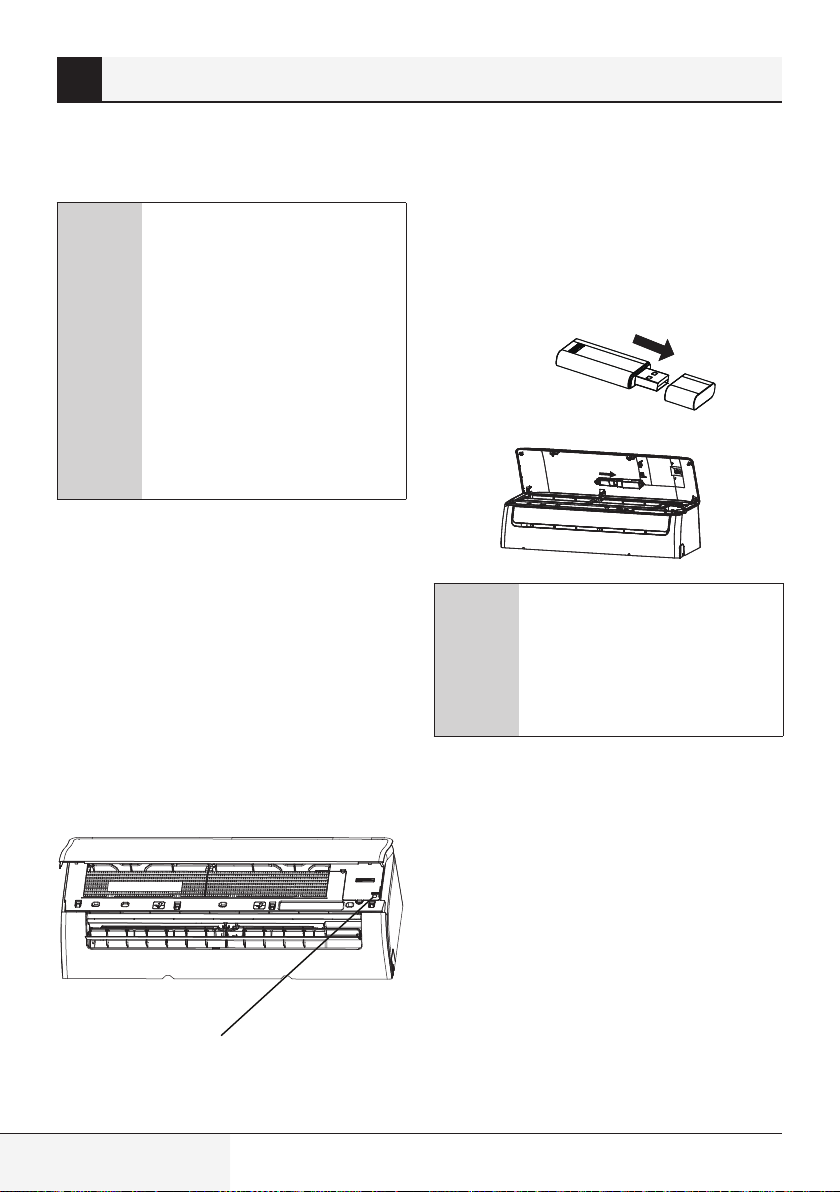

2.7 Install the HomeWhiz kit (wireless module) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3 Care and maintenance 21
3.1 Cleaning your indoor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.2 Cleaning your air filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.3 Maintenance — long periods of non-use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.4 Maintenance – pre-season inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4 Troubleshooting 24
4.1 Common issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5 Accessories 28
6 Installation summary - indoor unit 30
7 Unit parts 31
8 Indoor unit installation 32
8.1 Installation instructions - Indoor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9 Outdoor unit installation 41
9.1 Installation instructions — outdoor unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4 / 128 EN Split type air conditioner / User Manual

CONTENTS
10 Refrigerant piping connection 46
10.1 Connection instructions – refrigerant piping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
10.2 Instructions for connecting piping to outdoor unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
11 Air evacuation 50
11.1 Preparations and precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
11.2 Evacuation instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
11.3 Note on adding refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
12 Electrical and gas leak checks 52
12.1 Before test run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
12.2 Electrical safety checks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
12.3 Gas leak checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
13 Test Run 54
13.1 Test run instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
14 European disposal guideline 55
15 Installation instructions 56
15.1 F-Gas instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
16 Specifications 57
Split type air conditioner / User Manual 5 / 128 EN

6 / 128 EN Split type air conditioner / User Manual
Warning
This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if they
have been given supervision or
instruction concerning use of
the appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision
(European Union countries).
This appliance is not intended
for use by persons (including
children) with reduced physical,
sensory or mental capabilities,
or lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
Children should be supervised to
ensure that they do not play with
the appliance.
Warnings for product use
•If an abnormal situation
arises (like a burning smell),
immediately turn off the unit
and disconnect the power. Call
your dealer for instructions
to avoid electric shock, fire or
injury.
•Do not insert fingers, rods or
other objects into the air inlet
or outlet. This may cause injury,
since the fan may be rotating at
high speeds.
•Do not use flammable sprays
such as hair spray, lacquer or
paint near the unit. This may
cause fire or combustion.
•Do not operate the air
conditioner in places near or
around combustible gases.
Emitted gas may collect around
the unit and cause explosion.
1 Safety precautions

Split type air conditioner / User Manual 7 / 128 EN
•Do not operate your air
conditioner in a wet room
such as a bathroom or laundry
room. Too much exposure
to water can cause electrical
components to short circuit.
•Do not expose your body
directly to cool air for a
prolonged period of time.
•Do not allow children to play
with the air conditioner. Children
must be supervised around the
unit at all times.
•If the air conditioner is used
together with burners or other
heating devices, thoroughly
ventilate the room to avoid
oxygen deficiency.
•In certain functional
environments, such as
kitchens, server rooms, etc.,
the use of specially designed
air-conditioning units is highly
recommended.
Cleaning and
maintenance warnings
•Turn off the device and
disconnect the power before
cleaning. Failure to do so can
cause electrical shock.
•Do not clean the air conditioner
with excessive amounts of
water.
•Do not clean the air conditioner
with combustible cleaning
agents. Combustible cleaning
agents can cause fire or
deformation.
Caution
•Turn off the air conditioner and
disconnect the power if you are
not going to use it for a long time.
•Turn off and unplug the unit
during storms.
•Make sure that water
condensation can drain
unhindered from the unit.
•Do not operate the air
conditioner with wet hands. This
may cause electric shock.
1 Safety precautions

8 / 128 EN Split type air conditioner / User Manual
•Do not use device for any other
purpose than its intended use.
•Do not climb onto or place
objects on top of the outdoor
unit.
•Do not allow the air conditioner
to operate for long periods of
time with doors or windows
open, or if the humidity is very
high.
Electrical warnings
•Only use the specified power
cord. If the power cord is
damaged, it must be replaced
by the manufacturer, its service
agent or similarly qualified
persons in order to avoid a
hazard.
•Keep power plug clean.
Remove any dust or grime that
accumulates on or around the
plug. Dirty plugs can cause fire
or electric shock.
•Do not pull power cord to
unplug unit. Hold the plug firmly
and pull it from the outlet.
Pulling directly on the cord can
damage it, which can lead to fire
or electric shock.
•Do not modify the length of
the power supply cord or use
an extension cord to power the
unit.
•Do not share the electrical outlet
with other appliances. Improper
or insufficient power supply can
cause fire or electrical shock.
•The product must be properly
grounded at the time of
installation, or electrical shock
may occur.
•For all electrical work, follow
all local and national wiring
standards, regulations, and the
Installation Manual. Connect
cables tightly, and clamp them
securely to prevent external
forces from damaging the
terminal. Improper electrical
connections can overheat and
cause fire, and may also cause
shock. All electrical connections
must be made according to the
1 Safety precautions

Split type air conditioner / User Manual 9 / 128 EN
Electrical connection diagram
located on the panels of the
indoor and outdoor units.
•All wiring must be properly
arranged to ensure that the
control board cover can close
properly. If the control board
cover is not closed properly, it
can lead to corrosion and cause
the connection points on the
terminal to heat up, catch fire, or
cause electrical shock.
•If connecting power to fixed
wiring, an all-pole disconnection
device which has at least 3mm
clearances in all poles, and
have a leakage current that
may exceed 10mA, the residual
current device (RCD) having
a rated residual operating
current not exceeding 30mA,
and disconnection must be
incorporated in the fixed wiring
in accordance with the wiring
rules.
Take note of fuse
specications
The air conditioner’s circuit board
(PCB) is designed with a fuse to
provide overcurrent protection.
The specifications of the fuse are
printed on the circuit board, such
as:
T3.15AL/250VAC,
T5AL/250VAC, T3.15A/250VAC,
T5A/250VAC, T20A/250VAC,
T30A/250VAC,etc.
C
Note: For the units
using R32 or R290
refrigerant, only the
blast-proof ceramic
fuse can be used.
1 Safety precautions

10 / 128 EN Split type air conditioner / User Manual
HygieneMax(UV-C lamp)
(Applicable to the unit
contains HygieneMax
feature only)
This appliance contains a
HygieneMax(UV-C lamp). Please
read the following instructions
before opening the appliance.
1. Do not operate
HygieneMax(UV-C lamp)
outside of the appliance.
2. Appliances that are obviously
damaged must not be
operated.
3. Unintended use of the
appliance or damage to the
housing may result in the
escape of dangerous UV-C
radiation. UV-C radiation may,
even in small doses, cause
harm to the eyes and skin.
4. The appliance must be
disconnected from the supply
mains before cleaning your
unit or any other maintenance.
5. UV-C barriers bearing the
ultraviolet radiation hazard
symbol should not be
removed.
A
Warning: This
appliance contains
an UV emitter. Do
not stare at the light
source.
Warnings for product
installation
1. Installation must be performed
by an authorized dealer or
specialist. Defective installation
can cause water leakage,
electrical shock, or fire.
2. Installation must be performed
according to the installation
instructions. Improper
installation can cause water
leakage, electrical shock, or
fire.
1 Safety precautions

Split type air conditioner / User Manual 11 / 128 EN
3. Contact an authorized
service technician for repair
or maintenance of this unit.
This appliance shall be
installed in accordance with
national wiring regulations.
4. Only use the included
accessories, parts, and
specified parts for installation.
Using non-standard parts can
cause water leakage, electrical
shock, fire, and can cause the
unit to fail.
5. Install the unit in a firm location
that can support the unit’s
weight. If the chosen location
cannot support the unit’s
weight, or the installation is
not done properly, the unit may
drop and cause serious injury
and damage.
6. Install drainage piping
according to the instructions in
this manual. Improper drainage
may cause water damage to
your home and property.
7. For units that have an auxiliary
electric heater, do not install
the unit within 1 meter (3 feet)
of any combustible materials.
8. Do not install the unit in a
location that may be exposed
to combustible gas leaks. If
combustible gas accumulates
around the unit, it may cause
fire.
9. Do not turn on the power until
all work has been completed.
10. When moving or relocating
the air conditioner, consult
experienced service
technicians for disconnection
and reinstallation of the unit.
11. How to install the appliance
to its support, please read
the information for details in
“indoor unit installation” and
“outdoor unit installation”
sections.
1 Safety precautions

12 / 128 EN Split type air conditioner / User Manual
Note about fluorinated
gasses (Not applicable
to the unit using R290
Refrigerant)
1. This air-conditioning
unit contains fluorinated
greenhouse gasses. For
specific information on the
type of gas and the amount,
please refer to the relevant
label on the unit itself or the
“User Manual - Product Fiche“
in the packaging of the outdoor
unit. (European Union products
only).
2. Installation, service,
maintenance and repair of this
unit must be performed by a
certified technician.
3. Product uninstallation and
recycling must be performed
by a certified technician.
4. For equipment that contains
fluorinated greenhouse gases
in quantities of 5 tonnes of
CO2equivalent or more, but
of less than 50 tonnes of CO2
equivalent, If the system has a
leak-detection system installed,
it must be checked for leaks at
least every 24 months.
5. When the unit is checked for
leaks, proper record-keeping
of all checks is strongly
recommended.
Warning for Using R32/
R290 Refrigerant
•When flammable refrigerant
are employed, appliance shall
be stored in a well -ventilated
area where the room size
corresponds to the room area
as specifiec for operation.
For R32 frigerant models:
Appliance shall be installed,
operated and stored in a room
with a floor area larger than
4m2.
For R290 refrigerant models,
appliance shall be installed,
operated and stored in a room
with a floor area larger than:
<=9000Btu/h units: 13m2
1 Safety precautions

Split type air conditioner / User Manual 13 / 128 EN
>9000Btu/h and <=12000Btu/h
units: 17m2
>12000Btu/h and
<=18000Btu/h units: 26m2
>18000Btu/h and
<=24000Btu/h units: 35m2
•Reusable mechanical
connectors and flared joints
are not allowed indoors.
(EN Standard Requirements).
•Mechanical connectors used
indoors shall have a rate of
not more than 3g/year at 25%
of the maximum allowable
pressure. When mechanical
connectors are reused indoors,
sealing parts shall be renewed.
When flared joints are reused
indoors, the flare part shall be
re-fabricated. (UL Standard
Requirements)
•When mechanical connectors
are reused indoors, sealing
parts shall be renewed.
When flared joints are reused
indoors, the flare part shall be
re-fabricated. (IEC Standard
Requirements)
•Mechanical connectors used
indoors shall comply with
ISO 14903.
European disposal
guidelines
This marking shown on the
product or its literature, indicates
that waste electrical and eletrical
equipment should not be mixed
with general household waste.
Correct disposal
of this product
(Waste electrical
& Electronic
equipment)
This appliance contains
refrigerant and other potentially
hazardous materials. When
disposing of this appliance, the
law requires special collection
and treatment. Do not dispose of
this product as household waste
or unsorted municipal waste.
When disposing of this
appliance, you have the following
options:
1 Safety precautions

14 / 128 EN Split type air conditioner / User Manual
•Dispose of the appliance at
designated municipal electronic
waste collection facility.
•When buying a new appliance,
the retailer will take back the old
appliance free of charge.
•The manufacturer will take back
the old appliance free of charge.
(for some countries)
•Sell the appliance to certified
scrap metal dealers.
(for some countries)
C
Special notice:
Disposing of this
appliance in the
forest or other
natural surroundings
endangers your
health and is bad
for the environment.
Hazardous substances
may leak into the
ground water and
enter the food chain.
Package information
Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations. Do
not dispose of the packaging
materials together with the
domestic or other wastes.
Takethem to the packaging
material collection points
designated by the local
authorities.
Compliance with RoHS Directive
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU). It does not
contain harmful and prohibited
materials specified in the
Directive.
1 Safety precautions

Split type air conditioner / User Manual 15 / 128 EN
2.1 Indoor unit display
C
Note: Different models have different front panels and display windows. Not all the
display codes describing below are available for the air conditioner you purchased.
Please check the indoor display window of the unit you purchased.
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be
slightly different. The actual shape shall prevail.
(A) (B)
Front panel
Louver
Power cable (some units)
Remote control Remote control holder
(some units)
Display window
“fresh” when Fresh or HygieneMax (if any) feature is activated (some units)
“defrost” when defrost feature is activated.
“run” when the unit is on.
“timer” when TIMER is set.
“”when Wireless Control feature is activated (some units)
“”Displays temperature, operation feature and error codes:
•“” for 3 seconds when:
•TIMER ON is set (if the unit is OFF, “ ” remains on when TIMER
ON is set)
•FRESH, HygieneMax, SWING, TURBO, ECO, or SILENCE feature is turned on “ ”
for 3 seconds when:
•TIMER OFF is set
•FRESH, HygieneMax, SWING, TURBO, ECO, or SILENCE feature is turned off
•“” when defrosting
•“” when 8°C heating feature is turned on (some units)
•“” when GoClean feature is turned on (For Inverter split type)
when unit is SelfClean+ (For Fixed-speed type)
Functional filter
(On back of main filter - some units)
Display Code
Meanings
2 Unit specifications and features

16 / 128 EN Split type air conditioner / User Manual
2.2 Operating temperature
When your air conditioner is used outside of the
following temperature ranges, certain safety
protection features may activate and cause the
unit to disable.
2.3 Inverter split type
COOL mode HEAT mode DRY mode
Room
Temperature
16°C - 32°C
(60°F - 90°F)
0°C - 30°C
(32°F - 86°F)
10°C - 32°C
(50°F - 90°F)
Outdoor
Temperature
0°C - 50°C (32°F - 122°F) -15°C - 24°C
(5°F - 75°F)
for some model
-20°C - 24°C
(-4°F - 75°F)
0°C - 50°C
(32°F - 122°F)
-15°C - 50°C (5°F - 122°F)
(For models with low temp.
cooling systems.)
0°C - 52°C (32°F - 126°F)
(For special tropical models)
0°C - 52°C
(32°F - 126°F)
(For special tropical
models)
For outdoor units with auxiliary electric heater
When outside temperature is below 0°C (32°F),
we strongly recommend keeping the unit
plugged in at all time to ensure smooth ongoing
performance.
2.4 Fixed-speed type
COOL mode HEAT mode DRY mode
Room
Temperature 16°C-32°C (60°F-90°F) 0°C-30°C
(32°F-86°F) 10°C-32°C (50°F-90°F)
Outdoor
Temperature
18°C-43°C (64°F-109°F)
-7°C-24°C
(19°F-75°F)
11°C-43°C (52°F-109°F)
-7°C-43°C (19°F- 109°F)
(For models with low-temp cooling
systems)
18°C-43°C (64°F-109°F)
18°C-52°C (64°F -126°F)
(For special tropical models)
18°C-52°C (64°F- 126°F)
(For special tropical models)
2 Unit specifications and features

Split type air conditioner / User Manual 17 / 128 EN
C
Note: Room relative humidity less
than 80%. If the air conditioner
operates in excess of this figure,
the surface of the air conditioner
may attract condensation. Please
sets the vertical air flow louver to
its maximum angle (vertically to
the floor), and set HIGH fan mode.
To further optimize the performance of your unit,
do the following:
•Keep doors and windows closed.
•Limit energy usage by using TIMER ON and
TIMER OFF functions.
•Do not block air inlets or outlets.
•Regularly inspect and clean air filters.
A guide on using the infrared remote is not
included in this literature package. Not all the
functions are available for the air conditioner,
please check the indoor display and remote
control of the unit you purchased.
2.5 Other features
•Auto-restart (some units)
If the unit loses power, it will automatically
restart with the prior settings once power has
been restored.
•Wireless control (some units)
Wireless control allows you to control your air
conditioner using your mobile phone and a
wireless connection.
For the USB device access, replacement,
maintenance operations must be carried out by
professional staff.
•Louver angle memory (some units)
When turning on your unit, the louver will
automatically resume its former angle.
•GoClean function (some units)
-The GoClean Technology washes away dust
when it adheres to the heat exchanger by
automatically freezing and then rapidly thawing
the frost. A “pi-pi” sound will be heard. The
operation is used to produce more condensed
water to improve the cleaning effect, and the
cold air will blow out. After cleaning, the internal
wind wheel then keeps operating with hot air to
blow-dry the evaporator, thus keeping the inside
clean.
-When this function is turned on, the indoor unit
display window appears “CL“, after finish whole
process, the unit will turn off automatically and
cancel GoClean function.
-For some units, the system will start high-
temperature cleaning process, and the
temperature of air outlet is very high. Please
keep away from it. And this would lead to the
rising of the room temperature.
•Breeze away (some units)
This feature avoids direct air flow blowing on
the body and make you feel indulging in silky
coolness.
•Refrigerant leakage detection (some units)
The indoor unit will automatically display
“ELOC”or flash LEDS (model dependent) when it
detects refrigerant leakage. Please call service
for this defective.
2 Unit specifications and features

18 / 128 EN Split type air conditioner / User Manual
•Sleep operation
•The SLEEP function is used to decrease energy
use while you sleep (and don’t need the same
temperature settings to stay comfortable).
This function can only be activated via remote
control. And the Sleep function is not available
in FAN or DRY mode.
•Press the SLEEP button when you are ready
to go to sleep. When in COOL mode, the unit
will increase the temperature by 1°C (2°F) after
1 hour, and will increase an additional 1°C (2°F)
after another hour. When in HEAT mode, the
unit will decrease the temperature by 1°C (2°F)
after 1 hour, and will decrease an additional 1°C
(2°F) after another hour.
The sleep feature will stop after 8 hours and the
system will keep running with final situation.
1hr 1hr
SLEEP Operation
Saving energy during sleep
Cool mode (+1°C/2°F) per hour
for the first two hours
Heat mode (-1°C/2°F) per hour
for the first two hours
Set
temperature
Keep running
C
Note: For multi-split air
condtioners, the following
functions are not available:
SelfClean+, GoClean function,
Silence feature, Breeze away
function, Refrigerant leakage
detection function and Eco
feature.
•Setting Angle of Air Flow
2.5.1 Setting vertical angle of air
flow (See Fig.A)
While the unit is on, use the SWING button on
remote control to set the direction (vertical angle)
of airflow. Please refer to the Remote Control
Manual for details.
Range
C
Note: Do not move louver by
hand. This will cause the louver to
become out of sync. If this occurs,
turn off the unit and unplug it for a
few seconds, then restart the unit.
This will reset the louver.
Fig. A
2 Unit specifications and features

Split type air conditioner / User Manual 19 / 128 EN
C
Note on louver angles:
When using COOL or DRY mode,
do not set louver at too vertical
an angle for long periods of time.
This can cause water to condense
on the louver blade, which will
drop on your floor or furnishings.
When using COOL or HEAT mode,
setting the louver at too vertical an
angle can reduce the performance
of the unit due to restricted air
flow.

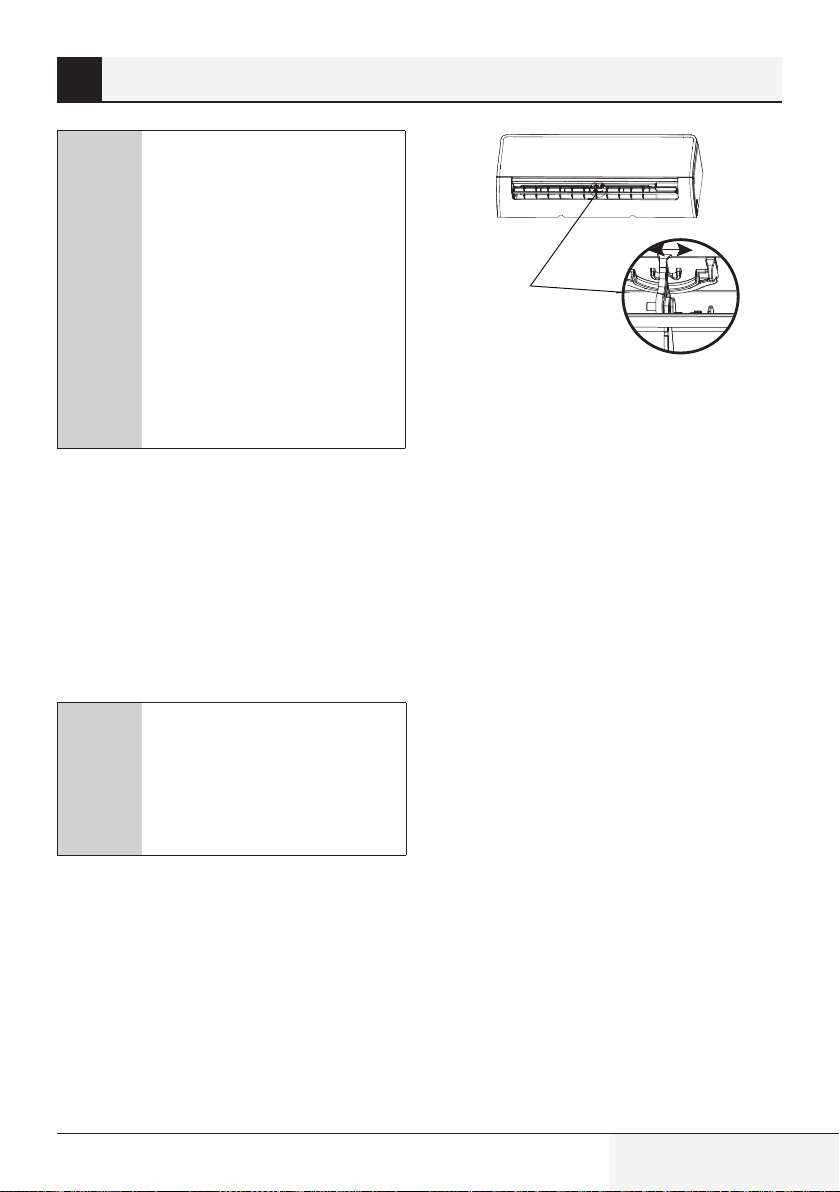

2.5.2 Setting horizontal angle of
air flow
The horizontal angle of the airflow must be set
manually. Grip the deflector rod (See Fig.B) and
manually adjust it to your preferred direction.
For some units, the horizontal angle of the airflow
can be set by remote control. please refer to the
Remote Control Manual.
A
Warning:
Do not put your fingers in or near
the blower and suction side of the
unit. The high-speed fan inside the
unit may cause injury.
Deflector rod
Fig. B
2 Unit specifications and features

20 / 128 EN Split type air conditioner / User Manual
2.6 Manual operation
(without remote)
A
Warning:
The manual button is intended for
testing purposes and emergency
operation only. Please do not use
this function unless the remote
control is lost and it is absolutely
necessary. To restore regular
operation, use the remote control
to activate the unit. Unit must
be turned off before manual
operation.
To operate your unit manually:
1. Open the front panel of the indoor unit.
2. Locate the Manual control button on the right-
hand side of the unit.
3. Press the Manual control button one time to
activate FORCED AUTO mode.
4. Press the Manual control button again to
activate FORCED COOLING mode.
5. Press the Manual control button a third time to
turn the unit off.
6. Close the front panel.
Manual control button
2.7 Install the HomeWhiz kit
(wireless module)
1. Remove the protective cap of the HomeWhiz
kit (wireless module)
2. Open the front panel and insert the HomeWhiz
kit (wireless module) into the reserved
interface.
Insert
A
Warning:
This interface is only compatible
with HomeWhiz kit (wireless
module) provided by the
manufacturer.
2 Unit specifications and features
