Beko BHCIW 31322 BBH User manual

01M-9209023200-3723-02
EN - PL - CS - SK
BHCIW 31322 BBH
User Manual
Cooker Hood

2 / EN Cooker Hood / User Manual
CONTENTS
ENGLISH 03-17
POLSKI 18-35
ČESKY 36-51
SLOVENSKÝ 52-67

Please read this user manual first!
Dear Valued Customer,
Thank you for preferring this Beko appliance. We hope that you get the
best results from your appliance which has been manufactured with
high quality and state-of-the-art technology. For this reason, please
read this entire user manual and all other accompanying documents
carefully before using the appliance and keep it as a reference for fu-
ture use. If you handover the appliance to someone else, give the user
manual as well. Follow the instructions by paying attention to all the
information and warnings in the user manual.
Remember that this user manual may also apply to other models. Dif-
ferences between models are explicitly described in the manual.
Meanings of the Symbols
Following symbols are used in various sections of this user manual:
CImportant information and useful hints about usage.
AWARNING: Warnings against dangerous situa-
tions concerning the security of life and property.
WARNING: Warning for danger of fire.
BWARNING: Warning for electric shock.
Protection class for electric shock.

4 / EN Cooker Hood / User Manual
1.1 General Safety
Important Safety Instructions
Read Carefully And Keep For
FutureReferenceThissection
contains safety instructions
that will help protect from risk
of fire, electric shock, expo-
sure to leak microwave ener-
gy, personal injury or proper-
ty damage. Failure to follow
these instructions shall void
any warranty.
•Beko products comply
with the applicable safety
standards; therefore, in
case of any damage on
the appliance or power
cable, it should be repaired
or replaced by the dealer,
service center or a special-
ist and authorized service
alike to avoid any danger.
Faulty or unqualified repair
work may be dangerous
and cause risk to the user.
•This appliance is intended
to be used in household
and similar applications
such as:
–Staff kitchen areas in
shops, offices and other
working environments;
–Farm houses
–By clients in hotels, and
other residential type
environments;
–Bed and Breakfast type
environments.
•Operate the appliance for
its intended purpose only as
described in this manual.
•The manufacturer cannot
be held liable for damages
resulting from improper
installation or misuse of
the product.
•This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given super-
vision or instruction concern-
ing use of the appliance in a
safe way and understand
the hazards involved.
•Children shall not be al-
lowed play with the appli-
ance. Cleaning and user
1 Important safety and environmental instructions

Cooker Hood / User Manual 5 / EN
maintenance shall not be
made by children without
supervision.
•The minimum distance
between the supporting
surface for the cooking
vessels on the hob and the
lowest part of your product
must be at least 65 cm.
•If the instructions for instal-
lation for the gas hob specify
a greater distance, this has
to be taken into account.
•Make sure that your mains
power supply complies
with the information sup-
plied on the rating plate of
the appliance.
•Never use the appliance if
the power cable or the ap-
pliance itself is damaged.
•Prevent damage to
the power cable by not
squeezing, bending, or
rubbing it on sharp edges.
Keep the power cable
away from hot surfaces
and naked flame.
•Use the appliance with a
grounded outlet only.
WARNING: Do not connect
the appliance to the mains
until the installation is fully
complete.
•Place the appliance in a
way so that the plug is al-
ways accessible.
•Do not touch the lamps if
they have operated for a
long time. They can burn
your hands since they will
be hot.
•Follow the regulations set
out by competent author-
ities on discharge of the
exhaust air (this warning
is not applicable for use
without flue).
•Operate your appliance
after putting a pot, pan
etc. on the hob. Other-
wise, high heat may cause
deformation in some parts
of your product.
•Turn off the hob before
taking the pot, pan etc.
from it.
•Do not leave hot on the
hob. Pans with hot may
cause self combustion.
1 Important safety and environmental instructions

6 / EN Cooker Hood / User Manual
•Pay attention to your cur-
tains and covers since
may catch fire while cook-
ing food such as fries.
•Grease filter must be cleaned
at least monthly. Carbon fil-
ter must be replaced at least
every 3 months.
•Product shall be cleaned
accordance with user
manual. If cleaning was
not carried out in accord-
ance with user manual,
there may be fire risk.
•Do not use non-fire-resist-
ant filtering materials in-
stead of the current filter.
•Only use the original parts
or parts recommended by
the manufacturer.
•Do not operate the product
without the filter and do
not remove the filters while
the product is running.
•In the event of be started
any flame, de-energize
your product and cooking
appliances.
•In the event of be started
any flame, cover the flame
and never use water to ex-
tinguish.
•Unplug the appliance be-
fore each cleaning and
when the appliance is not
in use.
•The negative pressure in
the environment should
not exceed 4 Pa (4x10 bar)
while the hood for electric
hob and appliances run-
ning on another type of
energy but electricity op-
erate simultaneously.
•In the environment where
the appliance is being
used, the exhaust of de-
vices running on fuel or
gas, such as room heater
must be absolutely iso-
lated or device must be
hermetical type.
•When connecting the flue,
use pipes with a diameter
of 120 or 150 mm. Pipe
connection must be as
short as possible and have
as few elbows as possible.
•Danger of choking! Keep
all the packaging materi-
1 Important safety and environmental instructions

Cooker Hood / User Manual 7 / EN
1 Important safety and environmental instructions
als away from children.
CAUTION: Accessible parts
may become hot when used
with cooking appliances.
•The product outlet must
not be connected to air
channels that include
other smoke.
•The ventilation in the room
may be insufficient when
the hood for electric hob
is used simultaneously
with the devices operating
on gas or other fuels (this
may not apply to appli-
ances that only discharge
the air back into the room).
•Objects placed on the prod-
uct may fall. Do not place
any objects on the product.
•Do not flambe under the
your product.
WARNING: Before installing
the Hood, remove the pro-
tective films.
•Never leave high naked
flames under the hood
when it is in operation
•Deep fat fryers must be
continuously monitored
during use: overheated
can burst into flames.
1.2 Compliance with the WEEE
Directive and Disposing of the
Waste Product:
This product complies with EU WEEE
Directive (2012/19/EU). This product be-
ars a classification symbol for waste elect-
rical and electronic equipment (WEEE).
This symbol indicates that this
product shall not be disposed
with other household wastes at
the end of its service life. Used
device must be returned to offi-
cal collection point for recycling of electri-
cal and electronic devices. To find these
collection systems please contact to your
local authorities or retailer where the pro-
duct was puchased. Each household per-
forms important role in recovering and
recycling of old appliance. Appropriate
disposal of used appliance helps prevent
potential negative consequences for the
environment and human health.
1.3 Compliance with RoHS Directive
The product you have purchased compli-
es with EU RoHS Directive (2011/65/EU).
It does not contain harmful and prohibi-
ted materials specified in the Directive.
1.4 Package Information
Packaging materials of the pro-
duct are manufactured from
recyclable materials in accordan-
ce with our National Environment
Regulations. Do not dispose of the packa-
ging materials together with the domestic
or other wastes. Take them to the packa-
ging material collection points designated
by the local authorities.

8 / EN Cooker Hood / User Manual
1. Body
2. Control panel
3. Grease filter
4. Lighting
2 General appearance
2.1 Overview
1
2
3
4
700 / 900
Ø120
Ø310
380 / 580
195
350
200
Ø310
Top view
2.2 Technical data
Model BHCIW 31322 BBH
Supply voltage & frequency 220-240V ~ 50 Hz
Lamp power 2 x 3 W
Motor power 115 W
Air flow – 3. Level 300 m³/h
Motor Insulation Class Class F
Insulation class Class II

Cooker Hood / User Manual 9 / EN
3 Using the appliance
3.1 Controls panel
a b c d e
A : Light on/off Pressing the “a “ button turns on the light. Pressing the button again
switches off the lighting.
B : 1. Speed button Pressing the “1” button activates the hood turbine at minimum speed
C : 2. Speed button Pressing the “2” button activates the hood turbine at medium speed
D : 3. Speed button Pressing the “3” button activates the hood turbine at maximum speed
E : 0. Hood shut off Pressing the “0” button deactivates the hood turbine
•The extractor hood has been designed exclusively for domestic use to eliminate
kitchen smells.
•Never use the hood for purposes other than for which it has been designed.
•Never leave high naked flames under the hood when it is in operation.
•Adjust the flame intensity to direct it onto the bottom of the pan only, making sure
that it does not engulf the sides.
•Deep fat fryers must be continuously monitored during use: overheated can burst
into flames.
3.2 Efficient use in terms of energy saving
•When using your appliance, adjust the speed settings according to vapour and odour
intensity, in order to save energy.
•Use low speeds (1-2) under normal conditions, and high speed (3) and boost mode
for intense odour and vapour.
•The hood is equipped with lamps in order to illuminate the cooking area.
•Using them for environmental lighting shall cause unnecessary energy expenditure
and insufficient lighting.
•For your device to consume less energy, run it at a low speed level.
•Your device will reduce energy consumption as it will run more efficiently when you
provide sufficient air intake to it.
•Set your device to the intense suction power level before the formation of steam, in
cases where you know that the dense steam will occur. So, you reduce energy con-
sumption by using your device for a shorter time as it will have a sufficient air intake.
•Keep the lids of the cookware closed to reduce the steam evolving.

10 / EN Cooker Hood / User Manual
3.3 Operating the hood
•Hood is equipped with a motor having
various speed settings.
•For a better performance, we advise you
to use low speeds in normal conditions,
and high speeds when smell and vapors
are intensified.
•You can start the hood by pressing the
desired speed level key.(B, C, D)
•You can illuminate the cooking area by
pressing the light key. (A)
3.4 Lamp replacement
A
•Before replacing the light
bulbs, disconnect the power
supply of the hood.
•Do not touch the light bulbs
when they are hot.
•Be careful not to touch the
replaced light bulb directly
with hands.
CYou may procure lamps from
Authorised Service Agents.
Replacing lighting
GU10
1
2
1
2
Symbol
Symbol
Mounting of bulb
Removal of bulb
3 Using the appliance
Lamp
Bulb power 3 W
Holder/Socket GU10
Bulb voltage 230 V
Size 53x50 mm
ILCOS Code DR/F-3-230-GU10-50
Luminous flux 255 lm
Correlated colour
temperature 3000 K
This product contains a light source of
energy efficiency class “A”.
3.5 Operation with flue
connection
•Vapour is extracted through
the flue duct, which is fas-
tened to the connection
head on the hood.
•The diameter of the flue duct must be
the same as the connection ring. In hori-
zontal settings, the pipe has to have a
slight upward slope (around 10º) so that
the air can exit the room easily.
3.6Operationwithoutflue
connection
•Air is filtered through the car-
bon filter and recirculated in
the room. Carbon filter is
used when it is impossible to
use a flue in the house.
•In flueless use, remove the flaps inside
the flue adapter.
•Remove the oil filter. To install the car-
bon filter, fit the filter to the tabs by cen-
tring it on the plastic piece on both sides

Cooker Hood / User Manual 11 / EN
4 Cleaning and maintenance
The device should be cleaned and main-
tained regularly. Failure to keep the devi-
ce clean will adversely affect the service
life of the device. For cleaning and main-
tenance, follow the instructions stated in
the manual.
CBefore cleaning and mainte-
nance, unplug the product or
turn off the switch.
Non-compliance with the pro-
visions associated with the
cleaning of the device and
replacement of the filters
may result in a risk of fire.
Therefore, it is recommended
to follow the guidelines sta-
ted here. The manufacturer is
not responsible for the engine
damages or fires originating
from the improper use.
Clean using only a cloth dampened with
a neutral liquid detergent. Do not use ab-
rasive products or alcohol.
4.1 Cleaning of grease filter
This filter captures particles in the air.
First remove the grease filters for this
process. Wash the filters with liquid de-
tergent and rinse them with water and
install them back after they get dry.
Grease filters may get discolered as they
are washed; this is normal and you don’t
need to change your filter.
1
2
3
12
2
3
1
•The filter is removed by moving the
locks in the direction indicated by the
arrows.
•Tilt the metal grease filter forward and
take it out. Wash and rinse the oil filters
in liquid detergent water and reinsert the
oil filter into its socket by reversing the
above steps.
CYou can wash the grease fil-
ter in the dishwasher.
ACAUTION: In case of normal
use, clean your filter once in
a month.
4.2 Changing of carbon filter
The hood can be fitted with an active car-
bon filter. The carbon filter is applied only
in case the hood is not connected to the
vent duct.
of the fan body. Tighten it by turning
right or left.
•Replace aluminium oil filter.
3 Using the appliance

12 / EN Cooker Hood / User Manual
1
2
1
2
Symbol
Symbol
Filter mounting
Removal of the filter
A
WARNING:
•The carbon filter is never
washed.
•Replace carbon filters once
every 3 months.
•Carbon filter is available
from Authorized Services.
4 Cleaning and maintenance
5 Installation of appliance
AWARNING: Before starting the
installation, read the safety
information on user manual.
B
WARNING: Failure to install
with screws and stabilizers
in accordance with these ins-
tructions may result in elect-
ric shock.
For the installation of the hood, please
contact the nearest Authorized Service.
It is the customer’s responsibility to pre-
pare the location and electrical installati-
on of the hood.
5.1 Position of the appliance
65 cm
Gas solves L ≥65cm
Electric solves L ≥45cm
•Distance between the cooker and the
cooker hood must be considered prior
to assembly. This distance should be 65
cm.
•Distance must be measured from the
surface of grate for gas cookers, from
surface of glass for electric cookers.

Cooker Hood / User Manual 13 / EN
5.2 Installation accessories
Kullanma Kılavuzu
01M-9202161600-3621-01
Davlumbaz
TR
2
13
4
1.Product
2.User manual
3.Ø120mm flue flap
4.4x Ø8X70 steel screw dowel
5.3 Hood installation
Before proceeding with the installation:
•Check that the dimensions of the pur-
chased product are appropriate for the
chosen destination.
•Disconnect and remove (if possible)
furniture located in the hood installa-
tion area to gain easy access to the
ceiling or wall on which the hood is to
be mounted. If this is not possible, com-
ponents in the vicinity of the work to be
carried out must be secured.
•Check that there is a plug socket near
the hood installation area and that it
is possible to connect the hood to the
ventilation duct carrying fumes to the
outside.
•Check that there are no installation ca-
bles (electrical, hydraulic, etc.) in the
areas to be drilled.
•Equip yourself with the following tools:
tape measure, pencil, drill, Ø10 drill bit,
screwdriver, spirit level.
5.4 Mounting options
The device can operate in two modes:
1.As an extractor: The fumes are dischar-
ged outside the room via an discharge
pipe. The discharge pipe is not suppli-
ed with the device and must be purcha-
sed separately.
C
•Use the shortest possible
fume extraction duct.
•Use a discharge pipe with
the smoothest possible in-
ternal surface (spiro pipes
are not recommended).
•Use a line with as few bends
as possible (bend angles
should not be greater than
90°).
•It is not recommended to
change the
WARNING: The discharge pipe
should be fitted to the outside
of the turbine flange; if fitted
to the inside, it may cause a
fire.
2.As an absorber: fumes are purified from
oil and odours before being returned to
the room through grilles in the upper
duct cover. A charcoal filter must be
installed in order for the hood to opera-
te as an absorber. It is also advisable to
install an air deflector, which improves
the efficiency of the hood.
5 Installation of appliance

14 / EN Cooker Hood / User Manual
Mounting options: extractor or absorber
Power
cord
Power
cord
Nuts
Air
deflector
Ties
Ceiling
Dia.Ø150
cable
NOTE! Use flexible aluminium hose only
Mounting of outlet duct for absorber type hoods
Mounting of outlet duct for extractor type hoods
Installation bracket for
air deflector
Ceiling
Flexible
aluminium
hose
CThe air deflector must be cut
to the pipe size so that it rests
on the inner edge of the hood
after installation.
5.5 Installation steps
1.Determine the axis of the heating ele-
ment and transfer it to the wall where
the hood will be installed. Mark all the
characteristic fixing points of the hood.
Use a drill and drill the holes.
5 Installation of appliance
140mm
4 x Ø8
L+360mm 313/513mm
min.35mm
Installation dimensions
140mm
2.Insert the rawlplugs into the drilled ho-
les. Also, insert screws into the two ho-
les marked A, leaving 7 mm of screw
length outside the rawlplug.
2 x Ø5 x 45mm
4 x Ø8 x 40mm
7mm
2 x Ø8 x 40mm
Mounting rawlplugs
A

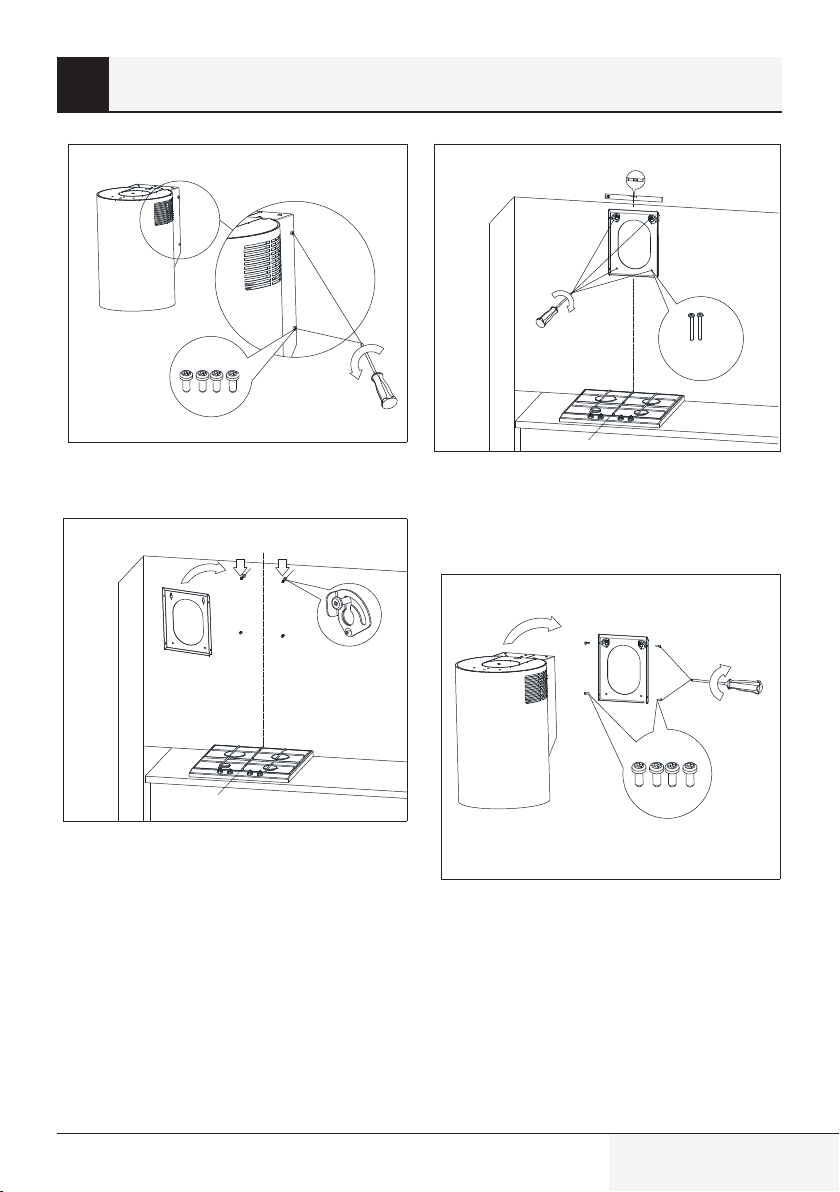

3.Remove the wall bracket section from
the hood. To do this, unscrew the four
M4x12 bolts shown in.

Cooker Hood / User Manual 15 / EN
5 Installation of appliance
Removing the hood mounting bracket
4 x M4x12
4.Hang the hood mounting bracket on
the two undone screws.
Hanging the hood mounting bracket
5.Place a spirit level on the mount and
align the element as indicated by the
level; then, tighten the two screws al-
ready partially screwed in and screw in
the other two.
2 x Ø5 x 45mm
Positioning the hood mounting bracket.
6.Fit the hood to the screwed-on mount
so that the fixing is tucked into the
hood. Use four M4x12 bolts and screw
the hood to the mount.
Mounting the hood on the wall mount
4 x M4x12

16 / EN Cooker Hood / User Manual
5 Installation of appliance
5.5 Turbine flaps
NOTE! The flaps should
remain in place only when
the hood is in extraction
mode, i.e. when it is
connected to the ventilation.
Symbol
Symbol
Mounting of flaps
Removal of flaps
5.6Storage
•If you do not intend to use the appliance for a long time, please store it carefully.
•Please make sure that the appliance is unplugged, cooled down and totally dry.
•Store the appliance in a cool and dry place.
•Keep the appliance out of the reach of children
5.7 Handling and transportation
•During handling and transportation, carry the appliance in its original packaging. The
packaging of the appliance protects it against physical damages.
•Do not place heavy loads on the appliance or the packaging. The appliance may be
damaged.
•Dropping the appliance will render it non-operational or cause permanent damage.

Cooker Hood / User Manual 17 / EN
6 Troubleshooting
Troubleshooting Reason Help
The product does not
work. Check your fuse. Your fuse might be closed, make it work.
The product does not
work. Check the electrical con- nection. The mains voltage should be betwe- en 220-240 V.
The product does not
work. Check the electrical con- nection. Check if the other products in your kitchen are working or not.
The lighting lamp
does not work. Check the electrical con- nection. The mains voltage should be betwe- en 220-240 V.
The lighting lamp
does not work. Check the lamp switch. The lamp switch should be in the “on” position.
The lighting lamp
does not work. Check the lamps. The lamps of the product should not be faulty.
The air intake of the
product is poor. Check the aluminum filter. The aluminum filter should be cleaned at least once a month under
normal conditions.
The air intake of the
product is poor. Check the air vent flue. The air vent flue should be in the ''on'' position.
The air intake of the
product is poor. Check the carbon filter. For products with carbon filters, the filter should normally be changed
every 3 months.

Proszę najpierw przeczytać tę instrukcję obsługi!
Szanowny Kliencie,
dziękujemy za wybranie urządzenia marki Beko. Mamy nadzieję, że
zakupione urządzenie, wyprodukowane z zapewnieniem wysokiej
jakości przy użyciu najnowszych technologii, okaże się w pełni zad-
owalające. W tym celu przed użyciem urządzenia należy uważnie
przeczytać całą instrukcję obsługi oraz dołączone dokumenty i zach-
ować je do wglądu na przyszłość. Przekazując urządzenie innemu
użytkownikowi, należy dołączyć również niniejszą instrukcję. Należy
postępować zgodnie z instrukcjami, zwracając uwagę na wszystkie
informacje i ostrzeżenia zamieszczone w niniejszym dokumencie.
Należy pamiętać, że niniejsza instrukcja może odnosić się także do
innych modeli. Różnice pomiędzy modelami są wyraźnie opisane w in-
strukcji.
Znaczenie symboli
W różnych częściach niniejszej instrukcji obsługi stosowane są nas-
tępujące symbole:
CWażne informacje i przydatne wskazówki dotyczące użytkowania.
AOSTRZEŻENIE: Ostrzeżenia przed niebezpieczny-
mi sytuacjami zagrażającymi życiu i mieniu.
Niebezpieczeństwo pożaru.
BOstrzeżenie przed porażeniem prądem.
Klasa ochrony przeciwporażeniowej.

Okap / Instrukcja obsługi 19 / PL
1.1 Ogólne zasady
dotyczące bezpieczeństwa
Ważne zasady dotyczące
bezpieczeństwa Przeczytaj
je uważnie i zachowaj na
przyszłość Rozdział ten za-
wiera instrukcje zachowa-
nia bezpieczeństwa, które
pomogą chronić się przed
ryzykiem pożaru, porażenia
prądem elektrycznym, wy-
cieku mikrofal, obrażeniami
ciała lub szkodami w mie-
niu. Nieprzestrzeganie tych
instrukcji spowoduje unie-
ważnienie gwarancji.
•Produkty firmy Beko speł-
niają wszystkie wymogi
stosownych norm bezpie-
czeństwa. W przypadku ja-
kiegokolwiek uszkodzenia
urządzenia lub przewodu
zasilającego, aby uniknąć
wszelkich zagrożeń, na-
leży oddać je do naprawy
lub wymiany przez sprze-
dawcę, punkt serwisowy
lub specjalistę albo auto-
ryzowany serwis. Błędna
lub niefachowa naprawa
może być niebezpieczna
i powodować zagrożenie
dla użytkowników.
•To urządzenie jest prze-
znaczone do użytku do-
mowego i podobnych
zastosowań, na przykład:
–na zapleczu kuchennym
przez personel sklepów,
biur i innych miejsc pracy;
–w gospodarstwach rol-
nych;
–do użytku przez klien-
tów hoteli i innych obiek-
tów noclegowych;
–w pensjonatach.
•Urządzenie należy stoso-
wać tylko zgodnie z jego
przeznaczeniem, w spo-
sób opisany w niniejszej
instrukcji.
•Producent nie ponosi od-
powiedzialności za szkody
powstałe w wyniku niepra-
widłowej instalacji lub nie-
właściwego stosowania
produktu.
1 Ważne instrukcje dotyczące bezpieczeństwa
i ochrony środowiska

20 / PL Okap / Instrukcja obsługi
•Urządzenie może być ob-
sługiwane przez dzieci
w wieku 8 lat i starsze,
osoby o ograniczonych
możliwościach fizycz-
nych, postrzegania lub
umysłowych, a także
osoby bez doświadcze-
nia lub wiedzy w zakre-
sie obsługi urządzenia, o
ile będą one pod nadzo-
rem lub zostaną szcze-
gółowo poinstruowane o
bezpiecznym korzystaniu
z urządzenia i zrozumieją
potencjalne zagrożenia.
•Nie należy pozwalać dzie-
ciom bawić się urządze-
niem. Dzieci nie mogą
czyścić ani konserwować
urządzenia bez nadzoru.
•Minimalna odległość po-
między powierzchniami
podpór garnków znajdu-
jącymi się na szczycie ku-
chenki a najniższą częścią
produktu musi wynosić co
najmniej 65 cm.
•Jeżeli w instrukcji instala-
cji gazowej płyty kuchen-
nej podano odległość
większą, wówczas należy
zastosować wskazaną
wartość.
•Zasilanie z domowej sieci
elektrycznej musi być
zgodne z informacjami
podanymi na tabliczce
znamionowej urządzenia.
•Urządzenia nie wolno nigdy
używać, jeśli przewód zasi-
lający lub samo urządzenie
są uszkodzone.
•Aby zapobiec uszkodze-
niu przewodu zasilają-
cego, nie wolno dopuścić
do jego ściskania, zgina-
nia lub ocierania o ostre
krawędzie. Trzymaj prze-
wód zasilający z dala od
gorących powierzchni i
otwartego ognia.
•Urządzenia można uży-
wać tylko wtedy, gdy jest
podłączone do gniazda
ściennego z uziemieniem.
OSTRZEŻENIE: Podłącz
urządzenie do zasilania do-
1 Ważne instrukcje dotyczące bezpieczeństwa
i ochrony środowiska
