Belden Grass Valley XCU Universe XF User manual

Communication
Transmission
Camera Power
Cable
Power
On Air
XCU UNIVERSE UXF
XF FIBER
42
3922 496 32391 October 2018 v1.4
XCU Universe XF
User’s Guide
XF Transmission Base Station

Declaration of Conformity
We, Grass Valley Nederland B.V., Bergschot 69, 4817 PA Breda, The Netherlands,
declare under our sole responsibility that these products are in compliance with the
following standards:
- EN62368-1:2014 + AC:2015 — Safety
- EN 55032:2012 + C2:2013 — EMC (Emission)
- EN55103-2:2009 — EMC (Immunity)
following the provisions of:
a. the Low Voltage directive 2014/35/EU
b. the EMC directive 2014/30/EU
c. the RoHS directive 2011/65/EU
FCC CLASS A Statement
This product generates, uses, and can radiate radio frequency energy and if not
installed and used in accordance with the instructions, may cause interference to radio
communications.
It has been tested and found to comply with the limits for a CLASS A digital device
pursuant to part 15 of the FCC rules, which are designed to provide reasonable
protection against such interference when operated in a commercial environment.
Operation of this product in a residential area is likely to cause interference in which
case the user at his own expense will be required to take whatever measures may be
required to correct the interference.
Copyright
Copyright Grass Valley Canada 2017. Copying of this document and giving it to others,
and the use or communication of the contents thereof, are forbidden without express
authority. All rights are reserved in the event of the grant of a patent or the registration
of a utility model or design. Liable to technical alterations in the course of further
development.
Trademarks
Grass Valley, LDX Series and derivatives are trademarks of Belden Inc. or Grass Valley
Canada. All other tradenames referenced are service marks, trademarks, or registered
trademarks of their respective companies.
Website
Visit the Grass Valley public website to download the latest user’s guide updates and
additional information about your broadcast product:
www.grassvalley.com

XCU Universe XF XF Transmission Base Station User’s Guide (v1.4) 3
Table of contents
Chapter 1 – Introduction
1.1 Welcome. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
1.1.1 About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.1.2 Related documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1.2 Technology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
1.2.1 Unique Cradle concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.2.2 XF Fiber Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.2.3 Camera control and monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.3 Main features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Chapter 2 – Installation
2.1 Rack installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

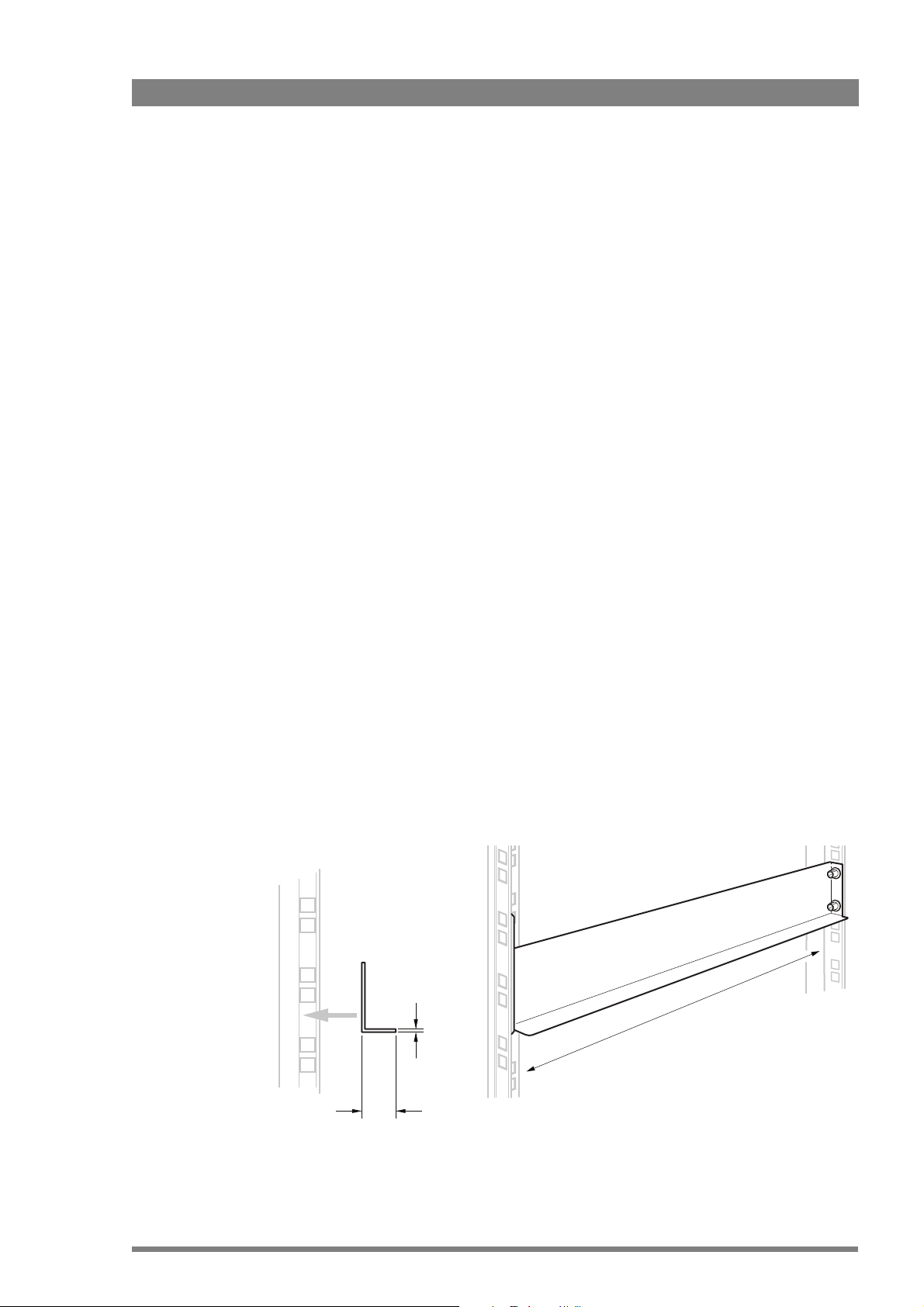

2.1.1 Installing rack mounting rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

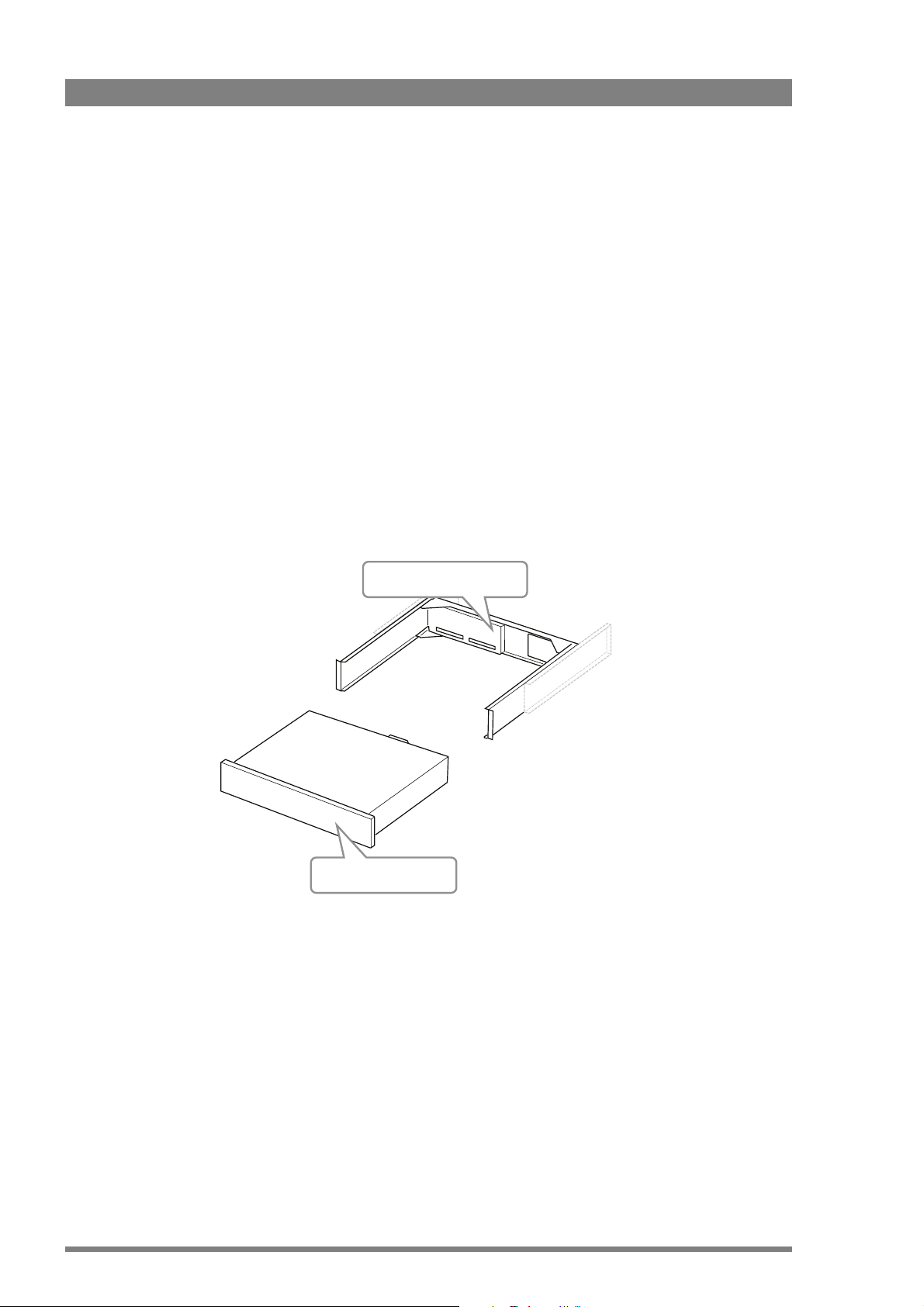

2.1.2 Installing the cradle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.1.3 Transporting rack mounted XCUs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.1.4 Connecting studio cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.2 Mounting the XCU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
2.3 Setting up the control network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
2.4 Setting up intercom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
2.5 Setting up studio signalling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

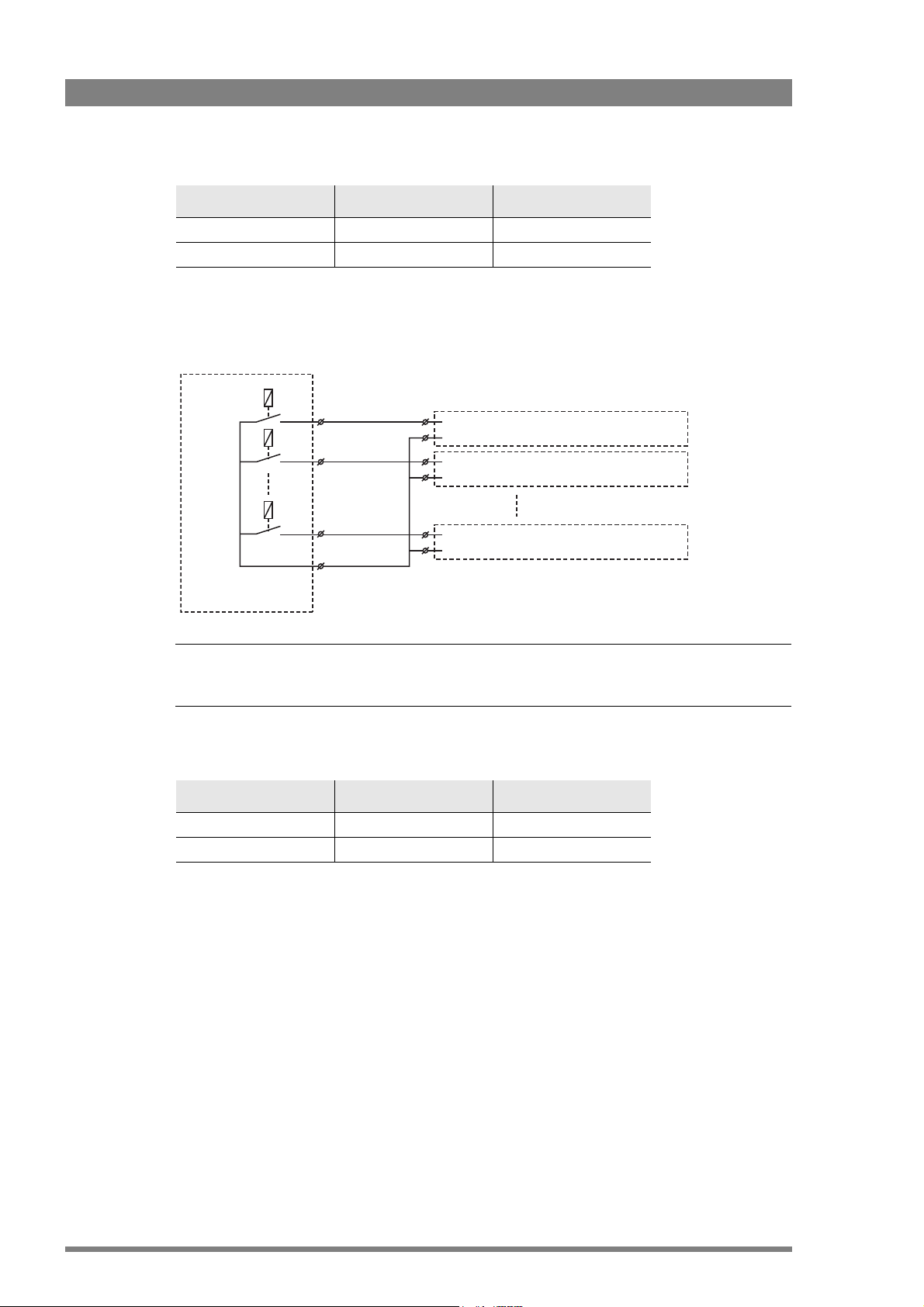

2.5.1 Dry contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2.5.2 Dry contact with multiple XCUs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2.5.3 Common ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
2.5.4 Voltage level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2.5.5 Open circuit/Voltage level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.6 Setting up external audio level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2.7 Using private data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Chapter 3 – Configuration
3.1 Front navigation panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.2 Setting the camera number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.3 Accessing the XCU menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.3.1 Using the XCU front navigation panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.3.2 Using the OCP 400 operation control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.4 Navigating the menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
3.4.1 Entering the menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3.4.2 Finding your way . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
3.4.3 Leaving the menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
3.4.4 Making changes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
3.4.5 User levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.5 Intercom setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.5.1 Studio interface setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.6 Color bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3.7 Timing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4 XCU Universe XF XF Transmission Base Station User’s Guide (v1.4)
Chapter 4 – Operation
4.1 Front panel indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4.2 Transmission diagnostics on the OCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
4.3 Replacement of fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Chapter 5 – XCU menu reference
5.1 Video menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
5.2 Monitoring menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
5.3 Audio/Intercom menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.4 Install menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
5.5 Security menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
5.6 Diagnostics menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
5.7 Service menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Chapter 6 – Connectors and signals
6.1 Connector overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
6.1.1 Mains power connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
6.1.2 Hybrid fiber connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
6.1.3 Main video (for HD (1080i/720p) video modes) . . . . . . . . . . . . . . . . . . . . . . . . . 52
6.1.4 Main video (for 3G (1080p) video modes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
6.1.5 Main video (for 4K video modes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
6.1.6 Main video (for HS and XS video modes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
6.1.7 External video connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
6.1.8 Teleprompter and Reference connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
6.1.9 Signalling connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
6.1.10 Intercom connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
6.1.11 Auxiliary (AUX) connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
6.1.12 C2IP connector (top) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
6.1.13 IP Trunk connector (bottom) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
6.1.14 Digital Audio OUT 1+2 connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
6.1.15 Digital Audio OUT 3+4 connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
6.1.16 Analog Audio OUT 1 connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
6.1.17 Analog Audio OUT 2 connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Chapter 7 – Specifications
7.1 Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
7.2 Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

XCU Universe XF XF Transmission Base Station User’s Guide (v1.4) 5
Recycling
Visit www.grassvalley.com for recycling information.
Packing for return
If a unit is being returned to Grass Valley for servicing, try to use the containers and materials
of the original packaging. Attach a tag indicating the type of service required, return address,
model number, full serial number and the return number which will be supplied by your Grass
Valley service centre.
If the original packing is not available or can no longer be used contact your regional Grass
Valley service representative to have a return package provided.

6 XCU Universe XF XF Transmission Base Station User’s Guide (v1.4)
Declaration of conformity
We, Grass Valley Nederland B.V., Bergschot 69, 4817 PA Breda, The Netherlands, declare
under our sole responsibility that this product is in compliance with the following standards:
– EN60065 Safety
– EN55103-1:2009 EMC (Emission) for the following environments:
(E1) Residential;
(E2) Commercial and light industrial;
(E3) Urban outdoors;
(E4) Controlled EMC environment, and the rural outdoors environment.
– The average half-cycle r.m.s. inrush currents for this product are:
- 16 A (on intial switch-on);
- 11 A (after a supply interruption of 5 s).
– EN55103-2 EMC (Immunity)
following the provisions of:
– the EMC Directive 2004/108/EC
– the Low Voltage Directive 2006/95/EC
FCC Class A Statement
This product generates, uses, and can radiate radio frequency energy and if not installed and
used in accordance with the instructions, may cause interference to radio communications.
It has been tested and found to comply with the limits for a class A digital device pursuant to
part 15 of the FCC rules, which are designed to provide reasonable protection against such
interference when operated in a commercial environment.
Operation of this product in a residential area is likely to cause interference in which case the
user at his own expense will be required to take whatever measures may be required to
correct the interference.

XCU Universe XF XF Transmission Base Station User’s Guide (v1.4) 7
Important information
Read these instructions carefully and retain them for future reference.
During installation and operation of this equipment, local building safety and fire protection
standards must be observed.
Whenever it is likely that safe operation is impaired, the apparatus must be made inoperative
and secured against any unintended operation. The appropriate servicing authority must then
be informed. For example, safety is likely to be impaired if the apparatus fails to perform the
intended function or shows visible damage.
Any changes or modifications not expressly approved in this manual could void your authority
to operate this equipment.
Cautions and Warnings
Read and comply with the warning and caution notices that appear in the manual.
– Warnings indicate danger that requires correct procedures or practices to prevent
death or injury to personnel.
– Cautions indicate procedures or practices that should be followed to prevent damage
or destruction to equipment or property.
Warnings
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To avoid electrical shock, do not remove covers or panels. Refer servicing to qualified
personnel only.
In case of an emergency ensure that power is disconnected.
Use only fuses of the type and rating specified.
Connect the unit only to a power with the specified voltage rating.
To prevent risk of overheating, ventilate the unit correctly.
For safety reasons the unit must be mounted in a 19-inch rack which has safety covers
according to IEC65.

8 XCU Universe XF XF Transmission Base Station User’s Guide (v1.4)
Fiber-optic transmission units
Laser safety statement (Europe)
Fiber-optic transmission units are classified as a “CLASS 1 Laser Product” according to
EN 60825-1, Safety of Laser products. Class 1 laser products are considered safe and do not
result in biological hazard if used according to the instructions.
Laser safety statement (US)
Fiber-optic transmission units are classified as a “CLASS 1 Laser Product” according to
21CFR 1040.10 of the US Food and Drug Administration (FDA) Center for Devices and
Radiological Health.
Use of controls, adjustments or performance of procedures other than those specified herein
may result in hazardous radiation exposure.
To ensure proper use of this product, please read this instruction manual carefully and retain
for future reference. Should the unit ever require maintenance, contact an authorized service
location.
Fiber-optic cable precautions
Fiber-optic cables and connectors are easily damaged; take the following percautions into
account:
– Do not bend the cable beyond the minimum permissible bend range specified for the
cable.
– Avoid kinks in the cable.
– Avoid subjecting the cable to a high tension force (even momentarily).
– Do not twist the cable when connecting it to equipment.
– Insert connectors straight and fully into their corresponding sockets.
– In fiber-optic cable systems always put the dust caps on cable and panel connectors
immediately after disconnecting a cable. Keep the dust caps clean.
CLASS 1
LASER PRODUCT
LASER KLASSE 1
PRODUKT

XCU Universe XF XF Transmission Base Station User’s Guide (v1.4) 9
Cleaning fiber-optic connectors
WARNING
Never clean an optical connector attached to a fiber that is carrying light.
Particles of foreign matter on the tip of a ferrule can have a disabling effect on fiber-optic
transmission. Fiber-optic connectors need to be cleaned every time they are mated and
unmated; it is essential that fiber-optic users develop the necessary discipline to always clean
the connectors before they are mated.
Use a commerially available cleaning kit specifically designed for fiber-optic connectors and
follow the manufacturer's instructions carefully.
• The connector sections to be cleaned include the tips and sides of ferrules, the interior
walls of alignment sleeves, and the interior and exterior of connector shells.
• For plugs, the interior surfaces of alignment sleeves and the tips of ferrules are to be
cleaned with a cleaning stick treated with the appropriate fluid. (Cleaning sticks with a
slender design are available that allow alignment sleeves to be cleaned without having to
detach them.)
• For jacks, it is important to clean both the tips and sides of the completely protruding
ferrules.
• Both the male and female connector shells tend to attract dust and metal particles, so it is
important to clean both the insides and outsides.
• The fiber end face and ferrule must be absolutely clean before it is inserted into a
transmitter or receiver.
• Mate the connector immediately! Do not let the connector lie around and collect dust
before mating.
• Air can be used to remove lint or loose dust from the port of a transmitter or receiver to be
mated with the connector. Never insert any liquid into the ports.

10 XCU Universe XF XF Transmission Base Station User’s Guide (v1.4)
Mains lead wiring for UK users
The wires in the mains lead are colored in accordance with the following code:
GREEN and YELLOW- EARTH
BLUE- NEUTRAL
BROWN- LIVE
As the colors of the wires in the mains lead of this apparatus may not correspond with the
colored markings identifying the terminals in your plug proceed as follows:
• The wire colored GREEN AND YELLOW must be connected to the terminal on the plug
marked with the letter E or by the safety earth symbol or colored GREEN or GREEN
AND YELLOW.
• The wire colored BROWN must be connected to the terminal marked with the letter L or
colored RED.
• The wire colored BLUE must be connected to the terminal marked with the letter N or
colored BLACK.
Ensure that your equipment is connected correctly - if you are in any doubt consult a qualified
electrician.

XCU Universe XF XF Transmission Base Station User’s Guide (v1.4) 11
Chapter 1 - Introduction
Chapter 1
Introduction
1.1 Welcome
Grass Valley’s XCU Universe XF (XF Transmission Base Station) is a heavy duty, multi-standard
transmission and power system designed for Grass Valley studio cameras.
1.1.1 About this manual
The purpose of this manual is to present a detailed description of how to install and operate
the XCU Universe XF . It provides the information necessary to install, set up and operate the
unit in different configurations.
1.1.2 Related documents
Before proceeding, check the Grass valley website at www.grassvalley.com for the latest
version of this user’s guide and additional information:
• Online versions of documentation; updated versions of user’s guides, data sheets,
brochures, application notes in pdf-format are available for download.
• Software downloads; camera software updates, release notes and installation instructions
are available for download.

12 XCU Universe XF XF Transmission Base Station User’s Guide (v1.4)
Chapter 1 - Introduction
1.2 Technology
1.2.1 Unique Cradle concept
The XF Transmission Base Station system is like no other in the world. Its unique cradle can be
pre-mounted and pre-wired in a 19-inch rack, making a secure mechanical and electrical
connection, permitting the XCU Universe XF box to easily slide in and out whenever needed.
Each XCU Universe XF comes with one cradle, but additional cradles may be acquired to
extend usability across different environments, allowing you to quickly and easily transfer XCU
Universe XFs between OB vans, studios, or anyplace.
The cradle concept allows for moving boxes easily and quickly between locations such as
trucks and studios. Pre-mounted and pre-wired to eliminate cabling errors, the unique cradle
provides on-demand res for fast paced productions, resulting in less set up time and more on-
air time. Compatibility with the LDX Series and many LDK Series cameras extends the cradle's
usefulness across all types of productions.
Transmissionconnectors can easily be exchanged during production and in the field. All other
connectors are mounted on a separate connector panel in the cradle. After disconnecting
mains power and the transmission cable the box can be removed.
cradle
box unit

XCU Universe XF XF Transmission Base Station User’s Guide (v1.4) 13
Chapter 1 - Introduction
1.2.2 XF Fiber Transmission
Grass Valley’s latest XCU Universe XF is based on full digital transmission and a proven and
robust power system. The XF transmission system consists of a dockable camera adapter that
fits on Grass Valley HD camera heads and an XCU Universe XF that takes care of power, signal
transport and conversion and connection to the studio or OB van.
The XCU Universe XF is equipped with a hybrid fiber connector.
XF Fiber offers video transmission and remote control of cameras up to a distance of 3,000 m
(10,000 ft) and beyond, using hybrid fiber cables.
1.2.3 Camera control and monitoring
You can access the XCU menu, which contains all operational settings, from an Operational
Control Panel. In addition to the operational menu, the installation and service menus can be
accessed directly from the XCU. The XCU is compatible with all existing control system
components.
An OCP 400 operational control panel can be connected directly to the XCU using a cross-over
Ethernet cable. Full camera control is provided via a C2IP Ethernet-based control network.
The communication facilities provide for two-wire or four-wire high quality intercom signals.
Transmission quality can be continuously monitored before and during operation from the
OCP 400 operational control panel and/or the LDK Connect Gateway.

14 XCU Universe XF XF Transmission Base Station User’s Guide (v1.4)
Chapter 1 - Introduction
1.3 Main features
• Flexible and multiple audio and video connectivity.
• Unique cradle mounting concept ensures maximum flexibility at a minimum set-up time.
• Many different video transmission systems are available.
• Reliable video transmission of many video formats:
– 1080p50/59.941080PsF23.98/24/25/29.97, 1080i50/59.94 & 720p50/59.94 (all LDX 86
cameras)
– 4K50 and 4K59.94 (with LDX 86 4K)
– 1080i150 (3X) and 1080i179.82 (3X) (with LDX 86 HS and LDX 86 XS cameras)
– 1080i300 (6X) and 1080i359.64 (6X) (with LDX 86 XS cameras)
– 720p150 (3X) and 720p179.82 (3X) (with LDX 86 HS and LDX 86 XS cameras)
– 720p300 (6X) and720p359.64 (6X) (with LDX 86 XS Cameras)
– 1080p150 (3X) and 1080p179.82 (3X) (with LDX 86 HS and LDX 86 XS Cameras)
• Transports the following digital signals from camera to XCU: main video signal, four audio
channels (including embedded digital audio), two intercom channels, control and private
data.
• Transports the following digital signals from XCU to camera: power, three external HD
video inputs, teleprompter signal, three intercom channels, control and private data.
• Full camera control via Grass Valley’s C2IP Ethernet-based control network.
• Three channel (two-wire or four-wire) intercom system compatible with international
standards.
• Built in a compact 2U high, 19-inch rack housing.
• Teleprompter, color bar, HD-SDI outputs standard on board.
• The digital transmission backbone and power module meet the most demanding
broadcasting needs.
• Heavy-duty design with a new reliable power unit with low power consumption, ideal for
outside broadcast vans.
• HD and simultaneous high-quality SD outputs available.

XCU Universe XF XF Transmission Base Station User’s Guide (v1.4) 15
Chapter 2 - Installation
Chapter 2
Installation
2.1 Rack installation
2.1.1 Installing rack mounting rails
The XCU Cradle can be mounted in most standard 19-inch video or IT rack types. The unit
needs two rack units (2 RU) of vertical space in the rack.
Install two L-shaped rack mounting rails (not supplied) that match your rack type. Refer to the
documentation of your mounting rails or rack for installation instructions.
• Make sure that both front and back end of the rails are attached to the rack. Allow a
minimum distance of 30 cm (11.8 in.) between the secured points.
• There should be a blind/untapped area in the front of the vertical rack beam where the
locking mechanism of the XCU engages the rack.
• The thickness of the horizontal leg of the L-shaped mounting rails must not exceed 2 mm
(0.08 in.) in order to leave enough space for more cradles to be mounted below the unit.
Below is an example of a rack mounting rail installed in a 19-inch rack. Note that your specific
situation may be different.
min. 30 cm (11.8 in.)
min. 12 mm (0.5 in.)
max. 2 mm (0.08 in.)

16 XCU Universe XF XF Transmission Base Station User’s Guide (v1.4)
Chapter 2 - Installation
2.1.2 Installing the cradle
After mounting the rack mounting rails, install the cradle:
1. Slide the cradle into the rack so it is supported by the L-shaped mounting rails.
2. Fix the cradle to the front rack posts using four M6-screws (not supplied with the unit).
2.1.3 Transporting rack mounted XCUs
When transporting rack mounted XCUs in a flightcase make sure to take the following
precautions:
• Use proper shock absorbers for the rack to prevent damage during transport.
• To prevent any horizontal movement of the cradle and XCU during transport, make sure
there is as little horizontal clearance as possible between the cradle and the mounting
rails:
• To prevent any vertical movement of the cradle during transport, lock up the cradle
between other units and the vertical rail stands as indicated in the illustration below. Make
sure there is enough support at the back of the unit, at a minimum distance of 400 mm
from the rack front/
438 mm
450 mm — 455 mm
88 mm (2 RU)
XCU
(free space)
(free space)
400 mm
FRONT XCU
XCU or other rack device
XCU or other rack device

XCU Universe XF XF Transmission Base Station User’s Guide (v1.4) 17
Chapter 2 - Installation
2.1.4 Connecting studio cabling
The studio cabling (main video outputs, control and intercom connections, studio signalling)
can now be connected according to your application and studio configuration. Refer to
“External video connectors” on page 56 for connectors and signals available on the cradle.
More information about studio signalling, control network, intercom cabling and other studio
infrastructure can be found further down this chapter.
2.2 Mounting the XCU
To mount the XCU into the cradle, proceed as follows:
• Place the XCU onto the sliding rails of the cradle, slide the unit into the cradle and push
firmly.
• Push down the right and left locking handles until they snap down.
To remove the XCU from the cradle, proceed as follows:
• Hold down the springs inside the locking handles and at the same time swing them open.
• Pull out the XCU from the cradle by pulling the XCU at its sides.
• Now the transmission and mains cables can be connected. Refer to “Connector
overview” on page 51 for connectors and signals available on the XCU.

18 XCU Universe XF XF Transmission Base Station User’s Guide (v1.4)
Chapter 2 - Installation
2.3 Setting up the control network
The XCU is connected to the control network hub or router via an Ethernet cable (straight-
through, not cross-over) via the C2IP (RJ45) connector. An OCP 400 (Operational Control Panel)
and, if required an MCP 450 (Master Control PC), are also connected to the Ethernet network
via a hub or router. An OCP 400 can also be connected directly to the XCU using a (cross-over
or a straight-through) Ethernet cable.
The IP address and other options for the Ethernet connection can be set up in the XCU menu.
☞Note ☞Note
By default, the Ethernet connection is set up for Auto IP configuration.
2.4 Setting up intercom
Connect the studio intercom system to the rear of the XCU Universe XF. Both a two and four-
wire cabling can be used. In the AUDIO/INTERCOM > INTERCOM > ENG > WIRE MODE menu
select the cabling system: 2wire or 4wire.
The wiring of the panel connector is shown below for two-wire and four-wire systems.
Two-wire systems
Four-wire systems
Signal Value
Signal level 0 dBu (RMS)
Load impedance 200 
Voltage level max. 40 VDC
8
1
15
9
Housing
Prod
Housing
Eng in/out
Prod in/out
Signal Value
Output signal level +6 or 0 dBu (RMS) selectable
Output impedance max. 50 symmetrical
Input signal level +6 or 0 dBu (RMS) selectable
Impedance min. 9 ksymmetrical
8
1
15
9
Housing
Eng in/out
Prod in/out
Housing
Prog in ret
Prog in
Prod in ret
Prod in
Eng in ret
Eng in

XCU Universe XF XF Transmission Base Station User’s Guide (v1.4) 19
Chapter 2 - Installation
2.5 Setting up studio signalling
Connect the studio signalling system to the rear of the XCU. The wiring of the signalling
connector is shown below:
There are several connection methods for the ISO (On Air Yellow), On Air and Call signalling
functions: dry contact, common ground, voltage level and open circuit/voltage level.
A selection in the INSTALL > SIGNALLING INPUT menu allows you to make the activity state
of the function (Active or Inactive) correspond to a particular input signal. There are two leads
for each connection - Send and Return.
2.5.1 Dry contact
☞Note ☞Note
A common return (not ground!) can be used for all three functions (ISO, On Air and Call)
If a contact is closed, the corresponding function is Active or Inactive, depending on the
selection in the INSTALL > SIGNALLING INPUT menu:
1
8
9
15
Call out send
Prev.out send
Prev.out ret.
ISO in send
ISO in return
Call in send
Call in return
5 V
Housing
Call out return
On Air send
On Air return
Audio 1 level
Audio 2 level
GND
Signal Send pin Return pin
ISO 3 11
On Air 4 12
Call 2 10
ISO 1a
ISO 1b
On-Air (Tally) 1a
On-Air (Tally) 1b
Call 1a
Call 1b
ISO in ext. send (pin 3)
ISO in ext. return (pin 11)
On-Air in ext. (pin 4)
On-Air in ext. return (pin 12)
Call in ext. (pin 5)
Call in ext. return (pin 13)
External ISO signalling
(dry contact)
External On-Air signalling
(dry contact)
External Call signalling
(dry contact)

20 XCU Universe XF XF Transmission Base Station User’s Guide (v1.4)
Chapter 2 - Installation
2.5.2 Dry contact with multiple XCUs
This is an example of an On Air signalling with multiple XCUs using a common contact.
☞Note ☞Note
Use either Send or Return only, but do not mix.
If a contact is closed, the corresponding function is Active or Inactive, depending on the
selection in the INSTALL > SIGNALLING INPUT menu:
Menu setting Input is shorted: Input is open:
LH (low-high) Function is Active Function is Inactive
HL (high-low) Function is Inactive Function is Active
On-Air (Tally) 1
On-Air (Tally) 2
On-Air (Tally) n
Common
External On-Air signalling
(common contact)
On-Air in ext. send (pin 4) Signalling connector
On-Air in ext. return (pin 12) Base Station 1
Signalling connector
Base Station 2
Signalling connector
Base Station n
On-Air in ext. send (pin 4)
On-Air in ext. return (pin 12)
On-Air in ext. send (pin 4)
On-Air in ext. return (pin 12)
Menu setting Input is shorted: Input is open:
LH (low-high) Function is Active Function is Inactive
HL (high-low) Function is Inactive Function is Active
