Motorola PMNN4461 User manual

WIRELESS SOLUTIONS
USER GUIDE
ACCESSORIES
PMMN4095 WIRELESS REMOTE SPEAKER MICROPHONE
PMLN6714 DUAL-UNIT CHARGER
PMLN6716 VEHICULAR CHARGER
PMNN4461 WIRELESS REMOTE SPEAKER MICROPHONE BATTERY
en es-CO pt-BR fr-CA ko de-DE
fr-FR es-ES it-IT pt-PT nl-NL ru
(APX PORTABLE)

BackCover.fm Page 1 Monday, September 15, 2014 9:31 AM

FOREWORD
English
i
CHAPTER 1: FOREWORD
RF Energy Exposure and Product Safety Guide for
Portable Two-Way Radios
ATTENTION!
The microphone is restricted to occupational use only to satisfy ICNIRP/
FCC RF energy exposure requirements. Before using this product, read
the RF Energy Exposure and Product Safety Guide that ships with the
radio which contains instructions for safe usage and RF energy
awareness and control for compliance with applicable standards and
regulation.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by Motorola
may void the user’s authority to operate this device.
Under Industry Canada regulations, this microphone transmitter may
only operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Ca nada. To reduce potential
radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is
not more than that necessary for successful communication.
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation.
Battery Information:
Battery is shipped with a nominal charge between 30% and 50%.
Battery should be stored between -10 °C (14 °F) and 30 °C (86 °F) to
minimize permanent capacity loss.
CAUTION: Storing your fully charged accessory in high-temperature
conditions may permanently reduce the life of the internal
battery.
Important Information:
•Hold the microphone in a vertical position with the microphone at
least one inch (2.5 centimeters) away from the nose or lips.
•Body Worn Operation. When microphone is worn on the body, always
use Motorola-approved clip for this product. Using approved body-
worn accessories is important because the use of non-Motorola-
approved accessories may result in exposure levels, which exceed
the FCC occupational/controlled environment RF exposure limits.
•Use only Motorola-approved supplied or replacement batteries. Use
of non-Motorola-approved batteries may exceed the applicable RF
exposure guidelines (iEEE, ICNIRP or FCC).
•DO NOT charge your accessory in temperatures below 0 °C (32 °F)
or above 45 °C (113 °F). DO NOT store your accessory in direct
sunlight or where expected temperatures can exceed this range such
as inside a parked car.
•Storing your fully charged accessory in high-temperature conditions
may permanently reduce the life of the internal battery.
•Battery life may temporarily shorten in low-temperature conditions.

FOREWORD
English
ii
Acoustic Safety
Exposure to loud noises from any source for extended periods of time
may temporarily or permanently affect your hearing. The louder the
radio's volume, the less time is required before your hearing could be
affected. Hearing damage from loud noise is sometimes undetectable at
first and can have a cumulative effect.
To protect your hearing:
•Use the lowest volume necessary to do your job.
•Turn up the volume only if you are in noisy surroundings.
•Turn down the volume before adding headset or earpiece.
•Limit the amount of time you use headsets or earpieces at high
volume.
•When using the radio without a headset or earpiece, do not place the
radio's speaker directly against your ear.
CHARGERS SAFETY INFORMATION
Important Safety Information
This document contains important safety and operating instructions.
Please read these instructions carefully and save them for future
reference.
Before using the battery charger, read all the instructions and cautionary
markings on (1) the Dual-Unit Charger / Vehicular Charger, (2) the
battery, and (3) on the Wireless Remote Speaker Microphone (WRSM).
WARNINGS
!
W A R N I N G
!
2. Use of accessories not recommended by Motorola may result in
risk of fire, electric shock, or injury.
3. To reduce risk of damage to the electric plug and cord of the
DUC, pull by the plug rather than the cord when disconnecting
the charger.
4. To reduce risk of damage to the CLA and cord of the Vehicular
Charger, pull by the CLA rather than the cord when disconnecting
the charger.
5. An extension cord should not be used unless absolutely
necessary. Use of an improper extension cord could result in risk
of fire and electric shock. If an extension cord must be used,
make sure that the cord size is 18 AWG for lengths of up to
100 feet (30.48 m), and 16 AWG for lengths up to 150 feet
(45.72 m).
6. To reduce risk of fire, electric shock, or injury, DO NOT operate
the charger if it has been broken or damaged in any way. Take it
to a qualified Motorola service representative.
7. DO NOT disassemble the charger – it is not repairable and
replacement parts are not available. Disassembly of the charger
may result in risk of electric shock or fire.
8. To reduce risk of electric shock of the DUC, unplug the charger
from the AC outlet before attempting any maintenance or
cleaning.
9. To reduce risk of electric shock of the Vehicular Charger, unplug
the Vehicular Charger from the CLA power source before
attempting any maintenance or cleaning.
10. This is a class A product. In a domestic environment this product
may cause radio interference in which case the user may be
required to take adequate measures.
1. To reduce risk of injury, charge only the rechargeable
Motorola authorized batteries listed in Table 1.1. Other
batteries may explode, causing personal injury and
damage.

FOREWORD
English
iii
NOTE: The Dual-Unit Charger is not designed to accommodate the
alkaline battery tray.
OPERATIONAL SAFETY GUIDELINES
Dual-Unit Charger PMLN6714_
•This equipment is not suitable for outdoor use. Use only in dry
locations/conditions.
•Ensure the WRSM with attached battery or battery alone is dry before
inserting into the Dual-Unit Charger.
•Connect equipment only to an appropriately wired power supply of
the correct voltage (as specified on the product). Disconnect from line
voltage by removing main plug.
•The socket outlet to which this equipment is connected should be
close by and easily accessible.
•Maximum ambient temperature around the Dual-Unit Charger
equipment must not exceed 50 °C (122 °F).
•Output voltage from the power supply unit must not exceed the
ratings stated on the product label located on the power supply.
•Make sure the cord is located where it will not be stepped on, tripped
over, or subjected to water, damage, or stress.
Vehicular Charger PMLN6716_
•Equipment shall be used in vehicle and in dry condition. Keep in mind
that rain or snow can reach the equipment i.e. through an open
vehicle window.
•Ensure the WRSM with attached battery or battery alone is dry before
inserting into the Vehicular Charger.
•Connect equipment only to an appropriately vehicle’s cigar lighter
socket of the correct voltage (as specified on the product).
Disconnect from line voltage by removing the CLA.
•Maximum ambient temperature around the Vehicular Charger
equipment must not exceed 60 °C (140 °F).
•Output voltage from the vehicle’s cigar lighter socket unit must not
exceed the ratings stated on the product label located at the back of
the charger.
•Make sure the cord is located where it will not be stepped on, tripped
over, or subjected to water, damage, or stress.
Table 1.1: Motorola Authorized Battery
Kit (Part) Number Platform/Description
PMNN4461_ Battery Standard Li-Ion 1750M1880T



FOREWORD
English
iv
RADIOS COMPATIBILITY
The Wireless Remote Speaker Microphone is compatible with the
radios listed below:
NOTE: *Not available in North America region.
SOFTWARE COMPATIBILITY
The Wireless Remote Speaker Microphone version R01.01.00 or later
must be used for compatibility with the APX Portable radios.
The Long Range Wireless Solutions are compatible with the Mission
Critical Wireless Pod software version R01.05.00 or later.
Table 1.2: Radios Compatibility
Region Model Series
Worldwide APX7000, APX7000XE, APX6000,
APX6000XE, APX3000 and APX2000*.
North America only APX4000.

WIRELESS RSM PMMN4095_
English
1
CHAPTER 2: WIRELESS RSM
PMMN4095_
The PMMN4095 Wireless Remote Speaker Microphone (WRSM) is
designed to be used with the APX Portable radios listed in “RADIOS
COMPATIBILITY" on page iv .
PREPARING YOUR WRSM FOR USE
Assemble your WRSM by following these steps:
Assembling the Swivel Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2
Attaching the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2
Detaching the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3
Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4
Recommended Wearing Positions. . . . . . . . . . . . . . . . . . . . . . . page 5

WIRELESS RSM PMMN4095_
English
2
Assembling the Swivel Clip
Insert the swivel clip through the battery slot. Rotate the clip to the right
position as indicated in Figure 2.1 below.
Figure 2.1: Assembling the swivel clip
Attaching the Battery
With the WRSM turned off, align the battery to back chassis and fully
slot in until the battery latch is engaged.
Figure 2.2: Attaching the battery into the WRSM
2
1
1
2

WIRELESS RSM PMMN4095_
English
3
Detaching the Battery
To detach the battery, lift up the battery latch and pull the battery
backward until the battery is fully disengaged from the back chassis.
Figure 2.3: Removing the battery from the WRSM
Charging the Battery
Figure 2.4: Charging position of the WRSM with battery attached
1
2

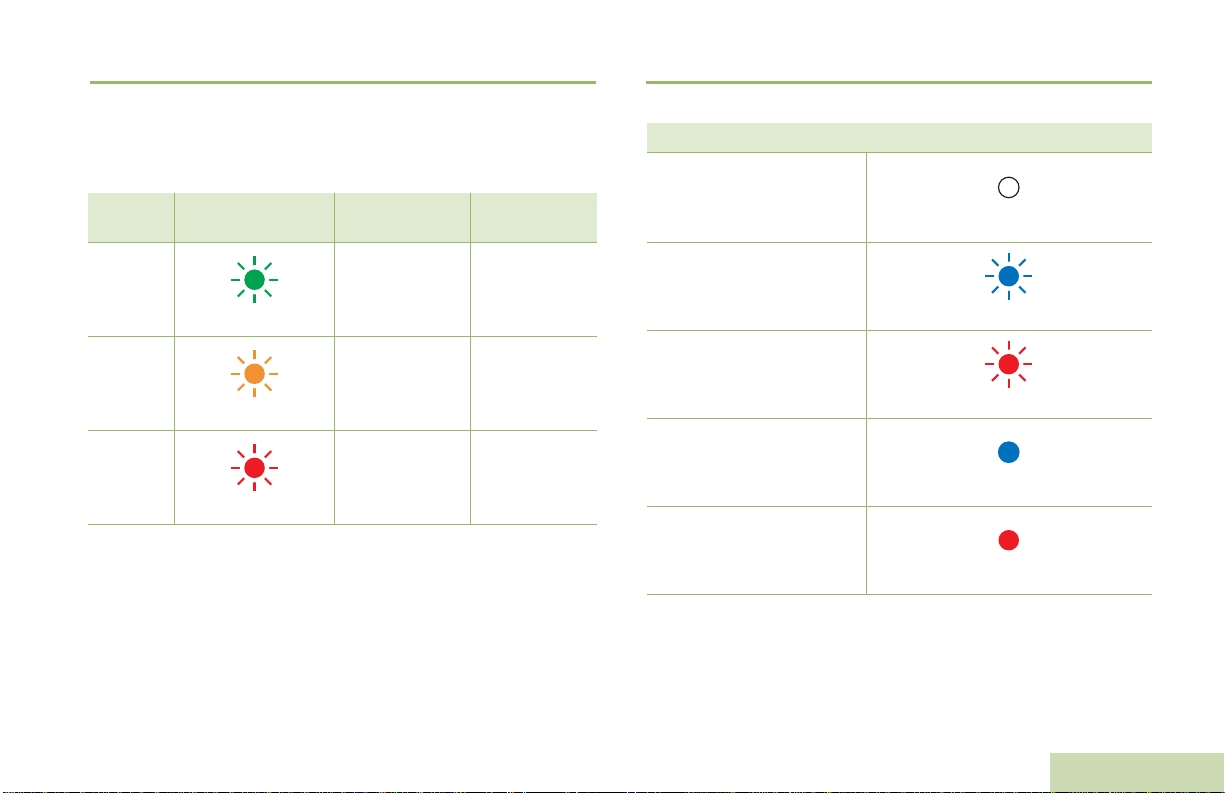

LED STATUS INDICATORS
Ready
>90%
CAUTION
Charging
Standby
RISK OF FIRE. REFER TO MANUAL FOR BATTERYTYPE
Unable to Charge

WIRELESS RSM PMMN4095_
English
4
The Motorola-approved battery shipped with your WRSM is uncharged.
Prior to using a new battery, fully charge the new battery to ensure
optimum capacity and performance.
NOTE: When charging a battery attached to a WRSM, turn the
WRSM OFF to ensure a full charge.
Battery Charger
To charge the battery, place the battery, with or without the WRSM, in a
Motorola-approved charger. When initially inserting the battery into the
charger, the charger’s LED will turn red. DO NOT use WRSM until the
charger’s LED turn Green,
The charger’s LED indicates the charging progress; see Chapter 4 and
Chapter 5 or the label printed on the charger.
Align the slot of the battery with the charger’s rail and slot in. Refer to
Figure 2.4.
Language Selection
Power ON the WRSM by pressing and holding Power Button until you
hear the language selection prompts.
Follow the procedure below if you want to reset to your desired
language.
Procedure:
1Hold the Power Button for 6 seconds after the power up LED
indication illuminated to enter the language selection feature.
2Select your desired language by pressing the PTT button. Refer to
Table 2.1 below for the Language Selection Indicators.
To avoid a possible explosion:
•DO NOT replace the battery in any area labeled
“hazardous atmosphere”.
•DO NOT discard batteries in a fire.
!
W A R N I N G
!
Table 2.1: Language Selection Indicators
State Power Indication LED Voice Prompt
Language Selection LED illuminated “For English press PTT now” (Menu selection
prompts)

WIRELESS RSM PMMN4095_
English
5
Figure 2.5: Language Selection
Recommended Wearing Positions
For optimum performance, wear the WRSM as highlighted in Figure 2.6
below.
Figure 2.6: Recommended wearing positions
NOTE: When the WRSM is worn on the body, always use Motorola-
approved clip. Using approved body-worn accessories is
important because the use of non-Motorola-approved
accessories may result in exposure levels, which exceed the
FCC occupational/controlled environment RF exposure limits.
1
2Push-to-Talk
(PTT) Button
Power
Button

WIRELESS RSM PMMN4095_
English
6
IDENTIFYING WRSM INDICATORS AND
CONTROLS
Take a moment to review the following:
Overview of the WRSM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6
Power Indicators and Battery Alerts . . . . . . . . . . . . . . . . . . . . . page 7
Audio Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Overview of the WRSM
Figure 2.7: Wireless Remote Speaker Microphone Overview
Audio Indicator
1
2Programmable
Button
(Orange Button)
Audio Jack
3
Microphone
4
Speaker
5
Tasklight
6
Blue Dot /
7
Tasklight
Button
8
Push-to-Talk
(PTT) Button
9
Power
Indicator
10
11 Power
Button
12 Volume Toggle
Secure
Pairing Spot

WIRELESS RSM PMMN4095_
English
7
Power Indicators and Battery Alerts
The WRSM is battery powered. It is very important to pay attention to
the low battery warning described in Table 2.2 to avoid improper
functioning of the WRSM.
Audio Indicators
Table 2.2: Power Indicators and Battery Alerts
State Power Indication
LED Tone Indication Remaining Battery Life
Normal
Battery Green
No tone 11 hours (full charged) –
30 minutes
Low
Battery Amber
Low Battery tone
every 2 minutes Less than 30 minutes
Critical
Battery Red
Low Battery tone
every 30 seconds Less than 10 minutes
Table 2.3: Audio Indicators
State Audio Indication LED
Audio Not Available,
Device Not Paired OFF
Audio Available,
Good Signal Blue Blink
Audio Available,
Muted Red Blink
Audio Not Available,
Disconnected / Reconnecting Blue Solid
Audio Not Available,
Disconnected / Reconnecting
and Muted Red Solid

WIRELESS RSM PMMN4095_
English
8
GENERAL WRSM OPERATION
Once you understand how your WRSM is configured, you are ready to
use your WRSM. Use this navigation guide to familiarize yourself with
the basic features:
Powering ON/OFF the WRSM . . . . . . . . . . . . . . . . . . . . . . . . . page 8
Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9
Pairing Your WRSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9
Subsequent Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Poor Signal / Out Of Range Warning Indication . . . . . . . . . . . page 11
Programmable Button (Orange Button). . . . . . . . . . . . . . . . . . page 12
Tasklight Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Dark Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 12
Secondary Receiver Audio Accessory . . . . . . . . . . . . . . . . . . page 13
Failure Detected Indication and Handling . . . . . . . . . . . . . . . . page 13
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 13
Firmware Upgrade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14
Anatel Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 14
Powering ON/OFF the WRSM
To power ON the WRSM, press and hold the Power Button until you
hear “Motorola Solutions” prompt. To power OFF, press the Power
Button until the WRSM turns off.
Figure 2.8: Powering on your WRSM
Table 2.4: Power ON/OFF LED and Tone Indicators
Power Power Indication LED Tone Indication Voice Prompt
ON LED blinks 3 times “Motorola
Solutions”
“Motorola
Solutions,
Power On”
OFF LED blinks 3 times then
OFF Power Off tone “Power Off”
Power
Button
Power Indicator

WIRELESS RSM PMMN4095_
English
9
Volume Control
To increase the volume, push volume lever towards the . To decrease
the volume, push lever towards the .
To mute, hold lever to the for 2 seconds. To unmute, push lever to
the or press the PTT button. Volume returns to the previous level.
Figure 2.9: Volume Control
The color of the Audio Indicator LED changes according to Table 2.3 .
Pairing Your WRSM
Procedure:
1Ensure both the radio and WRSM are powered on.
2Place the blue dot (secure pairing spot) on the WRSM within one
inch of the blue dot (secure pairing spot) on the radio. Refer to
Figure 2.10.
3During pairing, the Audio Indicator LED blinks according to the
pairing status. Refer to Table 2.5 for pairing indicators.
NOTE: * You will hear Disconnected tone every 2 minutes after the
WRSM prompts “Disconnected”.
Volume
Toggle
Audio Indicator
Table 2.5: Pairing LED, Tone Indication and Voice Prompt
State AudioIndication
LED Tone Indication Voice Prompt
Not Paired Off Pairing Ready tone every
2 minutes
“Touch blue dots
together to
connect” every
2 minutes
Paired
Successfully LED illuminated Pairing Successful tone “Connecting”
Wireless Link
Connectedwith
Host LED Heartbeat Connected tone “Connected”
Wireless Link
Disconnected
from Host LED illuminated Disconnected
tone every
2 minutes “Disconnected” *

WIRELESS RSM PMMN4095_
English
10
Figure 2.10: Pairing your WRSM
When a WRSM has been paired with a radio, its behavior upon the next
power up is dependent on the Bluetooth configurations of the Radio.
Refer to “APX Radio’s Bluetooth Configuration Options" on page 10 or
radio user manual for more details on the programming options for
Bluetooth accessories.
If the WRSM has been paired with a radio and needs to now be paired
with a different radio, the WRSM does not have to clear its previous
pairing. The previous pairing will be cleared automatically when pair
with a new radio. The previous pairing will be cleared automatically
when paired with a new radio.
APX Radio’s Bluetooth Configuration Options
Re-Pair Timer
There are two options for configuring the radio’s Bluetooth pairing type.
The type defines the duration the radio and the accessory retain the
pairing information.
•Immediate – When the radio and/or device is turned off after pairing,
they are unable to re-connect when they are turned back on. The
user must re-pair the devices to re-establish a new connection.
•Infinite – When the radio and/or device are turned off after pairing,
they can resume the Bluetooth connection without user intervention
when they are turned back on.
Align


WIRELESS RSM PMMN4095_
English
11
Subsequent Connection
Same Host:
If the wireless link is lost, connection will be automatically re-established
when the host and WRSM come within communication range.
Figure 2.11: Communication range
New Host:
Push-to-Talk (PTT) Button
Press and hold down the PTT button to talk. Release the PTT button to
listen. The microphone is activated when the PTT button is pressed.
Figure 2.12: Pressing Push-to-Talk Button
Programmable Button (Orange Button)
The Programmable Button is programmable through radio’s Customer
Programming Software (CPS). Your radio’s User Guide contains a full
description of the programmable functions that are available through
this button.
30 m
Line Of Sight

WIRELESS RSM PMMN4095_
English
12
Tasklight Button
Press the Tasklight Button for 1 second to switch ON/OFF the tasklight.
During low/critical battery, the Tasklight blinks for 30 seconds and will be
auto switched OFF.
NOTE: The Tasklight is disabled when WRSM is in Dark Mode.
Dark Mode
Dark Mode allows you to turn OFF the LEDs on the WRSM.
IMPORTANT: When the WRSM is in Dark Mode and muted state, all
indications will be turned OFF.
To activate the Dark Mode feature, follow the steps below:
Procedure:
1Press and hold the Tasklight Button until Dark Mode is ON. The
Tasklight will blink for 1 second upon entering/exiting Dark Mode.
2Refer to Table 2.7 below for the Dark Mode Indicators.
NOTE: To disable the Dark Mode feature, press the Tasklight Button
for 3 seconds.
IMPORTANT: The WRSM will automatically enable or disable all
LED’s on the WRSM based on the Surveillance Mode
configuration of channels used on the APX Portable
Radio only.
NOTE: All three LEDs (Power Indicator, Audio Indicator & Tasklight)
blink for 1 second and off at the same time when turning ON/
OFF the Dark Mode.
Table 2.6: Dark Mode Indicators
Indication Power Indication, Audio
Indication and Tasklight
LED
Tone
Indication Voice Prompt
Dark Mode
ON LED illuminated for 1 second then OFF “DarkMode” tone
“Lights OFF,
Press and
holdTasklight
Button to
switch lights
ON”
Dark Mode
OFF LED illuminated for 1 second “DarkMode” tone “Lights ON”

WIRELESS RSM PMMN4095_
English
13
Secondary Receiver Audio Accessory
When a secondary accessory is plugged into the audio jack, audio will
be routed through secondary accessory
Attaching Secondary Receiver Audio Accessory
Lift up the dust cover and rotate 90 o.Plug the dust cover to the housing
slot. Insert the secondary receiver audio accessory to 3.5 mm audio
jack.
Figure 2.13: Attaching secondary receiver audio accessory
Optional Accessories
NOTE: Some part numbers may have regional prefix such as AA,
MD or AZ.
Failure Detected Indication and Handling
Any product error is indicated by alternating Red and Green blinks and
a failure detected indication (tone / voice prompt) will be heard. A few
seconds later the WRSM will recover.
Troubleshooting
If at any time the wireless connection cannot be re-established, or the
WRSM is operating incorrectly:
Procedure:
1Power cycle the WRSM and the two-way radio.
2Refer to “Pairing Your WRSM" on page 9” to repeat the connection
process.

1
2
Table 2.7: Optional Accessories
Part Number Description
RLN4941_ Earpiece with Coiled Cord and 3.5 mm RT Angle
Plug
RLN4885_ Receiver Earbud for Remote Speaker Microphone


WIRELESS RSM PMMN4095_
English
14
Firmware Upgrade
Firmware upgrade is available for this WRSM and it is only upgradeable
by your dealer. Check with your dealer for more information on the latest
firmware upgrades.
NOTE: DO NOT charge the WRSM with this micro USB port, it is
strictly for firmware upgrade only.
Figure 2.14: Location of the micro USB port
Anatel Label
This equipment operates as a secondary user, so it is not entitled to
protection from harmful interferences, even if generated by similar
equipment, and it may not cause harmful interference on systems
operating as primary users.
Micro USB port
1144-14-1699
PMMN4095
