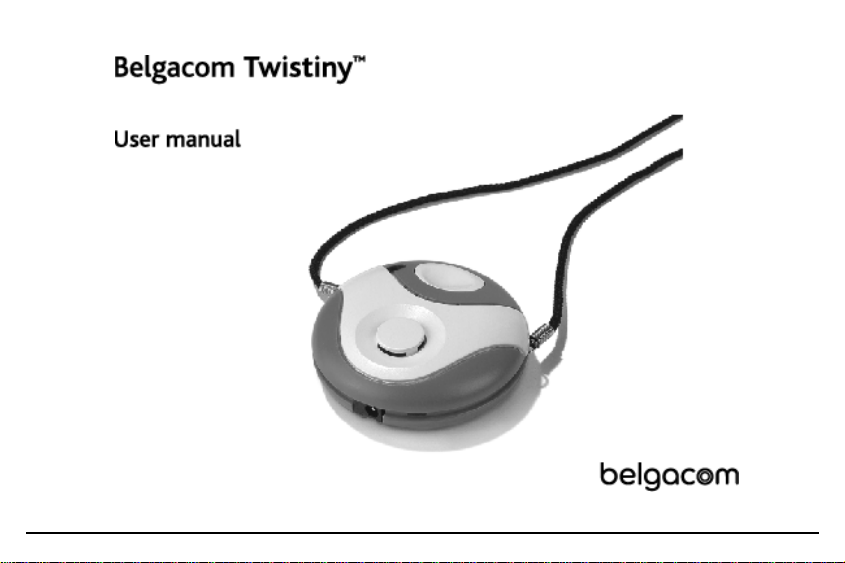

BELGACOM Twistiny User manual

Twistiny™ Page 1

Twistiny™ Page 2
Contents
TwistinyTM__________________________________________________________________________ 3
KIT CONTENTS________________________________________________________________________ 4
HOME SET-UP_________________________________________________________________________ 5
Setting up your TwistinyTM____________________________________________________________ 5
TwistinyTM Registration with a DECT/GAP base station_____________________________________ 7
Saving Phone Numbers on Your TwistinyTM ______________________________________________ 8
HOW TO USE Twistiny TM ________________________________________________________________ 9
Placing calls with speed-dial ___________________________________________________________ 9
Answering incoming calls______________________________________________________________ 9
Adjusting volume ____________________________________________________________________ 9
Ending a call_______________________________________________________________________ 10
Recharging your Twistiny TM handset___________________________________________________ 10
Placing calls on the TwistinyTM keypad__________________________________________________ 10
CUSTOMIZING YOUR TWISTINYTM handset________________________________________________ 11
Adjusting the ring tone_______________________________________________________________ 11
Selecting ring tones on your TwistinyTM _________________________________________________ 12
Selecting receiver volume_____________________________________________________________ 13
IndicatOrs ____________________________________________________________________________ 14
Out-of-rangeindicator_______________________________________________________________ 14
Low power indicator________________________________________________________________ 15
LED color indicators ________________________________________________________________ 15
SPECIFICATIONS_____________________________________________________________________ 16
MAINTENANCE TIPS __________________________________________________________________ 16
Twistiny™ MANUFACTURER’S WARRANTY _______________________________________________ 17

Twistiny™ Page 3
TWISTINYTM
The TwistinyTM is a handy digital enhanced cordless phone you can wear around your neck or tuck into a
back pocket and leave beside your bedlamp at night. It goes wherever you do.
Just press the ONE-TOUCH button whenever you want to do any of the following:
-Place a call any time of the day or night,
-Answer incoming calls, and
-Hang up.
Touch button
Visual Indicat
or
TRADUIRE
Front
Microphone
Handsfree loudspeaker

Twistiny™ Page 4
KIT CONTENTS
Your kit contains the following:
n1 TwistinyTM handset
n1 TwistinyTM AC adaptor
n1 deluxe collar strap
n1 user manual
Twistiny TM Twistiny TM Charger

Twistiny™ Page 5
HOME SET-UP
All you need to do is to set up the TwistinyTM and subscribe to a DECT/GAP basestation.
SETTING UP YOUR TWISTINYTM
Perform the following three steps to set up your TwistinyTM :
nFlip the power switch to the left using a ballpoint pen.

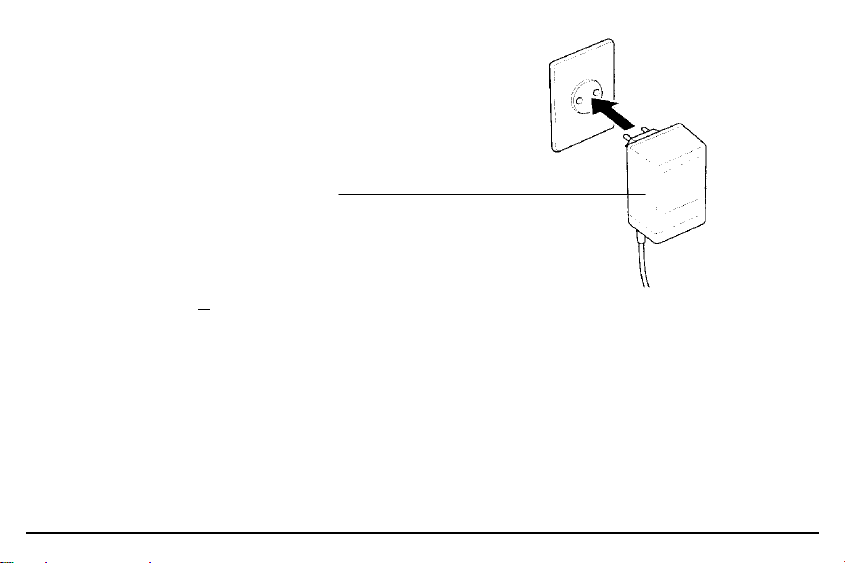

nPlug the TwistinyTM
AC adaptor into a wall socket.
Micro switch
Phug for charger and
optional headset (Twistiny
Portable Handfree
90028476)

Twistiny™ Page 6
nAllow six hours for your TwistinyTM to charge the batteries.
Leave the power switch in the ON position after setting up your TwistinyTM .
When the TwistinyTM is on, you will see an orange LED light flashing three times per
second. The orange light means your TwistinyTM is on but has not yet registered with a
base station.
The TwistinyTM LED light will flash green once every 10 seconds as soon as it connects to a
base station, enabling you to place and receive calls.
Battery life is up to 96 hours in standby mode.
However you should recharge your TwistinyTM daily.
Your TwistinyTM will beep as soon as battery power is low.
Power supply of Twistiny
TM
charger

Twistiny™ Page 7
TWISTINYTM REGISTRATION WITH A DECT/GAP BASE STATION
•Connection
Perform the following to connect your Twistiny™ to a DECT/GAP base station:
Preset the base station to REGISTRATION MODE (see Base Station User Manual)
Dial the numbers below:
+ Ø+ # + 1 0000 +
1is the number of the base station and 0000is the PIN code for the base station.
Your TwistinyTM will register with a maximum of four different DECT/GAP base stations.
•Selecting a Base Station
When your TwistinyTM is registered with two or more base stations, perform the following to
select which one you want to use:
+ Ø+ 8 + 1 +
1is the number of the base station you want.

Twistiny™ Page 8
SAVING PHONE NUMBERS ON YOUR TWISTINYTM
TwistinyTM has a speed-dial memory feature. Just press the ONE-TOUCH button to dial the
number stored in memory.
Key in the following to store a new phone number:
+ 1 + the number you want to save +
Your Twistiny TM handset is now fully installed and connected to a base station.
You can now place and receive calls.

Twistiny™ Page 9
HOW TO USE TWISTINY TM
PLACING CALLS WITH SPEED-DIAL
All you need to do is:
nPress the ONE-TOUCH button to place a direct call to the number you
saved in the TwistinyTM handset memory.
ANSWERING INCOMING CALLS
When your TwistinyTM rings, all you need to do is:
nPress the ONE-TOUCH button once.
ADJUSTING VOLUME
If you can’t hear your conversation partner comfortably, you will need to raise or lower the
volume on your TwistinyTM handset as follows:
nPress the key until you find the right volume.

Twistiny™ Page 10
ENDING A CALL
nHold down the ONE-TOUCH button on the front of your TwistinyTM handset
until you hear a beep.
RECHARGING YOUR TWISTINY TM HANDSET
You should recharge your TwistinyTM handset daily as follows:
nConnect the handset to the AC adaptor.
Your TwistinyTM will beep as soon as recharging starts. A red LED light will flash once every
two seconds to confirm that recharging is in progress.
PLACING CALLS ON THE TWISTINYTM KEYPAD
Perform the following to place an individual call using your TwistinyTM keypad:
nPress to obtain a dial tone.
nDial your number.
nPress to hang up at the end of your call.

Twistiny™ Page 11
CUSTOMIZING YOUR TWISTINYTM HANDSET
You can customize your TwistinyTM using the keypad on the back of the handset.
ADJUSTING THE RING TONE
For greater hearing comfort, perform the following to adjust the ring tone volume on your
TwistinyTM handset:
nPress
nThen press Øand 4
nNow press 0, 1, 2or 3(you will hear each tone as you press each key). The
0key is for silent mode.
Menu key

Twistiny™ Page 12
nPress to validate your choice. You will then hear a beep to confirm
your selection.
SELECTING RING TONES ON YOUR TWISTINYTM
Perform the following to personalize you ring tone:
nPress
nThen press Øand 3
nNow press 1, 2, 3, 4or 5(you will hear each tone as you press each key)
nPress to validate your choice. You will then hear a beep to confirm
your selection.

Twistiny™ Page 13
SELECTING RECEIVER VOLUME
Perform the following to adjust the volume of the TwistinyTM built-in speaker:
nPress once.
nNow press again to adjust the volume
Your TwistinyTM has six volume settings (0-1-2-3-4-5). You access them by repeat pressing
of the key. You will hear a beep whenever you have reached the minimum and
maximum settings.
Example: Press the several times and your TwistinyTM will show: 3-4-5-(Beep)-4-3-2-1-
0-(Beep)-1-2-3-4 and so on.

Twistiny™ Page 14
INDICATORS
OUT-OF-RANGE INDICATOR
If you move out of range of the base station, your TwistinyTM transmission and reception will
suffer. A beep and LED light will alert you whenever you stray too far.
•Maximum Range Indicators
Your Twistiny TM handset will beep twice whenever it is almost out of range. Beeping will
continue until you are comfortably back within operating range again.
When you hear the double beep, move back towards the base station. If you continue
moving away from it, you will go offline. The LED on your TwistinyTM will then blink in
orange three times per second to show that you can no longer place or receive calls.
•Disconnection from Base Station
If your TwistinyTM is out of range, you will hear the beeps and see the LED blink in orange
three times per second. All you need do is move your TwistinyTM closer to its base station.

Twistiny™ Page 15
LOW POWER INDICATOR
Your TwistinyTM needs adequate battery power to function properly. When the battery runs
low, you will hear and see the following:
nOne beep every three seconds when power is low, and
nThe LED light blinks in red once every5seconds.
LED COLOR INDICATORS
Handset Status Color Blink Rate
Online Green Once every 10 seconds
Call in progress Green Steady light
Low battery Red Once every 5 seconds
Recharge underway Red 2 times per second
Offline Orange 3 times per second

Twistiny™ Page 16
SPECIFICATIONS
Industry Standards DECT (Digital Enhanced Cordless Telecommunications)
GAP (Generic Access Profile)
Operating Frequency 1880 MHz to 1900 MHz
Average Rated Transmission Power 10 mW per channel
Operating Range Approx. 300 meters outdoors and 50 meters indoors
Battery Recharging Time Approx.6 to 8 hours
Operating Temperatures 5°C to 45°C
Size Diameter: 57 mm; Thickness: 19 mm
Power Supply Ni-MH batteries
Operating Life Up to 96 hrs in standby mode and up to 2 hrs calling time
Twistiny™ complies with relevant EC standards
MAINTENANCE TIPS
nClean your TwistinyTM with a soft damp cloth only. Do not use aerosol sprays.
nAvoid contact with any liquids.
nIt is normal for batteries to warm up during recharge.
nDo not use any recharging device except the AC adaptor supplied in your TwistinyTM kit.
Never try to open your TwistinyTM handset to avoid creating an electrical hazard to your
health. Return it to our after-sale support service for any needed repairs.
nDo not use the handset in any room or area that presents a risk of combustion or explosion.

Twistiny™ Page 17
TWISTINY™ MANUFACTURER’S WARRANTY
Inventel France hereby certifies that the Twistiny TM product complies with Appendix III of Directive
99/05/CE-R&TTE whose main relevant requirements are as follows:
Article 3.1 a (User Health & Safety)
EN 60950 (2000)
Article 3.1 b (Electromagnetic Compatibility Standards)
ETS 300 329 (97)
Article 3.2 (Efficient Use of Frequency Bandwidth)
EN 301 406 (2001)
We warrant fitness for intended use and compliance with the essential applicable requirements of
Directive 99/05/CE.
Paris, March 30, 2003
Inventel

Twistiny™ Page 18
PLEASE KEEP IN A SAFE PLACE
Device:
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Serial number:
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Date of purchase, replacement or repair (*)
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Name and address of the buyer:
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Telephone number of the relevant technical
department:
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Stamp:
(*) Please delete as appropriate
The terminal described above was specially selected for you by Belgacom.
Unless otherwise stipulated by contract, the terminal carries a one-year guarantee
covering the cost of spare parts and labour due to a material or manufacturing
defect. The guarantee will take effect as from the date on which the
device is collected or delivered. Travel by Belgacom employees is not covered
by the guarantee unless a technical assistance contract has been signed.
If you should have any difficulties with your terminal, you should either telephone
the relevant technical department indicated above or you should go to
one of our Téléboutiques, bringing with you this certificate and the complete
device in its original packaging or a packaging ensuring a similar degree of protection.
The addresses of our Téléboutiques are in the information pages of the
telephone Directory.
In the event of defective material or a manufacturing defect, your device will be
repaired or replaced free of charge on presentation of this guarantee certificate
duly completed at the time of purchase. Belgacom alone will determine what

Twistiny™ Page 19
repairs and/or replacements will be necessary. The guarantee period applicable
to a device which has been repaired or replaced will end on expiry of the guarantee
period applicable to the device purchased but may not be less than three
months.
The guarantee does not cover:
-damage of any kind, the origin of which is not prior to the sale;
-any damage, malfunction or defect due to a fault of the customer or the cause
of which is external to the device: lightning, voltage surge, humidity, accidental
deterioration, improper use or poor maintenance, failure to follow the
instructions or any case of force majeure;
-repair or replacement of the movable elements (cords, wires, plugs, antennas
etc.), replacement of accessory elements, the regular renewal of which is necessary
(batteries, paper, ink etc.) or the supply of cleaning products.
The guarantee will not apply:
-if the customer personally modifies or repairs the device or does so with the
assistance of any person who is not authorized by Belgacom; or
-if the customer removes or falsifies the manufacturing numbers and/or the
markings on the terminal.
Belgacom will not be liable for any indirect or non-material loss suffered by the
customer due to a malfunction of the terminal such as in particular a production
loss, loss of earnings or loss of a contract.
The general terms and conditions applicable to our terminals may be
obtained on application to any of the Belgacom departments accessible to
the public.
Belgacom S.A. of public law
Bd. King Albert II 27 -B 1030 Brussels -VAT BE 202.239.951-Brussels TR 587.163.
