Belkin BU3DC001-12V User manual

Residential Gate way
(RG) Battery Backup
REV B
Save this user manual
This manual contains important instructions regarding the
installation
and operation of this device. Read this manual
thoroughly
before attempting to install or operate this device.
BU3DC001-12
V
User Manual

T a bl e o
f
Contents
Page
Introduction .................................................................................................... 3
Safety Information ..................................................................................... 3
System
Requir ements............................................................................... 3
Package Contents .................................................................................... 4
Recycling ..................................................................................................
4
Controls and Status Indicators ....... ....................... ..................................... 5
Audible and Visual Alarms ........................................................................... 6
Installation .....................................................................................................
7
Operation .......................................................................................................
8
Battery Replacement Procedure ..................................................................
9
Warranty........................................................................................................
10
Technical Specifications ............................................................................
11
2

 Internal batt ery voltage is 12V DC .
 Incorr ect battery connection or r eplacement cr eates risk of explosion.
 The RG Battery Backup is intended for installation and operation in a
contr olled envir onment (temperatur e contr olled, indoor ar ea fr ee of
conductive contaminants).
 No user -serviceable parts exist inside the unit. Refer repair issues only to
qualified personnel. Fuses or other parts must be r eplaced ONLY with
parts
of identical types and ratings. Substitution of non-identical parts
can
cause fir e and other safety hazar ds.

All batteries used ar e sealed lead batteries. Batteries should be r ecycled.
The RG Battery Backup shall be installed near an easily accessible power
outlet.
Intr oduction
This Residential Gateway (RG) Battery Backup, once properly installed and used,
has been designed to maintain your AT&T U-verse® Voice service in the event
of a short disruption to your commercial power service.
Saf ety Inf ormation
CAUTION
Sys tem Requirements
The RG Battery Backup is designed for use with the A T&T U-verse Residential
Gateway and you
r AT&T U-verse Voice service.
NOTE: Your AT &T U-verse Voice service, including 911 dialing, will not function
without electrical or battery-backup power. The RG Battery Backup supplies
power for your AT&T U-verse Voice service; it does not supply power for
cordless phones (and it does not supply power for your network interface
device or optical network terminal, typically located on the outside
of your home, which may also require battery-backup power for your
AT&T U-verse Voice service to function).
Therefore, in the event of a power outage, you should ensure you have one
corded single-line, touchtone phone connected directly to the AT&T U-verse
Residential Gateway or your in-home wiring and the AT&T U-verse
Residential Gateway connected to the RG Battery Backup. (Rotary/pulse phones
do not work with AT&T U-verse Voice service.) If you connect more than one
corded phone, it will use more power; if you connect a cordless phone,
it will not function without a separate battery backup, and not all cordless
phones are so equipped. If you have a monitored home alarm, you should
never plug a multi-line phone directly into the Residential Gateway—it could
interfere with the alarm signals. You should not connect the RG Battery Backup
to any device other than the AT&T U-verse Residential Gateway or use it with
any service other than your AT&T U-verse Voice service, and you should
always have an alternative means of dialing 911, such as via a cellular
telephone.

Intr oduction
Package Contents
Y
ou should have r eceived the following:
1 – RG Battery Backup unit (12V sealed lead-acid battery included
inside unit )
Recy cling
UNIT CONTAINS SEALED LEAD-ACID BATTERY. UNIT SHOULD B
E
RECYCLED. Belkin International, Inc., advocates sound environmental
management of used batteries.
4
For battery replacement and recycling information, please call us at
866-539-5791, or visit our website at www.belkin.com/gatewaybattery.

Controls and Status Indicators
Shown below are the controls and indicator lights on the RG
Battery Backup.
1
P o w e
r
on/of
f
Power on/of f switch is
located on the back panel.
Use this switch to tur n
the RG Battery Backup on/
of f. The unit will not supply
power
to the A T&T
U-verse
Residential
Gateway
when power
switch
is in OFF position.
2
Status Indicator s
Thr ee LED status lights ar e
located on the front panel.
The status lights indicate
specific
conditions of the
device.
(See page 6.)
2
3
Mute on/of
f
Use this switch to tur n the
mute function on/of f.
The audible alarms will be
silenced when
mute switch is
in
ON (down) position.
3
5
1

Residential Gate way
(RG) Battery Backup
REV B
Federal Communication Commission Interference Statement Subpart B
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference
to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance
could void the user's authority to operate this equipment.
Belkin T ech Support
US: 866-539-5791
www.belkin.com/gatewaybattery
Belkin Inter national, Inc.
501
W est W alnut Str eet
Los Angeles, CA 90220, USA
310-898-1100
310-898-1111 fax
© 2010 Belkin International, Inc. All rights r eserved.
All trade names are register ed trademarks of r espective
manufactur
ers listed.
REV 063010
8820-22099
BU3DC001-12V

A
udible and Visual
A
larms
The RG Battery Backup alarms to indicate certain events.
NOTE: Audible alarm will not sound when mute switch is in ON
(
down
)
p
osition.
6
Front-Panel
Lable Visual
Indicator Audible Alarm Description
On A/C Green LED
lights
None
The RG Battery Backup is
operating on A/C.
T esting
Battery
Green LED
flashes
None The RG Battery Backup is conduct-
ing a self-test. This procedure is
normal and will occur when the
self-test is manually initiated and
periodically thereafter (see page 8).
This procedure will last
approximately
5 minutes.
On
Battery
Y ellow LED
lights
T one every
10 seconds
The RG Battery Backup is
operating on battery power.
The alarm will stop when the A/C
power is restored.
Low
Battery
Y ellow LED
flashes
T one every
1 second
The battery energy is running low.
This alarm will continue until the
unit performs a forced shutdown
when
the battery is depleted or A/C
power
is restored.
Replace
Battery
Red LED
flashes
T one every
5 seconds
The battery may have reached the
end of its useful life. Conduct a self
test (see page 8). If the alarm
remains
on, replace the battery as
soon as possible to ensure proper
operation of the RG Battery Backup
(see page 9).
Fault Red LED
lights
Continuous
tone
A fault has occurred. Reset the RG
Battery Backup (the unit) by:
* Turn off the unit
* Disconnect unit from the AC outlet
* Reconnect unit to the AC outlet
* Turn on the unit
If
the fault is not corrected, turn off
the unit and disconnect from the AC
outlet prior to checking Residential
Gateway.
If fault persists, contact
Belkin for assistance.

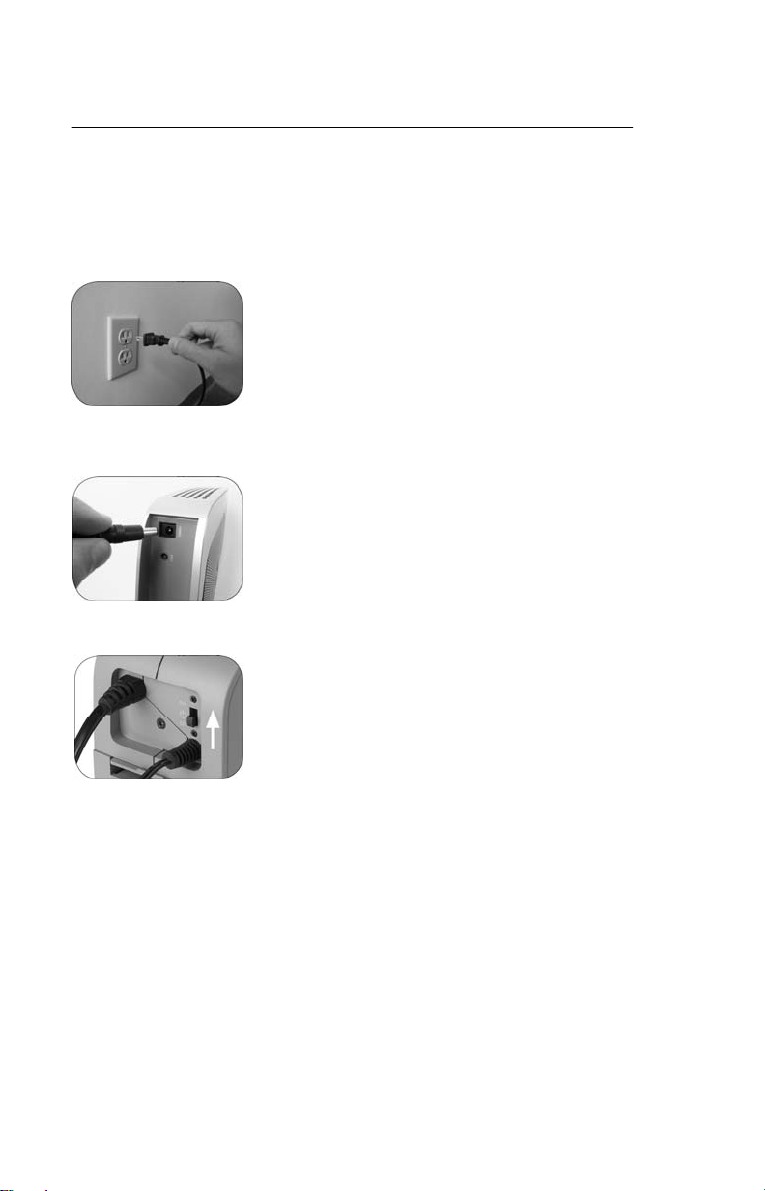

Ins tallation
NOTE: Befor e installation, please inspect the RG Battery Backup. Make su
r
e
that nothing inside the package is damaged. The RG Battery Backup must
be installed near the Residential Gateway and be easily accessible.
STEP 1:
Connect to AC Utility Power
Make sur e that the power switch on the RG Battery
Backup is in the OFF position. Plug the A/C cor d on
the
RG Battery Backup directly into a wall outlet.
Do not connect the RG Battery Backup into a power
strip or surge protector.
STEP 2:
Connect to the Residential Gateway
Connect the DC plug on the RG Battery Backup into
the Residential Gateway .
STEP 3:
T ur ning on the RG Battery Backup
T urn the switch on the RG Batter y Backup to the ON
positio n . The “On A/C” LED light shoul d illuminate.
NOTE: It takes appr oximately 18 hours to charge a new and fully depleted
battery at normal indoor temperatur e. If a power outage occurs befor e
the battery is fully charged, the battery-backup time shown on page
11 will be r educed. Ther efor e, you should not r ely on battery-backup
power
for at least 18 hours after your RG Battery Backup is initially
installed or a r eplacement battery is ther eafter installed. During these
periods especially , and at all other times in general, you should ensur e
that you have an alter native means of dialing 911, such as via a cellular
telephone. Y our A T&T U-verse V oice service, including 911 dialing,
will not function without electrical or battery-backup power .
7

Ope
r
ation
T u r n i n g o
f
f
t h e R G B a tt e r y B ack u p
T urn switch to OFF position. The “On A/C” LED light should tur n of f.
To
Silence Audible Alarm
T urn mute switch to ON (down) position.
To C o n d u c t a S e l f - T e s t
Use the self-test to verify both the operation of the RG Battery Backup
and the condition of the battery . Turn the mute switch ON and OFF
(down and up), then ON and OFF (down and up) again within five seconds.
The RG Battery Backup automatically conducts a sel
f
-test every 21 days.
NOTE: During the sel
f
-test, the RG Battery Backup briefly operates on
battery-backup power. The “Testing Battery” LED will flash for five
minutes during the test period. If the RG Battery Backup passes the
self-test, it returns to normal operation on A/C, and the green “On A/C”
LED light is lit.
If the green “Testing Battery” LED does not flash when the self-test is
conducted, it is likely that the battery voltage is low. This could
happen immediately following installation, during the recharging period
following a power failure, or during “On Battery” mode. This is
normal. Wait until the battery fully recharges (18 hours) before re-
initiating the self-test.
If the RG Battery Backup fails the self-test, it immediately returns to
normal operation on A/C and lights the “Replace Battery” LED. The
operation of the RG is not affected. Fully recharge the battery (18
hours) and perform the self-test again. If the “Replace Battery” LED is
still on, the battery needs to be replaced.
8

Battery Replac ement P
r
oc edur e
T
o order a replacement battery or for recycling information
call:
866-539-5791 or visit: www.belkin.com/gatewaybattery
The RG Battery Backup is designed with an easy-access battery door .
Replacement
of the battery r equir es r emoving the battery door on the r ear of
the device.
No tools ar e needed.
STEP 1:
T
ur n off power switch. Disconnect the RG Battery
Backup
fr om power and any connected devices.
Remove the battery door on the rear of the RG Battery
Backup by pressing the tab on the top of the battery
door and pulling outward.
STEP 2:
Remove the battery from enclosure; remove the wire
connections from the battery.
STEP 3
Connect the new battery (black-to-black, red-to-red);
place the battery into enclosure.
WARNING: Carefully connect the wires to the correct
terminals. The replacement battery will have
color-coded terminals (red = +, black = -).
Do not misconnect the wires.
STEP 4:
Securely reconnect battery door.
9

Warranty
LIMITED THREE (3) YEAR WARRANTY
What this warranty covers.
Belkin International, Inc. warrants to the original AT&T U-Verse subscriber of this
Belkin Residential Gateway (RG) Battery Backup Unit (BBU), that the RG BBU shall be
free
of defects in design, assembly , material, or workmanship.
What the period of coverage is.
Belkin International, Inc. warrants the Belkin RG BBU for three (3) years from the original
date of installation.
What will we do to correct problems?
RG BBU Warranty . Belkin will repair or replace, at its option, any defective RG BBU free
of
charge (except for shipping charges for the RG BBU).
What
is not covered by this warranty?
All above warranties are null and void if the Belkin RG BBU is not provided to Belkin
International, Inc. for inspection upon Belkin's request at the sole expense of the
purchaser
, or if Belkin International, Inc. determines that the Belkin RG BBU has been
improperly
installed, altered in any way or tampered with. The Belkin RG BBU Warranty
does
not protect against acts of God (including but not limited to flood and earthquake),
war
, vandalism, theft, normal-use wear and tear , erosion, depletion, obsolescence,
abuse, or alteration.
How
to get service.
T
o get service for your Belkin RG BBU you must take the following steps:
1. Contact Belkin International, Inc. at 501 W . Walnut St., Compton CA 90220, Attn:
Customer Service, or call (866)-539-5791 Be prepared to provide the following
information:
(a). The part number of the Belkin RG BBU. (b). When the RG BBU was
first
installed. (c). Proof of AT&T U-Verse service installation.
2. Y our Belkin Customer Service Representative will then instruct you on how to forward
your
receipt and Belkin RG BBU and how to proceed with your claim.
Belkin International, Inc. reserves the right to review the damaged Belkin RG BBU. All
costs
of shipping the Belkin RG BBU to Belkin International, Inc. for inspection shall be
borne
solely by the purchaser . If Belkin determines, in its sole discretion, that it is
impractical
to ship the damaged equipment to Belkin International, Inc., Belkin may
designate,
in its sole discretion, an equipment repair facility to inspect and estimate the
cost
to repair such equipment. The cost, if any , of shipping the equipment to and from
such
repair facility and of such estimate shall be borne solely by the purchaser .
Damaged products must remain available for inspection until the claim is finalized.
Whenever
claims are settled, Belkin International, Inc. reserves the right to be subro-
gated
under any existing insurance policies the purchaser may have.
How state law relates to the warranty .
THIS WARRANTY CONTAINS THE SOLE WARRANTY OF BELKIN INTERNATIONAL,
INC.,
THERE ARE NO OTHER WARRANTIES, EXPRESSED OR, EXCEPT AS
REQUIRED BY LAW , IMPLIED, INCLUDING THE IMPLIED WARRANTY OR CONDI-
TION
OF QUALIT Y, MERCHANT ABILITY OR FITNESS FOR A PA RTICULAR
PURPOSE, AND SUCH IMPLIED WARRANTIES, IF AN Y, ARE LIMITED IN DURATION
T O THE TERM OF THIS WARRANT Y. Some states do not allow limitations on how long
an
implied warranty lasts, so the above limitations may not apply to you.
10

Technical Specifications
T echnical Specifications:
Input Voltage Range
Input Frequency
Nominal Output Voltage
Max Power
Alarms
Operating T emperature
0 to 140VAC
50/60Hz
12VDC
36W
Visual and Audible
32
to 113 degrees F (0 to 45 degrees C)
Battery (@ 77 degrees F, 25 degrees C):
Type/Rating
Replacement Battery
Part Number
Typical Battery Recharge Time
12V/7.2Ah sealed lead-acid battery
F6c127xBA T
18 hours for a new and fully depleted
battery at normal indoor temperature
4 hours—With a new and fully charged
CSB- or YUASA-branded battery or other
battery recommended or supplied by
Belkin, with one corded single-line,
touchtone phone connected to the AT&T
U-verse Residential Gateway directly
or through your in-home wiring, and with
no other equipment and no service other
than AT&T U-verse Voice service drawing
power from the RG Battery Backup. Actual
results will vary, depending, among other
things, on battery age, usage patterns, and
environmental conditions.
Typical Backup Time
11

Residential Gat e way (RG)
Batt ery Backup-REV B
Le
v
el Line
Caution:
• Only install in a safe ar ea that is fr ee
o f o b s t ru c t i o ns t h a t b l o c k t h e Uni t ’ s a ir
vents
and excessive dust.
• Scr ews must be appr opriate for the
total weight of the unit and the
mounting surface material.
Drill Hol e in These 2 Loc ations
Wall-Mount Instructions
Requir ed T ools and Materials:
• Drill Bit – Size is determined by the
anchors
or scr ew . Refer to the
directions that came with
your fasteners.
2
Anchors – Use appr opriate type
for
your mounting surface. Anchors
ar e requir ed unless both scr ews ar e
drilled directly into wood studs.
2
Scr ews – Use appr opriate type for
your anchor . Recommended size is
#10,
long.
Drill and Scr ewdriver
Level
•
•
•
•
Instructions:
1. Position this template on the wall
wher
e you want to mount the RG
Battery Backup and use the level line
to make sur e the unit is parallel to
the floor .
Mark the wall in the two scr ew
locations indicated on this template.
Remove the template from the wall.
Use a drill to drill holes wher e you
made the mark on the wall. If you drill
into
a wall stud, pr oceed to step 5.
Otherwise,
continue on to step 4.
Insert
anchor into the hole(s).
Screw in the scr ew , leaving a ¼" of the
scr ew thr eads pr otruding from the wall.
Mount the RG Battery Backup on the
scr ew .
V erify that the unit is secur ely attached
to the wall.
2.
3.
4.
5.
6.
7.
Belkin
T
ech Support
US: 866-539-5791
www .belkin.com/gatewaybattery
© 2010 Belkin International, Inc. All rights r eserved. All trade names ar e register ed trademarks of r espective manufactur ers listed. REV100409-P#8820-00314
