Thank you for purchasing a TuneStudio iPod recording studio.
We designed TuneStudio for a wide range of users, from novice podcasters to experienced musicians. It’s com-
pact, portable, and sturdy enough to stand up to life in a rehearsal room. Its shape gives you easy access to the
controls and simplifies cable management. The iPod docking cradle keeps your iPod secured in a position that
allows convenient and comfortable access to the screen and click wheel.
Your TuneStudio will help you make the most of the high-quality recording capabilities of the iPod. You can

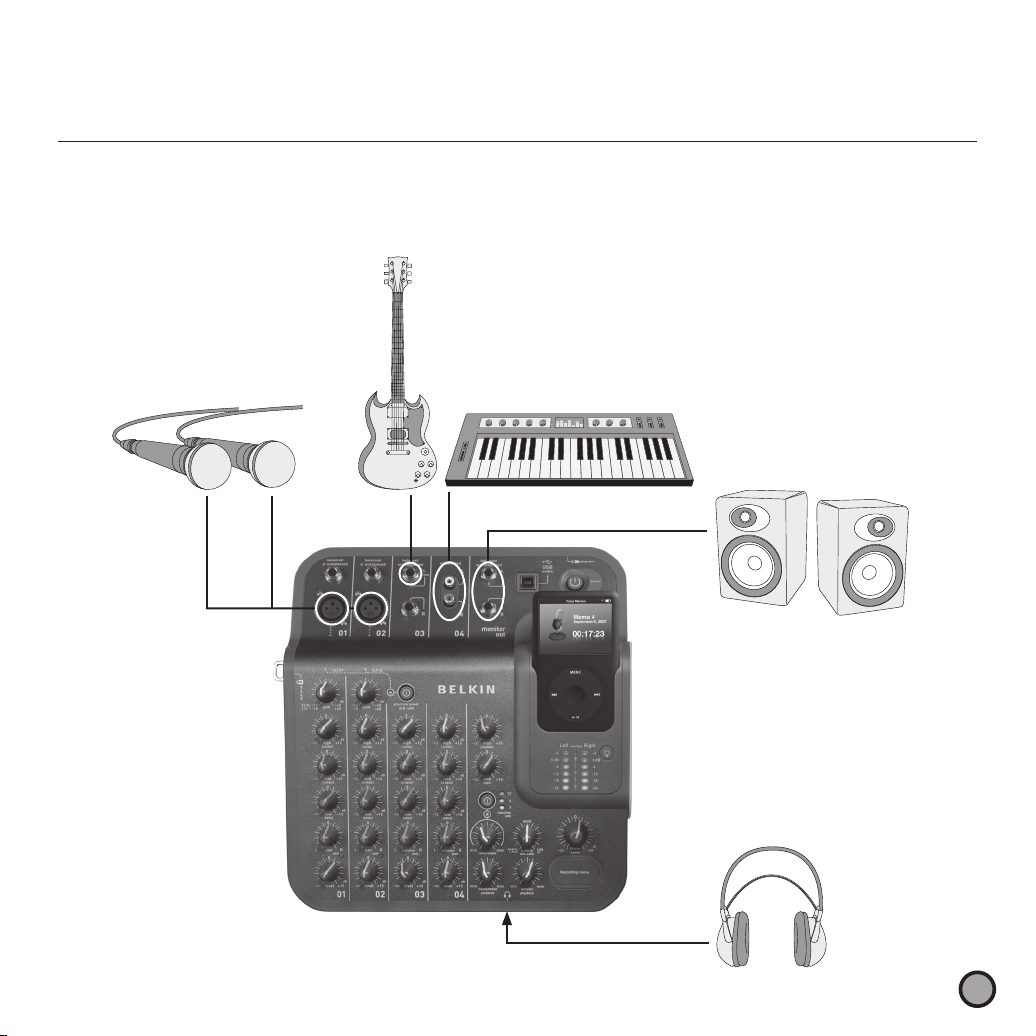

connect four instruments or audio sources. Each audio input channel includes equalization (EQ), pan, and level
controls. Input channels 1 and 2 can also provide a gain control and optional phantom power for microphones.
The USB port is bidirectional, and therefore, can be used as a fifth recording source, should you need the ad-
ditional input.
We are pleased that you chose to purchase a TuneStudio, and we have designed it to give you many years of
high-quality recording and mixing.
Have fun!
Key Features
•Record directly to your iPod in 16-bit, 44kHz digital audio quality
•Record to and from your PC or Mac computer using USB 1.1 or higher
•Instantly play back your recordings directly from your iPod
•Charge your iPod while recording
•4-channel mixing console
•3-band EQ, pan/balance and level controls to perfectly mix and enhance each channel
•2 microphone inputs with optional phantom power and up to 60 dB of gain
•High-quality stereo compressor with gain control to keep the audio levels within the recording limits of the
iPod and avoid clipping
