TUNESTUDIO™
User Manual
Guide d’Utilisation
Manual del Usuario

ENGLISH

WELCOME 1
Key Features 1
TUNESTUDIO BASICS 2
What You Can Do with Your TuneStudio 2
What You Can Connect to Your TuneStudio 2
WHAT’S IN THE BOX? 3
Cables You May Need 3
iPod, WINDOWS, AND Mac COMPATIBILITY 4
iPod 4
Windows 4
Macintosh 4
SETTING UP YOUR TUNESTUDIO 5
To set up your TuneStudio 5
TUNESTUDIO TOUR 6
TuneStudio Inputs and Outputs 7
SETTING THE RECORDING LEVEL 10
RECORDING WITH MICROPHONES 11
Types of Microphones 11
Recording with Multiple Microphones 11
RECORDING A PODCAST 12
Tips for Recording a Podcast 13
RECORDING LIVE MUSIC 14
Tips for Recording Acoustic Instruments 15
Tips for Recording Electrical Instruments 15
RECORDING A CHOIR 16
Tips for Recording a Choir 16
RECORDING TO OR FROM A COMPUTER 17
Tips for Recording to or From a Computer 18
EQUALIZING (EQ) TIPS 19
MIXING TIPS 20
LISTENING TO A RECORDING 21
Copying a Recording to Your Computer 21
TABLE OF CONTENTS

PROTECTING YOUR HEARING 22
TROUBLESHOOTING 23
If the Recording Menu button doesn’t work 23
If your TuneStudio won’t turn on 23
If you don’t hear anything in the studio monitors or headphones 23
If the microphone volume is too low 23
If an instrument’s volume is too low 23
If the sound is distorted 24
If you hear a “hum” sound in the recording 24
If your recordings are only in the left channel 24
If your computer doesn’t see your TuneStudio 24
TUNESTUDIO SPECIFICATIONS 25
LEARNING MORE 27
GLOSSARY 28
Balance 28
Boost 28
Clipping 28
Cut 28
dB (decibel) 28
Distortion 28
Feedback 28
Gain 28
Monitor 28
Pan (“panorama”) 28
RCA (“Radio Corporation of America”) 28
TRS (“Tip-Ring-Sleeve”) 28
USB (“Universal Serial Bus”) 28
XLR 28
INFORMATION 29
NOTES 32
TABLE OF CONTENTS

WELCOME
1
Thank you for purchasing a TuneStudio iPod recording studio.
We designed TuneStudio for a wide range of users, from novice podcasters to experienced musicians.
It’s compact, portable, and sturdy enough to stand up to life in a rehearsal room. Its shape gives you easy
access to the controls and simplifies cable management. The iPod docking cradle keeps your iPod secured
in a position that allows convenient and comfortable access to the screen and click wheel.
Your TuneStudio will help you make the most of the high-quality recording capabilities of the iPod. You can
connect four instruments or audio sources. Each audio input channel includes equalization (EQ), pan, and level
controls. Input channels 1 and 2 can also provide a gain control and optional phantom power for microphones.
The USB port is bidirectional, and therefore, can be used as a fifth recording source, should you need the
additional input.
We are pleased that you chose to purchase a TuneStudio, and we have designed it to give you many years of
high-quality recording and mixing.
Have fun!
Key Features
•Record directly to your iPod in 16-bit, 44kHz digital audio quality
•Record to and from your PC or Mac computer using USB 1.1 or higher
•Instantly play back your recordings directly from your iPod
•Charge your iPod while recording
•4-channel mixing console
•3-band EQ, pan/balance and level controls to perfectly mix and enhance each channel
•2 microphone inputs with optional phantom power and up to 60 dB of gain
•High-quality stereo compressor with gain control to keep the audio levels within the recording limits
of the iPod and avoid clipping

TUNESTUDIO BASICS
2
Your TuneStudio combines multiple audio sources (“channels”) into one stereo signal. You can use the following
controls to enhance each channel’s sound before it is mixed with the other channels:
•Level control to set the volume
•Pan (or “balance” for stereo channels) control to move the sound to the left or right
•Low, mid, and high EQs (“equalizers”) to fine-tune the sound
Your TuneStudio also includes a compressor that can be used to enhance your recordings and keep the volume
levels within the recording limits of the iPod.
What You Can Do with Your TuneStudio
•Record to or from an iPod
•Record to or from a computer
•Record from up to 5 audio sources
•Listen to your mix while recording, with studio monitors or headphones
•Play back your recordings from your iPod immediately after recording
What You Can Connect to Your TuneStudio
You can connect almost any instrument, microphone, or other audio device to your TuneStudio.
Your TuneStudio has inputs for four different types of cables: XLR, 1/4" TRS, RCA, and USB. With the right
cables or audio connector adapters, you should be able to connect almost any audio source, including:
•CD players
•Computers
•Drum machines
•Guitars and bass guitars
•Microphones
•Synthesizers and keyboards

3
WHAT’S IN THE BOX
The following items should be in your TuneStudio box:
•TuneStudio
•CD with recording software
•1/8" (3.5mm) to 1/4" (6.35mm) headphone cable adapter
•AC power supply and power cable
•Adapter inserts for iPod
•Warranty card
•This user guide
Cables You May Need
You will need the following cables to connect microphones (“mics”), instruments, and other devices to
your TuneStudio:
Device Cable Type Example
Electronic audio sources
(such as CD players)
RCA stereo
Instruments TRS 1⁄4"
Computers USB
Microphones and
high-end professional
audio equipment
XLR

4
iPod, WINDOWS, AND Mac COMPATIBILITY
iPod
iPod classic
80GB 160GB
iPod nano
3rd generation (video)
4GB 8GB
iPod
5th generation (video)
30GB 60GB 80GB
iPod nano
2nd generation (aluminum)
2GB 4GB 8GB
Windows
Pentium®II 350MHz (Pentium III 500MHz or faster recommended)
64MB RAM (128MB recommended)
Windows®XP or Windows Vista™
CD drive
USB 1.1 or USB 2.0 port (USB 2.0 recommended)
Macintosh
G3, G4, iMac, iBook, or PowerBook with native USB support
64MB RAM (128MB recommended)
CD drive
Mac OS X version 10.2.8 “Jaguar” or later

5

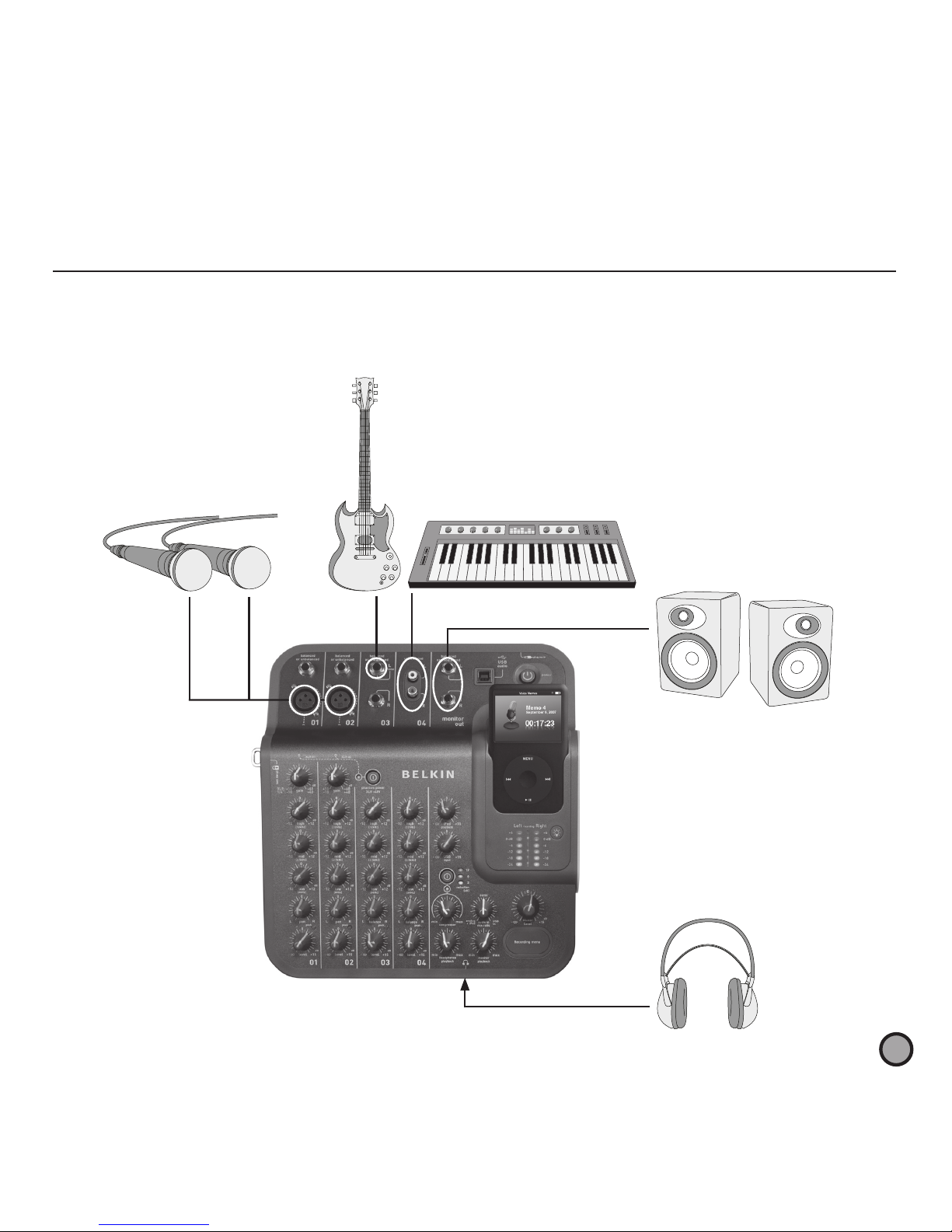

SETTING UP YOUR TUNESTUDIO
It only takes a few minutes to set up your TuneStudio and start recording.
To set up your TuneStudio:
1Verify all devices are turned off and all level controls are set to -∞ (completely to the left).
2Connect the input sources.
3Insert your iPod into your TuneStudio’s iPod dock.
4Connect the PC, studio monitors, and/or headphones.
5Plug TuneStudio and other devices into AC power.
6Turn everything on in the following order:
 • Inputsources
•TuneStudio (turning on your TuneStudio will turn on your iPod)
•Studio monitors, headphones, and/or computer
7When turning off, always turn off devices in the following order:
•Studio monitors, headphones, and/or computer
•TuneStudio
•Input sources
8Go to www.belkin.com/registration to register your TuneStudio.

6
TUNESTUDIO TOUR
Take a few minutes to learn how to use the inputs and controls on your TuneStudio.
1/4" TRS RCA
INPUTS MONITOR OUT USB AUDIO
XLR MIC
INPUTS
GAIN
HIGH
MED
LOW
PAN
PEAK
INDICATORS
LEVEL
BALANCE
HEADPHONES
PLAYBACK
HEADPHONES
iPod PLAYBACK
USB LEVEL INPUT
COMPRESSOR
AUDIO MIX IN RATIO
MASTER LEVEL
MONITOR
PLAYBACK LEVEL
RECORDING
MENU BUTTON
LEFT & RIGHT
RECORDING LEDs
23 4 5
1
8
7
9
11
21
10
15
6
12
13
20
14
16
18
19
17

7
TUNESTUDIO TOUR
You can use the inputs and outputs to connect instruments, mics, computers, speakers, and headphones
to your TuneStudio.
Input/Output Description
1XLR Mic Inputs
Inputs 1 and 2 provide XLR cable microphone inputs with optional
phantom power for condenser mics. A condenser mic usually requires
phantom power unless it has its own power source, such as a battery.
Dynamic and ribbon mics don’t usually require phantom power.
Note: The phantom power button turns on phantom power for inputs
1 and 2. Always connect your microphones before turning on phantom
power. Microphones are very sensitive, and a sudden power surge can
damage a microphone. It’s also a good idea to set the level control to
-∞ before you turn on phantom power.
21/4" TRS Inputs
Inputs 1–3 provide 1/4" TRS inputs for connecting guitars, bass
guitars, synthesizers, drum machines, and other instruments.
Channel 3 provides two TRS inputs. If you’re connecting a mono
input to Channel 3, connect it to the “Left/Mono” input.
3RCA Inputs Input 4’s RCA inputs can be used to connect electronic equipment
such as a CD player or another iPod.
4Monitor Out
The monitor out connection can be used to connect studio monitor
speakers. Studio monitors should have built-in amplifiers or be
connected to an amplifier.
You can control the studio monitors’ volume with the monitor
playback control.
5USB Audio The USB connection can be used to connect your TuneStudio to
a computer.
You can control the computer’s volume with the USB input control.
6Headphones The headphones connection can be used to connect headphones.
You can use the 1/8" (3.5mm) to 1/4" (7mm) headphone adapter to
connect different types of headphones.
You can control the headphone’s volume with the headphones
playback control.

8
TUNESTUDIO TOUR
You can use your TuneStudio’s controls to fine-tune and monitor your recordings.
Control Description
7Gain
(Channels 1 and 2)
The gain control determines how much of the source signal is sent to
the rest of the mix. If the gain is too high, the sound will be distorted. If
the gain is too low, background hiss may be more noticeable.
You can add up to 60 dB of gain to the XLR inputs and 40 dB of gain
to the 1/4" TRS inputs.
8High, Mid, Low EQs
(Channels 1-4)
The high, mid, and low equalizers (“EQs”) can be used to increase
(“boost”) or decrease (“cut”) the volume by up to 12 dB. The EQ
settings can have a dramatic effect, so use them carefully.
High EQ (12kHz)
The high EQ can be increased to add crispness to cymbals, vocals,
and string instruments or decreased to reduce microphone hiss.
Mid EQ (2.5kHz)
The mid EQ can be increased to make guitars, bass guitars, and
pianos stronger or decreased to soften vocals.
Low EQ (80Hz)
The low EQ can be increased to add warmth to vocals or horns or
extra punch to synthesizers, guitars, and drums. Decreasing the low
EQ can reduce hum and add clarity to bass instruments.
See “Equalizing (EQ) Tips” on page 19 for more information.
9Pan
(Channels 1 and 2)
The pan control can be used to move a mono input to the left or right
in the stereo spectrum.
10 Balance
(Channels 3 and 4)
The balance control can be used to control which part of a stereo
input signal (left or right) is louder than the other. If a mono source is
connected to input 3, then the balance control works like the pan control.
11 Level
(Channels 1–4)
The level control specifies how much of the source signal is sent to
the mix. In the leftmost position, the volume is muted. In the rightmost
position, the volume is increased by 15 dB.
12 iPod Playback The iPod playback control sets the volume when listening to your iPod.
In the leftmost position, the volume is muted. In the rightmost position,
the volume is increased by 15 dB.
13 USB Input Level The USB level control specifies how much of the signal is sent to the
mix. In the leftmost position, the signal is not sent to the mix. In the
rightmost position, the signal is increased by 15 dB.

9
TUNESTUDIO TOUR
Control Description
14 Compressor The compressor can be used to enhance your recordings and keep
the volume levels within the recording limits of the iPod. With the
compressor, you can make softer sounds louder without making louder
sounds too loud. It is especially useful when recording vocals and
instruments together.
The three LEDs to the right of the compressor button indicate how
many decibels (dBs) of compression are being applied.
15 Headphones
Playback
The headphones playback control can be used to set the volume for
the headphones.
Note: The headphones input is on the side of your TuneStudio under
the headphones playback control.
16 Audio In Mix Ratio The audio in mix ratio specifies how signals from input sources 1–4
and the USB input are mixed together. For example, turning the control
to the left will increase the volume of input 1–4 sources and decrease
the volume of the USB source. Turning the control completely to the
left or right will mute the other source.
17 Monitor Playback Level The monitor playback control can be used to set the volume of the
studio monitor speakers.
18 Master Level The master level control sets the recording volume level to the iPod. In
the leftmost position, the volume is muted. In the rightmost position,
the volume is increased by 15 dB.
19 Recording Menu Button The Recording Menu button can be used to open the Recording menu
on the iPod 5th generation (video) and iPod nano 2nd generation only.
Note that this button does not work with the iPod classic or iPod nano
3rd generation (video). Note: Please see page 23 for more details.
20 Left and Right
Recording LEDs
The recording LED lights tell you if the volume is too low or too high.
You can adjust the volume using each input’s level control or the full
mix using the master level control.
21 Peak Indicators Each input channel has a peak indicator near its level control. The
peak indicator lights up when the audio signal level is too high and
may be causing distortion. If a peak indicator lights up, you should
adjust your settings until the peak indicator stays off. These are the
most likely solutions:
•For inputs 1 and 2, try turning down the gain control or moving your
microphone further away from the source.
•If you have any of the EQ controls turned up high, turn them
down a little.
•Turn down the volume of the audio source.

10
SETTING THE RECORDING LEVEL
Setting the recording level will help you create clear, distortion-free recordings.
You should set the recording level for each channel that you’re using.
To set the recording level:
1If you’re using input 1 or 2, set the “Gain” control completely to the left.
2Set the “Low”, “Mid”, and “High” EQ controls to 0.
3Set the “Pan” control to 0.
4Set the “Level” control to -∞.
5Connect the microphone or instrument cable to the channel’s input.
6Set the “iPod Playback” control to 0.
7Set the “Master Level” control to 0.
8Play the instrument or electronic device at a normal level and slowly increase the channel’s gain until
the left and right recording level LEDs are continuously red (0 dB).
9Slowly reduce the channel’s gain until the red 0 dB LEDs no longer light up when you play the
instrument or device.
10 Adjust the low, mid, and/or high EQs, then check the red 0 dB LEDs to verify they don’t light up.
11 If any of the red recording level LEDs lights up while you’re recording, your recording could be distorted.
Keep an eye on the LEDs and adjust your levels as necessary.
12 If it’s difficult to control the level of your audio source, especially if you’re working with microphones or
multiple audio sources, experiment with the compressor to keep the levels in check. The compressor
looks for sudden increases in volume and reduces the audio levels very quickly to keep the signals
from exceeding the recording level limits.

11
RECORDING WITH MICROPHONES
Read on to learn how to select and place a mic when recording.
Using a well-placed microphone will drastically improve your sound quality. You should experiment with
microphone placement to find the best location.
Types of Microphones
There are two types of microphones: condenser and dynamic.
Condenser Microphones
Condenser (or “capacitor”) microphones are usually used for live recordings. Unless they have their own
power supply, such as a battery, condenser mics use the phantom power from your TuneStudio to power their
amplifiers and impedance converters. There are many types of condenser mics, including headworn, lavalier,
probe, shotgun, and side-address.
Condenser mics are very sensitive, so they work well with distant or soft sources. They are often used to record
acoustic instruments and vocals.
Dynamic Microphones
Dynamic (or “moving-coil”) microphones are usually less expensive and less sensitive than condenser
microphones. Because they don’t have amplifiers, dynamic mics don’t need phantom power. Phantom power
should not harm a dynamic mic, but you should turn off phantom power before connecting a dynamic mic.
Older dynamic mics have low sensitivities and require a high gain setting. Ribbon mics (a type of dynamic
microphone) normally have very low sensitivity and usually require a very high gain setting. They are often
used to record guitars and drums.
Recording with Multiple Microphones
Your TuneStudio can record up to four sources at a time, and input channels 1 and 2 can provide phantom
power for two mics. If you are recording with multiple mics, you should follow the 3:1 rule.
3:1 Microphone Placement Rule
When you record with multiple mics, sounds arrive at each mic at different times. Sounds farther from the mic
will have a slight delay. When you combine the close and distant sounds, some frequencies will cancel each
other out. The result is a “hollow” or filtered sound.
To avoid this problem, the distance between your mics should be three times the distance between the mics and
their source. For example, if your mics are one foot from the source, they should be placed at least three feet apart.

12
RECORDING A PODCAST

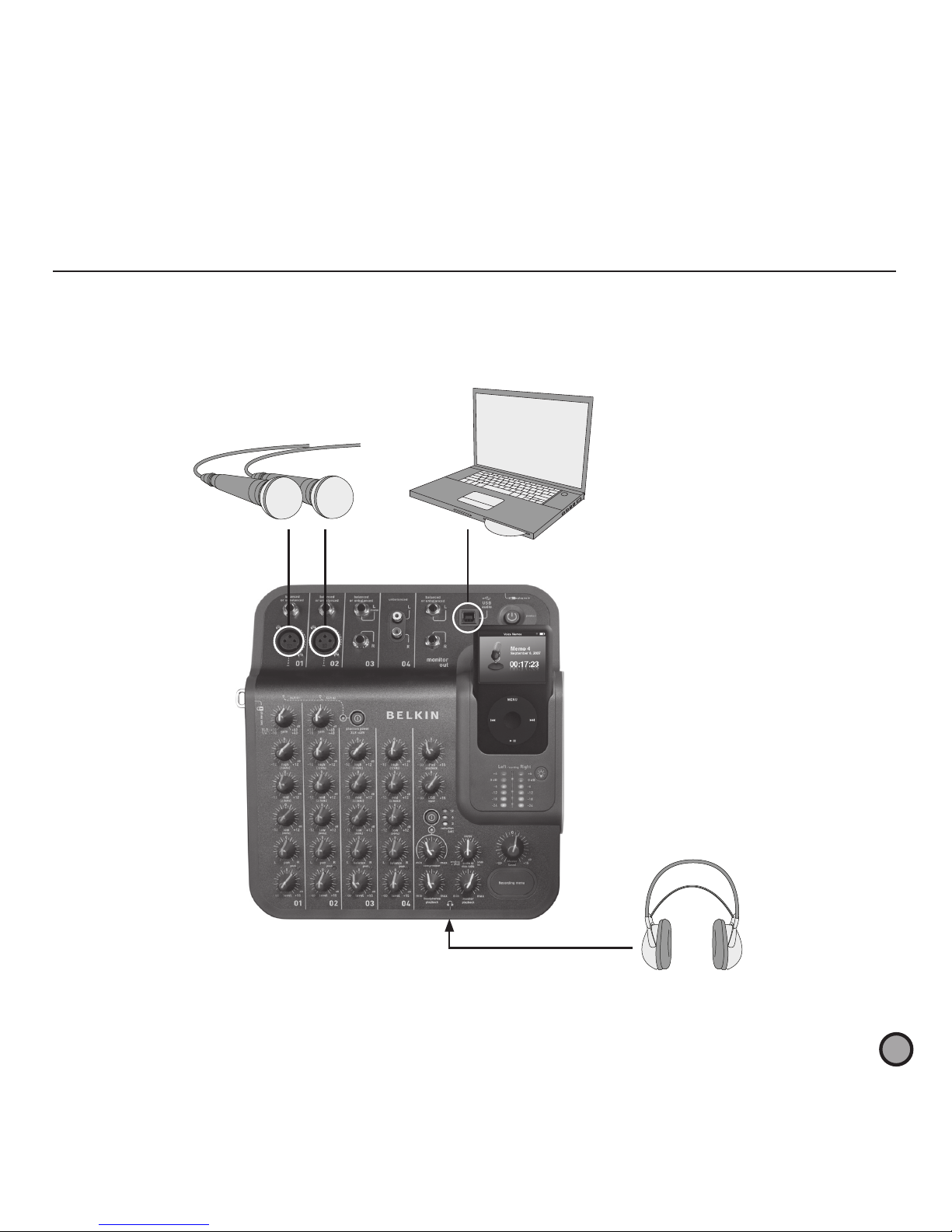

The diagram below shows a typical 2-mic setup for recording a podcast. You can connect an iPod or a
computer to include background music.

13
RECORDING A PODCAST
Tips for Recording a Podcast
You will become much more comfortable and adept at recording podcasts after you have done it a few times.
Here are some tips to help you get started:
•Test the recording level before recording. The left and right recording level LEDs should not be constantly
red (0 dB). If the 0 dB LED is constantly lit, the “peaks” of the recording may be clipped and the sound quality
will usually be poor.
•Use a well-placed, high-quality mic. Lavalier mics often work well for podcasts because they’re small and
can be clipped to your clothing.
•If you are not using a lavalier mic, be careful not to move too close to or far away from the mic.
•Position your mic about six inches from your mouth (or at an angle) so that it doesn’t capture your breathing.
Remember, you can connect headphones to your TuneStudio to test different mic positions and distances.
•Speak in your normal voice at a conversational level. Don’t be too self-conscious about your voice—most
people don’t like the sound of their voice when they first hear it in a recording. Just be sure to speak clearly.
•If you are recording an interview with one mic, try using a “figure eight” type mic and have your interviewee
sit directly across from you. A figure eight mic is two sided, so it can capture sounds directly in front and
directly behind.
•Use the level controls to fade-in the beginning of your podcast and fade-out the end.
•Include background music during the podcast, with several seconds of music at the beginning and end
of your podcast. Make sure you have permission to use the music.

14
RECORDING LIVE MUSIC
The diagram below shows a typical setup for recording live music. You can connect different instruments as
needed. For example, you can connect a drum machine instead of a second mic.
