Hi-Speed USB 2.0
4-Port Drive Bay Hub
Add 4 front-access
Hi-Speed USB 2.0 ports to
your computer
F5U261qea1User Manual

Belkin Corporation
501 West Walnut Street
Compton, CA, 90220-5221, USA
[phone]
[phone] fax
Belkin Ltd.
Express Business Park
Shipton Way, Rushden
NN10 6GL, United Kingdom
[phone]
[phone] fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, Netherlands
[phone]
[phone] fax
Belkin GmbH
Hanebergstrasse 2
80637 Munich, Germany
[phone]
[phone] fax
Belkin SAS
130 rue de Silly
92100 Boulogne-Billancourt, France
[phone]
[phone] fax
Belkin Iberia
Avda. Cerro del Aguila 3
28700 San Sebastián de los Reyes, Spain
[phone]
[phone] fax
© 2006 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective
manufacturers listed. Mac OS and Mac are trademarks of Apple Computer, Inc., registered in the U.S. and
other countries.
P75246ea
Please visit our website www.belkin.com for technical support or further information.
Disposal of Waste Equipment by Users in Private Households in the European Union:
For more information, go to www.belkin.com/environmental

EN
Hi-Speed USB 2.0
4-Port Drive Bay Hub
Add 4 front-access
Hi-Speed USB 2.0 ports to
your computer
F5U261qea1User Manual

6
Table of Contents
Introduction ...............................................................................................1
Overview .....................................................................................................2
Features ...............................................................................................2
Package Contents ................................................................................2
Technical Specifications ......................................................................3
Installation .................................................................................................4
Information .................................................................................................7

1
EN
Introduction
Welcome to Belkin USB 2.0!
Congratulations and thank you for purchasing the Belkin Hi-Speed USB 2.0
4-Port Drive Bay Hub (the Hub). The Hub provides four downstream USB
ports that are compatible with Hi-Speed USB 2.0 devices as well as with
low- and full-speed USB 1.1 devices.
This means that the Hub is backward-compatible with all of your current
USB 1.1 peripherals while it enables the ultrafast performance levels of
next-generation USB 2.0 devices, including scanners, printers, mass storage
devices, and high-resolution cameras. The Hub is self-powered, allowing
for the cascading of devices with additional hubs, so that you can connect
up to 127 USB devices to a single port. The Hub provides a multicolored
status LED for each individual port, and a master power LED. For additional
information, refer to the “Technical Specifications” section.

2
EN
2
Overview
Features
• Hi-Speed USB 2.0 (data rate 1.5/12/480Mbps) specification compliance
• Backward-compatible with USB 1.1 (data rate 1.5/12Mbps)
• Windows® 98 SE, Me, 2000, and XP compatibility
• USB Implementers Forum (USB-IF) approval
• Plug-and-Play functionality
• Hot swap capability of USB devices
• Over-current detection and protection
• Port-status indicator LEDs
• Four 480Mbps downstream ports
• Sizing to fit in 3.5-inch drive bay
• Powered by your computer’s power supply
Package Contents
• Hi-Speed USB 2.0 4-Port Drive Bay Hub
• USB “A” to “B” Device Cable
• User Manual

3
3
EN
Technical Specifications
Upstream Ports 1
Downstream Ports 4
Per-Port Voltage DC +5V
Per-Port Current 500mA (max)
Power Mode Self-powered
Operating Temperature 5º C ~ 40º C
Storage Temperature -20º C ~ 60º C
Enclosure Plastic
Power Supply Powered by computer
power supply
Main Power LED
Color Definitions:
Off Not Operational
Red Operational
Port-Status LED
Color Definitions:
Off Not Operational
Amber Error Condition
Green Fully Operational
Blinking Off/Green Software Attention
Blinking Off/Amber Hardware Attention
Overview

4
EN
4
1. Turn off power and remove the cover from your computer.

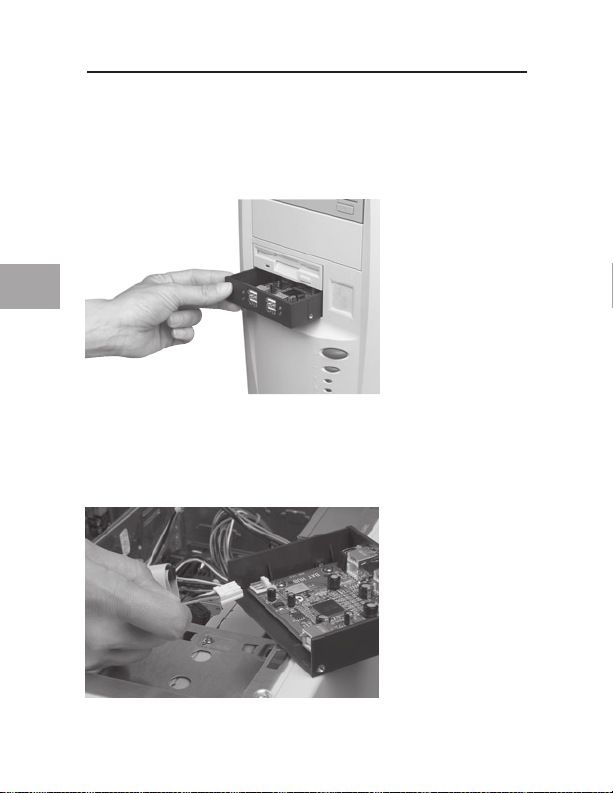

2. Remove the front panel insert from an empty 3.5-inch drive bay, and
install the Hub into the drive bay (consult your computer manual for
information regarding installation of drive bay compatible devices).
(See Fig. 2.)
Fig. 2
3. Plug a compatible power connector from your computer power supply onto
the power connector on the rear of the Hub. (See Fig. 3.)
Fig. 3
Installation

5
5
EN
Installation

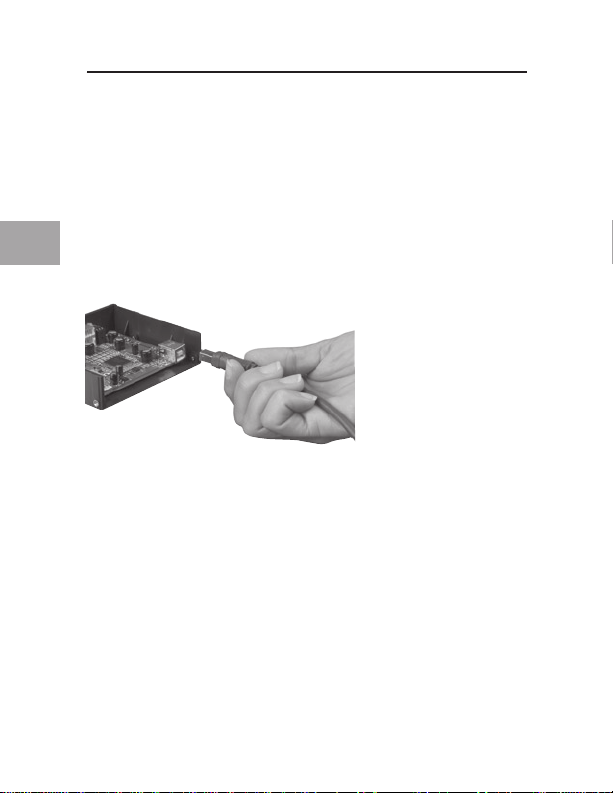

4. Plug the provided USB cable into the USB connector on the rear of the
Hub. (See Fig. 4). Plug the other end of the USB cable into an available
port on a Hi-Speed USB 2.0 host adapter card.
Fig. 4
Note A: The Hub must be connected to a USB 2.0-compliant host in order
to function in high-speed mode (480Mbps data rate). If the Hub is connected
to a USB 1.1-compliant host, it will operate only in low- or full-speed mode
(1.5Mbps or 12Mbps).
5. Replace your computer’s cover and turn the power on.
6. Your Windows operating system will now detect the Hub and install the
required drivers. (The Windows “Install New Hardware Wizard” may
prompt you to provide your Windows Installation CD to complete the driver
installation process.)

6
EN
Installation
6
Note B—VERY IMPORTANT: Hi-Speed USB 2.0 hub drivers are included
with most USB 2.0 PCI upgrade cards, and are pre-installed along with the
PCI card drivers. If you purchased an upgrade card prior to the release of Hi-
Speed USB 2.0 hub support, please check with your PCI card vendor for an
updated USB 2.0 driver. The Belkin USB 2.0 driver supports all competitive
PCI cards based on the NEC host controller, with the exception of those
released by Adaptec. The most recent Belkin driver is available at belkin.com.
7. Plug the USB A connector of a USB device, or an additional hub, into any
of the downstream ports of the Drive Bay Hub. (See Fig. 5.)
Fig. 5
Note C: When plugging a USB device into the Hub for the first time, it may be
necessary to reinstall the USB drivers for that device. Likewise, if you move
the device to another port on the Hub, it may be necessary to reinstall the
drivers.

7
7
EN
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES
FOR ELECTROMAGNETIC COMPATIBILITY
We, Belkin Corporation, of 501 West Walnut Street, Compton, CA 90220, declare
under our sole responsibility that the product:
F5U261qea1 to which this declaration relates:
Complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
CE Declaration of Conformity
We, Belkin Components, declare under our sole responsibility that the F5U261qea1,
to which this declaration relates, is in conformity with Generic Emissions Standard
EN550022 1998 and with Generic Immunity Standard EN550024 1998, EN61000-3-2,
and EN61000-3-3.
Belkin Corporation Limited Lifetime Product Warranty
Belkin Corporation warrants this product against defects in materials and workmanship for its lifetime.
If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided
it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin
dealer from whom you purchased the product. Proof of purchase may be required.
This warranty does not apply if the product has been damaged by accident, abuse, misuse, or
misapplication; if the product has been modified without the written permission of Belkin; or if any
Belkin serial number has been removed or defaced.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS,
WHETHER ORAL OR WRITTEN, EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND
ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE.
No Belkin dealer, agent, or employee is authorized to make any modification, extension, or addition to
this warranty.
BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING
FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT
NOT LIMITED TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPROGRAMMING OR
REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH BELKIN PRODUCTS.
Information

Belkin Corporation
501 West Walnut Street
Compton, CA, 90220-5221, USA
[phone]
[phone] fax
Belkin Ltd.
Express Business Park
Shipton Way, Rushden
NN10 6GL, United Kingdom
[phone]
[phone] fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk, Netherlands
[phone]
[phone] fax
Belkin GmbH
Hanebergstrasse 2
80637 Munich, Germany
[phone]
[phone] fax
Belkin SAS
130 rue de Silly
92100 Boulogne-Billancourt, France
[phone]
[phone] fax
Belkin Iberia
Avda. Cerro del Aguila 3
28700 San Sebastián de los Reyes, Spain
[phone]
[phone] fax
© 2006 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective
manufacturers listed. Mac OS and Mac are trademarks of Apple Computer, Inc., registered in the U.S. and
other countries.
P75246ea
Please visit our website www.belkin.com for technical support or further information.
Disposal of Waste Equipment by Users in Private Households in the European Union:
For more information, go to www.belkin.com/environmental

USB 2.0 à haut débit
Hub 4 ports pour
baie de lecteur
Ajoute 4 ports USB 2.0 à haut débit
à l’avant de votre ordinateur
F5U261qea1Manuel de l’utilisateur
FR

10
Table des matières
Introduction ...............................................................................................1
Présentation ...............................................................................................2
Caractéristiques ...................................................................................2
Contenu de l’emballage .......................................................................2
Caractéristiques techniques .................................................................3
Installation .................................................................................................4
Information .................................................................................................7

1
FR
Introduction
Bienvenue dans le monde USB 2.0 de Belkin !
Félicitations et merci d’avoir choisi le Hub à 4 ports pour baie de lecteur USB
2.0 à haut débit de Belkin (le hub). Il vous procure quatre ports USB en voie
descendante compatibles avec les périphériques USB 1.1 (à faible et plein
débit) ainsi qu’avec les périphériques USB 2.0 (haut débit).
Ceci veut dire que le hub est compatible avec tous vos périphériques USB
1.1 actuels, tout en vous faisant profiter des performances ultra rapides
des périphériques USB 2.0 de la nouvelle génération, tels que scanners,
imprimantes, dispositifs de stockage de masse et appareils-photo haute
résolution. Le hub est auto alimenté, ce qui permet l’association de
périphériques en cascade avec d’autres hubs. Cela signifie qu’il est possible
de connecter jusqu’à 127 périphériques USB à un seul port. Le hub possède
également un témoin d’état multicolore pour chaque port et un témoin
d’alimentation. Pour obtenir de plus amples informations, reportez-vous à la
section « Caractéristiques techniques ».

2
FR
2
Présentation
Caractéristiques
• Conforme à l’USB 2.0 à haut débit (débits à 1,5/12/480 Mbps)
• Offre une compatibilité descendante avec l’USB 1.1 (débits à 1,5/12 Mbps)
• Compatible Windows® 98 SE, Me, 2000 et XP
• Approuvé par l’USB-IF (USB Implementers Forum)
• Plug-and-Play
• Branchement/débranchement à chaud de périphériques USB
• Détection des surintensités et protection contre celles-ci
• Témoins indicateurs de l’état des ports
• Trois ports en voie descendante à 480 Mbps
• Se loge dans une baie de lecteur 3,5 pouces
• S’alimente via la source d’alimentation de votre ordinateur
Contenu de l’emballage
• Hub à 4 ports pour baie de lecteur USB 2.0 à haut débit
• Câble USB A vers B
• Manuel d’utilisation

3
3
FR
Caractéristiques techniques
Ports en voie ascendante 1
Ports en voie descendante 4
Tension par port CC +5 V
Courant par port 500 mA (max)
Mode d’alimentation Autonome
Température de fonctionnement 5 ºC ~ 40 ºC
Température de stockage -20 ºC ~ 60 ºC
Boîtier Plastique
Source d’alimentation Alimenté par
la source d’alimentation de l’ordinateur
Témoin d’alimentation principal
Couleurs :
Éteint Non opérationnel
Rouge Opérationnel
Témoin d’état du port
Couleurs :
Éteint Non opérationnel
Ambré Erreur
Vert Entièrement opérationnel
Vert clignotant Attention du logiciel
Ambré clignotant Attention du matériel
Présentation

4
FR
4
1. Mettez votre ordinateur hors tension et retirez le capot de celui-ci.
2. Retirez l’obturateur frontal d’une baie de 3,5 pouces et installez le hub
dans la baie. (Consultez la documentation de votre ordinateur concernant
l’installation de périphériques pouvant être installés en baie.)
(voir illustration 2)
Illustration 2
3. Branchez le connecteur d’alimentation d’une source d’alimentation
compatible de votre ordinateur dans le connecteur d’alimentation à
l’arrière du hub. (voir illustration 3)
Illustration 3
Installation
