Belle Group RPC 30/40 User manual

1
- Spare Parts Book
- Pièces détachées
- Libro Despiece
- Lista de Peças
- Onderdelen Boekje
- Reservedele Skrift
- Ersatzteilhandbuch
- Manuale dei ricambi
- Bruksanvisning
- Bruksanvisning
- Varaosaluettelo
- Lista Części Zamiennych
- Запасные части Книга
- Varuosade nimekiri
- Rezerves daļu saraksts
- Atsarginiu daliu sarašas
- Част Списък
- Lista Pieselor de Schimb
- Rezervni djelovi Knjiga
Operators Manual
Operators Manual
Manuel De L'Opérateur
Manual del Operador
Manual de Operação
Handleiding
Betjeningsvejledning
Bedienungshandbuch
Manuale Dell'Operatore
Bruksanvisning
Käyttöohje
Instrukcja Obsługi
Рyкoвoдcтвo для oпepaтopa
Kasutusjuhend
Lietotāja rokasgrāmata
Naudojimo Instrukcija
Oпepaтop Pъчeн
Manual de Utilizare
Uputstvo za rukovatelja
GB
F
E
P
NL
DK
D
I
S
US
SF
PL
RUS
EST
LV
LT
BG
6
13
20
27
34
41
48
55
62
69
76
83
90
97
104
111
118
140
870/10004/0
RO 125
HR 132

2
Signed by: Managing Director - On behalf of BELLE GROUP (SHEEN) UK.
Signature:
Le Directeur Général - Pour le compte de la SOCIETE BELLE GROUP (SHEEN) UK.
Medido por: Director Gerente - En nombre de BELLE GROUP (SHEEN) UK.
Assinado por: Director-Geral - Em nome de BELLE GROUP (SHEEN) UK.
Getekend door: Algemeen Directeur - Namens BELLE GROUP (SHEEN) UK.
Uunderskrevetaf: Administrerende direktør – På vegne af BELLE GROUP (SHEEN) UK.
PRODUCT TYPE ..................
MODEL .................................
SERIAL No............................
DATE OF MANUFACTURE...
SOUND POWER LEVEL.......
MEASURED
(GUARANTEED):
TYPE DE PRODUIT ..............
MODELE................................
N° DE SERIE ........................
DATE DE FABRICATION.......
NIVEAU DE ..........................
PUISSANCE SONORE
MESUREE (GARANTIE)
TIPO DE PRODUCTO ............
MODELO ................................
Nº DE SERIE ..........................
FECHA DE FABRICACIÓN....
NIVEL DE ...............................
POTENCIA ACÚSTICA
MEDIDO (GARANTIZADO)
TIPO DE PRODUTO: ...........
MODELO:.............................
NO. DE SÉRIE: ....................
DATA DE FABRIC................
NIVEL DE .............................
POTÊNCIA DE SOM
MEDIDO (GARANTIDO)
PRODUCTTYPE.....................
MODEL ..................................
SERIENUMMER ....................
FABRICAGEDATUM .............
GEMETEN ..............................
GELUIDSSTERKTENIVEAU
(GEGARANDEERD)
We, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, hereby certify that if the product described within this certificate is bought from an
authorised Belle Group dealer within the EEC, it conforms to the following EEC directives: 98/37/EC (This directive is a consolidation of the original machinery directive
89/392/EEC), Electromagnetic Compatability Directive 89/336/EEC (as amended by 92/31/EEC & 93/68 EEC). The low voltage directive 73/23/EEC, EN 292 Safety of
machinery and associated harmonised standards, where applicable. Noise emissions conform to directive 2000/14/EC Annex VI, for machines under article 12 the
notified body is AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU, GB.
O signatário, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK 0EU, GB, pelo presente, declara que se o produto descrito neste certificado foi adquirido a
um distribuidor autorizado do Belle Group em qualquer país da UE, está em conformidade com o estabelecido nas seguintes directivas comunitárias: 98/37/EC (esta
directiva é uma consolidação da directiva de maquinaria original 89/392/EEC), Directiva de Compatibilidade Electromagnética 89/336/EEC (conforme corrigido pelas
92/31/EEC & 93/68 EEC). A directiva de baixa voltagem 73/23/EEC, EN 292 Segurança da maquinaria e às normas harmonizadas afins se aplicáveis. As emissões de
ruído respeitam e estão dentro das directivas para máquinas 2000/14/EC Anexo VI, artigo 12, sendo o organismo notificado AV Technology Limited, AVTECH house,
Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU, GB.
Ondergetekende, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 OEU, GB, verklaren hierbij dat als het product zoals beschreven in dit certificaat is
gekocht van een erkende Belle Group dealer binnen de EEG, het voldoet aan de volgende EEG richtlijnen: 98/37/EC (Deze richtlijn is een opvolger van de orginele
Machinerichtlijn 89/392/EEG), Electromagnetische Compatability Richtlijn 89/336/EEG ( geamendeerd door 92/31/EEG & 93/68 EEG). De Laagspannings Richtlijn
72/23/EEG, EN 292 Veiligheid van Machines en hieraan gekoppelde geharmoniseerde Standaarden, waar deze van toepassing is. Rumoer emissions passen voor
richtlijn EC Zijgebouw VI , voor toestel onder stuk 12 naar de notified troep zit AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle Heath, Stockport,
Cheshire, SK3 OXU, GB
La Sociedad, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK 17 OEU, GB, por el presente documento certifica que si el producto descrito en este
certificado es comprado a un distribuidor autorizado de Belle Group en la CEE, este es conforme a las siguientes directivas: 98/37/CE de la CEE (Esta directiva
consolida la directiva inicial sobre maquinaria 89/392/CEE), Directiva 89/336 CEE sobre Compatibilidad Electromagnética (según enmiendas 92/31/CEE y 93/68 CEE),
Directiva sobre Bajo Voltaje 73/23/CEE, EN 292 de Seguridad de Maquinaria y Niveles armonizados estándares asociados donde sean aplicables. Emisión de Ruídos
conforme a la Directiva 2000/14/CE Anexo VI para máquinas bajo artículo 12 la mencionada unidad está AV Technology Limited, AVTECH House, Birdhall Lane,
Cheadle Heath, Stockport, Cheshire, SK3 OXU, GB.
Nous soussignons, Belle Group Sheen UK, Sheen, Nr Buxton, Derbyshire, SK17 0EU, GB, certifions que si le produit décrit dans ce certificat est acheté chez un
distributeur autorisé Belle Group au sein de la CEE, il est conforme aux normes CEE ci-après: 98/37/CE (Cette norme est une codification des normes de la machine
d'origine 89/392/CEE), Norme compatible pour l'électromagnisme 89/336/CEE (modifié par 92/31/CEE et 93/68/CEE). Caractéristiques basse tension 73/23/CEE, EN
292, Norme de sécurité des machines et des critères associés et configurés, si applicable. Les émissions de bruit sont conformes à la directive 2000/14/EC Annexe VI
pour machines , article 12, l’objet mentionné est
AV Technology Mimited, AVTECH House, Birhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU, GB.
EC DECLARATION OF CONFORMITY / DECLARATION CE DE CONFORMITE /
DECLARACIÓN DE CONFORMIDAD CE / DECLARAÇÃO CE DE CONFORMIDADE /
EG-VERKLARING VAN OVEREENSTEMMING / EF
OVERENSSTEMMELSESERKLÆRING
Vi, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, erklærer hermed, at hvis det i dette certifikat beskrevne produkt er købt hos en autoriseret
Belle Group forhandler i EU, er det i overensstemmelse med følgende EØF-direktiver: 98/37/EF, 73/23/EØF (som ændret ved 93/68/EØF), 89/336/EØF (som ændret ved
92/31/EØF), 93/68/EØF og tilknyttede, harmoniserede standarder, hvor relevant. Støjniveauet er i overensstemmelse med direktiv 2000/14/EF, bilag VI gældende for
maskiner under paragraf 12. Det bemyndigede organ er AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU,
Storbritanien.
PRODUKTTYPE..................
MODEL ...............................
SERIENR. ...........................
FREMSTILLINGSDATO......
LYDEFFEKTNIVEAU .........
MÅLT (GARANTERET)
Ray Neilson

13
The product can be at risk. The machine or yourself can be damaged or injured if procedures are not carried
out in the correct way.
CAUTION
Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY
this manual.
WARNING
The life of the operator can be at risk.
WARNING
How To Use This Manual ........................................................................................................................................................................ 13
Warning ................................................................................................................................................................................................... 13
Machine Description................................................................................................................................................................................ 14
Technical Data......................................................................................................................................................................................... 14
Environment ............................................................................................................................................................................................ 14
General Safety ........................................................................................................................................................................................ 15
Health and Safety.................................................................................................................................................................................... 15
Pre-Start Checks..................................................................................................................................................................................... 15
Reasons For Compaction........................................................................................................................................................................ 16
Start and Stop Procedure........................................................................................................................................................................ 16
Operating Instructions ............................................................................................................................................................................. 17
Trouble Shooting Guide .......................................................................................................................................................................... 17
Service & Maintenance ....................................................................................................................................................................18 - 19
Warranty .................................................................................................................................................................................................. 19
How To Use This Manual
WARNING
Contents
KNOW how to safely use the unit’s controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the
machine off before you switch on, in case you get into difficulty.)
ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use
or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: BELLE GROUP (UK): [phone]
Belle Group reserves the right to change machine specification without prior notice or obligation.
This manual has been written to help you operate and service the ‘RPC’ safely. This manual is intended for dealers and operators of
the ‘RPC’.
Foreword
The ‘Machine Description’ section helps you to familiarise yourself with the machine’s layout and controls.
The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way.
The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the
general public.
The ‘Start and Stop Procedure’ helps you with starting and stopping the machine.
The ‘Trouble Shooting’ guide helps you if you have a problem with your machine.
The ‘Service & Maintenance’ section is to help you with the general maintenance and servicing of your machine.
The ‘Warranty’ Section details the nature of the warranty cover and the claims procedure.
The ‘Declaration of conformity’ section shows the standards that the machine has been built to.
Directives with regard to the notations.
Text in this manual to which special attention must be paid are shown in the following way:

14
Environment
Machine Description
Technical Data
1. Throttle lever.
2. Recoil Starter Handle.
3. Fuel Tank.
4. Lifting Point.
5. Handle Release Catch.
6. Forward / Reverse Control Handle.
7. Main Handle.
8. Belt Guard.
* Minimum level to En500 Part 4
1
2
3
45
6
7
8
A
B
C
Model 30/40 30/50
A - Plate Width in 15.7 19.6
B - Height in 49.8 49.8
C - Length in 25.9 25.9
Engine - Honda Petrol (kW) GX160 (5.5)
Engine - Robin Petrol (kW) EX17 (6)
Engine - Hatz Diesel (kW) 1B20-6 (4.2)
Weight - Honda Petrol lbs 339.5 410
Weight - Robin Petrol lbs 339.5 410
Weight - Hatz Diesel lbs 374.8 441
Centrifugal Force kN 30 30
Frequency Hz 90 90
Engine RPM - Honda 3400 3400
Engine RPM - Robin 3600 3600
Engine RPM - Hatz 3000 3000
Maximum Travel Speed ft/min >75.5 >75.5
Sound Power (dB(A)) 107 107
Safe Disposal.
Instructions for the protection of the environment. The
machine contains valuable materials. Take the discarded
apparatus and accessories to the relevant recycling
facilities.
Component Material
Handle Steel
Front cover HDPE
Main frame Steel
Baseplate Steel
Hand Grips Polyurethane Foam
Engine Aluminium
Flexible Mounts Steel and Rubber
Various Parts Steel and Aluminium

15
General Safety
For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following
safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely.
If you are unsure about the safe and correct use of the ‘RPC’, consult your supervisor or Belle Group.
• This equipment is heavy and must not be lifted single-handedly, either GET HELP or use suitable lifting equipment.
• Cordon off the work area and keep members of the public and unauthorised personnel at a safe distance.
• Personal Protective Equipment (PPE) must be worn by the operator whenever this equipment is being used (see Health & Safety).
• Make sure you know how to safely switch this machine OFF before you switch it ON in case you get into difficulty.
• Always switch OFF the engine before transporting, moving it around the site or servicing it.
• During use the engine becomes very hot, allow the engine to cool before touching it. Never leave the engine running and
unattended.
• Never remove or tamper with any guards fitted, they are there for your protection. Always check guards for condition and security,
if any are damaged or missing, DO NOT USE THE COMPACTOR until the guard has been replaced or repaired.
• Do not operate the Compactor when you are ill, feeling tired, or when under the influence of alcohol or drugs.
Fuel Safety.
• Before refuelling, switch off the engine and allow it to cool.
• When refuelling, DO NOT smoke or allow naked flames in the area.
• Spilt fuel must be made safe immediately, using sand. If fuel is spilt on your clothes, change them.
• Store fuel in an approved, purpose made container away from heat and ignition sources.
Fuel is flammable. It may cause injury and property damage. Shut down the engine, extinguish all open
flames and do not smoke while filling the fuel tank. Always wipe up any spilled fuel.
CAUTION
The exhaust fumes produced by this equipment are highly toxic and can kill!
WARNING
Improper maintenance can be hazardous. Read and Understand this section before you perform any
maintenance, service or repairs.
CAUTION
Pre start-up inspection
The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use, which-
ever is first. Please refer to the service section for detailed guidance. If any fault is discovered, the compactor must not be used until
the fault is rectified.
1. Thoroughly inspect the compactor for signs of damage. Check components are present and secure. Pay special attention to the
belt guard.
2. Check the engine oil and hydraulic oil level and top up as necessary.
3. Check the engine fuel level and top up as necessary.
4. Check for fuel, oil and hydraulic leaks.
Vibration
Some vibration from the compaction operation is transmitted through the handle to the operator’s hands. The Belle Group RPC range
has been specifically designed to reduce hand/arm vibration levels. Refer to specifications & technical data for vibration levels and us-
age times (recommended maximum daily exposure time). DO NOT exceed the maximum usage times.
PPE (Personal Protective Equipment)
Suitable PPE must be worn when using this equipment i.e. Safety Goggles, Gloves, Ear Defenders, Dust Mask and Steel Toe capped
footwear. Wear clothing suitable for the work you are doing. Tie back long hair and remove any jewellery which may catch in the
equipment’s moving parts. Always protect skin from contact with concrete.
Dust
The compacting process will occasionally produce dust, which may be hazardous to your health. Always wear a mask that is suited to
the type of dust being produced.
Fuel
Do not ingest fuel or inhale fuel vapours and avoid contact with your skin. Wash fuel splashes immediately. If you get fuel in your eyes,
irrigate with copious amounts of water and seek medical attention as soon as possible.
Exhaust Fumes
Do not operate the compactor indoors or in a confined space, make sure the work area is adequately ventilated.
Health & Safety
Health & Safety

16
Start And Stop Procedure
Honda GX160 Gasoline Engine
1. Open the fuel tap by moving the fuel ON / OFF lever fully to the right.
2. If starting the engine from cold, set the choke ON by moving the choke lever fully to the left. If
restarting a warm engine, the choke is usually not required, however, if the engine has
cooled to a degree, partial choke may be required.
3. Turn the engine ON / OFF switch clockwise to the ‘I’ position.
4. Set the throttle to the idle position by moving the throttle lever fully to the right. Do not start
the engine on full throttle, as the compactor will vibrate as soon as the engine starts.
5. Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with
the other. Pull the recoil starter until engine resistance is felt, then let starter return.
6. Taking care not to pull the starter’s rope fully out, pull the starter handle briskly.
7. Repeat until the engine fires.
8. Once the engine fires gradually set the choke lever to the OFF position by moving it to the
right.
9. If the engine fails to fire after several attempts, follow the troubleshooting guide.
10. To stop the engine, set the throttle to idle and turn the engine ON / OFF switch anticlockwise to the ‘0’ position.
11. Turn the fuel off.
Hatz Diesel Engine
1. Turn ON the fuel by moving the fuel ON/OFF lever fully to the right.
2. Set the engine speed control to start.
3. Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with
the other. Pull the handle until engine resistance is felt, then let the starter return.
4. Taking care not to pull the starter’s rope fully out, pull the starter handle briskly with both
hands.
5. Repeat this procedure until the engine fires.
6. If the engine fails to start after several attempts, Follow the troubleshooting guide.
7. To stop the engine, set the throttle control to idle, then press and hold the red stop button
until the engine stops.
Robin EX 17 Gasoline Engine
1. Open the fuel cock.
2. Turn the STOP SWITCH to the position ‘I’ (ON)
3. Set the speed control lever 1/3 of the way towards the high speed position.
4. Close the choke lever.
- If the engine is cold or the ambient temperature is low, close the choke lever fully.
- If the engine is warm or the ambient temperature is high, open the choke lever half way, or keep it fully open.
5. Pull the starter handle slowly until resistence is felt. This is the ‘compression’ point. return the handle to its original position
and pull swiftly. Do not pull out the ropeall the way. After starting the engine, allow the starter handle to return to its original
position while still holding the handle.
6. After starting the engine, gradually open the choke by turning the choke lever and finally keep it fully opened. Do not fully open
the choke lever immediately when the engine is cold or the ambient temperature is low, because the engine may stop.
7. To stop the engine, Set the speed control lever at the low speed position and allow the engine to runat low speed for 1 to 2
minutes before stopping.
8. Turn the STOP SWITCH counter-clockwise to the position ‘0’ (OFF)
9. Close the fuel cock.
10. Pull the starter handle slowly and return the handle to its original position when resistance is felt. This operation is necessary
to prevent outside moist air from intruding into the combustion chamber.
Throttle
Choke
Fuel
ON/
OFF
Reasons For Compaction
Soil, which has been disturbed or new infill, subbase and blacktop, will have small voids or air pockets which, if not compacted, will
lead to one or more problems occurring.
1. As traffic crosses the surface of an uncompacted area, the material is compressed. This leads to subsidence of the top surface
as the material fills the voids.
2. A similar situation occurs with static loads on uncompacted ground. The load (e.g. a building) will sink.
3. Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to
expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to
building foundations and normally leads to the structure requiring underpinning.
Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore
reduces the risk of subsidence, expansion and contraction, due to ingress of water.

17
Operating Instructions
• Take the compactor to where it is required.
Where it is necessary to use lifting equipment to position the compactor, make sure the lifting equipment has a WLL (Working
Load Limit) suitable for the compactors weight (see Technical Data section or the machine serial plate). Attach suitable chains
or slings ONLY to the lifting point on the top of the compactor.
• Having carried out the checks listed in the ‘Pre start’ section, you may start the engine.
The Belle Group ‘RPC’ range of compactors are fitted with a centrifugal clutch, this allows the engine to run at idle without driving
the gearbox.
As the engine speed is increased the clutch will engage and will drive the gearbox. For correct operation, the engine speed
should be set to maximum.
• Set the throttle to maximum and use the control handle for direction and to steer or turn the compactor.
The control handle has been designed so that when it is being used in reverse and the operator lets go for any reason, the
handle automatically moves into forward mode. This is a significant safety feature of the machine.
During normal operation you should not have to push the compactor but allow it to travel at its own pace.
The speed of travel will be determined by the condition of the surface being compacted.
Caution must be used when operating the compactor in reverse. Ensure that there are no obstructions or trip hazards when
operating in reverse.
If the surface to be compacted is on a slope, great care must be taken when controlling the compactor’s direction of travel. If
necessary, use a suitable rope attached to the compactor at a low point on the chassis, to allow a helper to take part of the
compactor’s weight. Work up and down a slope not across.
• Work the compactor over the surface in an organised pattern until the required compaction has been achieved.
Where there are a number of different layers to be compacted on top of each other, compact each layer individually.
• To stop the compactor vibrating, set the throttle to idle. To stop the engine refer to the relevant start / stop procedure.
Trouble Shooting Guide
Problem Cause Remedy
Engine will not start. No fuel. Open fuel tap.
Fill fuel tank.
Engine switched off. Switch engine on.
Spark plug fouled. Clean and reset plug gap.
Engine cold. Close choke.
Engine flooded. Honda, open choke, fully open throttle, pull recoil starter
until engine fires.
Hatz, move speed control to stop, pull recoil starter 5
times then repeat start procedure.
Engine still will not start. Major Fault. Contact Agent or Belle Group.
Unit will not move. Engine speed too slow. Set engine speed control to fast.
Drive belt tension loose. Adjust belt tension
Air filter blocked. Clean or renew air filter.
Worn or Damaged Clutch. Repair or Replace as necessary.
Drive failure. Contact Agent or Belle Group.
Gearbox failure. Contact Agent or Belle Group.
Forward speed too slow. Too much oil in hydraulic head. Reduce oil level.
Wrong adjustment of control system Contact Agent or Belle Group.
Reverse speed too slow. Not enough oil in hydraulic head. Fill and bleed system.
Air in control system. Bleed control system.
Wrong adjustment of control system Contact Agent or Belle Group.
Loss of Hydraulic Oil. Connectors leaking. Reseal connectors.
Defective hydraulic hose. Replace hose.
Piston seal in gearbox defective. Contact Agent or Belle Group.
Machine operates erratically. Shock mounts damaged. Replace all four mounts.

18
Service & Maintenance
The Belle Group ‘RPC’ range of Reversible Plate Compactors are designed to give many years of trouble free operation. It is, however,
important that the simple regular maintenance listed in this section is carried out. It is recommended that an approved Belle Group
dealer carries out all major maintenance and repairs. Always use genuine Belle Group replacement parts, the use of spurious parts
may void your warranty.
Before any maintenance is carried out on the machine, switch off the engine. If working on a diesel engine, make sure that the stop
switch is in the stop position.
Always set the compactor on level ground to ensure any fluid levels will be correctly read. Only use recommended oils (see chart on
following page).
Running In Period
When the compactor is first used from new, the engine oil must be changed after the initial running in period (see engine manufactur-
er’s manual for full detail). The belt tension should be checked after 4 hours use.
Drive Belt
Remove the belt guard then check the belt tension by placing light finger pressure on the top of the belt, as near central between the
engine drive and gearbox pulley. The belt should deflect by approx. 10 to 15mm. If the belt tension requires adjustment, loosen the
setscrew on the Belt Tensioning device and slide to the right. Once set, retighten the setscrew and check belt tension a secong time.
Finally, replace the belt guard ensuring it is correctly and securely fitted.
Routine Maintenance Every 8 First month / 150 250 500
hours 50Hours Hours Hours Hours
Engine Oil Check Level 9
Change 9  9
Air Filter Check Condition/Clean 9
Gearbox Oil Change 9
Drive Belt Tension 9  9
Replace when necessary / Every 12 months
Component Oil type Honda GX160 Robin EX17 Hatz 1B20-6
Gearbox S.A.E. 75W-90 1.3 Pints 1.3 Pints 1.3 Pints
Hydraulic Control Shell Tellus 32 0.4 Litres 0.4 Litres 0.4 Litres
Fuchs Renolin MR520 0.4 Litres 0.4 Litres 0.4 Litres
Oil Type & Quantity
Oil type Quantity Fuel Type Capacity Spark Plug Electrode
(Pints) (Pints) Type Gap (in)
Honda GX160 S.A.E. 10W 30 1.3 Unleaded 7.6 BM6ES or 0.02 - 0.03
BPR6ES
Robin EX17 S.A.E. 10W 30 2.3 Unleaded 7.6 NGK BR-6HS
Hatz 1B20-6 S.A.E. 10W 30 1.9 Diesel Refer to N/A N/A
(BS2869) Manual
Oil / Fuel Type & Quantity - Spark Plug Type
Bleeding the Hydraulic System
1. Ensure the machine is in a stationary position, and situated on level ground.
2. Remove the filler cap, and fill the control pump head with oil. Stop once you have reached the maximum level indicator, which is
within the head.
3. Slowly pump the control handle from the ‘Forward Motion’ position, to the ‘Reverse Motion’ position, until the oil level drops.
4. Re-fill the control pump head upto the maximum level. Continue to pump the handle until resistence is felt, and the handle locks
in the ‘Reverse Motion’ position.
5. Again, re-fill the control pump head upto the maximum level.
6. Re-fit the Filler Bung, and test the machine.
WHILST RUNNING THIS MACHINE DURING THIS PROCEDURE, IT IS ADVISABLE TO PUT THE
MACHINE ONTO A RUBBER MAT OR EQUIVALENT TO ABSORB SOME OF THE VIBRATION.
CAUTION

19
Service & Maintenance

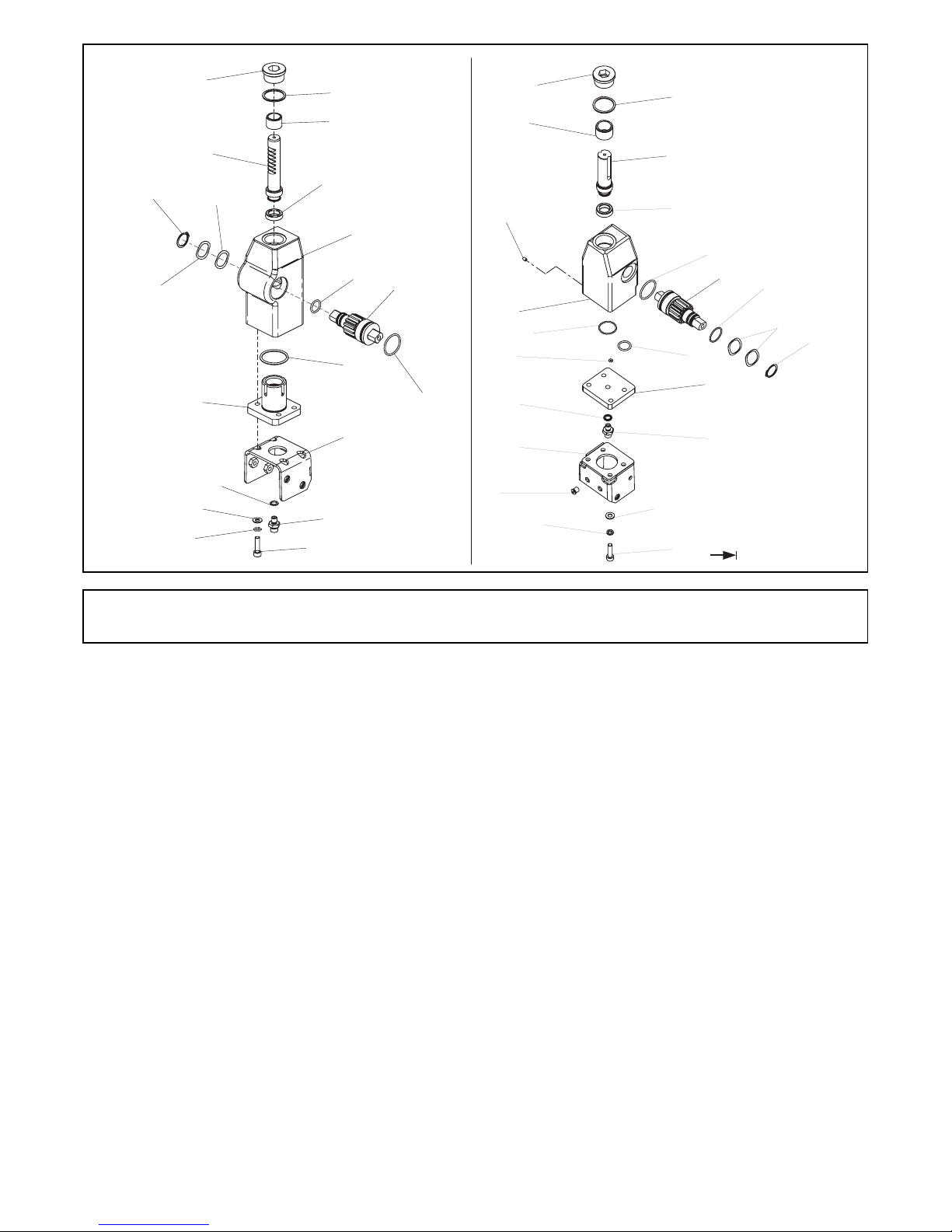

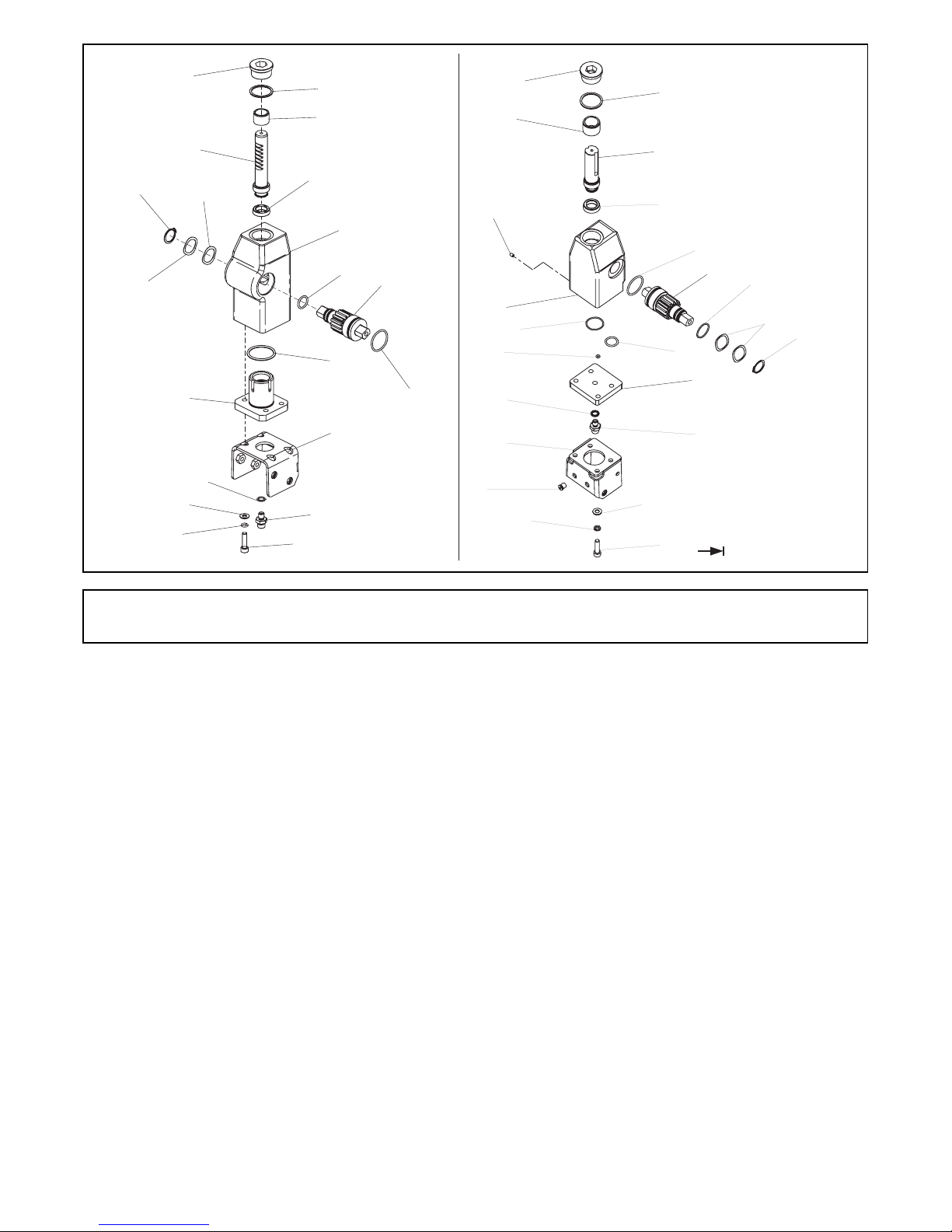

Assembly of the Control Pump
1. Carefully clean the housing with compressed air on the inside. Check for scratches on sliding bores for O Rings and there are
no sharp edges.
2. Press the Bushing in to Housing.
3. Lubricate the Lip Seal with Hydraulic Oil and slip it on the Rack (open side away from the rack).
4. Lubricate the Rack with Hydraulic Oil and slide it into the Housing until the Lip Seal is in the groove, making sure the teeth are
in the right position. When the Lip Seal is in the Groove this represents forward motion.
5. After lubricating the Pinion (without O Rings), insert it into the Housing and Rack. Check the movement of the Rack from Forward
to Reverse. (See CAUTION).
6 Take the Pinion out and fit the two O Rings, making sure they are not damaged.
7. Lubricate the Pinion and O Rings with hydraulic oil and carefully insert in to the Housing. Make sure the Rack is in the right
position and this is easiest when in reverse motion.
8. Fit the Shim and Retaining Ring. It may be necessary to push the Pinion from the opposite side to get them assembled.
9. Place the Housing on the filler side and fit the O Rings to the bottom face. LOCTITE seal 518 is recommended.
10. Assemble the Hydraulic Connector and Dowty Washer using LOCTITE 243.
11. Assemble the Bracket and fix with 4 screws and washers using LOCTITE 243.
12. Loosely fit the Plug Screw and Washer DO NOT TIGHTEN.
In reverse motion the Control Handles run parallel with the Housing in the direction of the operator.
CAUTION
Warranty
Your new Belle Group ‘RPC’ plate compactor is warranted to the original purchaser for a period of one-year (12 months) from the origi-
nal date of purchase.
The Belle Group warranty is against defects in design, materials and workmanship.
The following are not covered under the Belle Group warranty:
1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly,
operation or user maintenance instructions.
2. Alterations, additions or repairs carried out by persons other than Belle Group or their recognised agents.
3. Transportation or shipment costs to and from Belle Group or their recognised agents, for repair or assessment against a
warranty claim, on any machine.
4. Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.
The following components are not covered by warranty.
• Drivebelt/s
• Engine Air Filter
• Engine Spark Plug
Belle Group and/or their recognised agents, directors, employees or insurers will not be held liable for consequential or other damages,
losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.
Warranty Claims
All warranty claims should firstly be directed to Belle Group or Belle Group Inc., either by telephone, by Fax, by E-mail, or in writing.
For Warranty claims:
Belle Group Inc.
3959 Electric Road, Roanoke
VA, 24018
USA
Tel: [phone]
Fax: [phone]
E-mail: [email protected]

140
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16 17
18
19
20
8
161001030036
1-01

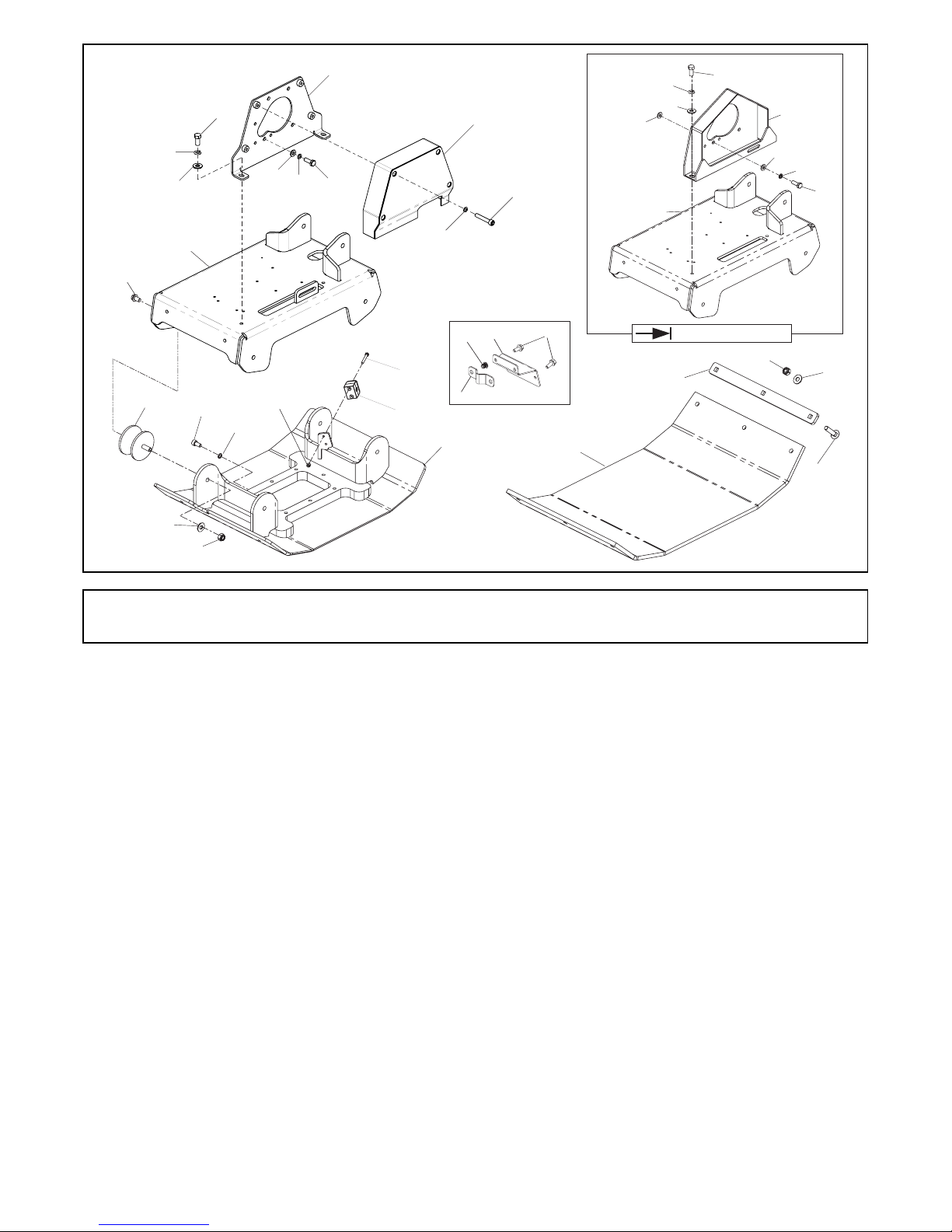

Frame Assembly, Ensemble Châssis, Conjunto de Estructura, Conjunto da Estrutura
161001030036
1-01
1 7-12004..............Screw ................................Vis.............................................Tornillo.................................. Parafuso......................................M12 X 25...............4
2 4-1201................Washer...............................Rondelle....................................Arandela................................ Anilha...........................................M12 ......................6
3 4-1202................Washer...............................Rondelle....................................Arandela................................ Anilha...........................................M12 .......................6
4 161.0.213...........Frame ................................Châssis.....................................Estructura.............................. Estrutura.....................................................................1
5 161.0.191...........Belt Guard..........................Capot de courroie .....................Protector de la correa .......... Guarda da Cinta ........................................................ 1
6 4-8007................Washer...............................Rondelle....................................Arandela................................ Anilha...........................................M8 .........................3
7 8-8008................Nut......................................Ecrou.........................................Tuerca................................... Porca...........................................M8 .........................3
8 21.0.338.............Edging Strip........................Gaine Protection.......................Banda Protectora.................. Fita de rebordo........................................................... x
9 161.0.216...........Cover - Orange...................Couvercle - Orange...................Cubierta - Naranja................. Tampa - Laranja.........................................................1
161.0.367...........Cover - Green.....................Couvercle - Grun.......................Cubierta - Verde.................... Tampa - Verde............................................................1
161.0.368...........Cover - Yellow....................Couvercle - Jaune.....................Cubierta - Amarillo................ Tampa - Amarelo........................................................1
161.0.369...........Cover - Blue .......................Couvercle - Bleu .......................Cubierta - Azúl ..................... Tampa - Azul ..............................................................1
10 9-8014................Bolt ....................................Boulon.......................................Perno .................................... Perno...........................................M8 x 50..................2
11 8-8008................Nut......................................Ecrou.........................................Tuerca................................... Porca...........................................M8 .........................2
12 161.0.347...........Cover - Orange...................Couvercle - Orange...................Cubierta - Naranja................. Tampa - Laranja.........................................................1
161.0.361...........Cover - Green.....................Couvercle - Grun.......................Cubierta - Verde.................... Tampa - Verde............................................................1
161.0.362...........Cover - Yellow....................Couvercle - Jaune.....................Cubierta - Amarillo................ Tampa - Amarelo........................................................1
161.0.363...........Cover - Blue .......................Couvercle - Bleu .......................Cubierta - Azúl ..................... Tampa - Azul ..............................................................1
13 4-8007................Washer...............................Rondelle....................................Arandela................................ Anilha...........................................M8 .........................4
14 161.0.348...........Cover - Orange...................Couvercle - Orange...................Cubierta - Naranja................. Tampa - Laranja.........................................................1
161.0.364...........Cover - Green.....................Couvercle - Grun.......................Cubierta - Verde.................... Tampa - Verde............................................................1
161.0.365...........Cover - Yellow....................Couvercle - Jaune.....................Cubierta - Amarillo................ Tampa - Amarelo........................................................1
161.0.366...........Cover - Blue .......................Couvercle - Bleu .......................Cubierta - Azúl ..................... Tampa - Azul ..............................................................1
15 161.0.349...........Cover - Orange...................Couvercle - Orange...................Cubierta - Naranja................. Tampa - Laranja.........................................................1
161.0.370...........Cover - Green.....................Couvercle - Grun.......................Cubierta - Verde.................... Tampa - Verde............................................................1
161.0.371...........Cover - Yellow....................Couvercle - Jaune.....................Cubierta - Amarillo................ Tampa - Amarelo........................................................1
161.0.372...........Cover - Blue .......................Couvercle - Bleu .......................Cubierta - Azúl ..................... Tampa - Azul ..............................................................1
16 07.0.403.............Screw ................................Vis.............................................Tornillo.................................. Parafuso......................................M5 x 16..................4
17 4-5002................Washer...............................Rondelle....................................Arandela................................ Anilha...........................................M5 .........................4
18 05.3.017.............Washer...............................Rondelle....................................Arandela................................ Anilha...........................................M5 .........................4
19 7-8037................Screw ................................Vis.............................................Tornillo.................................. Parafuso......................................M8 X 20.................8
20 21.0.337.............Edging Strip........................Gaine Protection.......................Banda Protectora.................. Fita de rebordo ........................................................... x

141
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16 17
18
19
20
8
161001030036
1-01
Frame, Rahmen kpl., Hovedstel Og Dæksel, Gruppo Telaio
161001030036 1-01
1 7-12004..............Schroef ..............................Schraube.................................. Skrue ..................................... Vite ..............................................M12 X 25...............4
2 4-1201................Afdichtring ..........................Scheibe.................................... Spændeskive......................... Rondella ......................................M12 ...................... 6
3 4-1202................Afdichtring ..........................Scheibe.................................... Spændeskive......................... Rondella ......................................M12 .......................6
4 161.0.213...........Frame ................................Rahmen .................................. Hovedstel............................... Telaio..........................................................................1
5 161.0.191...........Riembeschermkap .............Treibriemen-Schutzabdeckung.Rembeskyttelse..................... Protezione della cinghia ...........................................1
6 4-8007................Afdichtring ..........................Scheibe.................................... Spændeskive......................... Rondella ......................................M8 .........................3
7 8-8008................Moer ...................................Mutter....................................... Møtrik..................................... Dado............................................M8 .........................3
8 21.0.338 .............Kantstrip .............................Kantenschutz ........................... Kåntband ............................... Guaina Protettiv.......................................................... x
9 161.0.216...........Deksel - Oranje .................Abdeckung - Orange................ Dæk - Orange........................ Coperchio - Arancione................................................1
161.0.367...........Deksel - Groen ...................Abdeckung - Grün.................... Dæk - Grøn............................ Coperchio - Verde ......................................................1
161.0.368...........Deksel - Geel......................Abdeckung - Blau..................... Dæk - Gul .............................. Coperchio - Giallo.......................................................1
161.0.369...........Deksel - Blauw ...................Abdeckung - Gelb .................... Dæk - Blå .............................. Coperchio - Blu...........................................................1
10 9-8014................Schroef ..............................Schraube.................................. Skrue ..................................... Vite ..............................................M8 x 50..................2
11 8-8008................Moer ...................................Mutter....................................... Møtrik..................................... Dado............................................M8 .........................2
12 161.0.347...........Deksel - Oranje .................Abdeckung - Orange................ Dæk - Orange........................ Coperchio - Arancione................................................1
161.0.361...........Deksel - Groen ...................Abdeckung - Grün.................... Dæk - Grøn............................ Coperchio - Verde ......................................................1
161.0.362...........Deksel - Geel......................Abdeckung - Blau..................... Dæk - Gul .............................. Coperchio - Giallo.......................................................1
161.0.363...........Deksel - Blauw ...................Abdeckung - Gelb .................... Dæk - Blå .............................. Coperchio - Blu...........................................................1
13 4-8007................Afdichtring ..........................Scheibe.................................... Spændeskive......................... Rondella ......................................M8 ......................... 4
14 161.0.348...........Deksel - Oranje .................Abdeckung - Orange................ Dæk - Orange........................ Coperchio - Arancione................................................1
161.0.364...........Deksel - Groen ...................Abdeckung - Grün.................... Dæk - Grøn............................ Coperchio - Verde ......................................................1
161.0.365...........Deksel - Geel......................Abdeckung - Blau..................... Dæk - Gul .............................. Coperchio - Giallo.......................................................1
161.0.366...........Deksel - Blauw ...................Abdeckung - Gelb .................... Dæk - Blå .............................. Coperchio - Blu...........................................................1
15 161.0.349...........Deksel - Oranje .................Abdeckung - Orange................ Dæk - Orange........................ Coperchio - Arancione................................................1
161.0.370...........Deksel - Groen ...................Abdeckung - Grün.................... Dæk - Grøn............................ Coperchio - Verde ......................................................1
161.0.371...........Deksel - Geel......................Abdeckung - Blau..................... Dæk - Gul .............................. Coperchio - Giallo.......................................................1
161.0.372...........Deksel - Blauw ...................Abdeckung - Gelb .................... Dæk - Blå .............................. Coperchio - Blu...........................................................1
16 07.0.403.............Schroef ..............................Schraube.................................. Skrue ..................................... Vite ..............................................M5 x 16..................4
17 4-5002................Afdichtring ..........................Scheibe.................................... Spændeskive......................... Rondella ......................................M5 ......................... 4
18 05.3.017.............Afdichtring ..........................Scheibe.................................... Spændeskive......................... Rondella ......................................M5 ......................... 4
19 7-8037................Schroef ..............................Schraube.................................. Skrue ..................................... Vite ..............................................M8 X 20.................8
20 21.0.337.............Kantstrip .............................Kantenschutz ........................... Kåntband ............................... Gaina Protettiv............................................................ x

142
9
8
6
7
12
13
6
7
2
8
15
14
11
1
311
4
10
5
1-02
Frame Assembly, Ensemble Châssis, Conjunto de Estructura, Conjunto da Estrutura
161001030037
1-02
1 161-08700..........Frame ................................Châssis.....................................Estructura.....................................Estrutura .......................................... M12 X 25 ........1
2 161-99682S........Cover - Orange...................Couvercle - Orange...................Cubierta - Naranja........................Tampa - Laranja........................................................1
2 161-99682G.......Cover - Green.....................Couvercle - Grun.......................Cubierta - Verde...........................Tampa - Verde..........................................................1
2 161-99682Y........Cover - Yellow....................Couvercle - Jaune.....................Cubierta - Amarillo.......................Tampa - Amarelo ......................................................1
2 161-99682B........Cover - Blue .......................Couvercle - Bleu .......................Cubierta - Azúl ............................Tampa - Azul.............................................................1
2 161-99682R .......Cover - Red........................Couvercle - Rouge....................Cubierta - Roja.............................Tampa - Vermelho....................................................1
2 161-99682W.......Cover - White .....................Couvercle - Blanc......................Cubierta - Blanco.........................Tampa - Branco........................................................1
3 161-99683S........Front Cover - Orange .........Couvercle Avant - Orange ........Cubierta Delantera - Naranja.......Tampa Frontal - Laranja ...........................................1
3 161-99683G.......Front Cover - Green...........Couvercle Avant - Grun ............Cubierta Delantera - Verde..........Tampa Frontal - Verde..............................................1
3 161-99683Y........Front Cover - Yellow...........Couvercle Avant - Jaune...........Cubierta Delantera - Amarillo.......Tampa Frontal - Amarelo..........................................1
3 161-99683B........Front Cover - Blue..............Couvercle Avant - Bleu.............Cubierta Delantera - Azúl ............Tampa Frontal - Azul ................................................1
3 161-99683R .......Front Cover - Red...............Couvercle Avant - Rouge..........Cubierta Delantera - Roja............Tampa Frontal - Vermelho........................................1
3 161-99683W.......Front Cover - White............Couvercle Avant - Blanc ...........Cubierta Delantera - Blanco.........Tampa Frontal - Branco............................................1
4 161.0.332...........Edging Strip........................Gaine Protection.......................Banda Protectora.........................Fita de rebordo..........................................................1
6 4-1201................Washer...............................Rondelle....................................Arandela.......................................Anilha............................................... M12.................2
7 4-1202................Washer...............................Rondelle....................................Arandela.......................................Anilha............................................... M12.................2
8 7-12004..............Screw ................................Vis.............................................Tornillo.........................................Parafuso........................................... M12 x 25.........2
9 161.99674S........Right Cover - Orange.........Couvercle Droite - Orange........Cubierta Derecha - Naranja.........Tampa Lado Direito - Laranja...................................1
9 161.99674G .......Right Cover - Green ...........Couvercle Droite - Grun............Cubierta Derecha - Verde............Tampa Lado Direito - Verde......................................1
9 161.99674Y........Right Cover - Yellow...........Couvercle Droite - Jaune..........Cubierta Derecha - Amarillo.........Tampa Lado Direito - Amarelo..................................1
9 161.99674B........Right Cover - Blue..............Couvercle Droite - Bleu.............Cubierta Derecha - Azúl ..............Tampa Lado Direito - Azul ........................................1
9 161.99674R........Right Cover - Red...............Couvercle Droite - Rouge .........Cubierta Derecha - Roja..............Tampa Lado Direito - Vermelho................................1
9 161.99674W.......Right Cover - White............Couvercle Droite - Blanc...........Cubierta Derecha - Blanco...........Tampa Lado Direito - Branco....................................1
10 161.99673S........Left Cover - Orange............Couvercle Gauche - Orange.....Cubierta Iqzuierda - Naranja........Tampa Lado Esquerdo - Laranja..............................1
10 161.99673G .......Left Cover - Green..............Couvercle Gauche - Grun.........Cubierta Iqzuierda - Verde...........Tampa Lado Esquerdo - Verde.................................1
10 161.99673Y........Left Cover - Yellow.............Couvercle Gauche - Jaune.......Cubierta Iqzuierda - Amarillo .......
Tampa Lado Esquerdo - Amarelo ..................................1
10 161.99673B........Left Cover - Blue ................Couvercle Gauche - Bleu..........Cubierta Iqzuierda - Azúl ............Tampa Lado Esquerdo - Azul...................................1
10 161.99673R........Left Cover - Red.................Couvercle Gauche - Rouge ......Cubierta Iqzuierda - Roja.............
Tampa Lado Esquerdo - Vermelho ................................1
10 161.99673W.......Left Cover - White ..............Couvercle Gauche - Blanc........Cubierta Iqzuierda - Blanco .........Tampa Lado Esquerdo - Branco...............................1
11 8-8008................Nut......................................Ecrou.........................................Tuerca..........................................Porca................................................ M8...................6
12 7-10039..............Screw ................................Vis.............................................Tornillo.........................................Parafuso........................................... M10 x 30.........8
13 7-8037................Screw ................................Vis.............................................Tornillo.........................................Parafuso........................................... M8 X 20 ..........2
14 4-8008................Washer...............................Rondelle....................................Arandela.......................................Anilha...............................................5/16” x 1”.........4
15 9-8017................Bolt ....................................Boulon.......................................Perno ...........................................Perno ............................................... M8 x 45...........4

143
9
8
6
7
12
13
6
7
2
8
15
14
11
1
311
4
10
51-02
Frame, Rahmen kpl., Hovedstel Og Dæksel, Gruppo Telaio
161001030037 1-02
1 161-08700..........Frame ................................Rahmen .................................. Hovedstel......................................Telaio ............................................... M12 X 25 ........1
2 161-99682S........Deksel - Oranje .................Abdeckung - Orange................ Dæk - Orange...............................Coperchio - Arancione ..............................................1
2 161-99682G.......Deksel - Groen...................Abdeckung - Grün.................... Dæk - Grøn...................................Coperchio - Verde.....................................................1
2 161-99682Y........Deksel - Geel......................Abdeckung - Blau..................... Dæk - Gul.....................................Coperchio - Giallo.....................................................1
2 161-99682B........Deksel - Blauw ...................Abdeckung - Gelb.................... Dæk - Blå .....................................Coperchio - Blu .........................................................1
2 161-99682R .......Deksel - Rood.....................Abdeckung - Rot...................... Dæk - Rød ...................................Coperchio - Rosso ....................................................1
2 161-99682W.......Deksel - Wit........................Abdeckung - Weiß ...................Dæk - Hvid ...................................Coperchio - Bianco ...................................................1
3 161-99683S........Voordeksel - Oranje ...........Frontabdeckung - Orange........ Forreste kappe - Orange..............Copertura anteriore - Arancione ...............................1
3 161-99683G.......Voordeksel - Groen............Frontabdeckung - Grün............ Forreste kappe - Grøn..................Copertura anteriore - Verde......................................1
3 161-99683Y........Voordeksel - Geel...............Frontabdeckung - Gelb............ Forreste kappe - Gul.....................Copertura anteriore - Giallo ......................................1
3 161-99683B........Voordeksel - Blauw ............Frontabdeckung - Blau............. Forreste kappe - Blå.....................Copertura anteriore - Blu ..........................................1
3 161-99683R .......Voordeksel - Rood..............Frontabdeckung - Rot.............. Forreste kappe - Rød....................Copertura anteriore - Rosso .....................................1
3 161-99683W.......Voordeksel - Wit.................Frontabdeckung - Weiß ...........Forreste kappe - Hvid...................Copertura anteriore - Bianco.....................................1
4 161.0.332 ...........Kantstrip .............................Kantenschutz ........................... Kåntband ......................................Guaina Protettiv........................................................1
6 4-1201................Afdichtring ..........................Scheibe.................................... Spændeskive................................Rondella........................................... M12.................2
7 4-1202................Afdichtring ..........................Scheibe.................................... Spændeskive................................Rondella........................................... M12.................2
8 7-12004..............Schroef ..............................Schraube.................................. Skrue ............................................Vite...................................................M12 x 25.........2
9 161.99674S........Rechts Deksel - Oranje......Rechts Abdecken - Orange...... Højre Dæk - Orange.....................
Coperchio Lato Destro - Arancione ............................1
9 161.99674G .......Rechts Deksel - Groen.......Rechts Abdecken - Grün.......... Højre Dæk - Grøn.........................
Coperchio Lato Destro - Verde...................................1
9 161.99674Y........Rechts Deksel - Geel .........Rechts Abdecken - Gelb.......... Højre Dæk - Gul............................
Coperchio Lato Destro - Giallo ...................................1
9 161.99674B........Rechts Deksel - Blauw.......Rechts Abdecken - Blau .......... Højre Dæk - Blå ...........................
Coperchio Lato Destro - Blu .......................................1
9 161.99674R........Rechts Deksel - Rood ........Rechts Abdecken - Rot............ Højre Dæk - Rød..........................
Coperchio Lato Destro - Rosso ..................................1
9 161.99674W.......Rechts Deksel - Wit............Rechts Abdecken - Weiß......... Højre Dæk - Hvid..........................
Coperchio Lato Destro - Bianco..................................1
10 161.99673S........Linker Deksel - Oranje........Links Abdecken - Orange ........Venstre Dæk - Orange..................
Coperchio Lato sinistro - Arancione............................1
10 161.99673G .......Linker Deksel - Groen ........Links Abdecken - Grün ............Venstre Dæk - Grøn .....................
Coperchio Lato sinistro - Verde..................................1
10 161.99673Y........Linker Deksel - Geel...........Links Abdecken - Gelb............. Venstre Dæk - Gul........................
Coperchio Lato sinistro - Giallo...................................1
10 161.99673B........Linker Deksel - Blauw.........Links Abdecken - Blau............. Venstre Dæk - Blå........................
Coperchio Lato sinistro - Blu.......................................1
10 161.99673R........Linker Deksel - Rood..........Links Abdecken - Rot............... Venstre Dæk - Rød.......................
Coperchio Lato sinistro - Rosso..................................1
10 161.99673W.......Linker Deksel -Wit ..............Links Abdecken - Weiß............ Venstre Dæk - Hvid ......................
Coperchio Lato sinistro - Bianco.................................1
11 8-8008................Moer...................................Mutter........................................Møtrik...........................................Dado ................................................ M8................... 6
12 7-10039..............Schroef ..............................Schraube.................................. Skrue ............................................Vite...................................................M10 x 30.........8
13 7-8037................Schroef ..............................Schraube.................................. Skrue ............................................Vite...................................................M8 X 20 ..........2
14 4-8008................Afdichtring ..........................Scheibe.................................... Spændeskive................................Rondella........................................... 5/16” x 1”.........4
15 9-8017................Bouten................................Bolzen...................................... Skruebolte.....................................Bullone............................................. M8 x 45...........4

144
2-01
Baseplate Assembly, Plaque d’embase, Cto. Placa base, Conj. da Placa de Base
1 161-00100..........Baseplate ...........................Plaque d’embase..................... Placa de base........................ Placa de Base .............................400mm ..................1
2 161-00200..........Baseplate ...........................Plaque d’embase.....................Placa de base..........................Placa de Base.............................500mm ..................1
2 4-1008................Washer................................Rondelle...................................Arandela..................................Anilha..........................................M10 .......................1
3 7-10022..............Screw .................................Vis............................................Tornillo.....................................Parafuso......................................M10 X 20............... 1
4 21-0138..............Anti-Vibration Mount............Tampon antivibratoire..............Montura antivibratoria..............Bloco Anti-vibração ...................................................4
5 4-1201................Washer................................Rondelle...................................Arandela..................................Anilha..........................................M12 .......................6
6 8-12006..............Nut.......................................Ecrou........................................Tuerca .....................................Porca...........................................M12 .......................4
7 3-7039................Clamp Bracket.....................Équerre de blocage..................Escuadra de amarre................Grampo de Fixação. ...................1/4”........................1
8 02.0.020.............Screw..................................Vis............................................Tornillo.....................................Parafuso......................................M6 X 50.................2
9 8-6007................Nut.......................................Ecrou........................................Tuerca .....................................Porca...........................................M6 ........................2
10 02.5.019.............Screw .................................Vis............................................Tornillo.....................................Parafuso......................................M12 x 20................4
11 4-1201................Washer ...............................Rondelle...................................Arandela..................................Anilha..........................................M12 ......................6
12 4-1202................Washer ...............................Rondelle...................................Arandela..................................Anilha..........................................M12 ......................8
13 161.0.181...........Bedplate .............................Plaque d’assise........................Placa de base..........................Placa de Apoio...........................................................1
14 161.0.187...........Belt Guard...........................Capot de courroie ....................Protector de la correa .............Guarda da Cinta .......................................................1
15 7-12004..............Screw..................................Vis............................................Tornillo.....................................Parafuso......................................M12 X 20 ..............4
16 7-10010..............Screw (Hatz) .......................Vis (Hatz) .................................Tornillo (Hatz)..........................Parafuso(Hatz)............................M10x30..................7
16 02.3.020.............Screw (Honda) ....................Vis (Honda)..............................Tornillo (Honda).......................Parafuso (Honda)........................5/16” x 1”...............6
17 4-1005................Washer (Hatz).....................Rondelle (Hatz)........................Arandela (Hatz).......................Anilha (Hatz)...............................M10 .......................7
17 4-8006................Washer (Honda)..................Rondelle (Honda).....................Arandela (Honda)....................Anilha (Honda)............................M8 .........................6
17A 4-8006................Washer(Honda)...................Rondelle (Honda).....................Arandela (Honda)....................Anilha (Honda)............................M8 .........................3
18 4-1003................Washer (Hatz).....................Rondelle (Hatz)........................Arandela (Hatz).......................Anilha (Hatz)...............................M10 .....................11
18 4-8003................Washer (Honda)..................Rondelle (Honda).....................Arandela (Honda)....................Anilha (Honda)............................M8 .........................6
19A 161-99601..........Paving Pad..........................Tampon de Pavage..................Tampón de Pavimentación......Bloco de Pavimentação..............400 ........................1
19B 161/99602..........Paving Pad..........................Tampon de Pavage..................Tampón de Pavimentación......Bloco de Pavimentação..............500 ........................1
20A 161/99605..........Clamp..................................Serrage....................................Mordaza ..................................Grampo.......................................400 ........................2
20B 161/99606..........Clamp..................................Serrage....................................Mordaza ..................................Grampo.......................................500 ........................2
21 9/10020..............Bolt......................................Boulon......................................Perno.......................................Perno ..........................................M10 x 45................6
22 4/1004................Washer ...............................Rondelle...................................Arandela..................................Anilha..........................................M10 .......................6
23 8/10006..............Nut.......................................Ecrou........................................Tuerca .....................................Porca...........................................M10 .......................6
24 7/8037................Screw..................................Vis............................................Tornillo.....................................Parafuso......................................M8 X 20.................4
25 01.5.036.............Nut.......................................Ecrou........................................Tuerca .....................................Porca...........................................M8 .........................2
26 161/99575..........Clip......................................Collier.......................................Presilla.....................................Grampo......................................................................1
27 161/99576..........Clamp Bracket.....................Équerre de blocage..................Escuadra de amarre................Grampo de Fixação ...................................................1
28 161/10300..........Bedplate .............................Plaque d’assise........................Placa de base.......................... Placa de Apoio...........................................................1
29 161/09600..........Backplate ............................Plaque arrière ..........................Placa trasera ...........................Placa de Apoio...........................................................1
30 161/09700..........Belt Guard...........................Capot de courroie ....................Protector de la correa .............Guarda da Cinta ........................................................1
31 7-10040..............Screw .................................Vis............................................ Tornillo................................... Parafuso......................................M10 X 55...............4
1
2
3
4
5
6
7
8
9
21
22
23
20
19
27 24
26
25
13
14
16
17
11
12 15
17A
18
10
28
5
12
15
17 18 16
29
30
18
31
161001030036
2-01

145
2-01
Vloerplaat, Rüttelplatten-Zsb., Bundplade, Gruppo piastra di base
1 161-00100..........Vloerplaat ...........................Rüttelplatten............................. Bundplade.............................. Piastra di base.............................400mm ..................1
1 161-00200..........Vloerplaat ..........................Rüttelplatten............................. Bundplade...............................Piastra di base............................500mm ..................1
2 4-1008................Afdichtring ..........................Scheibe.................................... Spændeskive..........................Rondella......................................M10 .......................1
3 7-10022..............Schroef ..............................Schraube.................................. Skrue ...................................... Vite..............................................M10 X 20...............1
4 21-0138..............Anti-trilbevestiging..............Schwingungsdämpfer .............. Antivibrationsophæng............. Supporto antivibrazioni..............................................4
5 4-1201................Afdichtring ..........................Scheibe.................................... Spændeskive..........................Rondella......................................M12 .......................6
6 8-12006..............Moer ...................................Mutter....................................... Møtrik......................................Dado ...........................................M12 .......................4
7 3-7039................Klembeugel ........................Halteklemme............................ Fikseringsbeslag.....................Staffa di serraggio.......................1/4” ........................1
8 02.0.020.............Schroef...............................Schraube.................................. Skrue ...................................... Vite..............................................M6 X 50.................2
9 8-6007................Moer ...................................Mutter....................................... Møtrik......................................Dado ...........................................M6 ........................2
10 02.5.019.............Schroef ..............................Schraube.................................. Skrue ...................................... Vite..............................................M12 x 20................4
11 4-1201................Afdichtring ..........................Scheibe.................................... Spændeskive..........................Rondella......................................M12 ......................6
12 4-1202................Afdichtring ..........................Scheibe.................................... Spændeskive..........................Rondella......................................M12 ......................8
13 161.0.181...........Grondplaat .........................Sohlplatte................................. Fundamentplade.....................Piastra di base...........................................................1
14 161.0.187...........Riembeschermkap .............Treibriemen-Schutzabdeckung.Rembeskyttelse......................Protezione della cinghia ............................................1
15 7-12004..............Schroef...............................Schraube.................................. Skrue ...................................... Vite..............................................M12 X 20 ..............4
16 7-10010..............Schroef (Hatz) ....................Schraube (Hatz)....................... Skrue (Hatz)............................Vite (Hatz)...................................M10x30..................7
16 02.3.020.............Schroef (Honda).................Schraube (Honda).................... Skrue (Honda)........................Vite (Honda)................................5/16” x 1” ...............6
17 4-1005................Afdichtring (Hatz)................Scheibe (Hatz)......................... Spændeskive (Hatz)...............Rondella (Hatz)...........................M10 .......................7
17 4-8006................Afdichtring (Honda) ............Scheibe (Honda)...................... Spændeskive (Honda)............Rondella (Honda)........................M8 .........................6
17A 4-8006................Afdichtring (Honda) ............Scheibe (Honda)...................... Spændeskive (Honda)............Rondella (Honda)........................M8 .........................3
18 4-1003................Afdichtring (Hatz)................Scheibe (Hatz)......................... Spændeskive (Hatz)...............Rondella (Hatz)...........................M10 .....................11
18 4-8003................Afdichtring (Honda) ............Scheibe (Honda)...................... Spændeskive (Honda)............Rondella (Honda)........................M8 .........................6
19A 161-99601..........Kunststof onderplaat ..........Blockpflaster ............................Belægningsklods ....................Pavimentazione a Blocchi...........400 ........................1
19B 161/99602..........Kunststof onderplaat ..........Blockpflaster ............................Belægningsklods ....................Pavimentazione a Blocchi...........500 ........................1
20A 161/99605..........Klem ...................................Schelle ..................................... Klemme...................................Morsetto......................................400 ........................2
20B 161/99606..........Klem ...................................Schelle ..................................... Klemme...................................Morsetto......................................500 ........................2
21 9/10020..............Bout....................................Bolzen...................................... Skruebolt.................................Bullone........................................M10 x 45................6
22 4/1004................Afdichtring ..........................Scheibe.................................... Spændeskive..........................Rondella......................................M10 .......................6
23 8/10006..............Moer ...................................Mutter....................................... Møtrik......................................Dado ...........................................M10 .......................6
24 7/8037................Schroef...............................Schraube.................................. Skrue ...................................... Vite..............................................M8 X 20.................4
25 01.5.036.............Moer ...................................Mutter....................................... Møtrik......................................Dado ...........................................M8 .........................2
26 161/99575..........Klem ...................................Clip........................................... Klemme...................................Fermaglio...................................................................1
27 161/99576..........Klembeugel ........................Halteklemme............................ Fikseringsbeslag.....................Staffa di serraggio......................................................1
28 161/10300..........Grondplaat .........................Sohlplatte................................. Fundamentplade.....................Piastra di base...........................................................1
29 161/09600..........Achterplaat .........................Rückwand................................ Bagplade.................................Piastra di rinforzo ...................................................... 1
30 161/09700..........Riembeschermkap .............
Treibriemen-Schutzabdeckung . .Rembeskyttelse......................Protezione della cinghia ............................................1
31 7-10040..............Schroef...............................Schraube.................................. Skrue ..................................... Vite ..............................................M10 X 55...............4
1
2
3
4
5
6
7
8
9
21
22
23
20
19
27 24
26
25
13
14
16
17
11
12 15
17A
18
10
28
5
12
15
17 18 16
29
30
18
31
161001030036
2-01

146
3-01
1
2
3
4
4
5
5
4
15
16
17
18
19
25
26
27
28
29
43
24
20/30
21
23
6
22
13
14
11
12
7
9
8
1
0
31
14-01.............Pump..................................Ressort..................................... Muelle.................................... Mola............................................................................1
2 161.0.248...........Handle................................Guidon ..................................... Manillar.................................. Punho.........................................................................1
3 7-8012................Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M8 x 25..................4
4 4-8006................Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................M8 .........................9
5 8-8008................Nut......................................Ecrou........................................ Tuerca.................................... Porca ...........................................M8 .........................5
6 21.0.187.............Anti-Vibration Mount...........Tampon antivibratoire.............. Montura antivibratoria............ Bloco Anti-vibração ....................................................2
7 161.0.247...........Cover..................................Couvercle................................. Cubierta ................................. Tampa ........................................................................1
8 02.0.014.............Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M6 x 20..................6
9 4-6001................Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................M6 .........................6
10 4-6005................Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................M6 .........................6
11 21.0.333.............Rubber Stop .......................Butée en caoutchouc............... Tope de caucho..................... Batente de Borracha...................................................1
12 02.0.089.............Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M10 x 100..............1
13 4-1005................Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................M10 .......................2
14 8-10003..............Nut......................................Ecrou........................................ Tuerca.................................... Porca...........................................M10 .......................2
15 19.0.843.............Handle................................Guidon ..................................... Manillar.................................. Punho.........................................................................1
16 161.0.241...........Threaded Rod ....................Tube fileté ................................ Tubo roscado......................... Tubo roscado..............................................................1
17 161.0.240...........Latch...................................Verrou ...................................... Cerrojo................................... Trinco..........................................................................1
18 19.0.095.............Spring.................................Ressort..................................... Resorte .................................. Mola............................................................................1
19 161.0.238...........Latch...................................Verrou ...................................... Cerrojo................................... Trinco..........................................................................1
20 7-8008................Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M8 x 16..................1
21 4-8003................Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................M8 .........................2
22 8-16005..............Nut......................................Ecrou........................................ Tuerca.................................... Porca...........................................M16 .......................2
23 161-99534..........Bolt ....................................Boulon...................................... Perno..................................... Perno...........................................M16 .......................2
24 4-8004................Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................M8 X 25 X 2...........2
25 161-99658..........Handle - Grey.....................Guidon - Gris............................ Manillar - Gris........................ Punho - Cinzento........................................................2
25A Item 32 ........Handle - Orange.................Guidon - Orange...................... Manillar - Naraja.................... Punho - Laranja..........................................................2
25B Item 32 ........Handle - AP Green.............Guidon - Grun.......................... Manillar - Verde..................... Punho - Verde ............................................................2
25C Item 32 ........Handle - Yellow ..................Guidon - Jaune ........................Manillar - Azúl ....................... Punho - Azul...............................................................2
25D Item 32 ........Handle - Blue......................Guidon - Bleu........................... Manillar - Amarillo.................. Punho - Amarelo.........................................................2
26 9-10007..............Bolt ....................................Boulon...................................... Perno..................................... Perno...........................................M10 x 50................2
27 4-1005................Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................M10 .......................2
28 4-1003................Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................M10 .......................2
29 30-0079..............Hose...................................Durit ......................................... Flexible .................................. Tubagem ....................................................................1
30 02.0.086.............Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M8 x 12..................1
31 3-7012................Clip .....................................Collier....................................... Presilla................................... Grampo.......................................................................1
32 161-07700..........Handle Kit...........................Kit de Guidon........................... Kit Manillar............................. Kit do Punho...............................................................1
Handle Assembly, Ensemble poignée, Conjunto de manillar, Conjunto do Punho 3-01

147
3-01
1
2
3
4
4
5
5
4
15
16
17
18
19
25
26
27
28
29
43
24
20/30
21
23
6
22
13
14
11
12
7
9
8
1
0
31
Hendel, Griff-Zsb., Hovedstel Og Dæksel, Gruppo impugnatura 3-01
14-01 .............Pomp..................................Pumpe...................................... Kontrolpumpeenhed ..............Bomba.........................................................................1
2 161.0.248 ...........Hendel................................Griff.......................................... Håndtag .................................Impugnatura................................................................1
3 7-8012................Schroef ..............................Schraube.................................. Skrue .....................................Vite ............................................... M8 x 25.................4
4 4-8006................Afdichtring ..........................Scheibe.................................... Spændeskive.........................Rondella.......................................M8 .........................9
5 8-8008................Moer ...................................Mutter....................................... Møtrik.....................................Dado.............................................M8 .........................5
6 21.0.187 .............Anti-trilbevestiging..............Schwingungsdämpfer .............. Antivibrationsophæng............Supporto antivibrazioni................................................2
7 161.0.247 ...........Deksel ................................Abdeckung .............................. Dæk ......................................Coperchio....................................................................1
8 02.0.014.............Schroef ..............................Schraube.................................. Skrue .....................................Vite...............................................M6 x 20..................6
9 4-6001................Afdichtring ..........................Scheibe.................................... Spændeskive.........................Rondella.......................................M6 .........................6
10 4-6005................Afdichtring ..........................Scheibe.................................... Spændeskive.........................Rondella.......................................M6 .........................6
11 21.0.333 .............Aanslagrubber.................... Gummianschlag....................... Gummistop ............................Arresto in gomma........................................................ 1
12 02.0.089.............Schroef ..............................Schraube.................................. Skrue .....................................Vite ...............................................M10 x 100..............1
13 4-1005................Afdichtring ..........................Scheibe.................................... Spændeskive.........................Rondella.......................................M10 .......................2
14 8-10003..............Moer ...................................Mutter....................................... Møtrik.....................................Dado.............................................M10 .......................2
15 19.0.843 .............Hendel................................Griff .......................................... Håndtag.................................Impugnatura................................................................1
16 161.0.241 ...........Draadbuis...........................Gewinderohr ........................... Gevindskåret rør....................Tubo filettato................................................................1
17 161.0.240 ...........Grendel...............................Riegel....................................... Sicherheits.............................Saliscendi....................................................................1
18 19.0.095 .............Veer....................................Feder........................................ Fjeder.....................................Molla............................................................................1
19 161.0.238 ...........Grendel...............................Riegel ...................................... Sicherheits.............................Saliscendi....................................................................1
20 7-8008................Schroef ..............................Schraube.................................. Skrue .....................................Vite ...............................................M8 x 16..................1
21 4-8003................Afdichtring ..........................Scheibe.................................... Spændeskive.........................Rondella.......................................M8 .........................2
22 8-16005..............Moer ...................................Mutter....................................... Møtrik.....................................Dado.............................................M16 .......................2
23 161-99534..........Schroef ..............................Schraube.................................. Skrue .....................................Vite ...............................................M16 ....................... 2
24 4-8004................Afdichtring ..........................Scheibe.................................... Spændeskive.........................Rondella.......................................M8 X 25 X 2...........2
25 161-99658..........Hendel - Grijs .....................Griff - Grau............................... Manillar - Grå.........................Punho - Grigio.............................................................2
25A Item 32 ........Hendel - Oranje..................Griff - Orange........................... Håndtag - Orange.................. Impugnatura - Arancione............................................2
25B Item 32.........Hendel - Groen...................Griff - Grün............................... Håndtag - Grøn......................Impugnatura - Verde ...................................................2
25C Item 32.........Hendel - Geel .....................Griff - Gelb ...............................Håndtag - Gul ........................Impugnatura - Giallo....................................................2
25D Item 32.........Hendel - Blauw...................Griff - Blau................................ Håndtag - Blå ........................Impugnatura - Blu........................................................2
26 9-10007..............Schroef ..............................Schraube.................................. Skrue .....................................Vite ...............................................M10 x 50................2
27 4-1005................Afdichtring ..........................Scheibe.................................... Spændeskive.........................Rondella.......................................M10 .......................2
28 4-1003................Afdichtring ..........................Scheibe.................................... Spændeskive.........................Rondella.......................................M10 .......................2
29 30-0079..............Slang ..................................Schlauchstück.......................... Slange....................................Flessibile ..................................................................... 1
30 02.0.086.............Schroef ..............................Schraube.................................. Skrue .....................................Vite ...............................................M8 x 12..................1
31 3-7012................Klem ...................................Clip........................................... Klemme..................................Fermaglio .................................................................... 1
32 161-07700..........Hendelset ...........................Griffsatz.................................... Håndtagskit............................Kit Impugnatura...........................................................1

148
5
25
9
24
23
6
21
20 16
17
18
27
26
12
14
15 14
4
13
21
22
18
17
1411
10
2
9
3
6
5
8
1
19 19
20
1
5
14
13
4
12
16
7
16108001297
2
4-01
Pump Assembly, Pompa, Bomba, Conj. Bomba 4-01
1 03.0.033.............Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M5 X 8...................2
2 161.0.149...........Handle Head ......................Tête de poignée....................... Cabeza del asa...................... Punho do Manípulo ....................................................1
3 161.0.150...........Pinion Rack........................Crémaillère de pignon ............. Barra de piñones ................... Cremalheira de Pinhão...............................................1
4 161.0.151...........Pinion Shaft........................Axe de pignon.......................... Eje de piñón........................... Veio do Pinhão...........................................................1
5 03.0.031.............Plug ....................................Bougie ..................................... Tapón..................................... Bujão ...........................................M36 x 1.5...............1
6 161.0.158...........Gasket................................Joint ......................................... Junta...................................... Gaxeta........................................................................1
7 161.0.152...........Plate ...................................Plaque...................................... Plato....................................... Placa...........................................................................1
8 161.0.157...........Bush ...................................Douille...................................... Buje........................................ Bucha .........................................................................1
9 15.0.320.............Seal ...................................Joint d’étanchéité..................... Obturador............................... Vedação......................................M30 x 20 x 9..........1
10 15.0.321.............O-Ring ...............................Joint torique ............................. Junta tórica............................ Anel Vedante...............................M30 x 2..................1
11 15.0.322.............O-Ring ...............................Joint torique ............................. Junta tórica............................ Anel Vedante...............................M4 x 2....................1
12 15.0.323.............O-Ring ...............................Joint torique ............................. Junta tórica............................ Anel Vedante...............................M36.5 x 2.65..........1
13 15.0.324.............O-Ring ...............................Joint torique ............................. Junta tórica............................ Anel Vedante...............................M20 x 2.65.............2
14 05.3.077.............Washer...............................Rondelle................................... Arandela ................................ Anilha..........................................................................2
15 05.3.068.............Circlip .................................Circlip....................................... Resorte circular...................... Grampo circular..........................................................1
16 14.0.107.............Adaptor ..............................Adapteur .................................. Adaptador.............................. Adaptador....................................1/4”X1/4”................1
17 15.0.325.............Bonded Seal ......................Joint collé................................. Obturador aglomerado........... Vedação Unida............................1/4”........................1
18 161-07000..........Bracket ...............................Patte de montage..................... Escuadra................................ Suporte.......................................................................1
19 07.0.028.............Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M8 x 30..................4
20 4/8006................Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................M8 .........................4
21 4/8003................Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................M8 .........................4
22 8/6011................Nut......................................Ecrou........................................ Tuerca.................................... Porca...........................................M6 .........................2
23 50/000066..........Bush ...................................Douille...................................... Buje........................................ Bucha .........................................................................1
24 161/99643..........Pinion Rack ........................Crémaillère de pignon ............. Barra de piñones................... Cremalheira de Pinhão...............................................1
25 161-99637..........Handle Head ......................Tête de poignée....................... Cabeza del asa...................... Punho do Manípulo ....................................................1
26 5/0065................O-Ring ...............................Joint torique ............................. Junta tórica............................ Anel Vedante..............................................................1
27 161-99641..........Piston Guide.......................Guide de piston ....................... Guía de pistón ....................... Pino do Pistão ............................................................1

149
5
25
9
24
23
6
21
20 16
17
18
27
26
12
14
15 14
4
13
21
22
18
17
1411
10
2
9
3
6
5
8
1
19 19
20
1
5
14
13
4
12
16
7
16108001297
2
4-01
Pomp, Compleet, Pumpe, Kontrolpumpeenhed, Pompa 4-01
1 03.0.033.............Schroef ..............................Schraube.................................. Skrue ..................................... Vite ..............................................M5 X 8...................2
2 161.0.149...........Hendelkop ..........................Griffkopf ................................... Håndtagshoved...................... Impugnatura maniglia................................................. 1
3 161.0.150...........Rondsel en heugel .............Zahnstange.............................. Tandstang.............................. Cremagliera pignone..................................................1
4 161.0.151...........Pinion Shaft........................Axe de pignon.......................... Eje de piñón........................... Veio do Pinhão...........................................................1
5 03.0.031.............Plug....................................Verschlussschraube ................ Prop....................................... Candela.......................................M36 x 1.5...............1
6 161.0.158...........Tætningsring ......................Flachdichtung........................... Pakking.................................. Guarnizione ................................................................1
7 161.0.152...........Plaat ...................................Platte........................................ Plade...................................... Piastra ........................................................................1
8 161.0.157...........Bus .....................................Busche..................................... Bøsning.................................. Boccola.......................................................................1
9 15.0.320.............Afdichtring ..........................Dichtung................................... Tætning ................................. Tenuta .........................................M30 x 20 x 9..........1
10 15.0.321.............O-Ring ...............................O-Ring...................................... O-Ring ................................... O-Ring .........................................M30 x 2..................1
11 15.0.322.............O-Ring ...............................O-Ring...................................... O-Ring ................................... O-Ring .........................................M4 x 2....................1
12 15.0.323.............O-Ring ...............................O-Ring...................................... O-Ring ................................... O-Ring .........................................M36.5 x 2.65..........1
13 15.0.324.............O-Ring ...............................O-Ring...................................... O-Ring ................................... O-Ring .........................................M20 x 2.65.............2
14 05.3.077.............Afdichtring ..........................Scheibe.................................... Spændeskive......................... Rondella .....................................................................2
15 05.3.068.............Borgveer.............................Sprengring ............................... Låsering................................. Anello Elastico............................................................1
16 14.0.107.............Adaptor ..............................Adaptor .................................... Adaptor.................................. Adattatore....................................1/4”X1/4”................1
17 15.0.325.............Inlijmafdichting ...................Klebedichtung .......................... Klæbepakning........................ Tenuta Incollata...........................1/4”........................1
18 161-07000..........Steun..................................Halterung ................................. Beslag.................................... Staffe..........................................................................1
19 07.0.028.............Schroef ..............................Schraube.................................. Skrue ..................................... Vite ..............................................M8 x 30..................4
20 4/8006................Afdichtring ..........................Scheibe.................................... Spændeskive......................... Rondella ......................................M8 ......................... 4
21 4/8003................Afdichtring ..........................Scheibe.................................... Spændeskive......................... Rondella ......................................M8 ......................... 4
22 8/6011................Moer ...................................Mutter....................................... Møtrik..................................... Dado............................................M6 .........................2
23 50/000066..........Bus .....................................Busche..................................... Bøsning.................................. Boccola.......................................................................1
24 161/99643..........Rondsel en heugel .............Zahnstange.............................. Tandstang.............................. Cremagliera pignone..................................................1
25 161-99637..........Hendelkop ..........................Griffkopf ................................... Håndtagshoved...................... Impugnatura maniglia.................................................1
27 5/0065................O-Ring ...............................O-Ring...................................... O-Ring ................................... O-Ring ........................................................................1
28 161-99641..........Zuigergeleider ....................Kolbenzapfen........................... Stempelstyr............................ Guida del pistone........................................................1

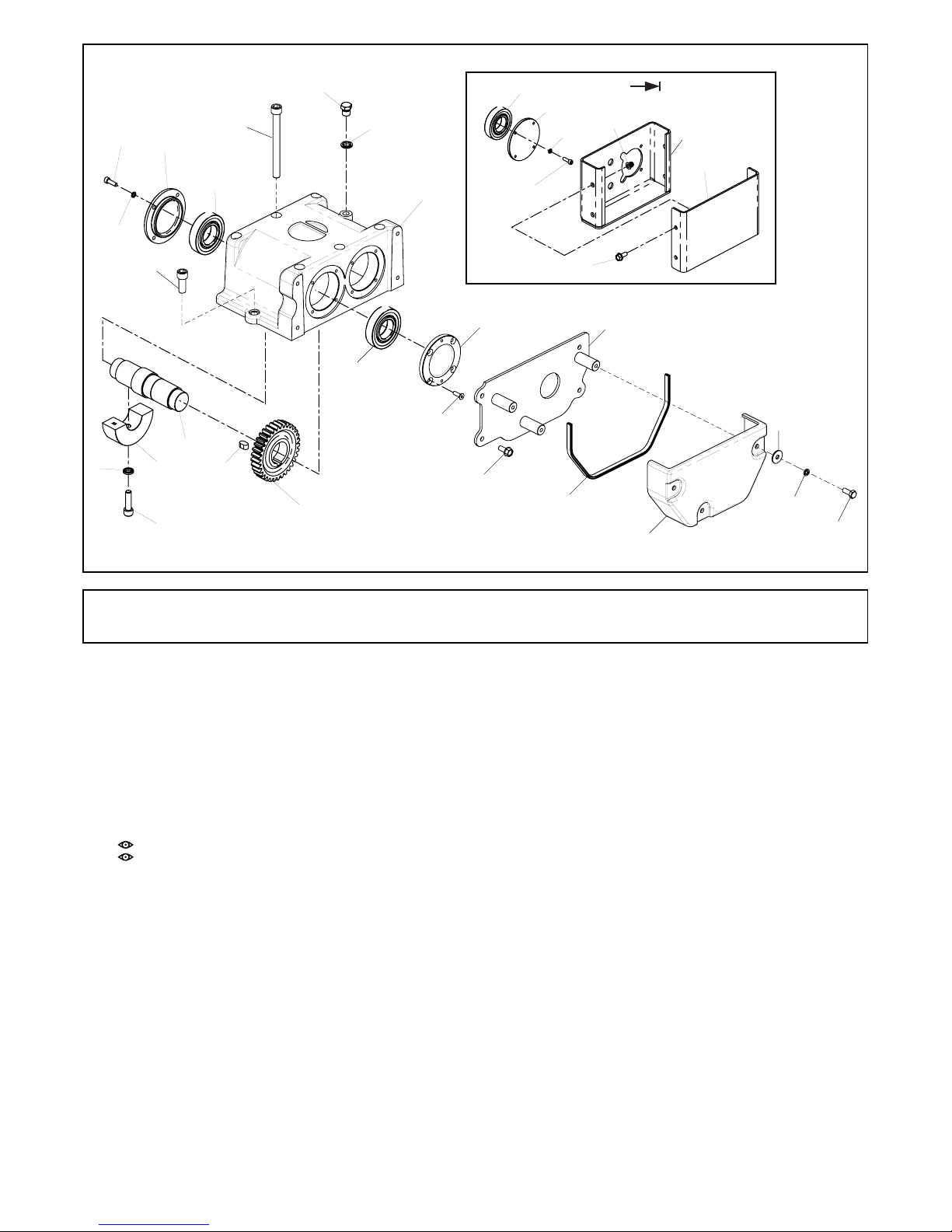

150
5-01
12
11
10
2
9
13
1
2
10
11
17
14
18
16
3
4
5
6
8
7
15
22
10
27
26
25
24
23
10
28
2
21
161000026418
20
19
Gearbox Assembly, Ensemble boîte de vitesses,
Conjunto de caja de engranajes, Conjunto da Caixa de Engrenagens 5-01
1 161-99514..........Gearbox Casing ................Carter de boîte de vitesses...... Envoltura de la transmisión ... Estojo da caixa de engrenagens.....................................1
2 12.1.160.............Bearing...............................Roulement................................ Cojinete.................................. Rolamanto.......................................................................4
3 161-99507..........Shaft...................................Axe........................................... Eje.......................................... Veio .................................................................................1
4 161-99509..........Weight 25...........................Poids 25................................... Peso 25.................................. Peso 25 ...........................................................................1
161-99517..........Weight 30...........................Poids 30................................... Peso 30.................................. Peso 30 ...........................................................................1
5 05.3.067 .............Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................M10 ............................4
6 7-1004................Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M10 x 35 ....................2
7 161-99510..........Gear ................................... Pignon...................................... Engranaje .............................. Engrenagen.....................................................................1
8 161-99512..........Key ....................................Clavette.................................... Chaveta ................................. Chave ..........................................M10 x 8 x 18...............1
9 14.0.108.............Plug ....................................Bougie ..................................... Tapón..................................... Bujão ...........................................1/4” .............................1
10 161-99504..........End Cover ..........................Carter d’extrémité .................... Tapa de fondo........................ Tampa de extremidade....................................................2
11 4-6005................Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................M6 ............................16
12 7-6040................Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M6 x 20.......................4
13 15.0.102.............Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................1/4”.............................2
14 01.5.036.............Nut......................................Ecrou........................................ Tuerca.................................... Porca...........................................M8 ..............................4
15 Item 29 ........Belt Guard ..........................Capot de courroie ....................Protector de la correa ........... Guarda da Cinta .............................................................1
16 Item 29 ........Cover..................................Couvercle................................. Cubierta................................. Tampa .............................................................................1
17 7-6041................Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M6 x 25.......................4
18 7-8037................Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M8 x 20.......................4
19 10-330-12130.....Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M12 x 130...................6
20 7-12023..............Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M12 x 30.....................2
21 161-99678..........End Cover ..........................Carter d’extrémité .................... Tapa de fondo........................ Tampa de extremidade....................................................1
22 161-10100..........Guard .................................Capot ....................................... Protector ............................... Guarda.............................................................................1
23 21.0.029.............Edging Strip........................Gaine Protection...................... Banda Protectora................... Fita de rebordo................................................................x
24 161-99676..........Belt Guard ..........................Capot de courroie ....................Protector de la correa ........... Guarda da Cinta..............................................................1
25 4-8004................Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................M8 ..............................3
26 4-8003................Washer...............................Rondelle................................... Arandela ................................ Anilha...........................................M8 ..............................3
27 7-8011................Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M8 x 20.......................3
28 7-6025................Screw ................................Vis............................................ Tornillo................................... Parafuso ......................................M6 x 20.......................4
29 161-10600..........Belt Guard Kit.....................Ensemble Capot de courroie ...Cto. Protector de la correa .... Conj. Guarda da Cinta.....................................................1
