BFS54DODF
Freestanding Double Oven with
Gas Cooktop
INSTRUCTION MANUAL
PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT.

2
CONTENTS
1. PRODUCT INSTALLER DETAILS 3
2. WARNINGS AND PRECAUTIONS
a. IMPORTANT INFORMATION / CONDITIONS OF USE 5
b. OTHER IMPORTANT SAFETY INFORMATION 6
c. WARNINGS FOR USE OF OVEN, AND APPLIANCE HOB 6
d. DISPOSAL OF PACKAGING 7
e. INSTALLATION, CLEANING AND SERVICING 7
3. OPERATION
a. PRODUCT DESCRIPTION 8
b. FRONT CONTROL PANELS 9
c. PREPARING YOUR PRODUCT FOR THE FIRST TIME 9
d. OVEN SAFETY WARNINGS 10
e. OVEN FUNCTIONS 11
f. OVEN TEMPERATURE 13
g. USING THE TOP OVEN/GRILL 13
h. USING THE PROGRAMMABLE CLOCK 14
i. COOKING GUIDE 16
j. USING THE HOTPLATES 17
4. FITTING OVEN ACCESSORIES AND CLEANING 18
5. HINTS AND TIPS / SOLVING PROBLEMS 21
6. INSTALLATION 23
7. TECHNICAL SPECIFICATIONS 31
8. WARRANTY 36

3
For future reference we suggest that you staple a copy of your purchase receipt here and complete the
below so the information is always at hand.
Product Details
Model number:
Description:
Serial number:
(Located on the product rating label)
Purchase Details
Date of purchase:
Place of purchase:
Store name:
Address:
Telephone:
Invoice / receipt number:
Installation Details
Electrical date of installation:
Electrician Installers Details: Company / Installers Name:
Licence Number:
Telephone Number:
Gas date of installation:
Gas installers details: Company / Installers Name:
Licence Number:
Telephone Number:
Plumbing date of installation:
Plumbers installers details: Company / Installers Name:
Licence Number:
Telephone Number:
PRODUCT / INSTALLER DETAILS

4
CONGRATULATIONS
Dear Customer,
Congratulations on the purchase of your new product from Belling.
We recommend you please take some time to read the instruction manual thoroughly to
familiarise yourself with the functionality and operations to ensure optimum performance of
your new appliance.
After reading the manual, please store it in a safe and accessible location for future reference.
Installation
The installation of your new appliance must be carried out by a qualified installer / technician in
accordance to local regulations.
Please ensure all packaging materials are disposed of correctly.
Customer Care
Our Customer Care centre is available should you wish to learn more about your appliance
in relation to how to use it to its best potential, or tips on cleaning as well as available
accessories. For further details please contact our Customer Care Team
Australia
1800 444 357 or email [email protected]
Thank you
Regards,
Belling Australia

5
IMPORTANT INFORMATION
CONDITIONS OF USE
This appliance is intended to be used for domestic use, not commercial use.
SAFETY PRECAUTIONS
• This appliance is not intended for use by persons (including children) with reduced
physical, sensoryor mental capabilities, or lack of experience and knowledge, unless
they have been given supervisionor instruction concerning use of the appliance by a
person responsible for their safety.
Warning – ensure that no downward pressure is applied to the oven door when open. in
particular,do not allow a child to climb on to open oven door.
Warning - accessible parts can become hot during use, especially the oven door. to avoid
burns,young children must be kept away.
• Young children should be supervised to ensure they do not play with this appliance.
• During use this appliance becomes hot. Care should be taken to avoid touching hot
external andinternal surfaces when in use. Use oven gloves.
• Install cooker, shelving and fittings in accordance with this Manual.
• Ensure all specified vents, openings and airspaces are not blocked.
• To ensure your safety all electric appliance should only be installed or service by
qualified staff. If thesupply cord is damaged, it must be replaced a service agent or
similarly qualified person in order toavoid a hazard.
• To ensure your safety all electric appliance should only be installed or service by
qualified staff. If thesupply cord is damaged, it must be replaced by the manufacture, its
service agent or similarlyqualified staff in order to avoid a hazard.
• Do not spray aerosols in the vicinity of this appliance while it is in operation.
• Do not store flammable materials in the appliance or near this appliance.
• Do not modify this appliance.
• Appliance must be installed according to current laws and regulations by qualified
tradesmen/Installers
The Manufacturers and Importers/Distributors and Retailers shall not be liable to
any legal liability, personal injury and property damage due to incorrect operation or
incorrect Installation.
WARNINGS & PRECAUTIONS

6
WARNINGS & PRECAUTIONS
OTHER IMPORTANT SAFETY INFORMATION
THIS APPLIANCE MUST NOT BE USED AS A SPACE HEATER.
DO NOT OBSTRUCT THE VENTILATION SLOTS ON FRONT OR BACK OF APPLIANCE.
DO NOT REMOVE ANY LABELS OR USE ABRASIVE/ CORROSIVE CLEANERS ON.
ACCORDING TO THE ELECTRICAL SAFETY REGULATIONS THE APPLIANCE EQUIPMENT
MUST BE PROPERLY EARTHED.
DO NOT USE CORROSIVE CLEANERS EG OVEN CLEANERS THAT CONTAIN
CAUSTIC SODA.
CAUTION: If this cooking range is to be connected to a new or upgraded electrical
installation, then it must be connected to the supply by a supply cord fitted with;
• an appropriately rated plug that is compatible with the socket-outlet fitted to the final
sub-circuit in the fixed wiring that supplies this cooking range; or
• an appropriately rated installation mal connector that is compatible with the installation
female connector fitted to the final sub-circuit in the fixed wiring that supplies this cooking
range.
Warnings for use of grill, oven, and appliance hob
Oven warnings
• DO NOT push down or apply any weight
on open oven door.
• DO NOT place dishes on open door of
oven.
• DO NOT line oven with foil or place
anything on the bottom of the oven while
baking to avoid permanent damage, as
trapped heat will crack or craze the enamel
floor of the oven cavity liner.
• Use of olive oil and other poly-unsaturated
oils (vegetable oils) when roasting
uncovered food causes deposits inside
the oven which are very difficult to remove.
Hotplate warnings
• Do not allow pots to boil dry, as damage to
hotplate may result.
• Do not operate burners without a pot, fry
pan etc.
• Do not allow cookware to overhang hob
onto adjacent bench tops, this will cause
scorching to the bench top surface.
• Ensure burner caps and crowns are in
their correct position to avoid damage to
these parts.

7
This symbol on the product or on its packaging indicates that this
product should not be treated as household waste. Instead it should
be handed over to the applicable collection point for the recycling of
electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local
city office, your household waste disposal service or the retailer who you purchased this
product from.
Installation, Cleaning and Servicing
• An authorized person must install this appliance. (Certificate of Compliance to be
retained).
• Before using the appliance, ensure that all packing materials are removed from the
appliance.
• In order to avoid any potential hazard, the Installation Instructions must be followed.
• In order to avoid accidental tipping of the appliance (for example, by a child climbing onto
the open oven door), the anti tilt plate must be installed.
• Where the appliance is installed next to cabinets, the cabinet material must be capable
of withstanding 85˚C.
• Only authorized personnel should carry out servicing (Certificate of Compliance to be
retained).
• Always ensure the appliance is switched off before cleaning.
• Do not use caustic soda- based cleaners.
• Do not use steam cleaners, as this may cause moisture build up.
• Always clean the appliance immediately after any food spillage.
• To be serviced only by an authorized person.
• Appliances requiring connection to 220-240V and must be earthed.
• Gas models are NOT APPROVED for installation in marine craft, caravans or mobile
homes.
Disposal of your old machine
WARNINGS & PRECAUTIONS

8

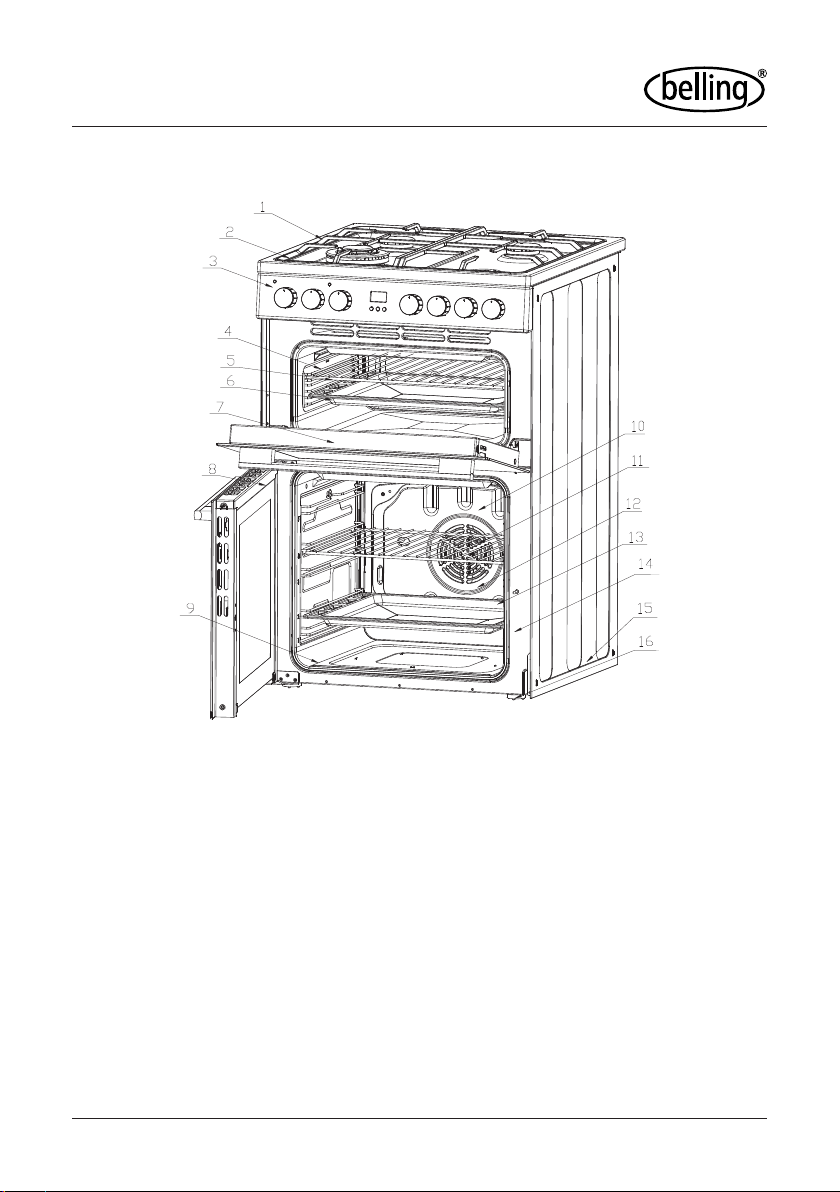

1. Hotplate burners
with removable caps x 4
2. Cast Iron Trivets
3. Control Panel
4. Guide Bracket
5. Shelf
6. Baking Tray
7. Top Oven Door
8. Bottom Oven Door
9. Oven Element (hidden under floor -
conventional models only)
10. Oven Element (hidden under floor -
conventional models only)
11. Oven Element
(fan forced models only)
12. Fan & Element Cover
(fan forced models only)
13. Door Seal
14. Drawer Panel
15. Anti-Tilt Panel
16. Anti-Slip Feet
OPERATION
Product Description

9
Preparing your product for the rst time
• Please wipe out the oven interior prior to operation with warm soapy water and polish dry
with a soft clean cloth.
• New appliances can have an odor during first operation. It is recommended to ‘run in’ your
oven before you cook for the first time. Run the oven at 180°C for 2-4 hours and ensure
that the room is well ventilated.
• Please install oven furniture as outlined in the “Fitting Oven Accessories and Cleaning”
section.
• Set the time on your oven in order for your oven to work.
• Your Belling oven is fitted with a 3 button programmable timer, you
must set the time of day before you can operate your appliance.
• After the appliance has been electrically connected “00.00” will be
displayed and the “ ” will flash.
• To set the time of day, press the “–” or“+” buttons. 15 seconds
after the last change, the “ ” will disappear, confirming the time
has been set.
Note: The clock has a 24-hour display

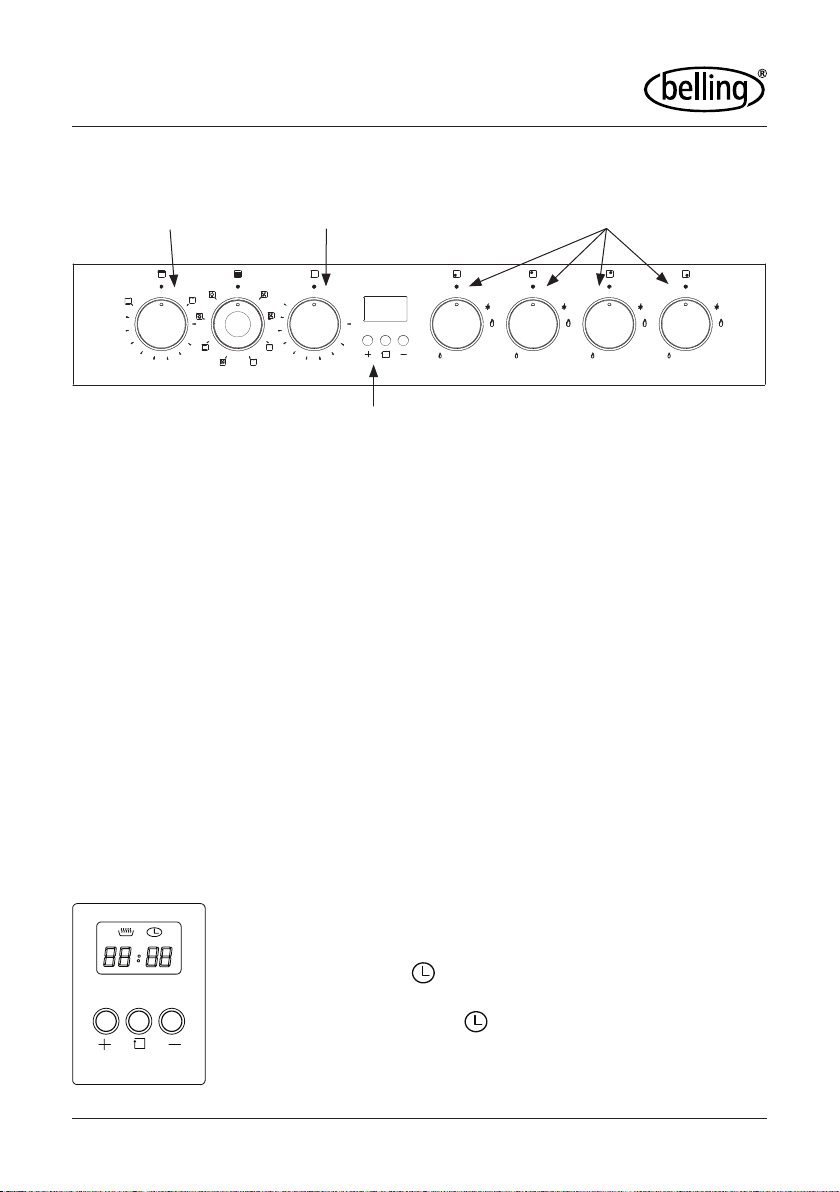

1. Function switch control knob
a. Sets the desired oven function
2. Oven temperature control knob
a. Sets oven temperature
3. Gas control knobs
a. ignites gas and adjusts individual temperature
4. 3 button programmable timer
a. Sets the clock
OPERATION
Front Control Panels
℃
BFS54SCCG
℃
BFS54DOCG
℃
BFS54SFDF
℃
BFS54DODF
MAX
220
200
180
160
140
120
80
60
100
MAX
220
200
180
160
140
120
80
100
1. Function switch control knob 2. Oven temperature control knob 3. Gas control knobs
4. 3 button programmable timer

10
OPERATION
Preparing your product for the rst time

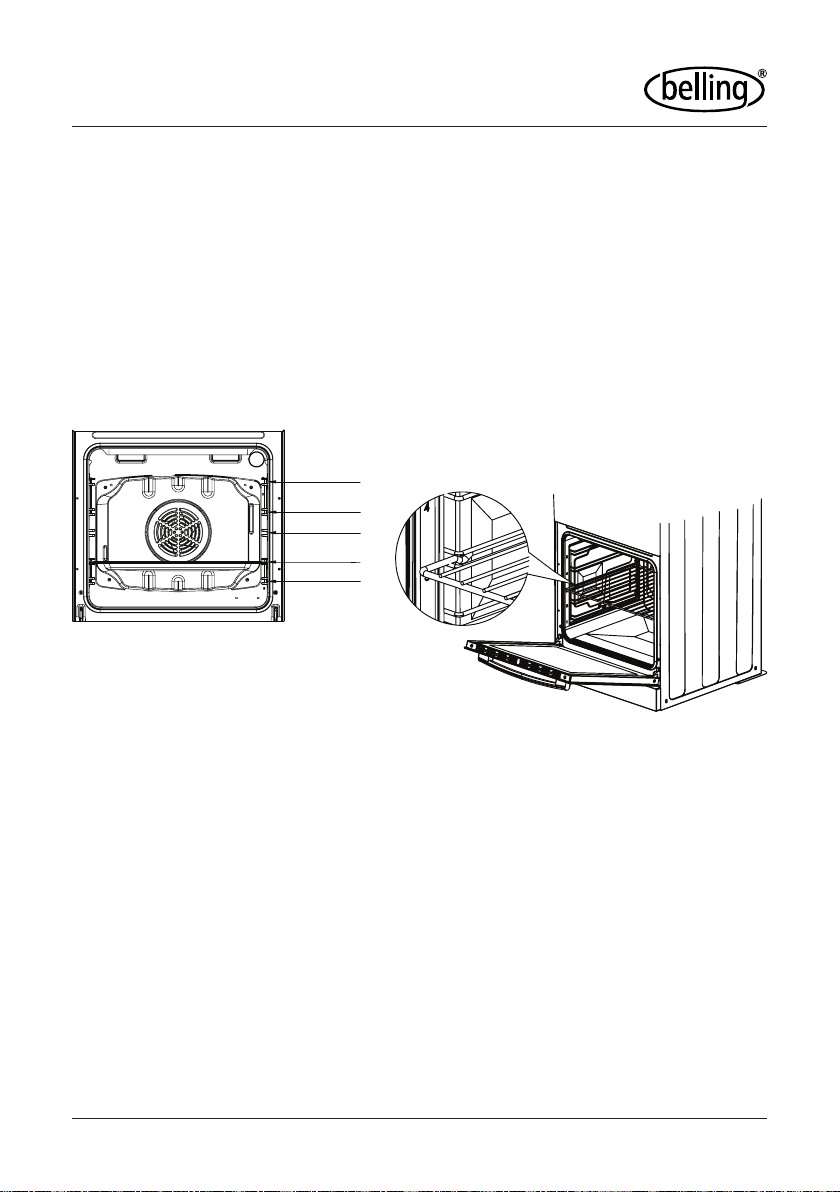

Oven shelf positions
• The main oven has 5 shelf positions
to choose from. Position 1 is the
position at the bottom of the oven
and position 5 is located at the
highest point of the oven.
• The 5 position side rack system
can house both the standard oven
shelves and baking tray.
Oven Safety Warnings
• Always follow the instructions for putting the shelves and side racks into the oven, to avoid
accidents.
• Do not line the oven with foil, it will damage the enamel.
• Do not place cookwares or anything else on the bottom of conventional oven model as
trapped heat will damage the oven.
• Do not touch the hot surfaces or heating elements inside the oven.
• Do not use the oven door as a shelf.
• Do not push down on the open oven door.
• Do not place shelves on top of upper most shelf runner as there are no stops for shelf
withdrawal.
Fitting oven shelves
• Ensure shelf orientation is correct (refer
picture).
• The shelf has a safety bar fitted to reduce
the risk of dishes sliding off the shelf, this is
the rear of the shelf.
• Slide into oven at an angle until raised back
of shelf is past the stop on side runners.
• Lower front of shelf and push in until stop
is reached.
Note: The top ledge is not a shelf position
Level 5
Level 4
Level 2
Level 3
Level 1

11
OPERATION

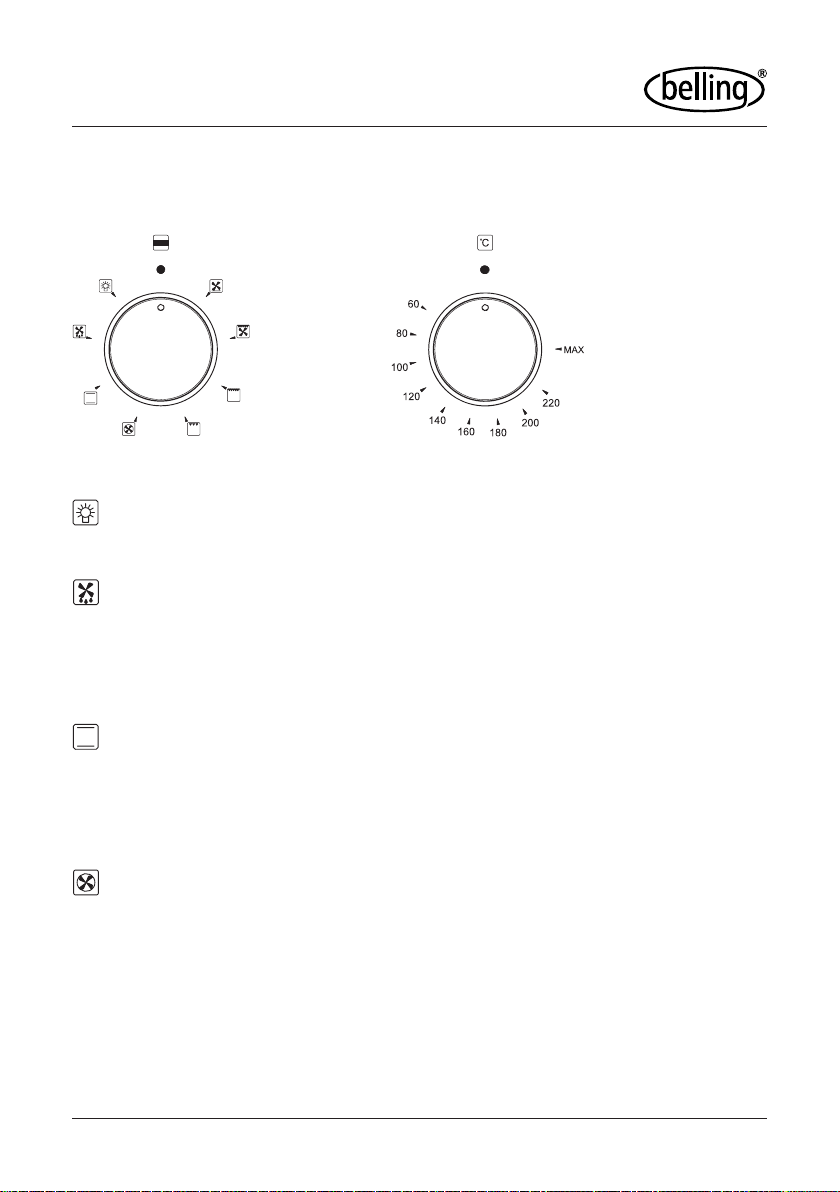

Using the Oven of your Electric Cooker
Set: 1) Oven Function 2) Temperature
Oven Light
Turns on only the oven light, the light remains on for all other functions.
Defrost
The fan starts operating. To use this function, take your frozen food and place it in the oven
on a shelf on the third slot from the bottom. It is recommended that you place an oven tray
under the defrosting food to catch the melting ice. This function will not cook or bake your
food, it will only help to defrost it.
Conventional Oven
The lower heating elements and upper heating elements will start operating. This function
emits heat, ensuring even cooking of the lower and upper food. This is ideal for making
pastries, cakes, baked pasta and lasagne. It is best to cook on one shelf at a time with this
function. It is recommended to pre-heat the oven for approximately 10 minutes.
Fan Forced
The ring heating element and fan will start operating. This function evenly disperses the heat
in the oven. All foods on racks will be cooked evenly. It is recommended to pre-heat the oven
for approximately 10 minutes.

12
Single Grill
The grill heating element will start operating. This function is ideal for grilling and toasting
foods, use the upper shelves of the oven. Lightly brush the wire grid with oil to stop foods
sticking and place foods in the centre of the grid. Always place a tray underneath to catch
any drips of oil and fat. It is recommended to pre-heat the oven for approximately
10 minutes.
When grilling, the oven door must be closed and the oven temperature should be
set to 190-200°C.
Dual Grill
The grill heating element and upper heating elements will start operating. This function is ideal
for faster grilling and for covering a larger surface area, such as grilling meats. Use the upper
shelves of the oven. Lightly brush the wire grid with oil to stop foods sticking. Always place a
tray underneath to catch any drips of oil and fat. It is recommended to pre-heat the oven for
approximately 10 minutes.
When grilling, the oven door must be closed and the oven temperature should be
set to 190-200°C.
Fan Grill
The grill heating element, upper heating elements and fan will start operating. This function
is ideal for faster grilling of thicker foods and for covering a larger surface area. The fan will
ensure even cooking. Use the upper shelves of the oven and place foods in the centre of the
grid. Lightly brush the wire grid with oil to stop foods sticking. Always place a tray underneath
to catch any drips of oil and fat. It is recommended to pre-heat the oven for approximately
10 minutes.
When grilling, the oven door must be closed and the oven temperature should be
set to 190-200°C.
Base Heat with Fan (Pizza)
The ring heating element, lower heating elements and fan will start operating. This function is
ideal for baking food evenly, such as pizza, in a short time. While the fan evenly disperses the
heat of the oven, the lower heating element ensures the cooking and crisping of the base of
the food.
OPERATION

13
OPERATION
Oven Temperature (Thermostat ) Knob
• Selection of cooking temperature is carried out by turning
the knob anti-clockwise to the required temperature,
between 60ºC to MAX.
• If the appliance is electric the “oven indicator lamp” will
come on when the oven is heating up. When it goes out it
means that it reaches the required temperature. The oven
indicator lamp going ‘on & off’ during use is then normal.
This means that oven temperature is being constantly
maintained at the selected level.
Using the Top Oven/Grill of your Electric Cooker
Oven/Grill Function
Grill mode
Select ‘Grill’ mode with cooking mode selection knob and turn
cooking temperature selection knob to ‘Max’. When set to Grill
mode, the top inner element operates. The extremely high and
direct temperature of the grill makes it possible to brown the
surface of meats and roasts while locking the juices in to keep
them tender. Grill mode can also be used for dishes that require
a high temperature on the surface such as beef steaks, veal,
ribsteak, filets, hamburgers, etc.
Grill food with the oven door closed (when not using fan).
Grill Safety Warnings
• Always turn off the grill immediately after you have finished cooking and pull drawer out
or remove grill tray otherwise fat left in the tray in the hot grill compartment will continue to
smoke or could catch fire.
• Wash grill tray & insert after every use.
• Grill insert rack can be inverted to provide 2 different settings for the distance from top of
food to the grill element.
• Do not line the grill rack with foil.
• Do not leave the grill unattended and check progress of cooking every 1 – 2 minutes
(especially bread).
• Do not try to grill place food more than 25mm thick. Food may catch fire.
• Do not store flammable materials near the grill.
℃
BFS54SCCG
℃
BFS54DOCG
℃
BFS54SFDF
℃
BFS54DODF
MAX
220
200
180
160
140
120
80
100

14
Using the Programmable Clock
1 Heating indication
2 Clock indication
3 Hour indication
4 Second indication
5 Minute indication
6 Up
7 Set
8 Down
Starting-up procedure
After power on, the screen will display
“00: 00 ” and “ ” clock indicator will be
on.
Time of day setting procedure
NOTE: Digital clock is displayed in
24 hour format
When “ ” clock indicator and hour
indication are flashing, press “ + ” up key
or “ – ” down key to select a number value
from (0-23) for the hour time, then press
“ ”set key to change to the minute
setting. Whilst flashing press ‘ + ‘ up key
or ‘ - “ down key to select a number value
from (0-59) for the minute time. The
“” clock indicator will remain flashing
for 15 seconds once the time is set and
neither of the “ + ” up key or “ – ” down
keys and pressed again whilst flashing.
OPERATION
Using the Top Oven/Grill of your Electric Cooker (cont)
Convection mode
When set to Convection mode, the top and bottom heating elements operate together like a
‘normal’ conventional oven that you have probably used before.
Convection mode is best suited for traditional baking and roasting and you should only
use one shelf at a time, otherwise the heat distribution will be uneven. You can balance the
amount of heat between the top and the bottom of the dish by selecting a different shelf
height. If you want more heat at the top of the dish place the dish on the top or second shelf.
For more heat at the bottom of the dish, place the dish on third or fourth shelf.

15
OPERATION
Duration timer setting procedure
Press “ ” selection button 3 times until “ ” heating indicator is flashing, then press “ + ”
up key or the “ – ” down key to select the cooking duration time in hours. Then press the
“ ” selection button to enter the cooking duration time in minutes setting.The “ ”
heating indicator will remain flashing for 15 seconds once the cooking duration time is set and
neither of the “ + ” up key or “ – ” down keys are pressed again whilst flashing.
Alternatively press the “ ” selection button and the oven will start cooking immediately.
If duration timer setting does need to exceed 59 minutes then initially the “ ” selection
button should be pressed 4 times instead of 3 to bypass the hour duration selection.
Audible ‘End of Cooking’ buzzer
The buzzer will sound for up 60 seconds at the end of the cooking time duration that has been
set has been reached. The “ 00: 00 ” display and “ ” heating indication will flash for this
period unless the “ ” selection button is pressed. The clock will return to the time of day
display when either of the above tow actions occur.
Remarks
• If you press “ + ” up key or “ – ” down key for more than 3 seconds, the value will change
quickly.
• When setting the Time of Day or Duration Timer the “ : ” does not blink although will blink
when in either either normal Time of Day mode or Duration Timer is displayed.

16
Cooking Guide
Dishes
Fan-forced Conventional
Thermostat
(°C)
Shelf
Position
Cook Time
(min)
Thermostat
(°C)
Shelf
Position
Cook Time
(min)
Layered Pastry 170 – 190 1, 2 or 3 35 – 45 170 – 190 1 or 2 35 – 45
Cake 150 – 170 1, 2 or 3 30 – 40 170 – 190 1 or 2 30 – 40
Cookie 150 – 170 1, 2 or 3 25 – 35 170 – 190 1 or 2 30 – 40
Grilled Meatballs
Watery Food 175 – 200 2 40 – 50 175 – 200 2 40 – 50
Chicken 200 1 or 2 45 – 60
Two-tray Cake 160 – 180 1 or 4 30 – 40
Two-tray Pastry 170 – 190 1 or 4 35 – 45
Dishes
Intensive Bake Grill
Thermostat
(°C)
Shelf
Position
Cook Time
(min)
Thermostat
(°C)
Shelf
Position
Cook Time
(min)
Layered Pastry 170 – 190 1 or 2 25 – 35
Cake 150 – 170 1, 2 or 3 25 – 35
Cookie 150 – 170 1, 2 or 3 25 – 35
Grilled Meatballs 200 4 10 – 15
Watery Food 175 – 200 2 40 – 50
Chicken 200 1 or 2 200 Cook with
skewer
50 – 60
Two-tray Cake 200 3 or 4 15 – 25
Two-tray Pastry 200 4 15 – 25
OPERATION

17
OPERATION
Using the hotplates of your cooker
The hot control knobs
The symbols on the control knobs mean the following
lNo gas flow
Maximum gas flow
Minimum gas flow
NOTE: All operating positions must be set between the maximum and minimum ow
settings, and never between the maximum setting and the closed position.
Gas Burner
A-Burner cap
B-Lighting plug
C-Thermocouple
D-Wok burner cap
Hotplate Ignition
To light these hotplates:
1. Choose the hotplate you want to use.
2. Press and turn the hotplate burner
control knob to “ ”.
3. Hold the control knob down to release the spark and light the gas flame.
Hotplate Conguration
1. Triple Ring Burner
i. Ideal for wok cooking and large pans
ii. Used for fast heating
2. Auxiliary Burner
i. Best suited for small saucepans and pans
ii. Simmering
3. Semi-Rapid
i. Mid sized pans and saucepans
To conserve gas, place the pan centrally over the burner and
adjust the flame so that it does not go past the edges of the cookware.
12
33
3 3
1 2
D
A
B
C
A
B
C
D
AA
B
B
C
C
D
A
B
C
A
B
C

18
FITTING ACCESSORIES & CLEANING
Safety Warning Regarding Cleaning
• Always make sure that the cooker is turned off before cleaning.
• Always clean cooker immediately after use.
• Do not use steam cleaners. These may cause moisture build-up.
• Do not use caustic- based cleaners. These will damage aluminums parts, and remove
enamel gloss.
Cleaning the Enamel
• Keep enamel clean by wiping it with a soft cloth dipped in warm soapy water.
• Rub difficult stains with a nylon scourer or creamed powder cleanser.
• Do not use abrasive cleaners, dry powder cleaners, steel wool or wax polishes.
• If you use an oven cleaner, then follow the instructions on the product carefully.
Cleaning the Control Panel
• Make sure control knobs are in off position.
• Clean the control panel by wiping it with a soft cloth dipped in warm soapy water and
squeezed dry.
Cleaning the Gas Hob

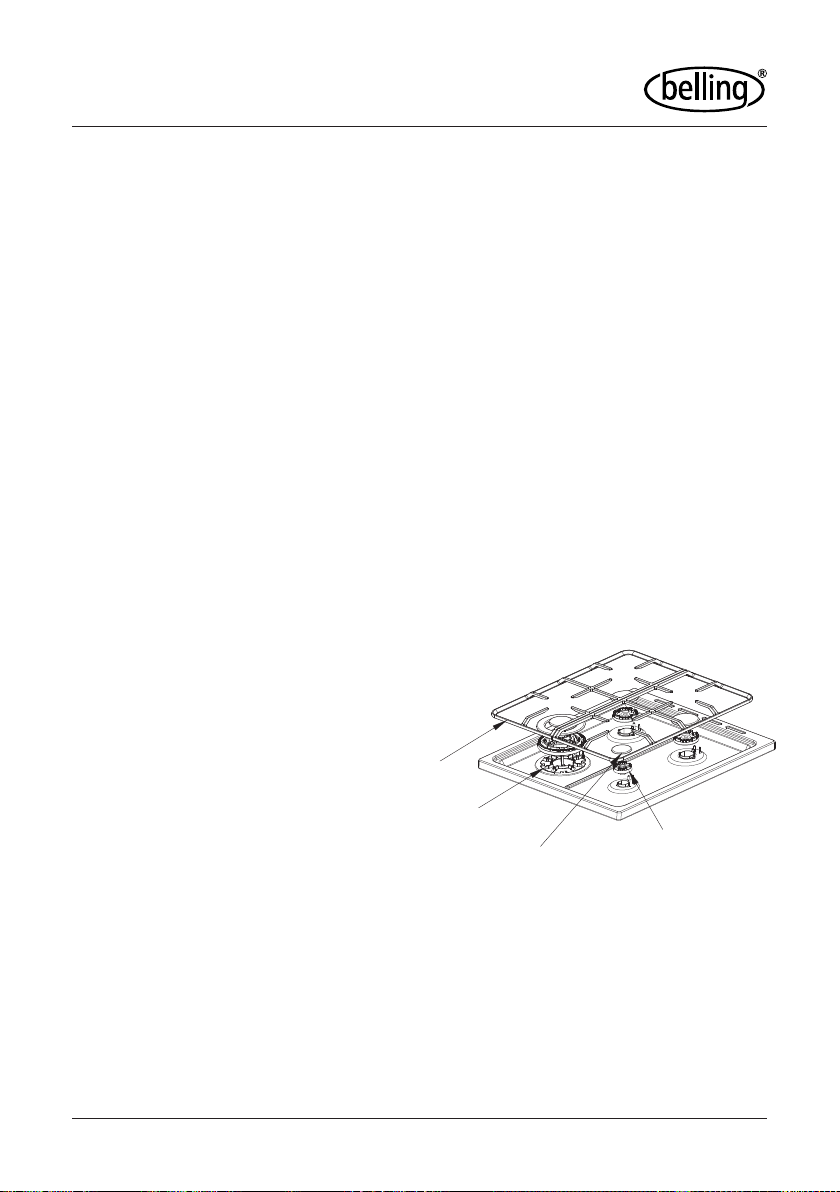

Removing the Trivets
• The trivets locate in the recessed area
of the hob.
• They can be removed for cleaning by
carefully lifting them from the hob.
• Clean by washing in warm soapy
water. Dry thoroughly.
• Take care when replacing the trivets
as dropping them onto the hob may
damage the enameled surface.
Cast iron pan
frame components
Burner base
The burmber
Figure 1
Cast iron pan
frame components
Burner base
Iron burner
cover
The burner cover
Figure 1

19
FITTING ACCESSORIES & CLEANING
Cleaning the Gas Hob (cont.)
Removing the burners
• The burner caps and crowns are removable for
cleaning.
• Flame port blockage should be removed by
means of a match stick or brush.
• If the caps, crowns and cups are heavily soiled,
use a non-abrasive cleaning compound.
• Do not clean them with abrasive or caustic
type cleaners, or put in a dishwasher as they
will be damaged.
Retting the Burner Crowns and Caps
• The burner crown must be fitted correctly into the burner cup or damage will occur during
operation.
• To do this, ensure that the 2 ribs on either side of the spark plug hole are positioned into the
2 slots on the burner cup. (See figure 2).
• The burner cap is simply positioned over the top of the burner crown.
Note: When the burner is correctly tted it will sit level on the hob. If ignition is
difcult or fails after cleaning, then either burner parts are not dry or parts have not
been positioned correctly.
Cleaning the Oven
• Open the door fully.
• Remove oven shelves and side racks.
• Clean in hot soapy water.
Cleaning the oven door / How to remove the oven doors
For a more thorough clean, you can remove and disassemble the oven door. Proceed as
follows:
Oven door structures 1 remove and assemble procedure:
• Open the door to the full extent (fig.1);
• Open the lever A completely on the left and right hinges (fig.2);
• Hold the door as shown in fig.3
• Gently close the door (fig.3)until left and right hinge levers A are hooked to part B of the door
(fig.4).
• Withdraw the hinge hooks from their location following arrow C (fig.4);
• Rest the door on a soft surface;
• To replace the door, repeat the above steps in reverse order.
Figure 2
Burner Cup
Flame Port
Spark Plug Hole
Burner Crown
Lighting plug
Thermocouple

20
FITTING ACCESSORIES & CLEANING
Removing the Inner Pane of Glass
• Double oven door: Remove the seal G by unscrew the no.2 bolts (fig.1)
• Gently pull out the inner pane of glass(fig.2)
• Clean the glass with an appropriate cleaner. Dry thoroughly, and place on a soft surface.
• Now you can also clean the inside of the outer glass.
Cleaning the door glass
• Clean the glass door using non-abrasive products or sponges and dry it with a soft cloth.
• Do not use the oven without the inner door glass fitted.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result in shattering of the glass.
Replacing the Oven Lamp
• Disconnect the oven from the power supply at the fuse-box by means of the switch used to
connect the appliance to the electrical mains; or unplug the appliance (gas)
• Remove the glass cover of the lamp-holder by rotating anti-clockwise
• Remove the lamp and replace with a lamp resistant to high temperatures (300˚C)with the
following characteristics:
• Voltage: 220-240V
• Wattage: 25W
• Type: E 14
Replace the glass cover. Reconnect the appliance to the mains power supply.
G
Fig.1 Fig.2
