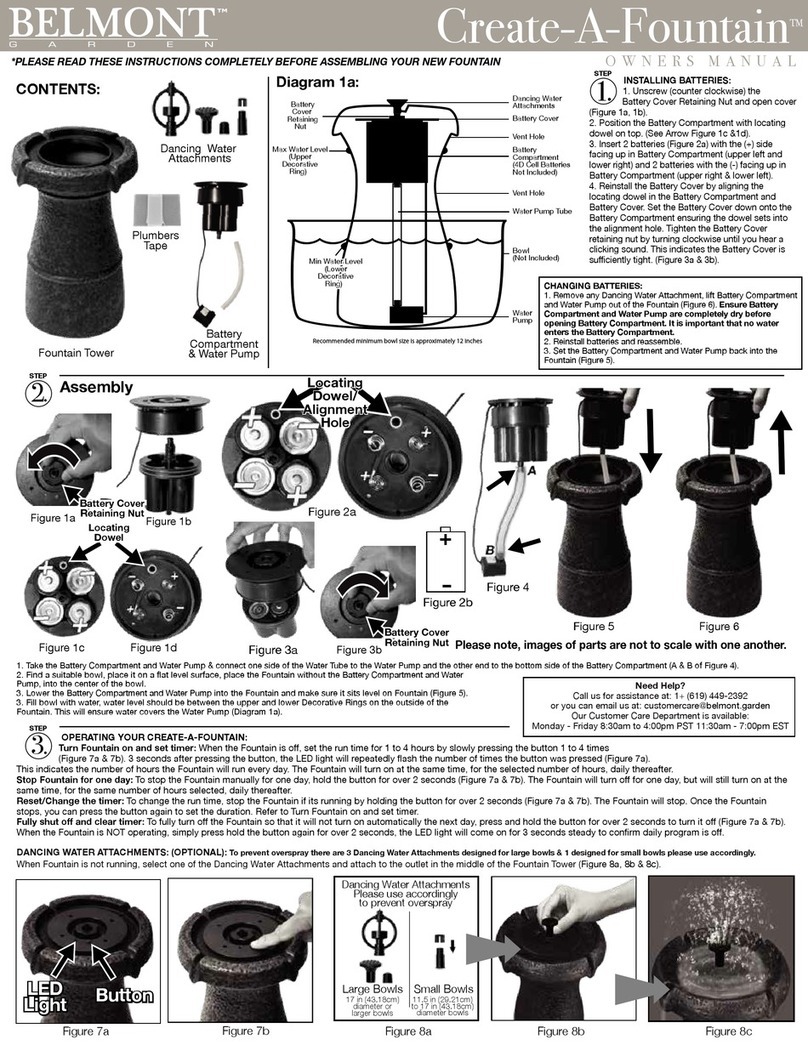

Belmont Garden Mini Create A Fountain User manual

Fountain
Base
Water
Tube
Dancing
Water
Attachment
Fountain Top With
Battery Compartment
& Water Pump
CONTENTS:
Assembly
Water
Pump
Battery
Compartment
(4 1.5v AA
Batteries
Not Included)
Water Pump
Tube
Max Water Level
(Upper
Decorative
Ring)
Battery
Compartment
Screws
x2
Start/Stop
Button
Locating Dowls
Alignment
Notch
Bowl
(Not Included)
Minimum
Water
Level
Fountain
Base
Fountain
Top
Dancing
Water
Attachments
Alignment
Notch In
Base
Recommended minimum bowl size
is approximately 6 inches
Diagram 1a:
OWNERS MANUAL
Mini Create A FountainTM
INSTALLING BATTERIES:
1. Lift Fountain Top with Battery Compartment & Water
Pump out of the Fountain Base (Figure 5). Disconnect
the Water Tube from the Battery Compartment.
2. Unscrew (counter clockwise) the Battery Compartment
Screws and open cover (Figure 1a, 1b).
3. Orient the Battery Compartment with locating dowel on top.
(See Arrow Figure 2a& 2b).
4. Insert 2-1.5v AA Batteries with the (+) side facing up in
Battery Compartment and 2 AA Batteries with the (-) facing up in
Battery Compartment (Figure 2a).
5. Reinstall the Fountain Top by aligning the locating dowel in
the Battery Compartment and Fountain Top. Set the Battery
Cover down onto the Battery Compartment ensuring the dowel
sets into the alignment hole. Tighten the Battery Cover Screw by
turning clockwise. NOTE: You may need to apply pressure to
the Battery Compartment Screws while tightening for the
threads to catch.
1. Take the Fountain Top/Battery Compartment and Water Pump, connect one side of the Water Tube to the Water Pump and the other end to the bottom side of the
Battery Compartment (A & B of Figure 4).
2. Find a suitable bowl and place it on a flat, level surface and place the Fountain Base, without the Fountain Top with Battery Compartment and Water Pump, into
the center of the bowl.
3. Lower the Fountain Top with Battery Compartment and Water Pump into the Fountain Base. There are two locating dowels and two alignment notches that help
you align the Fountain Top to the Fountain Base. Fit these into place and press to Fountain Top and Base together to secure(Figure 6).
4. Fill bowl with water, water level should cover the Water Pump (Diagram 1a).
OPERATING YOUR FOUNTAIN TOWER:
Turn On Fountain: When the Fountain is off, press the button to turn on (Figure 7a & b). The fountain will run for one hour and automatically turn off.
Stop Fountain: To stop the Fountain press the button to turn off.
DANCING WATER ATTACHMENT (OPTIONAL): When Fountain is not running, attach the Dancing Water Attachment and attach to the outlet in the middle of the
Fountain Tower (Figure 8a, 8b and 8c). To prevent overspray, use a larger bowl.
*PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE ATTEMPTING TO ASSEMBLE YOUR NEW FOUNTAIN
Figure 6
Figure 5
Figure 1b
Figure 1a
Figure 3b
Figure 2b
Figure 4
A
B
Figure 3a
Figure 2b
STEP
2.
STEP
3.
STEP
Figure 2a
CHANGING BATTERIES:
1. Remove any Dancing Water Attachment, lift Battery
Compartment and Water Pump out of the Fountain (Figure 5),
ensure Battery Compartment and Water Pump are completely
dry before opening Battery Compartment. It is important that
no water enters the Battery Compartment.
2. See Installing Batteries Section above on how to reinstall
batteries and reassemble.
3. Set the Battery Compartment and Water Pump back into the
Fountain (Figure 6).
Figure 7b
Figure 7a
ButtonButton
Need Help?
Call us for assistance at:
[phone]
or you can email us at:
customercare@
belmont.garden
For video tutorials visit:
belmont.garden/support
Our Customer Care Department is available:
Monday - Friday 8:30am to 4:00pm PST
11:30am - 7:00pm EST
Locating
Dowel
Locating
Dowel
Alignment
Notch in
Battery
Housing
Alignment
Notch in
Fountain
Top
Alignment
Notch in
Battery
Housing
Alignment
Notch in
Battery
Housing
Alignment
Notch in
Fountain
Top
Battery Compartment
Retaining Screws X2
Battery Compartment
Retaining Screws X2
Battery Cover
Retaining Nut
Battery Cover
O-Ring
Battery Cover
Retaining Nut
Battery Cover
O-Ring
Battery Cover
O-Ring
Dancing Water Attachment
Figure 8a Figure 8b Figure 8c
Note: Minimum bowl size is 6 in. It is
recommended that the Dancing
Water Attachment be used outdoors.
To prevent over spray use a larger bowl.
Please note, images of parts
are not to scale with one another.
Battery Cover
O-Ring

Troubleshooting Troubleshooting Guide
OWNERS MANUAL
4.
STEP
Care and Maintenance
5.
STEP
001178 BGPFI rev 1c us
Made in China | Designed in the USA
IMPORTANT BATTERY SAFETY INSTRUCTIONS:
This product can expose you to chemicals including lead and lead Compounds which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov
WARNING: When using electric devices, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury, including the following:
WARNING: 1. Do not incinerate the battery even if it is severely damaged or is completely worn out. The battery can explode in a fire. Check with municipal codes in your area for possible special disposal
instructions.
2. If liquid leaks from the battery cell, discontinue use immediately and dispose of properly.
3. Use only 4-1.5V AA Cell Batteries.
4. Do not attempt to disassemble, remodel or destroy the batteries, as it may cause battery leakage, fire, or bursting; and could also create sulfuric acid spills from the battery resulting in possible burns to
person and damage to the immediate environment.
5. Never dispose of batteries in the garbage. Disposal of batteries in the garbage is unlawful under state and federal environmental laws and regulations. Always take used batteries to your local battery-re-
cycling center.
Step 1 Step 2 Step 3 Step 4
CLEANING YOUR FOUNTAIN
In order to keep your Fountain in tip-top shape and for a prolonged life, it is best if your Fountain and the bowl or water container that the Fountain is placed in are cleaned periodically. To clean your
fountain, drain of all water and disassemble. Use a mild soap and a soft cloth to clean the parts of your Fountain.
COLD STORAGE
Turn power off, remove from container, clean and dry the Fountain of all water. Remove the batteries for long term storage and bring it indoors. (Now is a great time to clean the pump to remove any
debris that may have accumulated throughout the year).
CLEANING THE WATER PUMP’S PARTS
The impeller inside of the Water Pump is what pushes water up through your Fountain, allowing you to enjoy the soothing sounds and wonderful sights of your Fountain. After long periods of usage, this
part will need to be cleaned to make sure your Fountain runs optimally.
Step 1: Remove the front panel of the Water Pump by grabbing the sides of the front panel and pulling it off the unit.
Step 2: Remove the impeller chamber cover. This is tightly fitted but will come off.
Step 3: Remove the impeller from its chamber.
Step 4: Rinse the impeller until all debris has been removed.
Step 5: Re assemble in reverse order.
PRIMING THE WATER PUMP
If you find the Water Pump is running, but water is not
flowing from your Fountain, you can try priming the Water
Pump:
Turn off Fountain, grab both sides of the Fountain and
quickly shake your Fountain for ten seconds. This is to
dislodge any air bubbles that may be caught in your Water
Pump. Press the button to turn on your Fountain. Water
should be flowing from the top of your Fountain. If water is
not flowing, press and hold button for over 2 seconds
again to turn off your Fountain, and repeat the step above.
WATER PUMP CONNECTION
If your Water Pump becomes disconnected from the Water
Tube inside of the Fountain or if the Water Tube gets
disconnected from the Battery Compartment, go to the
Assembly Section to reconnect the Water Pump.
