Oase PondJet Eco User manual

PondJet Eco

- -
2
A
PJT0001
B
PJT0006

- -
3
C
PJT0008

- -
4
D
PJT0009
E F
PJT0004 PJT0005

- -
5
G
PJT0002
H
PJT0003
I
PJT0012

- -
6
J
K
PJT0010 PJT0011

- EN -
13
- EN -

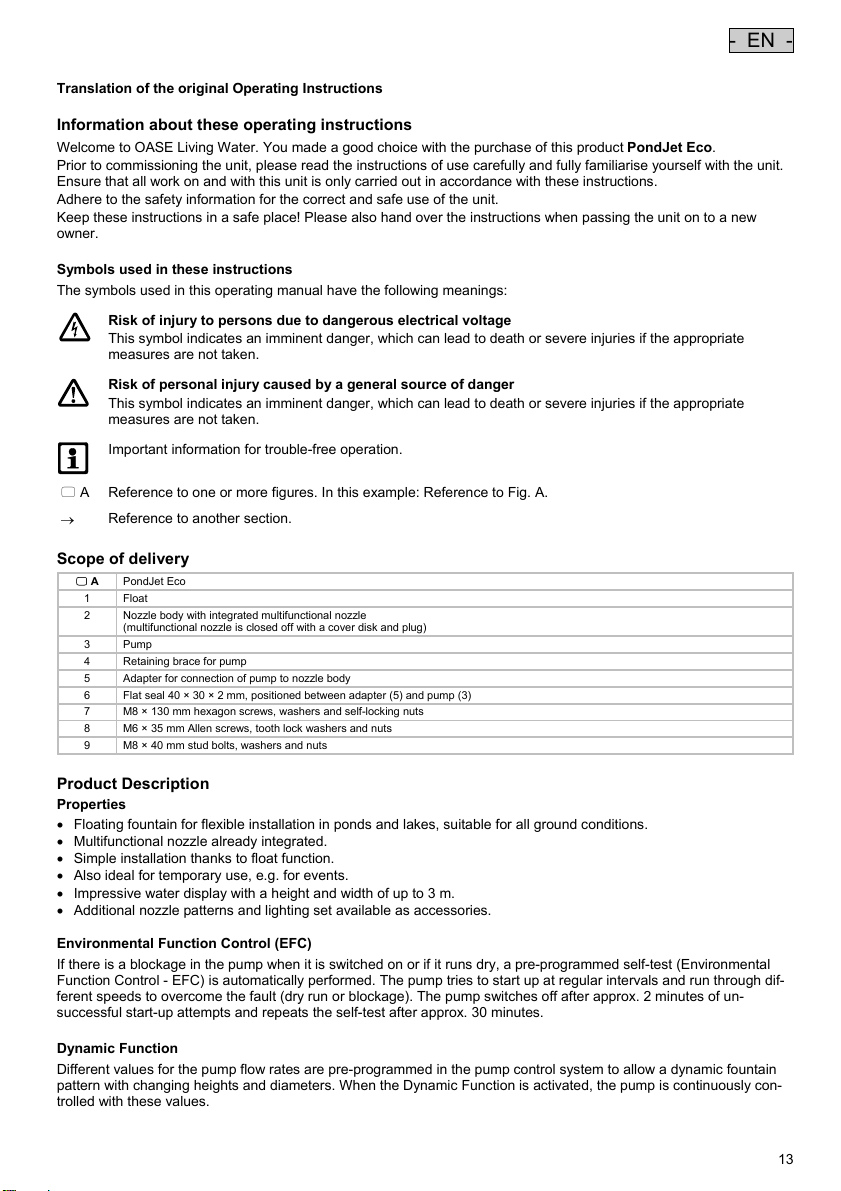

Translation of the original Operating Instructions
Information about these operating instructions
Welcome to OASE Living Water. You made a good choice with the purchase of this product PondJet Eco.
Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit.
Ensure that all work on and with this unit is only carried out in accordance with these instructions.
Adhere to the safety information for the correct and safe use of the unit.
Keep these instructions in a safe place! Please also hand over the instructions when passing the unit on to a new
owner.
Symbols used in these instructions
GB
The symbols used in this operating manual have the following meanings:
Risk of injury to persons due to dangerous electrical voltage
This symbol indicates an imminent danger, which can lead to death or severe injuries if the appropriate
measures are not taken.
Risk of personal injury caused by a general source of danger
This symbol indicates an imminent danger, which can lead to death or severe injuries if the appropriate
measures are not taken.
Important information for trouble-free operation.
A Reference to one or more figures. In this example: Reference to Fig. A.
Reference to another section.

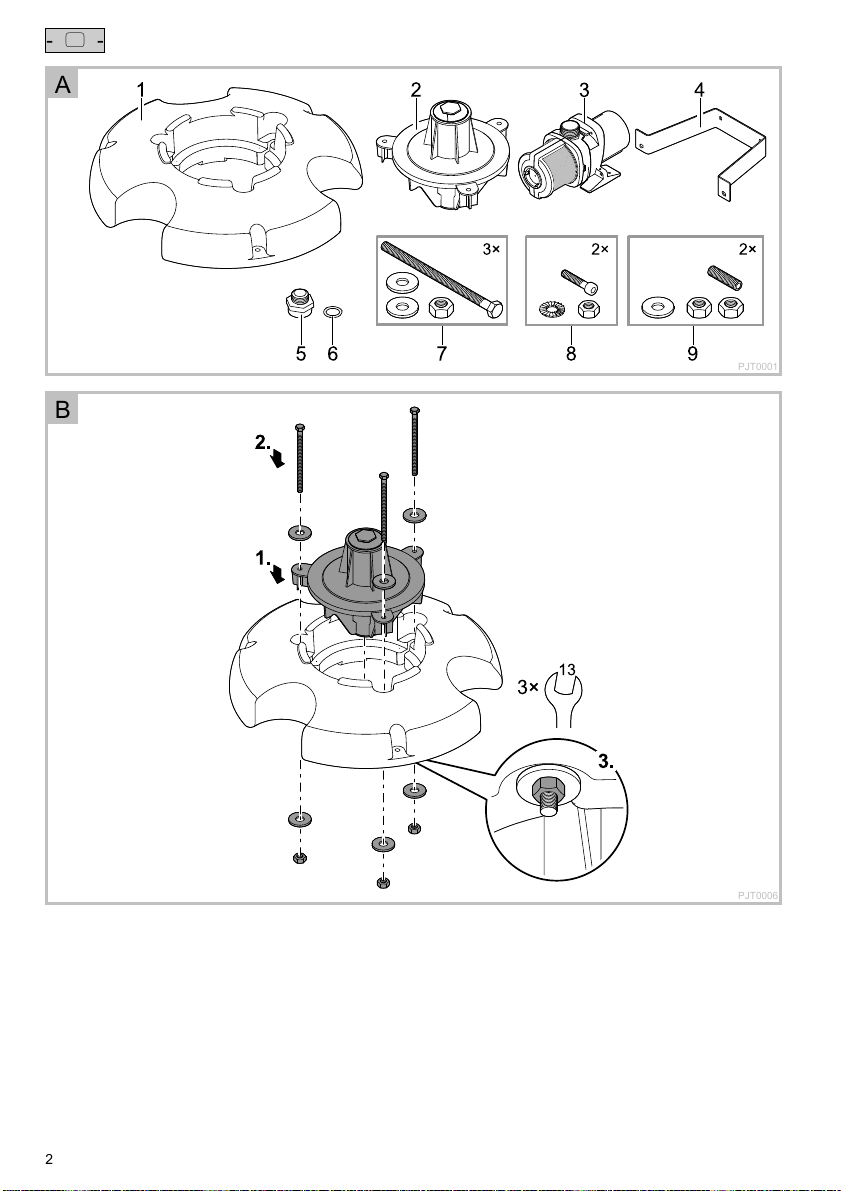

Scope of delivery

A
PondJet Eco
1 Float
2 Nozzle body with integrated multifunctional nozzle
(multifunctional nozzle is closed off with a cover disk and plug)
3 Pump
4 Retaining brace for pump
5 Adapter for connection of pump to nozzle body
6 Flat seal 40 × 30 × 2 mm, positioned between adapter (5) and pump (3)
7 M8 × 130 mm hexagon screws, washers and self-locking nuts
8 M6 × 35 mm Allen screws, tooth lock washers and nuts
9 M8 × 40 mm stud bolts, washers and nuts
Product Description
Properties
Floating fountain for flexible installation in ponds and lakes, suitable for all ground conditions.
Multifunctional nozzle already integrated.
Simple installation thanks to float function.
Also ideal for temporary use, e.g. for events.
Impressive water display with a height and width of up to 3 m.
Additional nozzle patterns and lighting set available as accessories.
Environmental Function Control (EFC)
If there is a blockage in the pump when it is switched on or if it runs dry, a pre-programmed self-test (Environmental
Function Control - EFC) is automatically performed. The pump tries to start up at regular intervals and run through dif-
ferent speeds to overcome the fault (dry run or blockage). The pump switches off after approx. 2 minutes of un-
successful start-up attempts and repeats the self-test after approx. 30 minutes.
Dynamic Function
Different values for the pump flow rates are pre-programmed in the pump control system to allow a dynamic fountain
pattern with changing heights and diameters. When the Dynamic Function is activated, the pump is continuously con-
trolled with these values.

- EN -
14

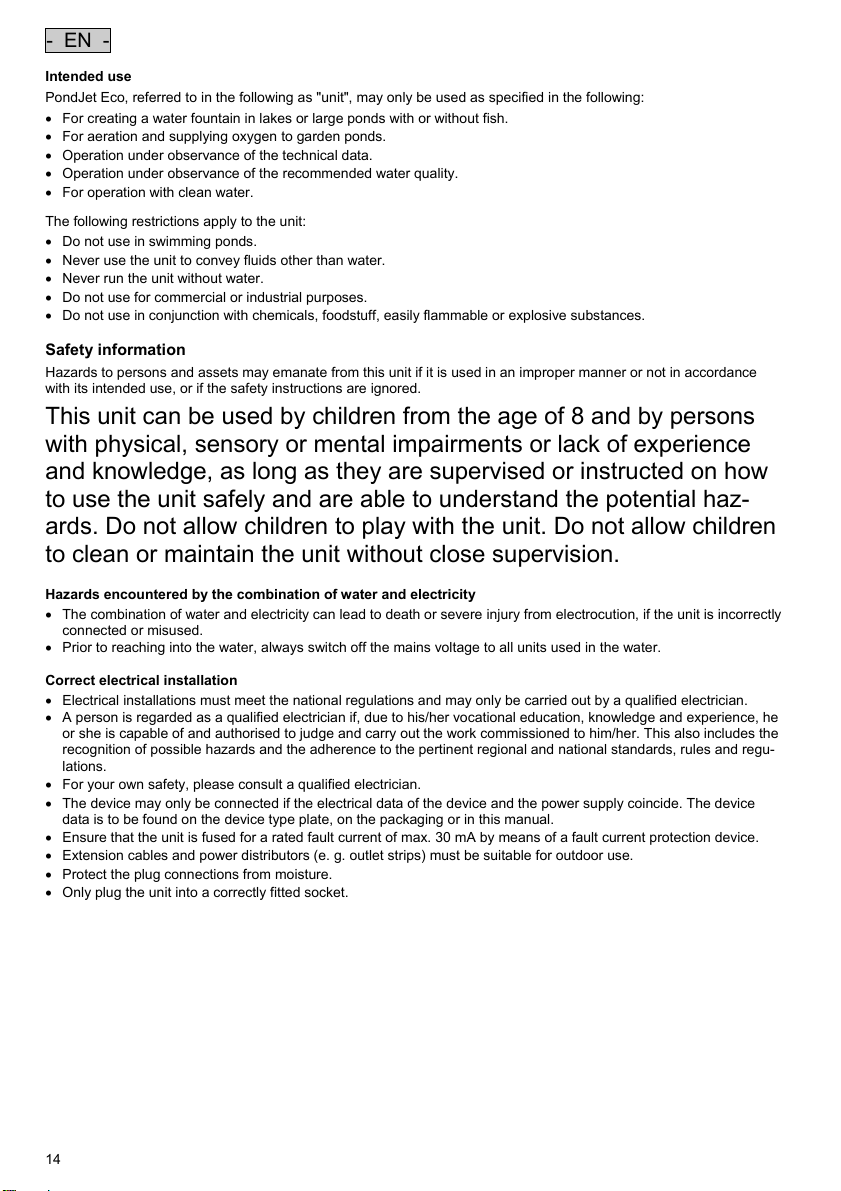

Intended use
PondJet Eco, referred to in the following as "unit", may only be used as specified in the following:
For creating a water fountain in lakes or large ponds with or without fish.
For aeration and supplying oxygen to garden ponds.
Operation under observance of the technical data.

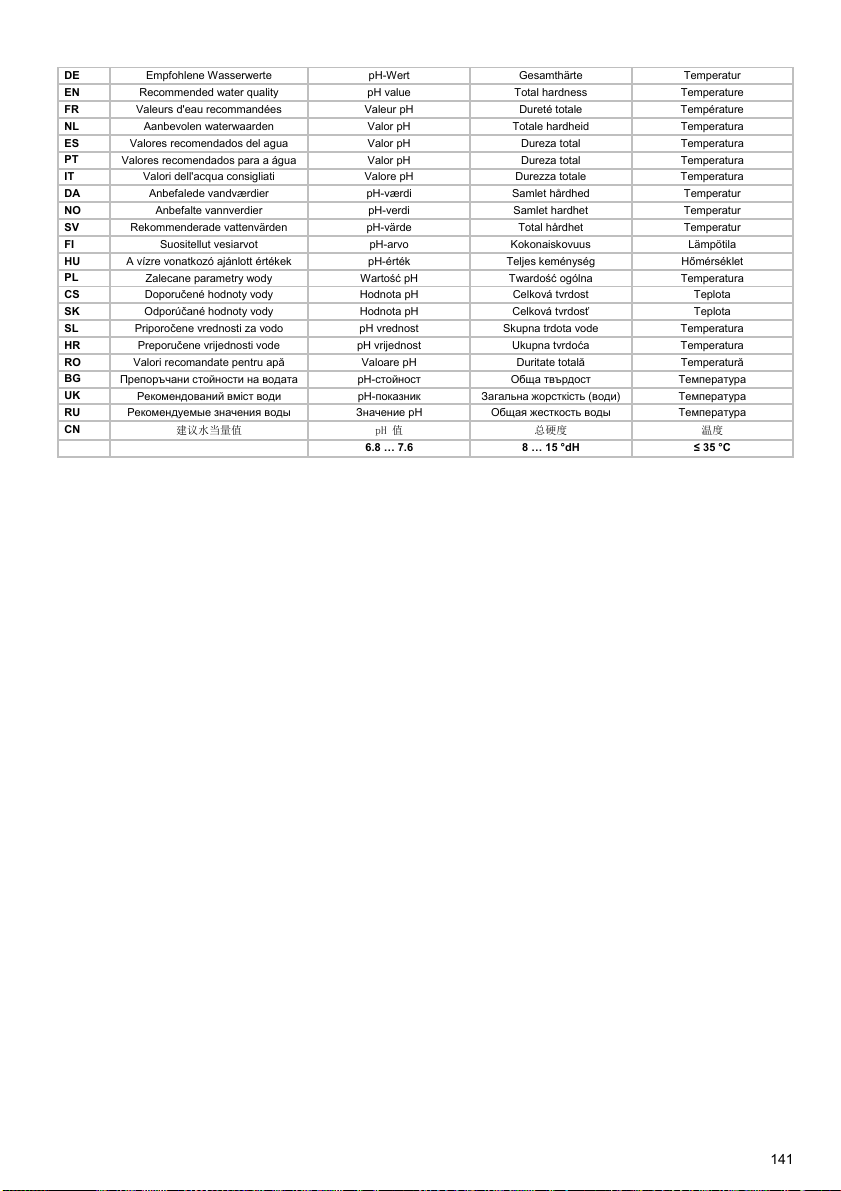

Operation under observance of the recommended water quality.
For operation with clean water.
The following restrictions apply to the unit:
Do not use in swimming ponds.
Never use the unit to convey fluids other than water.
Never run the unit without water.
Do not use for commercial or industrial purposes.
Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.
Safety information
Hazards to persons and assets may emanate from this unit if it is used in an improper manner or not in accordance
with its intended use, or if the safety instructions are ignored.
This unit can be used by children from the age of 8 and by persons
with physical, sensory or mental impairments or lack of experience
and knowledge, as long as they are supervised or instructed on how
to use the unit safely and are able to understand the potential haz-
ards. Do not allow children to play with the unit. Do not allow children
to clean or maintain the unit without close supervision.
Hazards encountered by the combination of water and electricity
The combination of water and electricity can lead to death or severe injury from electrocution, if the unit is incorrectly
connected or misused.
Prior to reaching into the water, always switch off the mains voltage to all units used in the water.
Correct electrical installation
Electrical installations must meet the national regulations and may only be carried out by a qualified electrician.
A person is regarded as a qualified electrician if, due to his/her vocational education, knowledge and experience, he
or she is capable of and authorised to judge and carry out the work commissioned to him/her. This also includes the
recognition of possible hazards and the adherence to the pertinent regional and national standards, rules and regu-
lations.
For your own safety, please consult a qualified electrician.
The device may only be connected if the electrical data of the device and the power supply coincide. The device
data is to be found on the device type plate, on the packaging or in this manual.
Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protection device.
Extension cables and power distributors (e. g. outlet strips) must be suitable for outdoor use.
Protect the plug connections from moisture.
Only plug the unit into a correctly fitted socket.

- EN -
15
Safe operation
The impeller unit in the pump contains a magnet with a strong magnetic field that may affect the operation of pace-
makers or implantable cardioverter defibrillators (ICDs). Always keep magnets at least 20 cm away from implanted
devices.
Never operate the unit if either the electrical cables or the housing are defective!
Do not carry or pull the unit by its electrical cable.
Route cords/hoses/lines in a way that they are protected against damage, and ensure that they do not present a
tripping obstacle.
Only open the unit housing or its attendant components, when this is explicitly required in the operating instructions.
Only execute work on the unit that is described in this manual. If problems cannot be overcome, please contact an
authorised customer service point or, when in doubt, the manufacturer.
Only use original spare parts and accessories for the unit.
Never carry out technical modifications to the unit.
The power connection cables cannot be replaced. When the cable is damaged, the unit or the component needs to
be disposed of.
Only operate the unit if no persons are in the water!
Installation
The unit must be completely assembled before it can be placed in the pond. Individual assembly steps:
Fitting the nozzle body
Fitting the pump
Fitting the nozzle
Fitting the nozzle body
How to proceed:
B
Insert the nozzle body into the float.
Insert the screws with washers through the holes in the nozzle body.
– Ensure that the screws protrude from the bottom of the float.
Screw the self-locking nuts with washers onto the screws and tighten.
– Only tighten the screws until the nozzle body is fixed without play (do not overtighten).
Fitting the pump
How to proceed:
C
Screw the reduction element onto the pump outlet up to the stop.
Screw the pump and reduction element with flat seal onto the inlet of the nozzle body and hand tighten.
Align the pump.
– Ensure that the filter basket of the pump is in line with one of the three recesses in the float.
– Do not turn the pump too far in order to avoid damage.
– Turn the pump back, if necessary, to the previous recess.
Screw the stud bolts into the two threaded holes on the right and left next to the pump and tighten.
– Select the centre of the three threaded holes on both sides.
Screw the nuts onto the stud bolts up to the stop.
– The nuts serve as a support for the retaining brace.
Fit the retaining brace.
D
Insert the Allen screws through the base of the pump and through the retaining brace, screw on the nuts together with
tooth lock washer and tighten.
Turn the nuts on the stud bolts up as far as the retaining brace.
Screw the nuts with washer onto the stud bolts and tighten.

- EN -
16
Fitting the nozzle
Multifunctional nozzle
How to proceed:
E
Unscrew the plug and remove together with the cover disk and both O-rings.
Screw in the plug with O-ring and tighten.
– The outlets of the multifunctional nozzle are now uncovered.
Optional nozzle
Connection: 25 mm (1 ")
How to proceed:
F
Unscrew the plug with O-ring and remove.
Screw in the optional nozzle with O-ring and tighten.
– The nozzle is now ready for use and the outlets of the multifunctional nozzle are closed off.
Installation
Attention! Dangerous electrical voltage.
Possible consequences: Death or severe injury.
Protective measures:
Electrical units and installations with a rated voltage of U > 12 V AC or U >30 V DC located in the water:
Isolate the units and installations (switch off and disconnect from the power supply) before reaching into
the water.
Isolate the unit before starting any work.
Secure the unit to prevent unintentional switching on.
Attention! Dangerous electrical voltage.
Possible consequences: Death or serious injuries due to operation of this unit in a swimming pond.
Protective measures:
Do NOT use this unit in a swimming pond.
Adhere to national and regional regulations.

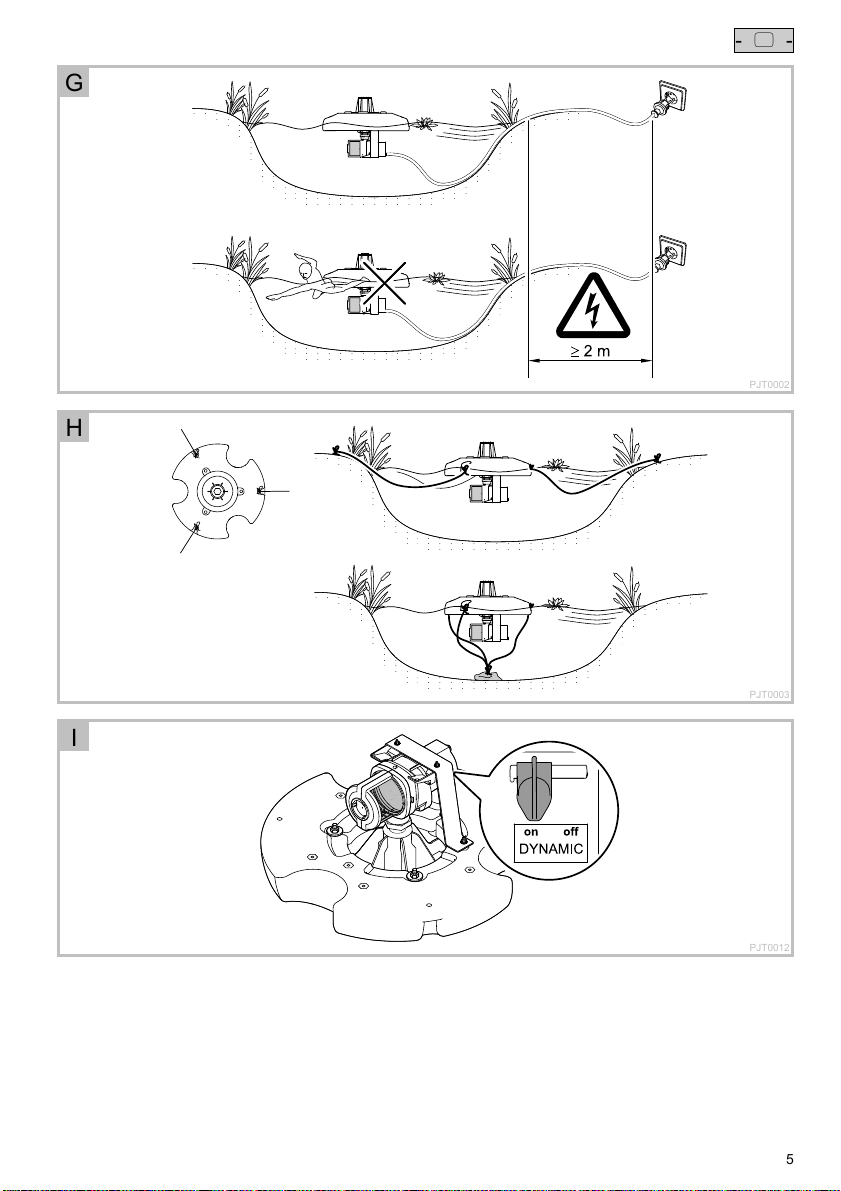

G, H
The unit floats on the water and therefore has to be moored to the edge or base of the pond (e.g. with nylon ropes).
Necessary minimum depth of water: 0.5 m
Mooring to the edge of the pond
Attach the ends of the nylon ropes to the three holes in the float.
Position the unit in the water and attach the other ends of the nylon ropes to the edge of the pond, ensuring that
they are uniformly distributed around the edge of the pond.
Only moderately tension the nylon ropes to allow for fluctuations in the water level.
If the nylon ropes present a hazard, secure the entire area around the unit.
The connection cable must be provided with strain relief.
Mooring to the bottom of the pond
Determine the depth of the water and cut three nylon ropes to length (depth of the water plus 1 m).
Attach the ends of the nylon ropes to the three holes in the float.
Attach the other ends of the nylon ropes to a weight (approx. 20 kg).
Position the unit in the water and lower the weight to the bottom of the pond.
Ensure that the nylon ropes are not tensioned in order to allow for fluctuations in the water level.
The connection cable must be provided with strain relief.

- EN -
17

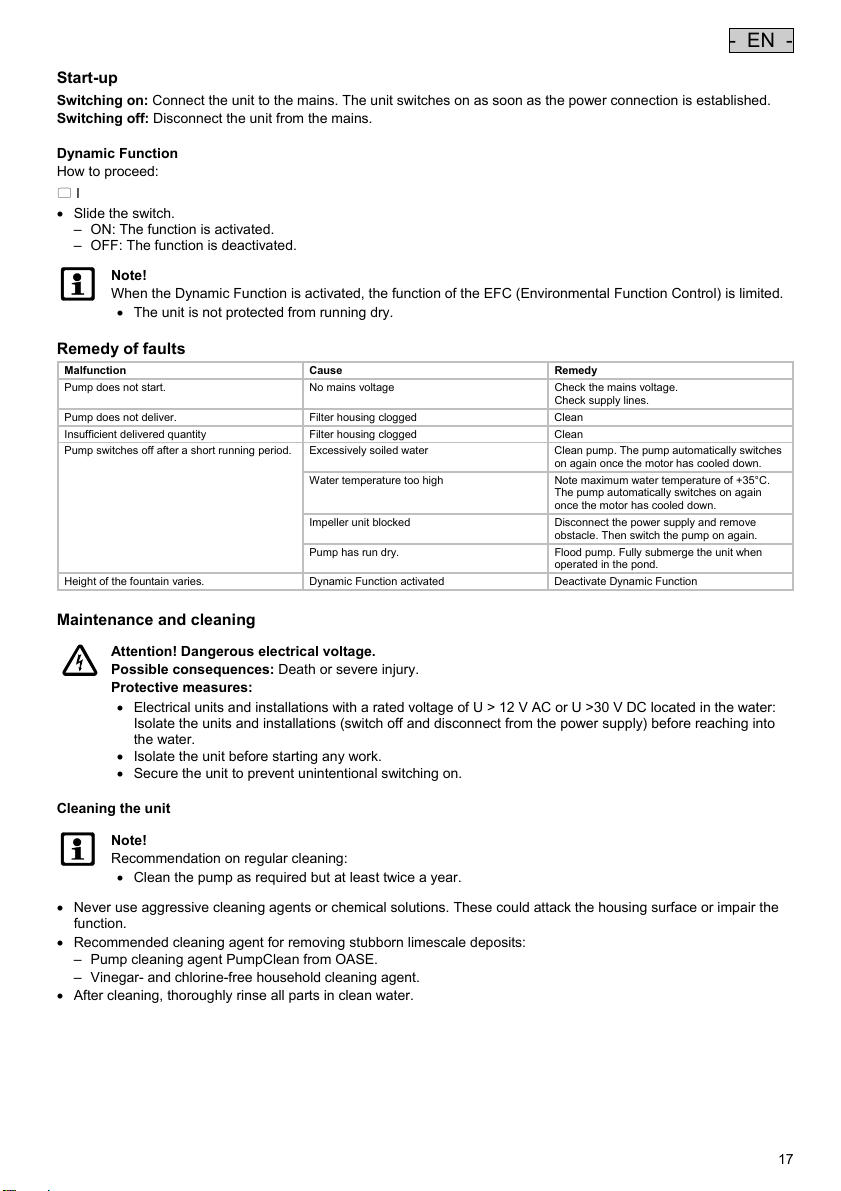

Start-up
Switching on: Connect the unit to the mains. The unit switches on as soon as the power connection is established.
Switching off: Disconnect the unit from the mains.
Dynamic Function
How to proceed:
I
Slide the switch.
– ON: The function is activated.
– OFF: The function is deactivated.
Note!
When the Dynamic Function is activated, the function of the EFC (Environmental Function Control) is limited.
The unit is not protected from running dry.
Remedy of faults
Malfunction Cause Remedy
Pump does not start. No mains voltage Check the mains voltage.
Check supply lines.
Pump does not deliver. Filter housing clogged Clean
Insufficient delivered quantity Filter housing clogged Clean
Pump switches off after a short running period. Excessively soiled water Clean pump. The pump automatically switches
on again once the motor has cooled down.
Water temperature too high Note maximum water temperature of +35°C.
The pump automatically switches on again
once the motor has cooled down.
Impeller unit blocked Disconnect the power supply and remove
obstacle. Then switch the pump on again.
Pump has run dry. Flood pump. Fully submerge the unit when
operated in the pond.
Height of the fountain varies. Dynamic Function activated Deactivate Dynamic Function
Maintenance and cleaning
Attention! Dangerous electrical voltage.
Possible consequences: Death or severe injury.
Protective measures:
Electrical units and installations with a rated voltage of U > 12 V AC or U >30 V DC located in the water:
Isolate the units and installations (switch off and disconnect from the power supply) before reaching into
the water.
Isolate the unit before starting any work.
Secure the unit to prevent unintentional switching on.
Cleaning the unit
Note!
Recommendation on regular cleaning:
Clean the pump as required but at least twice a year.
Never use aggressive cleaning agents or chemical solutions. These could attack the housing surface or impair the
function.
Recommended cleaning agent for removing stubborn limescale deposits:
– Pump cleaning agent PumpClean from OASE.
– Vinegar- and chlorine-free household cleaning agent.
After cleaning, thoroughly rinse all parts in clean water.

- EN -
18
How to proceed:
J
Turn the filter basket counterclockwise and remove.
– The filter basket is fastened to the pump with a bayonet lock.
Clean all parts.
– Use a soft brush.
– Rinse parts in clean water.
Reassemble the unit in the reverse order.
Replacing impeller unit
Note!
The impeller unit contains strong magnets that attract magnetic particles (e.g. iron filings).
All particles must be removed from the impeller unit before reassembly. Any remaining particles can
cause irreparable damage to the impeller unit and motor block.
Prerequisite:
The pump is dismantled.
Assembling the pump. Disassemble in the reverse order.
How to proceed:
K
Turn the filter basket counterclockwise and remove.
– The filter basket is fastened to the pump with a bayonet lock.
Remove the four screws and remove the pump casing together with the intermediate casing.
Pull out the impeller unit and replace if necessary.
– Use a wide-blade screwdriver to carefully lever out the impeller unit if necessary.
Reassemble the unit in the reverse order.
Wear parts
The impeller unit is a wearing part and does not fall under the warranty.
Storage/Over-wintering
The unit is frost resistant to minus 20 °C. Should you store the unit outside of the pond, clean it thoroughly with a soft
brush and water, check it for damage, then store immersed in water or filled with water. Do not immerse the power plug
in water!
Repair
Repair is not possible in the following cases. The pump has to be replaced.
If there is no replacement part approved by OASE for a defective component.
If an electric cable permanently connected to the pump becomes damaged.
Disposal
Do not dispose of this unit with domestic waste! For disposal purposes, please use the return system provided.
Disable the unit beforehand by cutting off the cables.

139
DE Anschlussspannung Leistungsaufname Förderleistung Wassersäule Tauchtiefe Anschluss optionale
Düse
Kabellänge Abmessungen Gewicht
GB Mains voltage Power consumption Max. flow rate Max. head height Immersion depth Connection for optional
nozzle
Cable length Dimensions Weight
FR Tension de raccordement Puissance absorbée Capacité de refoule-
ment
Colonne d'eau Profondeur d'immer-
sion
Raccordement d'ajutage
optionnel
Longueur de
câble
Dimensions Poids
NL Aansluitspanning Vermogensopname Pompcapaciteit Waterkolom Dompeldiepte Aansluiting op optionele
sproeier
Kabellengte Afmetingen Gewicht
ES Tensión de conexión Consumo de
potencia
Capacidad de elevación Columna de agua Profundidad de
inmersión
Conexión de la tobera
opcional
Longitud del
cable
Dimensiones Peso
PT Tensão de conexão Potência absorvida Débito Coluna de água Profundidade de
imersão
Ligação de bico opcio-
nal
Comprimento
do cabo
Dimensões Peso
IT Tensione di attacco Potenza assorbita Portata Colonna d'acqua Profondità d'immer-
sione
Attacco ugello opzionale Lunghezza
cavo
Dimensioni Peso
D
K
Tilslutningsspænding Effektforbrug Transportkapacitet Vandsøjle Bassindybde Tilslutning af valgfri
dyse
Lednings-
længde
Dimensioner Vægt
NO Nettspenning Effektopptak Kapasitet Vannsøyle Nedsenkningsdybde Tilkobling valgfri dyse Kabellengde Mål Vekt SE Anslutningsspänning Effekt Matningsprestanda Vattenpelare Doppningsdjup Ansluta optionellt
munstycke
Kabellängd Mått Vikt
FI Verkkojännite Ottoteho Syöttöteho Vesipylväs Upotussyvyys Lisäsuuttimien liitäntä Kaapelin
pituus
Mitat Paino
HU Csatlakoztatási fes-
zültség
Teljesítményfelvétel Szállítási teljesítmény Vízoszlop Merülési mélység Opcionális fúvóka csat-
lakozó
Kábelhossz Méretek Súly
PL Napięcie przyłączeniowe Pobór mocy Wydajnoİć
pompowania
Słup wody Głębokoİć
zanurzenia
Przyłącze dyszy
opcjonalnej
Długoİć kabla Wymiary Ciężar
CZ PĮipojovací napětí PĮíkon Dopravní výkon Vodní sloupec Hloubka ponoĮení PĮipojení volitelné trysky Délka kabelu Rozměry Hmotnost S
K
Napájacie napätie Príkon Dopravný výkon Vodný stĺpec Hĺbka ponorenia Prípojka voliteľnej trysky Dĺžka kábla Rozmery Hmotnost’
SI Priključna napetost Poraba moči Črplana zmogljivost Vodni steber Potopna globina Priključek opcijske šobe Dolžina kabla Dimenzije Teža HR Priključni napon Potrošnja energije Protočni kapacitet Vodeni stup Dubina uranjanja Priključivanje opcio-
nalne sapnice
Duljina kabela Dimenzije Masa
RO Tensiune de conexiune Putere consumatăDebit de pompare Coloanăde apăAdâncime de imersie Supliment duzăopţio-
nală
Lungime
cablu
Dimensiuni Masă
BG  
 


    

 
 
 

ае 
U
A
 



     є
 


 
RU  



     




 
CN 输入电压 功耗 输󳗒能力 水柱 潜水深󰑷 接可 嘴头选喷 电缆长󰑷 尺󰇉 󳞞󳞠 PondJet Eco 220 - 240 V AC, 50/60 Hz 190 W ≤180 l/min ≤8.5 m ≤4 m 25 mm (1 ") 20 m 670 × 460 mm 15 kg

140
DE Staubdicht. Wasserdicht bis 4 m
Tiefe
Vor direkter Sonneneinstrahlung
schützen.
Nicht mit normalem Hausmüll
entsorgen!
Achtung!
Lesen Sie die Gebrauchsanlei-
tung
EN Dust tight. Submersible to 4 m
depth.
Protect from direct sun radiation. Do not dispose of together with
household waste!
Attention!
Read the operating instructions
FR Imperméable aux poussières.
Etanche à l'eau jusqu'à une pro-
fondeur de 4 m
Protéger contre les rayons di-
rects du soleil.
Ne pas recycler dans les or-
dures ménagères !
Attention !
Lire la notice d'emploi
NL Stofdicht. Waterdicht tot een
diepte van 4 m
Beschermen tegen direct zon-
licht.
Niet bij het normale huisvuil
doen!
Let op!
Lees de gebruiksaanwijzing
ES A prueba de polvo. Impermeable
al agua hasta 4 m de
profundidad
Protéjase contra la radiación di-
recta del sol.
¡No deseche el equipo en la
basura doméstica!
¡Atención!
Lea las instrucciones de uso
PT À prova de pó. À prova de água
até 4 m de profundidade.
Proteger contra radiação solar
directa.
Não deitar ao lixo doméstico! Atenção!
Leia as instruções de utilização
IT A tenuta di polvere. Impermea-
bile all'acqua fino a 4 m di pro-
fondità.
Proteggere contro i raggi solari
diretti.
Non smaltire con normali rifiuti
domestici!
Attenzione!
Leggete le istruzioni d'uso!
D
A
Støvtæt. Vandtæt ned til 4 m
dybde
Beskyt mod direkte sollys. Må ikke bortskaffes med det
almindelige husholdningsaffald
OBS!
Læs brugsanvisningen
NO Støvtett. Vanntett ned til 4 m dyp Beskytt mot direkte sollys. Ikke kast i alminnelig
husholdningsavfall!
NB!
Les bruksanvisningen
S
V
Dammtät. Vattentät till 4 m djup Skydda mot direkt solstrålning. Får inte kastas i
hushållssoporna!
Varning!
Läs igenom bruksanvisningen
FI Pölytiivis. Vesitiivis 4 m
syvyyteen asti.
Suojattava suoralta auringonva-
lolta.
Älä hävitä laitetta tavallisen
talousjätteen kanssa!
Huomio!
Lue käyttöohje
HU Portömített. Vízálló 4 m-es
mélységig
Óvja közvetlen napsugárzástól. A készüléket nem a normál ház-
tartási szeméttel együtt kell
megsemmisíteni!
Figyelem!
Olvassa el a használati út-
mutatót
PL Pyłoszczelny. Wodoszczelny do
4 m głębokoİci.
Chronićprzed bezpoİrednim
nasłonecznieniem.
Nie wyrzucaćwraz ze İmieciami
domowymi!
Uwaga!
Przeczytaćinstrukcję
użytkowania!
CS Prachotěsný. Vodotěsný do
hloubky 4 m
Chránit pĮed pĮímým slunečním
záĮením.
Nelikvidovat v normálním
komunálním odpadu!
Pozor!
PĮečtěte Návod k použití!
S
K
Prachotesný. Vodotesný do
hĺbky 4 m
Chránit’ pred priamym slnečným
žiarením.
Nelikvidovaťv normálnom
komunálnom odpade!
Pozor!
Prečítajte si Návod na použitie
SL Ne prepušča prahu. Vodotesno
do globine 4 m.
Zaščitite pred neposrednimi
sončnimi žarki.
Ne zavrzite skupaj z
gospodinjskimi odpadki!
Pozor!
Preberite navodila za uporabo!
HR Ne propušta prašinu. Ne
propušta vodu do 4 m dubine.
Zaštitite od izravnog sunčevog
zračenja.
Nemojte ga bacati u običan
kućni otpad!
Pažnja!
Pročitajte upute za upotrebu!
RO Etanşla praf. Etanşla apăpână
la o adâncime de 4 m.
Protejaţi împotriva razelor di-
recte ale soarelui.
Nu aruncaţi în gunoiul menajer ! Atenţie !
Citiţi instrucţiunile de utilizare !
BG   .
   4

     .    
 
!
Вае!
чеее ъвае
U
K
.
  4 
  
  
 .
   
 !
!
 .
RU ,
 
  4 
  
  .
   
 !
!
  

CN 防尘防水水深󲟄 4 米󳰉止󳰊光直射。 要同普通的家庭垃圾一起丢弃! 注意!
请阅读使用说明书

141
DE Empfohlene Wasserwerte pH-Wert Gesamthärte Temperatur
EN Recommended water quality pH value Total hardness Temperature
FR Valeurs d'eau recommandées Valeur pH Dureté totale Température
NL Aanbevolen waterwaarden Valor pH Totale hardheid Temperatura
ES Valores recomendados del agua Valor pH Dureza total Temperatura
PT Valores recomendados para a água Valor pH Dureza total Temperatura
IT Valori dell'acqua consigliati Valore pH Durezza totale Temperatura
D
A
Anbefalede vandværdier pH-værdi Samlet hårdhed Temperatur
NO Anbefalte vannverdier pH-verdi Samlet hardhet Temperatur
S
V
Rekommenderade vattenvärden pH-värde Total hårdhet Temperatur
FI Suositellut vesiarvot pH-arvo Kokonaiskovuus Lämpötila
HU A vízre vonatkozó ajánlott értékek pH-érték Teljes keménység HĪmérséklet
PL Zalecane parametry wody Wartoİć pH Twardoİć ogólna Temperatura
CS Doporučené hodnoty vody Hodnota pH Celková tvrdost Teplota
S
K
Odporúčané hodnoty vody Hodnota pH Celková tvrdosťTeplota
SL Priporočene vrednosti za vodo pH vrednost Skupna trdota vode Temperatura
HR Preporučene vrijednosti vode pH vrijednost Ukupna tvrdoća Temperatura
RO Valori recomandate pentru apăValoare pH Duritate totalăTemperatură
BG     pH-   
U
K
   pH-   () 
RU     pH    
CN 建󳅿水当󳞠值 pH 值 总硬󰑷 温󰑷
6.8 … 7.6 8 … 15 °dH ≤35 °C

142
PJT0007

143
PJT0013
