Louise CordLess Bird Feeder,
Fountain & PLanter
Owner’s Manual

PLEASE READ FIRST BEFORE RETURNING
Please call us for assistance at 1+ [phone]
or email us at customercar[email protected]den
Our Customer Care Department is available:
Monday - Friday 8:30am to 4:00pm PST, 11:30am to 7:00pm EST
If you have any questions regarding assembly, parts, or operation,
please visit our website at www.belmont.garden. You will nd
instructional videos on how to assemble and operate your fountain,
and keeps you up to date on our newest products.
This product comes with a one year limited warranty
against materials and workmanship.
Please review the list of accessories included with your
Belmont Garden™ Fountain on the next page. Please note,
images of parts are not to scale with one another.

CONTENTS
1 Step1: Base and Large Bowl
3 Step 2: Fountain Tier Installation
6 Step 3: Battery Installation
7 Connecting e Battery
8 Inserting and Removing Battery Compartment Door
9 Step 4: Setting Up Your Fountain
10 Fill Your Fountain
10 Operating Your Fountain
13 Step 5: Installation Instructions for Decor Tops
14 Dancing Water Feature Installation
14 Dancing Water Features and eir Spray Patterns
15 Planter/Bird Feeder/Vanishing Edge Bowl Installation
15 Vanishing Edge Bowl Installation
15 Bird Feeder Installation
16 Planter Installation
17 Troubleshooting and Maintenance
17 Cleaning your Fountain
17 Cold Storage
17 Recharging e Battery
18 Cleaning the Water Pump’s Parts
18 Water Pump Air Filters
18 Water Pump Impeller
19 Priming the Water Pump
20 Using Leveling Shims
20 Weighing Down Your Fountain
21 Water Pump Connection

Battery
Compartment
Door
Base Large Bowl Fountain Tier with
Water Pump
Parts for your
Belmont Garden™Fountain:
Rechargeable
Battery
Bird Seed
Bowl 3-In-1 Planter/Bird
Feeder/Vanishing
Edge Bowl

Leveling Shim Battery Charger
Foam Ring Rubber Plug
Connection Port
Dancing Water
Attachment
Foam Ring

Remember if you need help contact Customer Care: 1+ [phone]
1|

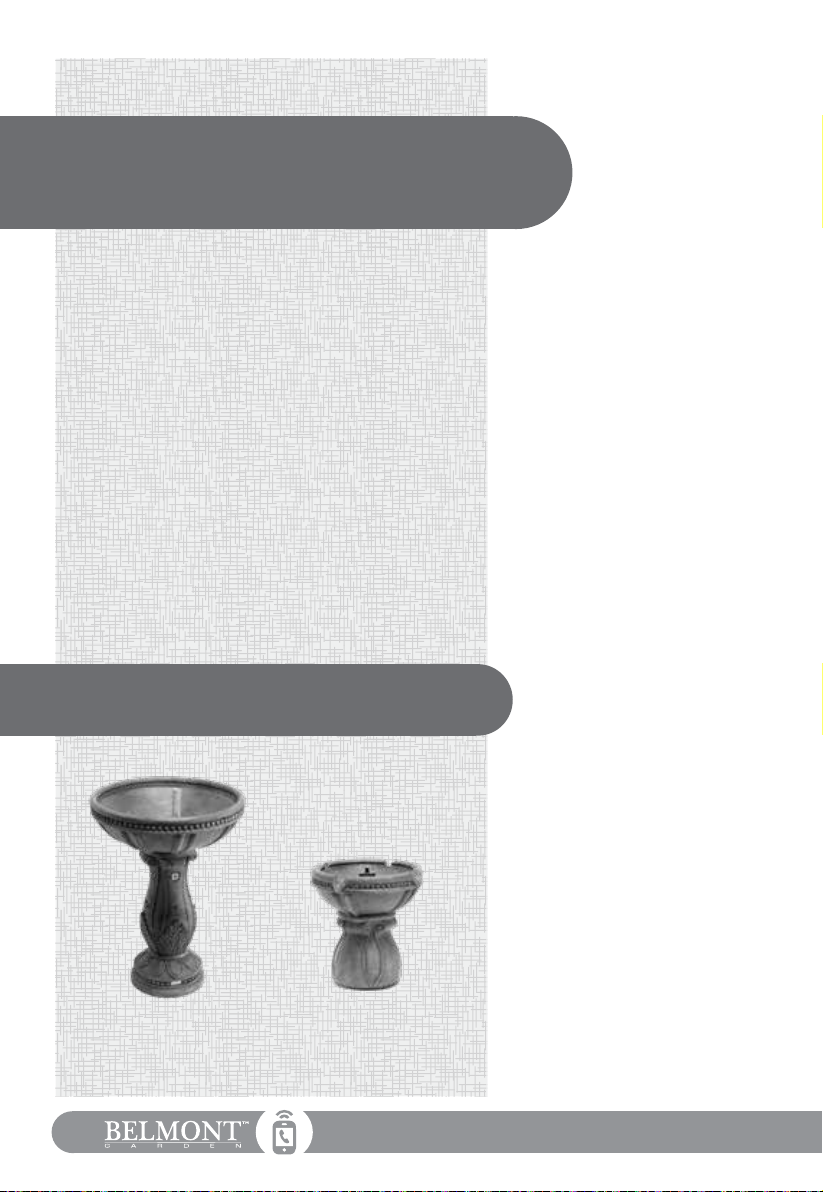

Base Large Bowl
Step 1:
Base &
Large Bowl
You will need:
Step 1:
Step 1:

Remember if you need help contact Customer Care: 1+ [phone] |2

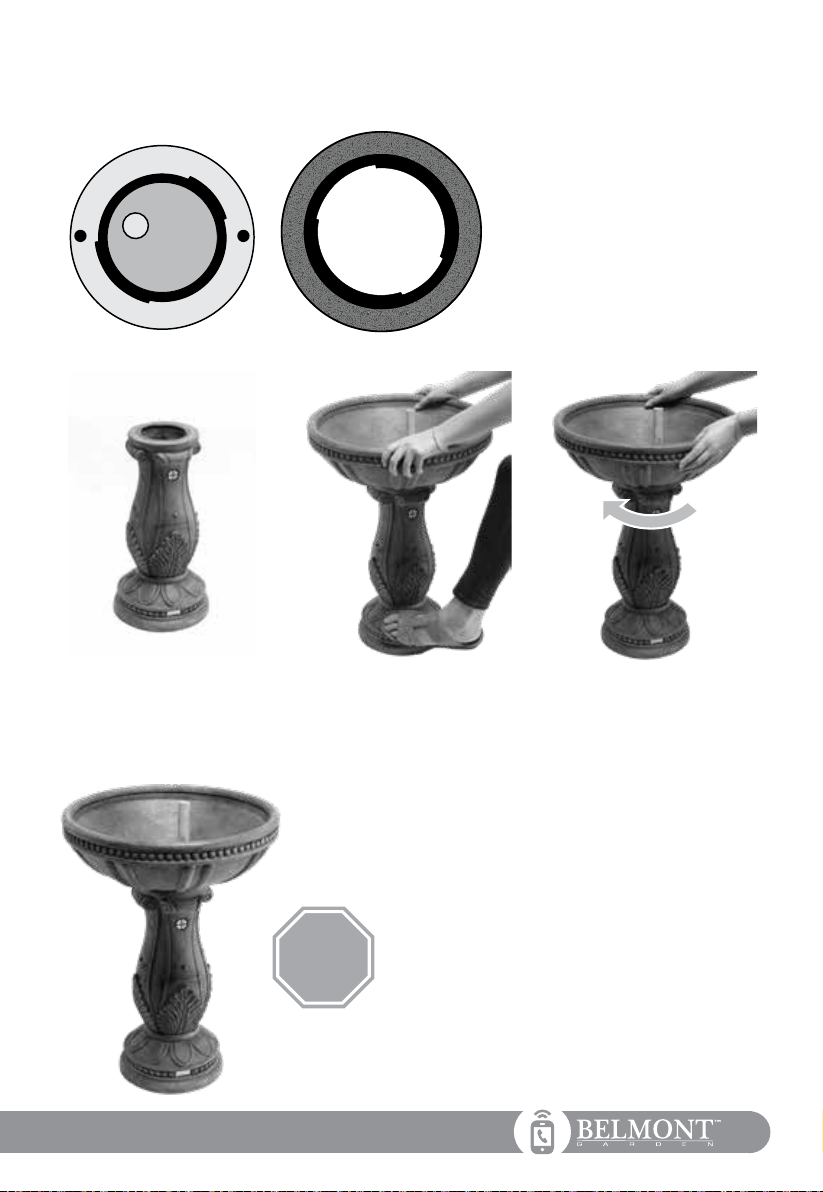

Step1: Be sure to place
the base of your fountain
on a at, rm surface.
Step 3: Turn the large
bowl a quarter turn clock-
wise to lock it into place.
Step 2: Apply downward
pressure by stepping on the
edge of the base to prevent
it from turning.
Align and connect the large
bowl to the base.
STOP
At this point, your fountain should look like
the image on the left. Go to the next page
for the next step to setup your new Belmont
GardenTM.
Note: You will notice that there
are two dierent sized tabs on
the bottom of the large bowl
and there are two correspond-
ing grooves in the top of the
base. These tabs t together
and lock when turned clock-
wise.
Bottom of large bowl Top of base
Bowl Locking System
A look at how the bowl locking system works on your Fountain.

Remember if you need help contact Customer Care: 1+ [phone]
3|
Fountain Tier
with Pump
Assembled
Base &
Large Bowl
Step 1:
Fountain Tier
Installation
You will need:
Step 1:
Step 2:

Remember if you need help contact Customer Care: 1+ [phone] |4
For the next step, you will
install the fountain tier into
the large bowl. Rest the
fountain tier on the side of
the large bowl.
If your fountain came with the water pump disconnected from the tube inside of
the fountain tier, refer to page 21 for instructions on how to connect the water
pump to the fountain tier.
NOTE: If the cables slip out
of the rubber stopper, you
can press the cables into the
slot in the side of the rubber
stopper. Maneuver the cord
to t snugly inside the hole
that is located in the center
of the rubber stopper.
Step 2: Firmly press the plug
into the pipe in the middle of
the Large Bowl.
If you are having trouble
pressing the plug into the
pipe, you can rub a small
amount of soapy water
on the plug to help it slide
into place.
Step 3: To ensure that you
have a good seal, make
sure the plug ts snugly as
pictured above.
Step 1: Feed the Water Pump cord down
the pipe. The cord will be connected to the
Connection Port at a later step.

Remember if you need help contact Customer Care: 1+ [phone]
5|

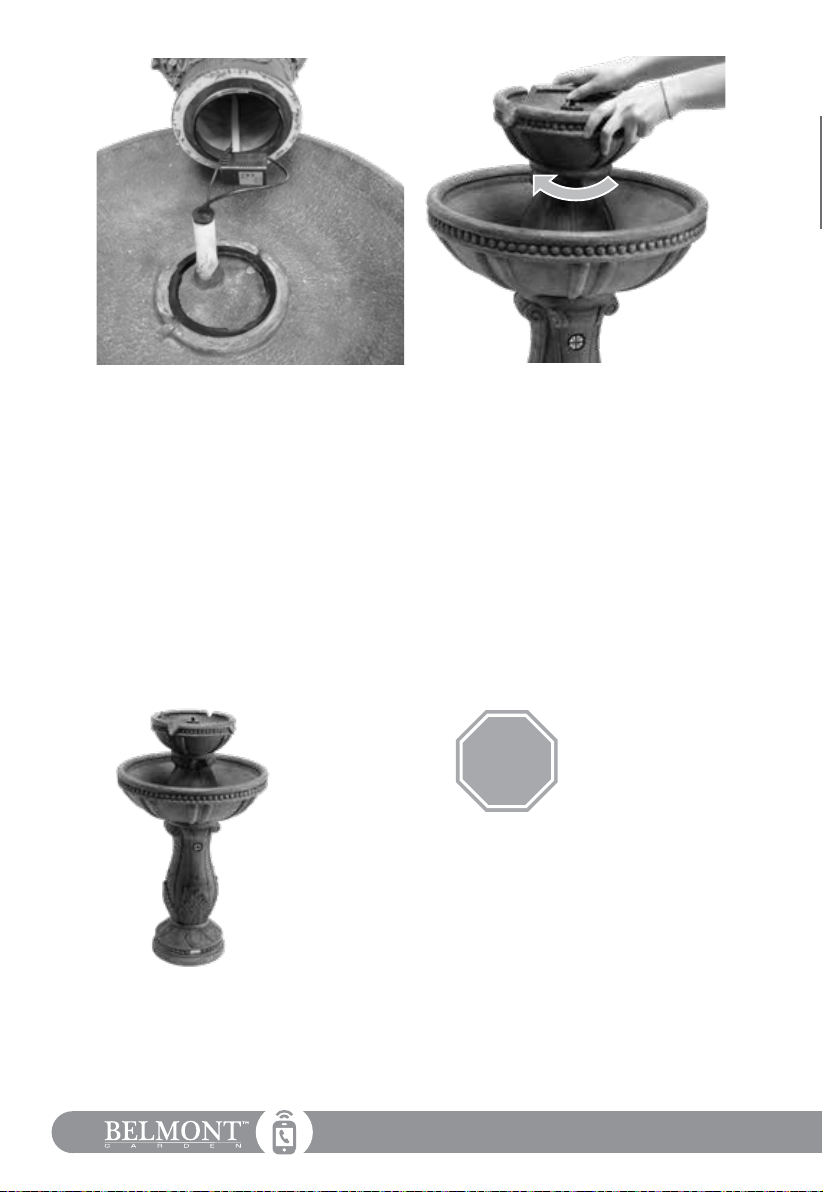

Step 4: Just like the large bowl and base,
the fountain tier uses a key system that will
lock it to the middle of the large bowl.
Be sure to leave approximately 7 to 8
inches of slack in the cords coming
from the water pump and the LED Light
ring so the pump will sit on the bottom
of the large bowl when the fountain tier
is assembled.
Step 5: Connect the fountain tier to
the large bowl and turn the fountain tier
about a quarter turn clockwise to lock it
into place.
STOP
At this point, your fountain should look like the image
on the left. Go to the next page for the next step to
setup your new Belmont GardenTM.

Remember if you need help contact Customer Care: 1+ [phone] |6

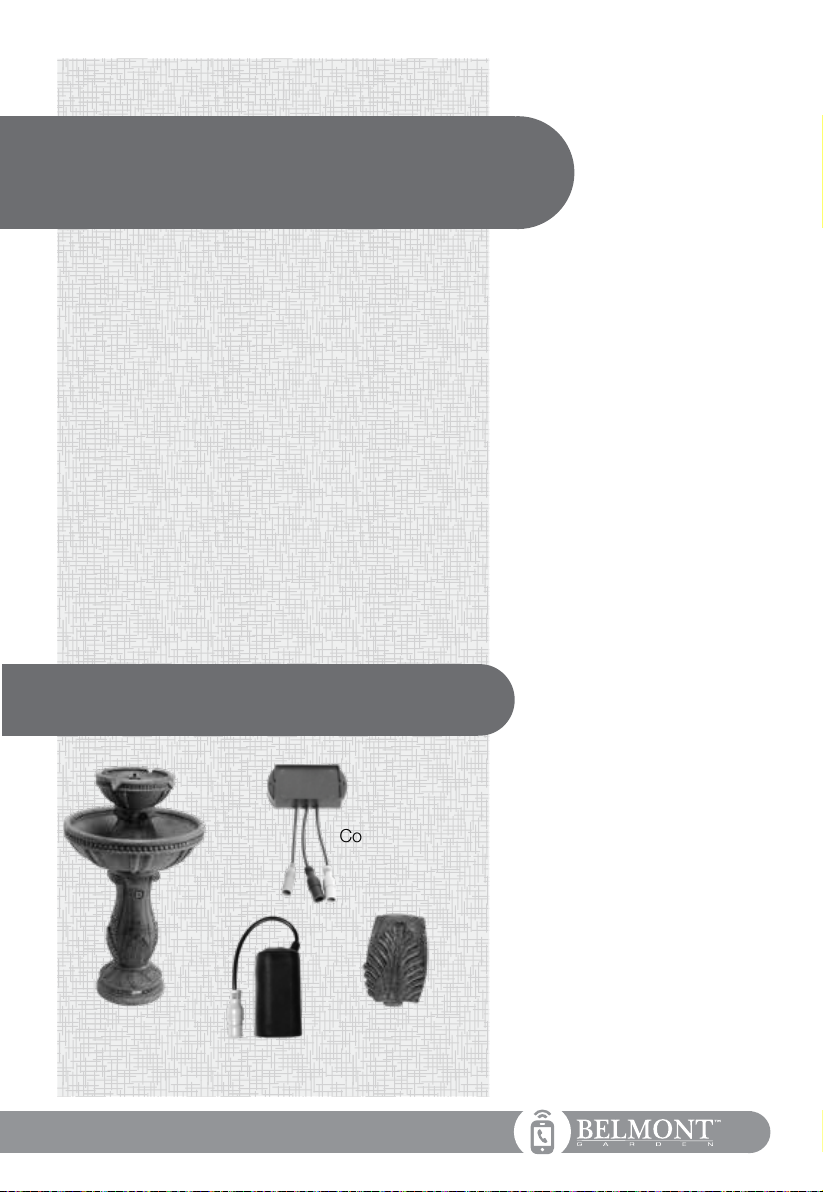

Step 1:
Battery
Installation
You will need:
Step 1:
Step 3:
Fountain
Assembled Rechargeable
Battery
Battery
Compartment
Door
Connection Port

Remember if you need help contact Customer Care: 1+ [phone]
7|
Black
Blue
Yellow
Blue
(ABCD Button)
Yellow
(Battery)
Black
(Water Pump)
AA
BB
CC
Connecting The Battery
Step 2: Using the cords from
inside the base and the cord from
the battery, connect the color
coded cords to their corresponding
receptacles on the connection port.
Use the image below for more help
on connecting the battery.
Step 3: Place your connection port
inside the designated angled area
located at the back of your fountain
base. (See illustration on below)
Step 4: Place the battery
inside of the compartment in
front of the connection port.
(See illustration)
DO NOT PLACE BATTERY
UPSIDE DOWN INSIDE OF
BATTERY COMPARTMENT.
Step 1: In the open battery
compartment, you will see three
cords hanging down that you must
connect to the connection port.
If you do not see the three
cables inside the battery
compartment, reach up into the
base and gently pull them down
until they are hanging inside the
battery compartment.
NOTE: USE CAUTION WHENEVER REACHING INSIDE THE BATTERY INSIDE THE
COMPARTMENT, DUE TO THE MANUFACTURING PROCESS THERE MIGHT BE
ROUGH EDGES.

Remember if you need help contact Customer Care: 1+ [phone] |8

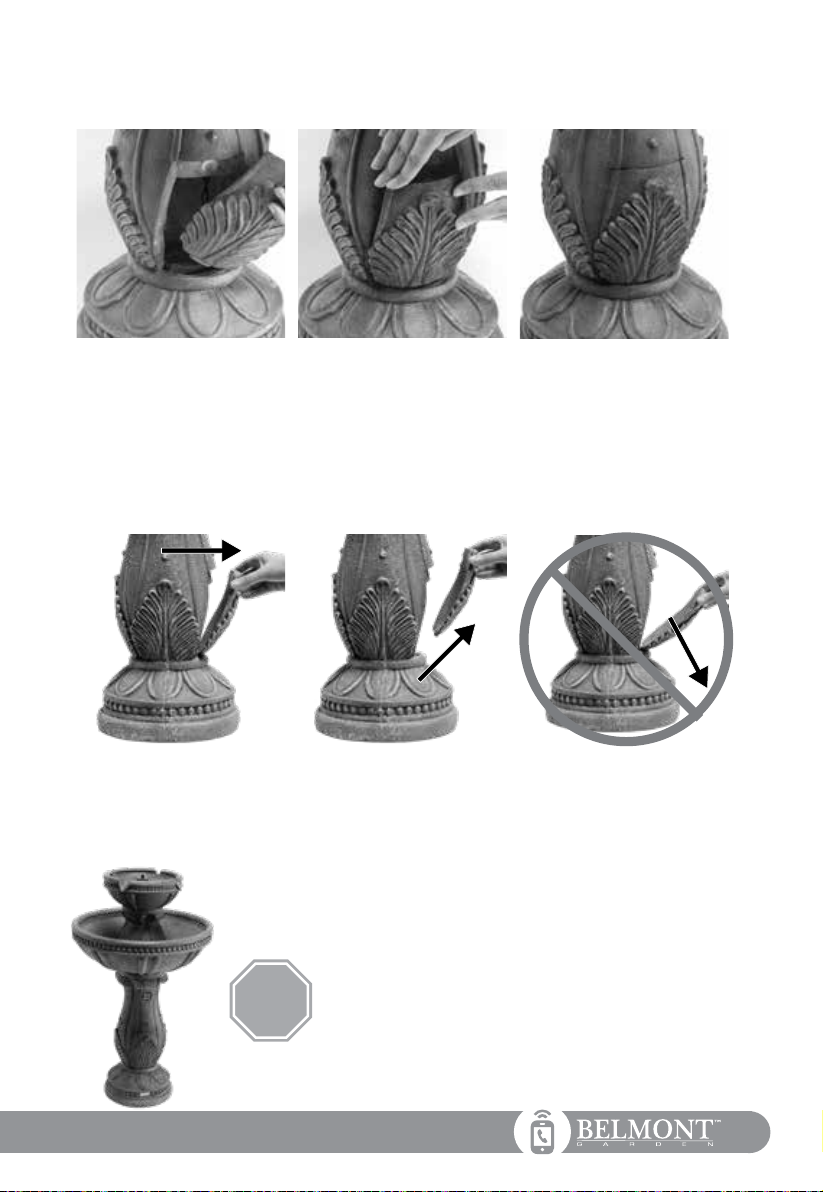

Step 1: Start by lining up the
notch on the bottom of the
battery compartment door
with the notch in the bottom
of the battery opening.
Step 1: Carefully disconnect
the battery compartment
door from the base by gently
pulling outward from the top.
Step 2: Push the battery
compartment door in toward
the base. You will know it is
in position when the magnet
locks the door in place.
Step 2: Then, pull the
battery compartment door
up and out to remove from
the base.
Once the door is in place, you
may notice a small notch in
the bottom left corner of the
battery compartment door.
This notch is for an optional
accessory not available on
this unit.
DO NOT OVEREXTEND THE
BATTERY COMPARTMENT
DOOR BY PULLING DOWN!
This may cause damage to
your new Belmont GardenTM.
Inserting the Battery Compartment Door
After you have connected the cables inside your fountain to the rechargeable battery,
you should then place the battery compartment door on the base of the fountain.
STOP
At this point, your fountain should look like the
image on the left. Go to the next page for the next
step to setup your new Belmont GardenTM.
Removing the Battery Compartment Door

Remember if you need help contact Customer Care: 1+ [phone]
9|
Step 1:
You will need:
Step 1:
Step 4:
Fountain Assembled
Water to
ll your
fountain
Setting Up
Your Fountain

Remember if you need help contact Customer Care: 1+ [phone] |10
Fill Your Fountain
Fill the fountain tier until water pours over the spouts. Then ll the large bowl until the
water is about 1 inch (2.5 centimeters) from the top of the bowl.
After you have lled your fountain, grab both sides of the large bowl and quickly shake
your fountain for ten seconds. This is to dislodge any air bubbles that may be caught
in your water pump. Press the C button once to turn your fountain on. Water should be
owing from the top of your fountain. If water is not owing, press the C button once
more to turn your fountain o, and repeat the step above.
IF YOUR FOUNTAIN IS MAKING A LOUD NOISE, DON’T PANIC!
This just means that there are air bubbles stuck in the water pump. Your pump will
not be harmed and you can easily x this issue. You can try priming the fountain again
by repeating the steps above, however, if the problem still persists, you can nd the
solution on page 19.
Operating Your Fountain
The on-board control panel is located towards the top of the base, just below the large
bowl. See the diagram below to see how the all-new on-board controls work for your
Belmont GardenTM.
Manual On/O
1-4 Hour Timer
Status Light
1-4 Hour Daily Timer
(Repeats Every Day)
This Feature Is
Not Used On
This Model.
BUTTON DESCRIPTION
A (1-4 Hour Timer)
Runs the fountain for 1-4 hours with automatic shut o.
One hour operation: press the A button once for your fountain to
turn on with an automatic shut-o after one hour of operation.
Two hour operation: press the A button twice and your fountain
will automatically shut-o after two hours of operation.

Remember if you need help contact Customer Care: 1+ [phone]
11|
BUTTON DESCRIPTION
A (1-4 Hour Timer)
(continued)
Three hour operation: press the A button three times and your
fountain will automatically shut-o after three hours of operation.
Four hour operation: press the A button four times and your foun-
tain will automatically shut-o after four hours of operation. How
To Use This Function:
1. Press the A button one, two, three or four times to turn your foun-
tain on for the desired automatic run time.
2. The Status Light will blink once for each hour you have selected
to conrm your fountain’s 1-4 Hour Timer, up to four hours.
3. At the end of the desired interval, your fountain will automatically
turn o.
B(1-4 Hour Daily
Timer)
This function is the same as the 1-4 Hour Timer (button A)
except with the added feature of automatically turning your
fountain on at the same time the next day for the interval you
selected.
One hour operation: press the B button once for your fountain to
turn on with an automatic shut-o after one hour of operation. This
will repeat daily at the same time each day.
Two hour operation: press the B button twice and your fountain
will automatically shut-o after two hours of operation and repeat
daily at the same time.
Three hour operation: press the B button three times and your
fountain will automatically shut-o after three hours of operation and
repeat daily at the same time.
Four hour operation: press the B button four times and your
fountain will automatically shut-o after four hours of operation and
repeat daily at the same time.
How To Use This Function:
1. Select the amount of time you would like the fountain to run by
pressing the B button one, two, three or four times.
2. Your fountain will then run for the selected amount of time and
at the end of the selected duration it will automatically turn o.
Then your fountain will automatically turn on at the same time
the next day for the run time duration you selected.

Remember if you need help contact Customer Care: 1+ [phone] |12
BUTTON DESCRIPTION
B(1-4 Hour
Daily Timer)
(continued)
3. If you turn the LED lights on while using the 1-4 Hour Daily
Timer function, the lights will automatically turn on with your
fountain and turn o at the end of the selected interval.
Example: If you turn on your fountain, choose a two hour run
time by pressing the B button twice at 5pm, your fountain will turn
o at 7pm and turn on again the next day at 5pm and run for two
hours automatically.
C (Manual On/O)
Turns the fountain on and o without any timer. Can be used
when extended run times are desired.
Note: Fountain will run until the battery loses its charge.
DThis feature is not used on this model.
Status Light Status light will blink for the number hours you have selected
when using the timer functions (buttons A and B).
STOP
You can now try your Belmont GardenTM to see if everything is working
correctly! Turn your fountain on and if you see water owing from the
outlet in the middle of the fountain tier, go to the next page and select
one of the many decorative options for your fountain. If water is not
owing, try priming the water pump, instructions are on page 19.

Remember if you need help contact Customer Care: 1+ [phone]
13|
Step 1:
You will need:
Step 1:
Step 5:
Installation
Instructions For
Decor Tops
Planter Attachment
Bird Seed
Bowl
Foam Ring &
Plug Rubber Plug
Dancing Water
Attachment

Remember if you need help contact Customer Care: 1+ [phone] |14
Dancing Water Installation
Before installing a Dancing Water attachment to your fountain, make sure there
are no nials attached to the fountain tier.
Dancing Water Feature and Spray Pattern
Step 2: Start by attaching the
Dancing Water attachment to
the outlet in the middle of the
fountain bowl.
Step 3: Enjoy the relaxing
and calming sound of your
new Belmont GardenTM
Fountain.
Step 1: Find the Dancing
Water attachment.
Dancing Water
Attachment
STOP!
At this point, your Fountain should look like the image
above.

Remember if you need help contact Customer Care: 1+ [phone]
15|
Step 3: Place the Bird
Feeder into the Bowl.
Step 4: Fill with bird seed.
Step 1: Turn over and pull
out both the Rubber Plug
and the Foam Ring.
Step 2: Turn over and place
back onto the fountain.
Planter/Bird Feeder/Vanishing Edge Bowl Installation
Vanishing Edge Bowl Installation
To prepare as the Vanishing Edge Bowl start by installing the Foam Ring and Rub-
ber Plug into the bottom.
Bird Feeder Installation
To prepare as the Bird Feeder, turn over and remove the small rubber plug from the
bottom.
Step 1: Install the Foam Ring
and Rubber Plug into the bot-
tom tight and snug.
Step 2: Place Planter Finial on
Fountain. Make sure it’s level.
Step 3: Once bowl is in place,
push down on the foam ring
from inside of the bowl to en-
sure a seal between the foam
ring and the fountain.
Note: If bowl is not lling with water ensure foam ring is
properly seated.
Rubber Plug
Foam Ring
