Bematech MP-4000 TH User manual

Produto – Rev.1.1

MP-4000 TH Service Manual
Code: 501.3421.00 - Rev.1.1
March 2008
August 2007 (First Edition)
Copyright © Bematech S. A., São José dos Pinhais-PR, Brazil
All rights reserved.
No part of this publication may be copied, reproduced, adapted or translated without the prior
written permission of Bematech S.A., except when allowed by patent rights.
Information in this publication is purely informative, subjected to change without notice and no
liability is assumed with respect to the use of this. However, as product improvements become
available, Bematech S.A. will make every effort to provide updated information for the
products described in this publication. The latest version of this manual can be obtained
through Bematech website:
www.bematech.com
Notwithstanding the other exceptions contained in this Manual, the consequences and
responsibility are assumed by the Purchaser of this product or third parties as a result of: (a)
intentional use for any improper, unintended or unauthorized applications of this product,
including any particular purpose; (b) unauthorized modifications, repairs, or alterations to this
product; (c) use of the product without complying with Bematech S.A. Corporation’s operating
and maintenance instructions; (d) use of the product as component in systems or other
applications in which the failure of this could create a situation where personal injury or
material damages may occur. In the events described above, Bematech S.A. and its officers,
administrators, employees, subsidiaries, affiliates and dealers shall not be held responsible or
respond by any claim, costs, damages, losses, expenses and any other direct or indirect injury,
as well as claims which alleges that Bematech S.A. was negligent regarding the design or
manufacture of the product.
Bematech S.A. shall not be liable against any damages or problems arising from the use of any
options or any consumable products other than those designated as original Bematech
products or approved products by Bematech S.A.
Any product names or its logotypes mentioned in this publication may be trademarks of its
respective owners and shall be here recognized.
Product warranties are only the ones expressly mentioned in the User’s Manual. Bematech S.A.
disclaims any and all implied warranties for the product, including but not limited to implied
warranties of merchantability or fitness for a particular purpose. In addition, Bematech S.A.
shall not be responsible or liable for any special, incidental or consequential damages or lost
profits or savings arising from the use of the product by the Purchaser, the User or third
parties.

Summary
Introduction...........................................................................................................5
Who should read this manual?..................................................................................5
How this manual is organized...................................................................................5
Other related publications and software .....................................................................5
Where to find more information................................................................................5
Chapter 1 ............................................................................................. 6
Product Description ................................................................................................. 6
Package contents....................................................................................................6
Chart of Models......................................................................................................7
Product electronics .................................................................................................7
Control Board......................................................................................................7
Connectors.......................................................................................................8
Jumpers...........................................................................................................8
Blocks Diagram.................................................................................................9
Parallel Interface Board ......................................................................................10
Block Diagram ................................................................................................10
Female Centronics Connector (Printer) ...............................................................11
Communication Cable ......................................................................................11
Serial Interface Board DB-9.................................................................................12
Dip Switches ..................................................................................................12
Block Diagram ................................................................................................13
Female DB-9 Connector (Printer).......................................................................13
Communication Cable ......................................................................................13
Serial Board DB-25 ............................................................................................ 14
Dip Switch ..................................................................................................... 14
Block Diagram ................................................................................................15
Female DB-25 Connector (Printer).....................................................................15
Communication Cable ......................................................................................15
USB Interface Board...........................................................................................16
Blocks Diagram...............................................................................................16
Female Type B Connector (Printer) ....................................................................16
Communication Cable ......................................................................................16
Ethernet Interface Board.....................................................................................17
Block Diagram ................................................................................................17
Female RJ-45 Connector (Printer)......................................................................18
Communication Cable ......................................................................................18
AC Adapter .......................................................................................................18
Product exploded view (with part numbers)..............................................................20
Product exploded view........................................................................................20
Exploded view of the Control Board Cartridge Set...................................................21
Exploded view of the Cabinet Set .........................................................................22
Exploded view of the Cover Lever Set ...................................................................23
Exploded view of the Thermal Print Head Set ......................................................... 23
Exploded view of the Connection Board Set ........................................................... 24
Exploded view of the Cutter Mechanism Set...........................................................25

Chapter 2 ........................................................................................... 26
Procedures ............................................................................................................26
Product disassembly and assembly procedures for module replacement........................ 26
Precautions before Disassembly and Assembly .......................................................26
Removing the Control Board Set ..........................................................................26
Removing the Cutter Mechanism, Print Head and Connection Board ..........................28
Removing the Cover Lever Set............................................................................. 34
Firmware update ..................................................................................................35
User's Software .................................................................................................35
Technical Support Software.................................................................................36
Product test procedures.........................................................................................37
Technical Support Software.................................................................................37
Tab 'Configuration' ..........................................................................................37
Tab 'Print' ......................................................................................................38
Tab 'Bitmap & Logo' ........................................................................................39
Tab 'Bar code'................................................................................................. 40
Tab 'Status'....................................................................................................41
Tab 'Additional Commands'...............................................................................42
Tab 'Macro' .................................................................................................... 43
Tab 'Tests' .....................................................................................................44
Preventive Maintenance Procedures......................................................................... 45
Cleaning Procedures...........................................................................................45
Print Head...................................................................................................... 45
Platen roller....................................................................................................45
Cutter ...........................................................................................................45
Sensors .........................................................................................................45
Inner Case ..................................................................................................... 45
External Surfaces............................................................................................45
Chapter 3 ........................................................................................... 46
Operation and Troubleshooting .............................................................................46
Indicative Lights...................................................................................................46
Recoverable Error - Yellow Information LED........................................................... 46
Yellow LED On - Open Cover............................................................................. 46
Yellow LED blinking 1 time - No Paper................................................................49
Yellow LED Blinking 2 times - Overheated Print Head............................................49
Yellow LED blinking 3 times - Cutter Error...........................................................50
Yellow LED blinking 4 times - Communication Error..............................................50
Unrecoverable Error - Information LED in Red........................................................50
Red LED blinking 1 time - RTOS (Real Time Operation System) Error...................... 50
Red LED blinking 3 times - RAM Memory Error..................................................... 51
Red LED blinking 8 times - Print Mechanism Error................................................51
Red LED blinking 11 times - Low DC voltage sent by the power source....................51
Red LED blinking 12 times - Cutter Initialization Error .......................................... 51
Troubleshooting ................................................................................................... 52
Chapter 4 ........................................................................................... 53
Technical Specifications.........................................................................................53

5
Introduction
This manual provides information on the identification and troubleshooting, test procedures
and a list of replacement parts for the MP-4000 TH printer.
Who should read this manual?
This manual is intended only for technicians trained by Bematech.
How this manual is organized
Chapter 1
Knowing the product. Description and operation of MP-4000 TH Printer.
Chapter 2
Product maintenance and test procedures.
Chapter 3
MP-4000 TH operation and troubleshooting.
Chapter 4
MP-4000 TH technical specifications and features.
Other related publications and software
User’s Manual
Programmer’s Manual
Quick Start Guide
User Software
Technical Support Software
Where to find more information
English Content at http://www.bematech.com
Spanish Content at http://www.bematech.com/es
Portuguese Content at http://www.bematech.com.br

6
Chapter 1
Product Description
High performance, flexibility and ease of operation are some of the features that make the
Bematech MP-4000 TH the ideal printing solution for your retail outlet, operating with high
quality, high speed and reliability with reduced operation cost.
Package contents
Remove the MP-4000 TH printer from the package and make sure that all components listed
below are available, and that they are in perfect shape:
zMP-4000 TH Printer;
zQuick Reference Guide;
zSpacer;
zThermal paper roll;
zPower supply;
zPower supply cable;
zCommunication cable*.
* The communication and power cable provided will depend on the chosen configuration.

7
Chart of Models
The MP-4000 TH Printer is available in the following configurations:
Model Features
101.2211.10 Black color with Serial communication board (DB-9)
101.2211.11 Black color with Serial communication board (DB-25)
101.2211.12 Black color with Parallel communication board
101.2211.13 Black color with USB communication board
101.2211.15 Black color with Ethernet communication board
Product electronics
Control Board

8
Connectors
Connector Type Description
CN1 RJ12 CONNECTOR Cash drawer connector
CN2 A-1009 CONNECTOR Power Supply connector
CN3 90° 2x4 pin bar
Cash drawer configuration
Position: 1-2 and 5-6 – Epson Standard Drawer
Position: 3-4 and 7-8 – Bematech Standard
Drawer
CN4 JST B2B-PH-KS
CONNECTOR ON/OFF switch connector
CN5 PHEC40R-R211LF 40 PIN
CONNECTOR Interface board connector
CN6 Vertical 1x5 pin bar Reserved.
CN7 Vertical 2x5 pin bar Reserved.
CN8 PHEC40R-R211LF 40 PIN
CONNECTOR Printing module connector
Jumpers
Connector Type Description
JPF1 1x2 pin bar When closed allows the entire board to be supplied
by 24V. This jumper must be closed for the printer
to work.
JPF2 1x2 pin bar When closed interconnects the logic GND to the
power GND. This jumper must be closed for the
printer to work.
JPF3 1x2 pin bar When closed allows the entire board to be supplied
by 5V. This jumper must be closed for the printer
to work.
JPF4 1x2 pin bar When closed allows the board to be supplied by a
voltage of 3.3V. This jumper must be closed for
the printer to work.
JP1 Wire jumper Reserved. (keep jumper open)
JP2 Wire jumper Reserved. (keep jumper open)
JP3 Wire jumper Reserved. (keep jumper open)
JP4 Wire jumper Reserved. (keep jumper closed)
JP5 1x2 pin bar When closed disables the cutter operation. This jumper must be open for the proper cutter
operation.
JP6 1x2 pin bar Reserved. (keep jumper open)
JP7 1x2 pin bar Reserved. (keep jumper open)

9
Blocks Diagram

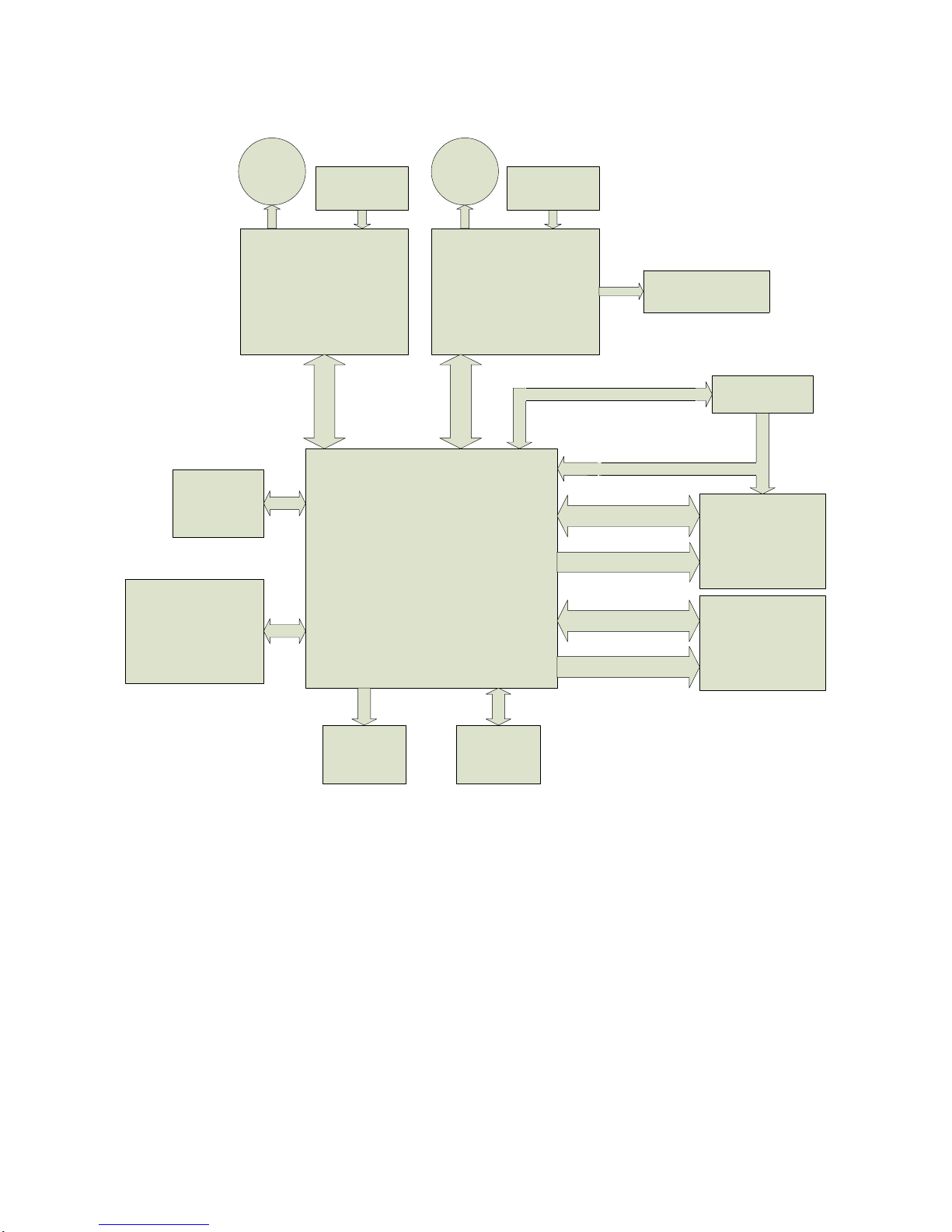

CPU
AT91M55800A
MECHANISM DRIVER ICCUTTER DRIVER IC
STEP
MOTOR
THERMAL HEAD
DC
MOTOR SENSOR
DRAWER
DRIVER IC
BUZZER
RESET
SRAM
(DATA MEMORY)
FLASH
(FIRMWARE)
D0-D15
A1-A19
A1-A19
D0-D15
COMMUNICATION
INTERFACE
(ETHERNET, USB,
SERIAL, PARALEL,
WI-FI)
KEY PANEL
LEDS
SENSORS

10
Parallel Interface Board
The IC U2, ATMEGA16 (microcontroller), is responsible for the communication between the
printer and the computer. The IC U3, 74LVC/LCX125 is a buffer and also functions as a level
adapter, making the voltage conversion in some signals (5V to 3.3V).
The recognition of the interface connected to the control board is done with the reading of a
code associated to each kind of board through U1, enabled by the SELDEV signal generated by
the control board.
In this interface there are still two CN2 connectors (5x2 pin bar), which are used to the
programming of the microcontroller and CN3 (5x2 pin bar), reserved.
Block Diagram
ATMEGA16 CONTROL BOARD
CENTRONICS
CONNECTOR
(36 PINS)
FCI CONNETOR
(40 PINS)
INTERFACE
IDENTIFIER
ISP
RESET
HOST
