GrandPrix Two-Post Lifts
Installation and Operation Manual
Manual Revision C2 — August 2018 — Manual P/N 5900209
Models:
•GP-7
•GP-7LC
•GP-7LCS
Model GP-7 shown.
Designed and engineered by BendPak Inc. in Southern California, USA. Made in China.
⚠DANGER
Read the entire contents of this manual before using this product.
Failure to follow the instructions and safety precautions in this
manual can result in serious injury or death. Make sure all other
operators also read this manual. Keep the manual near the product
for future reference. By proceeding with setup and operation, you
agree that you fully understand the contents of this manual.

Manual. GrandPrix Series Two-Post Lifts, Installation and Operation Manual, Manual P/N 5900209, Manual
Revision C2, Released August 2018.
Copyright. Copyright © 2018 by BendPak Inc. All rights reserved. You may make copies of this document if you
agree that: you will give full attribution to BendPak Inc., you will not make changes to the content, you do not gain
any rights to this content, and you will not use the copies for commercial purposes.
Trademarks. BendPak and the BendPak logo are registered trademarks of BendPak Inc. The GrandPrix logo is
a trademark of BendPak Inc. All other company, product, and service names are used for identification only. All
trademarks and registered trademarks mentioned in this manual are the property of their respective owners.
Limitations. Every effort has been made to ensure complete and accurate instructions are included in this
manual. However, product updates, revisions, and/or changes may have occurred since this manual was
published. BendPak reserves the right to change any information in this manual without incurring any obligation for
equipment previously or subsequently sold. BendPak is not responsible for typographical errors in this manual.
Warranty. The BendPak warranty is more than a commitment to you: it is also a commitment to the value of
your new product. Contact your nearest BendPak dealer or visit www.bendpak.com/support/warranty for
full warranty details. Go to bendpak.com/support/register-your-product/ and fill out the online form to register
your product (be sure to click Submit).
Safety.Your new product was designed and manufactured with safety in mind. Your safety also depends on
proper training and thoughtful operation. Do not set up, operate, maintain, or repair the unit without reading and
understanding this manual and the labels on the unit.
Owner Responsibility. In order to maintain your product properly and to ensure operator safety, it is the
responsibility of the product owner to read and follow these instructions:
• Follow all installation, operation, and maintenance instructions.
• Make sure product installation conforms to all applicable local, state, and federal codes, rules, and regulations,
such as state and federal OSHA regulations and electrical codes.
• Read and follow all safety instructions. Keep them readily available for operators.
• Make sure all operators are properly trained, know how to safely operate the unit, and are properly supervised.
• Do not operate the product until you are certain that all parts are in place and operating correctly.
• Carefully inspect the product on a regular basis and perform all maintenance as required.
• Service and maintain the unit only with approved replacement parts.
• Keep the manual with the product and make sure all labels are clean and visible.
Unit Information. Enter the Model Number, Serial
Number, and the Date of Manufacture from the label
on your unit. This information is required for part or
warranty issues.
Model:
Serial:
Date of Manufacture:

GrandPrix (GP-7 Series) Two-Post Lifts 3P/N 5900209 — August 2018 — Rev. C2
Table of Contents
Introduction 3 Installation 13
Shipping Information 3 Operation 47
Safety Considerations 4 Maintenance 50
FAQ 6 Troubleshooting 52
Specifications 7 Wiring Diagram 58
Components 10 Parts Diagrams 53
Installation Checklist 12 Labels 59
Introduction
This manual describes the GrandPrix (GP-7 Series) two-post lifts from BendPak:
•GP-7. Two-post lift, 7,000 lb. capacity, 78 inch lifting height, requires a 13-foot ceiling.
•GP-7LC. Two-post lift, 7,000 lb. capacity, 68 inch lifting height, needs only a 10-foot ceiling.
•GP-7LCS. Two-post lift, 7,000 lb. capacity, 58 inch lifting height, needs only a 9-foot ceiling.
More information about the full line of BendPak products is available at bendpak.com.
This manual is mandatory reading for all users of GP-7 Series lifts, including anyone who
installs, operates, maintains, or repairs them.
⚠DANGER Be very careful when installing, operating, maintaining, or repairing this equipment;
failure to do so could result in property damage, product damage, injury, or (in very
rare cases) death. Make sure only authorized personnel operate this equipment. All
repairs must be performed by an authorized technician. Do not make modifications
to the unit; this voids the warranty and increases the chances of injury or property
damage. Make sure to read and follow the instructions on the labels on the unit.
Keep this manual on or near the equipment so that anyone who uses or services it can read it.
If you are having issues, refer to the Troubleshooting section of this manual for assistance.
Technical support and service is available from your dealer, on the Web at bendpak.com/support,
by email at [e-mail], or by phone at [phone], extension 196.
You may also contact BendPak for parts replacement information (please have the model and serial
number of your unit available) at [phone], extension 191.

GrandPrix (GP-7 Series) Two-Post Lifts 4P/N 5900209 — August 2018 — Rev. C2
Shipping Information
Your equipment was carefully checked before shipping. Nevertheless, you should thoroughly inspect
the shipment
before you sign to acknowledge that you received it.
When you sign the bill of lading, it tells the carrier that the items on the invoice were received in good
condition.
Do not sign the bill of lading until
after
you have inspected the shipment.
If any of the
items listed on the bill of lading are missing or damaged, do not accept the shipment until the carrier
makes a notation on the bill of lading that lists the missing or damaged goods.
If you discover missing or damaged goods
after you receive the shipment and have signed the bill of
lading, notify the carrier at once and request the carrier to make an inspection. If the carrier will not
make an inspection, prepare a signed statement to the effect that you have notified the carrier (on a
specific date) and that the carrier has failed to comply with your request.
It is difficult to collect for loss or damage after you have given the carrier a signed bill of lading. If this
happens to you, file a claim with the carrier promptly. Support your claim with copies of the bill of
lading, freight bill, invoice, and photographs, if available. Our willingness to assist in helping you
process your claim does not make us responsible for collection of claims or replacement of lost or
damaged materials.
Safety Considerations
Read this manual carefully before using your new product. Do not install or operate the
product until you are familiar with all operating instructions and warnings. Do not allow anyone else to
operate the product until they are also familiar with all operating instructions and warnings.
Safety Information
Please note the following:
•GP-7 Series lifts are two-post lifts.
Use them only for their intended purpose. If you are
looking for a
parking
lift, visit the Bendpak website.
•Only operate your lift between temperatures of 41°F to 104°F (5°C to 40°C).
•The product should only be operated by authorized personnel. Keep children and untrained
personnel away from the product.
•Do not use the product while tired or under the influence of drugs, alcohol, or medication.
•Do not make any modifications to the product; this voids the warranty and increases the chances
of injury or property damage.
•Make sure all operators read and understand the Installation and Operation Manual. Keep the
manual near the device at all times.
•Make a visual inspection of the product before using it. Do not use the product if you find any
missing or damaged parts. Instead, contact an authorized repair facility, your distributor, or
BendPak at [phone] or [e-mail].
•BendPak recommends making a
thorough inspection of the product at least once a year.
Replace any damaged or severely worn parts, decals, or warning labels.

GrandPrix (GP-7 Series) Two-Post Lifts 5P/N 5900209 — August 2018 — Rev. C2
Symbols
Following are the symbols used in this manual:
⚠DANGER Calls attention to a hazard that will result in death or injury.
⚠WARNING Calls attention to a hazard or unsafe practice that could result in death or injury.
⚠CAUTION Calls attention to a hazard or unsafe practice that could result in personal injury,
product damage, or property damage.
Tip Calls attention to information that can help you use your unit better.
Liability Information
BendPak assumes no liability for damages resulting from:
• Use of the equipment for purposes other than those described in this manual.
• Modifications to the equipment without prior, written permission from BendPak Inc.
• Damage to the equipment from external influences.
• Incorrect operation of the equipment.
Electrical Information
⚠DANGER All wiring must be performed by a licensed, certified electrician. Do not perform
any maintenance until main electrical power has been disconnected from the lift
and cannot be re-energized until all procedures are complete.
Important electrical information:
•Improper electrical installation can damage the Power Unit motor; this damage is not covered by
the warranty
.
•Use a separate circuit breaker for each Power Unit.
•Protect each circuit with a time delay fuse or circuit breaker:
–For a 208 to 230 VAC,
single phase
circuit, use a 25 amp fuse.
–For a 208 to 230 VAC,
three phase
circuit, use a 20 amp fuse.
–For a 380 to 440 VAC,
three phase
circuit, use a 15 amp fuse.
Concrete Information
The concrete floor where you want to install your lift must meet the following requirements:
•The floor must be a flat, concrete floor; it must be level; do not install the lift on a the surface with
more than three degrees of slope.
•Do not install the lift on cracked or defective concrete.
•Make sure the concrete is at least 4.25 inches thick, 3,000 PSI, and cured for 28 days minimum.
•Check the floor for the possibility of it being a post tension slab. In this case, contact the building
architect before drilling. Using ground penetrating radar may help you find the tensioned steel.

GrandPrix (GP-7 Series) Two-Post Lifts 6P/N 5900209 — August 2018 — Rev. C2
Frequently Asked Questions
Question: What kinds of vehicles can I lift on my GP-7 Series lift?
Answer: Cars, light trucks, and SUVs; up to 7,000 lbs (3,175 kg) each.
Q: How long will it take to raise or lower my vehicle?
A: About 45 seconds, depending on what locking position you use.
Q: Does the lift have to be anchored in place?
A: Yes. Two-post lift posts must be anchored. Your lift comes with high-quality, Automotive Lift
Institute-certified Anchor Bolts; use only the Anchor Bolts that came with your lift.
Q: How thick does my concrete have to be?
A: Concrete specifications are: 4.25 inches thick, 3,000 PSI, cured for a minimum of 28 days. Do not
install the lift on cracked or defective concrete. Do not install the lift on asphalt or any surface other
than concrete.
Q: Can I install my lift outside?
A: No. GP-7 Series lifts are approved for indoor installation and use only. Outdoor installation is
prohibited.
Q: Which end is the front of the lift?
A: To determine the front of your lift, drive a vehicle in straight and stop. The front of the vehicle is
where the front of the lift is.
Q: Does it matter if I drive my vehicles in front first or back them in?
A: No. Most people drive their vehicles in front first, which makes it easier to open the vehicle doors.
Other than that, you can drive your vehicles in whichever way you want; the lift works great either way.
Q: How long can I leave a vehicle up?
A: Basically as long as you want, as long as the lift is on a Safety Lock. The locking system is based
on gravity and smart engineering. Once a Safety Lock is engaged, gravity holds the lift in position, so a
loss of power has no effect; your vehicle is going to stay exactly where you left it. Always leave your lift
either on the ground or on a Safety Lock.
Q: How many Safety Lock positions does my lift have?
A: Eleven, spaced every 4 inches.

GrandPrix (GP-7 Series) Two-Post Lifts 7P/N 5900209 — August 2018 — Rev. C2
Specifications

GrandPrix (GP-7 Series) Two-Post Lifts 8P/N 5900209 — August 2018 — Rev. C2

GrandPrix (GP-7 Series) Two-Post Lifts 9P/N 5900209 — August 2018 — Rev. C2

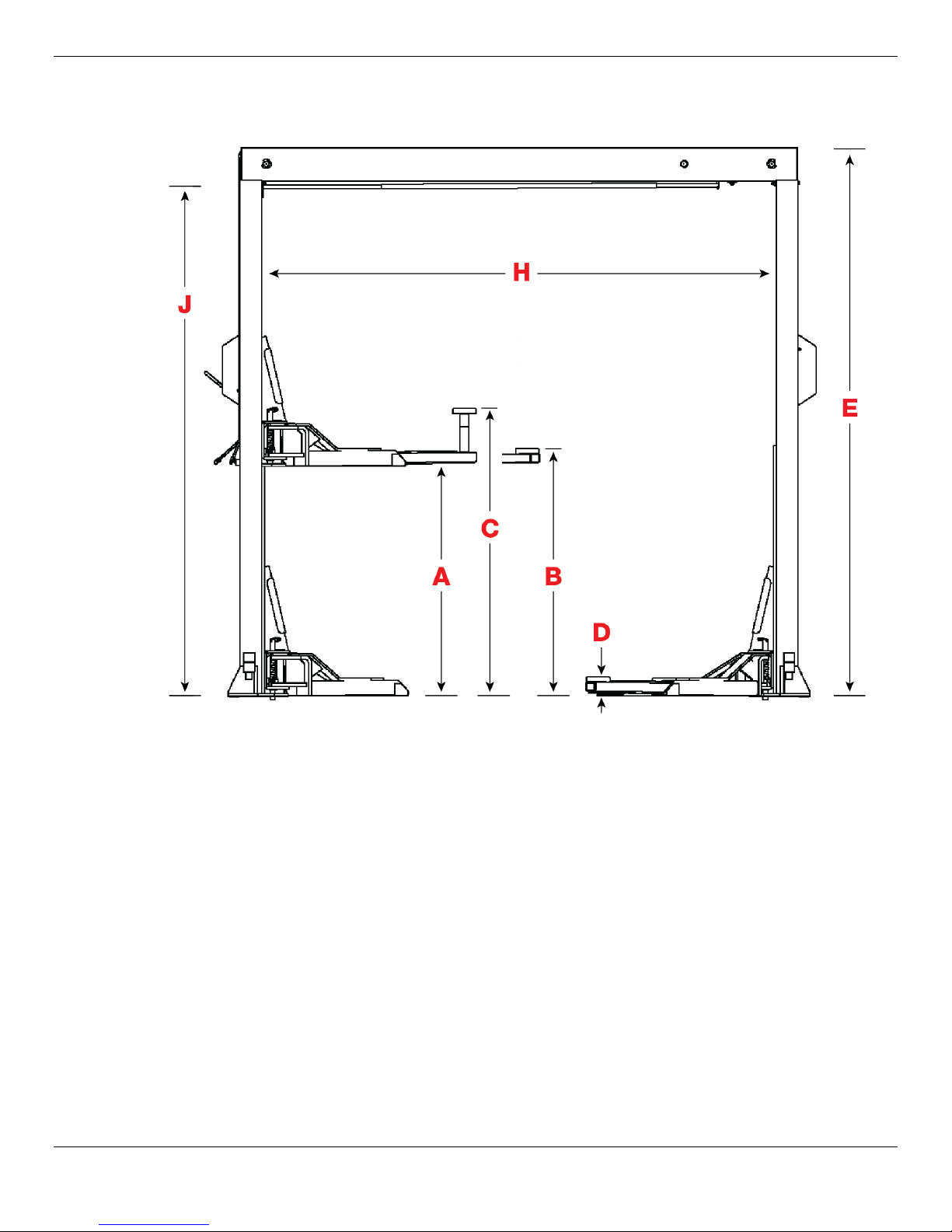

Model GP-7LCS GP-7LC GP-7
Lifting capacity 7,000 lbs / 3,175 kg
E– Height overall 106.5" / 2,703 mm 118.5" / 3,008 mm 150" / 3,814 mm
F– Width overall 124.7" / 3,168 mm
G- Outside posts 119.5" / 3,034 mm
J- Floor to Trip Stop Tube 97.5" / 2,479 mm 109.5" / 2,784 141.25" / 3,590 mm
H– Inside posts 110.1" / 2,798 mm
K- Reach (front arm min) 27" / 688 mm
K- Reach (front arm max) 44.6" / 1,133 mm
L- Reach (rear arm min) 28" / 711 mm
L- Reach (rear arm max) 47" / 1,194 mm
D- Minimum pad height 4.5" / 113 mm
A– Rise 53.25" / 1,350 mm 63.25" / 1,604 mm 73.5" / 1,864.5 mm
B– Rise + pad 57.5" / 1,463 mm 67.5" / 1,717 mm 77.75" / 1,977.5 mm
C– Rise + pad + adapter 65.75" / 1,673 mm 75.75" / 1,927 mm 86.25" / 2,190.6 mm
I- Drive-thru width 89.5" / 2,273 mm
Top Trough width 119.4" / 3,034 mm
Motor 220 VAC, 60 Hz, 1Ph
Time to full rise ~45 seconds
Maximum operating
hydraulic pressure
2,940 PSI
Sound 70 dB

GrandPrix (GP-7 Series) Two-Post Lifts 10 P/N 5900209 — August 2018 — Rev. C2
Components
GP-7 Series lift components include:
•Powerside Post: The Powerside Post holds the Power Unit, the Safety Lock Release Handle,
the Lowering Handle, and the Power Disconnect Switch. You can use either post as the Powerside
Post and the Powerside Post can be on either side of the lift.
•Offside Post: The other post. Identical to the Powerside Post, but when you select a Powerside
Post, the other post automatically becomes the Offside Post.
•Power Unit: Provides hydraulic power to the lift. Connects to a 220 VAC power source. Includes
the button that raises the lift and an Hydraulic Fluid reservoir that must be filled before use.
•Safety Locks: Hold the Lift Arms while they are raised. Multiple Safety Locks let you select the
best Lift Arm height for your needs. Safety Locks use gravity and intelligent engineering to hold the
Lift Arms up once they are on a Safety Lock; even if the lift loses power, the Lift Arms will stay right
where they are if they were left on a Safety Lock. Only leave your GP-7 Series lift on the
ground or on a Safety Lock.
•Safety Lock Release Handle: Releases the lift from its current Safety Lock. To lower a vehicle
from a raised position, hold down the Safety Lock Release Handle and then press down the
Lowering Handle.
•Lowering Handle: Lowers a vehicle from a raised position when used with the Safety Lock
Release Handle.
•Lift Pads: Rubber pads that contact the lifting points of the vehicles you lift. Also included with
your lift are three sets of extensions (short, medium, and tall) that can be used with the Lift Pads.
•Lift Arms: Extendable steel arms that attach to the Lift Heads. Lift Arms hold the Lift Pads; after a
vehicle is moved into place, the Lift Arms are moved so that the rubber pads contact the lifting
points on the vehicle. The Lift Arms are one of the components that actually holds a vehicle up.
•Lift Heads: Sometimes called carriages. Lift Heads move up and down in the posts. They
connect to the Lift Arms, so when the Lift Heads move up, the Lift Arms also move up, thus raising
the vehicle.
•Top Trough: The beam across the top of the lift; it supports the lift’s structure and holds the
Hydraulic Cylinder and the Lifting Cables.
•Trip Stop Tube: Located on the underside of the Top Trough, the Trip Stop Tube stops upward
movement of the lift. If you are raising a vehicle and it hits the Trip Stop Tube, the lift immediately
stops moving up.
•Power Disconnect Switch: Immediately interrupts main electrical power to the lift. Used for
electrical circuit faults, emergency situations, or when lift is undergoing service or maintenance.

GrandPrix (GP-7 Series) Two-Post Lifts 11 P/N 5900209 — August 2018 — Rev. C2

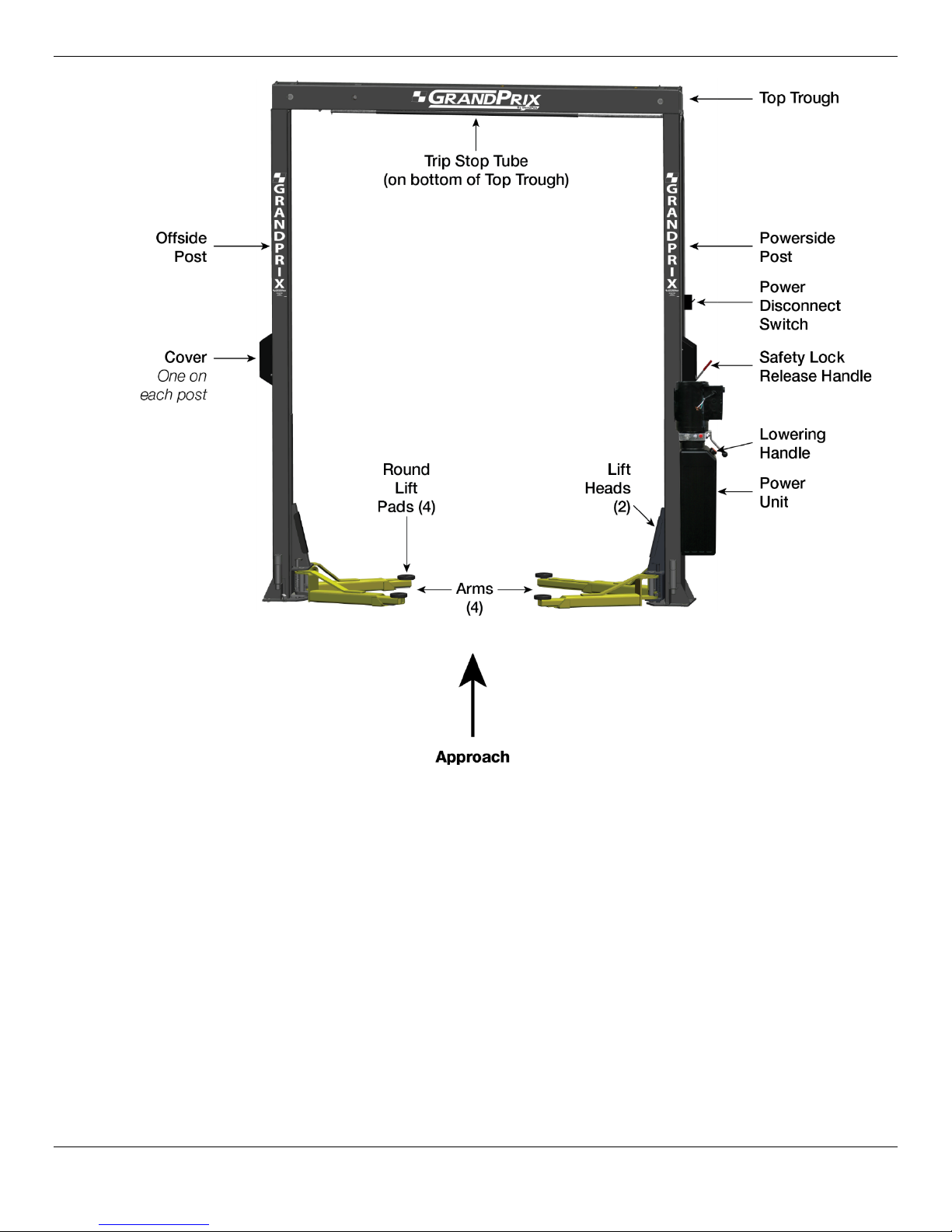

View is from rear of the lift, looking towards the front. Model GP-7 shown. Not all components shown.

GrandPrix (GP-7 Series) Two-Post Lifts 12 P/N 5900209 — August 2018 — Rev. C2
Installation Checklist
Following are the steps needed to install a GP-7 Series lift; perform them in this order.
☐1. Review the installation safety rules.
☐2. Plan for electrical work.
☐3. Make sure you have the necessary tools.
☐4. Select the installation location.
☐5. Check the Clearances.
☐6. Unload and unpack the components.
☐7. Review the installation orientation.
☐8. Put down Chalk Line Guides for the posts.
☐9. Install the Post Straps.
☐10. Install the Powerside and Offside Posts.
☐11. Route the Lifting Cables.
☐12. Prepare the Top Trough.
☐13. Install the Top Trough.
☐14. Install the Power Unit (but don’t connect it to power yet).
☐15. Install the Safety Assemblies and the Safety Cable.
☐16. Install the Trip Stop Tube.
☐17. Install the Microswitch and the Microswitch Cable.
☐18. Install the Hydraulic Lines.
☐19. Connect the Lifting Cables.
☐20. Install the Safety Covers.
☐21. Install the Lift Arms.
☐22. Perform final leveling of the posts.
☐23. Connect the Power Unit.
☐24. Install the Power Disconnect Switch.
☐25. Install the Thermal Disconnect Switch.
☐26. Lubricate the lift.
☐27. Bleed the Hydraulic Cylinder.
☐28. Review the final checklist.

GrandPrix (GP-7 Series) Two-Post Lifts 13 P/N 5900209 — August 2018 — Rev. C2
Installation
The installation process includes multiple steps. Perform them in the order listed.
Safety Rules
When installing the lift, your safety depends on proper training and thoughtful operation.
⚠WARNING Do not install this equipment unless you have automotive lift installation training.
Always use proper lifting tools, such as a forklift or crane, to lift heavy components.
Do not install this equipment without reading and understanding this manual and
the safety labels on the unit.
Only fully trained personnel should be involved in installing this equipment. Pay attention at all times.
Use appropriate tools and lifting equipment, when needed. Stay clear of moving parts.
⚠WARNING You must wear appropriate protective equipment: leather gloves, steel-toed work
boots, eye protection, back belts, and hearing protection.
Electrical Work
You will need to have a licensed, certified electrician available at some point during the installation.
⚠DANGER All wiring must be performed by a licensed, certified electrician.
The electrician needs to:
•Connect the 220 VAC power source to the Power Unit. This is generally done near the
end of the installation process; do not connect the Power Unit at the same time as you install it.
•Install a Power Disconnect Switch. A Power Disconnect Switch ensures that the equipment
shuts down in the event of an electrical circuit fault or emergency situation. Refer to Install a
Power Disconnect Switch for more information.
•Install a Thermal Disconnect Switch. A Thermal Disconnect Switch ensures that the
equipment shuts down in the event of an overload or an overheated motor. Refer to Install a
Thermal Disconnect Switch for more information.
Tools
You may need some or all of the following tools:
•Rotary hammer drill (or similar)
•¾ inch carbide bit (conforming to ANSI B212.15-1994)
•Hammer
•Four-foot level
•Open-end wrench set, SAE and metric
•Socket and ratchet set, SAE and metric
•Hex key wrench set
•Crescent and pipe wrenches

GrandPrix (GP-7 Series) Two-Post Lifts 14 P/N 5900209 — August 2018 — Rev. C2
•Torque wrench
•Crow bar
•Chalk line
•Medium-sized flat screwdriver
•Tape measure, 25 feet or above
•Needle-nose pliers
•Heavy-duty rolling dolly
•Forklift or crane
•Two 12-foot ladders
•Two saw horses
Selecting a Location
When selecting the location for your GP-7 Series lift, consider:
•Architectural plans. Consult the architectural plans for your desired installation location. Make
sure there are no contradictions between what you want to do and what the plans show.
•Available space. Make sure there is enough space for the lift; front, back, sides, and
above .
Refer to Specifications for exact measurements.
•Overhead obstructions. Check for overhead obstructions such as building supports, heaters,
lights, electrical lines, low ceilings, and so on.
•Power. You need a 220 VAC power source available for the lift’s Power Unit.
•Outdoor installations. GP-7 Series lifts are not designed to be installed outdoors. However,
they can be accommodated in certain regions
if optional moisture preventative devices are used.
Email [e-mail] for more information.
•Floor. Only install the lift on a flat, concrete floor; do not install on asphalt or any other surface.
The surface must be level; do not install if the surface has more than three degrees of slope.
⚠WARNING Installing your lift on a surface with more than three degrees of slope could lead to
injury or even death. Only install GP-7 Series lifts on a level floor (defined as no
more than 3/8 of an inch difference over the installation area). If your floor is not
level, consider making the floor level or using a different location.
•Concrete specifications. Do not install the lift on cracked or defective concrete. Make sure the
concrete is at least 4.25 inches thick, 3,000 PSI, and cured for a minimum of 28 days.
⚠CAUTION BendPak lifts are supplied with installation instructions and concrete anchors that
meet the criteria set by the American National Standard “Automotive Lifts – Safety
Requirements for Construction, Testing, and Validation”, ANSI/ALI ALCTV-2011.
You are responsible for any special regional structural and/or seismic anchoring
requirements specified by any other agencies and/or codes such as the Uniform
Building Code (UBC) and/or International Building Code (IBC).
Check your floor for the possibility of it being a post tension slab. In this case, contact the building
architect before drilling. Using ground penetrating radar may help you find the tensioned steel.

GrandPrix (GP-7 Series) Two-Post Lifts 15 P/N 5900209 — August 2018 — Rev. C2
⚠WARNING Cutting through a tensioned cable can result in injury or death. Do not drill into a
post tension slab unless the building architect confirms you are not going to hit
tensioned steel or you have located it using ground penetrating radar. If colored
sheath comes up during drilling, stop drilling immediately.
Anchor Bolt specifications are:
•Length: 6.25 inches
•Diameter: ¾ inch
•Effective embedment depth: 3.25 inches, minimum
•Anchor torque: 110 – 150 foot pounds
⚠WARNING Use the ALI-certified Anchor Bolts that came with your GP-7 Series lift. If you use
components from a different source, you void your warranty and compromise the
safety of everyone who installs or uses the lift.

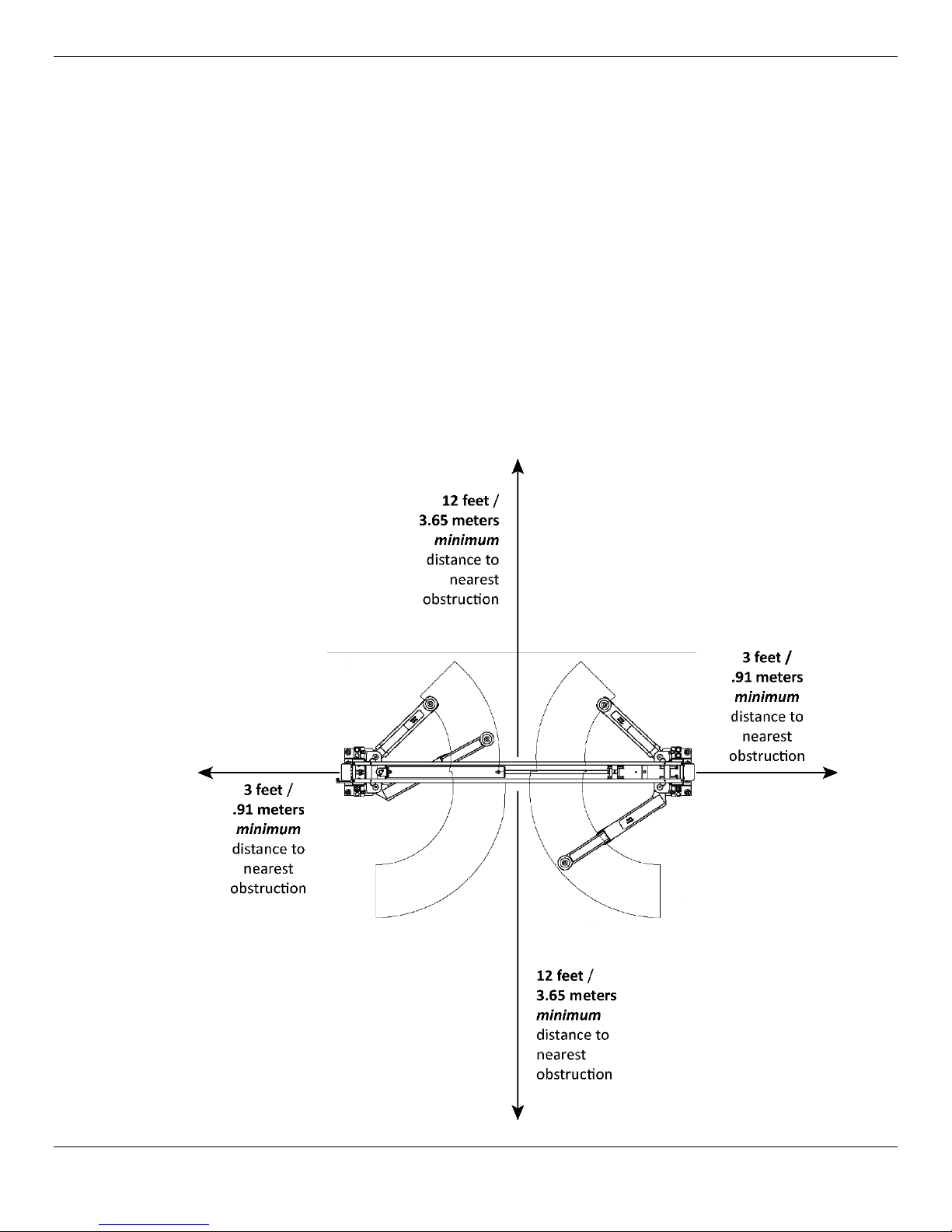

Clearances

GrandPrix (GP-7 Series) Two-Post Lifts 16 P/N 5900209 — August 2018 — Rev. C2
Unloading and Unpacking
Unload the lift components as close to the installation location as possible.
Once the components are unloaded, they are your responsibility to move around. The lift includes a
number of heavy pieces, so the closer you unload them to the installation location, the better off you
will be.
⚠WARNING Some lift components are very heavy; if handled incorrectly, they can damage
materials like tile, sandstone, and brick. Try to handle the lift components just twice:
once when delivered and once when moved into position. You must have a forklift
or crane to move some of the lift components into position. Use care when moving
them around.
Installation Orientation
To determine the front of your lift, drive a vehicle in straight (do not back it in) and stop. The front of the
lift is where the front of the vehicle is.
The approach is the direction you drive a vehicle onto the lift. Generally the approach is from the rear of
the lift towards the front of the lift.
The orientation of the procedures and drawings in this manual is looking at the lift from the rear,
towards the front, unless specified otherwise. This is the same orientation as shown in the image in the
Components section.
This means that:
•The Powerside Post (which holds the Lowering Handle and the Power Unit) is on the right, the
Offside Post is on the left.
•The
Hydraulic Cylinder end of the Top Trough is installed on the right, above the Power Unit.
•The two angled arms are at the ‘front’ of the lift.
•The two straight arms are at the ‘rear’ of the lift.
Tip You are not required to use this same orientation. Keep in mind, however, that if you
choose to put the Powerside Post on the left, for example, some of the instructions may
need to be reversed.

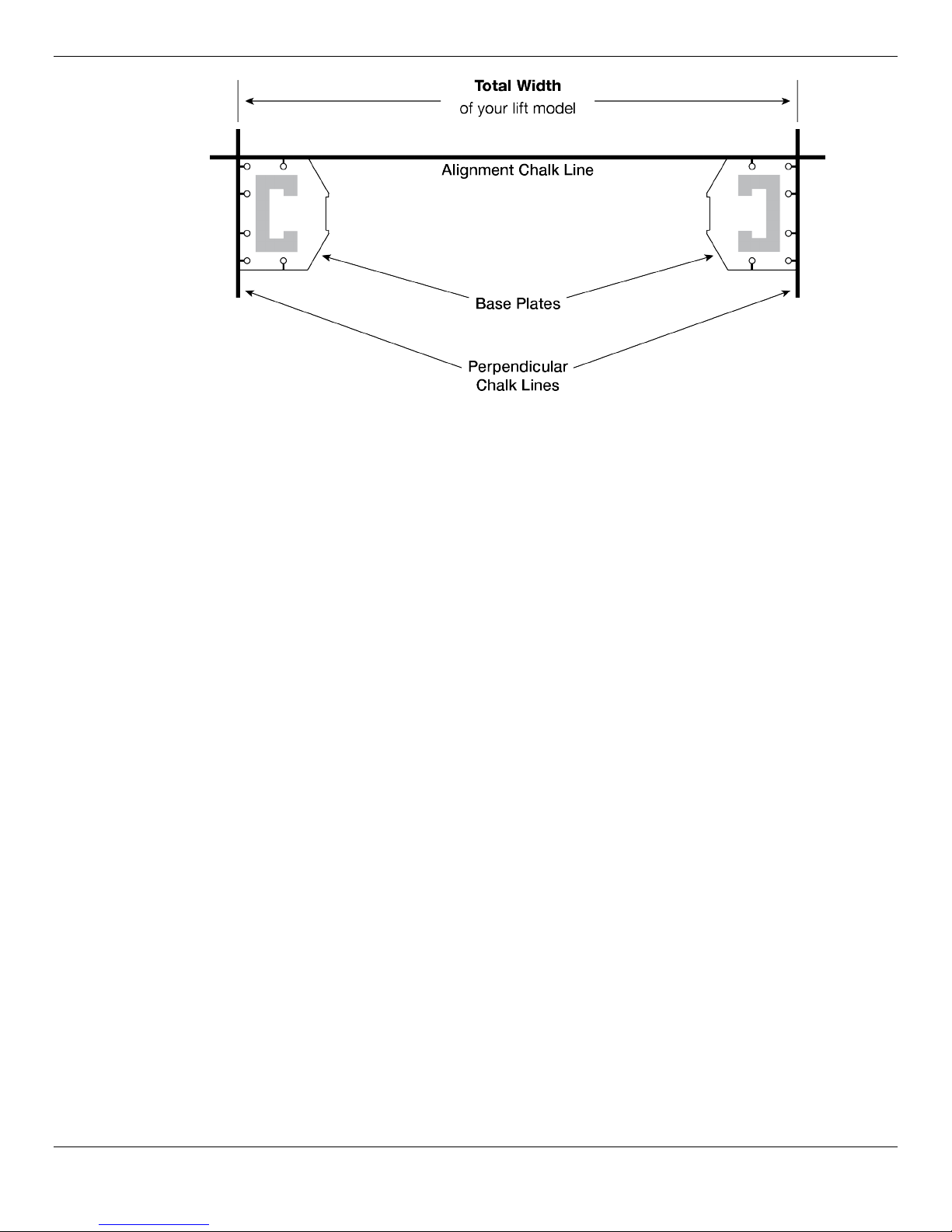

Putting in Chalk Line Guides
Based on the specifications for your lift, create Chalk Line Guides on the ground for the two posts prior
to moving them into position.
Use the Width Overall value in Specifications
for your lift model to determine where to place the
Chalk Line Guides. The Width Overall value is defined as the distance from the back of one base plate
to the back of the other base plate.

GrandPrix (GP-7 Series) Two-Post Lifts 17 P/N 5900209 — August 2018 — Rev. C2
To add Chalk Line Guides:
1. Decide where you want to locate the lift.
2. Create an alignment chalk line at the desired location.
The alignment chalk line must be longer than the Width Overall setting for your lift model.
3. Create two perpendicular chalk lines at 90° angles to the alignment chalk lines.
The two perpendicular chalk lines must be xdistance from each other, where xis the Width
Overall setting for your lift model.
4. When you move the posts into position, put the corners of the base plates into the corners created
by the Chalk Line Guides.

GrandPrix (GP-7 Series) Two-Post Lifts 18 P/N 5900209 — August 2018 — Rev. C2
Installing the Post Straps
You may want to install the Post Straps on the posts prior to standing them up. It is not required, but if
you install them after standing up the posts, you will need a ladder to reach them.
Important: If you have not already decided which post will be your Powerside Post and which will
be your Offside Post, installing the Post Straps settles the matter: the Post Strap with
the welded plate is the Powerside Post. The other post is the Offside Post.
To install the Post Straps:
1. Bolt the Post Strap
with the welded plate to the Powerside Post.
2. Bolt the other Post Strap (no welded plate) to the Offside Post.

GrandPrix (GP-7 Series) Two-Post Lifts 19 P/N 5900209 — August 2018 — Rev. C2
Installing the Posts
We strongly recommend having multiple people working together to install the posts.
Concrete specifications are:
•Depth: 4.25 inches thick
•PSI: 3,000 PSI, minimum
•Cured: 28 days, minimum
Anchor Bolt specifications are:
•Length: 6.25 inches
•Diameter: ¾ inch
•Effective embedment: 3.25 inches, minimum
•Anchor torque: 110 – 150 foot pounds
⚠WARNING Your Concrete and Anchor Bolts must meet these specifications. Only install your
lift on a Concrete surface. If you install a lift on asphalt or any other surface, or your
Concrete or Anchor bolts do not meet these specifications, it could lead to product
damage, vehicle damage, personal injury, or even loss of life.
BendPak lifts are supplied with installation instructions and concrete fasteners meeting the criteria as
prescribed by the American National Standard “Automotive Lifts – Safety Requirements for
Construction, Testing, and Validation” ANSI/ALI ALCTV-2006.
⚠WARNING Use only the ALI-certified Anchor Bolts that came with your GP-7 Series lift. If you
use components from a different source, you void your warranty and compromise
the safety of everyone who installs or uses the lift.
Lift buyers are responsible for conforming to all regional, structural, and seismic anchoring
requirements specified by any other agencies and/or codes, such as the Uniform Building Code and/or
International Building Code.
Tip Consider
not torqueing the Anchor Bolts into position quite yet. Two reasons: installing
the Top Trough and doing final leveling may be easier if there is a little play in the posts.
To install the posts:
1. Using a forklift, crane, or heavy-duty rolling dolly, move the posts to the Chalk Line Guides you
created earlier.
2. Stand up each post, one at a time, and move the appropriate corners into the corners created by
the Chalk Line Guides.
3. Double check your measurements against the Specifications for your GP-7 Series lift model:
Distance from back of one base plate to back of other base plate: Width Overall value
Distance from inside of one post to inside of other post: Inside Posts value

GrandPrix (GP-7 Series) Two-Post Lifts 20 P/N 5900209 — August 2018 — Rev. C2
4. Using the Base Plates as guides, drill the holes for the Anchor Bolts.
Go in straight; do not let the drill wobble.
Use a carbide bit (conforming to ANSI B212.15-1994).
The diameter of the drill bit must be the same as the diameter of the Anchor Bolt. So if you are
using a ¾ inch diameter Anchor Bolt, for example, use a ¾ inch diameter drill bit.
5. Vacuum each hole clean.
BendPak recommends using a vacuum to get the hole very clean. You can also use a wire brush,
hand pump, or compressed air; just
make sure to thoroughly clean each hole .
Do
not ream the hole. Do not make the hole any wider than the drill bit made it.
Important: The holding strength of an Anchor Bolt is partially based on the how cleanly the
Expansion Sleeve presses against the Concrete. If the hole is dirty, the Expansion
Sleeve does not press as cleanly, which means less holding strength. If the hole is
too wide, the Expansion Sleeve does not press against the Concrete with as much
force, again resulting in less holding strength.
6. Make sure the Washer and Nut are in place, then insert the Anchor Bolt into the hole.
The Expansion Sleeve of the Anchor Bolt may prevent the Anchor Bolt from passing through the
hole in the Base Plate; this is normal. Use a hammer or mallet to get the Expansion Sleeve through
the Base Plate and into the hole.
Even using a hammer or mallet, the Anchor Bolt should only go into the hole part of the way; this is
normal. If the Anchor Bolt goes all the way in with little or no resistance, the hole is too wide.
