Bend-Pak HDSO-14P User manual

INSTALLATION AND OPERATION MANUAL
FOUR-POST OPEN FRONT ALIGNMENT LIFTS
COMMERCIAL GRADE
14,000 LBS. CAPACITY
Models:
• HDSO-14P
• HDSO-14AX
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
PLEASE READ THE ENTIRE CONTENTS OF THIS MANUAL PRIOR TO
INSTALLATION AND OPERATION. BY PROCEEDING WITH LIFT INSTALLATION
AND OPERATION YOU AGREE THAT YOU FULLY UNDERSTAND AND
COMPREHEND THE FULL CONTENTS OF THIS MANUAL. FORWARD THIS
MANUAL TO ALL OPERATORS. FAILURE TO OPERATE THIS EQUIPMENT AS
DIRECTED MAY CAUSE INJURY OR DEATH.
Revision B – November 2020
Part Number 5900001
Keep this operation manual near the
machine at all times. Make sure that
ALL USERS read this manual.
RECEIVING
The shipment should be thoroughly inspected as soon as it is
received. The signed Bill of Lading is acknowledgement by
the shipping carrier as receipt of this product as listed in your
invoice as being in a good condition of shipment. If any of
these goods listed on this Bill of Lading are missing or dam-
aged, do not accept goods until the shipping carrier makes a
notation on the freight bill of the missing or damaged goods.
Do this for your own protection.
BE SAFE
Your new lift was designed and built with safety in mind.
However, your overall safety can be increased with proper
training and thoughtful operation on the part of the operator.
DO NOT operate or repair this equipment without reading this
manual and the important safety instructions shown inside.
Keep this operation manual near the lift at all times. Make sure
that ALL USERS read and understand this manual.
400V 50Hz SUPPLY DETAILS ARE
INCLUDED WITH ELECTRICAL
CONTROL BOX. DISREGARD SUPPLY
WIRING DETAILS IN THIS MANUAL
EUROPEAN USERS

2
14,000 POUND CAPACITY, COMMERCIAL GRADE
FOUR POST OPEN FRONT ALIGNMENT AUTO / TRUCK LIFT
This instruction manual has been prepared especially for you.
Your new lift is the product of over 40 years of continuous research, testing and development;
it is the most technically advanced lift on the market today.
READ THIS ENTIRE MANUAL BEFORE
INSTALLATION & OPERATION BEGINS.
RECORD HERE THE LIFT AND
POWER UNIT INFORMATION WHICH IS LOCATED
ON THE SERIAL NUMBER DATA PLATES ON THE LIFT
AND ON THE POWER UNIT
Power Unit Model # _____________
Power Unit Date Of Mfg. _____________
Power Unit Serial # _____________
Maximum Operating
Hydraulic Pressure 2,950 PSI
This information is required when
calling for parts or warranty issues.
PRODUCT WARRANTY
Our comprehensive product warranty means more than a commitment to you; it’s also a commitment to the value of your
new BendPak lift. For full warranty details and to register your new lift contact your nearest BendPak dealer or visit:
http:/ /www.bendpak.com/support/warranty/
NOTE:
Every effort has been taken to ensure complete and accurate instructions have been included in this manual, however, possible product
updates, revisions and or changes may have occurred since this printing. BendPak Ranger reserves the right to change specifications
without incurring any obligation for equipment previously or subsequently sold. Not responsible for typographical errors.

3
IMPORTANT NOTICE
Do not attempt to install this lift if you have never been
trained on basic automotive lift installation procedures.
Never attempt to lift components without proper lifting
tools such as forklift or cranes. Stay clear of any
moving parts that can fall and cause injury. These
instructions must be followed to ensure proper installa-
tion and operation of your lift. Failure to comply with these
instructions can result in serious bodily harm and void
product warranty. Manufacturer will assume no liability for
loss or damage of any kind, expressed or implied resulting
from improper installation or use of this product.
PLEASE READ ENTIRE MANUAL
PRIOR TO INSTALLATION.
DEFINITIONS OF
HAZARD LEVELS
Identify the hazard levels used in this manual with the
following definitions and signal words:
Watch for this symbol: It means immediate hazards which
will result in severe personal injury or death.
Watch for this symbol: It means hazards or unsafe
practices which could result in severe personal
injury or death.
Watch for this symbol: It means hazards or unsafe
practices which may result in minor personal injury, prod-
uct or property damage.
OWNER’S RESPONSIBILITY
To maintain the lift and user safety, the responsibility of the
owner is to read and follow these instructions:
tFollow all installation and operation instructions.
tMake sure installation conforms to all applicable Local,
State, and Federal Codes, Rules, and Regulations;
such as State and Federal OSHA Regulations and
Electrical Codes.
tCarefully check the lift for correct initial function.
tRead and follow the safety instructions. Keep them
readily available for machine operators.
tMake certain all operators are properly trained, know
how to safely and correctly operate the unit, and are
properly supervised.
tAllow unit operation only with all parts in place and
operating safely.
tCarefully inspect the unit on a regular basis and
perform all maintenance as required.
tService and maintain the unit only with authorized or
approved replacement parts.
tKeep all instructions permanently with the unit and
all decals on the unit clean and visible.
BEFORE YOU BEGIN
Receiving:
The shipment should be thoroughly inspected as soon as it is
received. The signed bill of lading is acknowledgement by the
carrier of receipt in good condition of shipment covered by
your invoice. If any of the goods called for on this bill of lading
are shorted or damaged, do not accept them until the carrier
makes a notation on the freight bill of the shorted or damaged
goods. Do this for your own protection.
NOTIFY THE CARRIER AT ONCE if any hidden loss or
damage is discovered after receipt and request the carrier
to make an inspection. If the carrier will not do so, prepare
a signed statement to the effect that you have notified the
carrier (on a specific date) and that the carrier has failed to
comply with your request.
IT IS DIFFICULT TO COLLECT FOR LOSS OR DAMAGE
AFTER YOU HAVE GIVEN THE CARRIER A CLEAR
RECEIPT. File your claim with the carrier promptly. Support
your claim with copies of the bill of lading, freight bill, invoice,
and photographs, if available. Our willingness to assist in
helping you process your claim does not make BendPak
responsible for collection of claims or replacement of lost or
damaged materials.

TABLE OF CONTENTS
Warranty / Serial Number Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Definitions of Hazard Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Owner’s Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installers / Operators Agreement / Protective Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Safety / Warning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Step 1 / Selecting Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Step 2 / Floor Requirements / Concrete Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Assembly View / Description of Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Floor Plan / Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power Unit Location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Step 3 / Column and Cross Tube Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13
Step 4 / Anchoring The Columns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-14
Step 5 / Raising the Cross Tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Step 6 / Powerside Runway Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Step 7 / Offside Runway Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Step 8 / Cable Sheave Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Step 9 / Cable Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-18
Step 10 / Power Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Step 11 / Routing Hydraulic Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-21
Step 12 / Routing Air Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22
Step 13 / Power Unit Hook Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-25
Step 14 / Inspecting Slack Safety Springs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Step 15 / Lift Start Up / Final Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-26
Step 16 / Attaching Approach Ramps / Tire stops.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27
Step 17 / Leveling/Synchronizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Step 18 / Adding Grease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Step 19 / Bleeding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Optional Equipment Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29-30
Step 19 / Operation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Step 20 / Lift Operation Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32-34
Wire Rope Inspection and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Safe Lift Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38-39
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38-41
Lubrication Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43-45
Parts Drawings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46-53
Maintenance Logs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54-55
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
4

5
INSTALLER / OPERATOR
PLEASE READ AND FULLY
UNDERSTAND.
BY PROCEEDING YOU AGREE TO
THE FOLLOWING.
tI have visually inspected the site where the lift is to be
installed and verified the concrete to be in good condi-
tion and free of cracks or other defects. I understand that
installing a lift on cracked or defective concrete could
cause lift failure resulting in personal injury or death.
tI understand that a level floor is required for proper
installation and level lifting.
tI understand that I am responsible if my floor is of
questionable slope and that I will be responsible for all
charges related to pouring a new level concrete slab if
required and any charges.
tI understand that BendPak lifts are supplied with
concrete fasteners meeting the criteria of the
American National Standard “Automotive Lifts -
Safety Requirements for Construction, Testing, and
Validation” ANSI/ALI ALCTV-2011, and that I will
be responsible for all charges related to any special
regional structural and/or seismic anch oring require-
ments specified by any other agencies and/or codes
such as the Uniform Building Code (UBC) and/or
International Building Code (IBC).
tI assume full responsibility for the concrete floor and
condition thereof, now or later, where the above
equipment model(s) are to be installed. Failure to fol-
low danger, warning, and caution instructions may
lead to serious personal injury or death to operator or
bystander or damage to property.
tI understand that Bendpak lifts are designed to be
installed in indoor locations only. Failure to follow
installation instructions may lead to serious personal
injury or death to operator or bystander or damage to
property or lift.
Failure to follow danger, warning, and caution instructions
may lead to serious personal injury or death to operator or
bystander or damage to property.
Please read entire manual prior to installation.
Do not operate this machine until you read and understand
all the dangers, warnings and cautions in this manual.
For additional copies or further information, contact:
BendPak Inc. / Ranger Products
1645 Lemonwood Dr.
Santa Paula, CA. 93060
1-805-933-9970
www.bendpak.com
INSTALLER / OPERATOR
PROTECTIVE EQUIPMENT
Personal protective equipment helps makes installation
and operation safer, however, it does not take the place
of safe operating practices. Always wear durable work
clothing during any installation and/or service activity. Shop
aprons or shop coats may also be worn, however loose
fitting clothing should be avoided. Tight fitting leather
gloves are recommended to protect technician hands
when handling parts. Sturdy leather work shoes with steel
toes and oil resistant soles should be used by all service
personnel to help prevent injury during typical
installation and operation activities.
Eye protection is essential during installation
and operation activities. Safety glasses with
side shields, goggles, or face shields are
acceptable. Back belts provide support dur-
ing lifting activities and are also helpful in
providing worker protection. Consideration
should also be given to the use of hearing protection if
service activity is performed in an enclosed area, or if noise
levels are high.
THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH IF NOT FOLLOWED
COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OR YOURSELF AND OTHERS
AND CAN CAUSE PERSONAL INJURY OR DEATH. READ AND FOLLOW ALL INSTRUCTIONS IN
THIS MANUAL BEFORE ATTEMPTING TO OPERATE THIS MACHINE.

6
1. Carefully remove the crating and packing
materials. CAUTION! Be careful when cutting steel
banding material as items may become loose and fall caus-
ing personal harm or injury.
2. Check the voltage, phase and proper amperage
requirements for the motor shown on the motor plate.
Wiring should be performed by a certified electrician only.
IMPORTANT SAFETY INSTRUCTIONS
Read these safety instructions entirely!
IMPORTANT NOTICE
Do not attempt to install this lift if you have never been trained on basic automotive lift installation procedures.
Never attempt to lift components without proper lifting tools such as forklift or cranes.
Stay clear of any moving parts that can fall and cause injury.
INTRODUCTION
1. READ AND UNDERSTAND all safety warning proce-
dures before operating lift.
2. KEEP HANDS AND FEET CLEAR. Remove hands and
feet from any moving parts. Keep feet clear of lift when lowering.
Avoid pinch points.
3. KEEP WORK AREA CLEAN. Cluttered work areas invite
injuries.
4. Consider work area environment. Do not expose equip-
ment to rain. DO NOT use in damp or wet locations. Keep area
well lighted.
5. ONLY TRAINED OPERATORS should operate this lift.
All non-trained personnel should be kept away from work area.
Never let non-trained personnel come in contact with, or oper-
ate lift.
6. USE LIFT CORRECTLY. Use lift in the proper manner.
Never use lifting adapters other than what is approved by the
manufacturer.
7. DO NOT override self-closing lift controls.
8. REMAIN CLEAR of lift when raising or lowering vehicle.
9. CLEAR AREA if vehicle is in danger of falling.
10. ALWAYS ENSURE that the safeties are engaged before
any attempt is made to work on or near vehicle.
11. DRESS PROPERLY. Non-skid steel-toe footwear is
recommended when operating lift.
12. GUARD AGAINST ELECTRIC
SHOCK. This lift must be grounded while
in use to protect the operator from electric
shock. Never connect the green power cord
wire to a live terminal. This is for ground only.
13. DANGER! The power unit used on this lift contains high
voltage. Disconnect power at the recep-
tacle before performing any electrical repairs.
Secure plug so that it cannot be accidentally
plugged in during service.
14. WARNING! RISK OF EXPLOSION. This equipment has
internal arcing or sparking parts which should not
be exposed to flammable vapors. This machine
should not be located in a recessed area or
below floor level.
15. MAINTAIN WITH CARE. Keep lift clean for better and
safer performance. Follow manual for proper lubrication and
maintenance instructions. Keep control handles and/or buttons
dry, clean and free from grease and oil.
16. STAY ALERT. Watch what you are doing. Use common
sense. Be aware.
17. CHECK FOR DAMAGED PARTS. Check for alignment
of moving parts, breakage of parts or any condition that may
affect its operation. Do not use lift if any component is broken
or damaged.
18. NEVER remove safety related components from the lift.
Do not use lift if safety related components are damaged or
missing.
19. Keep hair, loose clothing, fingers, and all parts of body
away from moving parts
20. Use only as described in this manual. Use only manu-
facturer’s recommended attachments
21. ALWAYS WEAR SAFETY GLASSES. Everyday
eyeglasses only have impact resistant lenses, they are not
safety glasses
22. SAVE THESE INSTRUCTIONS.

7
STEP 1
(Selecting Site)
Before installing your new lift, check the following.
1. LIFT LOCATION: Always use architects plans when
available. Check layout dimension against floor plan
requirements making sure that adequate space is available.
2. OVERHEAD OBSTRUCTIONS: The area where the lift
will be located should be free of overhead obstructions such
as heaters, building supports, electrical lines etc.
3. DEFECTIVE FLOOR: Visually inspect the site where
the lift is to be installed and check for cracked or defective
concrete.
4. Lift is designed for INDOOR INSTALLATION ONLY.
Outdoor use is prohibited. Always follow warnings illustrated
on equipment labels.
STEP 2
(Floor Requirements)
This lift must be installed on a solid level concrete floor.
A level floor is suggested for proper use and installation
and level lifting. If a floor is of questionable slope, consider
a survey of the site and/or the possibility of pouring a new
level concrete slab.
tDO NOT install or use this lift on any asphalt surface
or any surface other than concrete.
tDO NOT install or use this lift on expansion seams
or on cracked or defective concrete.
tDO NOT install or use this lift on a second / elevated
floor without first consulting a building architect.
tRefer to ANSI/ALI ALIS Standard (R2015) Safety
Requirements for Installation and Service for more informa-
tion about safely installing your Lift.
CONCRETE SPECIFICATIONS
LIFT MODEL CONCRETE REQUIREMENTS
HDSO-14P 4.25” Min. Thickness / 3,000 PSI
HDSO-14AX 4.25” Min. Thickness / 3,000 PSI
All models MUST be installed on 3,000 PSI concrete only
conforming to the minimum requirements shown above.
New concrete must be adequately cured by at least
28 days minimum.
IMPORTANT NOTICE
These instructions must be followed to ensure proper installation and operation of your lift.
Failure to comply with these instructions can result in serious bodily harm and void product warranty.
Manufacturer will assume no liability for loss or damage of any kind, expressed or implied resulting from
improper installation or use of this product.
PLEASE READ ENTIRE MANUAL PRIOR TO INSTALLATION
tRotary Hammer Drill or Similar
t3/4” Masonry Bit
tHammer
t4 Foot Level
tOpen-End Wrench Set: SAE/Metric
tSocket And Ratchet Set: SAE/Metric
tHex-Key / Allen Wrench Set
tLarge Crescent Wrench
tLarge Pipe Wrench
tCrow Bar
tChalk Line
tMedium Flat Screwdriver
tTape Measure: 25 Foot Minimum
tNeedle Nose Pliers
TOOLS REQUIRED
NOTE:
An air supply (30 PSI Min / 3 CFM Min) will be required for the safety-lock mechanisms. See page 19, Step 11.
IMPORTANT NOTE:
BendPak lifts are supplied with installation instructions and concrete fasteners meeting the criteria as prescribed
by the American National Standard "Automotive Lifts - Safety Requirements for Construction, Testing, and
Validation" ANSI/ALI ALCTV-2011. Lift buyers are responsible for any special regional structural and/or seismic
anchoring requirements specied by any other agencies and/or codes such as the
Uniform Building Code (UBC) and/or International Building Code (IBC).

8

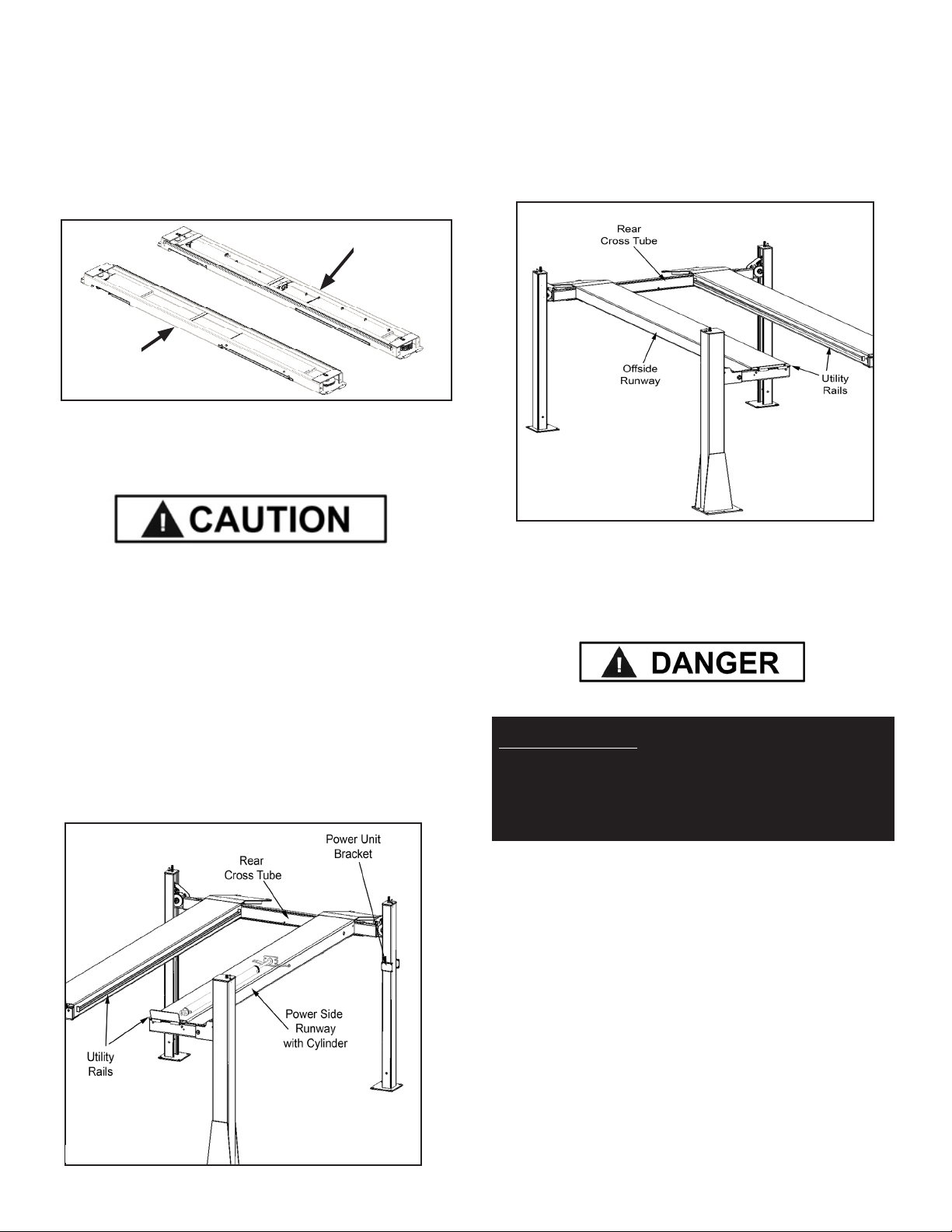

IMPORTANT NOTE:
The power unit must be installed as shown above. It is important to locate the
POWER-SIDE runway (with cylinder) on the SAME SIDE as the power unit.
Rolling Jack / Utility rails on the side of each runway MUST be installed to the inside.
When removing the lift from shipping angles pay close attention as the
runways can slide and can cause injury. Prior to removing the bolts make sure the runways are
held securely by a fork lift or some other heavy lifting device.
Small Window
Large Window
Cross Tube
Small Window
Carriage
Power Side
Runway
Power Unit
Mounting Plate
Off Side
Runway

9
FLOOR PLAN
* IMPORTANT NOTE *
Check diagonal measurements to confirm square layout; diagonal measurements must be equal.
Model HDSO-14P HDSO-14AX
Lifting Capacity 14,000 lbs / 6350 kg 14,000 lbs / 6350 kg
A - Overall Width / Front 143” / 3638 mm 143” / 3638 mm
A - Overall Width / Rear 130” / 3304 mm 130” / 3304 mm
B - Outside Length 215 ½” / 5472 mm 215 ½” / 5472 mm
C - Overall Length 244” / 6195 mm 244” / 6191 mm
D - Height of Columns / Front 103” / 2623 mm 103” / 2623 mm
D - Height of Columns / Rear 92” / 2338 mm 92” / 2338 mm
E - Min. Runway Height 7-5/8" / 192 mm 7-5/8" / 192 mm
F - Max. Rise 70” / 1778 mm 70” / 1778 mm
G - Max Lifting Height 77 ½” / 1970 mm 77 ½” / 1970 mm
H - Width Between Columns / Front 113” / 2800 mm 113” / 2800 mm
H - Width Between Columns / Rear 110” / 2796 mm 110” / 2796 mm
I - Runway Width 20” / 508 mm 20” / 520 mm
J - Width Between Runways(*) 45” / 1146 mm 45” / 1146 mm
K - Length of Runways 199” / 5054 mm 199” / 5054 mm
L - Min. 4- Wheel Alignment (**) 72” / 1828 mm 89” / 2261 mm
M - Max 4 Wheel Alignment (**) 135” / 3428 mm 156” / 3962 mm
N - Max 2 Wheel Alignment (**) 174” / 4420 mm 182” / 4623 mm
Min. Wheelbase @ Rated Capacity 140” / 3556 mm 140” / 3556 mm
Min. Wheelbase 75% Rated Capacity 120” / 3048 mm 120” / 3048 mm
Min. Wheelbase 50% Rated Capacity 100” / 2540 mm 100” / 2540 mm
Min. Wheelbase 75% Rated Capacity 80” / 2032 mm 80” / 2032 mm
Locking Positions 13 13
Lock Spacing Every 4” / 102 mm Every 4” / 102 mm
Lifting Time 60 Seconds 60 Seconds
Standard Motor 220 VAC / 60Hz 1 Ph. 220 VAC / 60Hz 1 Ph.
Emission sound pressure at Operator Position < 70 dB(A)
* This dimension may be limited with the addition of rolling jacks. See Rolling Jack Specifications on Separate
page.
** For CE compliant countries see errata sheet included with control panel.
The design, material and specifications are subject to change without notice.

10
CLEARANCES
1. Lift Location: Use architects plan and Engineers
automatic level (transit) when available to locate lift. The
above shows clearances of a typical bay layout. Lift floor
area should be level.
2. Ceiling or overhead clearance must be 80” plus height of
tallest vehicle.
3. Estimating Column Shim requirements:
In the following section, the terms “highest” and “low-
est” refer to elevation of floor.
a. Mark locations where lift columns will be posi-
tioned in bay.
b. Place target on floor at column positions (NOT on
column base plates) and record readings.
c. Find the highest of the four locations. Find the
difference between the readings at each of the
remaining three columns and the highest reading.
d. The difference is the estimated amount of shim
thickness needed at each column.
Note: Maximum shim thickness is 1/2” per column using
shims and anchors provided with lift.
If no transit is available, floor slope can be determined by
using a chalk line and level.

11
The power unit will be located at “X” location shown below. It is important to locate the
POWER SIDE runway (with cylinder) on the SAME SIDE as the power unit location.
Note the location of the bulkhead fitting holes in the POWER SIDE runway.
Utility rails on the side of each runway MUST be installed to the inside.
POWER UNIT LOCATION

STEP 3
(Column & Cross Tube Installation)
1. Place a chalk line on the floor according to the floor plan
layout. Pay attention to the Power Unit location. Locate and
stand the Columns at their respective locations. DO NOT
BOLT columns down at this time. Use caution to prevent the
Columns from falling over. (See Fig. 3.1)
2. To estimate the shim requirements, place a target on floor at
each Column position and record the readings. Find the high-
est of the four locations then find the difference between each
of the remaining Columns. This difference is the
estimated amount of shim thickness that will be required at
each Column. (See Fig. 3.2 )
Note: The maximum shim thickness recommended by the fac-
tory is no more than 1/2” per Column using shims and anchors
provided with the lift. A maximum shim thickness of 2” is pos-
sible by ordering optional shim plates. Contact your authorized
BendPak Distributor for ordering information.
3. Using a forklift or crane, raise the Cross tubes (making sure
the Plastic Slide Blocks and Buttons are still in position) and
drop down into the top of the Columns. NOTE: The Large
Sheave Window should be positioned inward and adjacent the
Power Unit Column. (See Fig. 3.3)
ENSURE THAT THE FRONT POST UPPER
AND LOWER SLIDE BLOCKS AND BUTTON
SLIDES ARE IN POSITION AS SHOWN
BEFORE PROCEEDING.
4. With the Columns standing and the cross tubes in
position, install the Safety Ladders. Pass the ladders
through the Column openings and drop down through the
Slide Block guide slots on the Cross Tube until the Ladders
come to rest on the Base Plates. DO NOT BOLT Columns
down at this time. (See Fig. 3.4 - 3.5)
12
Fig. 3.1
Fig. 3.2
Fig. 3.4
Fig. 3.3

5. The Columns and Cross Tubes will now be in position
and spaced properly for the Runways.
6. Install the Column TOP CAPS using the M10 X 1.50
X 50 hex bolts, nuts & washers. Install the nut on each
Safety Ladder until 1/2” of threads are exposed and the
ladder is raised at least 1/2” off of the base of the Column.
NOTE: Raise the ladder at least 1/2” off of the base of
the column or damage to the lift will occur. Be sure to
position the cable hole INWARD. (See Fig. 3.6 -3.7)
STEP 4
(Anchoring The Columns)
1. Before proceeding, double check the measurements and
make certain that the Bases of each Column are square and
aligned with the chalk line. (See Fig. 4.1)
ALWAYS WEAR SAFETY GOGGLES
2. Using the Base Plate on each Column as a guide, drill each
anchor hole approximately 4-1/2” deep using a rotary hammer drill
and 3/4” concrete bit.. (See Fig. 4.2)
3. After drilling, remove dust thoroughly from each hole using
compressed air and/or bristle brush. Make certain that the
Columns remain aligned with the chalk line.
4. Assemble the Washers and Nuts on the Anchors then tap
into each hole with a hammer until the Washer rests against
the Base Plate. Be sure that if shimming is required, enough
threads are left exposed. (See Fig. 4.3)
13
Fig. 3.6
Fig. 4.1
Fig. 4.2
Fig. 3.5
IMPORTANT NOTE:
BendPak lifts are supplied with installation
instructions and concrete fasteners meeting the
criteria as prescribed by the American National
Standard "Automotive Lifts - Safety Requirements
for Construction, Testing, and Validation" ANSI/ALI
ALCTV-2011. Lift buyers are responsible for any
special regional structural and/or seismic
anchoring requirements specified by any other
agencies and/or codes such as the Uniform
Building Code (UBC) and/or
International Building Code (IBC).
Fig 3.7
The Ladder must
never rest on the
base of the col-
umn or damage to
the lift will occur
Turn the Top Nut
on each Safety
Ladder until the
jam nut is touching
the Ladder and the
TOP CAP

14

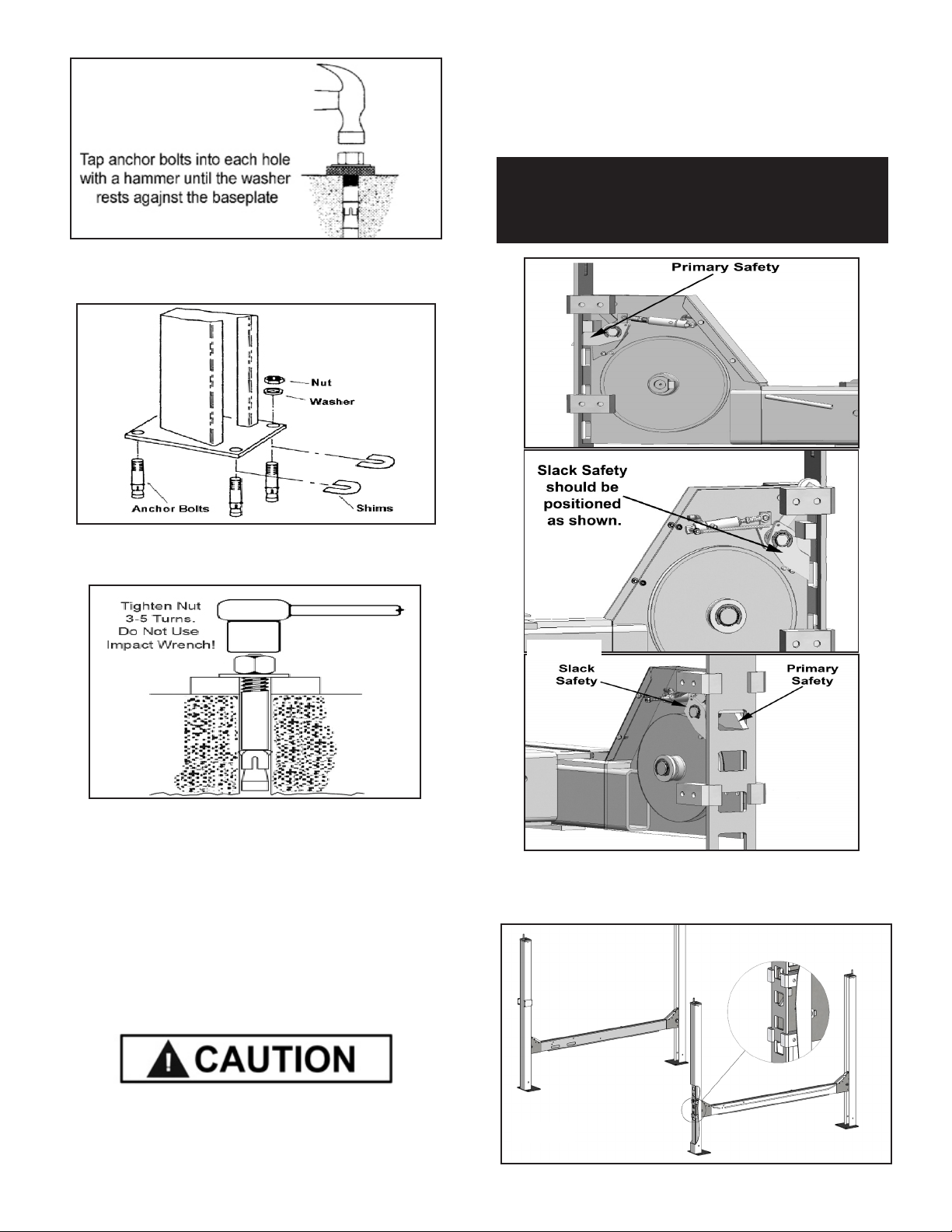

5. If shimming is required, insert the Shims as necessary
under the Base Plate so that when the Anchor bolts are tight-
ened, the Columns will be plumb. (See Fig. 4.4)
6. After any necessary Shims are installed, tighten each
anchor nut three to five turns past finger tight. (See Fig. 4.5)
IMPORTANT - If Anchor Bolts do not hold when torqued to
required amount, concrete must be replaced. Saw cut and
remove 24” x 24” square area under each Column base then
re-pour with reinforced 2500 PSI concrete to a depth of six
inches minimum, keying new concrete under existing floor.
STEP 5
(Raising The Cross Tubes)
1. Before proceeding it will be necessary to first raise the
Cross Tubes off the ground to facilitate Cable routing and
final assembly.
ENSURE THAT THE FRONT POST UPPER AND LOWER
SLIDE BLOCKS ARE ORIENTED AS SHOWN IN FIGURE
3.3 ON PAGE 12. BEFORE PROCEEDING.
2. Manually raise the Cross Tubes until the primary Safety Locks
engage and rest on the lock position second down from the top
of the ladder or approximately 66” off the ground. It is impor-
tant that the SLACK SAFETY LOCK IS CLEARED. The Slack
Safety Lock must never rest on the Safety Ladder. (See Fig. 5.1)
3. The Columns and Cross Tubes will now be in position
and spaced properly for the Runways. (See Fig. 5.2)
IMPORTANT NOTE
It is important that the SLACK SAFETY LOCK IS CLEARED.
The slack safety lock must never rest on the safety ladder.
Fig. 4.4
Fig. 4.5
Fig. 5.1
Fig. 4.3
Fig 5.2

STEP 6
(Powerside Runway Installation)
1. Locate the Powerside Runway easily identified by the
Cylinder and Sheave Roller mounting structures welded on the
underside. The Powerside Runway will be positioned on the
side of the lift where the Power Unit is installed.
(See Fig. 6.1)
2. . Remove any pre-installed Cable Sheaves from the
Powerside runway making sure to pay attention to the order in
which they are removed.
ENSURE THAT THE FRONT POST UPPER
AND LOWER SLIDE BLOCKS ARE ORIENTED
AS SHOWN IN FIGURE 3.3 ON PAGE 12.
BEFORE PROCEEDING.
3. Position the Powerside Runway on top of the Cross Tubes
with the utility rail towards the center. The fitting holes located
at the side of the Powerside Runway should be adjacent to the
Power Unit Column.
4. Align the holes in the Runway with the holes on the Cross
Tubes and bolt it into place using four M12 x 7.75 x 90
Hex Head Bolts and Washers. (See Fig. 6.2)
STEP 7
(Offside Runway Installation)
1. Position the Offside Runway on top of the Cross Tubes
with the utility rail located inside. (See Fig. 7.1)
DO NOT PROCEED with cable installation or go near the lift
work area unless visual confirmation is made of ALL
safety locks. ALL locks MUST be engaged before
proceeding. Failure to comply with these instructions may
result in severe personal injury or death. (See page 14.)
15
Fig. 6.2
Fig. 7.1
Fig. 6.1 Powerside
Runway
Offside
Runway

16
Model Part # Description
A HDSO-14P/14AX 5595065 HDSO-14P/14AX/14LSXE, HDS-14X CABLE ASSEMBLY Ø12 x 4,100 mm ST
B HDSO-14P/14AX 5595066 HDSO-14P/14AX/14LSXE, HDS-14X CABLE ASSEMBLY Ø12 x 5,732 mm ST
C HDSO-14P/14AX 5595089 HDSO-14P/14AX CABLE ASSEMBLY Ø12 x 11,302 mm ST
D HDSO-14P/14AX 5595931 HDSO-14P/14AX CABLE ASSEMBLY Ø12 x 9,639 mm ST
HDSO-14P/14AX CABLE ROUTING
Fig. 7.2
Power
Unit
Power
Unit
Power
Unit
Power
Unit
Spacers on the single sheaves are sized specifically for their
location; they are different heights from the spacers at the
other locations.
If you remove a sheave pin, sheave, and the spacers at any
location, replace them at the same location in the exact same
orientation.
IMPORTANT

STEP 8
(Cable / Sheave Installation)
1. Inspect Cables to ensure proper lengths. All Cables should
have ID tags showing proper Cable lengths.
2. In order to install the Cables it is necessary to first extend the
Hydraulic Cylinder. Remove both Cylinder port plugs then use
an air gun or come-along to extend the Cylinder.
IMPORTANT! - Be careful not to damage the chrome rod
during this step. (See Fig. 8.1)
3. Loosely route the Cables around the Sheaves, (refer to
the diagram on page 16), and then install the Sheave Pin
and screw in the Sheave Pin Retaining Screw. (It may be or
necessary to loosen the Sheave Pin and move or adjust the
pulleys during cable installation.) (See Fig. 8.2)
STEP 9
(Cable Installation)
1. Make sure the Cylinder Flange Plate is installed with the guide
assembly facing down and the Cylinder retainer plate on the
outside of the guide. Lug ends of cables start at Cylinder.
(See Fig. 9.1)
2. Route the threaded Cable ends through the ends of each
Cross Tube, over the Slack Safety Sheave then to the top of
each Column. Secure using the M22 Hex Head Nuts and
Flat Washers. Tighten each nut until there is at least one inch
of threads protruding through the top of the Nut. The Cables
will remain loose until start up and final Cable adjustments are
made. (See Fig. 9.2 - 9.3)
17
DO NOT PROCEED unless visual confirmation is made
of ALL safety locks. ALL locks MUST be engaged before
proceeding. Failure to comply with these instructions may
result in severe personal injury or death. (See page 14)
WHEN THE CABLE ADJUSTING NUTS BOTTOM OUT
ON THE THREADED END OF THE CABLE
CONNECTOR AND THERE IS STILL SLACK IN THE
CABLES, THE CABLES HAVE STRETCHED BEYOND
THE SAFE USEFUL LENGTH AND NEED TO BE
REPLACED WITH FACTORY APPROVED CABLE
ASSEMBLIES. DO NOT PLACE WASHERS, SPACERS
OR OTHER DEVICES TO “SHORTEN” THE
EFFECTIVE CABLE LENGTH AS DAMAGE TO THE LIFT
OR INJURY TO PERSONS MAY OCCUR.
Fig. 8.1
Fig. 8.2
Hydraulic
Fitting
Cylinder
Flange Plate Hydraulic
Cylinder
Retainer
Plate
Washer
Nylock Nut
Fig. 9.1
Failure to route lifting cables as described may lead
to serious personal injury and/or death to operator or
bystander and/or may cause damage to property.

3. After routing the Cables double-check to make sure all
are properly positioned and remain within the grooves of ALL
Sheaves. (See Fig. 9.4 - 9.5)
STEP 10
(Power Unit Installation)
1. Mount the Power Unit, Air Valve Mounting Bracket,
Vibration Dampner, and Flex Tube Mounting Bracket to
the Power Unit Mounting Bracket using the M8 hex bolts
and Nylock Nuts. Fill the reservoir with 12 quarts of 10-WT
hydraulic oil or Dexron automatic transmission fluid.
(See Fig. 10.1)
18
Fig. 9.3
Fig. 10.1
Fig. 9.2
Fig. 9.4
Fig. 9.5
DO NOT PERFORM ANY MAINTENANCE OR
INSTALLATION OF ANY COMPONENTS WITH OUT
FIRST ENSURING THAT ELECTRICAL POWER HAS
BEEN DISCONNECTED AT THE SOURCE OR PANEL
AND CANNOT BE RE-ENERGIZED UNTIL ALL
MAINTENANCE AND/OR INSTALLATION
PROCEDURES ARE COMPLETED.
ALL WIRING MUST BE PERFORMED
BY A LICENSED ELECTRICIAN.

19
19
DO NOT run Power Unit with no oil. Damage to pump can occur.
The Power Unit must be kept dry. Damage to Power Unit caused by water or other liquids such as
detergents, acid etc., is not covered under warranty.
Operate lift only between temperatures of 41 °- 104° F.
Improper electrical hook-up can damage motor and will not be covered under warranty.
Motor can not run on 50HZ without a physical change in motor.
Use a separate breaker for each Power Unit.
Protect each circuit with time delay fuse or circuit breaker.
For 208-230 volt, single phase, use a 25 amp fuse.
For 208-230 volt, three phase, use a 20 amp fuse.
For 380-440 volt, three phase, use a 15 amp fuse.
The standard Power Unit for your lift is 220 volt, 60HZ, single phase. All wiring must be
performed by a certied electrician only.
PROPER WIRING INSTRUCTIONS ARE AFFIXED TO MOTOR.
NOTE:
Check the Power Unit to determine proper connection ports for Power and Return lines.
It will be necessary to remove shipping plugs from both ports prior to installing Fittings.
STEP 11
( Routing Hydraulic Hoses )
1. Install the 90-degree Hydraulic Fitting to the POWER
PORT and the 90° Air Line Compression Fitting to the
RETURN PORT of the Power Unit and connect the Hoses
as described below. It will be necessary to remove the
shipping plugs from both ports prior to installing the Fittings.
(See Fig. 11.1 - 11.2)
NOTE: Return Port may be on the same side as the Power
Port on some models.
Install Fittings
90° Air Line
Compression
Fitting
90° O-Ring
Fitting
Fig. 11.1
Fig. 11.2
Remove
Shipping Plugs
Power Port
Return Port
Remove
Shipping Plugs
Power
Port
Return
Port
Fig. 11.1

20
20
2. Remove the captive nut on the Compression Fitting.
Insert the Plastic Air line through the alignment sleeve and
into the end of the tting until it bottoms out. Then tighten
the nut on the tting. (See Fig 11.3)
3. Install the 90-degree Hydraulic Fitting in the port at the
ram end of the Cylinder. On the pipe thread side of the Fitting
it is recommended to use Teflon Tape or pipe sealer. DO
NOT USE TEFLON TAPE on the JIC flared end.
(See Fig. 11.4 )
4. Install the 90-degree Air Line Compression Fitting in the
port at the base, pinned end of the Cylinder. On the pipe
thread side of the Fitting, it is recommended to use Teflon
Tape or pipe sealer. (See Fig. 11.5)
5. Route both the Power Unit Hydraulic Hose and TWO (2)
lengths of Air Line through the Flex Hose. (See Fig. 11.6)
6. Install the end of Flex Hose with the Straight Fitting onInstall the end of Flex Hose with the Straight Fitting on
the Hydraulic Hose into the hole in the Powerside Runwaythe Hydraulic Hose into the hole in the Powerside Runway
adjacent to the Power Unit. Install the end of the Flexadjacent to the Power Unit. Install the end of the Flex
Hose with the 90° Fitting on the Hydraulic Hose in theHose with the 90° Fitting on the Hydraulic Hose in the
Flex Hose Bracket Assy. Tighten the plastic nuts securely.Flex Hose Bracket Assy. Tighten the plastic nuts securely.
(See Fig 11.7)
Fig 11.5
Fig 11.6
Flex Hose Power Hose
Air Line Hose
90° Hose End
90° Air Line
Compression
Fitting
Fig. 11.7
Fig. 11.3
90° Air Line
Compression
Fitting
90° O-Ring
Fitting
Fig. 11.2
90° Hydraulic
Fitting
Fig 11.4
