Bend-Pak Clearfloor 10AP-168 User manual

BendPak, Inc. Corporate Oce
1645 Lemonwood Drive
Santa Paula, CA 93060 USA
Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
[email protected]om
Customer Service Desk / Warranty
Customer Service Representatives
Oce Tel: [phone]
Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
customerservic[email protected]
Parts Orders
Customer Service Representatives
Oce Tel: [phone]
Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
[email protected]om
Domestic Sales & Service
USA Sales Representatives
Oce Tel: [phone]
Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
[email protected]om
International Sales & Service
Oce Tel: [phone]
Exports Dept: 1-805-933-9970 EXT. 192
Ext. Toll Free US/Canada: 1-800-253-2363
Fax: [phone]
bpkex[email protected]om
Service Manual
SERVICE PARTS & DIAGRAMS
This guide is a troubleshooting reference used for maintaining and
servicing your Bend Pak product. It provides comprehensive information
on identifying serviceable parts and components and assists in
troubleshooting problems and performing assembly /disassembly
procedures.
BENDPAK
10AP-168
PRODUCT SKU
5175305
DRAWING Nº
5260699
CATEGORY
Two Post Lift
VER. C
Rev. B
DATE
6.07.2023

DIMENSIONS ARE IN MM
☺
1
4
3
6
2
5
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
ITEM
NO
PART NUMBER DESCRIPTION QTY REV
1 5245246 10AP LIFT SUPERSTRUCTURE 1 L
2 5250344 10AP-168 PARTS BOX 1 F
3 5216216 10AP TRIPLE TELESCOPING ARM ASSEMBLY, LONG 2 B
4 5216217
10AP TRIPLE TELESCOPING ASYMMETRIC ARM
ASSEMBLY, LEFT
1 B
5 5216218
10AP TRIPLE TELESCOPING ASYMMETRIC ARM
ASSEMBLY, RIGHT
1 B
6 5215971 10AP POST EXTENSION ASSEMBLY 2 C
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5260678 04/24/2023 TM 01488
B UPDATED BOM REVISIONS 06/01/2023 TM 01492
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5260699
10AP-168 PRODUCTION
LIFT VER C
04/25/2023
DO NOT SCALE DRAWING
1:35
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT 2.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 3.

DIMENSIONS ARE IN MM
☺
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
1
2
3
NEXT ASSEMBLY
5260698
5260699
WHERE USED
10AP
10AP-168
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5216182 10AP TOP TROUGH ASSEMBLY 1 C
2 5216128 10AP POWER SIDE POST ASSEMBLY 1 K
3 5216129 10AP OFF SIDE POST ASSEMBLY 1 K
04/20/2023
REV DESCRIPTION DATE EDITED BY ECO#
J UPDATED BOM REVISIONS 12/12/2022 TM 01460
K UPDATED BOM REVISIONS 01/31/2023 CA 01467
L
UPDATED BOM REVISIONS AND NEXT
ASSEMBLIES
04/20/2023 TM 01488
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
CA
5245246
10AP LIFT
SUPERSTRUCTURE
04/05/2022
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
OR 04/28/2023
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.

DIMENSIONS ARE IN MM
☺
A
1
4
3
2
6
7
5
15
14
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
DETAIL A
SCALE 1 : 3
9
11
8
10
12
13
16
17
NEXT ASSEMBLY
5245246
WHERE USED
10AP
10AP-168
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601800 10AP POWER SIDE POST WELDMENT 1 D
2 5216180 10AP LIFT HEAD ASSEMBLY 1 F
3 5502724 CYLINDER ASSEMBLY Ø2.0 x 69 - SLOW 1 D
4 5701242 CYLINDER CLAMP ASSY 1 -
5 5530366 FHSS M6 x 1.0 x 8 1 -
6 5575068 10AP 100mm SHEAVE ASSEMBLY 1 B
7 5620143 D2-10, 10AP CABLE SHEAVE PIN WELDMENT 1 C
8 5575074 10/12AP SAFETY CABLE ROLLER 1 A
9 5530756 HHB M6 x 1.0 x 25mm 1 -
10 5535357 NUT M6 x 1.0, NL CL8 1 -
11 5565350
10/12AP/D2/GP/PCL/XPR/ PL-7000 SAFETY
SHEAVE SPACER
1 C
12 5601516 10AP POWER SIDE SAFETY WELDMENT 1 E
13 5746494 10/12AP SAFETY PIVOT PIN 1 C
14 5530414 BHSK M8 x 1.25 x 25 CL10.9 1 -
15 5545202 WASHER M8 x Ø15 SL 1 -
16 5540047 EXTENSION SPRING Ø6.35 x 38mm 2 -
17 5530045 BHPS M5 x 0.8 x 10 4 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
H UPDATED BOM REVISION 12/12/2022 TM 01460
J UPDATED BOM REVISION 01/31/2023 CA 01467
K UPDATED BOM REVISION 04/20/2023 TM 01488
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
CA
5216128
10AP POWER SIDE
POST ASSEMBLY
04/05/2022
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
OR 04/28/2023
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
A
4
3
2
6
7
5
14
15
1
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
DETAIL A
SCALE 1 : 3
9
8
10
11
13
16
12
17
NEXT ASSEMBLY
5245246
WHERE USED
10AP
10AP-168
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601850 10AP OFF SIDE POST WELDMENT 1 B
2 5216180 10AP LIFT HEAD ASSEMBLY 1 F
3 5502724 CYLINDER ASSEMBLY Ø2.0 x 69 - SLOW 1 D
4 5701242 CYLINDER CLAMP ASSY 1 -
5 5530366 FHSS M6 x 1.0 x 8 1 -
6 5575068 10AP 100mm SHEAVE ASSEMBLY 1 B
7 5620143 D2-10, 10AP CABLE SHEAVE PIN WELDMENT 1 C
8 5575074 10/12AP SAFETY CABLE ROLLER 1 A
9 5530756 HHB M6 x 1.0 x 25mm 1 -
10 5535357 NUT M6 x 1.0, NL CL8 1 -
11 5565350
10/12AP/D2/GP/PCL/XPR/ PL-7000 SAFETY
SHEAVE SPACER
1 C
12 5737177 10AP OFF SIDE SAFETY BLOCK 1 F
13 5746494 10/12AP SAFETY PIVOT PIN 1 C
14 5530414 BHSK M8 x 1.25 x 25 CL10.9 1 -
15 5545202 WASHER M8 x Ø15 SL 1 -
16 5540047 EXTENSION SPRING Ø6.35 x 38mm 2 -
17 5530045 BHPS M5 x 0.8 x 10 4 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
H UPDATED BOM REVISION 12/12/2022 TM 01460
J UPDATED BOM REVISION 01/31/2023 CA 01467
K UPDATED BOM REVISION 04/20/2023 TM 01488
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
CA
5216129
10AP OFF SIDE POST
ASSEMBLY
04/05/2022
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
OR 04/28/2023
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
1
2
3
5
4
NEXT ASSEMBLY
5240022
5240036
5260699
5260700
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE 07/17/2020 CA 01178
B UPDATED BOM REVISION 12/10/2020 TM 01240
C UPDATED BOM REVISION 12/02/2021 TM 01361
WHERE USED
10AP-168
10APX-181
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601538 10AP POST EXTENSION WELDMENT 1 C
2 5530076 HHB M12 x 1.75 x 35mm 4 -
3 5545201 WASHER, M12 SPRING LOCK 4 -
4 5545027 WASHER M12 x Ø37 8 -
5 5535354 NUT, M12 x1.75 4 -
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
CA
5215971
10AP POST EXTENSION
ASSEMBLY
07/17/2020
DO NOT SCALE DRAWING
1:6
SCALE:
THIRD ANGLE PROJECTION
OR
12/08/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.

DIMENSIONS ARE IN MM
☺
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
A
B
2
8
6
1
DETAIL A
SCALE 1 : 4
3
7
4
5
9
DETAIL B
SCALE 1 : 5
10
11
12
15
14
13
DETAIL C
SCALE 1 : 6
4
NEXT ASSEMBLY
5245246
5245249
WHERE USED
10AP SERIES
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601854 10AP OUTER TOP TROUGH WELDMENT 1 C
2 5601855 10AP INNER TOP TROUGH WELDMENT 1 C
3 5535013 NUT M10 x 1.5 NL 6 -
4 5530738 HHB M10 x 1.5 x 25 6 -
5 5545341 WASHER M10 x Ø20 FLAT 6 -
6 5600501 XPR-10/10A MICROSWITCH STOP BAR WELDMENT 1 B
7 5620445 XPR TRIP STOP BAR SLIDER WELDMENT 1 C
8 5300815 10AP/D2/XPR STOP BAR CUSHION 1 D
9 5530055 SSS M6x1x10 2 -
10 5575074 10AP SAFETY CABLE ROLLER 2 A
11 5535357 NUT M6 x 1.0, NL CL8 2 -
12 5530756 HHB M6 x 1.0 x 25mm 2 -
13 5575068 10AP 100mm SHEAVE ASSEMBLY 4 B
14 5505020 HAIR PIN 1/8” x 2 7/8” 4 -
15 5545343 WASHER, M20 FLAT 4 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5215953 06/07/2022 CA 01417
B
ADDED 5545343, MOVED 5746496 TO
SUBWELDMENTS, UPDATED BOM REVISIONS
10/03/2022 TM 01449
C UPDATED BOM REVISIONS 01/31/2023 CA 01467
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
CA
5216182
10AP TOP TROUGH
ASSEMBLY
06/07/2022
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
OR 02/03/2023
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.
NOTE ORIENTATION OF HARDWARE 4.

DIMENSIONS ARE IN MM
☺
1
2
3
4
5
5
6
7
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
NEXT ASSEMBLY
5260698
5260699
5260700
5260701
WHERE USED
10AP SERIES
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601937 10AP LONG ARM WELDMENT, OUTER SECTION 1 B
2 5601936 10AP LONG ARM WELDMENT, MIDDLE SECTION 1 A
3 5601512 10AP LONG ARM WELDMENT, INNER SECTION 1 F
4 5737188 10/12AP MIDDLE ARM SECTION SLIDE STOP 1 B
5 5530382 FHSS M8 x 1.25 x 12 CL10.9 2 -
6 5530479 BHSS M10 x 1.5 x 20 FT, CL 10.9 B.O. 2 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5215957 04/20/2023 TM 01488
B
REPLACED 5530346 WITH 5530479, UPDATED
BOM REVISIONS
05/24/2023 TM 01492
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5216216
10AP TRIPLE TELESCOPING
ARM ASSEMBLY, LONG
04/20/2023
DO NOT SCALE DRAWING
1:6
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
REMOVE WELD SPLATTER 2.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 3.
ASSEMBLE ITEMS AS SHOWN 4.
MASK TEETH BEFORE PAINTING 5.
MASK BORE AND ALL THREADS BEFORE PAINTING 6.
APPLY LOCTITE BLUE 242 AND CURE PER MANUFACTURE 7.
SPECIFICATION
DIMENSIONS SHOWN ARE AFTER WELDING AND PAINTING 8.
PAINT YELLOW (RAL-1018) 20% GLOSS 9.

DIMENSIONS ARE IN MM
☺
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
1
2
3
5
4
5
6
9
WHERE USED
10AP SERIES
NEXT ASSEMBLY
5260698
5260699
5260700
5260701
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5216088 04/21/2023 TM 01488
B
REPLACED 5530346 WITH 5530 479, UPDATED
BOM REVISIONS
06/01/2023 TM 01492
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5601938 10AP ASYMMETRIC ARM WELDMENT, OUTER SECTION, LEFT 1 B
2 5601753 10AP ASYMMETRIC ARM WELDMENT, MIDDLE SECTION 1 A
3 5601752 10AP ASYMMETRIC ARM WELDMENT, INNER SECTION 1 B
4 5737188 10/12AP MIDDLE ARM SECTION SLIDE STOP 1 B
5 5530382 FHSS M8 x 1.25 x 12 CL10.9 2 -
6 5530479 BHSS M10 x 1.5 x 20 FT, CL 10.9 B.O. 2 -
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5216217
10AP TRIPLE TELESCOPING
ASYMMETRIC ARM
ASSEMBLY, LEFT
04/21/2023
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
REMOVE WELD SPLATTER 2.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 3.
ASSEMBLE ITEMS AS SHOWN 4.
MASK TEETH BEFORE PAINTING 5.
MASK BORE AND ALL THREADS BEFORE PAINTING 6.
DIMENSIONS SHOWN ARE AFTER WELDING AND PAINTING 7.
PAINT YELLOW (RAL-1018) 20% GLOSS 8.
APPLY LOCTITE BLUE 242 AND CURE PER MANUFACTURE 9.
SPECIFICATION

DIMENSIONS ARE IN MM
☺
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
1
2
3
5
4
5
6
9
WHERE USED
10AP SERIES
NEXT ASSEMBLY
5260698
5260699
5260700
5260701
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5601939 10AP ASYMMETRIC ARM WELDMENT, OUTER SECTION, RIGHT 1 B
2 5601753 10AP ASYMMETRIC ARM WELDMENT, MIDDLE SECTION 1 A
3 5601752 10AP ASYMMETRIC ARM WELDMENT, INNER SECTION 1 B
4 5737188 10/12AP MIDDLE ARM SECTION SLIDE STOP 1 B
5 5530382 FHSS M8 x 1.25 x 12 CL10.9 2 -
6 5530479 BHSS M10 x 1.5 x 20 FT, CL 10.9 B.O. 2 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5216089 04/24/2023 TM 01488
B
REPLACED 5530346 WITH 5530 479, UPDATED
BOM REVISIONS
06/01/2023 TM 01492
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5216218
10AP TRIPLE TELESCOPING
ASYMMETRIC ARM
ASSEMBLY, RIGHT
04/24/2023
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
REMOVE WELD SPLATTER 2.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 3.
ASSEMBLE ITEMS AS SHOWN 4.
MASK TEETH BEFORE PAINTING 5.
MASK BORE AND ALL THREADS BEFORE PAINTING 6.
DIMENSIONS SHOWN ARE AFTER WELDING AND PAINTING 7.
PAINT YELLOW (RAL-1018) 20% GLOSS 8.
APPLY LOCTITE BLUE 242 AND CURE PER MANUFACTURE 9.
SPECIFICATION

DIMENSIONS ARE IN MM
☺
15
11
14
12
13
8
6
5
3
7
2
9
4
18
19
17
1
16
10
20
NEXT ASSEMBLY
5260699
WHERE USED
10AP-168
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5174047 10AP SERIES PARTS BAG 1 K
2 5595753 CABLE ASSEMBLY Ø10 x 11400mm DBST 2 A

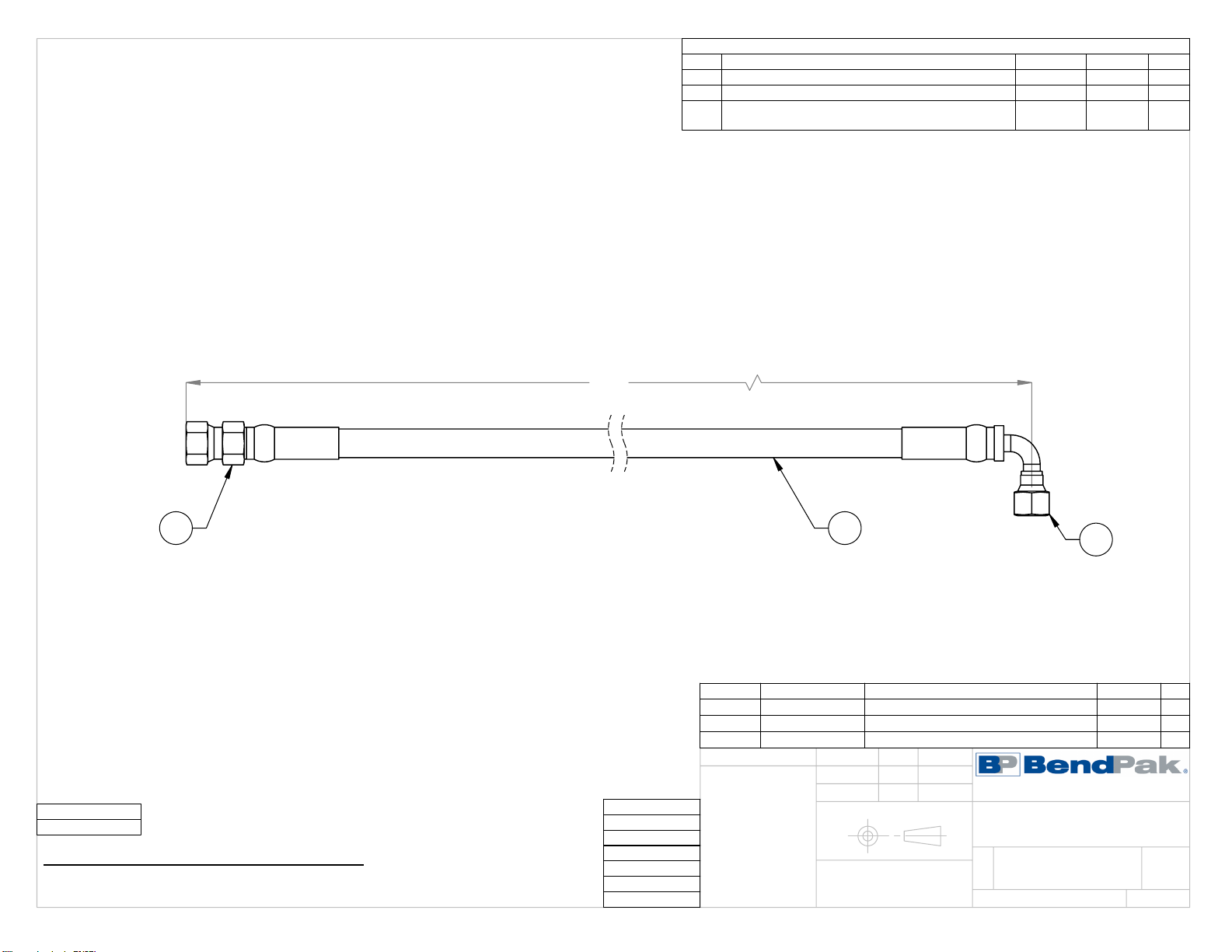

3 5570277 HYDRAULIC HOSE ASSEMBLY Ø10 x 2217mm SB 1 A
4 5570279 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 3276mm SB 1 B
5 5570292 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 8178mm SB 1 C
6 5570174 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 285mm SB 1 B
7 5595831 SAFETY CABLE Ø1.8 x 8865mm 1 A
8 5520116 14-4 SJO UL 62 CABLE 300vac 4178mm* -
9 5700404 10/12AP SAFETY PIVOT HOLDER 1 C
10 5761017 10AP SAFETY HANDLE 1 E
11 5715003 POWER UNIT VIBRATION DAMPENER 1 B
12 5215704 ROUND ADJUSTABLE LIFT PAD ASSEMBLY 4 H
13 5530337 AB 3/4" x 6.3" 16 -
14 5701698 10AP FOOT GUARD 1 C
15 5715196
10/12AP, D2, XPR POLYETHYLENE COVER BLOCK 105
x 80
2 D
16 5900265 10AP INSTALLATION MANUAL 1 -
17 5716072 10AP POWER SIDE PLASTIC SAFETY COVER 1 A
18 5601505 10AP ARM LOCK PIN WELDMENT, Ø38 4 C
19 5746167 DOUBLE THREADED ROD M10 x 1.5 x 275 2 B
20 5550095 FTG NPL -04 JIC x -04 JIC 1 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
D REPLACED 5595732 WITH 5595753 02/01/2023 CA 01467
E REPLACED 5570256 WITH 5570174 04/18/2023 TM 01487
F
REMOVED 5746007, 5746192, 5701660,
UPDATED BOM REVISION
04/25/2023 TM 01488
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
CA
5250344
10AP-168 PARTS BOX
03/28/2022
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
OR 04/28/2023
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.
INSERT PARTS BAG INTO PARTS BOX FOR SHIPMENT 2.
HOSES AND CABLES SHOWN REPRESENTATIONAL FORM 3.

DIMENSIONS ARE IN MM
☺
A
13
16
17
14
12
4
1
10
15
22
3
6
11
26
18
2
9 7 8
2728
DETAIL A
SCALE 1 : 3
24
30
25
23
5
21
20
19
29
NEXT ASSEMBLY
5250343
5250344
5250346
5250347
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
H REMOVED 5550095 06/14/2022 CA 01417
J ADDED 5505051 12/01/2022 CA 01458
K
REMOVED (4) 5530065, (4) 5535357,
& (4) 5545005
04/20/2023 TM 01488
WHERE USED
10AP SERIES
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5535022 NUT 9/16"-18 JN 1 -
2 5550113 FTG ELB -04 NPT L x -04 JIC 2 -
3 5550183 FTG ELB -06 JIC -06L ORB 1 -
4 5550003 FTG TEE -04JIC -04JIC -06JIC 1 -
5 5535001 NUT M8 x 1.25 NL 6 -
6 5530010 HHB M8 x 1.25 x 25mm ZPL 4 -
7 5545200 WASHER M10 x Ø18 SL 4 -
8 5535998 NUT M10 x 1.5 4 -
9 5530760 HHB M10 x 1.5 x 38mm 4 -
10 5530799 HSDS M4.2 x 1.41 x 20 2 -
11 5545535 C WASHER SHIM FOR LIFTS 20 -
12 5530115 BHS 6-32 x 1.25 2 -
13 5535190 HN 6-32 2 -
14 5520140 ROMEX CONNECTOR 3/8 #6623 2 -
15 5716634 D2/10AP/XPR MICROSWITCH COVER, PLASTIC 1 B
16 5525150 SPDT MICRO SWITCH;25A@125VAC 1 -
17 5525112 MICRO SWITCH COVER-5PA2 1 -
18 5580012 LIQUID PTFE THREAD SEALANT 50ml 1 -
19 5530412 BHSK M8 x 1.25 x 30 CL10.9 1 -
20 5530413 BHSK M8 x 1.25 x 45 CL10.9 1 -
21 5545202 WASHER M8 x Ø15 SL 2 -
22 5520001 RUBBER GROMMET, 3/4 I.D. 1 -
23 5535357 NUT M6 x 1.0, NL CL8 2 -
24 5530065 BHSK M6 x 1.0 x 20 2 -
25 5545005 WASHER, M6 x 12mm FLAT 2 -
26 5530423 SSS M6 x 1.0 x 12 CONE 4 -
27 5545341 WASHER M10 x Ø20 FLAT 4 -
28 5535013 NUT M10 x 1.5 NL 4 -
29 5530460 SSS M6 x 1.0 x 12 NL FLAT 1 -
30 5505051 Ø10mm PIPE STRAP 1 A
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5174047
10AP SERIES
PARTS BAG
01/14/2020
DO NOT SCALE DRAWING
1:16
SCALE:
THIRD ANGLE PROJECTION
OR 04/28/2023
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.

DIMENSIONS ARE IN MM
☺
3
4
1
6
2
5
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
F UPDATED BOM REVISION 09/21/2016 DB 00780
G
G-001
UPDATED BOM REVISION
UPDATED NEXT ASSEMBLY
02/05/2018
05/14/2018
TS
TM
00922
00946
H
H-001
UPDATED BOM REVISION
UPDATED NEXT ASSEMBLIES
05/30/2018
06/25/2018
TM
TM
00953
00964
WHERE USED
10AP SERIES
XPR-9 SERIES
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5715017
ROUND LIFT PAD ADAPTER POLYURETHANE
PAD
1 E
2 5540025 S RING Ø35mm 1 A
3 5746692 INNER SCREW 1 C
4 5540026 S RING Ø45mm 2 A
5 5746693 ROUND LIFT PAD SCREW ADAPTOR 1 D
6 5601001 ROUND LIFT PAD ADAPTOR WELDMENT 1 D
NEXT ASSEMBLY
5250037
5250356
5250357
5250329
5250343
5250344
5250346
5250347
5250358
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
H
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
CHY
5215704
ROUND ADJUSTABLE LIFT
PAD ASSEMBLY
06/14/2015
DO NOT SCALE DRAWING
1:3
SCALE:
THIRD ANGLE PROJECTION
CA 06/29/2018
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

DIMENSIONS ARE IN MM
☺
ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
2
1
3
4
5
7
6
8
98
WHERE USED
10AP
10AP-168
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5601852 10AP LIFT HEAD WELDMENT 1 D
2 5716001 2 POST GUIDE BLOCK 8 H
3 5601509 10AP ARM LOCK GUIDE ROD WELDMENT 2 E
4 5701700 10AP ARM LOCK RELEASE HANDLE 2 C
5 5701701 10AP ARM INTERNAL FULL CIRCLE GEAR STOP 2 C
6 5540044 COMPRESSION SPRING Ø74 x 50mm 2 -
7 5540006 SNAP RING TRUARC 5103-100 2 -
8 5930003 10AP LIFT HEAD GUSSET COVER 1 B
NEXT ASSEMBLY
5216128
5216129
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
D UPDATED BOM REVISION 11/30/2022 CA 01458
E UPDATED BOM REVISIONS 12/12/2022 TM 01460
F UPDATED BOM REVISION 01/30/2023 CA 01467
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
CA
5216180
10AP LIFT HEAD
ASSEMBLY
06/07/2022
DO NOT SCALE DRAWING
1:10
SCALE:
THIRD ANGLE PROJECTION
OR 02/03/2023
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.

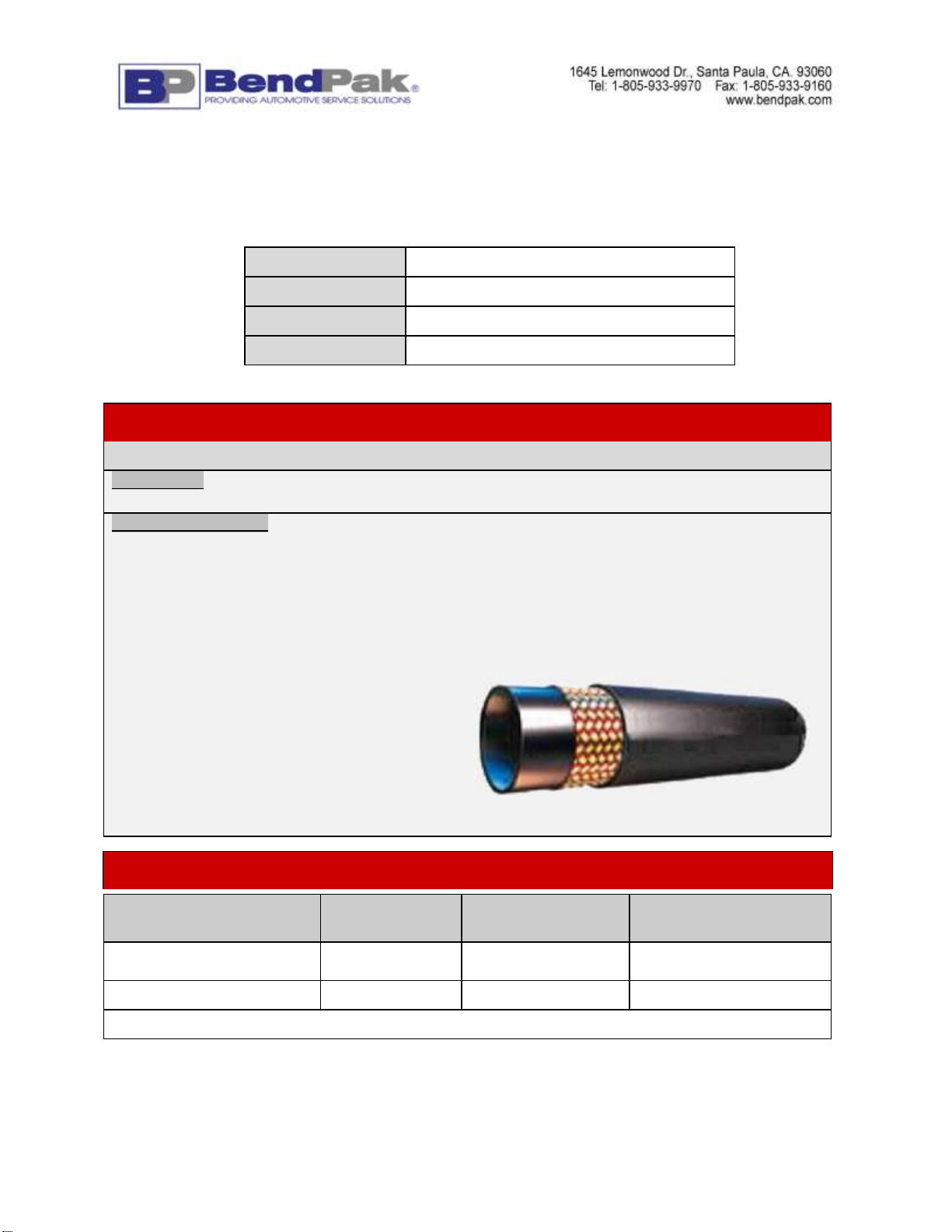

PART SPECIFICATION FORM
ACP
BENDPAK Number:
5570129
MRP Description:
¼” HYDRAULIC HOSE 31 CL-0400X
Date:
05/24/2018
ECO :
00950
1. Engineering Specification
Application:
¼” HYDRAULIC HOSE
Detailed Description:
ONE or TWO BRAID STEEL WIRE HYDRAULIC HOSE
SIZE: 1/4” / 6mm I.D. MIN
0.53” / 13.4mm O.D. MAX
SPECS: 5700PSI OR 393 BAR WORKING PRESSURE MINIMUM
17100PSI OR 1179 BAR MINIMUM BURST PRESSURE MINIMUM
3” / 80mm MIN BEND RADIUS
COLOR: BLACK
ADDITIONAL CONTACT INFORMATION:
Approved Vendor
Vendor Part #
Contact #
AUTHORIZED
COMPONENT PROVIDER
1)
5570129
X
2)
OR BENDPAK ENGINEERING APPROVED EQUIVALENT
2. Vendor Information (Or for Reference)

285
2 1 3
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5570129 Ø6.4 ID HYDRAULIC HOSE 247mm* -
2 5550325 FTG NPL Ø1/4 CRIMP x -04 JIC 1 -
3 5550345 FTG ELB Ø1/4 CRIMP x -04 JIC 1 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5570156 06/20/2017 TM 00832
OBSO REPALCED WITH 5570040 07/13/2021 CA 00903
B
UNOBSOLETED FOR USE IN 10AP SERIES, UPDATED
NEXT ASSEMBLIES, WHERE USED AND TITLE
04/18/2023 TM 01487
NEXT ASSEMBLY
5240022
5240036
5250343
5250344
5250346
5250347
WHERE USED
10AP SERIES
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
TM
5570174
HYDRAULIC HOSE ASSEMBLY
Ø6.35 x 285mm SB
06/20/2017
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 04/19/2023
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
(*)ITEM 1 QTY FOR REFERENCE ONLY 2.

2217
13 2
NEXT ASSEMBLY
5250343
5250344
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5570116 Ø10 ID HYDRAULIC HOSE 2142mm* -
2 5550337 FTG ELB -06 CRIMP x -06 JIC 1 -
3 5550336 FTG NPL -06 CRIMP x -06 JIC 1 -
WHERE USED
10AP
10AX-161
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5570017 03/28/2022 CA 01406
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
CA
5570277
HYDRAULIC HOSE ASSEMBLY
Ø10 x 2217mm SB
03/28/2022
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 04/11/2022
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
(*)ITEM 1 QTY FOR REFERENCE ONLY 2.

3276
2
3
1
NEXT ASSEMBLY
5250343
5250344
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5570129 Ø6.4 ID HYDRAULIC HOSE 3226mm* -
2 5550325 FTG NPL Ø1/4 CRIMP x -04 JIC 1 -
3 5550345 FTG ELB Ø1/4 CRIMP x -04 JIC 1 -
WHERE USED
10AP
10AP-168
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5570832 03/28/2022 CA 01406
B WAS 3297 NOW 3276 11/30/2022 CA 01458
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
CA
5570279
HYDRAULIC HOSE ASSEMBLY
Ø6.35 x 3276mm SB
03/28/2022
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
(*)ITEM 1 QTY FOR REFERENCE ONLY 2.

8178
2
3
1
NEXT ASSEMBLY
5240022
5250344
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5570129 Ø6.4 ID HYDRAULIC HOSE 8128mm* -
2 5550325 FTG NPL Ø1/4 CRIMP x -04 JIC 1 -
3 5550345 FTG ELB Ø1/4 CRIMP x -04 JIC 1 -
WHERE USED
10AP-168
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5570255 03/28/2022 CA 01406
B WAS 8170 NOW 8246 06/14/2022 CA 01417
C WAS 8246 NOW 8178 11/30/2022 CA 01458
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
C
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
CA
5570292
HYDRAULIC HOSE ASSEMBLY
Ø6.35 x 8178mm SB
03/28/2022
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±1.0
0.00 = ±0.25
0.000 = ±0.13
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED.
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
(*)ITEM 1 QTY FOR REFERENCE ONLY 2.

11356.0
11400.0
18.0
254.0
11102.0
19.5
44.0
3
12
4
5
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5595011 CABLE, LIFTING Ø10mm 11306mm* -
2 5746022 Ø10 THREADED CABLE CONNECTOR 1 D
3 5746021 Ø10 CABLE END CONNECTOR 2 E
4 5545342 WASHER M18 FLAT 1 -
5 5535358 NUT, M18 x 2.5 NL 1 -
NEXT ASSEMBLY
5240022
5250344
WHERE USED
10AP-168
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
A PRODUCTION RELEASE, DERIVED FROM 5595732 02/01/2023 CA 01467
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
CA
5595753
CABLE ASSEMBLY
Ø10 x 11400mm DBST
02/01/2023
DO NOT SCALE DRAWING
1:2
SCALE:
THIRD ANGLE PROJECTION
OR 02/03/2023
DIMENSIONS ARE IN MM
TOLERANCES:
0. = ±1.5
0.0 = ±0.5
SURFACE FINISH 1.6 ISO Ra µm
FOR MACHINED SURFACES
UNLESS OTHERWISE SPECIFIED
NOTE: UNLESS OTHERWISE SPECIFIED .
FOR ITEM 1 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 1.
LENGTH SHOWN IS AFTER SWAGING 2.
ITEM 1 QTY FOR REFERENCE ONLY 3.
THREAD 5535358 WITH 5545342 ONTO CABLES FOR SHIPMENT 4.
