AmeriGlide Titan User manual

Titan
Inclined
Platform
Lift
Installation Guide
Residential and Commercial
Please read this installation
guide carefully to ensure
correct installation of your
Titan Inclined Platform Lift.

Table of Contents
Disclaimers and Important Information ...............................................................................................................................
Before you Get Started - Checklist ..........................................................................................................................................
Staircase Blueprint .....................................................................................................................................................................
Installing Your Titan Inclined Platform Lift ............................................................................................................................
Step 1: Unboxing ...............................................................................................................................................................
Step 2: Create Jig for the Rails .........................................................................................................................................
Step 3: Rail Installation .....................................................................................................................................................
Step 4: Tower Installation ................................................................................................................................................
Step 5: Middle Rail Installation ........................................................................................................................................
Step 6: Lower Platform Floor ...........................................................................................................................................
Step 7: Cab Preparation ....................................................................................................................................................
Step 8: Cab Installation .....................................................................................................................................................
Step 9: Landing Switch Adjustment ...............................................................................................................................
Step 10: Arms and Flaps Adjustment .............................................................................................................................
Step 11: Floor Adjustments .............................................................................................................................................
Step 12: Reinstall Covers .................................................................................................................................................
Step 13: Emergency Lowering Device Procedure .......................................................................................................
Before Leaving the Job Site ........................................................................................................................................................
2
7
8
9
9
9
10
11
11
12
12
13
15
16
17
18
18
19
084_TitanIPL Install Guide_AMG__0123

Prepare Your Tool Bag
Electrical Tools
Tester - AC/DC Clamp On Power Meter
(100 A dc Min)
Impact Driver - 1/4’’ Hex Drive Impact Driver
Drill - 1/2’’ Max Diam Drill with Impact
Function to Drill Concrete
Screwdrivers
Philips - (PH1) (PH2) (PH3)
Tork Bo
Slotted - (0.4 X 2.5) (0.6 X 3.5)
(0.8 X 4.0) (1 X 5.5)
Hexagon - (3MM) (3/32’’) (7/64’’)
(1/8’’) (9/64’’) (5/32’’) (3/16’’)
(7/32’’) (1/4’’)
Square - (#1) (#2) (#3)
1/4’’ Drive Hex Bits
Philips - (PH2) (PH3)
Square - (#2)
Extension
Adapter - 1/4’’ Hex Shank to 3/8’’
socket Square drive
Rachet
1/4’’ DR X 5’’ LONG
1/2’’ DR X 8’’ LONG
3/8’’ DR X 7’’ LONG
1/4’’ Drive Hex Socket
Hexagon - (13MM)
3/8’’ Drive Hex Socket
Hexagon - (7/16’’) (1/2’’) (9/16’’)
2

1/2’’ Drive Hex Deep Socket
Hexagon - (9/16’’) (3/4’’)
Hand Tools
Hammer - 16 Oz. Min hammer
Pry Bar
Rubber Mallet - 16 Oz. Min Rubber
head mallet
Utility Knife - Snap O Utility Knife
25mm Blade
Tape Measure - 16’ Min
Bubble Level - 48’’ Beam Aluminum
Bubble Level
Zip Ties - (12”)
Laser
Dolly
Pliers
Long Nose - 6”
Stripper - #10-22 AWG
Crimper - #10-22 AWG (insulated and
non-insulated terminals)
Fuse Puller
Retaining Ring - 8’’ Steel Retaining
Ring Pliers
Drill Bits and Taps
Drill Bits - (9/64’’) (5/32’’) (13/64’’)
(17/64’’) (5/16’’) (3/8’’)
Concrete Drill Bit - (1/4’’) (3/8’’)
Taps - (8-32) (10-24) (1/4-20)
(5/16-18) (3/8-16)
Taps Holder - Tap Holder or Driver
Attachment for Drill
Punch Set - Kit

This guide describes how to install the AmeriGlide Titan Inclined Platform Lift.
The AmeriGlide Titan Model oers a smoother and more stable ride due to it’s unique c-shaped rail system design.
The platform ts most staircases and can be folded when not in use. Additionally, it doesn’t require a mechanical room -
everything ts into the sleek and slim upper landing column.
Refer to the AmeriGlide Titan Inclined Platform Lift Owner’s Manual for details regarding operation and maintenance.
The Owner’s Manual can be found on our website: www.ameriglide.com
Technical Specications
AmeriGlide Titan Inclined Platform Lift
Load Capacity
Rated Travel Speed
Drive Type
Motor
Maximum Travel
Codes and Standards
Advantages
550 lbs (249 kg)
15 fpm (0.08 m/s)
Sprocket & Chain
24 VDC
Custom Travel
CSA B613-00, B355-15, & ASME 18.1
Compact and Quiet
2

3
AmeriGlide, Inc. shall not be held responsible or liable for any personal injury or property damage caused by or resulting
from inappropriate operation of original product or of a product that has been modied or altered from the original Titan
Inclined Platform Lift (IPL) design. No person or company is authorized to change the IPL design without authorization
and the express written consent of AmeriGlide, Inc.
Disclaimers and Important Information
Do not throw away, destroy, or lose this installation guide. The instructions included in this guide must be followed to prevent
product malfunction, property damage, injury, or death to the user or other people. Incorrect operation due to ignoring
instructions found in this guide can cause harm, damage, injury or death. A summary of safety precautions is found below.
For more technical materials such as drawings and specication, end user support, and manuals, visit www.ameriglide.com
Important
Read all instructions contained in this installation guide before installing the AmeriGlide VPL. It is highly recommended to
observe and adhere to all governing codes and ordinances in the job site locale. This includes ensuring all work and materials
comply and conform with all authorities having jurisdictions. Proper installation is the responsibility of the installer and failure
to follow all instructions renders the AmeriGlide Limited Warranty null and void.
Warning
Safety of personnel is the primary concern during all procedures. Before beginning installation, read and understand the
installation guide and containing procedures carefully to ensure correct and safe installation. Use the appropriate tools and
accessories during installation. Plan your work and do not work alone, if possible. Know how to obtain emergency medical and
re ghting assistance.
Be sure to follow all the precautions on the next page as they are important for ensuring safety. This installation guide classies
the safety precautions into DANGER, WARNING, CAUTION and NOTE.
Safety Precautions

4
Know how to obtain emergency medical and re ghting assistance.
Be sure to follow all the precautions below as they are important for ensuring safety. This installation guide classies the safety
precautions into DANGER, WARNING, CAUTION and NOTE.
The AmeriGlide Titan Inclined Platform Lift shall be installed and serviced only by an authorized AmeriGlide dealer only.
The authorized dealer should refer to this guide for installation and servicing. For Care & Troubleshooting, please refer to the
Titan Inclined Platform Lift Owner’s Manual.
Please carefully read and follow the instructions found in this guide BEFORE installing and/or operating the AmeriGlide Titan
Inclined Platform Lift. Improper installation, adjustment, service, use or maintenance can cause personal injury or property
damage. If you have any problems or need assistance please contact your dealer immediately.
Installation Disclaimer
DANGER
!
WARNING
!
CAUTION
!
NOTE
!
Indicates an imminently hazardous situation which, if not avoided, will result in death
or serious injury.
Failure to follow any of WARNING is likely to result in such grave consequences as death
or serious injury.
Failure to follow any of CAUTION may in some cases result in grave consequences.
Provides information such as reminders and guidelines and do not t into the
preceding text.

5
• Never exceed the maximum rated lift capacity.
• Never use the AmeriGlide Titan Inclined Platform Lift to lift
freight or other materials than intended by design.
• Read and understand the installation guide prior to
installing the AmeriGlide Titan Inclined Platform Lift.
• Wear appropriate safety protection equipment for your
head, eyes, hands and feet during all phases of the
installation.
• Use extreme caution when lifting components into position
to avoid personal injury and damage to the equipment.
• Keep panels and protective coverings in place to avoid
potentially fatal injury.
• Disconnect power from the unit before performing any
electrical or mechanical service operations.
• Never bypass sensor switches which prevent accidental
start up when protective panels are removed.
• Be aware of the location of others in the work zone.
• Do not wear jewelry or loose clothing.
• Lock the wheels of any mobility device riding on the
platform.
• Use only recommended anchor fasteners.
• Check and verify for applicable local codes and regulations.
Installation Precautions
WARNING
!To reduce the risk of re, electric shock, personal injuries, and/or death, obey the
following precautions:
NOTE:
Failure to comply the these Installation Safety Instructions could render the AmeriGlide Limited Warranty null and void.
If you have any question or concerns that are not covered in this installation guide, please contact your dealer immediately.

6
The Titan Inclined Platform Lift has been designed to meet CSA B613-00 & B355-15 standards. Code requirements and
standards for vertical platform lifts vary depending on location and region. It is the installer’s responsibility to contact their
local code enforcement oce and determine all of the regulations they are subject to before installing the Titan Inclined
Platform Lift.
Codes and Regulations
The Titan must be installed on a Supporting Wall, Supporting Posts and Floor that is capable of supporting the minimum load
and standards as laid out in the Technical Drawings. Please refer to and verify with the Technical Drawings before beginning the
installation of the Titan.
Site Requirements
The Titan Inclined Platform Lift requires a 110VDC-15 AMP grounded electrical circuit and a GFCI protected circuit.
Depending on local codes and regulations, this connection may need to be routed in electrical conduit and hard-wired.
Electrical Requirements
WARNING
!DO NOT OPERATE OR RIDE ON THE TITAN UNTIL IT HAS BEEN ANCHORED TO AN APPROVED PAD
OR FLOOR.

7
1. Understand your client’s intended use of the lift.
2. Determine the local code and regulations requirements.
3. Upon receipt of the Titan Inclined Platform Lift, verify the lift for shipping damage immediately. Report any discrepancies
or damage claims to your dealer.
4. Verify all the site parameters, technical drawings and all preparatory work prior to installation.
5. Plan and prepare for all electrical requirements.
Before You Get Started - Checklist

• Remove box cover.
• Inspect for damage (ie. take damaged photos)
• Remove boxes and cabin parts and set them aside.
Installing Your Titan Inclined Platform Lift
8
Step 1: Unboxing
Step 2: Create Jig for the Rails
TIP: Use a plywood to cut a jig to sit on the top of the
staircase to make ensure your bottom rail is located as
per measurement A of your installation drawings.
Scan to watch!
more videos can be found at
youtube.com/ameriglide
How to a rail jig
(1:50 - 3:00)
https://youtu.be/nhnZ1rhT9a0
This varies according
to the stairs angle.

10
Step 3: Rail Installation
Procedure

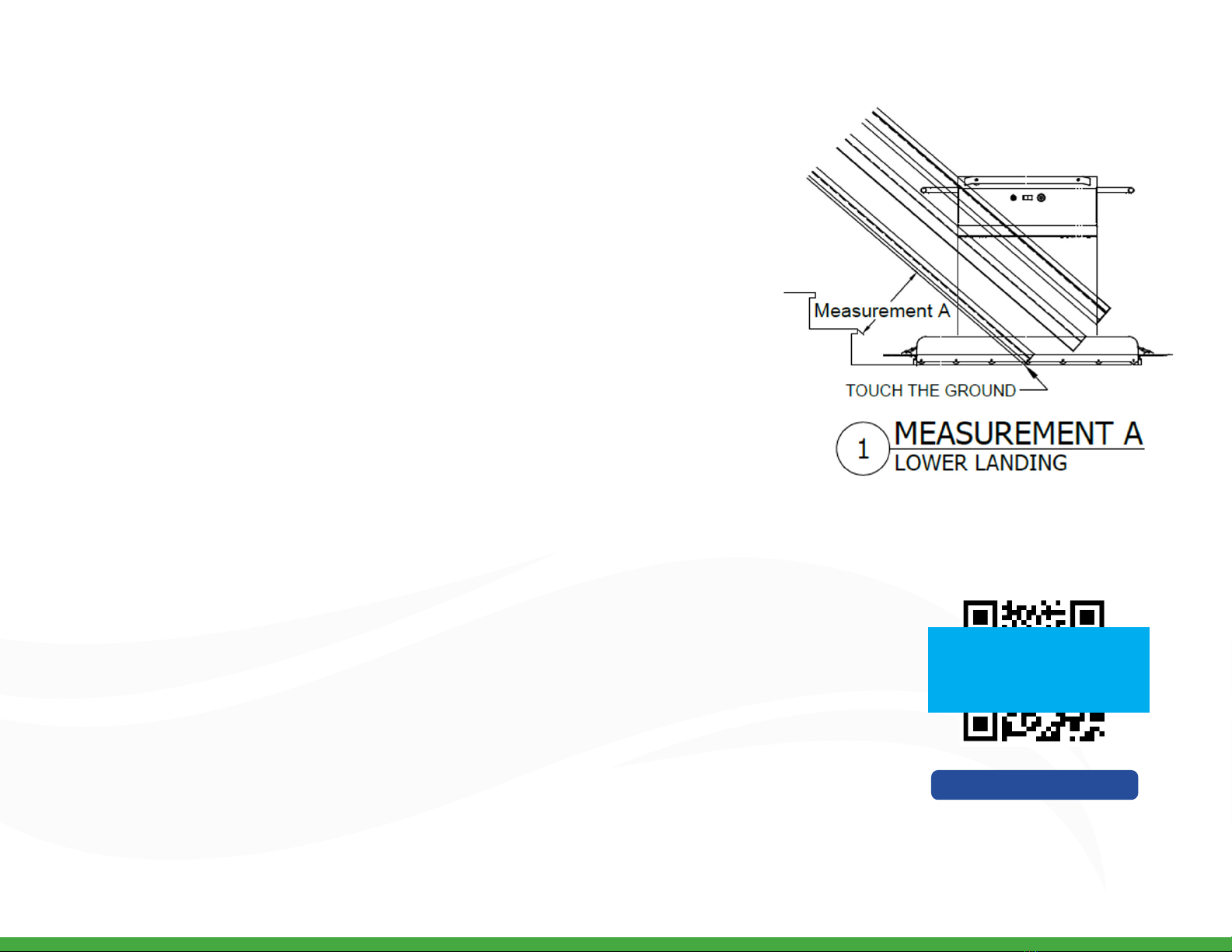

1a. Lower section of the bottom rail installation
• Referring to the measurement (A) from 1 of 2 in the installation drawings
• Use the plywood jig to sit on the top of the staircase.
(Plywood width = measurement (A))
• Sit the lower section inside of the bottom rail on top of the plywood then slide
it down until it hits the ground.
• Once the rail is touching the ground and is sitting on top of the plywood drill,
thread and screw into place.
• Drill bit (13/54) and tap 1/4 - 20 are provided in equipment box.
• Use the proper bolts to lag rails. Either at head wood screws or a 1/4-20
counter sunk bolts.
• The minimum number of screws is at least each 16 inches. Top and bottom of
the same rail.
1b. Upper section of the bottom rail installation
• Place the plywood at the top of the staircase.
• Sit the upper section of bottom rail on top of the plywood then slide it down
until both rails joint together.
• Once both sections are jointed together, and both sections are in a straight-line,
screw it into place as before. Scan to watch!
more videos can be found at
youtube.com/ameriglide
Rail Installation
(1:50 - 3:00)
https://youtu.be/nhnZ1rhT9a0

11
1c. Upper section of the top rail installation
• Install the top section of the top rail parallel with the bottom rail.
It must nish equal with the lower rail.
- Top and bottom rails must be PARALLEL and have 18” between.
- Top rail must nish aligned with the lower at the upper landing
to receive the tower 90º from bottom.
1. Mount the tower by sitting it over the rails and screwing into place.
Step 4: Tower Installation
Procedure
• Screw both rails to the tower and the 1/4 20 bolts into
the prepared holes
• Secure the tower to the wall by screwing thru the most
holes of the back of the tower possible witch aligns
with the wall studs. The minimum of screw is (xx).
1d. Lower section of the top rail
• Install the lower section of the top rail parallel with the bottom rail.
• Top and bottom sections must be perfectly joined.
1. Install the middle rail using the (B2) measurement.
Step 5: Middle Rail Installation
• Using the (B2) measurement install the middle rail parallel with the 2 other rails.
• The top of the middle rail needs to sit ush under the middle hole of the tower. (traveling cable entry)
• Middle rail may not go as far down as the top and bottom.

12
Step 6: Lower Platform Floor
Procedure
1. Stick the 8x adhesive int pads on to the underpan. (11)
• Locate loose wire behind the carriage (oor motor leads)
• Bring voltage to these wires to lower oor (tip: use one of the batteries to do it)
• If it doesn’t lower, switch polarity.
ATTENTION: DO NOT manually open.
Step 7: Cab Preparation
Procedure
1. Remove covers by unscrewing Philips screws (4) on each side
2. Remove the top wheel assemblies 2x
• Remove the (½?) bolts of both wheel assemblies from the cab.
• Install the top wheel assembly on the top rail setting it on its
brake about 3 feet up the rail. (13)

13
Step 8: Cab Installation
Procedure
1b. Cab installation
• Bring the cab to the bottom landing.
• Set the lower wheel assemblies under the lower rail, then pull cab until both assemblies are fully touching and are
parallel with the lower rail. (14) — Refer to measurement (c).
• Lower the Mount B to reattach it to the cab and screw it into place. (15)
• Install mount A on the upper rail and screw it into place. (16)
TIP: Ensure cab is leveled when
tightening mounts.
1c. Traveling Cable
• The traveling cable comes attached with a plastic chain.
• The bottom of the plastic chain loops up and attaches under mount B.
• The top end of chain will follow up the middle rail and attaches to the
center of the rail with a self-tapping screw.
• The plastic chain will only partially cover the middle rail’s length.
• A plastic wire conduit is sent to passe the traveling cable to the tower.
(note it wont cover the whole trail it shall be installed close a possible
to the tower.)
• Pass the wire into the tower and wire into cn16 terminals.
• There are already wires plugged in cn16 terminals is to show you the proper wire combination. (Remove / Rewire)
1a. Emergency Stop Button in Cab
• The stop button needs to be bypassed for installer to set panel cover aside to not damage it.
• Install jumper wire from CN21-5 and CN21-6 to install the two red wires from the stop button).

14
1e. Start Up Conditions
• Start up conditions are performed with 2
safety bypasses the brake switch and cab
emergency stop button. (BS) and (ESC).
• Perform the start up conditions test.
Verify voltages from start up points they
must all have at least 24v.
If voltage
1 - Tower CN16-2
2 - Tower CN25-5
3 - CN16-1
4 - CN16-2
5 - CN20-10
6 - CN20-12
7 - CN21-6
8 - CN21-13
9 - CN21-21
Main Disconnect
Handwheel
Travel Cable Wire
Travel Cable Wire
Extreme Limit Switch
Brake Switch
Emergency Stop Button Cab
Lower Arm Down Security Line
Upper Arm Down Security Line
10 - CN20-23
11 - CN20-13
12 - CN20-15
13 - CN20-5
14 - CN20-25
15 - CN20-2
16 - Tower CN16-4
17 - Tower CN16-5
Platform Down Security Line
Lower Safety Flap
Upper Safety Flap
Upper Landing Switch
Safety Underpan
Lower Landing Switch
Up Line
Down Line
1f. Every test must be complete and have the right voltage for the unit to start.
• Start up conditions are done when the cab is between landings (not on landing switches)
• Arm and oor must be in the down position. ALL DOWN switches (LAD, UAD, PFD) must be in the groove and the UP switches
(LAU, UAU, PFU) must be activated.
Refer to step 10 for more information.
• Wire the 2 batteries in series for 24vdc.
1d. Connecting Batteries

15
1g. Lower chain with call button once start-up conditions are met.
Step 9: Landing Switch Adjustment
Procedure
1a. Adjusting landing switches
• Sit one cam on the rail below the lower landing switch and the
other above the upper switch.
- Using this procedure will ensure the perfect height for the
switches and it also positions them perfectly parallel.
- See image.
~ ~ ~
ENGAGED ENGAGED
NOT
ENGAGED
CAM CAM
1b. Lower Landing
• Lift must only stop on the one lower landing switch.
• The cab must not be touching the ground.
• Chain must always stay tight.
• Engage the lower switch with the cam to stop platform.
1h. Once the chain is lowered, attach it to the top wheel assembly and slightly lift cabin o the oor.

16
1c. Upper Landing
• Lift must only stop on the upper landing switch.
• The platform should be level with the top landing oor or just above.
• Engage the upper switch with the cam to stop platform.
Step 10: Arms and Flaps Adjustment
1d. Once upper landing SET, add the mechanical stop on the upper rail 2” above the upper wheel assembly.
• Drill through the center of the rail and bolt the mechanical stop into place.
• The 1st part of the ap adjustment is adjusted with the arms. The arm positioning aects the ap.
• Only minor ap adjustments are needed.
• Remove the pin taking the adjustable screw arm o the ap.
• Loosen the ¼-20 nut on the adjustable screw arm and rotate the head to adjust.

17
Step 11: Floor Adjustments

18
Step 12: Reinstall Covers
Procedure
1. Mount Upper Tower and Carriage Covers
• Mount the upper tower cover and the two carriage covers the
#10-24 screws from steps 5 and 6 respectively.
Step 13: Emergency Lowering
Device Procedure
Recovery Mode
Is used when unit has been manually moved out of sequence
and the unit no longer responds to calls.
If impossible signals are sent to the PLC and the unit is not in a fault, holding the button for 5 seconds will either reset to running
or closed position. Depending on which call is pressed.
Manual Emergency Lowering Device
Insert handwheel on motor shaft and turn in the wanted position.
• Remove all Philips-head screws holding cover and remove it for the tower.
