USER MANUAL
POWER SCISSOR LIFT TABLE
Model no. 293223, 293224
Owner/Operator must read and understand this manual

2
1. WARNING! If operating the lift table improperly,
a person may be seriously injured. Therefore,
operate properly according to the following
instruction
.
◇Read & thoroughly understand the Instruction manual completely
before using. Follow all safety instructions strictly.
◇It is necessary to check all safety devices before operation.
◇Make sure that there are no obstacles in the working area.
◇Do not put foot or hand in scissors mechanism or through frame.
◇Screw the lifting eyes on the base frame before working on the lift
table.
◇Do not overload the lift table. Load should be distributed on the
table according to relevant load distribution chart.
◇Pay attention if local voltage and frequency is as same as the
input specification of the lift table.
◇Use the lift table on flat and solid ground.
◇All the electrical connection and disconnection operations must
be carried out by skilled and competent personal.
◇While operation, it is forbidden to contact the moving parts of the
lift table.
◇While the lift table moving, it is forbidden to adjust or to move the
load.
◇It is forbidden to lift the load, which perhaps does harm to a
person or other object.
◇It is forbidden to operate the lift table while a person is under the
table.
◇Do not adjust the safety valve of hydraulic power pack.
◇It is forbidden to operate the lift table even if there is small
structure distortion.
◇Do not use in an explosive or flammable place.

3
Note！Maximum load refers to the load being uniformly
distributed over the entire platform area.
In accordance with EN1570,Safety Requirements for Lifting Tables，
the basic requirements are:

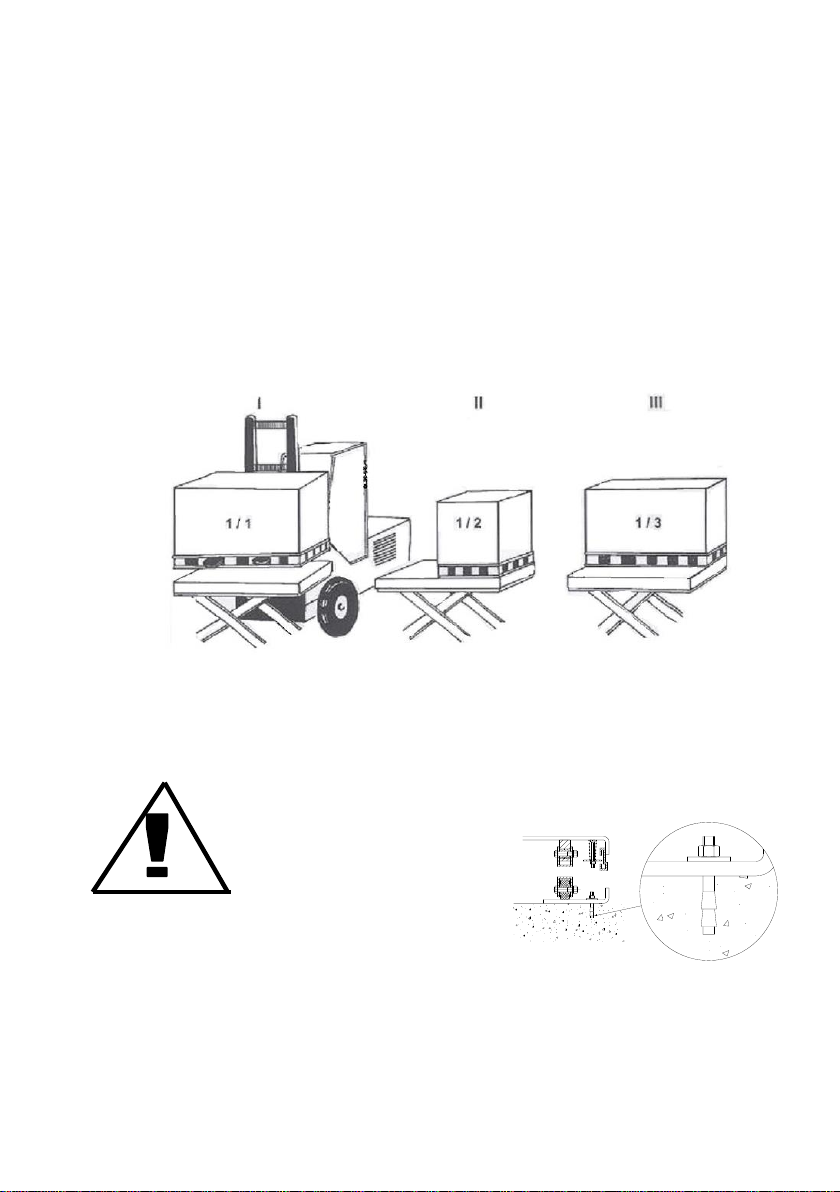

Ⅰ100% of the rated load(maximum load) uniformly distributed over
the entire platform area.
Ⅱor 50% of the rated load(maximum load) uniformly distributed
over half the length of the platform.
Ⅲor 33% of the rated load(maximum load) uniformly distributed
over half the width of the platform.
2. INSTALLATION OF LIFT TABLE ON THE FLOOR/GROUND OR IN A PIT
Double or triple vertical
scissors tables must be
fixed to the floor/ground
by means of expander bolts or similar，
We also recommend that all other lift
table types，with the exception of mobile units，are securely
affixed on the floor to Prevent unintentional movement

4
MECHANICAL/ELECTRICAL INSTALLATION
1.The base frame of the lift table is not as standard self -supporting .It
is important that the flooring is flat and stable and that the
installation area or pit, when necessary, is well drained.
2. Utilize a lifting sling through the scissor package. Tie the base
frame to the platform or the scissor mechanism. Locate the table
into the desired position. Turn the fixed arm end to the side where
the load will be moved on or off at upper level. See picture below.
3. Check the operation of the safety frame on all sides.
4.The control device should be positioned so that the operator has a
clear view over the lift table and the load at all times when the lift is
operated. Loading/unloading at
the fixed arm end
Pit drawing
A. Pit length=a+30mm
B. Pit width=b+30mm
H. Pit depth=closed
height of table+5mm
a. Platform length
b. Platform width
c. Drainage hole (when required)
d. Tube for external cables and hoses φ60mm h.
Lowest height

5
3. CAUTION! If operating the lift table improperly, a
person may be injured. Therefore, operate
properly according to the following instruction.
◇The lift table is a movable lifter designed to lift or lower rated load.
Do not use it for other purpose.
◇Do not allow a person to operate the lift table, who does not
understand its operation.
◇It is forbidden to change the lift table without manufacturer’s
written admission.
◇It is necessary to use the spare parts designated by
manufacturer.
◇Make sure to keep a distance between the table and ambient
objects enough to operate the lift table safely.
◇Keep the hydraulic system under clean and safe condition.
◇The hydraulic power pack features an electric lowering control.
The coils must be fed with the required voltage as described on
those coils. The power supply voltage should not exceed ±10% of
the rated required voltage.
◇Always do maintenance and routine check while the lift table is
unloaded.
◇The lift table is not waterproof and should be used in a dry
environment.
4. DAILY INSPECTION
Daily inspection is effective to find the malfunction or fault on the
lift table. Before operation, check the lift table according to the
following points. CAUTION! Do not use the lift table if any
malfunction or fault is found.
◇Check all the terms of WARNING and CAUTION.
◇Check scratches, bending or crack on the lift table.

6
◇Check smooth movement of the table.
◇Check if there is any hydraulic oil leakage.
◇Check the vertical creep of the table.
◇Check if all the bolts and nuts are firmly tightened.
5. OPERATING THE LIFT TABLE
■LOADING
The maximum capacity of the lift table is 1000kg. Load should be
distributed on the lift table equably.
■LIFTING THE TABLE
CAUTION! Do not overload the lift table.
Ensure the balance of loading. Do not load
partially or concentrically.
◇Screw and loose emergency stop switch.
◇Push the UP button and power pack starts to work to lift the load.
◇Loose the UP button and power pack stops working.
■LOWERING THE TABLE
WARNING! Do not put foot or hand in
scissors mechanism.
◇Push the DOWN button and the table will lower.
◇Loose the DOWN button and the table will stop.
NOTE
◇The table is equipped with an aluminum guard to avoid
accidental danger.
◇If aluminum guard strikes an object while the table lowers, stop
operation and check the lift table. After making sure no any
abnormality, strike the UP button slightly and then the electric
system will function as before.

7
■EMERGENCY STOP
There are two methods of emergency stop as follows.
◇Push down the emergency stop switch and the movement of
table stops.
◇Strike aluminum guard upward and the movement of table also
stops.
■TRANSPORTATION
If necessary, the lift table can be transported with attached ringbolts.
◇Pay attention to the maximum capacity of lifting equipment to be
used.
◇Keep the ringbolts with reasonableness.
6. HYDRAULIC CIRCUIT & ELECTRIC PRINCIPLE DIAGRAM
See Figure 1 & Figure 2.

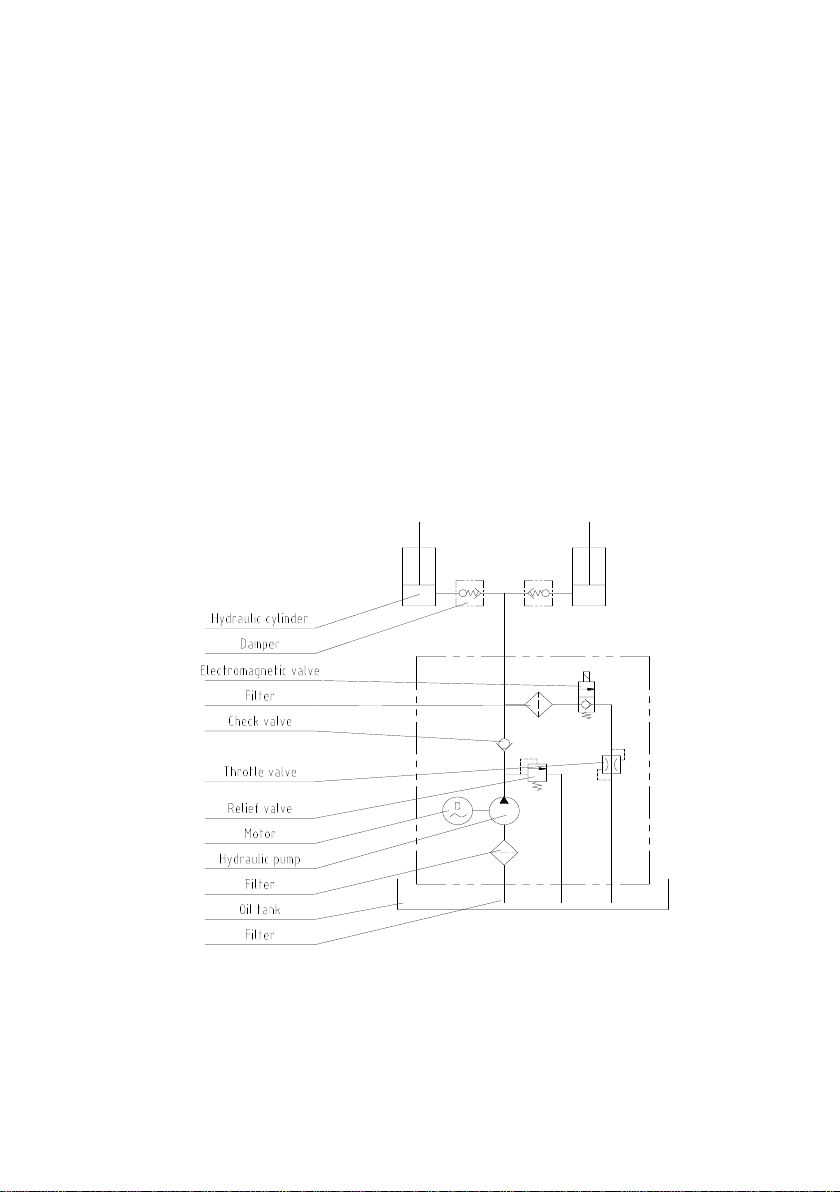

Fig. 1 Hydraulic circuit

8
No
Type
Name
Description
Qty
1
LB01
Controlpowertransformer
DF30-110V-460V/0-24V 50VA
1
2
F1 F2
Fast melter
5A
2
3
VD1
Rectifier
RS-2510
1
4
VDR1
Voltagedependentresistor
10K/471 10K/821
1
5
R1
Resistor
1.8K/1W
1
6
C1
Electrolytic condenser
1000uF/63V
1
7
KM01
AC contactor
BC-30-10
1
8
KA1 KA2
Middle relay
SRC-24VDC-SH
2
9
D1 D2 D3 D4 D5 D6 D7
Silicon rectifying diode
IN4007
7
10
DF01
Electromagnetic valve
DC24V
1
11
SB3
Emergency stop button
XB2-ES542C+ZB-BY9101
1
12
SB2
Down button
XB2-BA21C
1
13
SB1
Up button
XB2-BA21C
1
14
SQ1
Up limit switch
D4V-8108Z
1
15
SQ2
safety switch
2
16
SQ9
Downlimitswitch
D4V-8108Z(Prepared by customer)
1
17
M101
Pump motor
1
18
QF101
Circuit breaker
C45N3P 25A(Prepared by customer)
1

9
19
R6
Resistor
100/0.5w
1
20
R4
Resistor
10K/0805
1
21
R5
Resistor
1K/0805
1
22
RW01
Rheostat
50K
1
23
WD01
Stabilovolt tube
3.3V
1
24
C3 C4 C7 C8
Electrolytic condense
10uf/50V 10uf/16V
3
25
IC01
Integrated circuit
LM358
1
26
U04
Integrated circuit
KA7812
1
27
U02 U03
Electric dipole
P521
2
28
TA01
Current transformer
20A
1
29
R9 R10
Resistor
24K/0805
2
30
R8
Resistor
5.1K/0805
1
31
R11
Resistor
300K/0.5W
32
C5 C6
Electrolytic condenser
0.015uF/1000V 0.01uF/1000V
2
33
Q0
2
Q02
Audion
D882
1
Fig. 2 Electric Principle Diagram（3P）

10
No
Type
Name
Description
Qty
1
LB01
Controlpowertransformer
DF30-110V-460V/0-24V 50VA
1
2
F1 F2
Fast melter
5A
2
3
VD1
Rectifier
RS507（5A）
1
4
VDR1
Voltagedependentresistor
10K/471 10K/821
1
5
R1
Resistor
1.8K/1W
1
6
C1
Electrolytic condenser
1000uF/63V
1
7
KM01
AC contactor
BC-30-10
1
8
KA1 KA2
Middle relay
SRC-24VDC-SH
2
9
D1 D2 D3 D4 D5 D6
Silicon rectifying diode
IN4007
6
10
DF01
Electromagnetic valve
DC24V
1
11
SB3
Emergency stop button
XB2-ES542C+ZB-BY9101
1
12
SB2
Down button
XB2-BA21C
1
13
SB1
Up button
XB2-BA21C
1
14
SQ1
Up limit switch
D4V-8108Z
1
15
SQ2
safety switch
2
16
SQ9
Downlimitswitch
D4V-8108Z(Prepared by customer)
1
17
M101
Pump motor
1
18
QF101
Circuit breaker
C45N3P 25A(Prepared by customer)
1
19
R6
Resistor
100/0.5w
1
20
R4
Resistor
10K/0805
1
21
R5
Resistor
1K/0805
1
22
RW01
Rheostat
50K
1
23
WD01
Stabilovolt tube
3.3V
1
24
C3 C4 C8
Electrolytic condense
10uf/16V-10uf/50V
3
25
IC01
Integrated circuit
LM358
1
26
U04
Integrated circuit
KA7812
1
27
U02
Electric dipole
P521
1
28
TA01
Current transformer
20A
1
29
R9
Resistor
24K/0805
1
30
R8
Resistor
5.1K/0805
1
31
Q02
Audion
D882
1
Fig. 2 Electric Principle Diagram（2P）

11
7. SERVICE INSTRUCTIONS
■Do routine check of fasteners, packing and oil leaking.
■Do routine check of the function of the lift table.
■Before service the lift table, make sure to turn off the AC power
supply.
■After service it is necessary to check the function of the lift table
again.
■ONLY qualified personnel can do service work.
■Do routine check of the micro-switches on the safety guard.
■Do routine check of the hydraulic system by listening its noise,
touch motor’s surface.
■Caution: It is necessary to turn off the AC power supply before
touch motor’s surface.
■Pay attention to clear or even replace the oil filter after operating
for a long time.

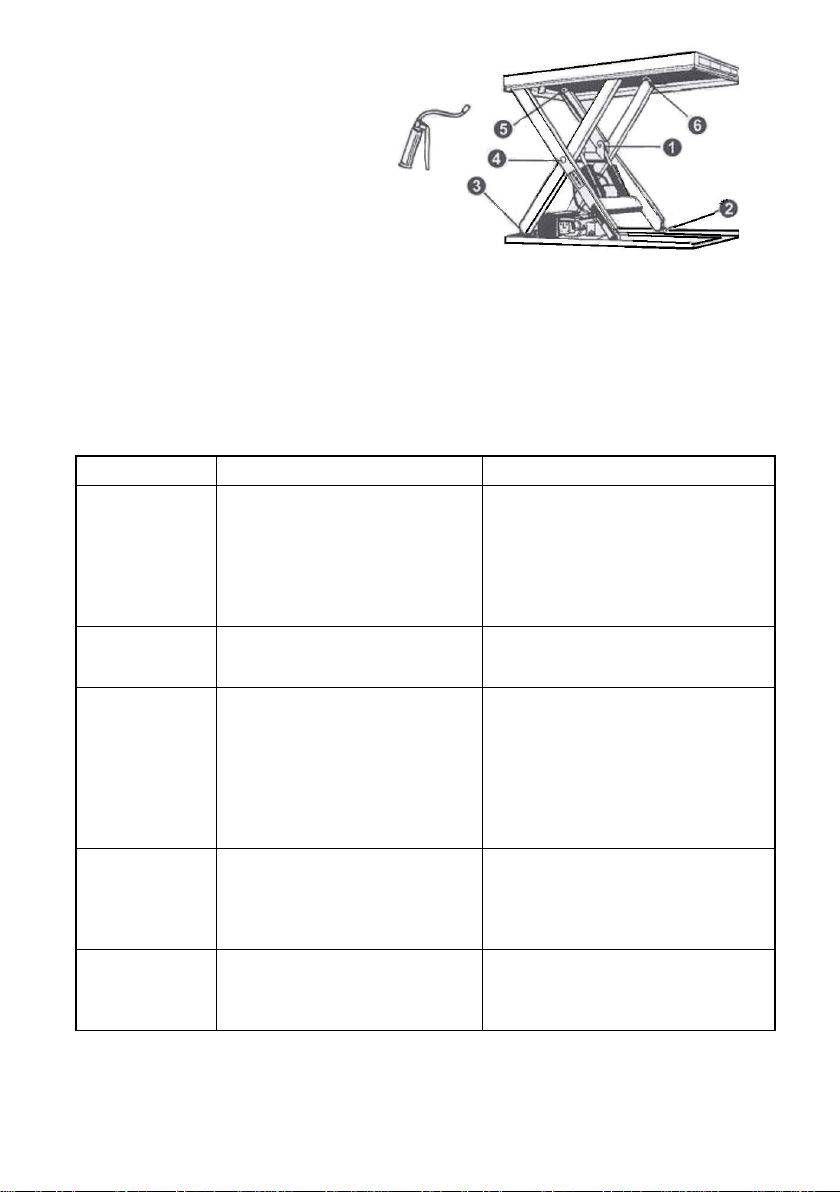

■Appropriate lubrication is necessary to make the lift table work
easily and have a prolonged service life.
■Following table is recommended to service the lift table periodically.
Content
After every 500 hours’
working orevery3
monthslater
Afterevery2000
hours’ working or
everyyear
Check oil level of oil tank
☆
Check the cleanliness of oil filter
☆
Fasten all the connecting parts again
☆
Check wear and tear of pressure oil pipes
☆
Check hydraulic cylinder
☆
Fix main parts tightly again
☆
Check the function of micro-switches
☆
Check whole working state of the lift table
☆
Lubricate all the joints and pivot points
☆
Check wear and tear of all axial bushes
☆
Replace hydraulic oil for the first time
Accumulated working ten hours’
Replace hydraulic oil
☆
Check oil leaking
☆
Remark: ☆ stands for proceeding the item.

12
8. GREASING POINTS
1.Piston rod bearing
2.Lower running wheel
3.Lower arm fixing
4.Arm center
5.Upper arm fixing
6.Upper running wheel
When greasing the bearings,
the Lift Table must not be
loaded！When determining oil levels, bear in mind that the tank
contains the greatest amount when the lift table is in its lowest
position. Hydraulic oil must be treated as dangerous waste！
9. TROUBLE SHOOTING
Note: Before service it is necessary to put down the prop lest the table
lowers accidentally.
Trouble
Cause
Remedy
Table cannot
lift while motor
works normally
◇Eyebolt has not been
removed
◇AC voltage phrases
mistake
◇Electromagnetic
dysfunctions
◇The table is overloaded
◇Remove eyebolt
◇Correct AC voltage phrase
◇Check the function of
electromagnetic valve and repair it
◇Remove excessive load
Table cannot
lift and motor
does not work
◇Lowering limit switch (if
existed) damaged
◇Replace limit switch
Table cannot
lower
◇Lowering limit switch or
micro-switch on safety guard
damaged
◇Electromagnetic valve
dysfunctions
◇Safety guard works
◇Something wrong with
electric circuit board
◇Replace lowering limit switch
or micro-switch.
◇Check the function of
electromagnetic valve and repair it
◇Strike the UP button
slightly
◇Replace electric circuit board
Table’s legs go
over limit
position (if
existed) while
table lowers
◇Internal leaking in
electromagnetic valve
◇Packing damaged in
hydraulic cylinder
◇Repair electromagnetic valve
and if necessary replace it
◇Check and replace packing
Table cannot
reach the
highest
position
◇Oil not enough
◇Limit switch damaged
◇Fill enough oil
◇Check and repair limit
switch. If necessary, replace it
The brand of oil is ISO HL32(such as Rando oil R＆O32、D.T.E.oil
light、Turbo32)

13
10.SPECIFICATIONS
Model
293224
293223
Capacity
(lbs)
8800
8800
Lowered Height
(in.)
9.4
11.8
Raised Height
(in.)
41.3
55
Platform Length
(in.)
67
86
Platform Width
(in.)
47
47
Lift Time (Sec)
22~32
26~36
Motor
Horsepower (HP)
3P/2.2KW
3P/2.2KW
Voltage (V)
110
Net Weight
(lbs)
898
1128

14
M0DEL NO 293223, 293224

15
PARTS LIST: M0DEL NO 293223, 293224
NO
DESCRIPTION
QTY
NO
DESCRIPTION
QTY
1.
Grease cup M6
2
40
Frame of travel switch
1
2.
Bearing GE40ET
2
41
Travel switch (ME-9101)
1
3.
Piston rod
2
42
Bolt M5×10
4
4.
Seal cover 58×50×6.5
2
43
Bolt
2
5.
Retaining ring φ95
2
44
Washer
2
6.
Cylinder cover
2
45
Bushing
2
7.
Guide ring
2
46
Prop
2
8.
Snap ring φ100
2
47
Bushing
8
9.
O-ring 95×2.65
2
48
Bushing φ34×φ30×20
16
10.
Snap ring φ50
2
49
Roller
4
11.
Piston
2
50
Spring washer 18
8
12.
Seal ring 100×75×22.3
2
51
Nut M18
8
13.
Cylinder
2
52
Internal scissors
1
14.
Hose break valve
2
53
External scissors
1
15.
Seal ring 16
2
54
Bolt
6
16.
Split pin 4×35
2
55
Bushing φ60×φ55×60
2
17.
T joint
1
56
Washer
1
18.
Steel tube
2
57
Spring washer 12
1
19
O-ring 6×1.8
1
58
Hex bolt M12×30
1
20
High pressure hose
1
59
Pin
2
21
Joint
1
60
Hex bolt M8×20
3
22
Seal ring 18
2
61
Pin
1
23
Hydraulic power pack
1
62
Bolt
2
24
Electric box
1
63
Safety frame Ⅰ
2
25
Bolt M5×10
4
64
Fixed-board
4
26
Pump pack base
1
65
Connected-board
4
27
Control switch
1
66
Safety frame Ⅱ
2
28
Spring washer 10
2
67
Spring
6
29
Hex bolt M10×20
2
68
Buffer-board
6
30
Spring washer 8
7
69
Nut M8
6
31
Bolt M8×12
4
70
Nut M4
4
32
Indicator φ6
1
71
Safety switch
2
33
Connector lug φ6-4
1
72
Fixed-board
4
34
Washer 6
1
73
Table
1
35
Spring washer 6
1
74
Lifting bolt M10
4
36
Bolt M6×12
1
75
Lifting bolt M16
1
37
Chassis
1
76
Spring washer 5
4
38
Washer 6
2
77
Washer 5
4
39
Bolt M6×10
2
