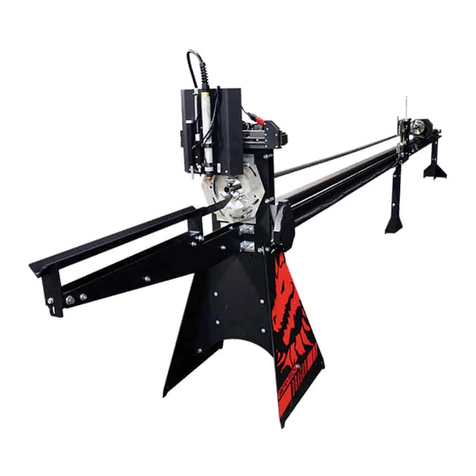

Bend-Tech Dragon Instruction manual

Electronic Connections
Step 1: Use your fingers to remove the
3/8 inch nuts securing the bottom
electronics guard plate underneath the
back side of the gate. Remove the guard
plate itself to reveal the electronics core.
Note: If you are using 230v instead of the standard
115v, you ill have to change the voltage settings.
Please see the Voltage Settings page at the end of this
manual for further details on ho to change this.
Step 2: Connect the parallel
cord to both the back of the
machine's electrical core and the
operator panel box. Make sure
to secure them both by
tightening the set scre s on
each end of the cord.
Step 3: Connect the 5v po er
source to the back of the
operator panel box and
connect the other side to a all
outlet.

Step 4: Connect an Ethernet cable from
your operator panel box to your
computer.
Step 5: Return the electronics
guard plate and use the ratchet
ith the 3/8 inch socket to
secure the four 3/8 inch nuts.
Step 6: Connect the machine
po er cord to the machine
underneath the electronics guard
plate and connect the other side
to a all outlet.
Step 7: Attach the alligator clamp from
your torch po er source to the ground
ire underneath the machine's electronics
core.
Step 8: Attach the torch trigger
connection from the machine's
electronics core ( ith the red and black
ires) to the back of your torch po er
source.

Step 9: Attach your air hose to both the
back of the torch po er source and to the
back of the machine located on the
electronics guard plate.
Step 10: Be sure to alk around the machine and
cut off all zip ties that ill inhibit the machine's
movement.
Step 11: Flip the s itch on the back of
the operator panel box. The red light ill
turn on to indicate that it is running.
Make sure to flip this s itch first.
Step 12: Flip the s itch on the
electronics core panel. The machine
motors ill turn on and begin humming
to indicate that the machine is running.

Voltage Settings
for voltage other than 115v.
Step 1: With the electronics guard plate
removed, use a phillips head scre driver
to remove the four scre s on the top and
bottom of the electronics core.
Step 2: Lifting up from the bottom and
making sure not to free any ires from
their positions, tilt the bottom of the
electronics core to ard you to reveal the
red s itch on the underside.
Step 3: Flip the red s itch so that it reads
230v.
Step 4: Return the electronics core to its original position
and secure the panel ith the four scre s using the phillips
head scre driver. Then, make sure to secure the electronics
guard plate ith the four 3/8 nuts.
