BENDIX SmarTire User manual

Full Function Display
User’s Manual

SmarTire Systems Inc. reserves the right to change the contents of this manual at any time
and without notice. The information contained in this manual is proprietary and must not be
reproduced without prior consent from SmarTire Systems Inc.
© 2001 SmarTire Systems Inc.

1
TABLE OF CONTENTS
Notices 3
FCC Notice 3
European Regulations 4
System Scope of Use and Warnings 5
The SmarTire®System and Tire Maintenance 5
System Installation and Usage 5
Warnings 5
Introduction 6
Full Function Display Features 6
Power Stages 7
Full Function Display Controls and Indicators 7
Operation 8
Getting Started 8
Checking Tire Conditions 9
Alerts and Warnings 10
Pressure Deviation Alert 10
Low Pressure Warning 11
High Temperature Alert 11
Programming 12
To Enter Programming Mode 12
Display Icons 12
Operating Settings –Level 1 13
Cold Inflation Pressure 13
Low-Pressure Warning 14

2
SMARTIRE SYSTEMS INC.
Pressure Deviation Alert 15
Understanding Temperature Compensated Pressure Readings 16
High Temperature Alert 17
Metric or Imperial Measurement Selection 18
Tire Rotation 19
Advanced Programming –Level 2 21
Slope 21
Learn 22
Receiver Programming Mode –Level 3 25
Low Pressure Alert 25
Installation and Service 26
Installation 26
Full Function Display Specifications 27
Service and Warranty 28
System Diagnostics 28
Troubleshooting 28
Replacing a Full Function Display 29
Part numbers 29
US Warranty 29
Canadian Warranty 31
European Warranty 32

3
Notices
FCC NOTICE
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions : (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this device without the express approval of SmarTire
Systems Inc. may void the userís authority to use this device.

4
SMARTIRE SYSTEMS INC.
EUROPEAN REGULATIONS
This device complies with all European Electromagnetic compatibility regulations
(95/54 /EC and EN300 220-1). The equipment has been tested and found to comply
with the above regulations, and in addition it meets the requirements for low
powered transmitters/receivers as defined by the relevant radio approval authority.
The regulations are designed to provide reasonable protection against harmful
interference or susceptibility. Changes made to this device without the express
approval of SmarTire Europe Ltd. may void the user’s authority to use this device.

5
SYSTEM SCOPE OF USE AND WARNINGS
The SmarTire
®
System and Tire Maintenance
This system is a sensing device designed to identify and display tire operating data
and activate an alert or warning when pressure or temperature irregularities are
detected. It is the responsibility of the driver to react promptly and with discretion
to alerts and warnings. Abnormal tire inflation pressures should be corrected at
the earliest opportunity.
System Installation and Usage
Use of the SmarTire
®
system requires that it has been properly installed and
programmed by qualified personnel according to SmarTire Systems Inc. documentation.
This includes the Owner s Manual and any supplementary installation instructions
included with system components.
Warnings
1. When an alert or warning conditions is detected, reduce vehicle speed to an
appropriate safe level and proceed to a safe stopping location or facility where
the tire can be inspected and serviced.
2. The pressure deviation alert indicates that the pressure has dropped a selected
amount below the required pressure for that level of tire temperature.
3. The low pressure warning indicates that the air pressure has dropped to a
selected minimum.
4. The high temperature warning indicates that the contained air temperature has
exceeded the selected maximum. A tire temperature buildup can be caused by a
number of factors including severe under inflation, hard sustained braking,
vehicle overload and sustained high speeds.

Introduction
FULL FUNCTION DISPLAY FEATURES
The Full Function Display adds additional features to a previously installed SmarTire
system (refer to the Tire Pressure Monitoring System Owner’s Manual ). It provides
digital tire pressure and temperature data for up to 20 tire positions as well as
enabling warning level adjustment to suit driver needs.
The system’s modular design offers two digital display units. One clips onto the basic
receiver, while the other can be remotely located with an interconnecting cable.
6
SMARTIRE SYSTEMS INC.
F ULL F UNCTION D ISPLAY F ULL F UNCTION R EMOTE D ISPLAY

7
POWER STAGES
The Full Function Display has an energy saving feature that turns lights on to full
intensity (Active stage) only when required to display alert conditions or program
the unit. The unit automatically switches to lower power stages when no control
activity is detected.

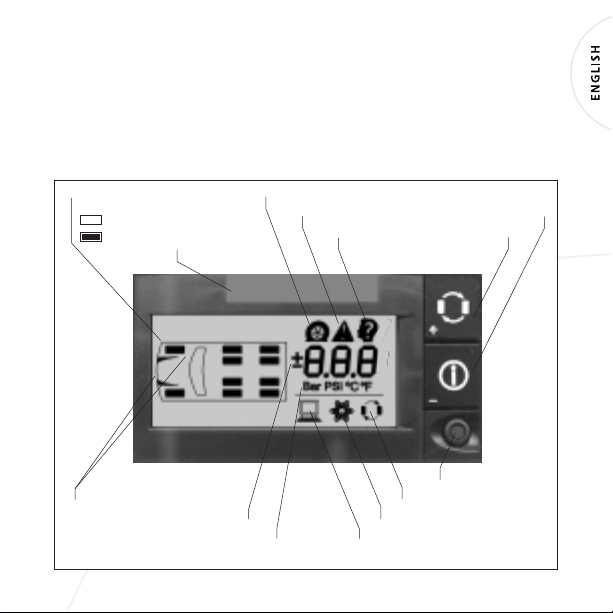

Full Function Display Controls and Indicators
Low pressure warning
Alarm light
TIRE button
MODE button
Alert indicator
Learn mode
Set button
Towing vehicle indicator
Units of pressure or
temperature
Tire rotation program
Cold pressure program
Programming mode
Numerical display
Programmed wheel position
No data
Data received

8
SMARTIRE SYSTEMS INC.
Operation

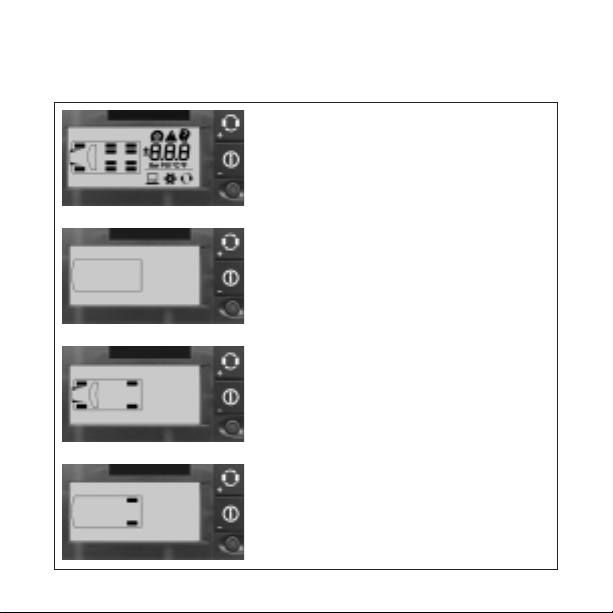

GETTING STARTED
Mount the display unit and connect to power source.
When power is applied to the receiver, the Full
Function Display momentarily turns on all icons,
beeps, and the alarm light blinks once. The unit
then goes into stand-by mode waiting for data
from the wheel transmitters.
Until the vehicle is in motion no data will be
received from any installed transmitter. The
display will remain blank as shown.
The respective tire icon is filled in as soon as data
from its transmitter is received. The windshield/
louver is shown for any towing vehicle transmitter.
After data from all transmitters is received the
display will be in the state shown at left until an
alert or warning condition is detected.
(Normal Mode)
Data from a towed vehicle is indicated by tire
icons with no windshield/louver icon.
Note: The system will alternate views between
the towing and towed vehicle when operating
with this configuration.

9

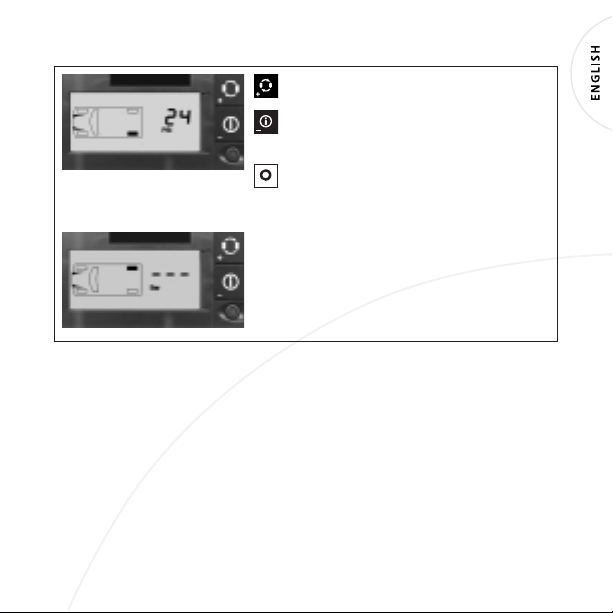

CHECKING TIRE CONDITIONS
Press the TIRE button to scroll through
the tires.
Press the MODE button to scroll through
the pressure, temperature, and pressure
deviation readings for a selected tire.
Press SET button to return to normal mode.
No data received from a selected tire is shown as
dashes “---”.
24 PSI = 1.65 Bar

10
SMARTIRE SYSTEMS INC.
Alerts and Warnings

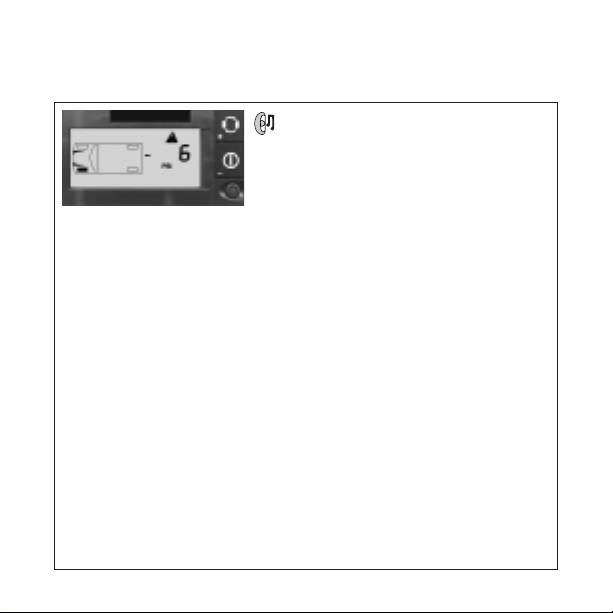

PRESSURE DEVIATION ALERT
The Pressure Deviation Alert is initiated
when the measured tire pressure deviates
from the required pressure by more than the pre-
set level.
The alarm light turns on and alert indicator flashes
on and off. The audible alarm sounds once and
the digital readout displays the amount of
deviation e.g. -6 PSI from required pressure.
Press any button to acknowledge the alert and
stop the flashing; the alarm light remains on and
the system returns to normal mode.
Example:
Pressure Deviation Alert Level = +- 6 PSI (0.41 Bar)
Required Pressure = 35 PSI (2.40 Bar)
Actual Pressure in a wheel drops to 29 PSI (2 Bar)
Pressure Deviation reading (as shown) will be
-6 PSI (0.41 Bar)
When the alert occurs, reduce speed and proceed
to a safe location to check tires.
The Pressure Deviation Alert is cancelled when
the tires are properly re-inflated to correct levels.
-6 PSI = -.41 Bar

11
LOW PRESSURE WARNING
A Low Pressure Warning is initiated when the
pressure drops below the programmed level.
The alarm light, low pressure warning icons and
the audible alarm turn on and off continuously.
Press any button to acknowledge and stop the
flashing. The alarm light remains on and the
display reverts to a normal mode.
When the alert occurs, reduce speed and proceed
to a safe location to check tires.
The Pressure Deviation Alert is cancelled when
the tires are properly re-inflated to correct levels.
HIGH TEMPERATURE ALERT
The High Temperature Alert is initiated when
the air temperature within a tire exceeds
the programmed level.
The temperature alert icon and audible alarm
turn on and off continuously. Press any button to
acknowledge the alert and stop the flashing. The
alarm light remains on and the display reverts to
a normal mode.
When the alert occurs, reduce speed and proceed
to a safe location to check tires.
The Pressure Deviation Alert is cancelled when
the tires are properly re-inflated to correct levels.
18 PSI = 1.25 Bar
176 ˚F = 80˚C

12
SMARTIRE SYSTEMS INC.
Programming
TO ENTER PROGRAMMING MODE
1. Ensure power is turned on.
2. Press and hold Set button in normal mode to enter programming mode;
a. 2 seconds to Level 1
b. 5 seconds for Level 2
c. 10 seconds for Level 3
DISPLAY ICONS
Level 1
Cold Pressure Pressure Deviation
Tire Rotation High Temperature Alert
Low Pressure Warning Units Selection
Level 2
Slope
Learn Transmitter ID
Level 3
Low Pressure Alert

13
OPERATING SETTINGS – LEVEL 1
COLD INFLATION PRESSURE
Factory default 30 PSI = 2.08 Bar
This function changes the cold inflation pressure
for each axle.
Programming Steps
1. Enter Level 1 Programming Mode (see page 12 )
2. Press the TIRE button to scroll to the
desired axle. The tires of the selected axle
are filled in.
3. Press the MODE button to view the
current value.
4. Press the TIRE button to increase the value.
5. Press the MODE button to decrease the
value.
6. Press the SET button to save when the
desired value is reached.
Repeat programming steps 2-6 until Cold Inflation
Pressure levels are set for all axles as desired.
7. Press the SET button to exit.
8. Press the SET button again to revert to
normal view.
35 PSI = 2.40 Bar

14
SMARTIRE SYSTEMS INC.
LOW-PRESSURE WARNING
Factory default 18 PSI = 1.25 Bar
This function changes the low-pressure warning
threshold for each axle.
Programming Steps
1. Enter Level 1 Programming Mode (see page 12 )
2. To enter this function press the MODE
button until the flat tire icon and pressure
units are displayed.
3. Press the TIRE button to scroll to the
desired axle. The tires of the selected axle
are filled in.
4. Press the MODE button to view the
current value.
5. Press the TIRE button to increase the
value.
6. Press the MODE button to decrease the
value.
7. Press the SET button to save when the
desired value is reached.
Repeat programming steps 2-7 until Low-Pressure
warning levels are set for all axles as desired.
8. Press the SET button to exit.
9. Press the SET button again to revert to
normal view.
18 PSI = 1.25 Bar

15

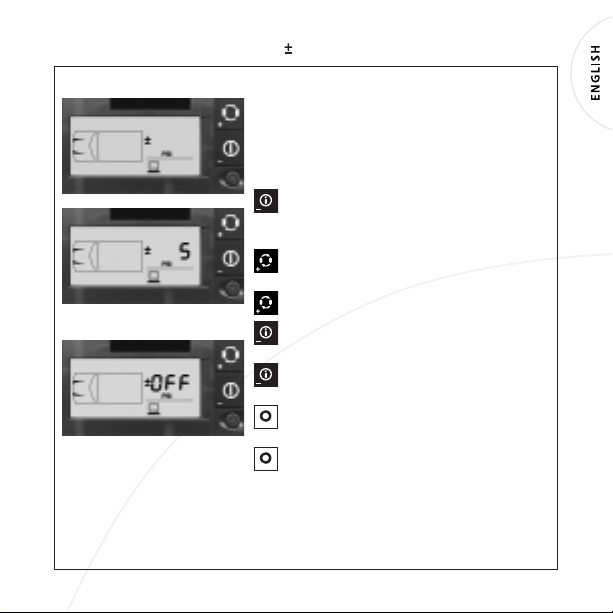

PRESSURE DEVIATION ALERT
Factory default 5 PSI = .35 Bar
This function sets the pressure deviation alert
threshold for all tires.
Programming Steps
1. Enter Level 1 Programming Mode (see page 12 )
2. To enter this function press the MODE
button until the +- icon and pressure
units are displayed.
3. Press the TIRE button to enter and display
the current value.
4. Press the TIRE button to increase the value.
5. Press the MODE button to decrease the
value.
6. Press the MODE button until the display
shows OFF to disable this feature.
7. Press the SET button to save when the
desired value is reached.
8. Press the SET button again to revert to
normal view.
5 PSI = .35 Bar

16
SMARTIRE SYSTEMS INC.
UNDERSTANDING TEMPERATURE COMPENSATED
PRESSURE READINGS
An important feature of the SmarTire Full Function Display system is that pressure
deviation alerts are initiated from a comparison of the temperature compensated
pressure to the measured tire pressure read by the sensor.
The reference pressure, or “cold pressure”is the air pressure inside the tire inflated
at room temperature (64˚F or 18˚C) to the vehicle manufacturer’s recommendation.
When a tire heats up, the air pressure inside the tire can also be expected to increase.
For example, a normal or “required”pressure at 64˚F or 18˚C may be 34 PSI or
2.35 Bar and a normal pressure at 120˚F or 49˚C may be 39 PSI or 2.7 Bar. Both
pressure readings are correct at their respective temperatures.
The amount of deviation from the required pressure (at any temperature) can be
read by using the Pressure Deviation mode of this SmarTire product. If at any time
you are uncertain that the Actual Pressure reading on the display indicates the
correct tire pressure, switch to the Pressure Deviation (
+- ) readout. A blank display
indicates that the reading on the display is the correct one. Any (+) or (-) value
indicates the tire pressure is incorrect by that value. This value can then be used to
correctly inflate the tire.

17
HIGH TEMPERATURE ALERT
Factory default 176˚F=80˚C
This function changes the high-temperature alert
threshold.
Programming Steps
1. Enter Level 1 Programming Mode (see page 12 )
2. To enter, press the MODE button until
the alert icon and temperature unit are
displayed.
3. Press the TIRE button to enter and display
the current value of High Temperature
Alert.
4. Press the TIRE button to increase the value.
5. Press the MODE button to decrease the
value.
6. To disable this feature press the MODE
button until the display reads OFF.
7. Press the SET button to save and exit this
mode when the desired value is reached.
8. Press the SET button again to revert to
normal mode.
176 ˚F = 80 ˚C

18
SMARTIRE SYSTEMS INC.
METRIC OR IMPERIAL MEASUREMENT SELECTION
Unit combinations
Bar –˚C, Bar –˚F, PSI –˚C, PSI –˚F
Use this mode to select the combination of
pressure and temperature units.
Programming Steps
1. Enter Level 1 Programming Mode (see page 12 )
2. To enter this function press the MODE
button until the pressure and temperature
units are displayed (PSI | Bar, ˚C|˚F).
3. Press the TIRE button to enter.
4. Use the TIRE or MODE button to
scroll through the four combinations
of unit settings.
5. When the desired combination is
displayed press the SET button to save
and exit this mode.
6. Press the SET button again to revert to
normal mode.
