BenQ MX720 User manual

Downloaded From projector-manual.com BenQ Manuals

Digital Projector
Quick Start Guide
Downloaded From projector-manual.com BenQ Manuals

or
Downloaded From projector-manual.com BenQ Manuals

Projection dimensions
The screen aspect ratio is 4:3 and the projected picture is 4:3
All measurements are approximate and may vary from the actual sizes.
BenQ recommends that if you intend to permanently install the projector, you should physically test the
projection size and distance using the actual projector in situ before you permanently install it, so as to make
allowance for this projector's optical characteristics. This will help you determine the exact mounting position
so that it best suits your installation location.
Vertical
offset (mm)
Diagonal
W (mm) H (mm)
Inch mm
Screen size Distance from screen (mm)
Min length
Average
Max length
(max.
zoom)
(min.
zoom)
MX720
Minimum zoom
Projection distance
Center of lens
Screen
Vertical offset
Maximum zoom
W
H
Downloaded From projector-manual.com BenQ Manuals

Projection dimensions
The screen aspect ratio is 16:10 and the projected picture is 16:10
All measurements are approximate and may vary from the actual sizes.
BenQ recommends that if you intend to permanently install the projector, you should physically test the
projection size and distance using the actual projector in situ before you permanently install it, so as to make
allowance for this projector's optical characteristics. This will help you determine the exact mounting position
so that it best suits your installation location.
Vertical
offset (mm)
Diagonal
W (mm) H (mm)
Inch mm
Screen size Distance from screen (mm)
Min length
Average
Max length
(max.
zoom)
(min.
zoom)
MW721
Minimum zoom
Projection distance
Center of lens
Screen
Vertical offset
Maximum zoom
W
H
Downloaded From projector-manual.com BenQ Manuals

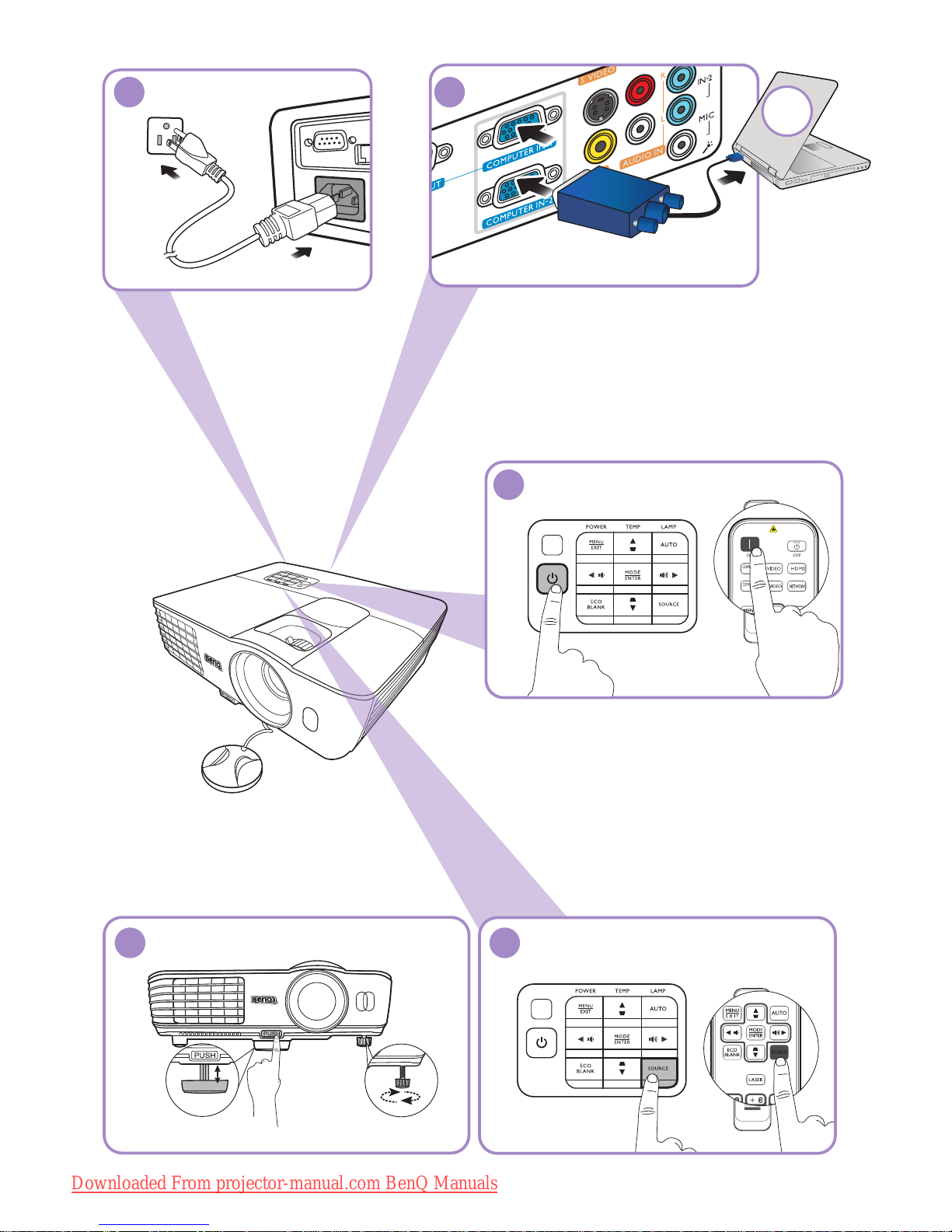

2
1
1
4
ON
2
5
3
Downloaded From projector-manual.com BenQ Manuals

Downloaded From projector-manual.com BenQ Manuals

1
2
3
1
OFF
2
X 2
Downloaded From projector-manual.com BenQ Manuals

625.95
127.7
577.7 537.9
25
95.33
163.12
311.95
251.27
110.16
50.71
Ceiling Mount screw: M4
(Max L = 25 mm; Min L = 20 mm)
Unit: mm
137
160
46.21
80
Downloaded From projector-manual.com BenQ Manuals

Table of contents
English ........................................................................................... 11
Français ......................................................................................... 12
Deutsch ......................................................................................... 13
Italiano ........................................................................................... 14
Español .......................................................................................... 15
Português ......................................................................................16
Svenska .......................................................................................... 17
Русский ........................................................................................ 18
Nederlands ................................................................................... 19
Polski .............................................................................................. 20
Türkçe ........................................................................................... 21
Čeština .......................................................................................... 22
繁體中文 ...................................................................................... 24
................................................................................................... 23
...................................................................................... 25
............................................................................................ 26
............................................................................................ 27
.............................................................................................. 28
Downloaded From projector-manual.com BenQ Manuals

Downloaded From projector-manual.com BenQ Manuals

11
All specifications are subject to change without notice.
Optical
Resolution
(MX720)
1024 x 768 XGA
(MW721)
1280 x 800 WXGA
Display system
1-CHIP DMD
Lens F/Number
(MX720)
F = 2.54 ~ 2.73, f = 18.18~21.84 mm
(MW721)
F = 2.59 ~ 2.87, f = 16.88~21.88 mm
Lamp
240 W lamp
Electrical
Power supply
AC100–240V, 3.5 A, 50-60 Hz (Automatic)
Power consumption
375 W (Max); < 0.5 W (Standby)
Mechanical
Weight
2.9 Kg (6.4 lbs)
Output terminals
RGB output
D-Sub 15-pin (female) x 1
Speaker
(Stereo) 10 watt x 1
Audio signal output
PC audio jack x 1
Control
RS-232 serial control
9 pin x 1
IR receiver x 2
LAN control
RJ45 x 1
Input terminals
Computer input
RGB input
D-Sub 15-pin (female) x 2
Video signal input
S-VIDEO
Mini DIN 4-pin port x 1
VIDEO
RCA jack x 1
SD/HDTV signal input
Analog - Component RCA jack x 3
(through RGB input)
Digital - HDMI x 1
Audio signal input
Audio in
RCA audio jack (L/R) x 2
PC audio jack x 2
Microphone x 1
USB port (Mini-B x 1)
Environmental Requirements
Operating temperature
0°C–40°C at sea level
Operating relative humidity
10%–90% (without condensation)
Operating altitude
0–1499 m at 0°C–35°C
1500–3000 m at 0°C–30°C (with
High Altitude Mode on)
Specifications
(EN)
MX720_MW721_QSG.fm Page 11 Tuesday, October 23, 2012 5:48 PM
Downloaded From projector-manual.com BenQ Manuals

12
Toutes les caractéristiques peuvent être modifiées sans notification préalable.
Caractéristiques optiques
Résolution
(MX720)
1024 x 768 XGA
(MW721)
1280 x 800 WXGA
Système d’affichage
1-CHIP DMD
Ouverture (nombre F)
(MX720)
F = 2,54 ~ 2,73, f = 18,18 ~ 21,84 mm
(MW721)
F = 2,59 ~ 2,87, f = 16,88 ~ 21,88 mm
Lampe
Lampe de 240 W
Caractéristiques électriques
Alimentation
100 à 240 V CA, 3,5 A, 50 à 60 Hz
(Automatique)
Consommation
375 W (max) ; < 0,5 W (veille)
Caractéristiques mécaniques
Poids
2,9 Kg (6,4 lb)
Prises de sortie
Sortie RVB
1 connecteur D-Sub 15 broches (femelle)
Haut-parleur
1 x 10 watts (stéréo)
Sortie de signal audio
1 prise audio PC
Commande
Contrôle série RS-232
1 à 9 broches
2 récepteurs IR
Contrôle réseau
1 RJ45
Terminaux d’entrée
Entrée ordinateur
Entrée RVB
2 connecteur D-Sub 15 broches
(femelle)
Entrée signal vidéo
S-VIDÉO
1 port mini DIN à 4 broches
VIDEO
1 prise RCA
Entrée de signal SD/HDTV
3 prises RCA
analogique - composantes
(via entrée RVB)
1 numérique HDMI
Entrée de signal audio
Entrée audio
2 prises audio RCA (G/D)
2 prise audio PC
1 microphone
Ports USB (1Mini-B)
Caractéristiques
environnementales
Température de fonctionnement
0°C à 40°C, au niveau de la mer
Humidité relative en fonctionnement
10% à 90% (sans condensation)
Altitude de fonctionnement
0 à 1499 m à 0°C à 35°C
1500 à 3000 m à 0°C à 30°C
(avec Mode Haute altitude activé)
(FR)
Caractéristiques
MX720_MW721_QSG.fm Page 12 Tuesday, October 23, 2012 5:48 PM
Downloaded From projector-manual.com BenQ Manuals

13
Alle Daten können ohne Bekanntmachung geändert werden.
Optische Daten
Auflösung
(MX720)
1024 x 768 XGA
(MW721)
1280 x 800 WXGA
Anzeigesystem
1-CHIP DMD
F-Wert des Objektivs
(MX720)
F = 2,54 ~ 2,73, f = 18,18 ~ 21,84 mm
(MW721)
F = 2,59 ~ 2,87, f = 16,88 ~ 21,88 mm
Lampe
240 W-Lampe
Elektrische Anschlusswerte
Stromversorgung
AC100–240V, 3,5 A, 50-60 Hz (Automatisch)
Stromverbrauch
375 W (Max); < 0,5 W (Standby)
Weitere Daten
Gewicht
2,9 Kg (6,4 lbs)
Ausgänge
RGB-Ausgang
15-polige D-Sub-Buchse x 1
Lautsprecher
(Stereo) 10 Watt x 1
Audiosignalausgang
PC-Audio-Buchse x 1
Steuerung
Serielle RS-232-Steuerung
9-polig x 1
IR-Empfänger x 2
LAN-Steuerung
RJ45 x 1
Eingänge
Computereingang
RGB-Eingang
15-polige D-Sub-Buchse x 2
Videosignaleingang
S-VIDEO
4-polige Mini-DIN 4-Buchse x 1
VIDEO
RCA-Buchse x 1
SD/HDTV-Eingangssignal
Analog - Component RCA-Buchse
x 3
(über RGB-Eingang)
Digital - HDMI x 1
Audiosignaleingang
Audioeingang
RCA-Audiobuchse (L/R) x 2
PC-Audio-Buchse x 2
Mikrofon x 1
USB-Anschlüsse (Mini-B x 1)
Umgebungsbedingungen
Betriebstemperatur
0°C–40°C auf Meereshöhe
Luftfeuchtigkeit bei Betrieb
10%-90% (nicht kondensierend)
Höhenlage bei Betrieb
0–1499 m bei 0°C–35°C
1500–3000 m bei 0°C–30°C
(mit Höhenmodus eingeschaltet)
Technische Daten
(DE)
MX720_MW721_QSG.fm Page 13 Tuesday, October 23, 2012 5:48 PM
Downloaded From projector-manual.com BenQ Manuals

14
Tutte le specifiche sono soggette a modifiche senza preavviso.
Parte ottica
Risoluzione
(MX720)
1024 x 768 XGA
(MW721)
1280 x 800 WXGA
Sistema di visualizzazione
1-CHIP DMD
Numero/F dell'obiettivo
(MX720)
F = 2,54 ~ 2,73, f = 18,18 ~ 21,84 mm
(MW721)
F = 2,59 ~ 2,87, f = 16,88 ~ 21,88 mm
Lampada
Lampada da 240 W
Parte elettrica
Alimentazione
CA 100–240V, 3,5 A, 50-60 Hz
(Automatico)
Consumo energetico
375 W (massimo); <0,5 W (standby)
Parte meccanica
Peso
2,9 Kg (6,4 lbs)
Terminali di output
Uscita RGB
D-Sub da 15-pin (femmina) x 1
Altoparlante
(Stereo) 10 watt x 1
Uscita segnale audio
Jack audio per PC x 1
Controllo
Controllo seriale RS-232
9 pin x 1
Ricevitore infrarossi x 2
Controllo Lan
RJ45 x 1
Terminali di input
Input da computer
Input RGB
D-Sub da 15-pin (femmina) x 2
Input da segnale video
S-VIDEO
Porta mini DIN a 4 pin x 1
VIDEO
Jack RCA x 1
Input segnale SD/HDTV
Jack RCA analogico – component
x 3
(tramite input RGB)
Digital - HDMI x 1
Input segnale audio
Audio in
Jack audio RCA (L/R) x 2
Jack audio per PC x 2
Microfono x 1
Porte USB (Mini-B x 1)
Requisiti ambientali
Temperatura operativa
0°C–40°C sul livello del mare
Umidità relativa operativa
10%–90% (senza condensa)
Quota di funzionamento
0–1499 m a 0°C–35°C
1500–3000 m a 0°C–30°C
(con Modalità altitudine elevata)
(IT)
Specifiche tecniche
MX720_MW721_QSG.fm Page 14 Tuesday, October 23, 2012 5:48 PM
Downloaded From projector-manual.com BenQ Manuals

15
Todas las especificaciones están sujetas a cambio sin previo aviso.
Óptico
Resolución
(MX720)
1024 x 768 XGA
(MW721)
1280 x 800 WXGA
Sistema óptico
1 CHIP DMD
Lente F/Número
(MX720)
F = 2,54 ~ 2,73, f = 18,18~21,84 mm
(MW721)
F = 2,59 ~ 2,87, f = 16,88~21,88 mm
Lámpara
Lámpara de 240 W
Especificaciones eléctricas
Fuente de alimentación
100 – 240 V de CA, 3,5 A, 50-60 Hz
(automático)
Consumo eléctrico
375 W (máx); < 0,5 W (modo de espera)
Mecánico
Peso
2,9 Kg (6,4 lbs)
Terminales de salida
Salida RGB
D-Sub de 15 patillas (hembra) x 1
Altavoz
(Estéreo) 10 vatios x 1
Salida de señal de audio
Clavija de audio de PC x 1
Control
Control de serie RS-232
9 patillas x 1
Receptor de infrarrojos (IR) x 2
Control de LAN
RJ45 x 1
Terminales de entrada
Entrada de ordenador
Entrada RGB
D-Sub de 15 patillas (hembra) x 2
Entrada de señal de vídeo
S-VÍDEO
Puerto Mini DIN de 4 patillas x 1
VÍDEO
Clavija RCA x 1
Entrada de señal de SD/HDTV
Analógico - clavija RCA de
componente x 3
(a través de entrada RGB)
Digital - HDMI x 1
Entrada de señal de audio
Entrada de audio
Clavija de audio de RCA (I/D) x 2
Clavija de audio de PC x 2
Micrófono x 1
Puertos USB (Mini B x 1)
Requisitos medioambientales
Temperatura de funcionamiento
0°C–40°C al nivel del mar
Humedad relativa de funcionamiento
10%-90% (sin condensación)
Altitud de funcionamiento
0–1499 m a 0°C–35°C
1500–3000 m a 0°C–30°C
(con el Modo altitud elevada activado)
Especificaciones
(ES)
MX720_MW721_QSG.fm Page 15 Tuesday, October 23, 2012 5:48 PM
Downloaded From projector-manual.com BenQ Manuals

16
Todas as especificações estão sujeitas a alteração sem aviso prévio.
Ópticas
Resolução
(MX720)
1024 x 768 XGA
(MW721)
1280 x 800 WXGA
Sistema de ecrã
1-CHIP DMD
Lente F/Número
(MX720)
F = 2,54 ~ 2,73, f = 18,18~21,84 mm
(MW721)
F = 2,59 ~ 2,87, f = 16,88~21,88 mm
Lâmpada
Lâmpada de 240 W
Eléctricas
Fonte de alimentação
AC100–240V, 3,5 A, 50-60 Hz (Automatic)
Consumo de energia
375 W (Máx); < 0,5 W (Em espera)
Informações mecânicas
Peso
2,9 Kg (6,4 lbs)
Terminais de saída
Saída RGB
D-Sub 15 pinos (fêmea) x 1
Altifalante
(Estéreo) 10 watt x 1
Saída de sinal áudio
Tomada áudio PC x 1
Controlo
Controlo de série RS-232
9 pinos x 1
Receptor IR x 2
Controlo LAN
RJ45 x 1
Te r m i n a i s d e e n t r a d a
Entrada de computador
Entrada RGB
D-Sub 15 pinos (fêmea) x 2
Entrada do sinal de vídeo
S-VIDEO
Porta Mini DIN de 4 pinos x 1
VIDEO
Tomada RCA x 1
Entrada de sinal SD/HDTV
Tomada Analog - Component RCA
x 3
(através de entrada RGB)
Digital - HDMI x 1
Entrada do sinal áudio
Entrada de áudio
Tomada áudio RCA (L/R) x 2
Tomada áudio PC x 2
Microfone x 1
Porta USB (Mini-B x 1)
Requisitos ambientais
Temperatura de funcionamento
0°C–40°C ao nível do mar
Humidade relativa de funcionamento
10% –90% (sem condensação)
Altitude de funcionamento
0–1499 m a 0°C–35°C
1500–3000 m a 0°C–30°C
(com Modo Grande Altitude ligado)
(PT)
Especificações
MX720_MW721_QSG.fm Page 16 Tuesday, October 23, 2012 5:48 PM
Downloaded From projector-manual.com BenQ Manuals

17
Alla specifikationer kan ändras utan föregående meddelande.
Optik
Upplösning
(MX720)
1024 x 768 XGA
(MW721)
1280 x 800 WXGA
Visningssystem
1-CHIP DMD
Linsens f-nummer
(MX720)
F = 2,54 ~ 2,73, f = 18,18~21,84 mm
(MW721)
F = 2,59 ~ 2,87, f = 16,88~21,88 mm
Lampa
240 W lampa
El
Strömtillförsel
AC 100–240 V, 3,5 A, 50-60 Hz
(automatiskt)
Strömförbrukning
375 W (max); < 0,5 W (viloläge)
Mekanik
Vikt
2,9 kg (6,4 lbs)
Uttag
RGB-utgång
D-Sub med 15 stift (hona) x 1
Högtalare
(Stereo) 10 watt x 1
Ljudsignalsutgång
Datorljuduttag x 1
Kontroll
RS-232-seriekontroll
9 stift x 1
IR-mottagare x 2
LAN-styrning
RJ45 x 1
Ingångskontakter
Datoringång
RGB-ingång
D-Sub med 15 stift (hona) x 2
Videosignalingång
S-VIDEO
4-stifts mini-DIN-port x 1
VIDEO
RCA-jack x 1
SD/HDTV-signalingång
Analogt - komponent-RCA-jack x 3
(via RGB-ingång)
Digital - HDMI x 1
Ljudsignalingång
Ljudingång
RCA-ljuduttag (L/R) x 2
Datorljuduttag x 2
Mikrofon x 1
USB-portar (Mini-B x 1)
Miljökrav
Driftstemperatur
0°C–40°C vid havsnivå
Relativ driftsfuktighet
10 %–90 % (icke-kondenserande)
Driftshöjd
0–1499 meter vid 0°C–35°C
1500–3000 meter vid 0°C–30°C
(med Höghöjdsläge på)
Specifikationer
(SV)
MX720_MW721_QSG.fm Page 17 Tuesday, October 23, 2012 5:48 PM
Downloaded From projector-manual.com BenQ Manuals

18
Все характеристики могут быть изменены без предварительного уведомления.
Оптические характеристики
Разрешение
(MX720)
1024 x 768 XGA
(MW721)
1280 x 800 WXGA
Проекционная система
Однокристальное цифровое
микрозеркальное устройство (DMD)
Объектив, фокусное расстояние
(MX720)
F = 2,54 ~ 2,73, f = 18,18 ~ 21,84 mm
(MW721)
F = 2,59 ~ 2,87, f = 16,88 ~ 21,88 mm
Лампа
Лампа 240 Вт
Электрические характеристики
Питание
100 – 240 В, 3,5 A, 50-60 Гц перем. тока
(автомат)
Энергопотребление
375 Вт (макс.); 0,5 Вт (врежиме ожидания)
Механические характеристики
Вес
2,9 кг (6,39 фунта)
Выходы
Выход RGB
15-контактный D-sub (гнездо) x 1
Динамик
(стерео) 10 Вт x 1
Аудиовыход
Разъем аудио ПК x 1
Управление
Управление через последовательный
порт RS-232
9 контактов x 1
ИК-приемник x 2
Управление ЛВС
RJ45 x 1
Входы
Вход компьютера
Вход RGB
15-контактный D-sub (гнездо) x 2
Вход видеосигнала
S-VIDEO
4-контактный разъем Mini DIN x 1
VIDEO
Разъем RCA x 1
Вход сигнала SD/HDTV
Аналоговый - компонентный вход
RCA x 3 (через ввод RGB)
Цифровой- HDMI x 1
Вход аудиосигнала
Аудио вход
Аудиовыход RCA (Л/П) x 2
Разъем аудио ПК x 2
Микрофон x 1
USB порт (Мини-B x 1)
Требования кокружающей среде
Рабочая температура
0°C–40°C на уровне моря
Отн. влажность при эксплуатации
10% - 90% (при отсутствии
конденсации)
Высота над уровнем моря при
эксплуатации
0–1499 мпри температуре 0°C–35°C
1500-3000 мпри 0-30°C
(при включенном режиме высокогорья)
(RU)
Технические характеристики
MX720_MW721_QSG.fm Page 18 Tuesday, October 23, 2012 5:48 PM
Downloaded From projector-manual.com BenQ Manuals

19
Alle specificaties kunnen zonder voorafgaande kennisgeving worden gewijzigd.
Optische specificaties
Resolutie
(MX720)
1024 x 768 XGA
(MW721)
1280 x 800 WXGA
Weergavesysteem
1-CHIP DMD
Lens F/waarde
(MX720)
F = 2,54 ~ 2,73, f = 18,18~21,84 mm
(MW721)
F = 2,59 ~ 2,87, f = 16,88~21,88 mm
Lamp
Lamp van 240 W
Elektrische specificaties
Stroomtoevoer
AC100–240V, 3,5 A, 50-60 Hz (automatisch)
Energieverbruik
375 W (max); < 0,5 W (stand-by)
Mechanische specificaties
Gewicht
2,9 Kg (6,4 lbs)
Uitgangen
RGB-uitgang
D-Sub 15-pins (contrastekker) x 1
Luidspreker
(Stereo) 10 Watt x 1
Audiosignaaluitgang
PC-audiojack x 1
Bediening
Seriële bediening via RS-232
9 pins x 1
IR-ontvanger x 2
Lan-besturing
RJ45 x 1
Ingangen
Computeringang
RGB-ingang
D-Sub 15-pins (contrastekker) x 2
Videosignaalingang
S-VIDEO
Mini DIN 4-pin poort x 1
VIDEO
RCA jack x 1
SD/HDTV-signaalingang
Analog - Component RCA jack x 3
(via RGB-ingang)
Digital - HDMI x 1
Audiosignaalingang
Audio-ingang
RCA audiojack (L/R) x 2
PC-audiojack x 2
Microfoon x 1
Usb-poort (mini-B x 1)
Omgevingsfactoren
Bedrijfstemperatuur
0°C–40°C op zeeniveau
Relatieve vochtigheid in bedrijf
10%-90% (zonder condens)
Bedrijfshoogte
0 – 1499 m bij 0°C – 35°C
1500–3000 m bij 0°C–30°C
(met Hoogtemodus aan)
Specificaties
(NL)
MX720_MW721_QSG.fm Page 19 Tuesday, October 23, 2012 5:48 PM
Downloaded From projector-manual.com BenQ Manuals
