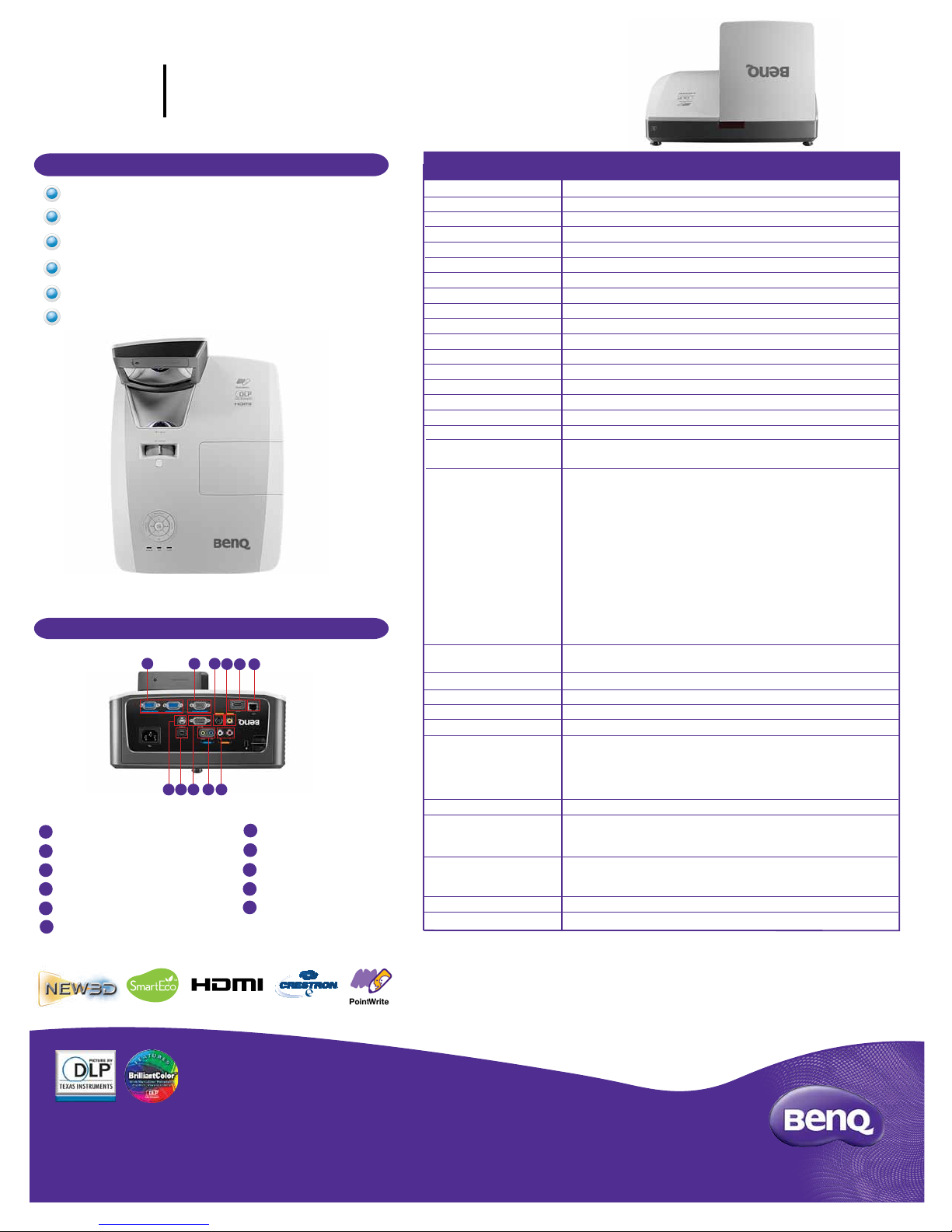

MX852UST
DIGITAL
PROJECTOR
Features Specications
Projection System
Native Resolution
Brightness
Contrast Ratio
Display Color
Lens
Aspect Ratio
Throw Ratio
Image Size (Diagonal)
Zoom Ratio
Lamp Type
Lamp (Normal/Economic Mode)*
Keystone Adjustment
Projection Offset
Resolution Support
Horizontal Frequency
Vertical Scan Rate
Compatibility
Interface
Dimensions (WxHxD)
Weight
Power Supply
Power Consumption
Audible Noise
Languages
Picture Mode
Accessories (Standard)
Accessories (Optional)
UPC / Part #
Limited Warranty
DLP®
XGA (1024x768)
3,000AL
10,000:1
1.07 Billion Colors
F2.5,f=5.1mm
Native 4:3 (5 aspect ratio selectable)
0.43
68’’~85’’, Optimal 78”
Fix
230W
4000/5000/7000 hours
1D, Vertical +/- 40 degrees
123% ±5%
VGA(640 x 480) to UXGA(1600 x 1200)
15~102KHz
23~120Hz
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i,1080p
Video Compatibility: NTSC, PAL, SECAM,
Computer in (D-sub 15pin) x 2(Shared with component)
Monitor out (D-sub 15pin) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
HDMI x 1
Audio in (Mini Jack) x 1
Audio out (Mini Jack) x 1
Audio L/R x 1
Speaker 10W x 2
USB (Type mini B) x 2 (PointWrite interactive module)
USB (Type B) x 1 ( FW download)
RJ45 x 1 (LAN control)
RS232 (DB-9pin) x 1
IR Receiver x 2 (Front)
11.3” x 14.6” x 7.31” (w/o Mirror)
11.3” x 14.6” x 7.9” (w Mirror)
11.02 lbs (5KG) w/o wall mount
AC100 to 240 V, 50 to 60 Hz
typical 290W, stanby power <0.5W
33/29 dBA (Normal/Economic mode)
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/
French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/
Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/
Russian/ Simplied Chinese/Spanish/ Swedish/ Turkish/ Thai/
Traditional Chinese (28 Languages)
Dynamic/Presentation/sRGB/Cinema/(3D)/User 1/User 2
Remote Control w/ Battery, Power Cord, User Manual CD
Quick Start Guide, Warranty Card, VGA(D-sub 15pin) Cable
Dust lter(C SKU), Wall mount kit (installation guide)
Spare Lamp Kit P/N: 5J.J8M05.011
3D Glasses (DGD24) P/N: 5J.J7L25.001
PointWrite kit (PW01U) P/N: 5J.J9A26.10E
8400460-3027-8 / 9H.J8M77.23A
3 Years Parts/Labor or 2,000 hours of lamp life.
MX852UST 02-10-14-BQus
*Lamp life results will vary depending on environmental conditions and usage. Actual product’s features and specications
are subject to change without notice.
HIGH-DEFINITION MULTIMEDIA INTERFACE
TM
Native XGA (1024 x 768) Resolution
3,000 ANSI Lumens, 10,000:1 High Contrast Ratio
SmartEco™ Power Saving Technology
Full 3D Ready
Up to 7,000 Hours Lamp Life
PointWrite Interactive Kit Compatible
1
2
3
4
5
6
7
8
9
10
Input and Output Terminals
11
123456
78910 11
Computer in 1 & 2 (D-sub 15pin)
Monitor Out (D-sub 15pin)
S-Video In (Mini DIN 4pin)
Composite Video in (RCA)
HDMI
LAN
USB (Type Mini B)
PointWrite
RS232 (DB-9pin)
Audio In/Out (Mini Jack)
Audio (L/R)

Distance Chart
Ceiling Mount Chart
MX852UST Digital Projector
XGA
Screen size
(Diagonal)
Screen size
Width (W)
Screen size
Height (h)
Projection
distance (D)
Offset (H) Scale
parameter
Distance between
Wall plate &
projection screen (V)
inch mm inch mm inch mm inch mm inch mm inch
68 1727 54 1382 40 1036 11.16 283.4 11.86 301.3 500 273.5
70 1778 55 1422 42 1067 11.91 302.4 12.15 308.5 515 280.7
75 1905 59 1524 45 1143 13.83 351.4 12.88 327.2 560 299.4
77 1956 61 1565 46 1173 14.62 371.4 13.18 334.8 585 307
80 2032 63 1626 48 1219 15.72 399.4 13.60 345.4 615 317.6
82 2083 65 1666 49 1250 16.51 419.4 13.90 353 635 325.2
85 2159 67 1727 51 1295 17.61 447.4 14.32 363.7 665 335.9
Dimensions
Units: inch
Units: inch
7.3”7.9”
11.3”
5.5”
5.3”
10.04”
8.12”
OPTICAL AXIS
11.3”
5.87”
1.07”
14.1” - 26.2”
7.3”
7.9”
14.6”
11.3”
8.97”
.925”
Regulating Range
0-40
Regulating Range
0-30
