BenQ MX854UST User manual

MX854UST/MW855UST/MH856UST
Digital Projector
User Manual
V1.01

Table of contents2
Tabl e o f co nt e nt s
Important safety
instructions................... 3
Introduction.................. 7
Projector features.....................................7
Shipping contents......................................8
Projector exterior view...........................9
Controls and functions..........................11
Positioning your
projector ..................... 16
Using the quick install ............................16
O btaining a preferred projected
image size..................................................17
D imensions...............................................21
Connection ................. 22
Connecting video source devices........23
Playing sound through the projector..24
Operation ................... 25
Starting up the projector ......................25
Adjusting the projected image .............25
Using the menus......................................30
Securing the projector ...........................31
Utilizing the password function ...........31
Switching input signal .............................33
Magnifying and searching for details...34
Selecting the aspect ratio ......................35
O ptimizing the image .............................37
Setting the presentation timer .............41
Remote paging operations....................43
Freezing the image ..................................43
Hiding the image......................................43
Locking control keys..............................44
O perating in a high altitude
environment............................................. 44
Adjusting the sound ............................... 45
Using the test pattern............................ 46
Using the teaching templates............... 46
Shutting down the projector ............... 47
Menu operation ...................................... 48
Maintenance ............... 61
Care of the projector ............................ 61
Lamp information ................................... 62
Troubleshooting......... 69
Specifications.............. 70
Projector specifications......................... 70
Timing chart ............................................. 71
W arranty and Copyright
information................. 77

Important safety instructions 3
Important safety instructions
Your projector is designed and tested to meet the latest standards for safety of information
technology equipment. However, to ensure safe use of this product, it is important that
you follow the instructions mentioned in this manual and marked on the product.

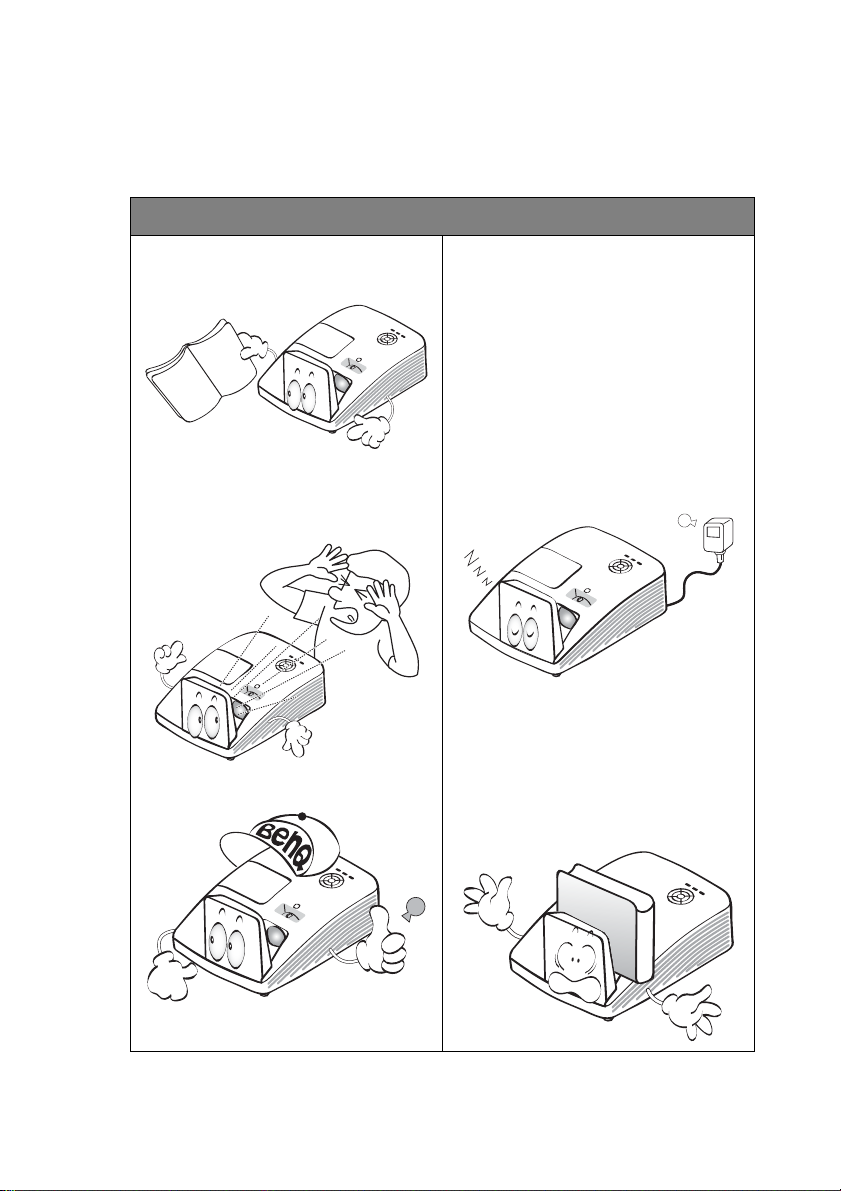

Safety Instructions
1. Please read this manual before
you operate your projector. Save
it for future reference.
2. Do not look straight at the
projector lens during operation.
The intense light beam may damage
your eyes.
3. Refer servicing to qualified
service personnel.
4. In some countries, the line voltage is
N OT stable. This projector is
designed to operate safely within a
mains voltage between 100 to 240
volts AC, but could fail if power cuts
or surges of ±10 volts occur. In
areas where the mains voltage
may fluctuate or cut out, it is
recommended that you connect
your projector through a power
stabilizer, surge protector or
uninterruptible power supply
(U PS).
5. D o not block the projection lens with
any objects when the projector is
under operation as this could cause
the objects to become heated and
deformed or even cause a fire. To
temporarily turn off the lamp, press
ECO BLAN K on the remote
control.

Important safety instructions4
Safety Instructions (Continued)
6. The lamp becomes extremely hot
during operation. Allow the
projector to cool for approximately
45 minutes prior to removing the
lamp assembly for replacement.
7. D o not operate lamps beyond the
rated lamp life. Excessive operation
of lamps beyond the rated life could
cause them to break on rare
occasions.
8. N ever replace the lamp assembly or
any electronic components unless
the projector is unplugged.
9. D o not place this product on an
unstable cart, stand, or table. The
product may fall, sustaining serious
damage.
10. D o not attempt to disassemble this
projector. There are dangeroushigh
voltages inside which may cause
death if you should come into
contact with live parts. The only
user serviceable part is the lamp
which has its own removable cover.
Under no circumstances should you
ever undo or remove any other
covers. Refer servicing only to
suitably qualified professional
service personnel.
11. W hen the projector is under
operation, you may sense some
heated air and odor from its
ventilation grill. It is a normal
phenomenon and not a product
defect.

Important safety instructions 5
Safety Instructions (Continued)

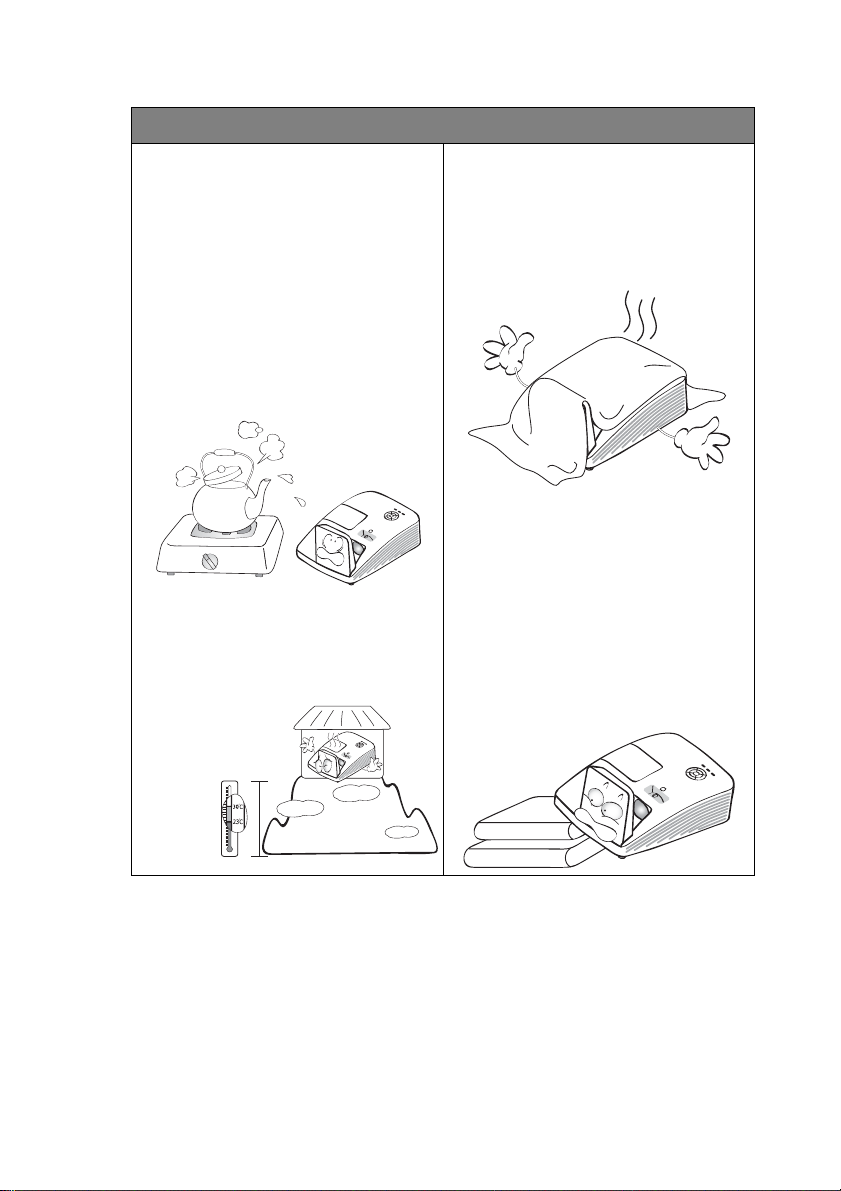

12. D o not place this projector in any
of the following environments.
- Space that is poorly ventilated or
confined. Allow at least 50 cm
clearance from walls and free flow of
air around the projector.
- Locations where temperatures may
become excessively high, such as the
inside of a car with all windows rolled
up.
- Locations where excessive humidity,
dust, or cigarette smoke may
contaminate optical components,
shortening the projector's life span
and darkening the image.
- Locations near fire alarms
- Locations with an ambient
temperature above 40°C / 104°F
- Locations where the altitudes are
higher than 3000 m (10000 feet).
13. D o not block the ventilation holes.
- D o not place this projector on a
blanket, bedding or any other soft
surface.
- D o not cover this projector with a
cloth or any other item.
- D o not place inflammables near the
projector.
If the ventilation holes are seriously
obstructed, overheating inside the
projector may result in a fire.
14. Always place the projector on a
level, horizontal surface during
operation.
- Do not use if tilted at an angle of more
than 10 degrees left to right, nor at
angle of more than 15 degrees front
to back. U sing the projector when it is
not fully horizontal may cause a
malfunction of, or damage to, the
lamp.
3000 m
(10000 feet)
0 m
(0 feet)

Important safety instructions6
Safety Instructions (Continued)
15. D o not stand the projector on end
vertically. D oing so may cause the
projector to fall over, causing injury or
resulting in damage to the projector.
16. D o not step on the projector or place
any objects upon it. Besides probable
physical damage to the projector,
doing so may result in accidents and
possible injury.
17. D o not place liquids near or on the
projector. Liquids spilled into the
projector may cause it to fail. If the
projector does become wet,
disconnect it from the power supply's
wall socket and call BenQ to have the
projector serviced.
18. This product is capable of displaying
inverted images for wall mount
installation.
Use only BenQ's W all Mount Kit for
mounting the projector and ensure it is
securely installed.
W all mounting the projector
W e want you to have a pleasant
experience using your BenQ
projector, so we need to bring this
safety matter to your attention to
prevent possible damage to person
and property.
If you intend to mount your projector
on the wall, we strongly recommend
that you use a proper fitting BenQ
projector wall mount kit and that you
ensure it is securely and safely
installed.
If you use a non-BenQ brand
projector wall mount kit, there is a
safety risk that the projector may fall
from the wall due to an improper
attachment through the use of the
wrong gauge or length screws.
You can purchase a BenQ projector
wall mount kit from the place you
purchased your BenQ projector. BenQ
recommends that you also purchase a
separate Kensington lock compatible
security cable and attach it securely to
both the Kensington lock slot on the
projector and the base of the wall
mount bracket. This will perform the
secondary role of restraining the
projector should its attachment to the
mounting bracket become loose.
Hg - Lamp containsmercury. Manage in
accordance with local disposal laws. See
www.lamprecycle.org.

Introduction 7
Introduction
Projector features
The projector offers the following features
•SmartEco™ starts your dynamic power saving
The SmartEco™ technology offers a new way of operating the projector lamp system
and saves lamp power up to 30% depending on the content brightness level.
•Interactive capability
Extend the interactive function with optional PointW rite module.
•Vert ical 8% lens shift (N o available in MH 856U ST )
O ptimize the installation flexibility.
•Corner fit
Correct each distorted corner to get a perfect rectangular image.
•Filter Free
Filter free design to lower maintenance and operating costs.
•Network Control
Integrated RJ45 connector for wired network control allowing management of
projector status from a computer using a web browser.
Enable N etwork Standby mode <6W.
•Crestron RoomView®, and AMX supported
The projector supports Crestron eControl and RoomView and AMX allowing you to
control and manage equipment from a remote computer via LAN connection.
•One-key auto-adjustment
Pressing AUTO on the keypad or remote control to show the best picture quality
immediately.
•Built-in 10W x 2 speaker(s)
Built-in 10W x 2 speaker(s) providing stereo audio when an audio input is connected.
•Quick Cooling, Auto Power O ff, Signal Power On, Direct Power On
Quick Cooling function speeds up the cooling process when turning off the
projector. Auto Power Off function allows the projector to turn off automatically if
no input signal is detected after a set period of time. Signal Power On function turns
on your projector automatically once detecting the signal input and Direct Power On
boots up the projector automatically when the power is connected.
• The apparent brightness of the projected image will vary depending on the ambient lighting
conditions, selected input signal contrast/brightness settings, and is directly proportional to
projection distance.
• The lamp brightness will decline over time and may vary within the lamp manufacturers
specifications. This is normal and expected behavior.

Introduction8
Shipping contents
Carefully unpack and verify that you have all of the items shown below. If any of these items
are missing, please contact your place of purchase.
Standard accessories
The supplied accessories will be suitable for your region, and may differ from those illustrated.
Optional accessories
*The warranty card is only supplied in some specific regions. Please consult your dealer for
detailed information.
**There is no Laser function of the remote for Japan region.
***H ex key no available in MH 856UST model.
Projector with wall mount plate Remote control with battery**
Power cord VGA cable W all mount kit Hex key (2.5mm)***
Q uick start guide User manual CD W arranty card* Installation chart
1. Spare lamp kit
2. 3D glasses
3. PointW rite kit
4. D ocument camera
Digital Projector
Quick Start Guide

Introduction 9

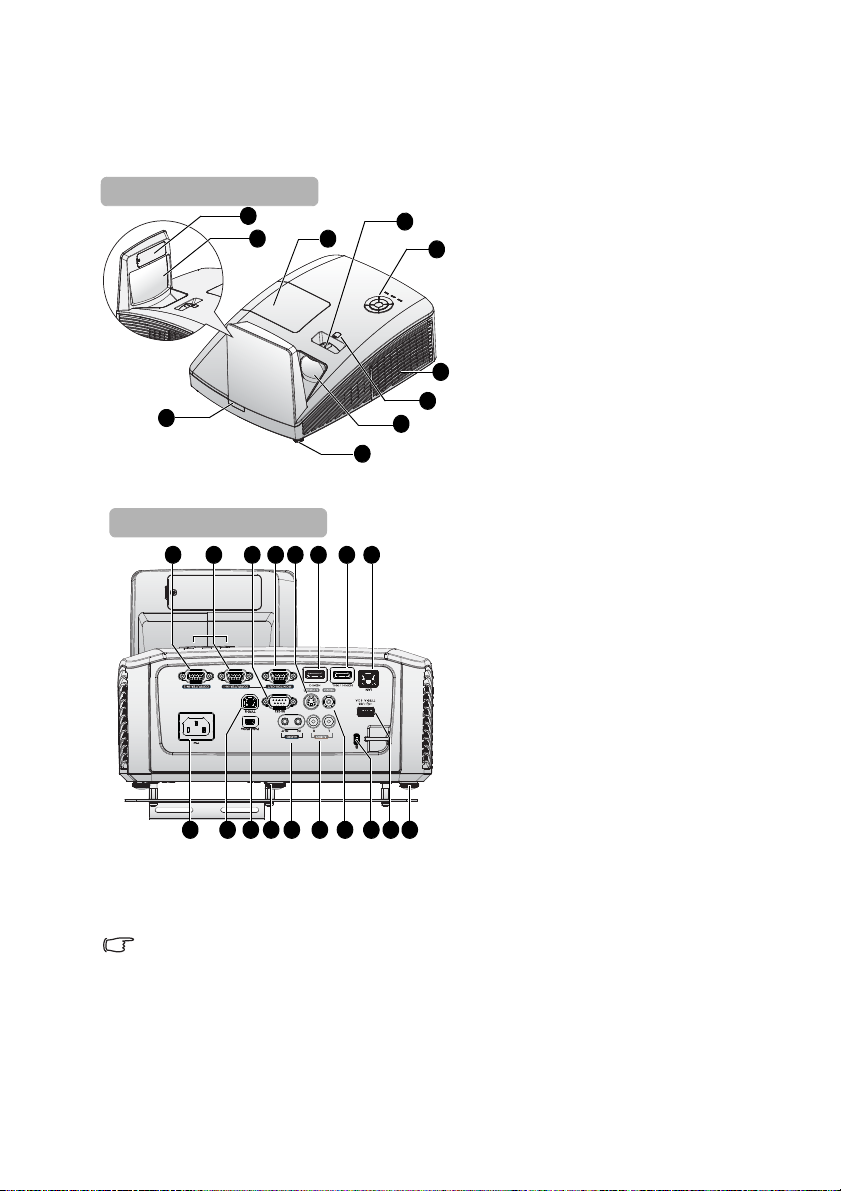

Projector exterior view
1. PointW rite dummy cover
(O ptional PointW rite kit)
2. Mirror
3. Lamp compartment cover
4. Focus ring

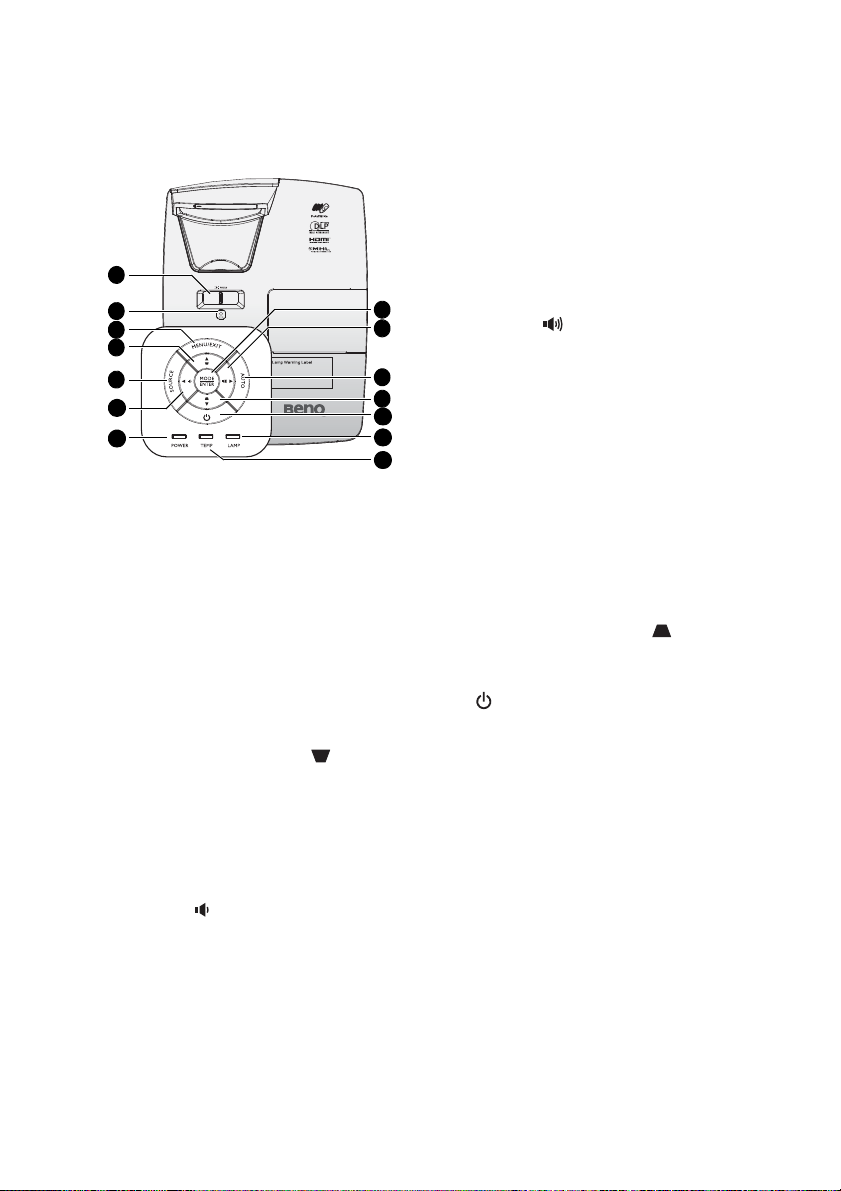

5. External control panel
(See "Projector" on page 11 for
details.)
6. Vent (cool air intake)
7. Lens shift (N o available in
MH 856UST)
8. Projection lens
9. Front adjuster foot
10. Front IR remote sensor
11. CO MPUTRR-2 input jack
12. CO MPUTER-1 input jack
13. RS-232 control port
14. RGB signal output jack
15. S-VID EO input jack
16. H D MI-2 input jack
17. H D MI-1 / MH L input jack
18. RJ45 LAN input jack
19. Front adjuster foot
20. USB Type A port
(Power for Touch kit)
21. Kensington anti-theft lock slot
22. VID EO input jack
23. Audio (L/R) input jack
24. Audio input/output jack
25. Rear adjuster foot
26. PointW rite port (PointW rite kit is
required)
27. USB Type B port (For ser vice
download)
28. AC power cord inlet
For setting the PointW rite kit on projector, Please find PointW rite manaual in the kit box
you purchase.
9
Front/upper side
2
6
5
8
4
3
1
7
10
Rear/lower side
16 18
2128
13 1711 12 14
22 192427 2526 23
15
20

Introduction10
29. W all mount plate

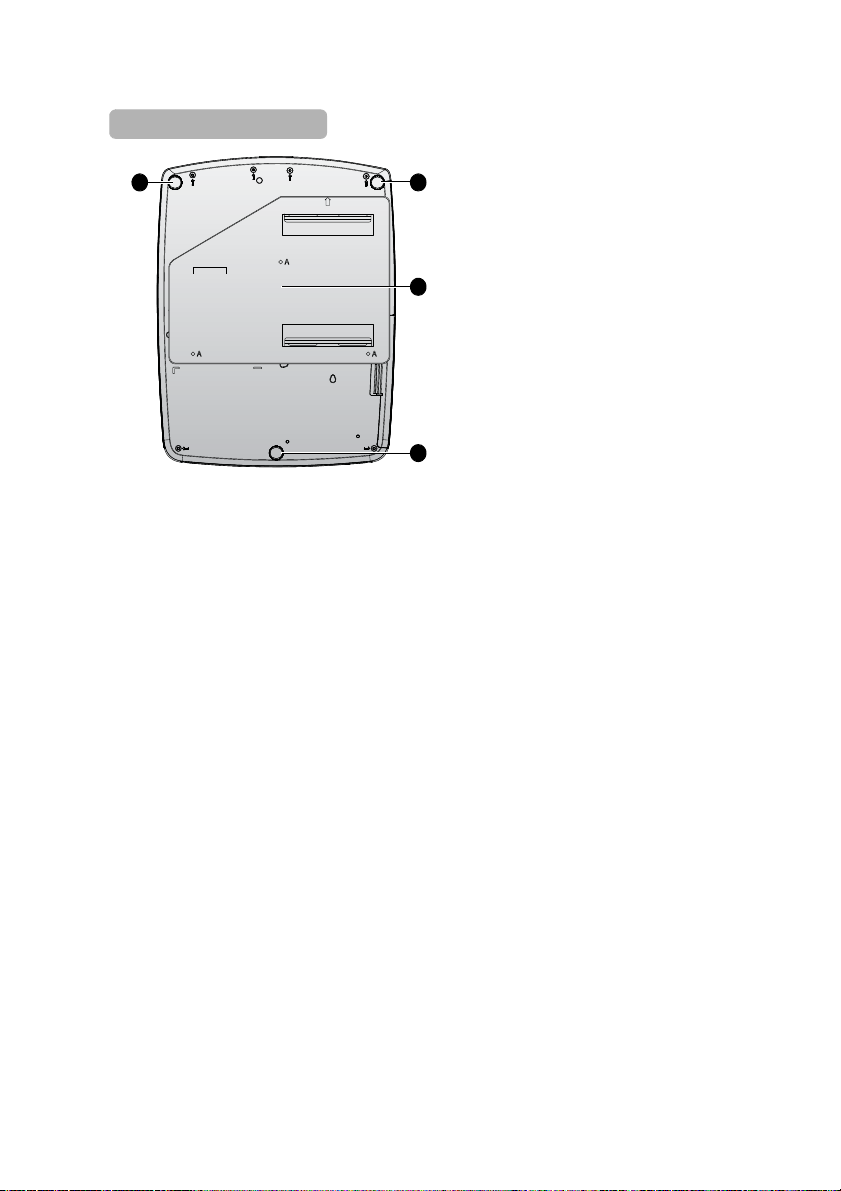

Bottom side
29
1919
25

Introduction 11
Controls and functions
Projector
1. FOCU S Ring
Used to adjust the projected image
appearance. See "Fine-tuning the image
size and clarity" on page 27 for details.
2. Lens Shift
Used H ex Key to adjust the lens shift
function.
3. MEN U /EX IT
Turns on the O n-Screen D isplay (O SD )
menu. Goes back to previous O SD menu,
exits and saves menu settings.
See "Using
the menus" on page 30 for details.
4. Keystone/Arrow keys ( /▲Up)
Manually corrects distorted images
resulting from an angled projection.
5. SOU RCE
D isplays the source selection bar. See
"Switching input signal" on page 33 for
details.
6. ◄Left/ Decrease volume level
D ecreases volume. See "Adjusting the
sound level" on page 45 for details.
7. POW ER indicator light
Lights up or flashes when the projector is
under operation. See "Indicators" on page
68 for details.
8. MO DE/EN T ER
Selects an available picture setup mode.
See "Selecting a picture mode" on page
37 for details.
Enacts the selected O n-Screen D isplay
(O SD ) menu item. See "Using the menus"
on page 30 for details.
9. ►Right/ Increase volume level
Increases volume. See "Adjusting the
sound level" on page 45 for details.
W hen the O n-Screen D isplay (O SD )
menu is activated, the # 4, #6, #9, and
#11 keys are used as directional arrows
to select the desired menu items and to
make adjustments. See "Usingthe menus"
on page 30 for details.
10. AUTO
Automatically determines the best
picture timings for the displayed image.
See "Auto-adjusting the image" on page
27 for details.
11. Keystone/Arrow keys ( /▼Down)
Manually corrects distorted images
resulting from an angled projection.
12. POW ER
Toggles the projector between standby
mode and on.
See "Starting up the projector" on page
25 and "Shutting down the projector" on
page 47 for details.
13. LAMP indicator light
Indicates the status of the lamp. Lights up
or flashes when the lamp has developed a
problem. See "Indicators" on page 68 for
details.
14. T EMPerature indicator light
Lights up red if the projector's
temperature becomes too high. See
"Indicators" on page 68 for details.
2
4
5
6
713
14
39
12
8
1
10
11

Introduction12

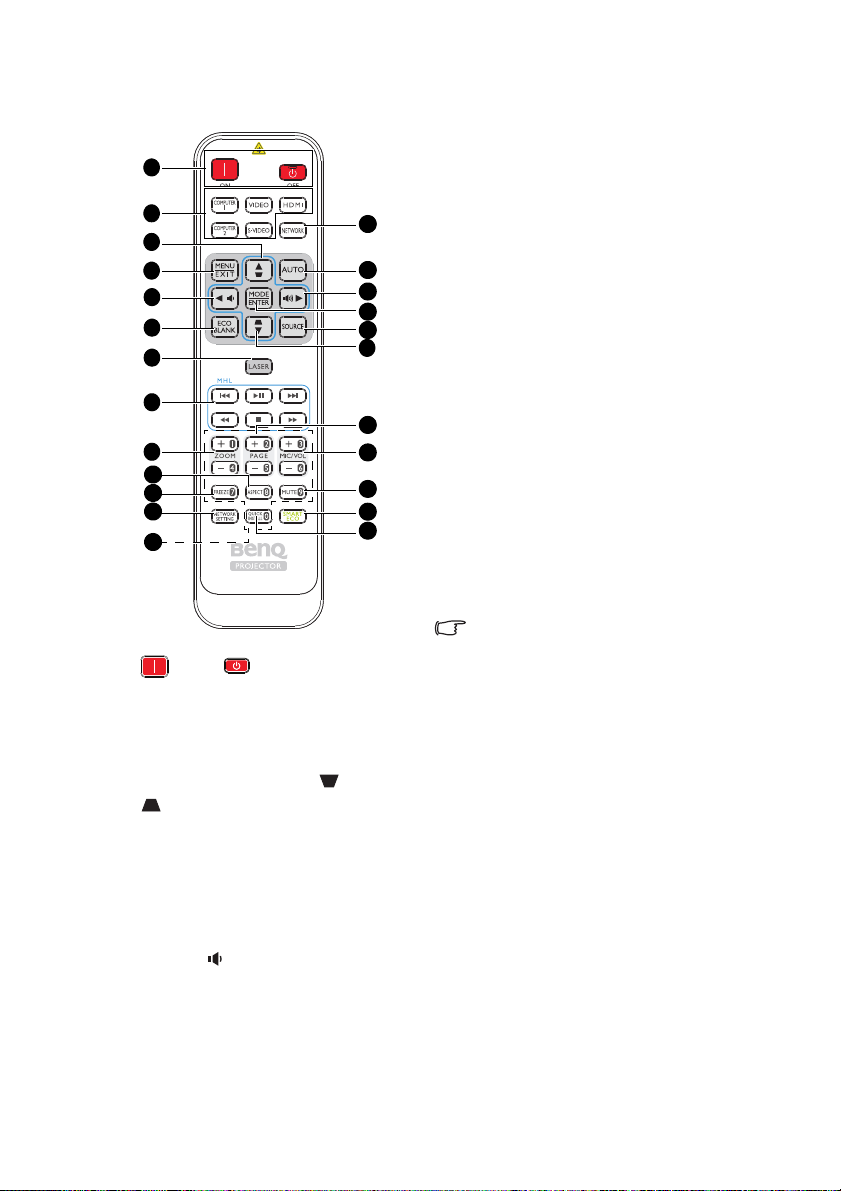

Remote Control
1. ON / OFF
Toggles the projector between standby
mode and on.
2. Source selection buttons
Selects an input source for display.
3. Keystone/Arrow keys ( /▲Up,
/▼Down)
Manually corrects distorted images
resulting from an angled projection.
4. MENU/EXIT
Turns on the On-Screen Display (OSD)
menu. Goes back to previous OSD menu,
exits and saves menu settings.
5. ◄Left/
Decreases the projector volume.
6. ECO BLANK
Used to hide the screen picture.
7. LASER (Notavailable in Japan)
Emits visible laser pointer light for
presentation purposes.
8. MHL control buttons
(Notavailable in Japan )
Goes to the previous file/Plays/Pauses/
Goes to the next file/Rewinds/Stops/
Fastforwards during media playback. Only
available when controlling your smart
device in MHL
9. ZOOM+/ZOOM-
Magnifies or reduces the projected
picture size.
10. ASPECT
Selects the display aspect ratio.
11. FREEZE
Freezes the projected image.
12. NETWORK SETTING
Displays the Network Settings OSD
menu.
13. Numeric buttons
Enters numbers in network settings.
Numeric buttons 1, 2, 3, 4 cannot be
pressed when asked to enter password.
14. NETWORK
Selects Network Display as the input
signal source.
15. AUTO
Automatically determines the best
picture timings for the displayed image.
When there is no OSD menu and at
MHL source, long press for 3 seconds to
switch between MHL mode and DLP
mode on remote control for MHL keys.
5
6
12
17
18
20
23
14
1
2
3
4
7
15
11
22
16
10
19
21
3
13
8
9

Introduction 13
16. ►Right/
Increases the projector volume.
W hen the O n-Screen D isplay (O SD )
menu is activated, the #3, #5, and # 16
keys are used as directional arrows to
select the desired menu items and to
make adjustments.
W hen MH L function, the # 3, # 5 and #16
are used as directional arrows. # 4 for
MEN U/EX IT and #17 for
MODE/ENT ER.
17. MOD E/EN TER
Selects an available picture setup mode.
Activates the selected O n-Screen D isplay
(O SD ) menu item.
18. SO URCE
D isplays the source selection bar.
19. PAGE +/PAGE -
O perate your display software program
(on a connected PC) which responds to
page up/down commands (like Microsoft
PowerPoint).
20. MIC/VOL +/MIC/VOL -
The function is not available on this
projector.
21. MUTE
Toggles projector audio between on and
off.
22. SMART ECO
Switch the lamp mode between Eco/
N ormal and SmartEco.
23. QU ICK IN STALL
D isplays the Quick Install O SD menu.
Operating the LASER pointer
The Laser Pointer is a
presentation aid for
professionals. It emits a
beam of red light when you
press it.
The laser beam is visible. It
is necessary to press and
hold LASER for continuous
output.
Do not look into the
laser light window or shine the laser light
beam on yourself or others. See the
warning messages on the back of the
remote control prior to using it.
The laser pointer is not a toy. Parents should
be mindful of the dangers of laser energy and
keep this remote control out of the reach of
children.

Introduction14

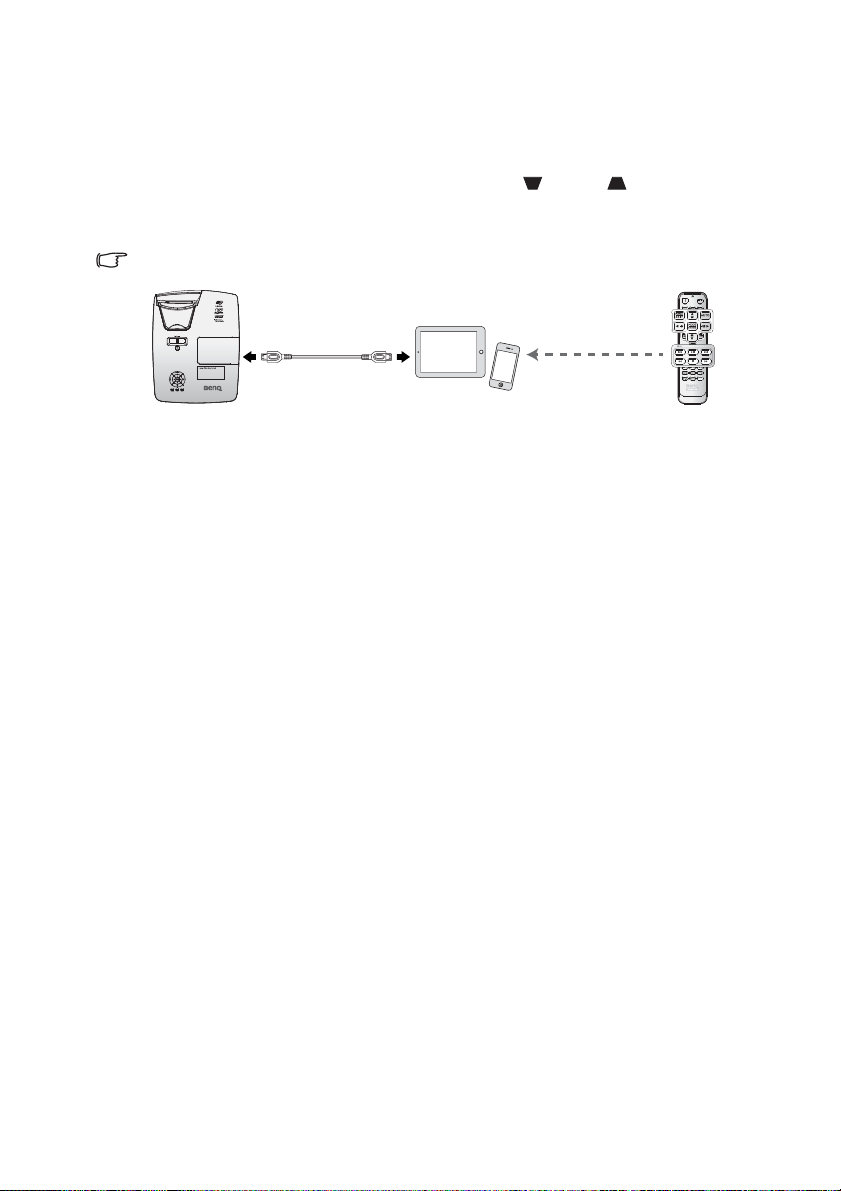

Controlling your smart device with the remote control
W hen the projector projects the contents from your MH L compatible smart device, you
can use the remote control to control your smart device.
To enter the MHL mode, press and hold AU TO for 3 seconds. The following buttons are
available for controlling your smart device, Arrow keys ( /▲U p, /▼Down,
◄Left, ►Right), MEN U/EX IT, MHL control buttons.
To leave the MH L mode, press and hold AU TO for 3 seconds.
W hen the projector is under MH L mode, The keypad on projector should be with the same
definition of the key on remote control.

Introduction 15

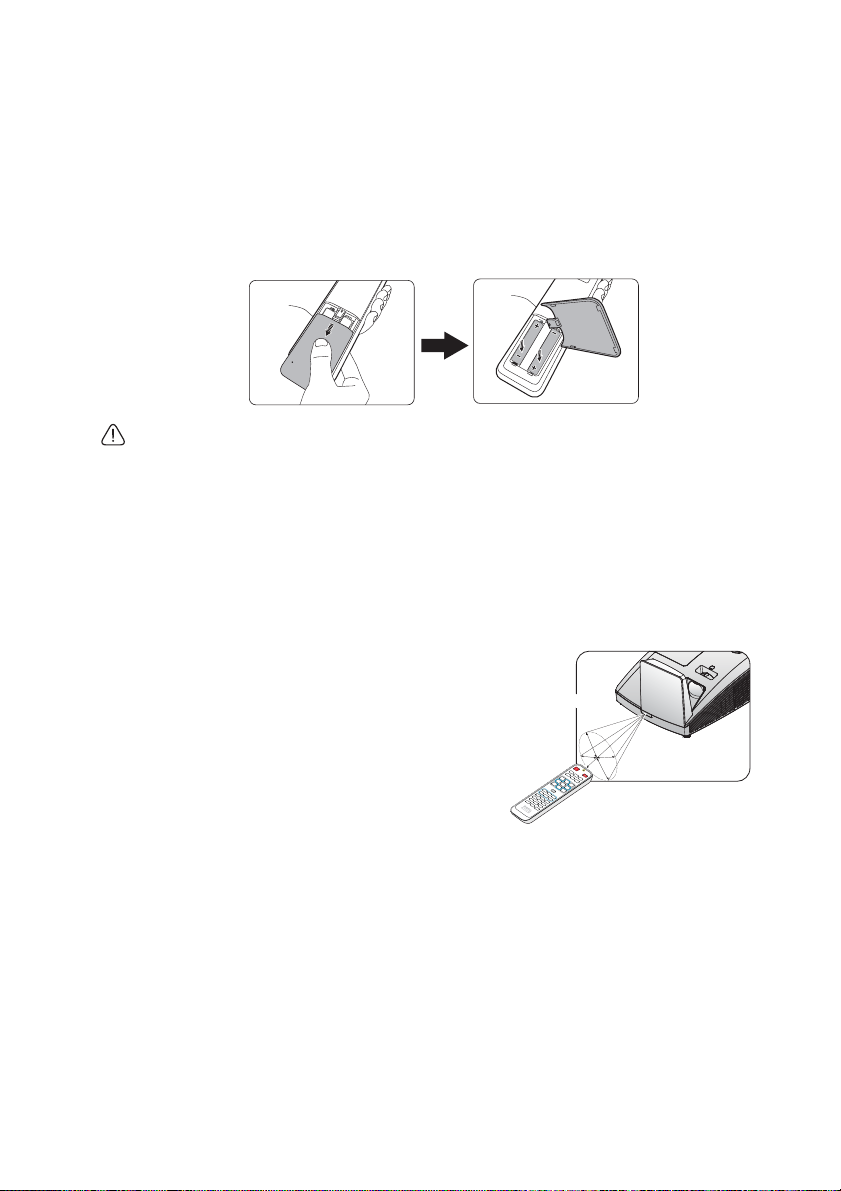

Replacing the remote control battery
1. To open the battery cover, turn the remote control over to view its back, push on
the finger grip on the cover and slide it up in the direction of the arrow as illustrated.
The cover will slide off.
2. Remove any existing batteries (if necessary) and install two AAA batteries observing
the battery polarities as indicated in the base of the battery compartment. Positive
(+) goes to positive and negative (-) goes to negative.
3. Refit the cover by aligning it with the base and sliding it back down into position. Stop
when it clicks into place.
• Avoid excessive heat and humidity.
• There may be battery damage if the battery is incorrectly replaced.
• Replace only with the same or equivalent type recommended by the battery manufacturer.
• Dispose of the used battery according to the battery manufacturer’s instructions.
• N ever throw a battery into a fire. There may be danger of an explosion.
• If the battery is dead or if you will not be using the remote control for a long time, remove
the battery to prevent damage to the remote control from possible battery leakage.
Remote control effective range
Infra-Red (IR) remote control sensor is located on
the front of the projector. The remote control must
be held at an angle within 30 degrees perpendicular
to the projector's IR remote control sensor to
function correctly. The distance between the
remote control and the sensor should not exceed 8
meters (~ 26 feet).
Make sure that there are no obstacles between the
remote control and the IR sensor on the projector
that might obstruct the infra-red beam.
Approx. ±30°

Positioning your projector16
Positioning your projector

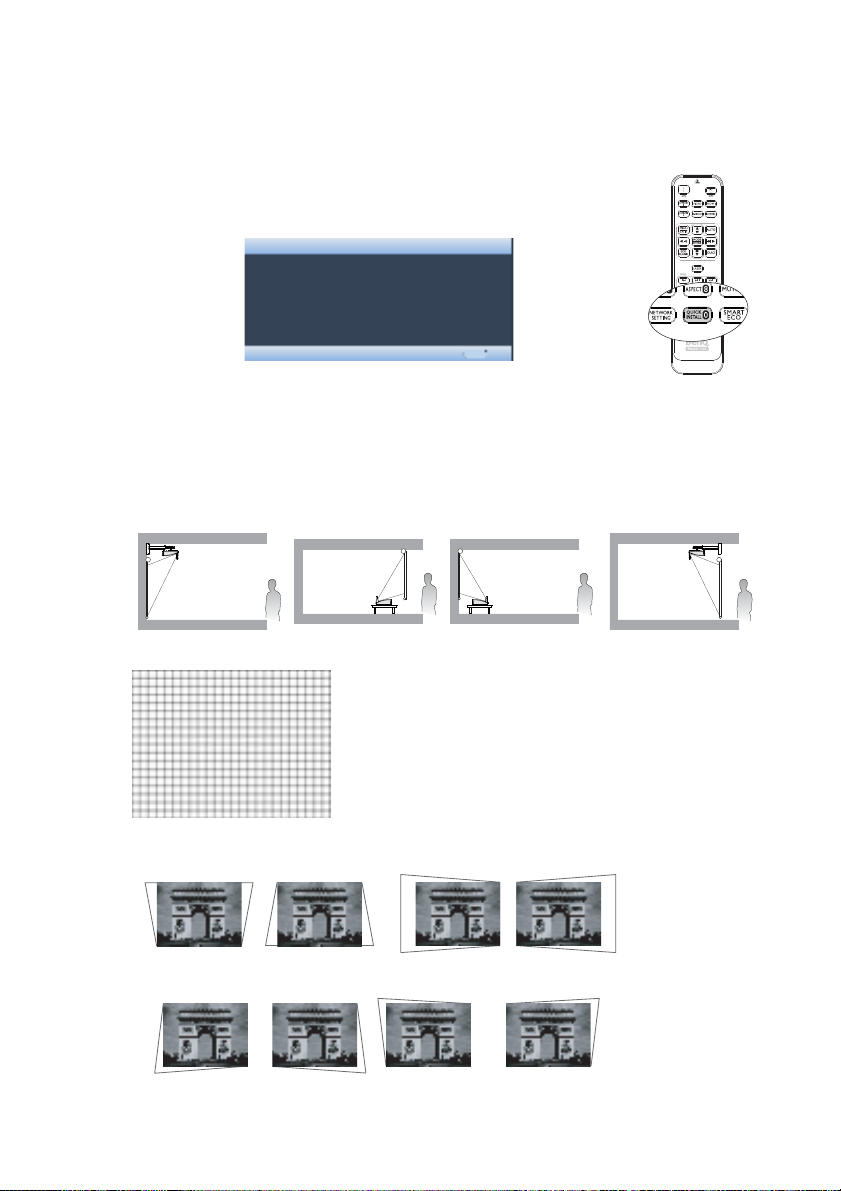

Using the quick install
The projector provides a hot key to set Projector Installation, Te st
Pattern, and Keystone quickly.
Press Quick Install on the remote control and press ▲/▼to select:
• Projector Installation: See
"Positioning your projector" on page 16 .
• Test Pattern: See "Using the test pattern" on page 46 .
• Keystone: See "Correcting 2D Keystone" on page 27 .
1. Choosing a location
Your projector is designed to be installed in one of four possible installation locations:
2. Use the test pattern
3. Correct the image
2D Keystone correction
Corner fit correction
Front W all Rear T able Front Table Rear W all
Q UICK IN STALL
Projector Installation
MEN U Exit
T e st P a t t e r n
Keyst one

Positioning your projector 17
Set up your screen via Quick Install hotkey on remote, you can also go to the SYSTEM
SET UP: Basic > Projector Installation menu after turning on the projector.
Your room layout or personal preference will dictate which installation location you select.
Take into consideration the size and position of your screen, the location of a suitable
power outlet, as well as the location and distance between the projector and the rest of
your equipment.
O btaining a preferred projected image size
1. W all mount
2. D imension (include projector and wall mount)

Positioning your projector18
Projection dimensions
Refer to "D imensions" on page 21 for the center of lens dimensions of this projector
before calculating the appropriate position.
MX 854UST
The screen aspect ratio is 4:3 and the projected picture is 4:3.
W
h
D
HV
X GA
Screen
size
(Diagonal)
Screen
width (W )
Screen
Height (h)
Projection
distance
(D)
Offset (H) Scale
parameter
Distance
between
W all plat e
&
projection
screen (V)
inch mm inch mm inch mm inch mm inch mm mm
68 1727 54 1382 40 1036 11.16 283.4 11.86 301.3 500 273.5
70 1778 55 1422 42 1067 11.91 302.4 12.15 308.5 515 280.7
75 1905 59 1524 45 1143 13.83 351.4 12.88 327.2 560 299.4
77 1956 61 1565 46 1173 14.62 371.4 13.18 334.8 585 307
80 2032 63 1626 48 1219 15.72 399.4 13.60 345.4 615 317.6
82 2083 65 1666 49 1250 16.51 419.4 13.90 353 635 325.2
85 2159 67 1727 51 1295 17.61 447.4 14.32 363.7 665 335.9

Positioning your projector 19
MW 855UST
The screen aspect ratio is 16:10 and the projected picture is 16:10.
MH856UST
The screen aspect ratio is 16:9 and the projected picture is 16:9.
There is 5% tolerance among these numbers due to optical component variations. BenQ
recommends that if you intend to permanently install the projector, you should physically test
the projection size and distance using the actual projector before you permanently install it, so
as to make allowance for this projector's optical characteristics. T his will help you determine
the exact mounting position so that it best suits your installation location.
It is recommended to adjust focus 15 minutes after powering on due to the slight shifting of the
lens from temperature changing.
W X GA
Screen
size
(Diagonal)
Screen
width (W )
Screen
Height (h)
Projection
distance
(D)
Offset (H) Scale
parameter
Distance
between
W all plat e
&
projection
screen (V)
inch mm inch mm inch mm inch mm inch mm mm
80 2032 67 1723 42 1077 11.11 282.3 11.81 300 495 274.7
85 2159 71 1831 45 1144 12.73 323.3 12.37 314.3 535 289
87 2210 73 1874 46 1171 13.40 340.3 12.61 320.2 555 294.9
90 2286 76 1939 47 1212 14.38 365.3 12.95 328.9 580 303.6
92 2337 77 1982 48 1239 15.01 381.3 13.17 334.4 600 309.1
95 2413 80 2046 50 1279 15.98 405.8 13.50 343 625 317.7
97 2464 81 2089 51 1306 16.65 422.8 13.74 348.9 645 323.6
100 2540 85 2154 53 1346 17.55 445.8 14.05 356.9 665 331.6
1080P
Screen
size
(Diagonal)
Screen
width (W )
Screen
Height (h)
Projection
distance
(D)
Offset (H) Scale
parameter
Distance
between
W all plat e
&
projection
screen (V)
inch mm inch mm inch mm inch mm inch mm mm
89 2258 77.5 1968 43.6 1107 13.40 340.3 13.04 331.2 538 273
90 2286 78.4 1991 44.1 1120 13.73 348.8 13.17 334.5 547 277
95 2413 82.8 2103 46.6 1183 15.35 389.8 13.80 350.5 590 294
97 2464 84.5 2148 47.6 1208 15.98 405.8 14.04 356.7 605 300
100 2540 87.1 2213 49 1245 16.94 430.3 14.42 366.2 630 309
102 2594 89.1 2262 50.1 1272 17.65 448.3 14.70 373.3 653 319

Positioning your projector20
Limited lens shift specification
(N o available in MH 856U ST)
To shift up the projection image, twist the
adjuster counter clockwisre.
To shift down the projection image, twist
the adjuster clockwisre.
H
Hx4%
Hx4%
Hex Key(2.5mm)
