BenQ PU9730 User manual

PU9730 / PW9620 / PX9710
Digital Projector
Installation Guide

English
2
Table of Contents
Product information ............................................................................. 3
Lens information ................................................................................... 3
Notice (when edge blending) ............................................................... 3
Product information ............................................................................. 4
Lens shift range ..................................................................................... 7

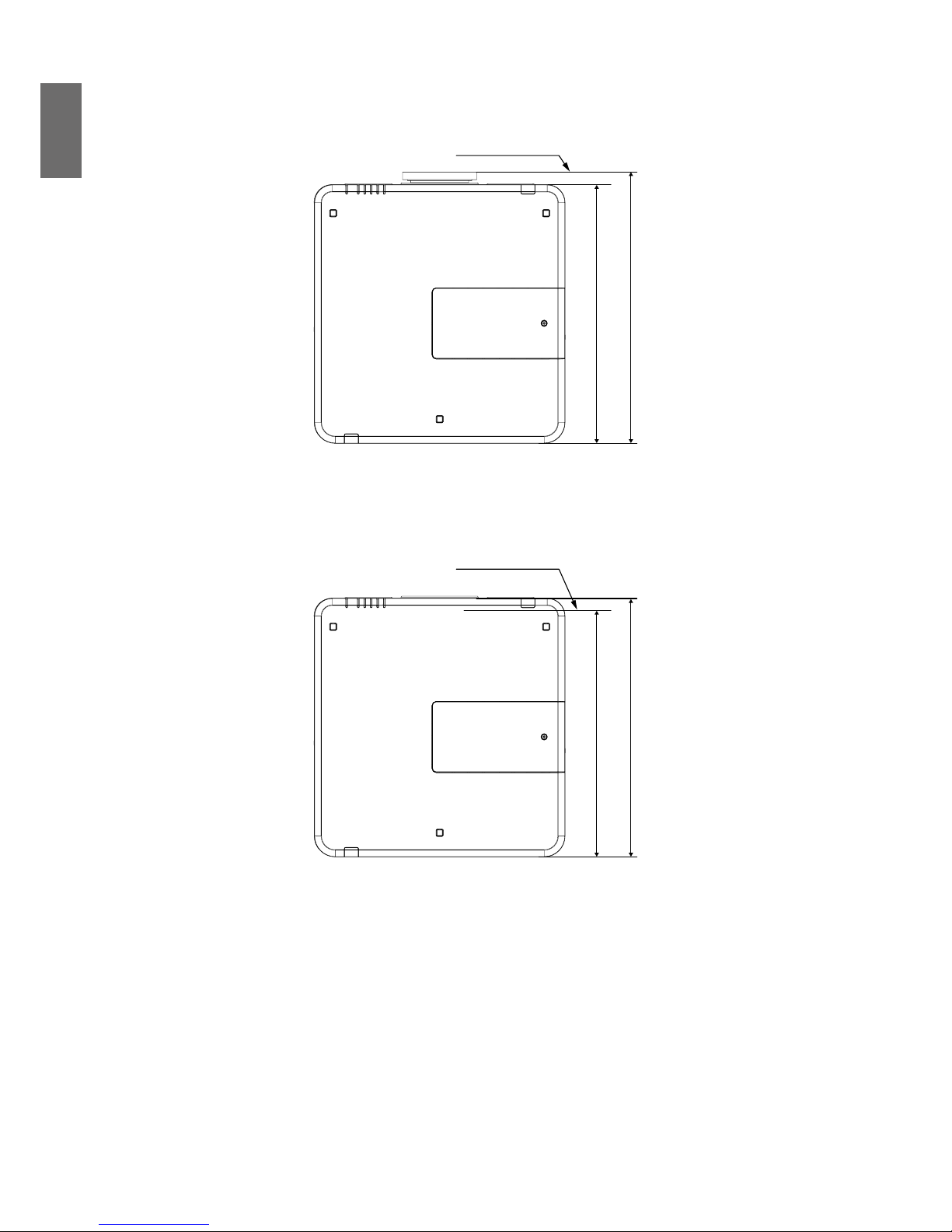

Projector dimension ............................................................................. 9

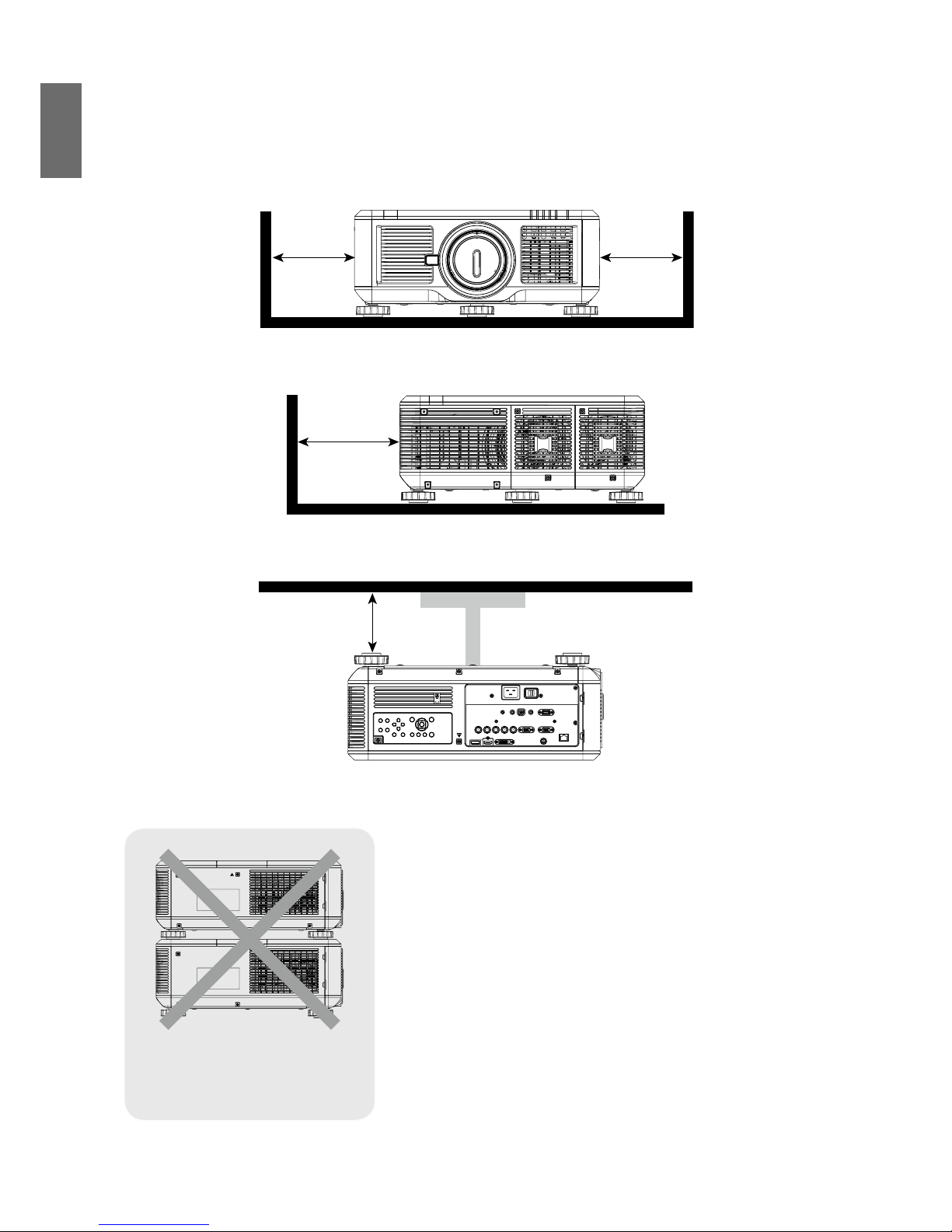

Clearance around the exhaust vent .................................................... 10
Lens dimension...................................................................................... 11
Ceiling mount dimension ..................................................................... 15
IO panel.................................................................................................. 16
RS232 command ................................................................................... 17

English
3
Product information
Type: DLP™ Technology
Dimensions (W x H x D): 510 x 230 x 540 mm
Weight: 21 kg (46.3 lbs)
Specications PX9710 PW9630 PU9730
DMD size 0.7” 0.65" 0.67”
Native resolution XGA (1024 x 768) WXGA (1280 x 800) WUXGA (1920 x 1200)
Aspect ratio 4:3 16:10 16:10
Brightness 7700 Lumens 6700 Lumens 7000 Lumens
Lamp Wattage 350W x2
Power consumption(Max) 880W
Lens information
Model
Name Lens Type BenQ Part Number Optical spec Screen Size
LS1ST3 Wide x 5J.JAM37.011 F=1.85, f=11.6mm 40”~500”
LS1ST2 Ultra wide 5J.JAM37.061 F=1.96-2.3 40”~500”
LS1ST1 Wide zoom 5J.JAM37.021 F=1.85~2.5, f=18.7~26.5mm 40”~500”
LS1SD Standard 5J.JAM37.001 F=1.64~1.86, f=26~34mm 40”~500”
LS1LT1 Semi Long 5J.JAM37.051 F=1.86~2.48, f=32.9~54.2mm 40”~500”
LS1LT2 Long zoom 1 5J.JAM37.031 F=1.86~2.41, f=52.8~79.1mm 40”~500”
LS1LT3 Long zoom 2 5J.JAM37.041 F=1.85~2.48, f=78.5~121.9mm 40”~500”
Notice (when edge blending)
• To avoid the image shaking or some pixels in the display may be misaligned, do not use the
projector in the following location:
• In a building close to a construction site.
• In a room where an air conditioner unit is working and it vibrates.
• In a place where the temperature changes dramatically that may cause thermal contraction.
• Before making any adjustment, leave the projector lit for at least 45 minutes after its lamp is
turned on. This allows the internal temperature of the projector to stabilize.

English
4
Product information
PX9710 Formulas:
Denitions:
W = Image Width
H = Image Height (size)
C = Throw distance
4:3 Screen Formulas:
W = H x 4/3
H = W x 3/4
Diagonal = W x 5/4
PX9710
Part Number 5J.JAM37.011 5J.JAM37.021 5J.JAM37.001 5J.JAM37.051
Throw Ratio
LS1ST3
(Wide Fix Lens)
LS1ST1
(Wide Zoom Lens)
LS1SD
(Standard Lens)
LS1LT1
(Semi Long Lens)
0.79 1.31~1.85 1.79~2.35 2.33~3.81
Diagonal Width Height (B) N/A Wide Tele Wide Tele Wide Tele
(inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m)
40 1.02 32 0.81 24 0.61 24.5 0.62 40.4 1.03 58.5 1.49 55.8 1.42 74.1 1.88 71.9 1.83 121.3 3.08
50 1.27 40 1.02 30 0.76 31.0 0.79 51.0 1.30 73.6 1.87 70.4 1.79 93.2 2.37 90.7 2.30 152.4 3.87
60 1.52 48 1.22 36 0.91 37.6 0.96 61.6 1.57 88.8 2.25 85.1 2.16 112.4 2.86 109.5 2.78 183.5 4.66
80 2.03 64 1.63 48 1.22 50.8 1.29 82.9 2.11 119.0 3.02 114.3 2.90 150.8 3.83 147.0 3.73 245.7 6.24
100 2.54 80 2.03 60 1.52 63.9 1.62 104.1 2.65 149.2 3.79 143.5 3.65 189.1 4.80 184.6 4.69 307.9 7.82
120 3.05 96 2.44 72 1.83 77.1 1.96 125.4 3.18 179.4 4.56 172.8 4.39 227.4 5.78 222.1 5.64 370.1 9.40
150 3.81 120 3.05 90 2.29 96.8 2.46 157.3 3.99 224.8 5.71 216.7 5.50 285.0 7.24 278.4 7.07 463.4 11.77
180 4.57 144 3.66 108 2.74 116.6 2.96 189.1 4.80 270.1 6.86 260.5 6.62 342.5 8.70 334.8 8.50 556.7 14.14
200 5.08 160 4.06 120 3.05 129.7 3.30 210.4 5.34 300.3 7.63 289.8 7.36 380.8 9.67 372.3 9.46 618.9 15.72
300 7.62 240 6.1 180 4.57 195.5 4.97 316.6 8.04 451.5 11.47 436.0 11.07 572.6 14.54 560.0 14.23 930.0 23.62
400 10.16 320 8.13 240 6.1 261.3 6.64 422.9 10.74 602.6 15.31 582.2 14.79 764.3 19.41 747.8 18.99 1241.0 31.52
500 12.70 400 10.16 300 7.62 327.1 8.31 529.1 13.44 753.7 19.14 728.5 18.50 956.1 24.28 935.5 23.76 1552.0 39.42
Part Number 5J.JAM37.031 5J.JAM37.041 5J.JAM37.061
Throw Ratio
LS1LT2
(Long Zoom 1 Lens)
LS1LT3
(Long Zoom 2 Lens)
LS1ST2
(Ultra Wide Lens)
3.71~5.57 5.5~8.56 0.77~0.97
Diagonal Width Height (B) Wide Tele Wide Tele Wide Tele
(inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m)
40 1.02 32 0.81 24 0.61 115.9 2.94 176.8 4.49 169.6 4.31 271.2 6.89 23.9 0.61 30.4 0.77
50 1.27 40 1.02 30 0.76 146.2 3.71 222.3 5.65 215.0 5.46 341.9 8.68 30.3 0.77 38.4 0.98
60 1.52 48 1.22 36 0.91 176.5 4.48 267.9 6.80 260.3 6.61 412.6 10.48 36.7 0.93 46.5 1.18
80 2.03 64 1.63 48 1.22 237.1 6.02 358.9 9.12 350.9 8.91 554.0 14.07 49.5 1.26 62.5 1.59
100 2.54 80 2.03 60 1.52 297.7 7.56 450.0 11.43 441.6 11.22 695.3 17.66 62.4 1.58 78.6 2.00
120 3.05 96 2.44 72 1.83 358.2 9.10 541.0 13.74 532.2 13.52 836.7 21.25 75.2 1.91 94.7 2.40
150 3.81 120 3.05 90 2.29 449.1 11.41 677.6 17.21 668.2 16.97 1048.8 26.64 94.4 2.40 118.8 3.02
180 4.57 144 3.66 108 2.74 540.0 13.72 814.2 20.68 804.1 20.42 1260.9 32.03 113.7 2.89 142.9 3.63
200 5.08 160 4.06 120 3.05 600.6 15.26 905.3 22.99 894.8 22.73 1402.2 35.62 126.5 3.21 158.9 4.04
300 7.62 240 6.1 180 4.57 903.6 22.95 1360.5 34.56 1348.0 34.24 2109.1 53.57 190.7 4.84 239.2 6.08
400 10.16 320 8.13 240 6.1 1206.6 30.65 1815.8 46.12 1801.2 45.75 2816.0 71.53 254.9 6.47 319.5 8.12
500 12.70 400 10.16 300 7.62 1509.5 38.34 2271.1 57.69 2254.3 57.26 3522.9 89.48 319.1 8.10 399.9 10.16

English
5
PW9620 Formulas:
Denitions:
W = Image Width
H = Image Height (size)
C = Throw distance
16:10 Screen Formulas:
W = H x 16/10
H = W x 10/16
Screen Diagonal = W x 18.868/16
PW9620
Part Number 5J.JAM37.011 5J.JAM37.021 5J.JAM37.001 5J.JAM37.051
Throw Ratio
LS1ST3
(Wide Fix Lens)
LS1ST1
(Wide Zoom Lens)
LS1SD
(Standard Lens)
LS1LT1
(Semi Long Lens)
0.8 1.31~1.87 1.81~2.38 2.33~3.86
Diagonal Width Height (B) N/A Wide Tele Wide Tele Wide Tele
(inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m)
40 1.02 34 0.86 21 0.54 26.4 0.67 43.6 1.11 63.1 1.60 60.2 1.53 79.8 2.03 77.6 1.97 130.5 3.31
50 1.27 42 1.08 26 0.67 33.5 0.85 55.0 1.40 79.3 2.01 75.9 1.93 100.4 2.55 97.8 2.48 163.9 4.16
60 1.52 51 1.29 32 0.81 40.5 1.03 66.4 1.69 95.5 2.43 91.7 2.33 121.0 3.07 117.9 3.00 197.3 5.01
80 2.03 68 1.72 42 1.08 54.7 1.39 89.3 2.27 128.0 3.25 123.1 3.13 162.3 4.12 158.3 4.02 264.1 6.71
100 2.54 85 2.15 53 1.35 68.8 1.75 112.1 2.85 160.5 4.08 154.5 3.93 203.5 5.17 198.7 5.05 330.9 8.41
120 3.05 102 2.58 64 1.62 82.9 2.11 135.0 3.43 193.0 4.90 186.0 4.72 244.7 6.22 239.0 6.07 397.7 10.10
150 3.81 127 3.23 79 2.02 104.1 2.64 169.2 4.30 241.7 6.14 233.1 5.92 306.5 7.79 299.6 7.61 498.0 12.65
180 4.57 153 3.88 95 2.42 125.3 3.18 203.5 5.17 290.4 7.38 280.3 7.12 368.4 9.36 360.1 9.15 598.2 15.19
200 5.08 170 4.31 106 2.69 139.4 3.54 226.4 5.75 322.9 8.20 311.7 7.92 409.6 10.40 400.5 10.17 665.0 16.89
300 7.62 254 6.46 159 4.04 210.0 5.33 340.6 8.65 485.3 12.33 468.9 11.91 615.7 15.64 602.3 15.30 999.0 25.38
400 10.16 339 8.62 212 5.38 280.6 7.13 454.8 11.55 647.7 16.45 626.1 15.90 821.9 20.88 804.1 20.42 1333.1 33.86
500 12.70 424 10.77 265 6.73 351.2 8.92 569.0 14.45 810.1 20.58 783.3 19.90 1028.0 26.11 1005.9 25.55 1667.1 42.35
Part Number 5J.JAM37.031 5J.JAM37.041 5J.JAM37.061
Throw Ratio
LS1LT2
(Long Zoom 1 Lens)
LS1LT3
(Long Zoom 2 Lens)
LS1ST2
(Ultra Wide Lens)
3.76~5.64 5.56~8.67 0.78~0.98
Diagonal Width Height (B) Wide Tele Wide Tele Wide Tele
(inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m)
40 1.02 34 0.86 21 0.54 124.9 3.17 190.3 4.83 183.3 4.65 292.2 7.42 25.8 0.65 32.8 0.83
50 1.27 42 1.08 26 0.67 157.5 4.00 239.2 6.08 232.0 5.89 368.1 9.35 32.7 0.83 41.4 1.05
60 1.52 51 1.29 32 0.81 190.1 4.83 288.1 7.32 280.7 7.13 444.0 11.28 39.6 1.00 50.0 1.27
80 2.03 68 1.72 42 1.08 255.2 6.48 385.9 9.80 378.1 9.60 595.9 15.13 53.3 1.35 67.3 1.71
100 2.54 85 2.15 53 1.35 320.3 8.14 483.7 12.29 475.6 12.08 747.7 18.99 67.1 1.70 84.5 2.15
120 3.05 102 2.58 64 1.62 385.5 9.79 581.5 14.77 573.0 14.55 899.6 22.85 80.9 2.05 101.8 2.59
150 3.81 127 3.23 79 2.02 483.2 12.27 728.2 18.50 719.1 18.27 1127.3 28.63 101.6 2.58 127.6 3.24
180 4.57 153 3.88 95 2.42 580.9 14.75 874.9 22.22 865.3 21.98 1355.1 34.42 122.2 3.10 153.5 3.90
200 5.08 170 4.31 106 2.69 646.0 16.41 972.7 24.71 962.7 24.45 1506.9 38.28 136.0 3.45 170.8 4.34
300 7.62 254 6.46 159 4.04 971.7 24.68 1461.8 37.13 1449.9 36.83 2266.2 57.56 204.9 5.20 257.0 6.53
400 10.16 339 8.62 212 5.38 1297.3 32.95 1950.8 49.55 1937.1 49.20 3025.4 76.85 273.8 6.95 343.2 8.72
500 12.70 424 10.77 265 6.73 1623.0 41.22 2439.8 61.97 2424.2 61.58 3784.7 96.13 342.7 8.70 429.4 10.91

English
6
PU9730 Formulas:
Denitions:
W = Image Width
H = Image Height (size)
C = Throw distance
16:10 Screen Formulas:
W = H x 16/10
H = W x 10/16
Screen Diagonal = W x 18.868/16
PU9730
Part Number 5J.JAM37.011 5J.JAM37.021 5J.JAM37.001 5J.JAM37.051
Throw Ratio
LS1ST3
(Wide Fix Lens)
LS1ST1
(Wide Zoom Lens)
LS1SD
(Standard Lens)
LS1LT1
(Semi Long Lens)
0.76 1.25~1.79 1.73~2.27 2.22~3.67
Diagonal Width Height (B) N/A Wide Tele Wide Tele Wide Tele
(inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m)
40 1.02 34 0.86 21 0.54 25.1 0.64 41.4 1.05 59.9 1.52 57.2 1.45 75.8 1.93 73.6 1.87 124.1 3.15
50 1.27 42 1.08 26 0.67 31.8 0.81 52.3 1.33 75.4 1.92 72.1 1.83 95.5 2.42 92.9 2.36 155.9 3.96
60 1.52 51 1.29 32 0.81 38.5 0.98 63.1 1.60 90.9 2.31 87.1 2.21 115.1 2.92 112.1 2.85 187.8 4.77
80 2.03 68 1.72 42 1.08 52.0 1.32 84.9 2.16 121.8 3.09 117.0 2.97 154.3 3.92 150.5 3.82 251.4 6.39
100 2.54 85 2.15 53 1.35 65.5 1.66 106.6 2.71 152.7 3.88 147.0 3.73 193.5 4.92 188.9 4.80 315.0 8.00
120 3.05 102 2.58 64 1.62 78.9 2.01 128.4 3.26 183.6 4.66 176.9 4.49 232.8 5.91 227.6 5.78 378.6 9.62
150 3.81 127 3.23 79 2.02 99.1 2.52 161.0 4.09 230.0 5.84 221.8 5.63 291.6 7.41 285.0 7.24 474.1 12.04
180 4.57 153 3.88 95 2.42 119.3 3.03 193.6 4.92 276.4 7.02 266.7 6.77 350.5 8.90 342.6 8.70 569.5 14.47
200 5.08 170 4.31 106 2.69 132.8 3.37 215.3 5.47 307.3 7.81 296.6 7.53 389.7 9.90 381.0 9.68 633.1 16.08
300 7.62 254 6.46 159 4.04 200.1 5.08 324.0 8.23 461.9 11.73 446.3 11.34 585.9 14.9 573.2 14.56 951.2 24.16
400 10.16 339 8.62 212 5.38 267.4 6.79 432.7 10.99 616.6 15.66 595.9 15.14 782.3 19.87 765.3 19.44 1269.7 32.25
500 12.70 424 10.77 265 6.73 334.8 8.50 541.5 13.75 771.2 19.59 745.6 18.94 978.3 24.85 957.4 24.32 1587.8 40.33
Part Number 5J.JAM37.031 5J.JAM37.041 5J.JAM37.061
Throw Ratio
LS1LT2
(Long Zoom 1 Lens)
LS1LT3
(Long Zoom 2 Lens)
LS1ST2
(Ultra Wide Lens)
3.58~5.38 5.31~8.26 0.75~0.93
Diagonal Width Height (B) Wide Tele Wide Tele Wide Tele
(inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m) (inch) (m)
40 1.02 34 0.86 21 0.54 118.7 3.01 181.0 4.60 173.9 4.42 277.7 7.05 24.5 0.62 31.1 0.79
50 1.27 42 1.08 26 0.67 149.7 3.80 227.6 5.78 220.2 5.59 350.0 8.89 31.1 0.79 39.2 1.00
60 1.52 51 1.29 32 0.81 180.7 4.59 274.1 6.96 266.6 6.77 422.3 10.73 37.6 0.96 47.4 1.20
80 2.03 68 1.72 42 1.08 242.7 6.16 367.3 9.33 359.4 9.13 567.0 14.40 50.8 1.29 63.8 1.62
100 2.54 85 2.15 53 1.35 304.3 7.73 460.4 11.70 452.1 11.48 711.6 18.07 63.9 1.62 80.2 2.04
120 3.05 102 2.58 64 1.62 366.7 9.31 553.6 14.06 544.9 13.84 856.2 21.75 77.1 1.96 96.6 2.45
150 3.81 127 3.23 79 2.02 459.4 11.67 693.3 17.61 684.0 17.37 1073.1 27.26 96.8 2.46 121.1 3.08
180 4.57 153 3.88 95 2.42 552.4 14.03 833.0 21.16 823.1 20.91 1290.1 32.77 116.5 2.96 145.7 3.70
200 5.08 170 4.31 106 2.69 614.7 15.6 926.4 23.53 915.9 23.26 1434.7 36.44 129.7 3.29 162.1 4.12
300 7.62 254 6.46 159 4.04 924.0 23.47 1392.1 35.36 1379.6 35.04 2157.8 54.81 195.4 4.96 244.0 6.20
400 10.16 339 8.62 212 5.38 1233.9 31.34 1857.9 47.19 1843.3 46.82 2880.9 73.18 261.2 6.63 325.9 8.28
500 12.70 424 10.77 265 6.73 1543.7 39.21 2323.6 59.02 2307.1 58.60 3604.0 91.54 326.9 8.30 407.7 10.36
Note:
• Ceiling installation must be done by a qualied professional. Contact your dealer for more information. It is not
recommended you install the projector yourself.
• Only use the projector on a solid, level surface. Serious injury and damage can occur if the projector is dropped.
• Do not use the projector in an environment where extreme temperature occurs. The projector must be used at
temperatures between 41 degrees Fahrenheit (5 degrees Celsius) and 104 degrees Fahrenheit (40 degrees Celsius).
• Screen damage will occur if the projector is exposed to moisture, dust or smoke.
• Do not cover the vents on the projector. Proper ventilation is required to dissipate heat. Damage to the projector
will occur if the vents are covered.

English
7
Lens shift range
Lens shift adjustable range
The adjustable range for lens shift is tabulated below and subject to the conditions listed.
Note:
The drawings below apply to the standard lens only.
Desk-Front Projection
Vertical Shift
Normal projection position
Max
0.5V
1V
1V
0.1H
Shift to Left Shift to Right
0.1H
Max
0.5V
Height of projected image
Height of projected image
Width of projected image
1H
Vertical Shift
Ceiling Mount-Front Projection
Ceiling Mount Installation
Screen Top
H
CX
0.1H
No Offset from Mount Pipe
X = Distance from lens to mount center
C = Distance from lens to screen
Only for Lenses:
LS1ST3: X = 257.9
LS1ST2: X = 287
LS1ST1: X = 264
LS1SD: X = 238.3
LS1LT1: X = 257.4
LS1LT2: X = 274.3
LS1LT3: X = 314.9
Shift Range
Screen Center

English
8
Desktop Installation
C
H
0.1H
Shift Range
Screen Center
Note:
• Lens Shift feature is not available to LS1ST3 (Fix Lens).This lens should be used for "zero degree"/"no-offset"
applications. See below:
C
117.4 Screen Center
FOR USE WITH LS1ST3 (FIX LENS) ONLY

English
9
Projector dimension
AIR INLET
AIR INLET
AIR EXHAUST
AIR EXHAUST
AIR EXHAUST
252.5 (10)
504.7 (19 7/8)
519.8 (20 1/2)
428.0 (16 7/8)
213.9 (8 3/8)
300.0 (11 13/16)
150.0 (5/7/8)
413.9
48.6 (1 7/8)
102.3 (4)
220.7 (8 11/16)
117.4 (4 5/8)
150.0 (5 7/8)
107.5 (4 1/4)
M4x12L

English
10
Clearance around the exhaust vent
For proper ventilation of the projector, make sure to leave some space around the projector as
shown in the illustration below:
50cm above 50cm above
70cm above
30cm above
Do not place another
projector on the top
of the projector.

English
11
Lens dimension
Optional Lens (Wide Fix: LS1ST3)
New Wide Fix Lens
515.9
520
Optional Lens (Wide Zoom: LS1ST1)
Wide Zoom Lens
520 522

English
12
Optional Lens (Ultra Wide: LS1ST2)
Ultra Wide Lens
520 545
Optional Lens (Standard: LS1SD)
Standard Lens
496.3
520

English
13
Optional Lens (Semi Long Throw: LS1LT1)
515.5
520
Semi Long Throw Lens
Optional Lens (Long Throw 1: LS1LT2)
520
532.3
Long 1 Lens

English
14
Optional Lens (Long Throw 2: LS1LT3)
Long 2 Lens
520
572.9

English
15
Ceiling mount dimension
324
324
12
12
12
35
12 12
150150
12
12
12
162 162
162 162
Ceiling Mount (Part Number: 5J.JCY10.001)
±20°
Note:
• Mark A: PW9500/PX9600
• Mark B: PU9730/PX9710/PW9620
• Mark C: PX9210/PU9220

English
16
IO panel
HDBaseT/LAN
3D SYNC OUT DVI-D
R/Pr G/Y B/Pb
COMPUTER-2
HV
HDMI DISPLAY PORT
COMPUTER-1
RS-232 TRIGGERUSB WIRED REMOTE
MONITOR-OUT
• HDBaseT/LAN
For connection to RJ45 Cat5/Cat6 Ethernet cable to input uncompressed high-denition video
(HD), control signals.
• 3D Sync Out
Connection to 3D IR sync signal transmitter.
• DVI-D
Connection to DVI source.
• HDMI
Connection to HDMI source.
• DisplayPort
Connection to device or PC featuring DisplayPort.
• Copmuter-1
15-pin VGA port for connection to RGB, component HD source, or PC.
• Monitor Out
Connection to other display equipment for concurrent playback display.
• Computer-2 (R/Pr, G/Y, B/Pb, H,V)
Connection to RGB or YPbPr/YCbCr output signal with BNC type input terminal.
• RS-232
Standard 9-pin D-sub interface for connection to PC control system and projector maintenance.
• TRIGGER
3.5mm mini earphone jack, employs 350mA display relay to provide 12(+/-1.5)V output and
short circuit protection.
• USB
Maintenance exclusive port for authorized maintenance personnel only.
• Wired Remote
Connection to input Niles or Xantech compatible IR repeater system.
Caution:
Make sure the port is valid before inserting a wired remote controller. The remote controller may be damaged in
case of an invalid port, e.g. a wired remote controller is connected to trigger output.

English
17
RS232 command
RS232 pin assignment
No. Serial No. Serial
1 N.C 6 N.C
2 RXD 7 Short with pin8
3 TXD 8 Short with pin7
4 N.C 9 N.C
5 Ground
Function Type Description ASCII
Power
Write Power On <CR>*pow=on#<CR>
Write Power off <CR>*pow=off#<CR>
Read Power Status <CR>*pow=?#<CR>
Source
Selection
Write COMPUTER/YPbPr <CR>*sour=RGB#<CR>
Write COMPUTER 2/YPbPr2 <CR>*sour=RGB2#<CR>
Write DVI-D <CR>*sour=dvid#<CR>
Write HDMI <CR>*sour=hdmi#<CR>
Write DisplayPort <CR>*sour=dp#<CR>
Write HDBaseT <CR>*sour=hdbaset#<CR>
Read Current source <CR>*sour=?#<CR>
Setting
Write Dynamic
<CR>*appmod=dynamic#<CR>
Write Presentation <CR>*appmod=preset#<CR>
Write Cinema <CR>*appmod=cine#<CR>
Read Picture Mode <CR>*appmod=?#<CR>
Write Contrast + <CR>*con=+#<CR>
Write Contrast - <CR>*con=-#<CR>
12345
6789

English
18
Function Type Description ASCII
Setting
Read Contrast value <CR>*con=?#<CR>
Write Brightness + <CR>*bri=+#<CR>
Write Brightness - <CR>*bri=-#<CR>
Read Brightness value <CR>*bri=?#<CR>
Write Color + <CR>*color=+#<CR>
Write Color - <CR>*color=-#<CR>
Read Color value <CR>*color=?#<CR>
Write Sharpness + <CR>*sharp=+#<CR>
Write Sharpness - <CR>*sharp=-#<CR>
Read Sharpness value <CR>*sharp=?#<CR>
Write Color Temperature-Warm <CR>*ct=warm#<CR>
Write Color Temperature-Normal <CR>*ct=normal#<CR>
Write Color Temperature-Cool <CR>*ct=cool#<CR>
Write Color Temperature-lamp native <CR>*ct=native#<CR>
Read Color Temperature Status <CR>*ct=?#<CR>
Write Aspect 4:3 <CR>*asp=4:3#<CR>
Write Aspect 16:9 <CR>*asp=16:9#<CR>
Write Aspect 16:10 <CR>*asp=16:10#<CR>
Write Aspect Auto <CR>*asp=AUTO#<CR>
Write Aspect Real <CR>*asp=REAL#<CR>
Setting
Write Aspect Letterbox <CR>*asp=LBOX#<CR>
Write Aspect 5:4 <CR>*asp=5:4#<CR>
Write Aspect 1.88 <CR>*asp=1.88:1#<CR>
Write Aspect 2.35 <CR>*asp=2.35:1#<CR>
Read Aspect Status <CR>*asp=?#<CR>
Write Digital Zoom In <CR>*zoomI#<CR>
Write Digital Zoom out <CR>*zoomO#<CR>
Write Auto <CR>*auto#<CR>

English
19
Function Type Description ASCII
Operation
Settings
Write Projector Position-Front Table <CR>*pp=FT#<CR>
Write Projector Position-Rear Table <CR>*pp=RE#<CR>
Write Projector Position-Rear Ceiling <CR>*pp=RC#<CR>
Write Projector Position-Front Ceiling <CR>*pp=FC#<CR>
Write Projector Position-up Front <CR>*pp=UF#<CR>
Write Projector Position-down Front <CR>*pp=DF#<CR>
Read Projector Position Status <CR>*pp=?#<CR>
Write Quick auto search on <CR>*QAS=on#<CR>
Write Quick auto search off <CR>*QAS=off#<CR>
Read Quick auto search status <CR>*QAS=?#<CR>
Write Direct Power On-on <CR>*directpower=on#<CR>
Write Direct Power On-off <CR>*directpower=off#<CR>
Operation
Settings
Read Direct Power On-Status <CR>*directpower=?#<CR>
Write Standby Settings-Standard
<CR>*standbynet=standard#<CR>
Write Standby Settings-Eco <CR>*standbynet=eco#<CR>
Write Standby Settings-Network
<CR>*standbynet=network#<CR>
Write 2400 <CR>*baud=2400#<CR>
Write 4800 <CR>*baud=4800#<CR>
Write 9600 <CR>*baud=9600#<CR>
Write 14400 <CR>*baud=14400#<CR>
Write 19200 <CR>*baud=19200#<CR>
Write 38400 <CR>*baud=38400#<CR>
Write 57600 <CR>*baud=57600#<CR>
Write 115200 <CR>*baud=115200#<CR>
Read Current Baud Rate <CR>*baud=?#<CR>
Lamp
Control
Read Lamp Hour <CR>*ltim=?#<CR>
Read Lamp2 Hour <CR>*ltim2=?#<CR>
Write Lamp hour reset <CR>*ltim=reset#<CR>
Write Lamp2 hour reset <CR>*ltim2=reset#<CR>
Write Normal mode <CR>*lampm=lnor#<CR>
Write Eco mode <CR>*lampm=eco#<CR>
Write Dual lamp <CR>*lammd=dual#<CR>
Write number 1 lamp <CR>*lammd=num1l#<CR>
Lamp
Control
Write number 2 lamp <CR>*lammd=num2#<CR>
Write Single lamp (minimum) <CR>*lammd=single#<CR>
Read Current Lamp status <CR>*lammd=?#<CR>
Read Lamp Mode Status <CR>*lampm=?#<CR>

English
20
Function Type Description ASCII
Miscellaneous
Read Model Name <CR>*modelname=?#<CR>
Write Blank On <CR>*blank=on#<CR>
Write Blank Off <CR>*blank=off#<CR>
Read Blank Status <CR>*blank=?#<CR>
Write Freeze On <CR>*freeze=on#<CR>
Write Freeze Off <CR>*freeze=off#<CR>
Read Freeze Status <CR>*freeze=?#<CR>
Write Menu On <CR>*menu=on#<CR>
Write Menu Off <CR>*menu=off#<CR>
Read Menu Status <CR>*menu=?#<CR>
Write Up <CR>*up#<CR>
Write Down <CR>*down#<CR>
Write Right <CR>*right#<CR>
Write Left <CR>*left#<CR>
Write Enter <CR>*enter#<CR>
Write 3D Sync Off <CR>*3d=off#<CR>
Write 3D Auto <CR>*3d=auto#<CR>
Write 3D Sync Top Bottom <CR>*3d=tb#<CR>
Write 3D Sync Frame Sequential <CR>*3d=fs#<CR>
