Berkel 808 User manual

No. Description Part Number
1 screw 2175-00382
2 stop clip 3475-00792
3 nut 2175-00387
4 washer 2275-03050
5 inside stone (deburring) 3675-00075
6 outside stone (sharpening) 3675-00076
7 nut (LH) 2175-00388
8 spindle bearing 3375-01123
9 ball 2375-00150
10 outside spindle (sharpening) 3375-01119
11 inside spindle ( deburring) 3375-01118
12 adjusting plate 3475-00789
13 washer 2275-03040
14 screw 2175-00384
15 groove pin 2275-01122
16 link screw 3375-01121
17 handle w/ decal 4575-00832
18 knob (lockdown nut) 3375-01101
19 cover only 3701-03338
20 groove pin 2275-00220
21 retaining ring 2275-00445
22 sharpener frame 3675-00236
23 nut 2175-00386
24 bolt 2175-00385
25 screw 2101-04035
26 spring 3275-00210
27 spring 3275-00212
28 spindle 3375-01120
29 lever assy. w/ spring 4375-00200
30 link 3475-00791
31 screw (need 2) 2175-00397
32 bracket 3401-03805
33 retaining ring 2275-00444
34 washer 2275-00451
35 washer (rubber) 3275-00042
36 washer 2275-00451
38 retaining ring 2275-00443
39 washer 2275-00441
40 screw 2175-00382
N/S spring (for lever assy.) 3275-00211
N/S sharpener maint. kit 4975-00375

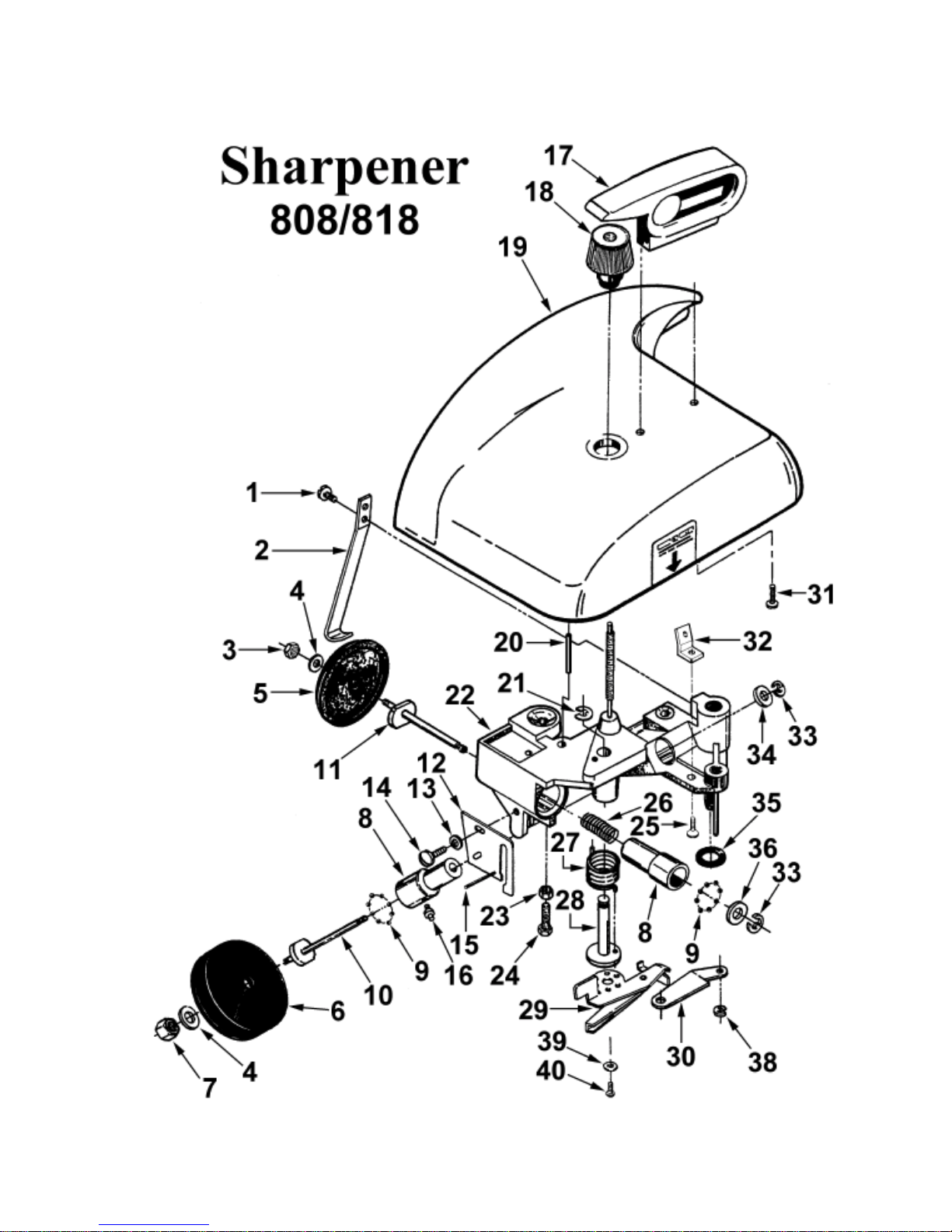

SharpenerAssembly

Item Description Part Number Item Description Part Number
1 sharpener assy (comp) 4675-00164 39 foot post hook 3275-00059
2 screw 5/16 X 7/8 2175-03063 40 shoe 3675-00061
3 washer 5/16 2275-03065 41 spacer plug 3875-00024
4 knife box 3775-00145 42 shim .008 3275-00031
5 housing 3775-00131 43 bolt 2175-00239
6 belt 2375-00015 44 knob 2275-00056
7 pullely & brg assy 4375-00114 screw 2175-03452
8 ft head screw #10 X 3/8 2175-03641 45 pusher assy. (complete) 4675-00662
9 upper hinge 3475-00156 46 shaft 3375-00242
10 pin 2275-01122 47 gauge plate 4575-00100
11 pin 2275-03140 48 gauge plate support 3775-00147
12 knife, stainless steel 3675-00070 49 screw 5/16 X 1" 2175-03764
knife, carbon steel 3675-00074 50 hole cover (small) 3675-00072
13 mounting angle 4575-00289 51 knob 2275-00221
14 cover ring 3875-00025 52 juice deflector 4575-00281
15 screw 1/4 X 5/8 2175-03452 53 knife scraper 3875-00057
16 cover 4575-00795 54 bushing 2275-00045
17 set screw 2175-07152 55 compression spring 3275-00029
18 plate 3475-00176 56 lock pin 3875-00022
19 pin 3375-00291 57 washer (rubber) 3275-00042
20 lower hinge 3475-00363 58 washer 1/4 2275-03050
21 screw #10 X 3/8 2175-03441 59 cap nut 1/4 2175-07052
22 knob 3375-00310 60 plug 3375-00309
23 snap ring 2275-00064 61 sckt screw 5/16 X 1-1/4 2175-01765
24 center plate 3475-00374 62 spring wahser 3275-00043
knife guard kit 4975-00332 63 knob 2275-00043
25 shim .003 3275-00030 64 spacer 3375-00244
26 shim .024 3275-00040 65 wearing pad 3875-00123
27 fl hd screw 7/16 X 3/4 2175-00088 66 bolt 3/8 X 1/2 2175-03277
28washer 3375-00107 67bracket 4675-01020
29 stud 3375-00293 68 knob 2275-00063
stud for guard kit 3375-01061 69 support arm 4975-00371
30 washer .062 3275-00041 70 hook (r.h.) 3475-00163
31 washer .003 3275-00054 71 screw 3375-00333
32 washer .025 3275-00056 72 hook (l.h.) 3475-00164
33 washer 1/4 2275-03050 73 knob 2275-00042
34 nut 1/4 2175-05051 74 spacer 3/8 X 2 3375-00243
35 washer .0075 NLA 75 product table 4575-00847
36 hole cover (large) 3675-00071 76 set screw 10/32 X 3/8 2175-05143
37 slice deflector 3875-00138 77 pin 3375-00311
38 shoe post 808 4575-00208 78 plug 3475-00080
shoe post 818 4575-00117 79 product table assy. 4675-00915
N/S 4" 808 shoe post 4575-00307 N/S 4" 808 shoe post set of 4 4975-00024
N/S 4" 818 shoe post 4575-00178 N/S 4" 818 shoe post set of 4 4975-00025

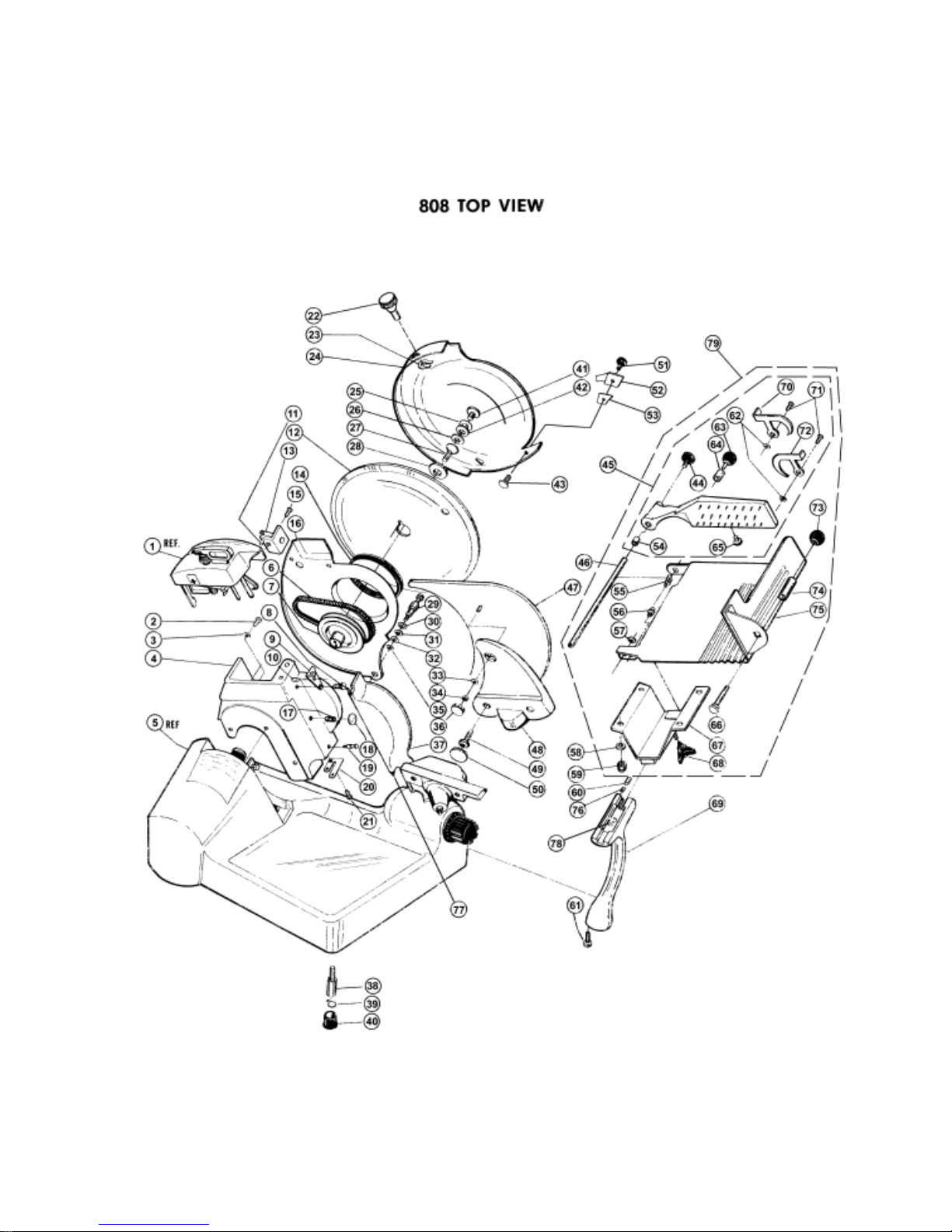

Top View

No. Description Part Number No. Description Part Number
1 screw 3/8 x 1 1/4 2175-01775 41 plastic bushing 7/8 2275-00053
2 worm wheel assemply 4975-09280 42 screw 5/16x7/8 2175-03063
3 knob index kit (3 & 5) 4975-09506 43 washer 5/16 2275-01061
index knob 3875-00151 44 screw5/16x1/2 2175-01862
4 nut 1/2 2175-00121 45 lock washer 5/16 2275-03065
5 plug 1 1/4 2275-00414 46 nut 5/16 2175-05060
6 cover switch 3875-00137 47 rail, square 3375-00305
7 self tapping screw #8x3/8 2175-00105 48 cap screw 5/16x1 1/4 2175-01065
8 grommet, cord 2675-00032 49 power cord 4175-00031
9 cord, switch to motor 4175-00032 50 self tapping screw 2175-00105
10 set screw #10-3/16 2175-00095 51 cleaning rod 3375-01015
11 washer 5/16 2275-01061 52 washer 5/16 2275-03050
12 screw5/16x1/2 2175-01060 53 screw 1/4x1 1/4 2175-03858
13 seal switch 2275-00060 54 oil wick 3275-00035
14 switch guard 2675-00647 55 bracket 3375-00304
rivets 2275-00425 56 spacer 3375-00131
15 pilot light 2675-00053 57 set screw (FP#10) 2175-00106
16 slide rod plate 3475-00162 58 nut (LK#10) 2175-00107
17 guage plate support 4675-00821 59 bushing 2275-00058
18 screw1/4x1 2175-00097 60 bearing (assembled) 4375-00031
19 base guage plate 3775-00146 61 washer 2275-00091
20 plate 3375-00298 62 screw 3375-00249
21 worm assembly 4675-00336 63 carriagecover 3475-00169
22 lock washer (intern. Tooth 1/2) 2275-01087 64 oil cup 2475-00003
23 toggle switch, 1/2 H.P. 115V 2675-00617 65 logo/name plate 3175-00152
24 motor clamp 2275-00087 66 housing 3775-00131
25 motor kit 4975-00389 67 snap ring 2275-00092
26 washer, flat 2275-03050 68 washer 3275-00047
27 screw, 1/4x1 1/4 2175-01054 69 screw#10x1/2 2175-03442
28 washer, rubber 3275-00045 70 rail 7/8 3375-00091
29 motor clamp 3275-00039 71 extension spring 3275-00061
30 screw, 5/16x1 2175-03064 72 carriage hook 3275-00060
31 motor mount 4575-00744 73 screw5/16x1/2 2175-01060
32 motor pivot assy. 4575-00097 74 plug 3375-00336
33 socket screw 5/16x1/2 2175-01760 75 setscrew 2175-00381
34 slide rod 3375-00296 76 flat head screw (5/16x1 1/4) 2175-01665
35 shim 3275-00044 77 nut 5/16 2175-05060
36 rail bumper 3275-00046 78 cord clamp 3675-00224
37 set screw 2175-05152 79 self tapping screw 2175-00105
38 pully 2375-00025 80 setscrew 2175-05155
n/s motor pulley 1/2 I.D. 3375-01200 81 name plate 3175-00152
39 strain relief bushing 2675-00562 82 cord clamp 2275-00149
40 carriage assembly 4675-00473 83 setscrew5/16x1/2 2175-05163
84 roller adjusting block 3375-00306

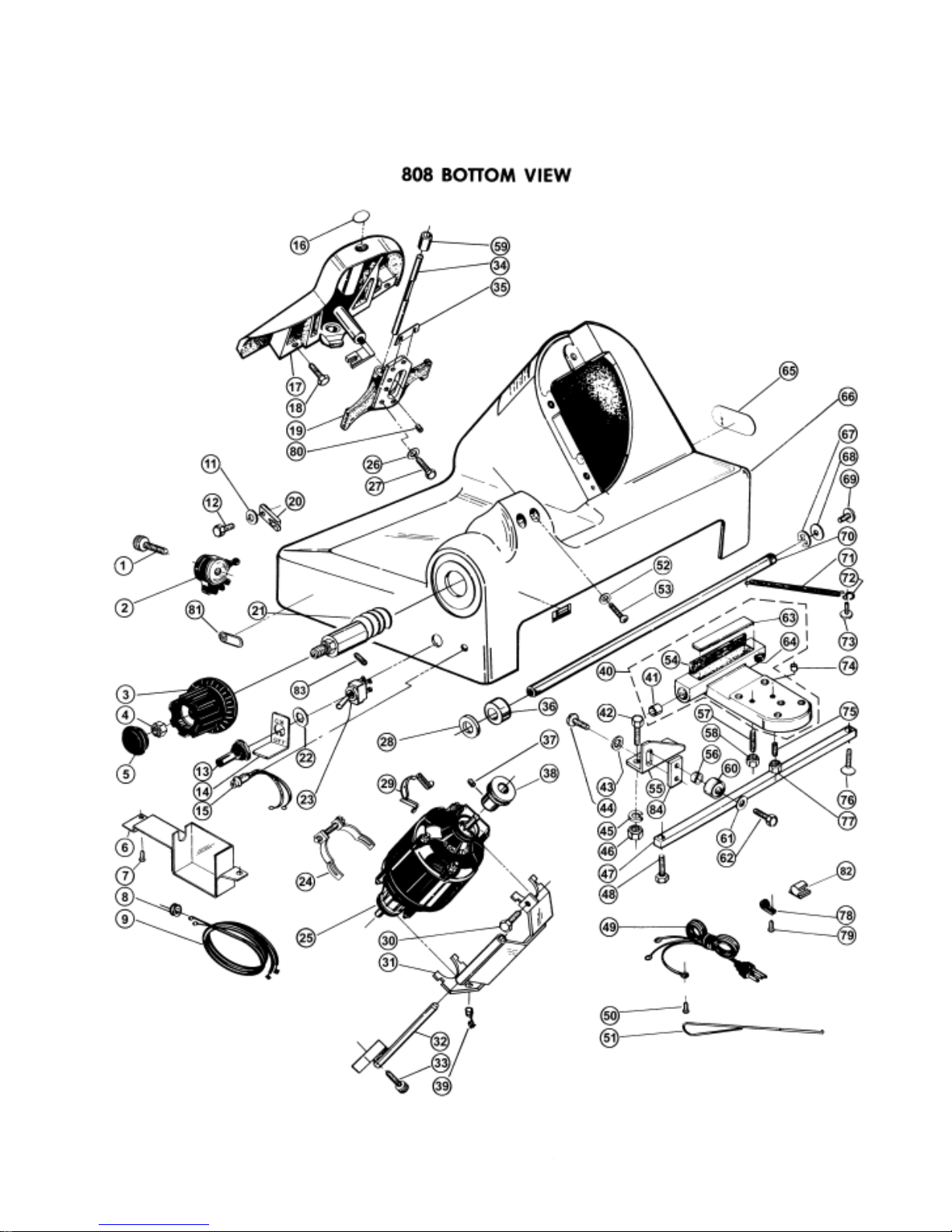

Bottom View

No. Description Part Number No. Description Part Number
1 belt - automatic 4975-00335 27 rod & brg assy, short stroke4375-00069
round belt 2375-00133 28 hi-low plate 3175-00056
o/s motor pulley 5/8 I.D. 3375-01062 29 plate & shaft 4575-00075
n/s motor pulley 1/2 I.D. 3375-01083 30 bolt 5/16x1 1/4 2175-01264
2 belt - power drive 2375-00017 31 bolt 5/16x3/4 2175-03062
3 screw1/4-28x5/8 2175-00180 32 spacer 3375-00220
4 shift lever assy. Comp. 4575-00314 33 drive arm assy. 4375-00041
5 1/2 knob 3875-00026 34 screw5/16x7/8 2175-01863
knob pin 2275-00051 35 rod & brg assy (carriage) 4675-00840
7bracket 3575-00063 36washer 2275-00028
8 lock washer 5/16 2275-03065 37 control rod 3375-00227
9 nut 5/16 2175-05060 38 screw 5/16-18x1 1/4 2175-01065
10bolt 5/16x2 2175-01267 39idler pulley 4375-00137
11 pulley & brackit assy. 4675-00466 40 tee nut (idler) 3375-00342
12bracket 3475-00324 41set screw 5/16x1 1/2 2175-05169
13 detent plate 3475-00782 42 pulley 3775-00236
14 spacer 3375-00223 43 set screw 1/4x1/4 2175-05151
15 washer 5/16 2275-01060 44 spacer, used w/solid pulley NLA
16 washer, plastic, 1/2 hole 3275-00018 45 screw 5/16x1 1/4 2175-01065
17 screw5/16x1/2 2175-03061 46 woodruff key 3275-00006
18 washer, plastic, 7/8 hole 3275-00032 47 gear box assy. 4375-00015
19 spring washer 7/16 3275-00025 48 rod & brg assy, long stroke 4375-00070
20 spacer 3375-00229 49 shield 3475-00783
21 nut #10 2175-05040 50 speed nut 2275-00123
22 spacer control rod (long) 3375-00438 51 screw 2175-03442
23 compression spring 3275-00084 52 spring, plunger 2375-00030
24 *plastic shim, .010 3275-00128 53 nut 5/16 2175-05071
25 arm, engagement 4375-00193 54 washer, flat 5/16 2275-00028
26 strain relief bushing 2675-00562 55 spacer, control rod (short) 3375-00438
*as required 56 bolt 5/16 X 3 1/2 2175-01270

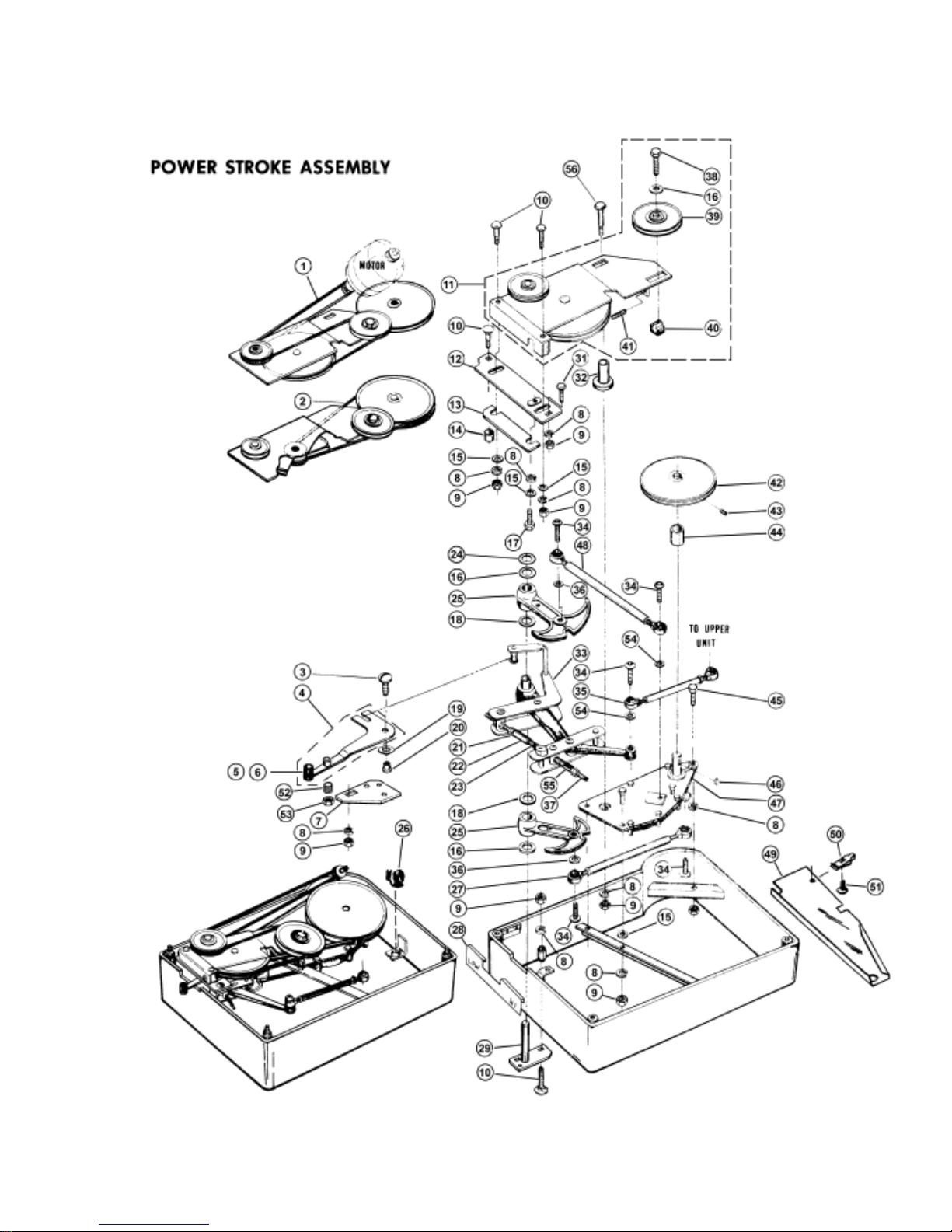

Power Stroke
